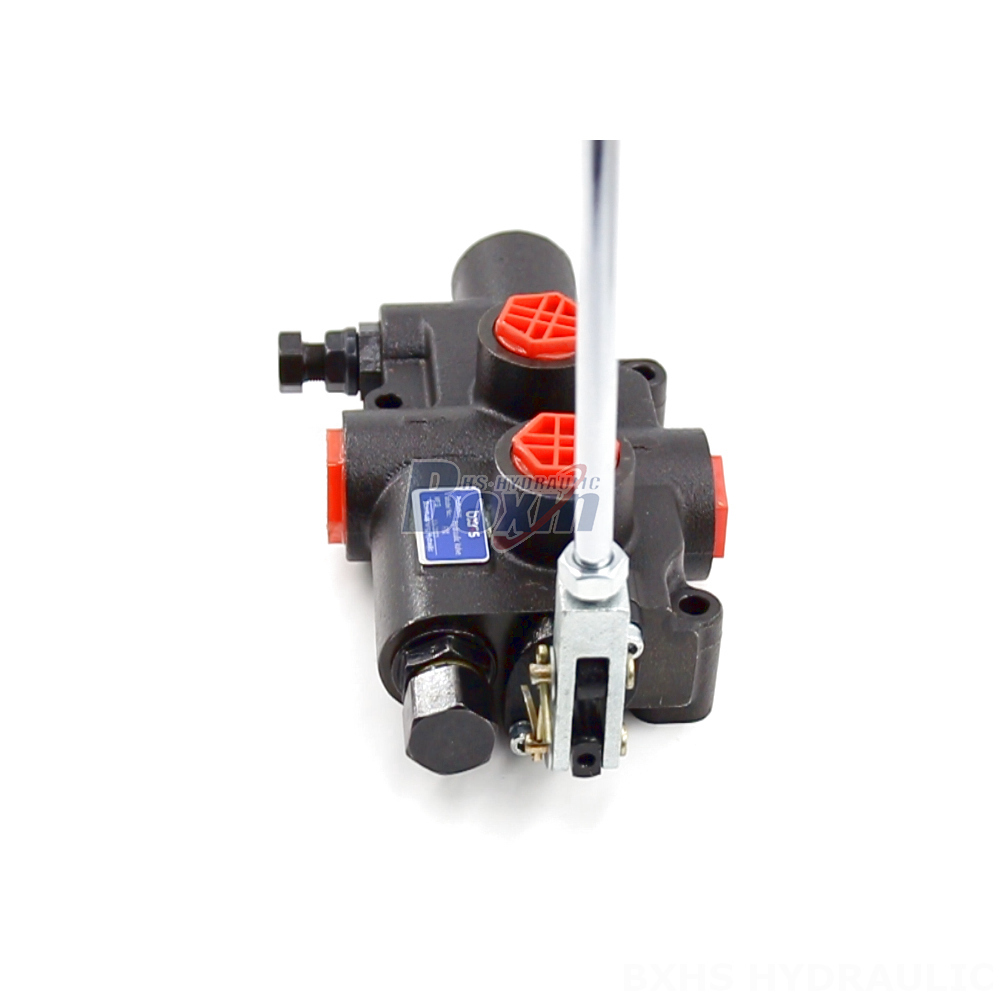

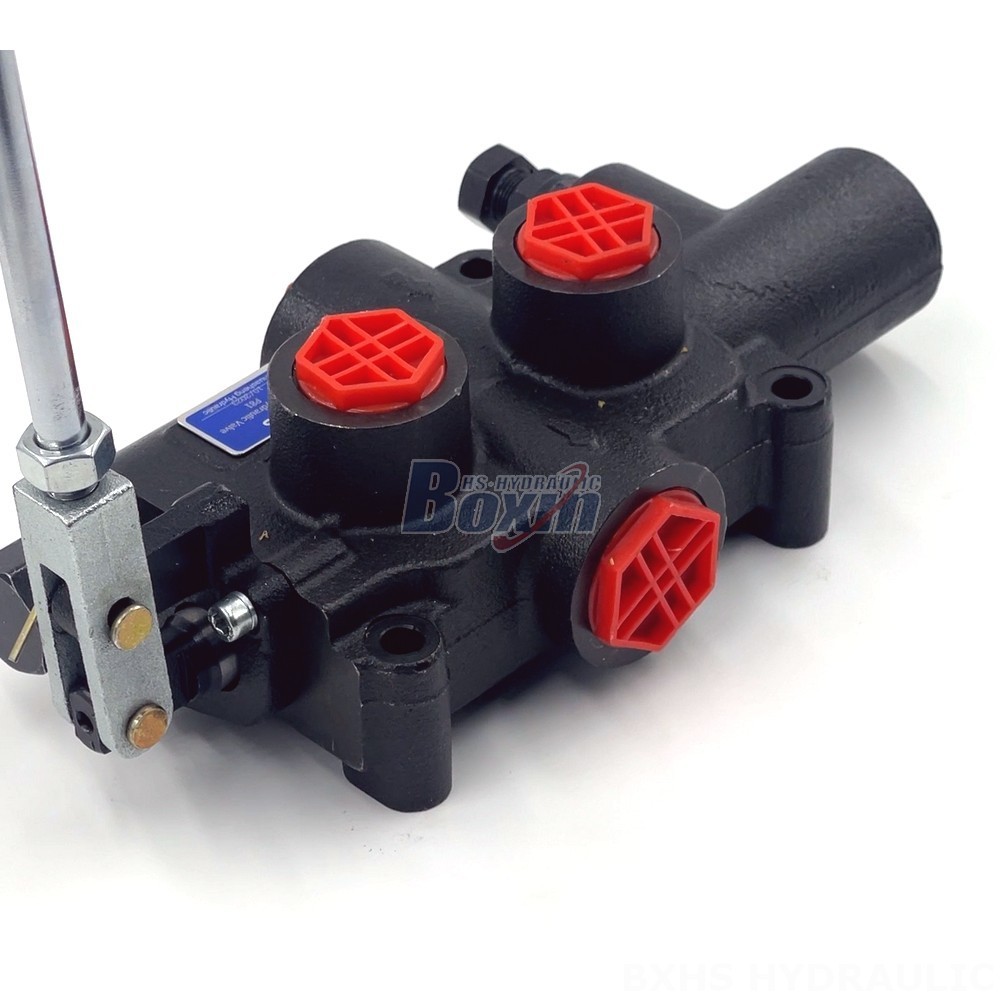

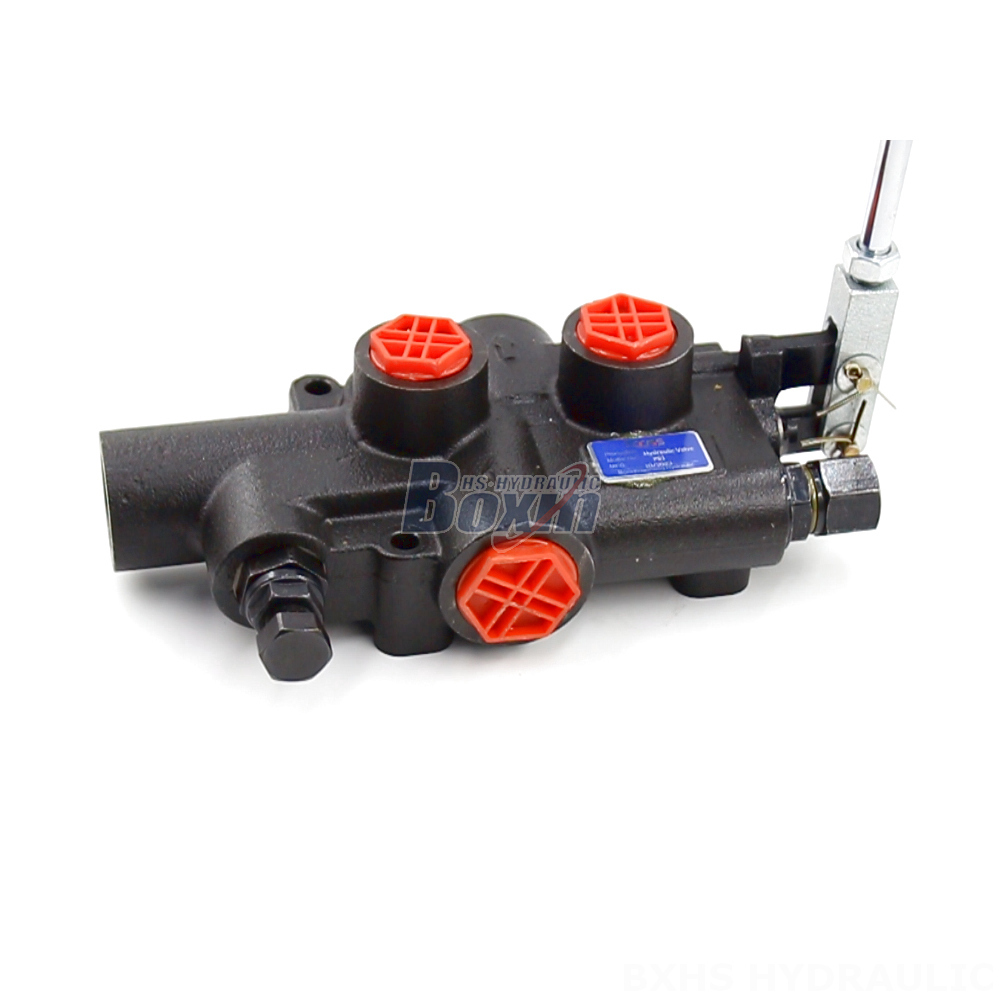

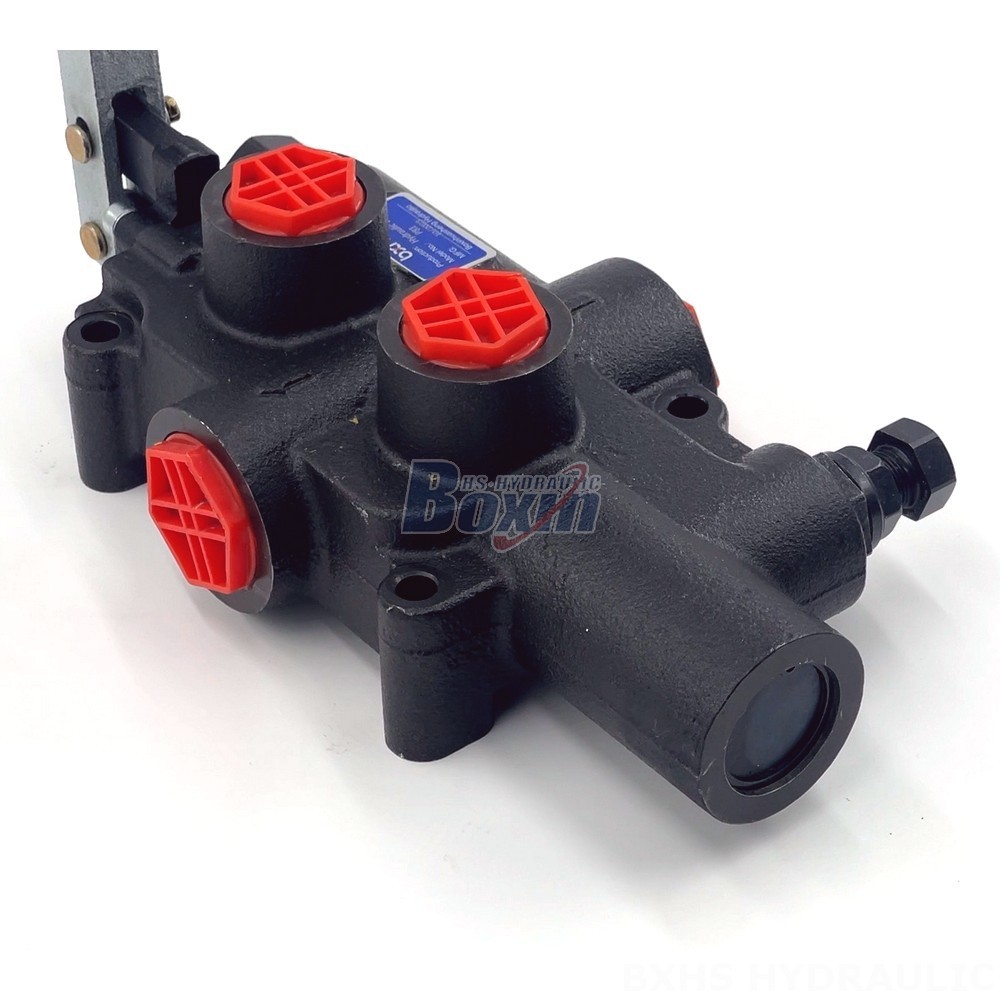

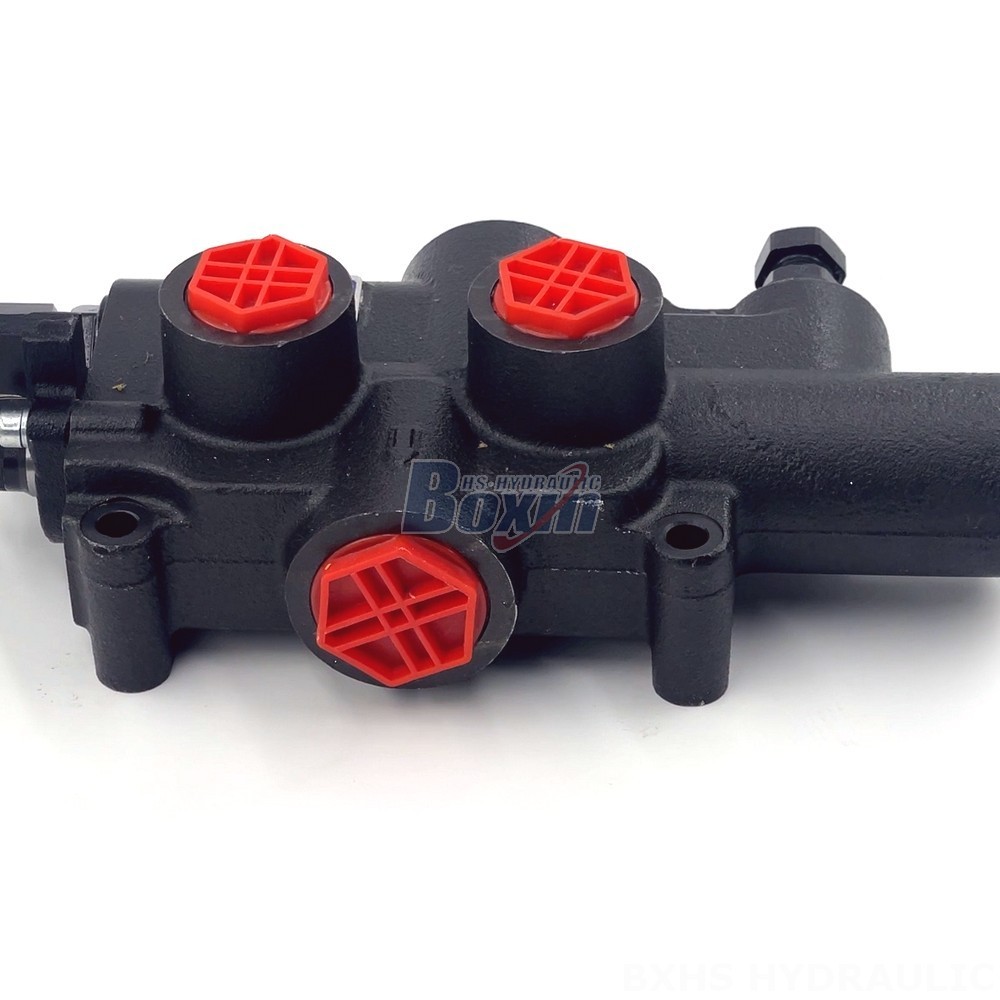

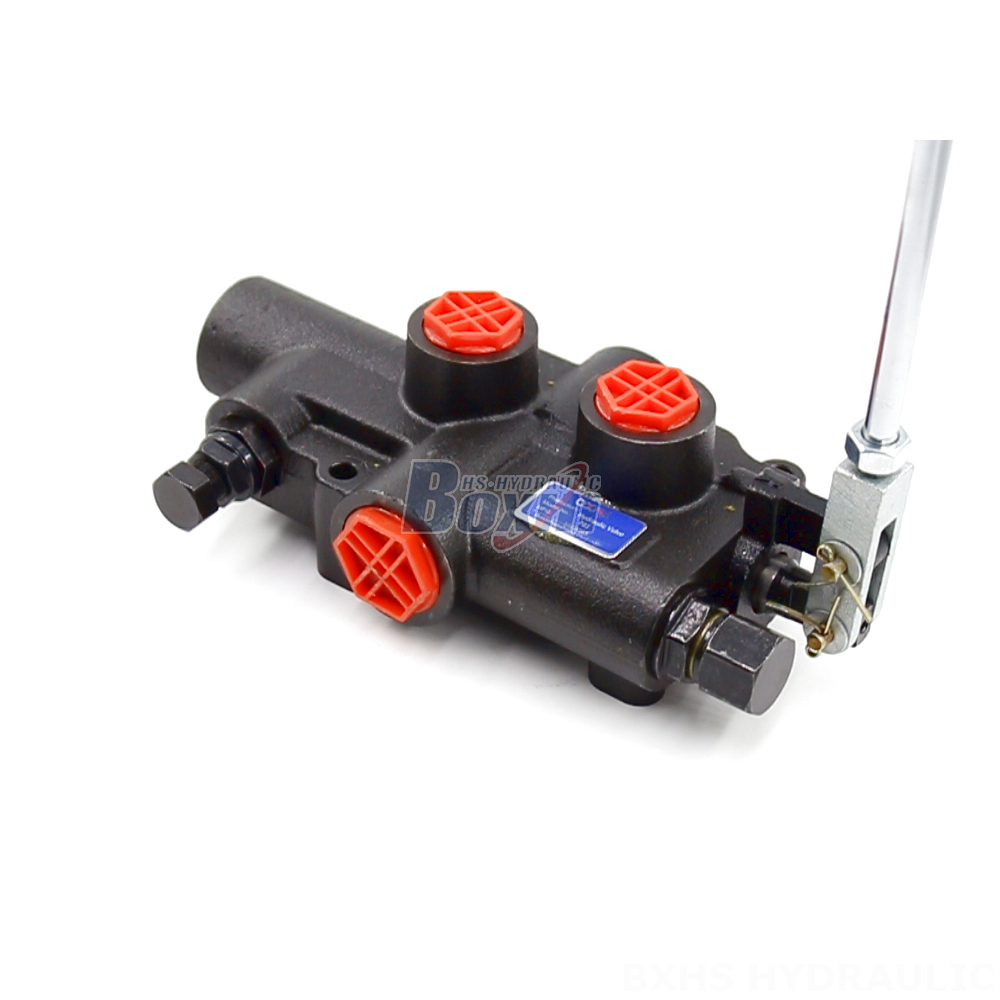

The P81 Series Hydraulic Control Valve is a high-performance, manual joystick-controlled valve designed specifically for log splitter applications. It features a monoblock construction for durability, high flow rate (80 L/min), and high pressure rating (250 bar), making it suitable for demanding industrial applications.
| Seria P81 Zawór do łuparki do drewna Parametry | |
|---|---|
| Metoda sterowania | Ręczna |
| Szpula | 1-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 80 l/min (21,2 USGPM), 95 l/min (25,1 USGPM) |
| Maksymalne ciśnienie | Ciśnienie 19 MPa |
| Port wlotowy | G1/2 |
| Port wylotowy | G1/2 |
| Rozmiar portu | G3/4 |
The P81 Series Hydraulic Control Valve is a robust and reliable solution for controlling hydraulic log splitters. It is a single-section, monoblock valve with a single spool and manual joystick control. The valve offers a high flow rate of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi). Its kick-out setting pressure is adjustable between 70 and 140 bar (1015-2030 psi) for precise operation. The valve is designed for demanding industrial applications and operates reliably within a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F). It is compatible with a wide range of hydraulic fluids with operating viscosity ranging from 15 to 75 mm²/s (15 cSt to 75 cSt). The P81 Series Hydraulic Control Valve is a high-quality, durable, and easy-to-operate solution that provides reliable control for log splitting operations.
