Partnership Opportunities: P40-S Hydraulic Valve Manufacturing & Distribution

Metoda sterowania:Elektromagnes

Szpula:4-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:35*23*15

Waga brutto:12.70 kg

Dostępność: W magazynie

564 Osoby oglądają ten produkt

Partnership Opportunities: P40-S Hydraulic Valve Manufacturing & Distribution

Partnership Opportunities: P40-S Hydraulic Valve Manufacturing & Distribution

Partnership Opportunities: P40-S Hydraulic Valve Manufacturing & Distribution drawing image

High-performance P40-S 4-section monoblock solenoid hydraulic valve, rated at 40 L/min and 250 bar, ideal for material handling, construction, agriculture, and industrial vehicles. We offer manufacturing, OEM, private label, custom design, and wholesale opportunities. Seeking distributors, wholesalers, agents, and trading companies globally.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

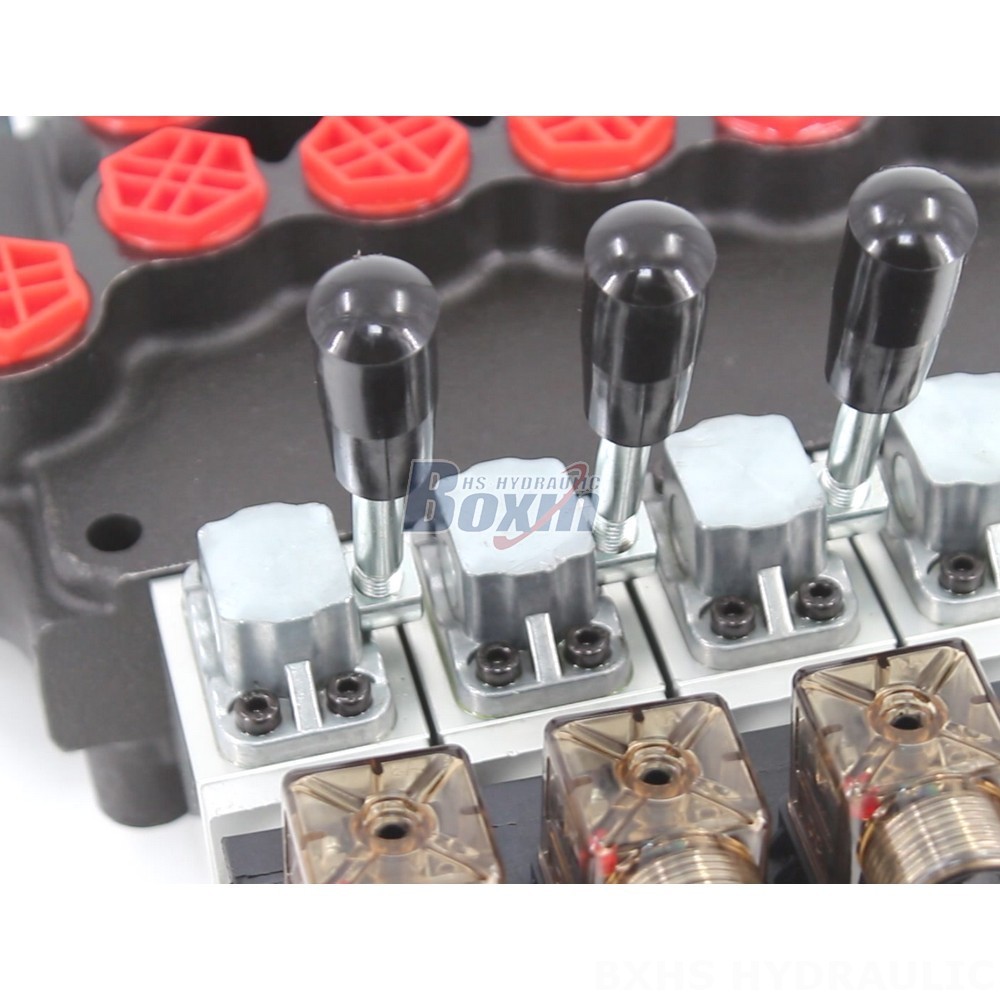

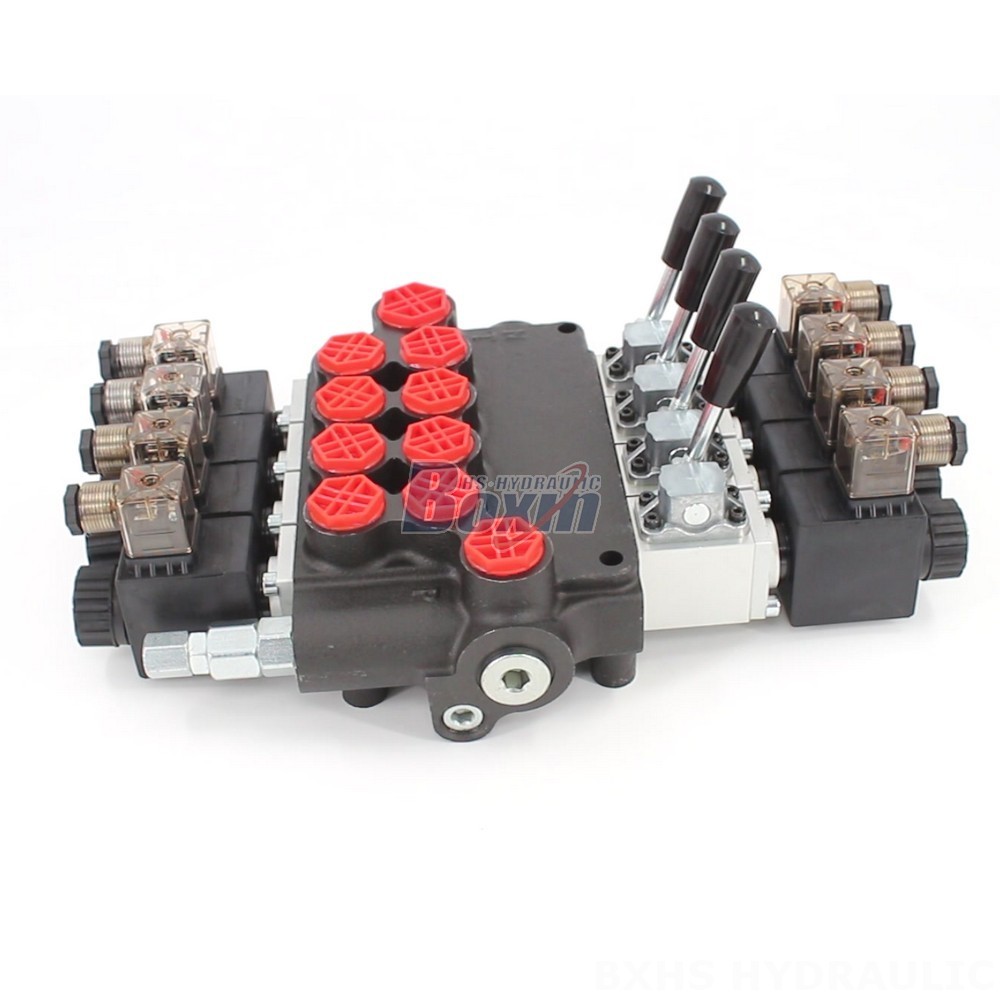

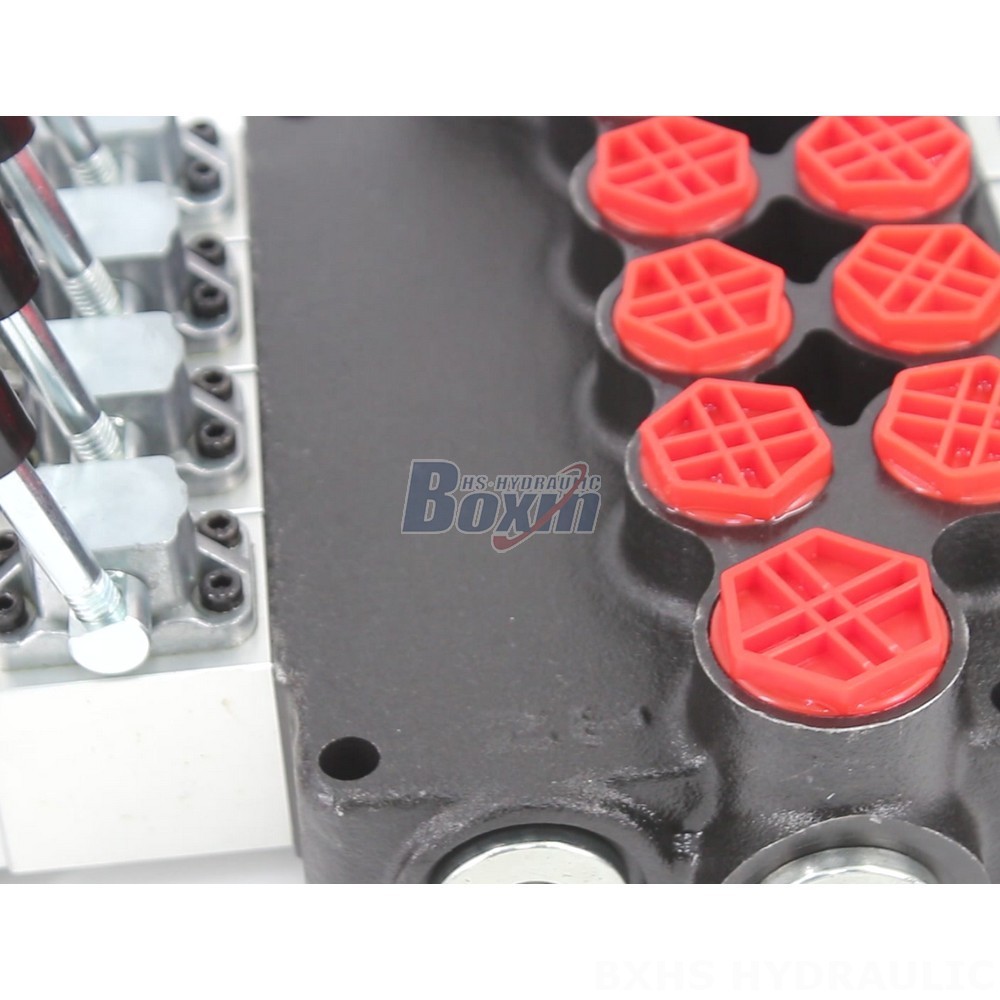

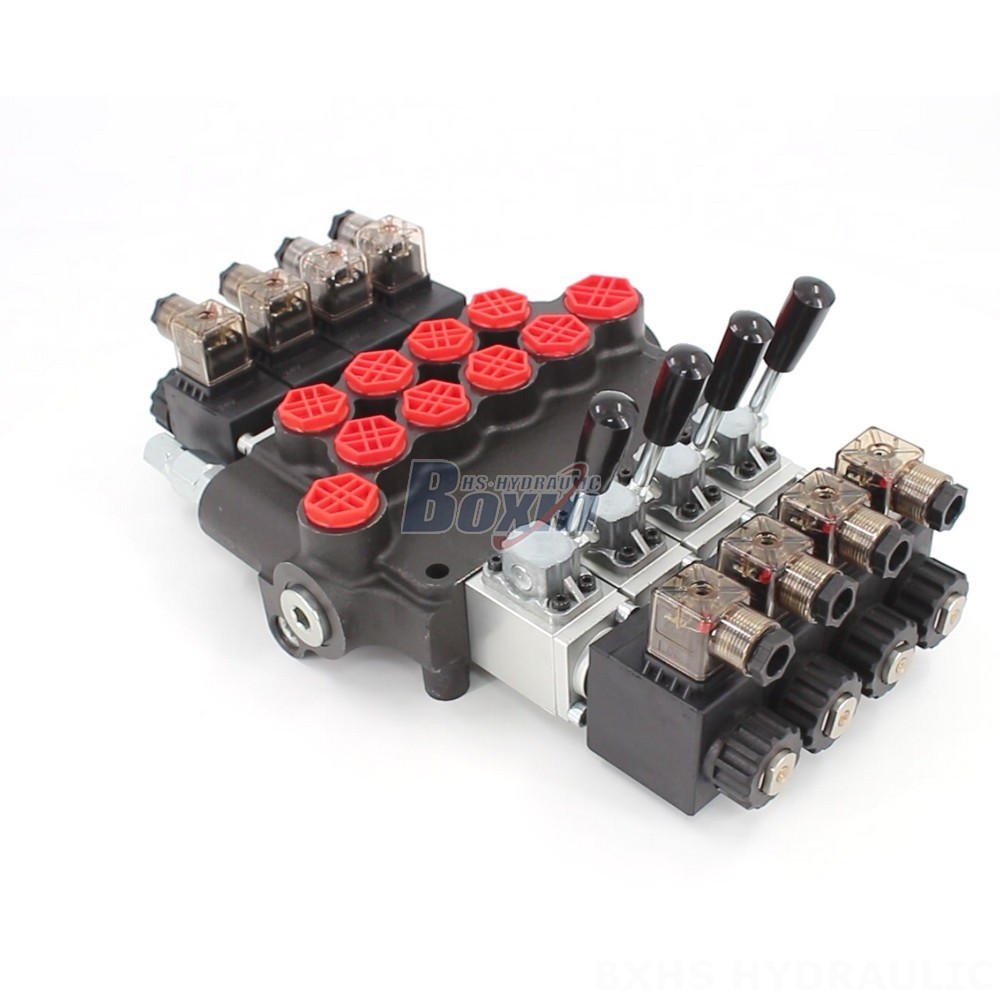

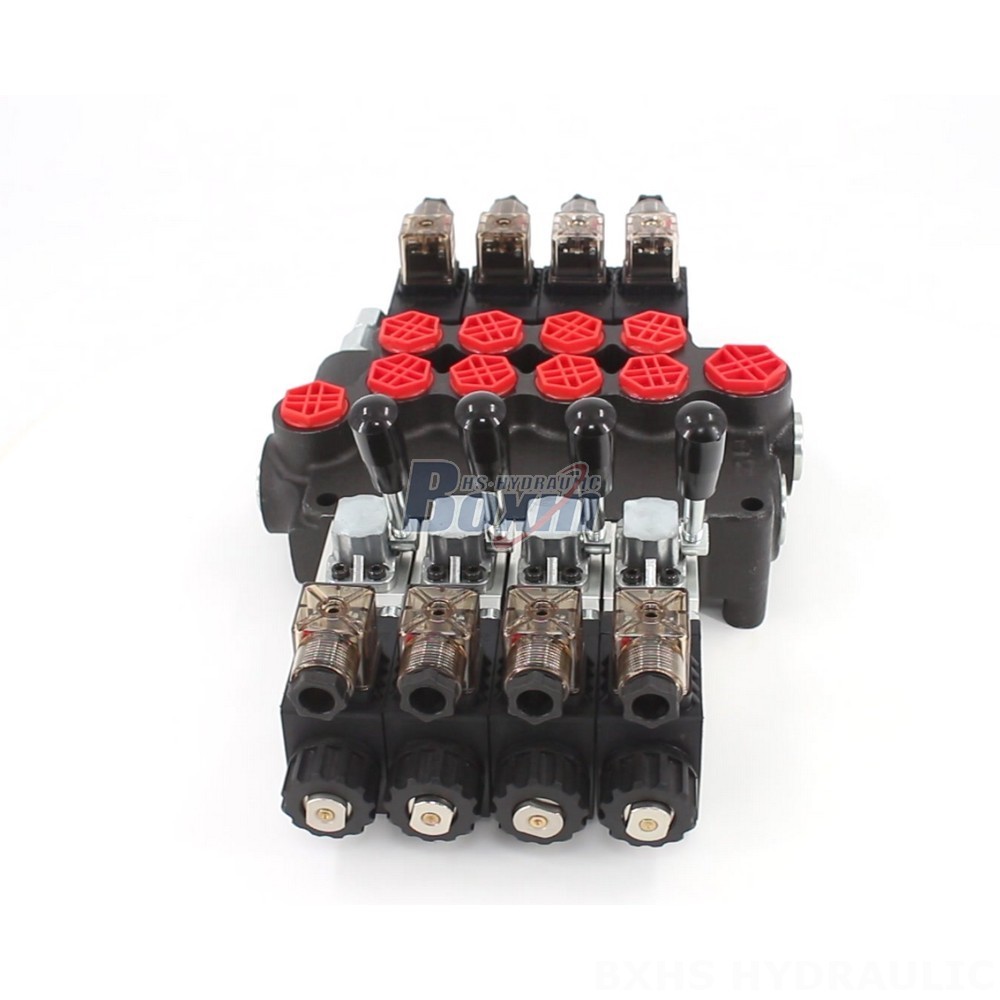

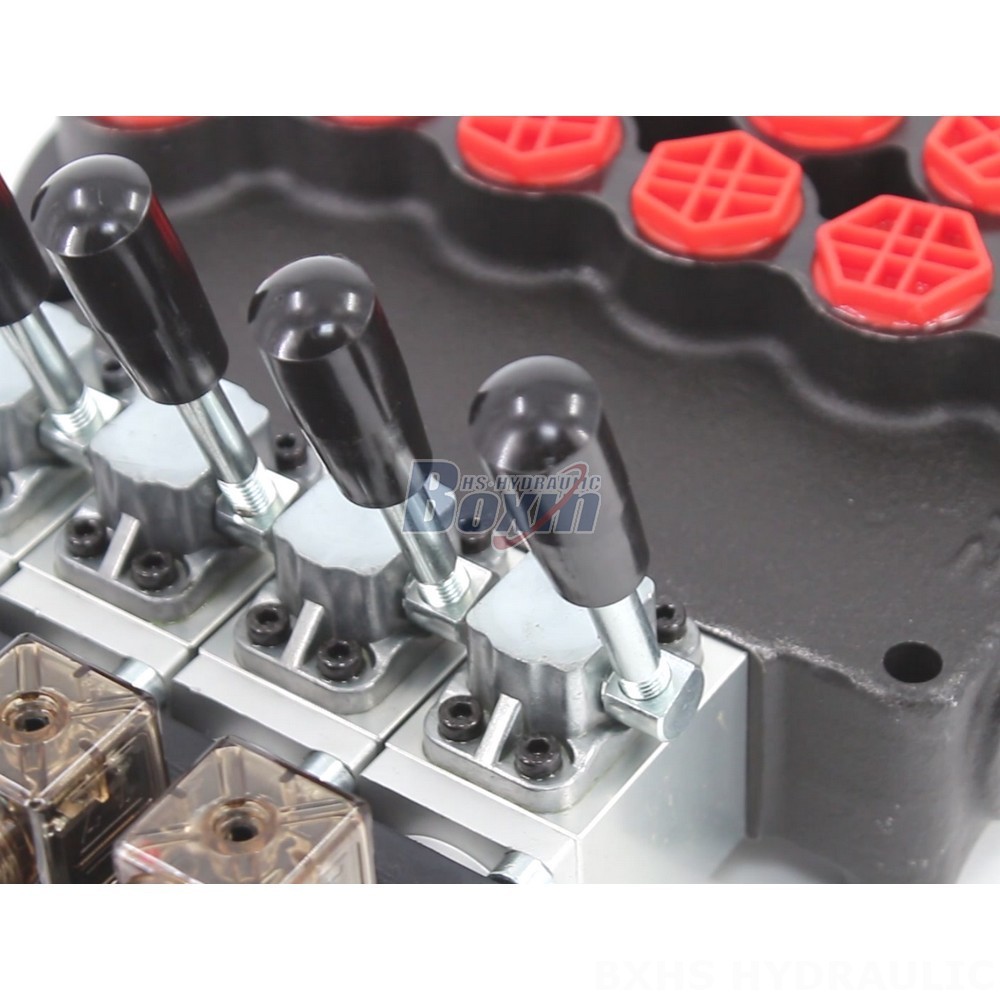

We are a hydraulic product manufacturer offering a comprehensive range of services, including manufacturing, OEM, private label, custom design, and wholesale. Our flagship product, the P40-S hydraulic valve, is a high-performance 4-section monoblock solenoid valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). This robust valve is designed for demanding applications across various industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. It's perfect for forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, tractors, front-end loaders, harvesters, balers, and sprayers.

**Key Features:**
* **Control Method:** Solenoid
* **Section:** 4 Section
* **Structure Type:** Monoblock valve
* **Rated Flow:** 40 L/min (10.5 US gpm)
* **Max Pressure:** 250 bar (3600 psi)
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Spool:** 4 Spool
* **Series:** P40 Series

**Partnership Opportunities:** We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us. We offer flexible collaboration models, including OEM manufacturing, private label solutions, custom design capabilities, and factory direct wholesale pricing. Partner with a reliable hydraulic valve manufacturer and benefit from our high-quality products, competitive pricing, and responsive service. Contact us today to explore partnership possibilities and grow your business with our high-demand hydraulic valves. As a factory direct supplier, we guarantee competitive pricing and reliable quality. Contact us for wholesale inquiries and let us become your trusted hydraulic components partner.
