What is the primary application of the Buy SD8-PG2 4-Spool Directional Valves Directly from the Manufacturer?

The Buy SD8-PG2 4-Spool Directional Valves Directly from the Manufacturer is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

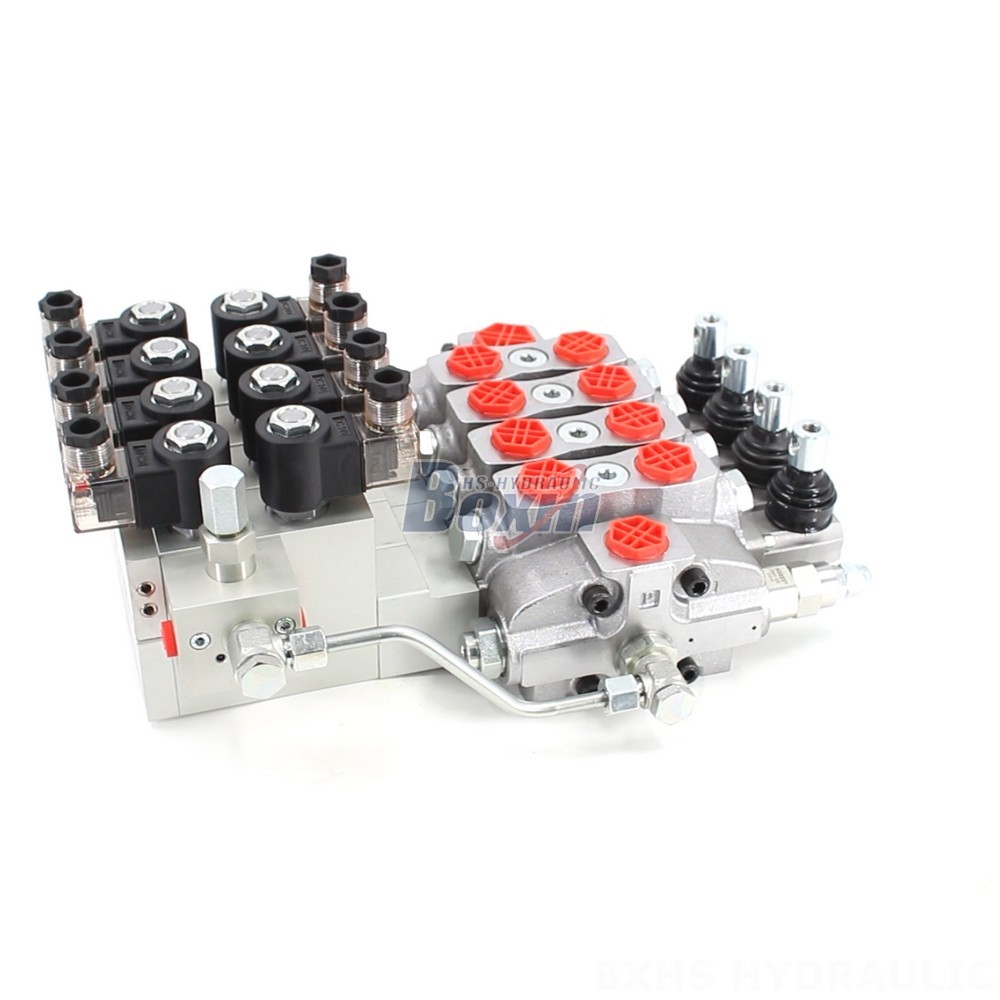

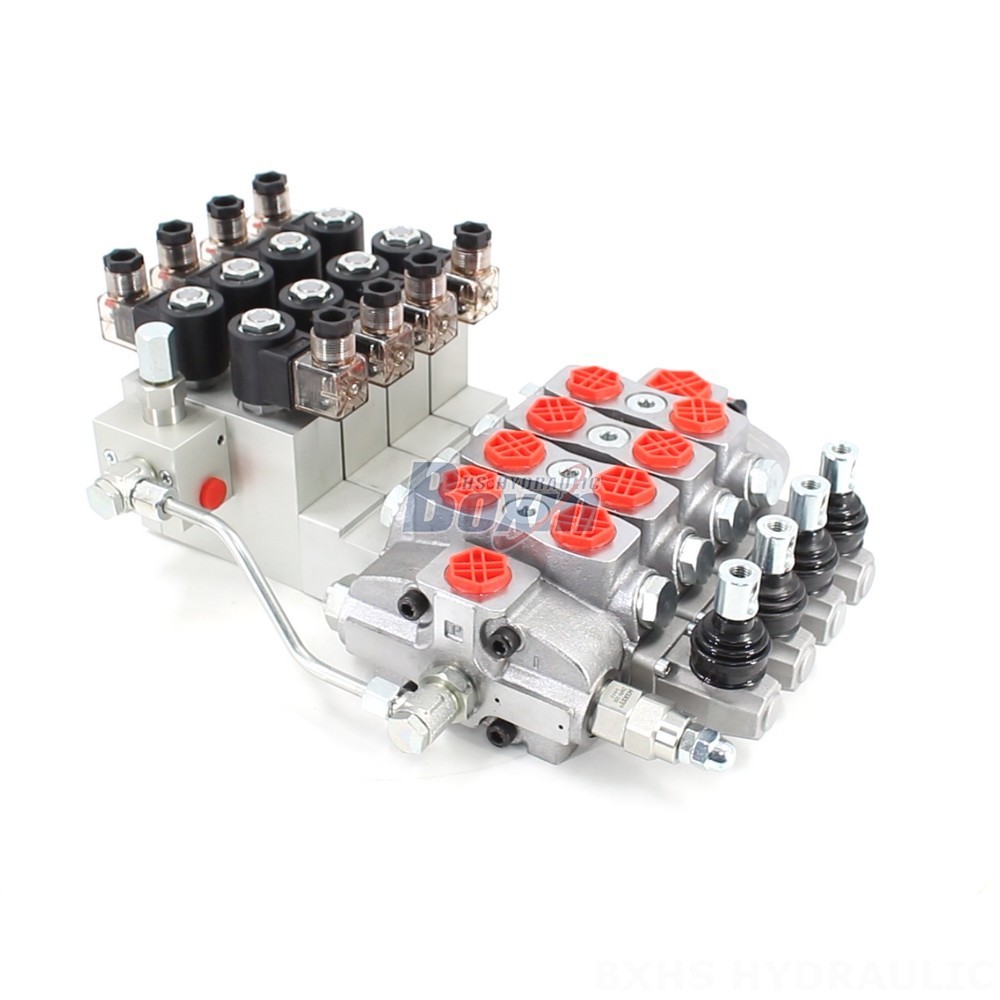

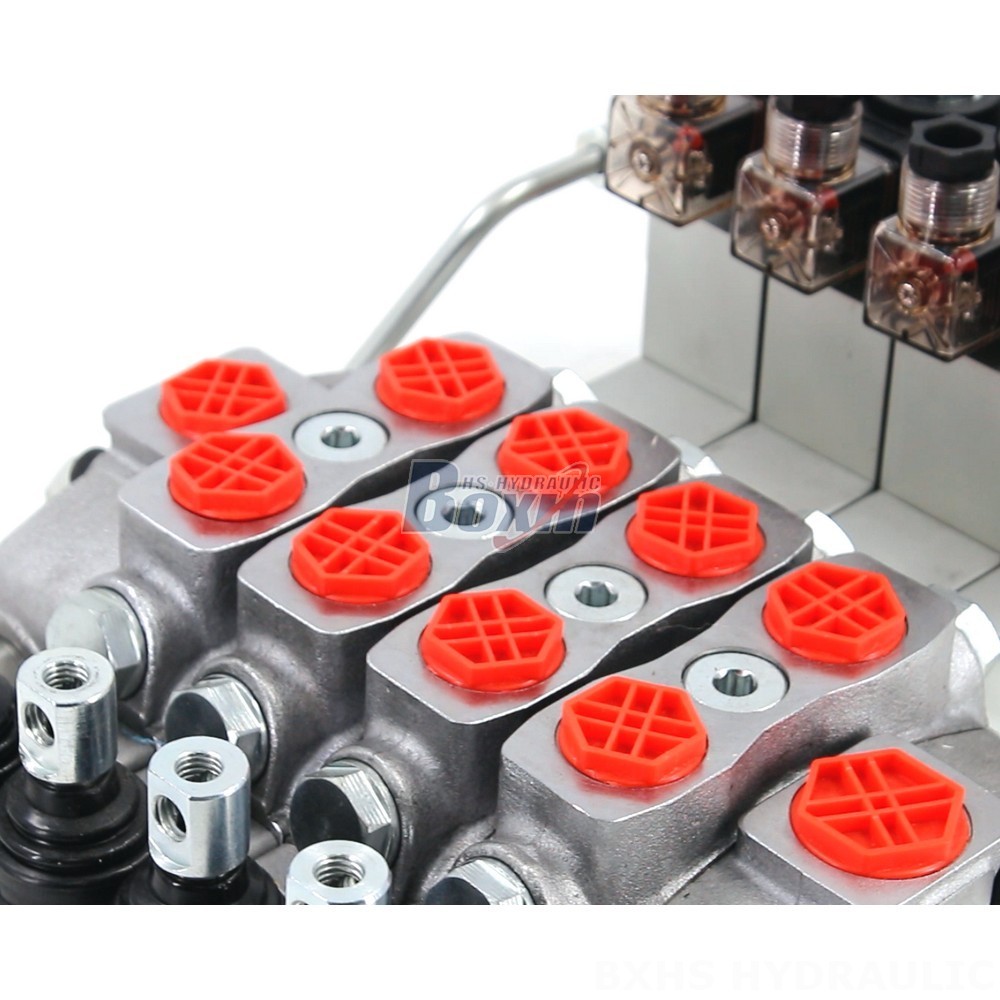

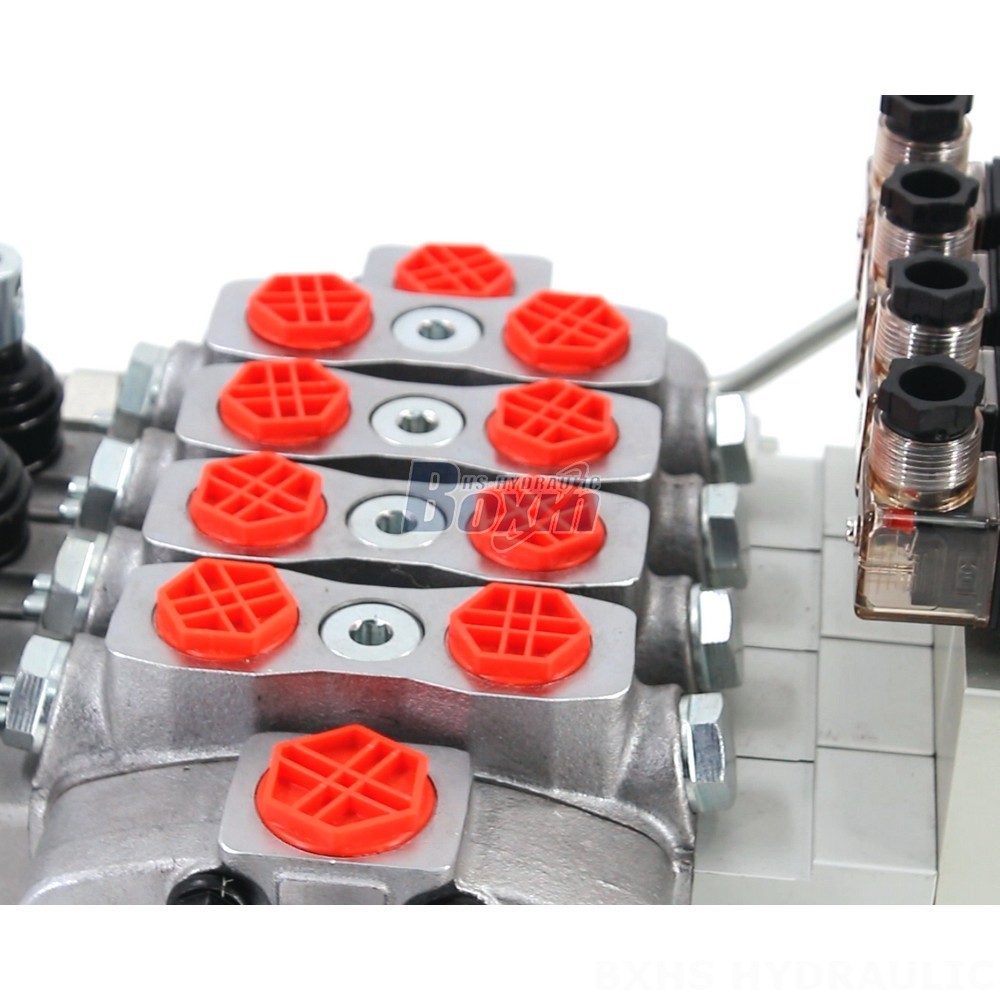

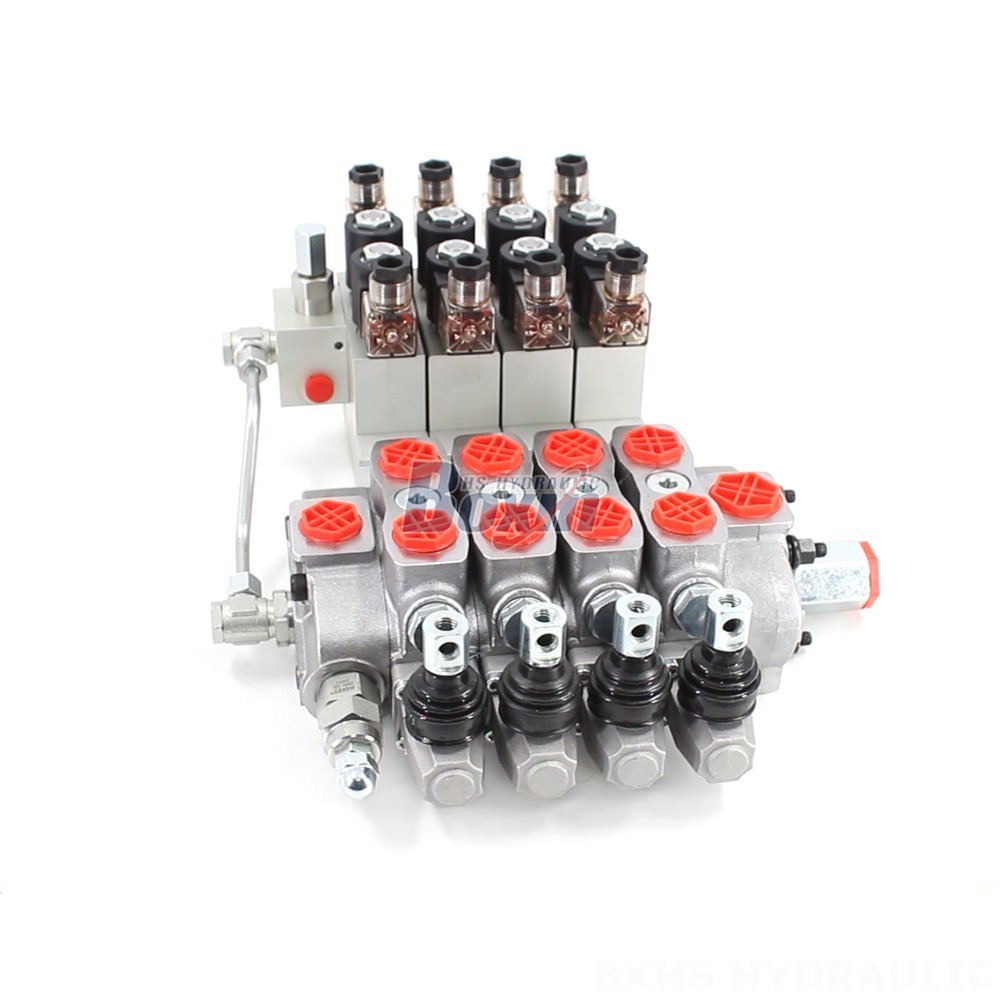

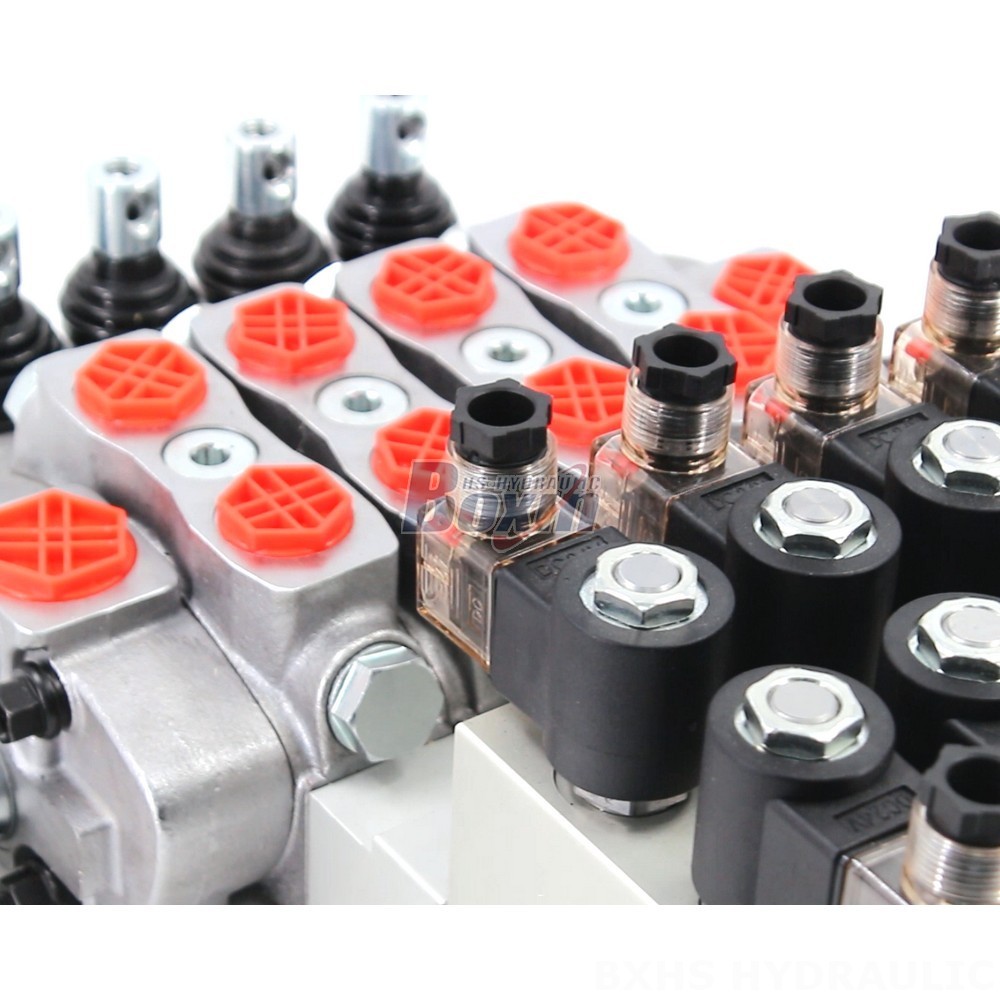

Buy SD8-PG2 4-Spool Directional Valves Directly from the Manufacturer

Name: Buy SD8-PG2 4-Spool Directional Valves Directly from the Manufacturer
Brand: Boxinhuasheng
SKU: BXHS-56744
Availability: InStock

Metoda sterowania:Elektrohydrauliczna

Szpula:4-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Rozmiar opakowania:40*35*20

Waga brutto:28.00 kg

Dostępność: W magazynie

Opis

Buy SD8-PG2 4-Spool Directional Valves Directly from the Manufacturer

Buy SD8-PG2 4-Spool Directional Valves Directly from the Manufacturer drawing image

High-performance SD8-PG2 4-spool electro-hydraulic directional valve, rated at 90 L/min and 350 bar, ideal for material handling, construction, and agriculture. Available for OEM, private labeling, and custom orders.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania	Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Silnik elektryczny
Szpula	1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia	-40°C do +80°C (-40°F do +176°F)
Typ konstrukcji	Zawór sekcyjny
Sekcja	1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej	12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy	90 l/min (23,8 USGPM)
Maksymalne ciśnienie	315 bar (4600 psi)
Port wlotowy	G1/2, G3/4, M22×1.5, SAE 10
Port wylotowy	G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
Rozmiar portu	G1/2, M22×1.5, SAE 10

Buy SD8-PG2 4-Spool Directional Valves Directly from the Manufacturer!

We are a leading hydraulic product manufacturer offering a comprehensive range of services including manufacturing, OEM, private labeling, customization, and wholesale distribution. We are actively seeking distributors, wholesalers, agents, and trading partners worldwide.

**Product Highlights:**

* **Model:** SD8-PG2 4-Spool Directional Valve
* **Control Method:** Electro-hydraulic
* **Sections:** 4 Section
* **Structure Type:** Sectional valve
* **Rated Flow:** 90 L/min (23.8 US gpm)
* **Max Pressure:** 350 bar (5100 psi), 250 bar (3600 psi)
* **Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Spool:** 4 Spool
* **Series:** SD8 Series
* **Applications:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, INDUSTRIAL VEHICLES, AGRICULTURE
* **Applicable Models:** FORKLIFT, TELEHANDLER, SKID STEER LOADER, COMPACT WHEEL LOADER, TRACTOR AND FRONT-END LOADER, BACKHOE LOADER, MINI-EXCAVATOR, MIDI-EXCAVATOR, HARVESTER, BALER

**Partnership Opportunities:**

We offer flexible solutions to meet your specific needs. Whether you require OEM manufacturing, private labeling, custom design, or wholesale purchasing, we are committed to providing high-quality products and excellent customer service. We invite distributors, wholesalers, agents, and trading companies to partner with us and benefit from our factory direct pricing and reliable supply chain.

**Manufacturer Direct – Factory Supply – Factory Wholesale:**

As a leading manufacturer, we offer competitive pricing, fast turnaround times, and direct access to our production facilities. Contact us today to discuss your requirements and explore potential collaborations. Benefit from our factory direct pricing and reliable supply chain. We look forward to building a successful partnership with you!
