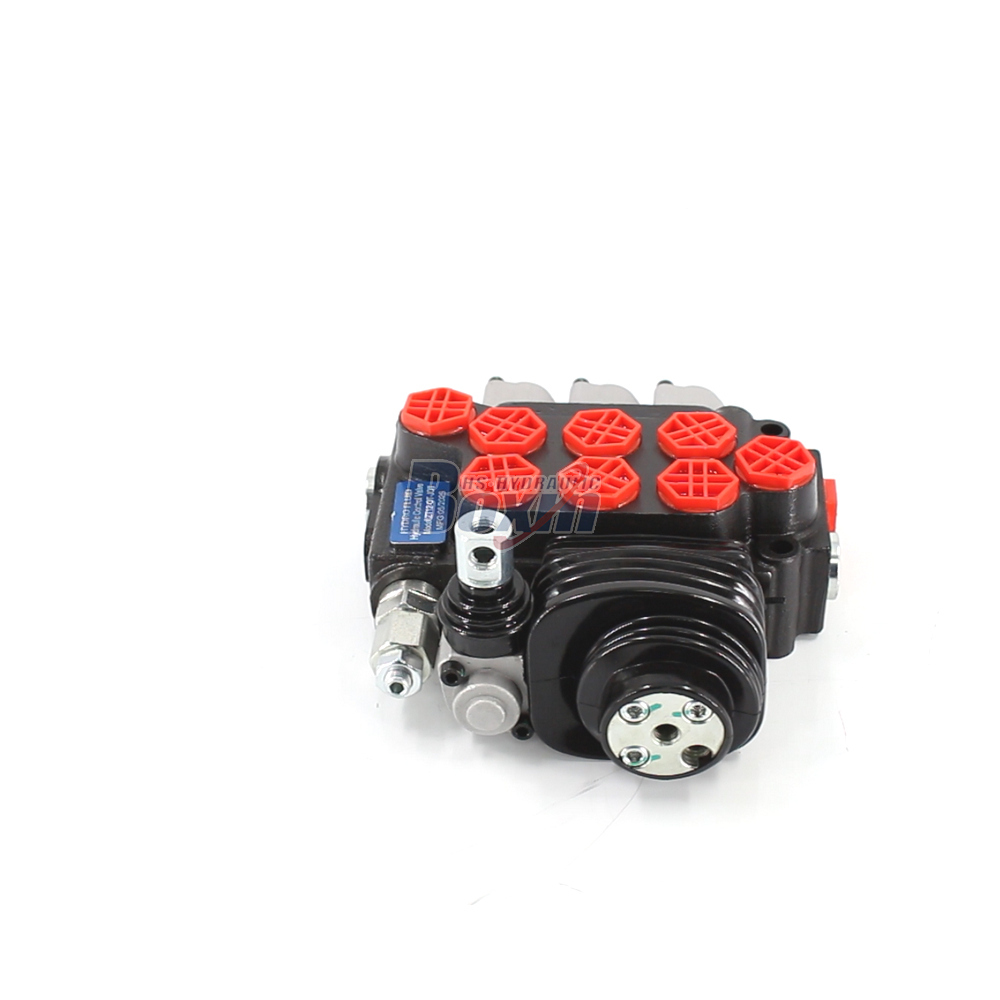

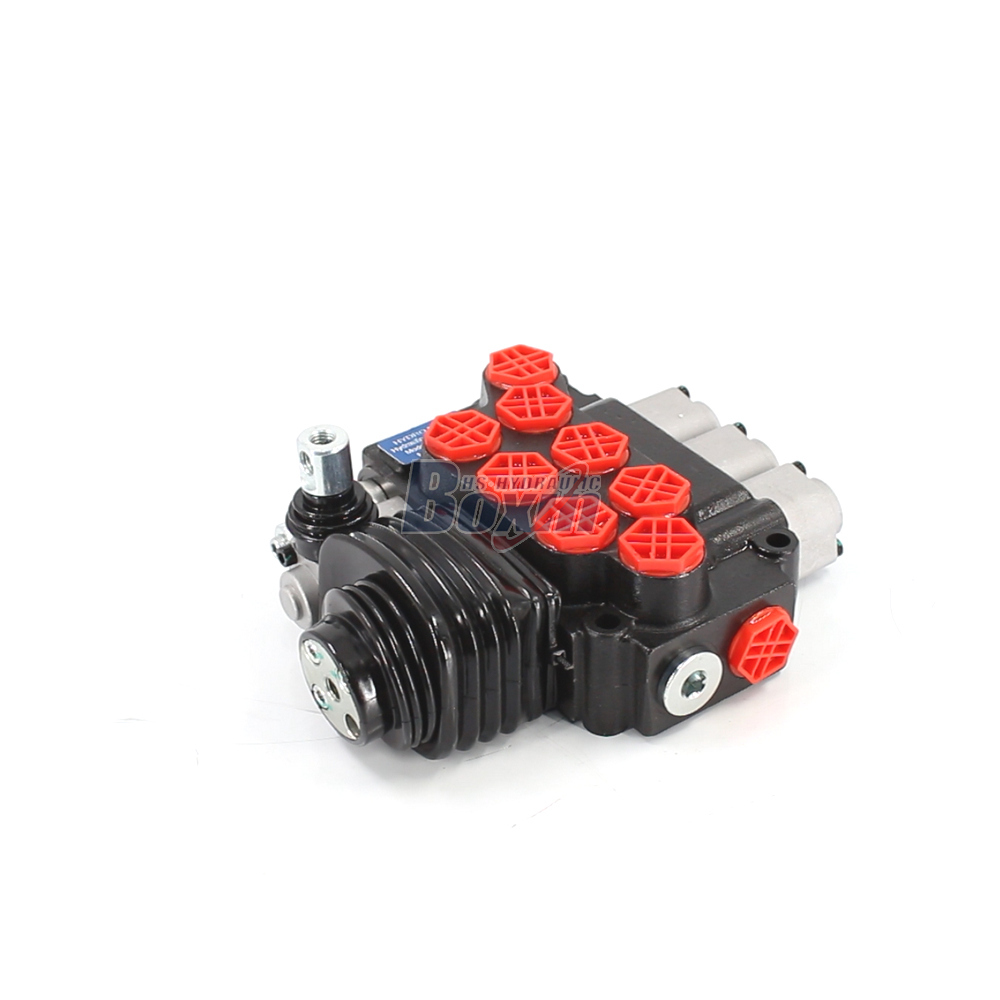

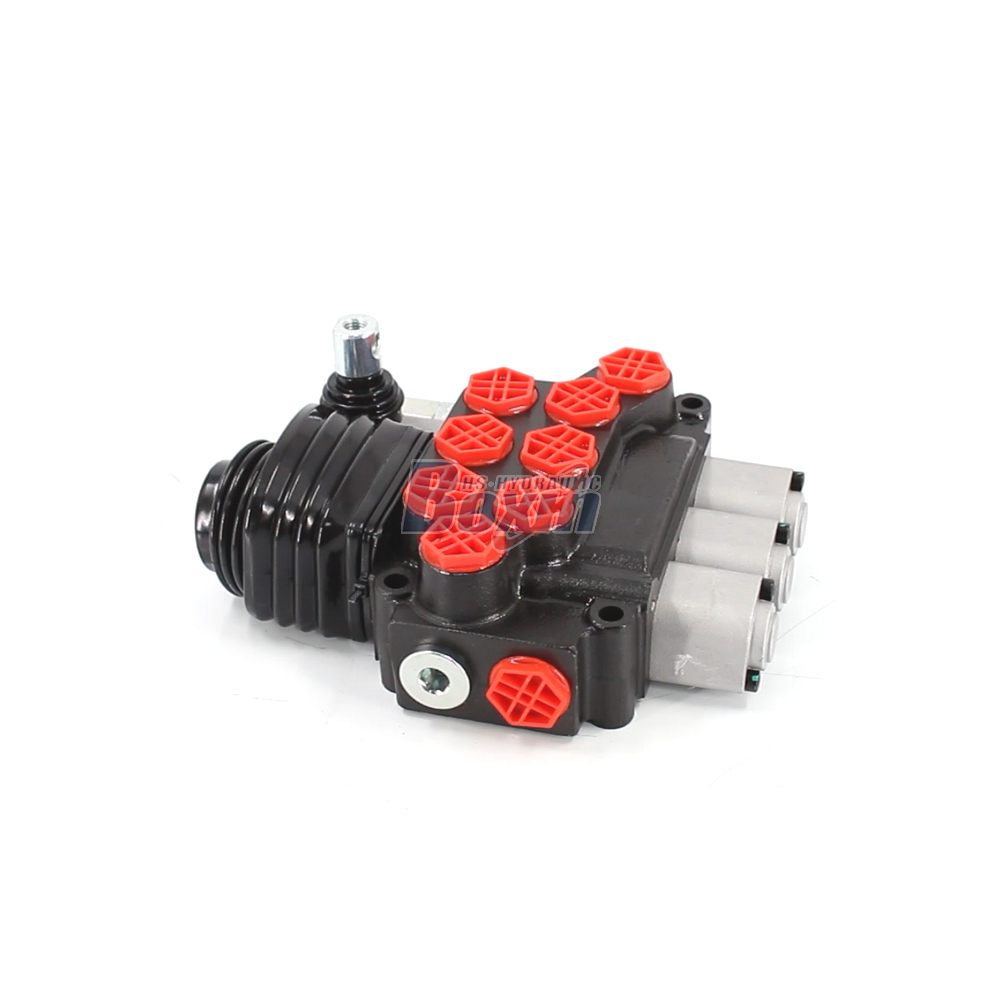

Engineered for heavy machinery, this ZT12-OT 3 spool hydraulic control valve features joystick operation, 50 L/min flow, and 250 bar max pressure. Backed by a 25-year ISO-certified manufacturer, it ensures reliable performance for mini-excavators, skid steers, and agricultural equipment with full OEM support.

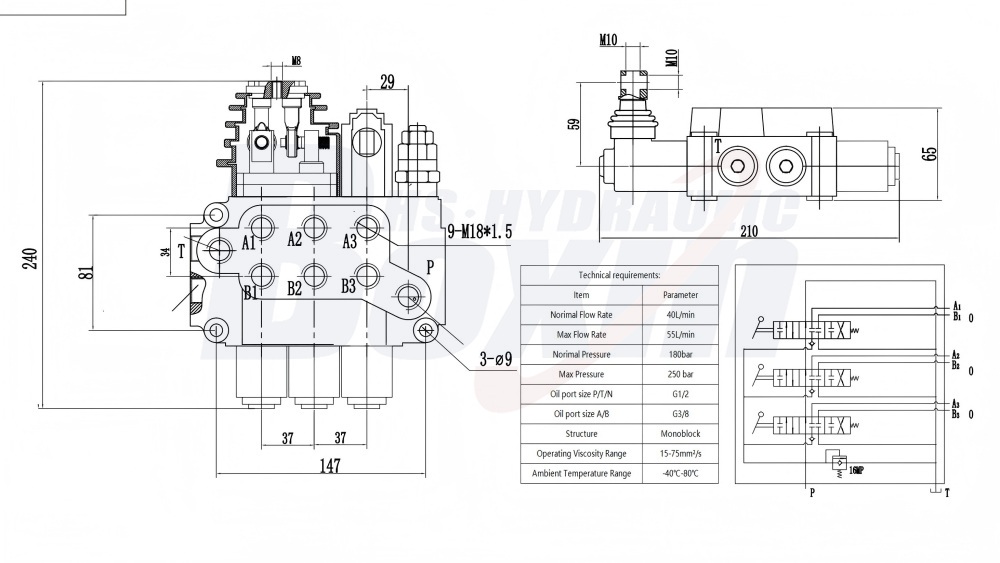

| Seria ZT12 Hydraulic Control Valve Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Kabel, Dźwignia sterownicza, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny |
| Przepływ znamionowy | 50 l/min (13,2 USGPM) |
| Maksymalne ciśnienie | 250 bar (3600 psi) |
| Port wlotowy | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port wylotowy | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Rozmiar portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji |
| Typ konstrukcji | Zawór blokowy |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
**1. Precise 3 Spool Hydraulic Control Valve Design**
- Engineered with a monoblock 3-spool configuration, this unit handles a rated flow of 50 L/min (13.2 US gpm) and withstands max pressure up to 250 bar (3600 psi), ensuring stable power distribution.
- G1/2 inlet/outlet and G3/8 port sizes provide seamless integration into existing hydraulic circuits for compact construction and agricultural vehicles.
**2. Intuitive Joystick Hydraulic Valve Operation**
- Features an ergonomic joystick control method, offering operators precise, proportional command over auxiliary functions, reducing fatigue during extended use in material handling tasks.
- Ideal for applications requiring fine motor control, such as aerial platforms, telehandlers, and wood splitters, enhancing operational safety and efficiency.
**3. Durable ZT12 Series Directional Valve Construction**
- Built to rigorous IATF 16949 standards, each valve undergoes 100% bench testing for pressure, flow, and sealing integrity before shipment, guaranteeing zero-defect performance.
- The robust cast iron body is treated for corrosion resistance, making it a reliable replacement for international brands in harsh environments like earthmoving and industrial vehicle sectors.
**4. Versatile Hydraulic Valve for Mini Excavator Applications**
- Specifically optimized for mini-excavators, skid steer loaders, and backhoe loaders, this valve delivers consistent response times and low internal leakage.
- Compatible with a wide range of mobile hydraulics, including compact wheel loaders and forklifts, providing a cost-effective solution for maintenance and retrofit projects.
**5. Factory Direct Sales & OEM/ODM Available Support**
- Sourced directly from our 68,000㎡ facility with 25+ years of expertise, we offer wholesale direct sales prices and custom solutions like laser logo marking and private labeling.
- With 1.5 million annual capacity and 35+ senior engineers, we support bulk orders and tailored specifications, ensuring fast lead times and dedicated after-sales service for global distributors.
