XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems

Pojemność skokowa:108 cm³/obr.

Ciśnienie znamionowe:38 MPa (5511 psi)

Maksymalne ciśnienie:42 MPa (6091 psi)

Maksymalna prędkość:1900 obr./min

Kierunek obrotu:L: Lewo (przeciwnie do ruchu wskazówek zegara)

Marka:BXHS

Typ produktu:Pompa hydrauliczna tłokowa

Seria produktów:Seria XPI Pompa hydrauliczna tłokowa

Rozmiar opakowania:37*17*17

Waga brutto:18.00 kg

Dostępność: W magazynie

146 Osoby oglądają ten produkt

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems drawing image

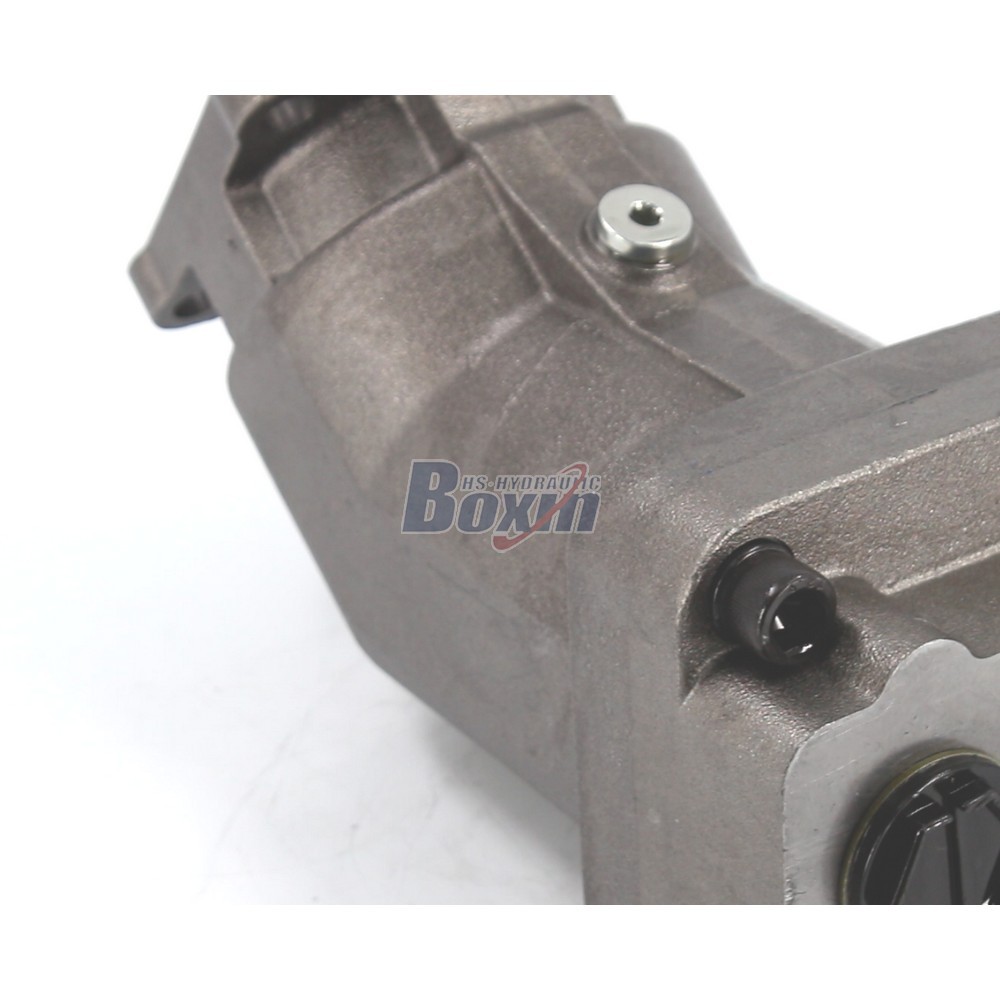

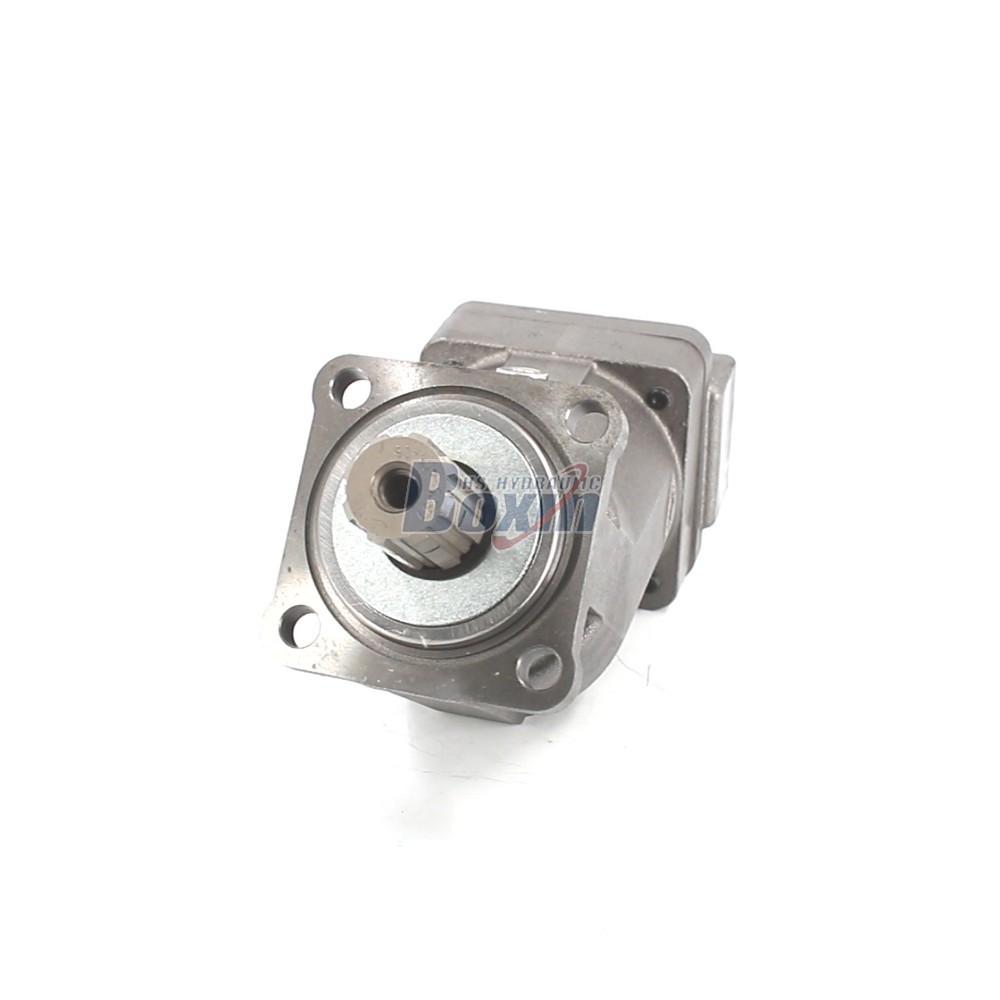

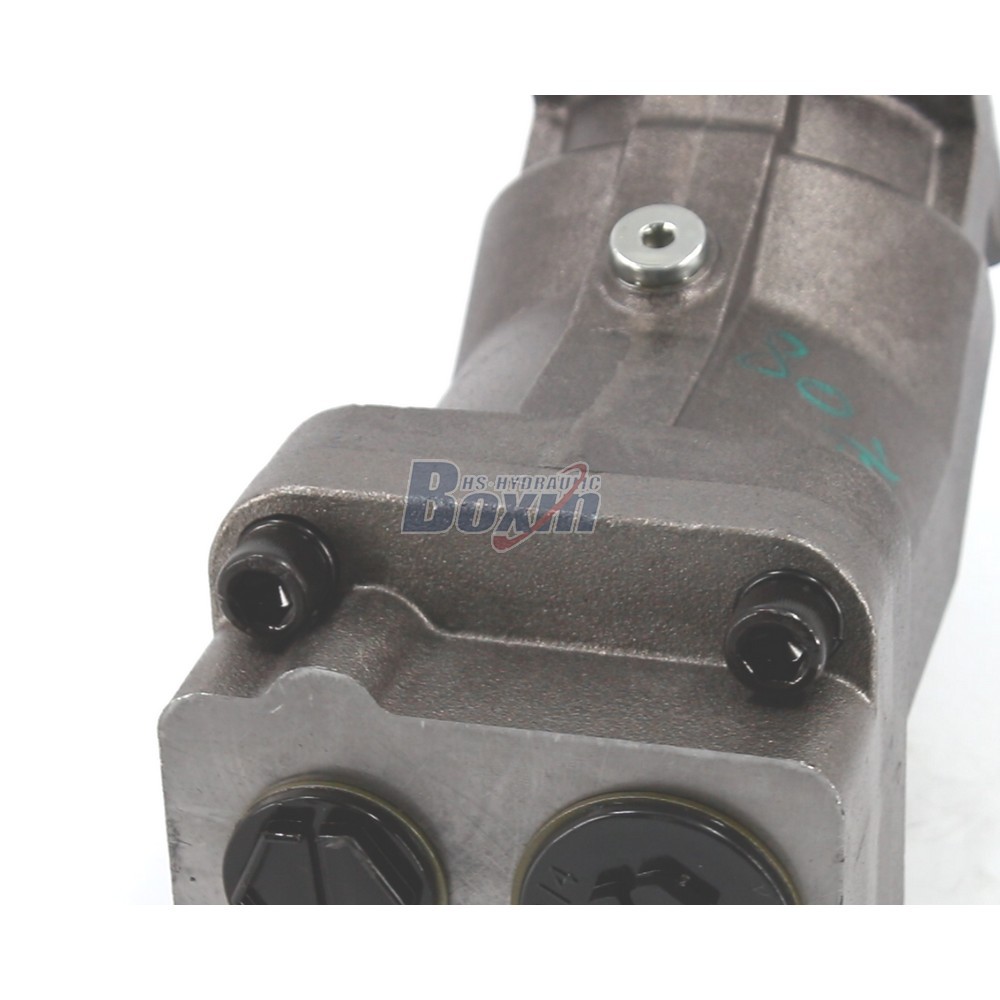

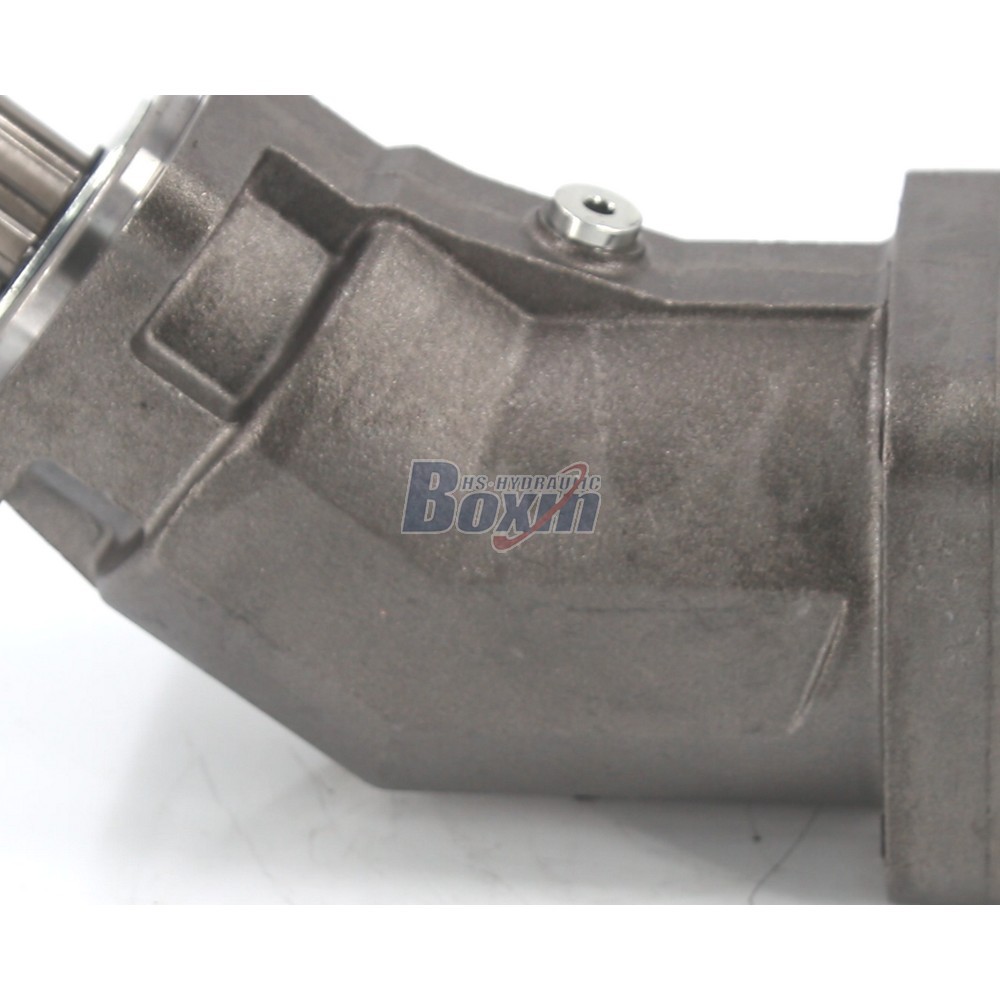

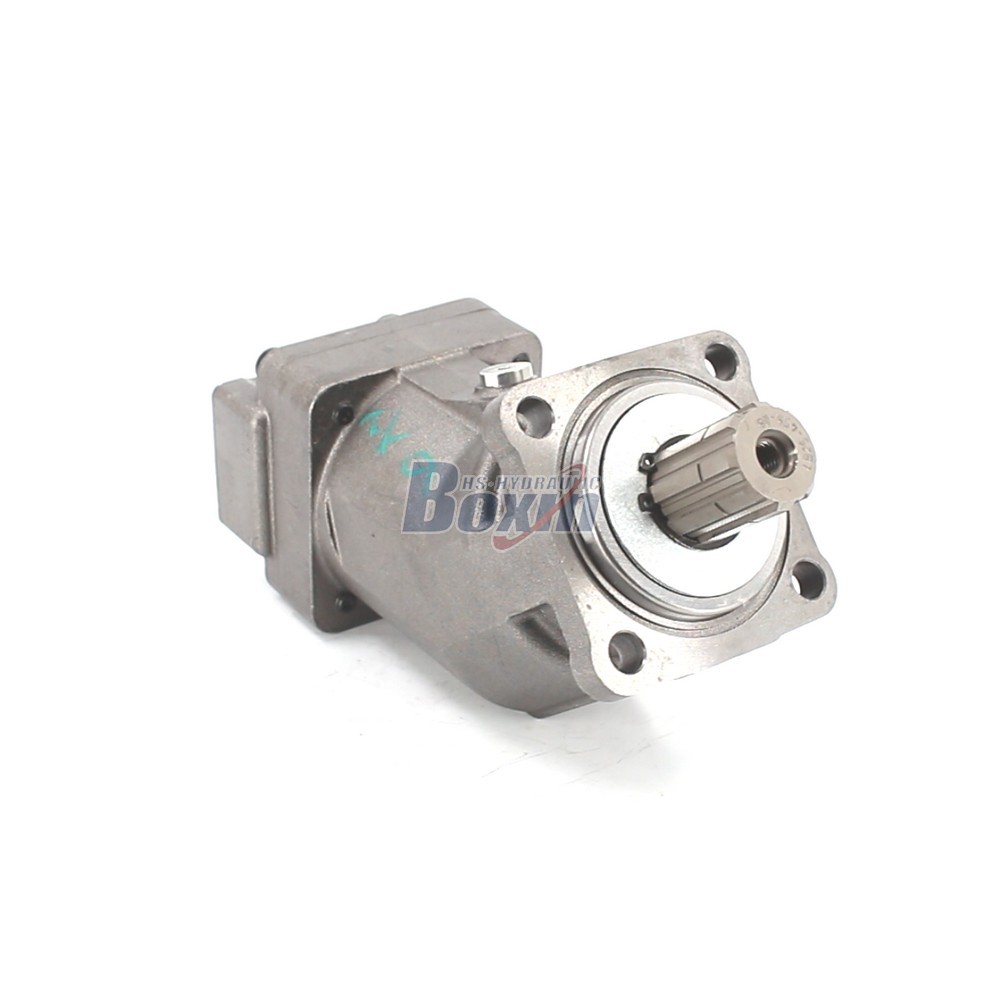

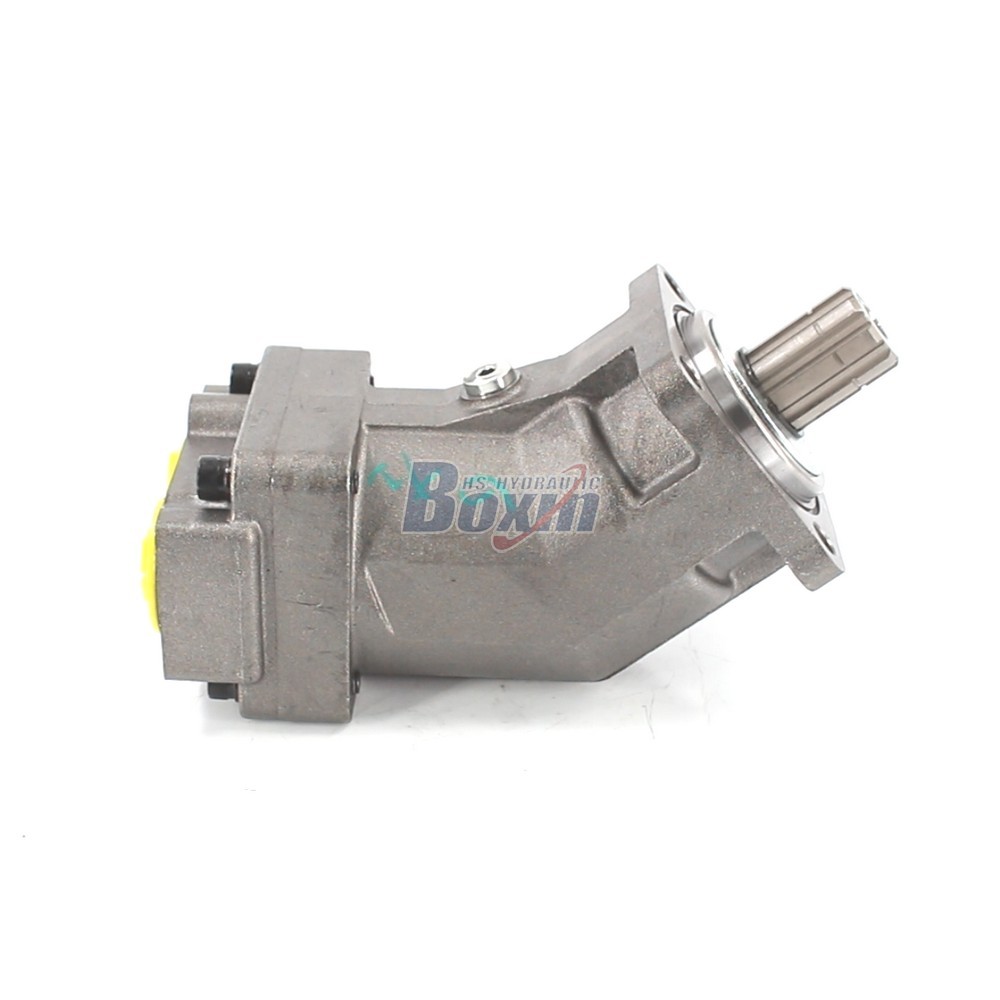

The XPI-108L Series is a high-performance 108 cc/rev fixed displacement axial piston pump designed for demanding hydraulic systems. Operating at a rated pressure of 38 MPa with peaks up to 42 MPa, this left-hand rotation pump is engineered for durability and efficiency in heavy-duty applications ranging from construction machinery to agricultural equipment.

Seria XPI Pompa hydrauliczna tłokowa Parametry
Pojemność skokowa 32 cm³/obr, 40 cm³/obr, 45 cm³/obr, 50 cm³/obr, 63 cm³/obr, 80 cm³/obr, 25 cm³/obr, 108 cm³/obr.
Ciśnienie znamionowe 38 MPa (5511 psi)
Maksymalne ciśnienie 42 MPa (6091 psi)
Prędkość znamionowa 1600 obr./min
Maksymalna prędkość 1900 obr./min
Kierunek obrotu L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara)
Materiał Żeliwo
Struktura Kołyska osiowa
Wersja kołnierza Otwory montażowe ISO-4
Typ wału Nacięcie prostokątne H

As a leading large-scale manufacturer of hydraulic solutions, we offer the XPI-108L Series Hydraulic Piston Pump, specifically engineered for high-pressure environments. With a displacement of 108 cc/rev and a maximum speed of 1900 r/min, this pump is ideal for concrete boom pumps, wheel loaders, mini-excavators, and truck-mounted cranes. We provide comprehensive manufacturing services including OEM, private labeling, and custom engineering to meet specific technical requirements. Our factory direct supply ensures competitive wholesale pricing for global markets. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need bulk procurement or specialized customization for material handling and earthmoving equipment, our facility provides reliable support and consistent quality. Join our global distribution network and benefit from our extensive manufacturing expertise in industrial vehicle and agricultural hydraulic systems.
