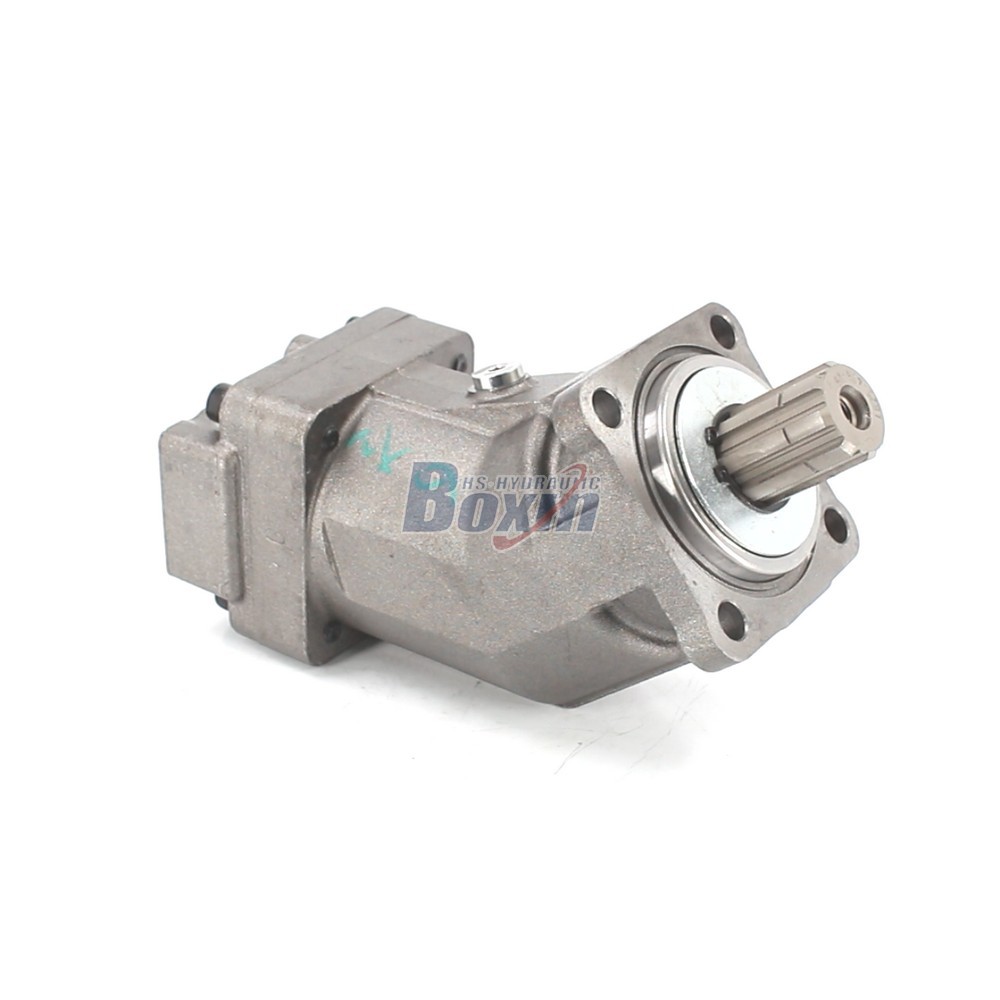

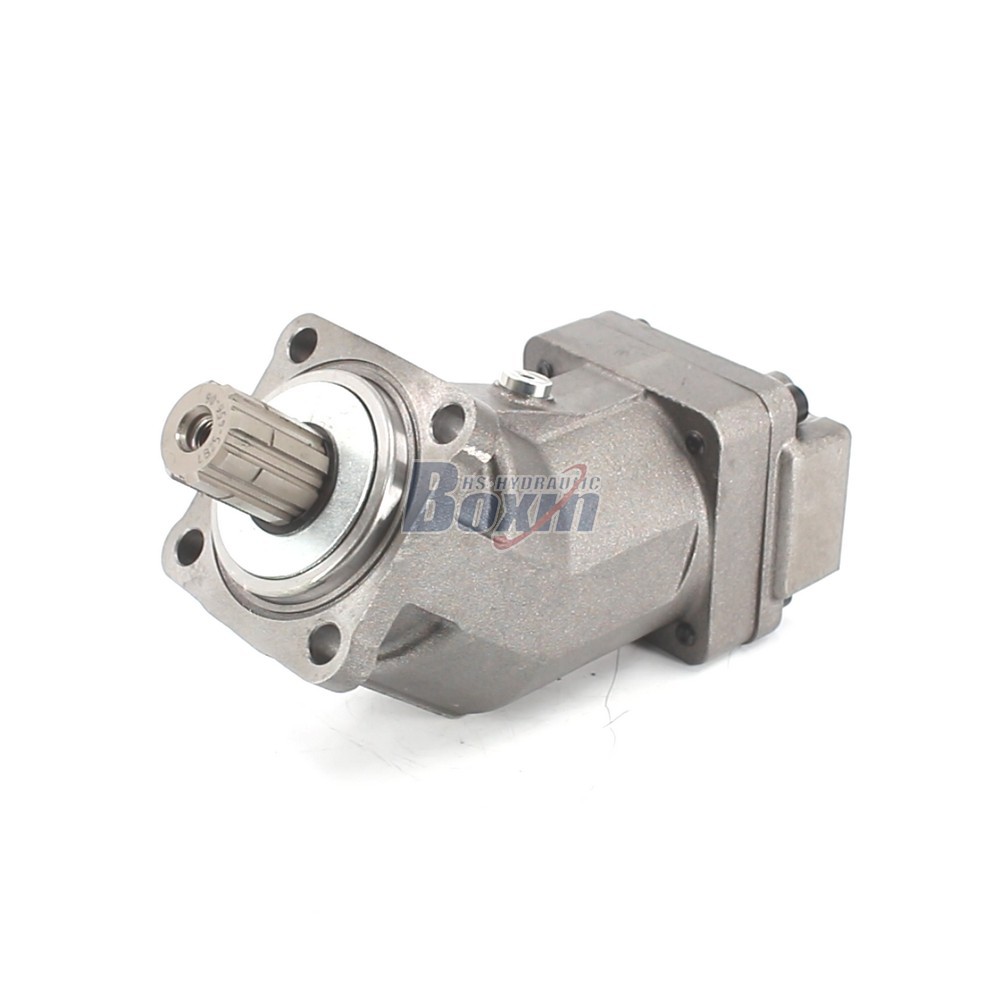

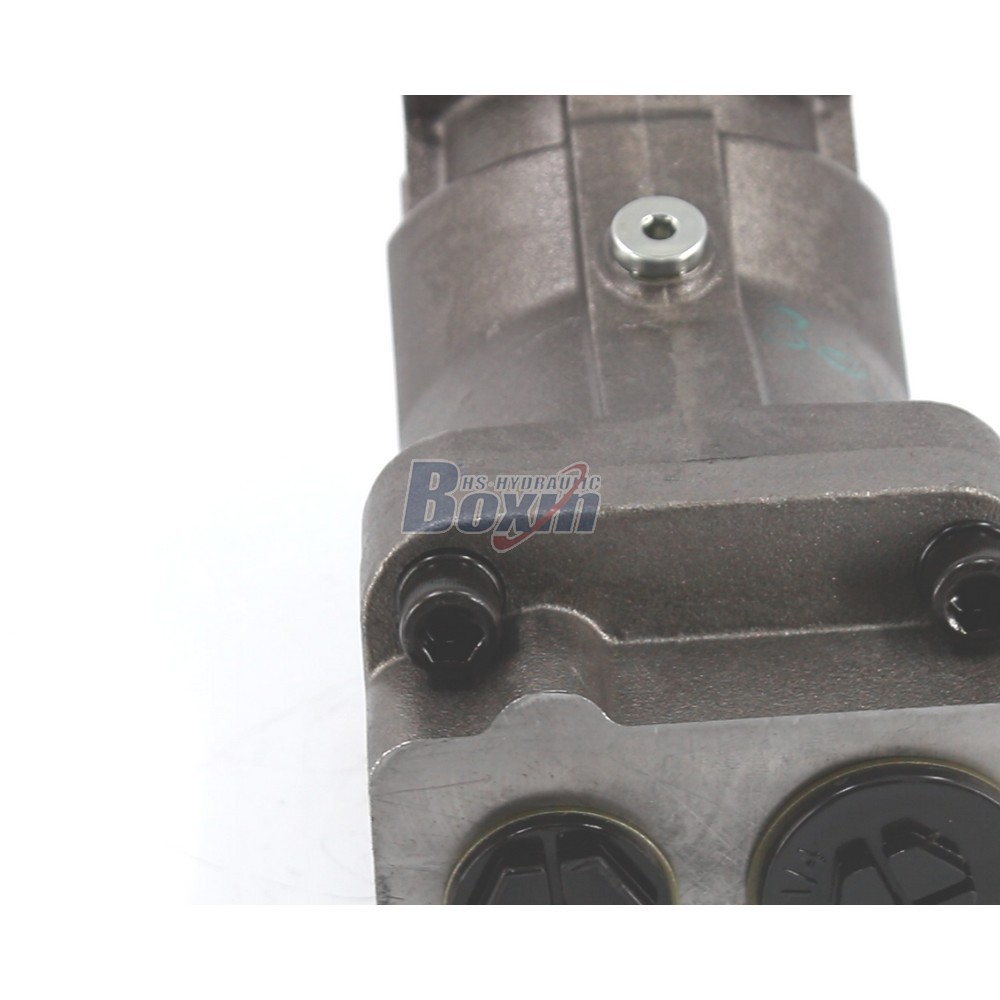

XPI-108L 108 cc/rev Fixed Displacement Hydraulic Piston Pump

Pojemność skokowa:108 cm³/obr.

Ciśnienie znamionowe:38 MPa (5511 psi)

Maksymalne ciśnienie:42 MPa (6091 psi)

Maksymalna prędkość:1900 obr./min

Kierunek obrotu:L: Lewo (przeciwnie do ruchu wskazówek zegara)

Marka:BXHS

Typ produktu:Pompa hydrauliczna tłokowa

Seria produktów:Seria XPI Pompa hydrauliczna tłokowa

Rozmiar opakowania:37*17*17

Waga brutto:18.00 kg

Dostępność: W magazynie

156 Osoby oglądają ten produkt

XPI-108L 108 cc/rev Fixed Displacement Hydraulic Piston Pump

XPI-108L 108 cc/rev Fixed Displacement Hydraulic Piston Pump

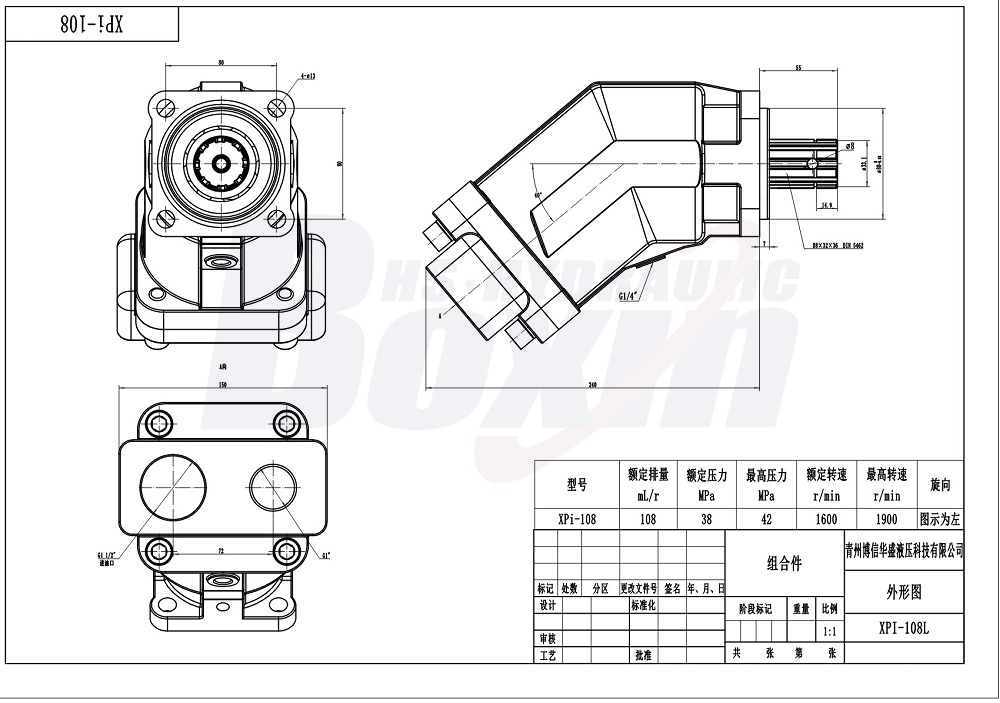

XPI-108L 108 cc/rev Fixed Displacement Hydraulic Piston Pump drawing image

The XPI-108L is a high-performance 108 cc/rev fixed displacement hydraulic piston pump designed for demanding applications in construction, agriculture, and material handling. Engineered for durability, it supports rated pressures up to 38 MPa and is ideal for concrete boom pumps, wheel loaders, and truck-mounted cranes.

Seria XPI Pompa hydrauliczna tłokowa Parametry
Pojemność skokowa 32 cm³/obr, 40 cm³/obr, 45 cm³/obr, 50 cm³/obr, 63 cm³/obr, 80 cm³/obr, 25 cm³/obr, 108 cm³/obr.
Ciśnienie znamionowe 38 MPa (5511 psi)
Maksymalne ciśnienie 42 MPa (6091 psi)
Prędkość znamionowa 1600 obr./min
Maksymalna prędkość 1900 obr./min
Kierunek obrotu L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara)
Materiał Żeliwo
Struktura Kołyska osiowa
Wersja kołnierza Otwory montażowe ISO-4
Typ wału Nacięcie prostokątne H

As a leading heavy-duty hydraulic manufacturer, we provide the XPI-108L 108 cc/rev Fixed Displacement Hydraulic Piston Pump for global markets. This robust XPI series pump operates at a rated pressure of 38 MPa (5511 psi) and reaches maximum speeds of 1900 r/min with left-hand rotation. It is widely utilized in construction and earth moving machinery, including mini-excavators, motor graders, and dumpers, as well as agricultural equipment like harvesters and tractors. Our factory offers comprehensive OEM, private label, and custom manufacturing services to meet specific technical requirements. We are actively seeking long-term cooperation with distributors, wholesalers, agents, and traders worldwide. By choosing our factory wholesale supply, partners benefit from reliable engineering, competitive bulk pricing, and stable inventory. Whether you need specialized components for hook-loaders, skip loaders, or wheel loaders, our manufacturing facility ensures professional support and high-quality hydraulic solutions for your business growth.
