Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

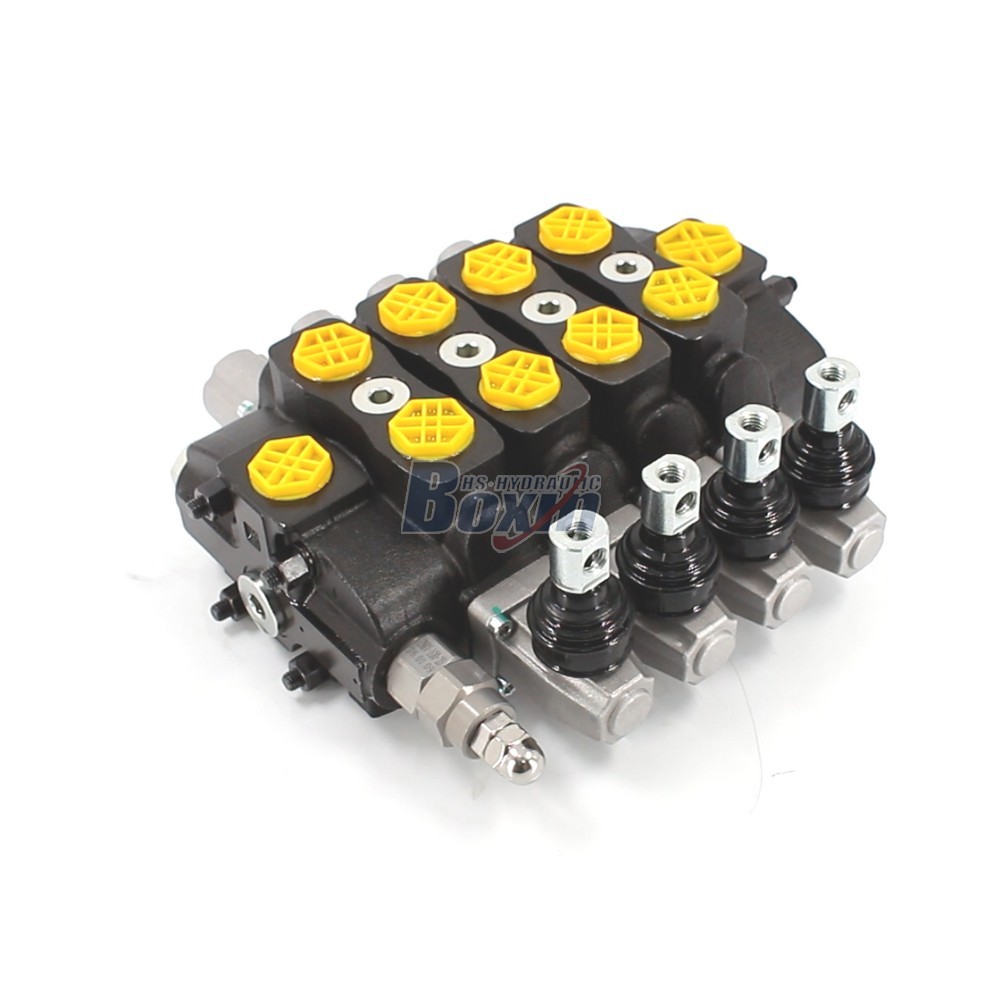

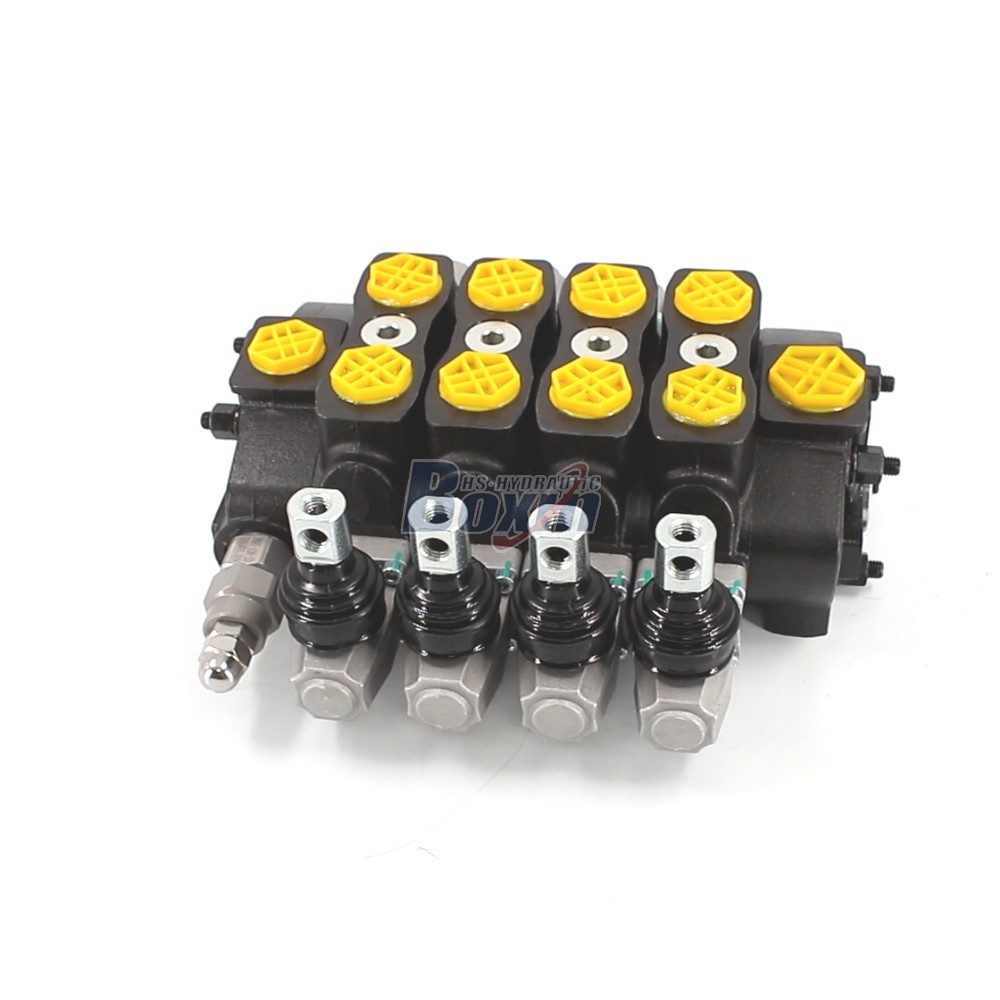

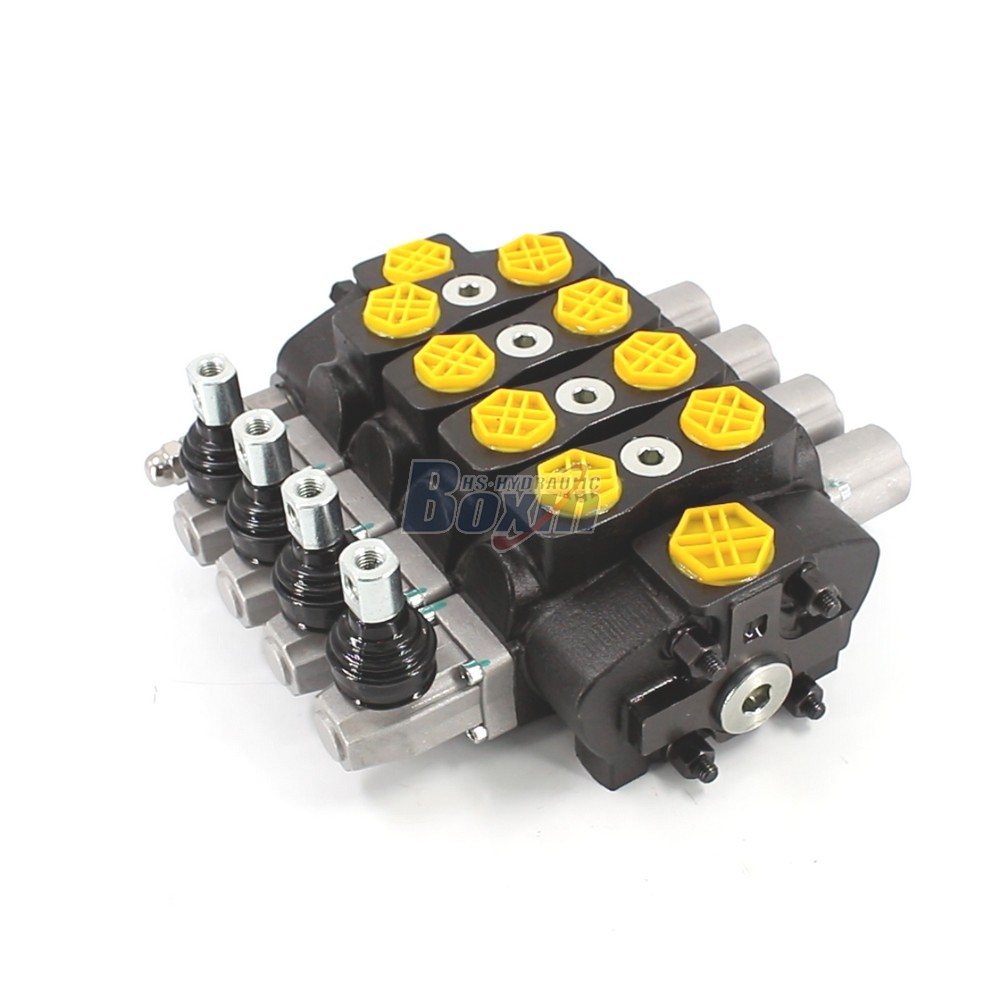

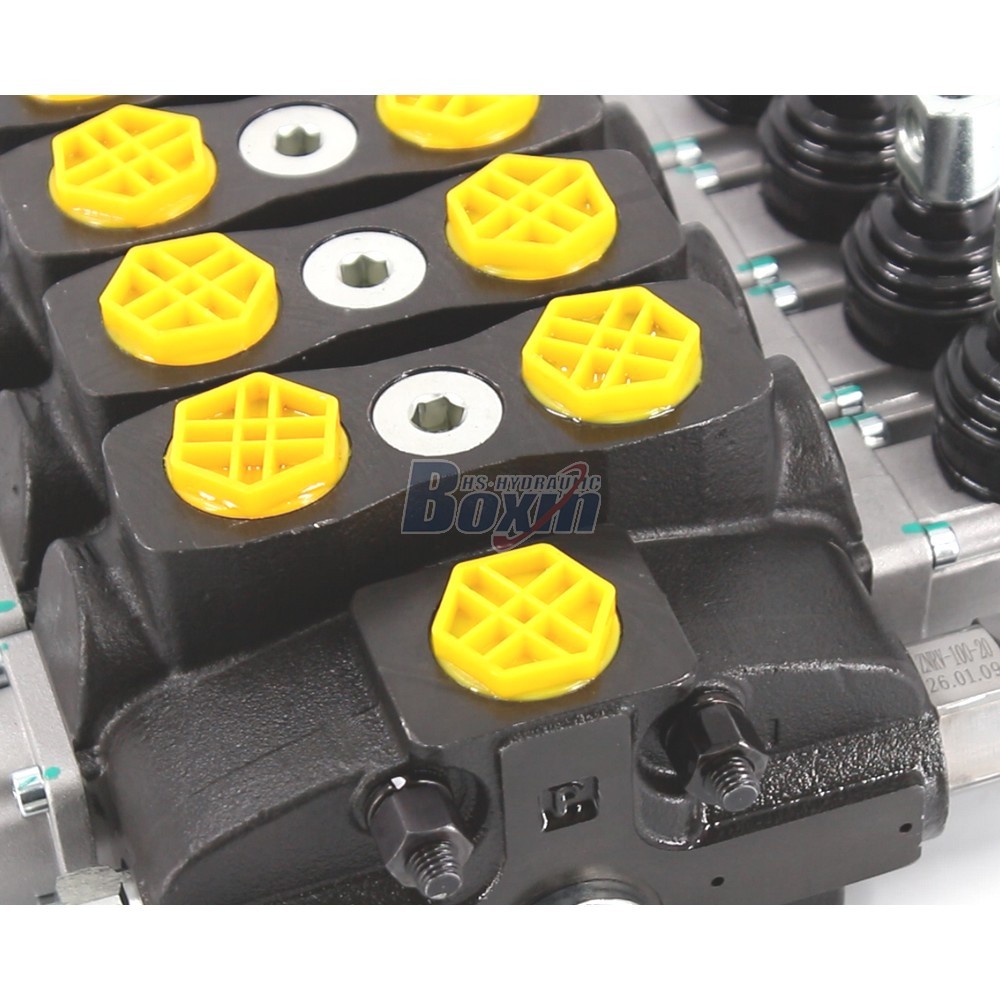

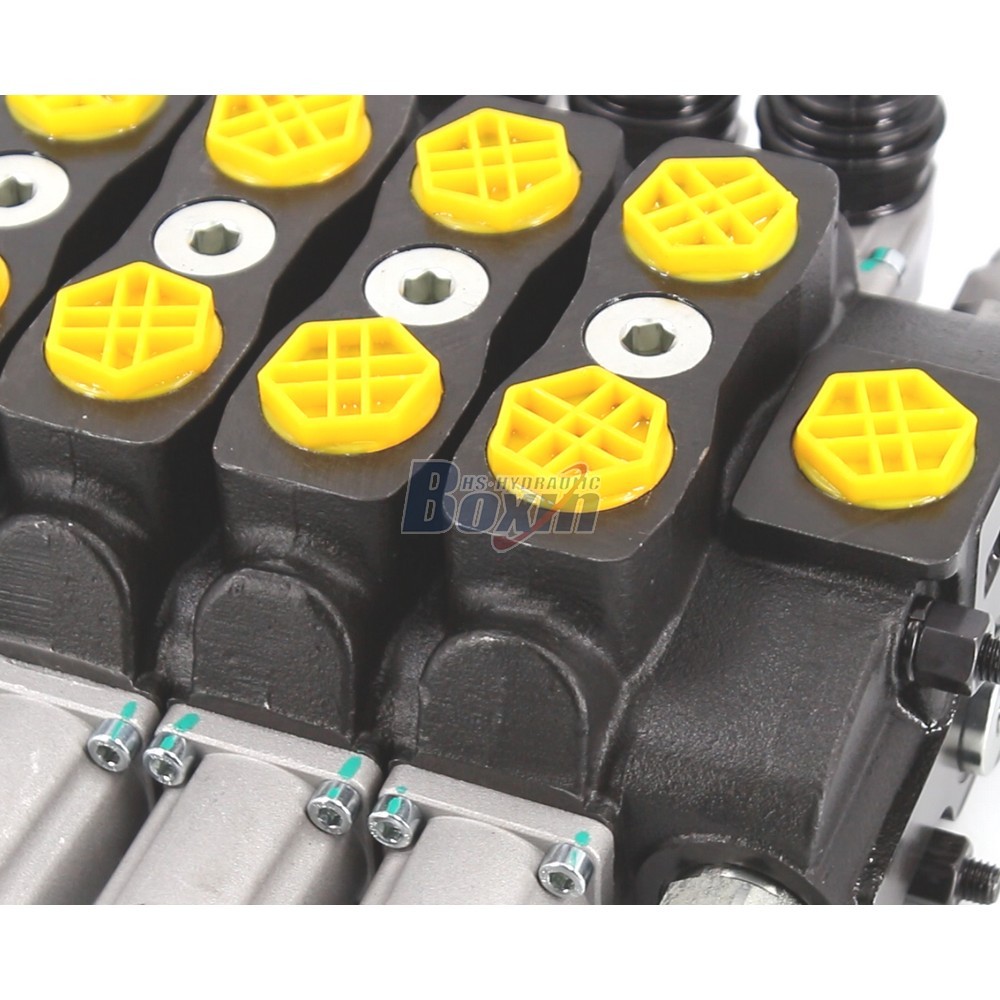

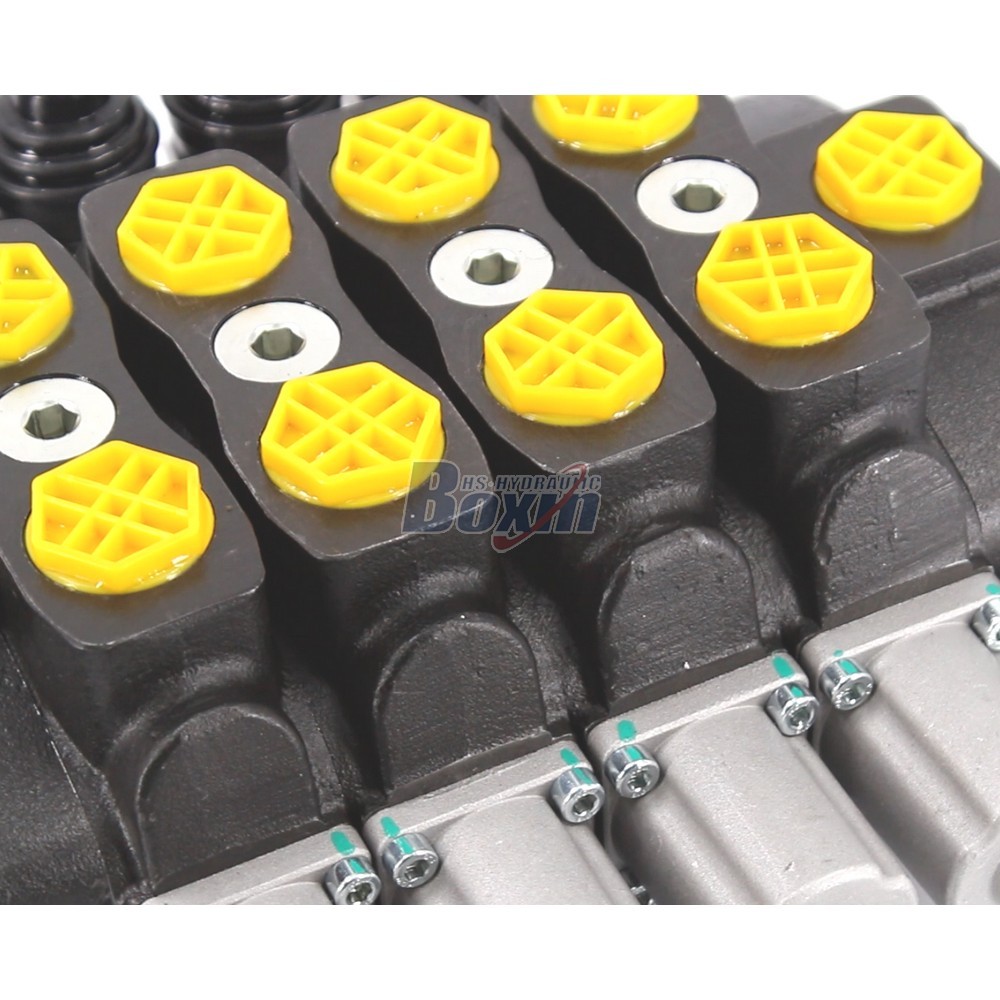

High-performance SD8 series 4-spool manual sectional directional valve, designed for 80 L/min flow and 315 bar pressure, ideal for demanding agricultural and construction machinery applications.
| Seria SD8 Zawór kierunkowy sekcyjny Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór sekcyjny |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji |
| Zakres lepkości roboczej | 12 - 400 mm²/s (12 cSt do 400 cSt) |
| Przepływ znamionowy | 90 l/min (23,8 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2, G3/4, SAE 10 |
| Port wylotowy | G1/2, G3/4, SAE 10, 3/4 NPT |
| Rozmiar portu | G1/2, SAE 10 |
As a prominent hydraulic manufacturer, we offer the SD8 series manual 4-spool sectional directional valve engineered for precision and durability. This versatile valve supports a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 315 bar (4600 psi), featuring G1/2 inlet and G3/4 outlet ports. Our factory specializes in large-scale production, providing extensive opportunities for OEM, ODM, and private labeling (branding) to meet specific technical requirements. The SD8 series is widely applied in forklifts, skid steer loaders, mini-excavators, and wood splitters across the material handling and agricultural sectors. We are actively seeking global partners, including distributors, wholesalers, and international traders, to expand our market reach. Benefit from factory-direct wholesale pricing, reliable supply chains, and customizable hydraulic solutions. Our manufacturing excellence ensures consistent quality for heavy-duty industrial vehicles and specialized machinery manufacturers worldwide.
