Wholesale Price HS45 2 Spool Monoblock Directional Control Valve

Metoda sterowania:Dźwignia sterownicza

Szpula:2-sekcyjny

Przepływ znamionowy:45 l/min (11,8 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G3/8

Port wylotowy:G3/8

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria HS45 Zawór sterujący jednoczęściowy

Rozmiar opakowania:25*15*12

Waga brutto:5.80 kg

Dostępność: W magazynie

98 Osoby oglądają ten produkt

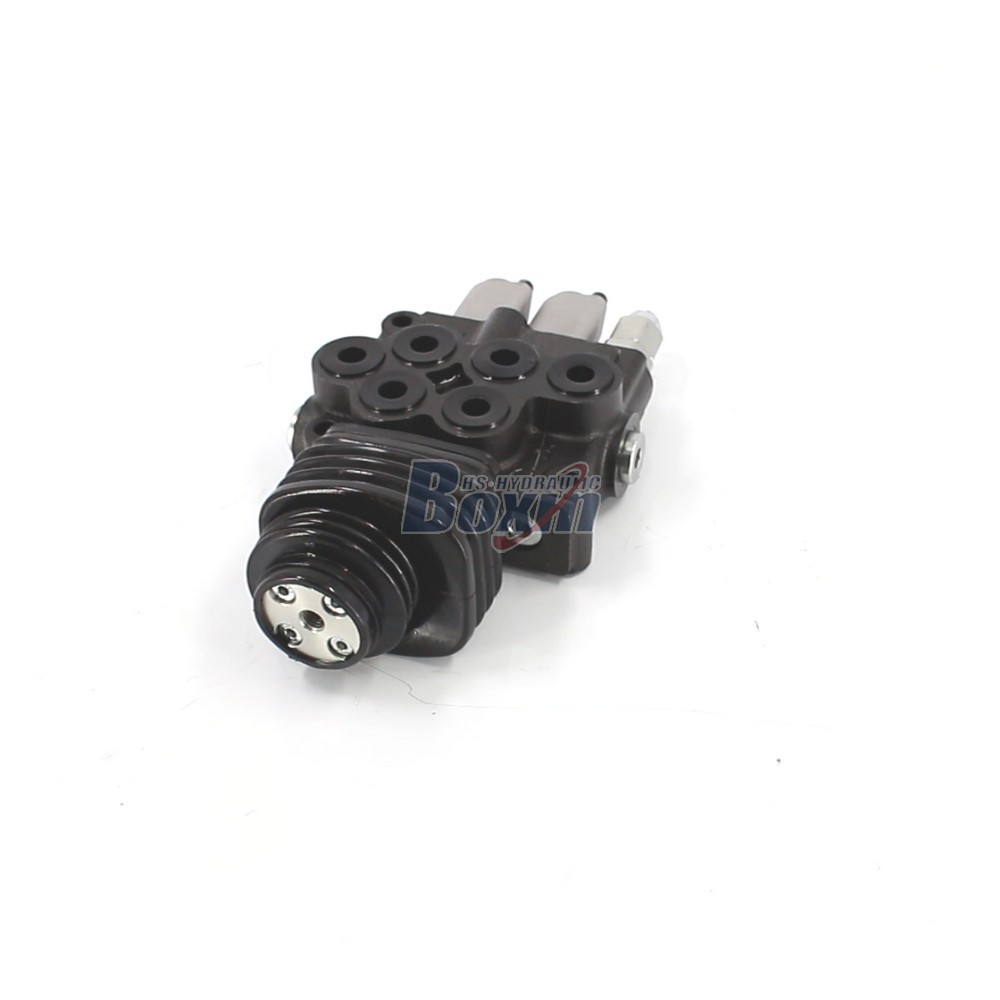

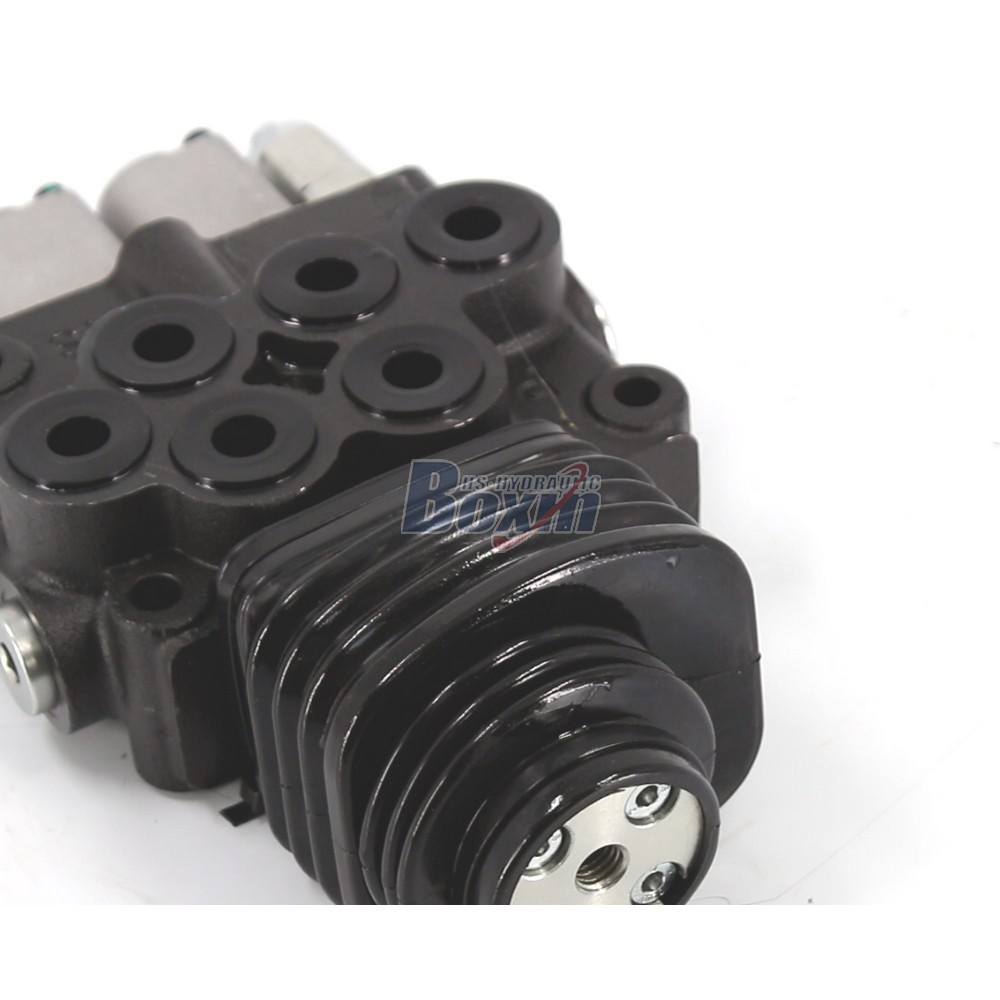

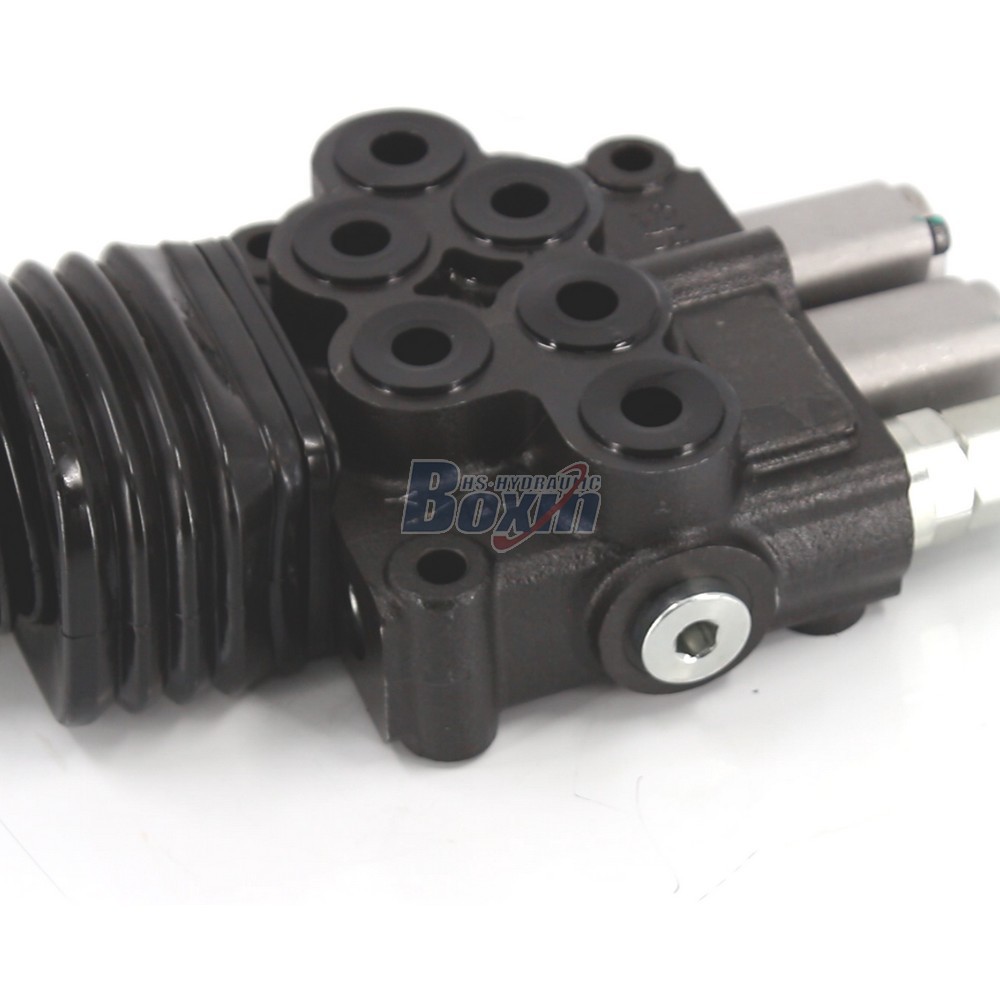

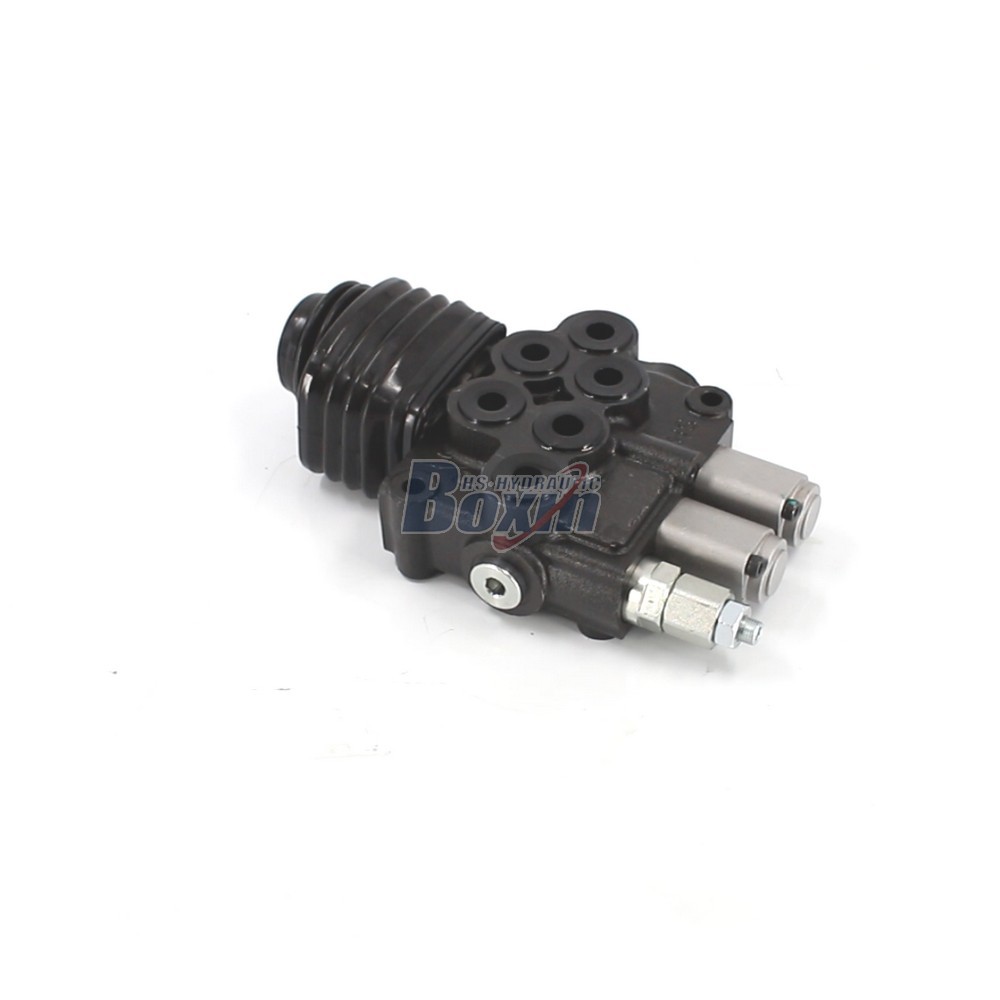

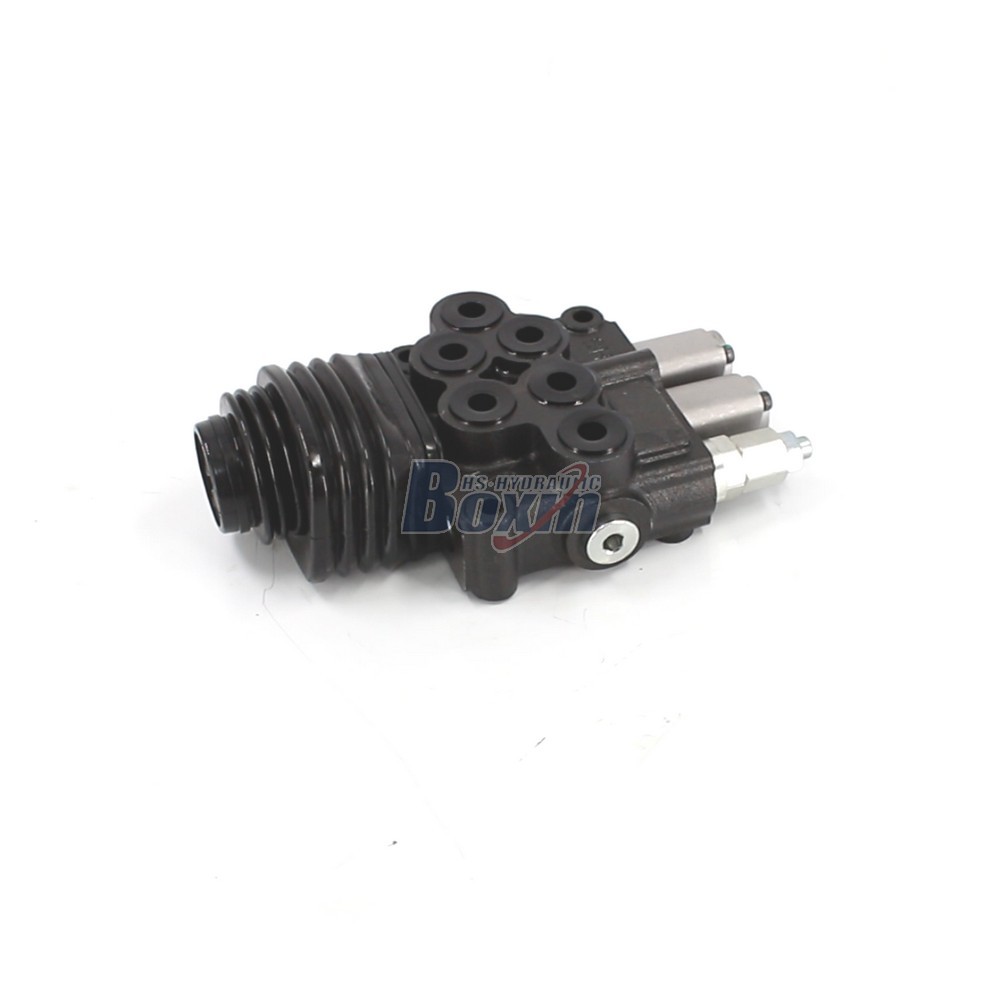

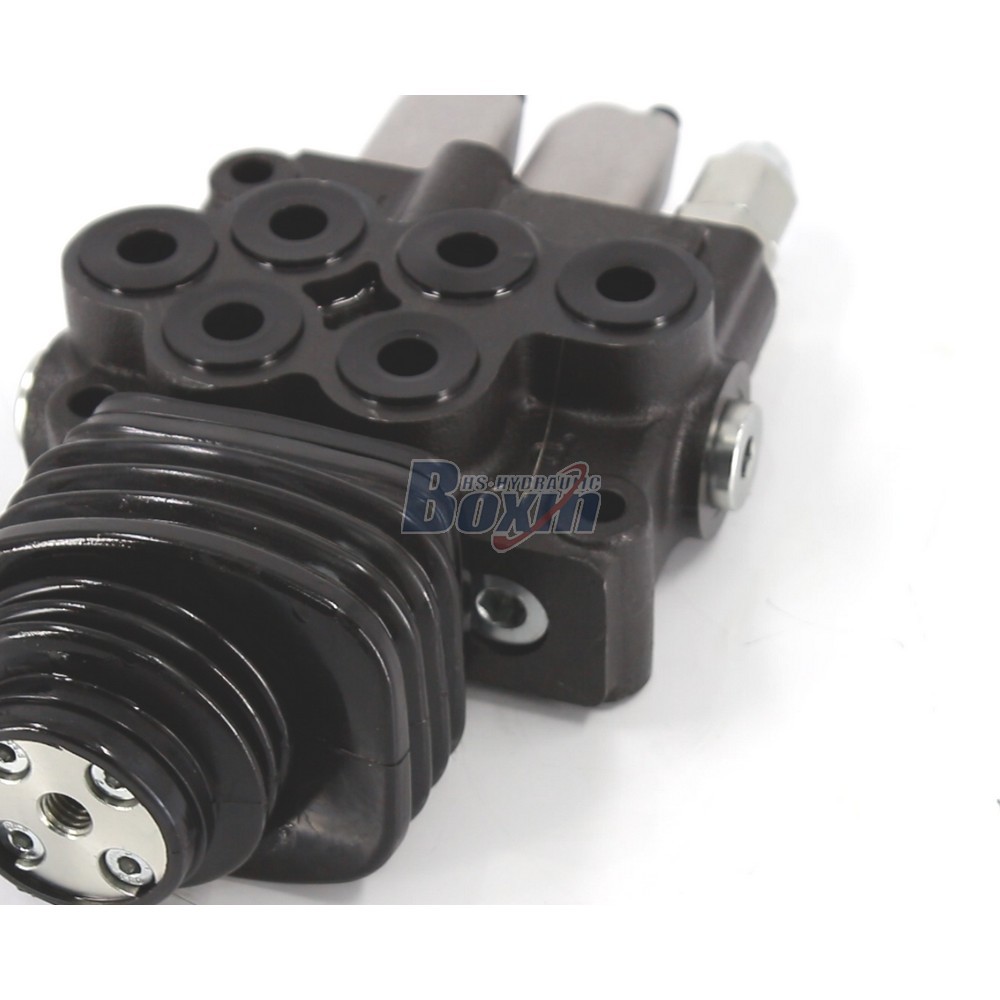

Wholesale Price HS45 2 Spool Monoblock Directional Control Valve

Wholesale Price HS45 2 Spool Monoblock Directional Control Valve

Wholesale Price HS45 2 Spool Monoblock Directional Control Valve drawing image

As a leading global manufacturer, we provide the HS45 Series 2 Spool Monoblock Directional Control Valve featuring precise joystick control. Designed for high-pressure applications up to 250 bar with a 45 L/min flow rate, this compact valve is ideal for mini-excavators, tractors, and material handling equipment, offering robust performance and versatile installation.

Seria HS45 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Elektropneumatyczna, Elektrohydrauliczna, Hydrauliczna, Hydrauliczny i ręczny, Dźwignia sterownicza, Ręczna i joystick, Ręczne i elektrohydrauliczne
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny
Zakres temperatury otoczenia -20°C do +80°C (-4°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 45 l/min (11,8 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8
Port wylotowy G3/8
Rozmiar portu G3/8

Our factory specializes in large-scale manufacturing of hydraulic solutions, offering the HS45 Series 2 Spool Monoblock Directional Control Valve for the global market. This high-performance valve features an intuitive joystick control method, a rated flow of 45 L/min (11.8 US gpm), and a maximum pressure capability of 250 bar (3600 psi). With standard G3/8 inlet and outlet ports, it is perfectly suited for diverse applications including mini-excavators, skid steer loaders, tractors, forklifts, and wood splitters. We provide comprehensive manufacturing services including OEM, private labeling, and custom engineering to meet specific technical requirements. As a factory-direct source, we offer competitive wholesale pricing and are actively seeking to establish long-term partnerships with distributors, wholesalers, agents, and international traders. Whether you need reliable factory supply for construction machinery or agricultural implements, our 2 spool monoblock valve ensures efficient oil flow management and durability in rigorous industrial environments.
