Wholesale P40Q-OT Pneumatic 1 Spool Monoblock Valve from Factory

Metoda sterowania:Pneumatyczna

Szpula:1-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:29*16*11

Waga brutto:3.50 kg

Dostępność: W magazynie

65 Osoby oglądają ten produkt

Wholesale P40Q-OT Pneumatic 1 Spool Monoblock Valve from Factory

Wholesale P40Q-OT Pneumatic 1 Spool Monoblock Valve from Factory

Wholesale P40Q-OT Pneumatic 1 Spool Monoblock Valve from Factory drawing image

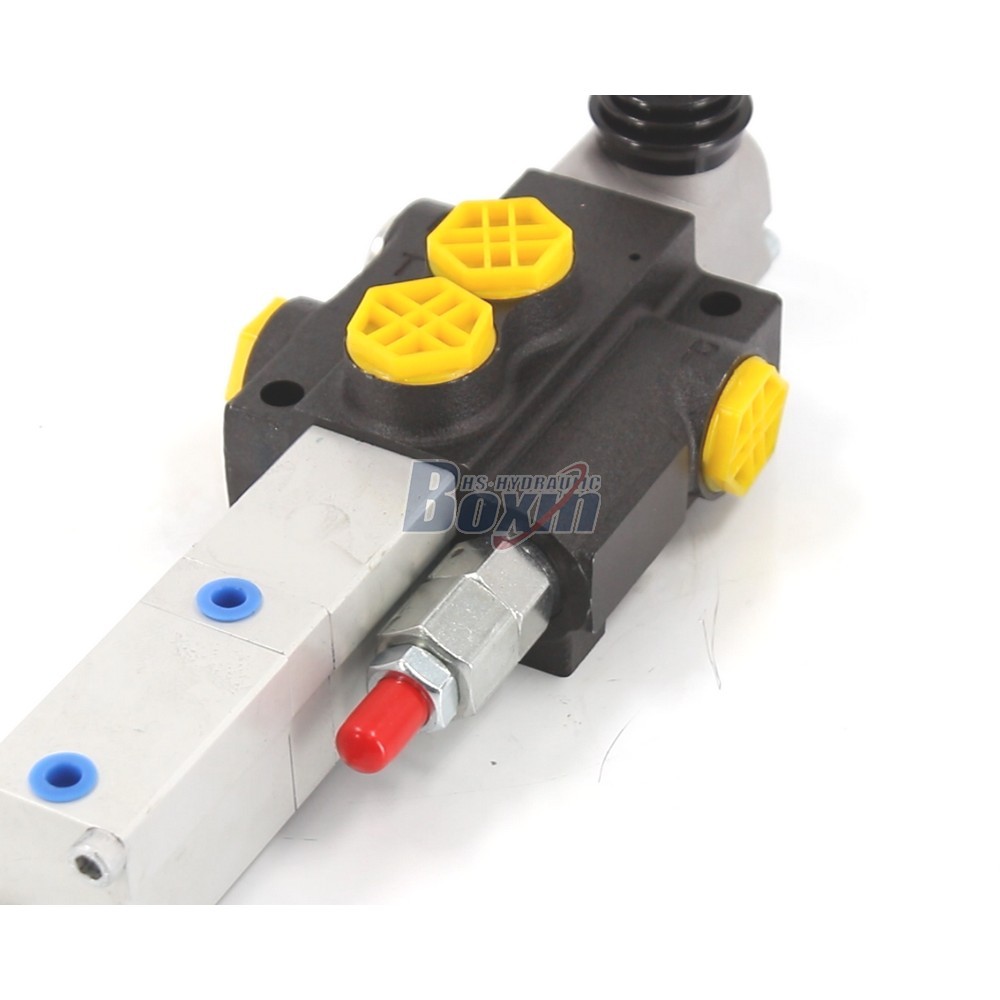

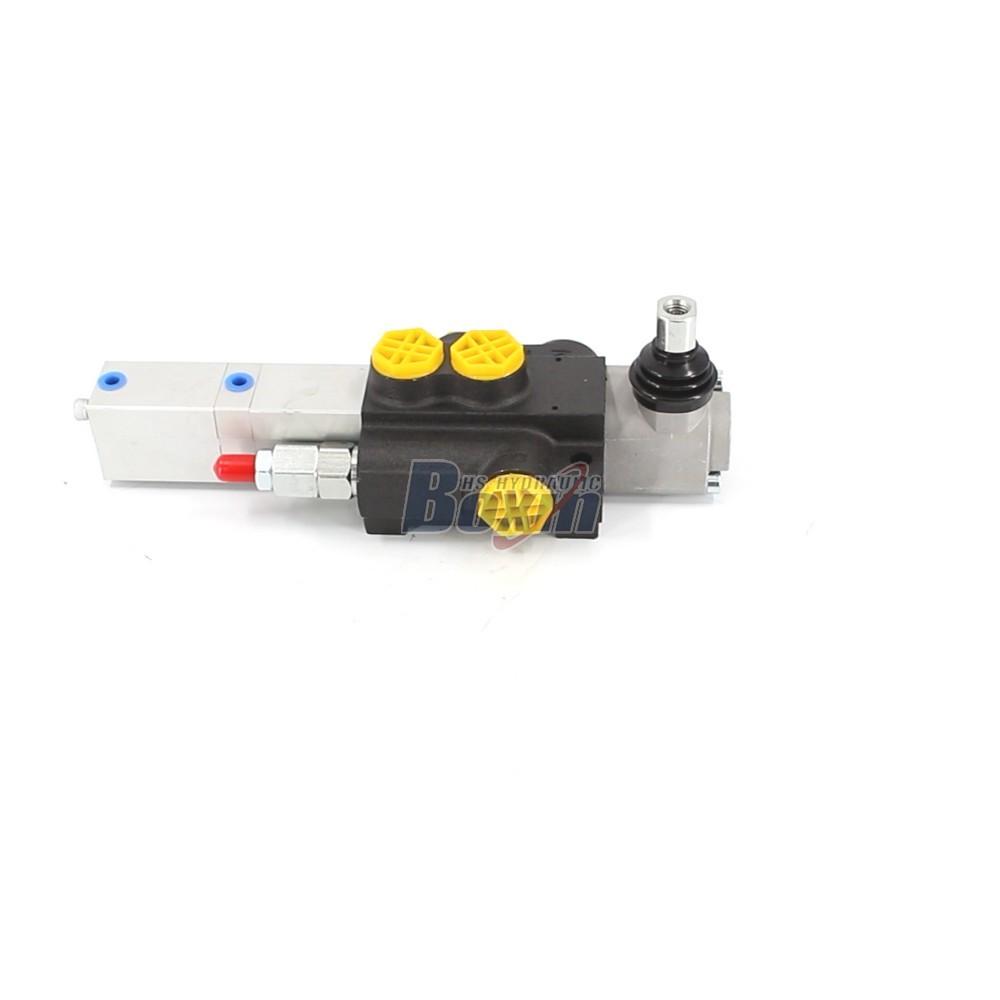

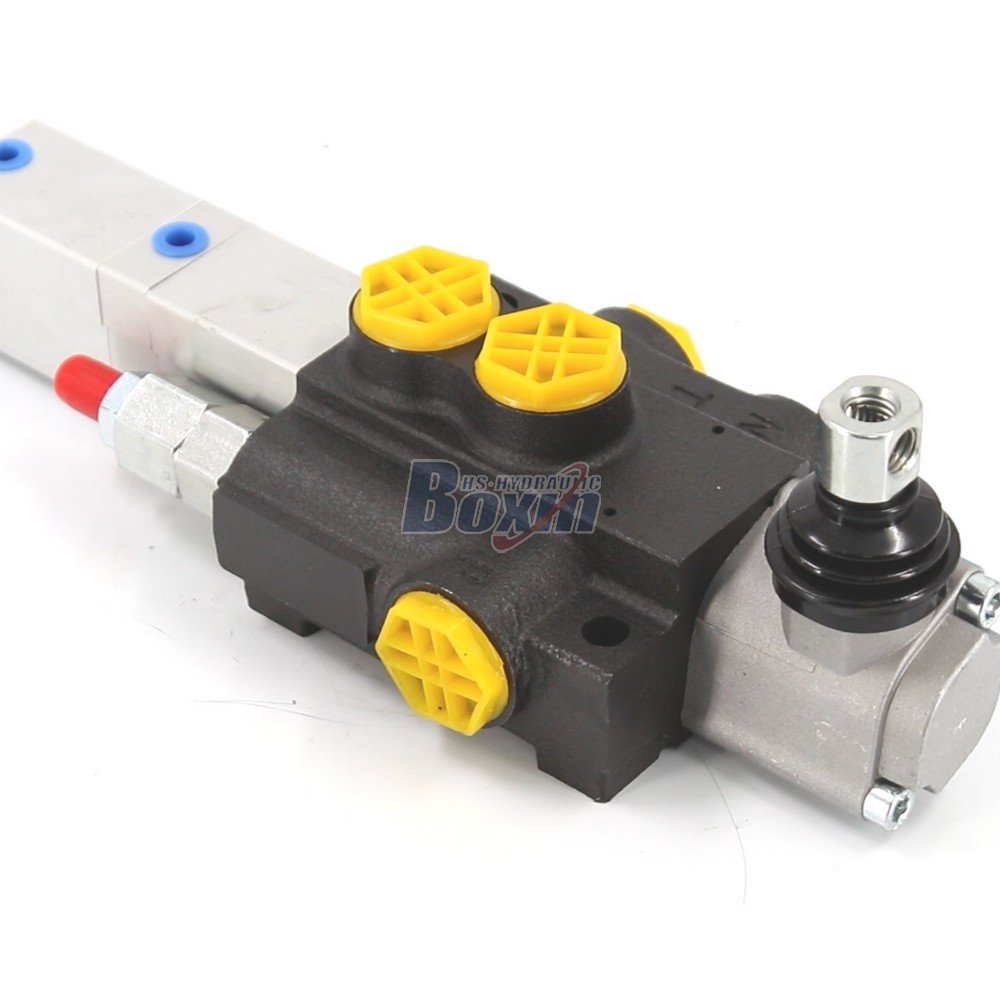

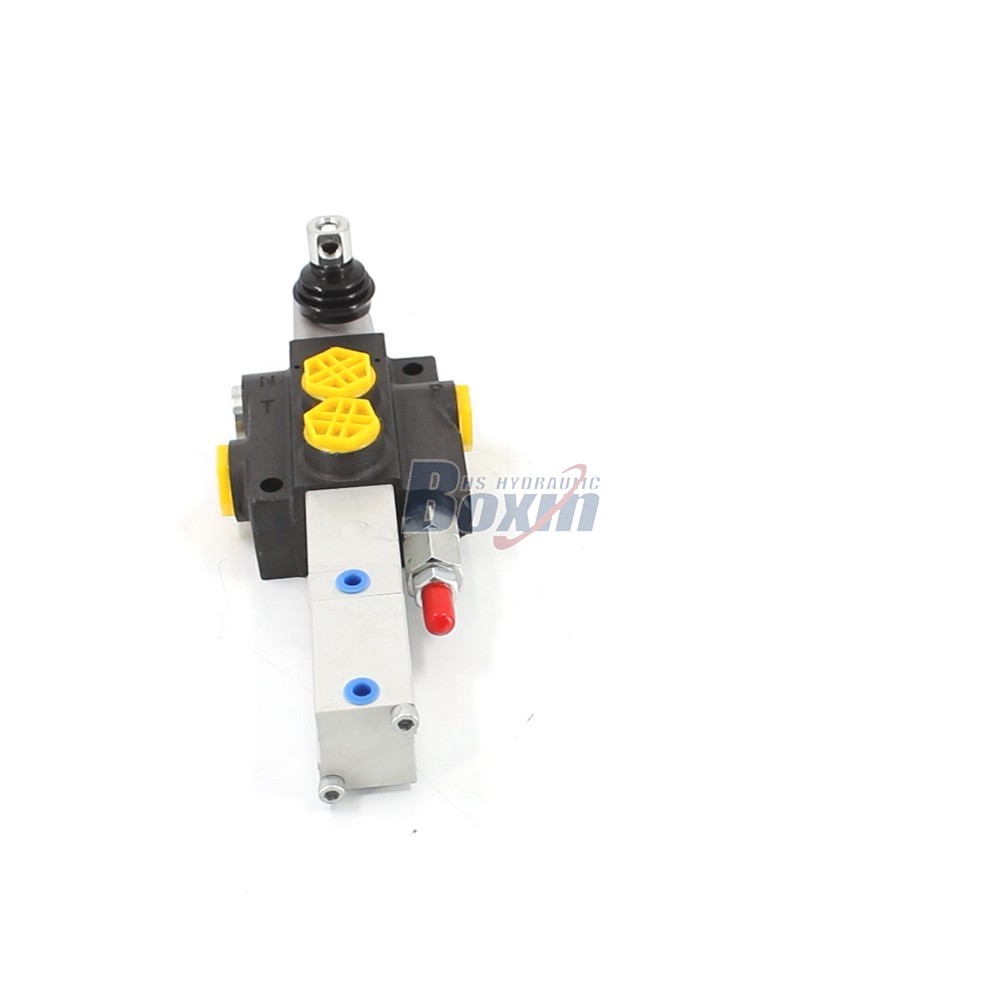

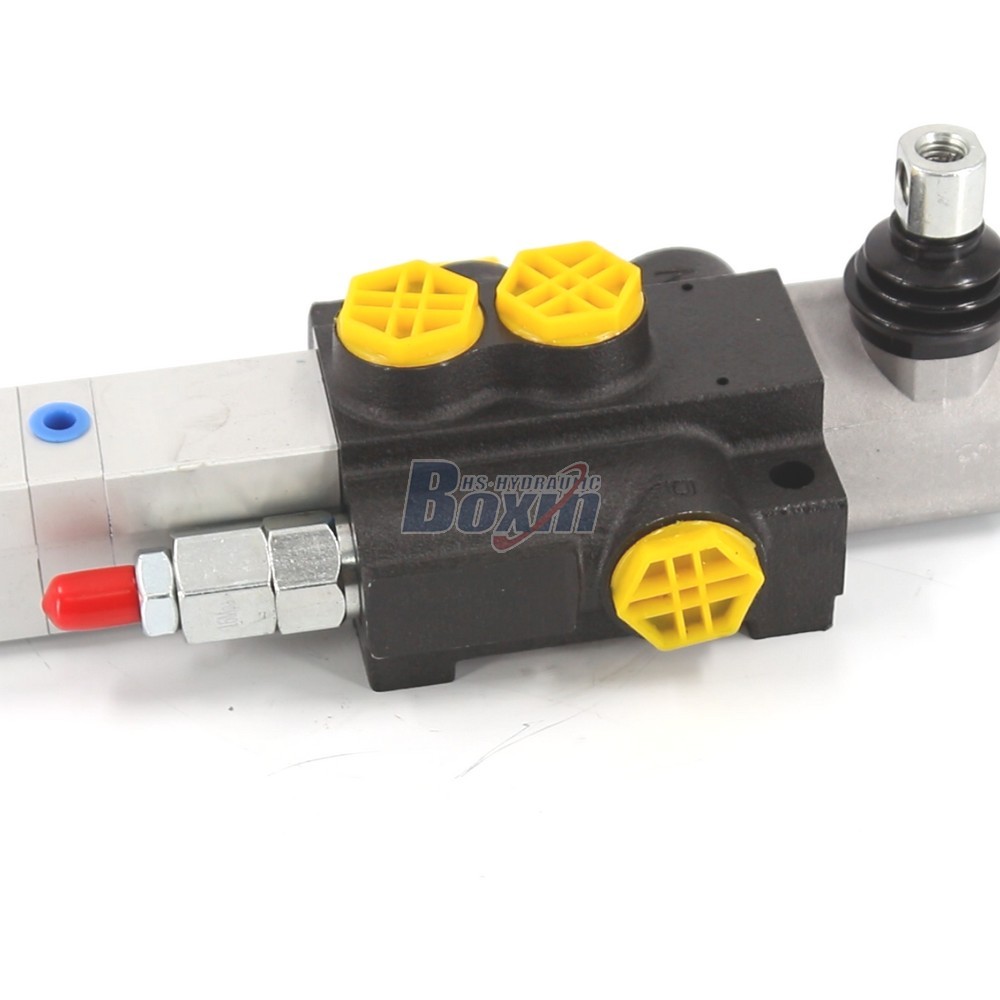

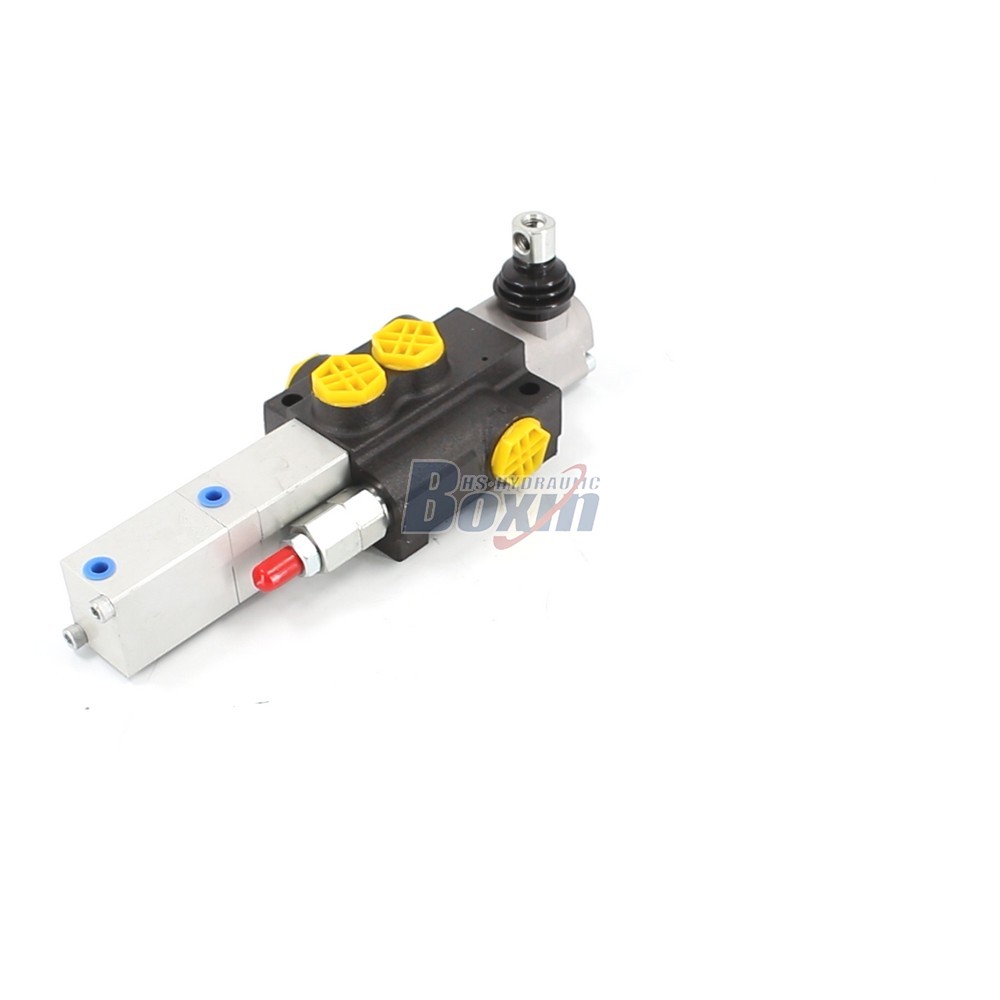

The P40Q-OT is a high-performance 1-spool pneumatic monoblock directional control valve designed for mobile applications. Featuring a rated flow of 40 L/min and capable of handling pressures up to 250 bar, this P40 series valve provides reliable pneumatic actuation for machinery in agriculture, construction, and material handling sectors.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

As a prominent hydraulic product manufacturer, we offer the P40Q-OT Pneumatic 1 Spool Monoblock Valve for global distribution. This P40 series directional valve is engineered for heavy-duty applications including forklifts, mini-excavators, and tractors. With a flow rate of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), it ensures efficient fluid power control. Our factory provides comprehensive manufacturing services including OEM, ODM, and custom branding (Private Labeling) to meet specific market requirements. We specialize in factory wholesale and are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need customized hydraulic solutions for wood splitters or bulk supplies for industrial vehicle fleets, our factory supply chain guarantees consistent quality and competitive wholesale pricing. This pneumatic spool valve features G1/2 inlet/outlet ports and G3/8 working ports, making it highly compatible with various hydraulic systems in sweepers, aerial platforms, and skid steer loaders.
