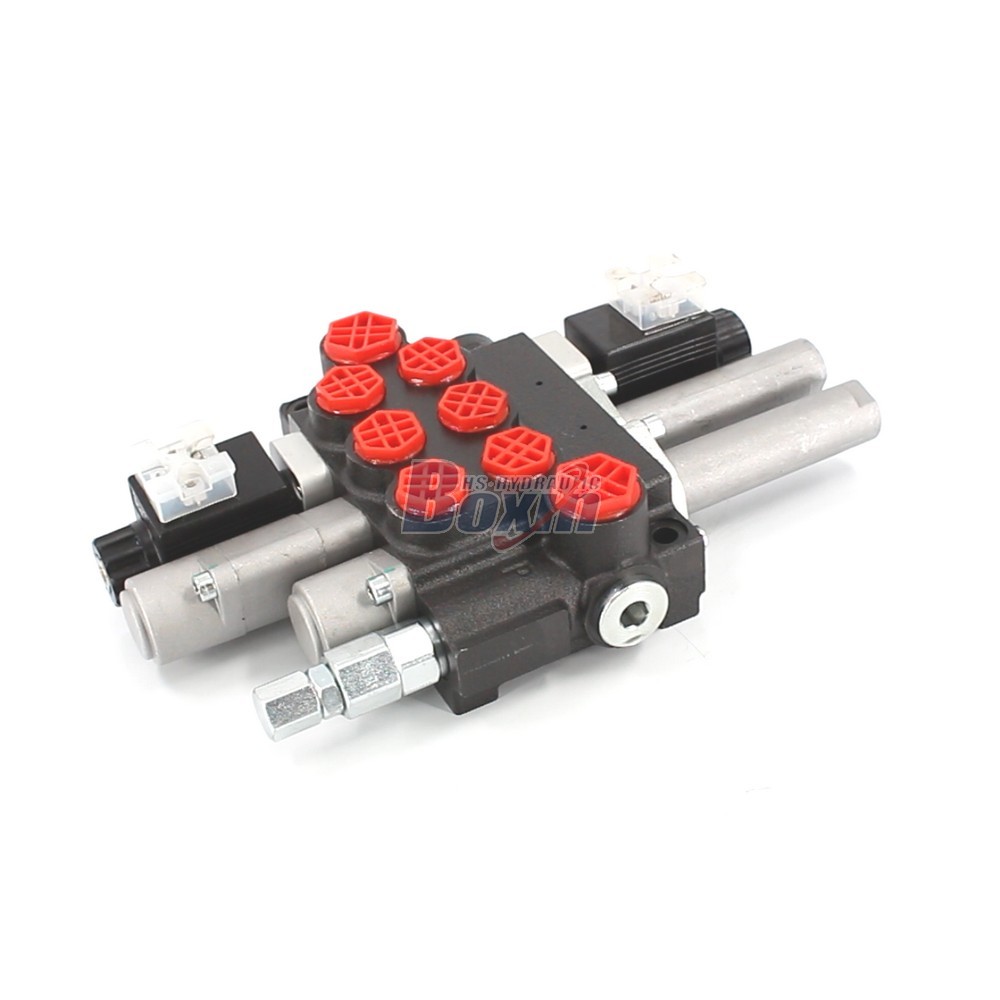

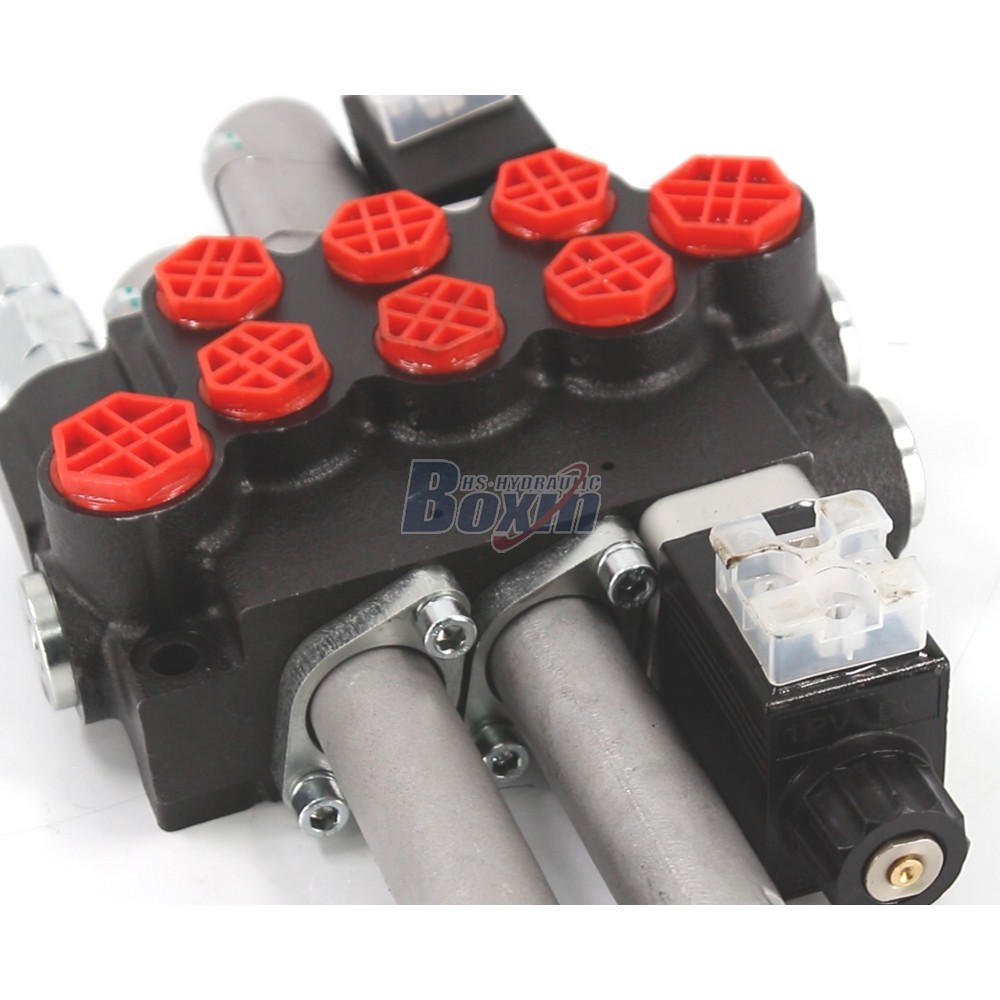

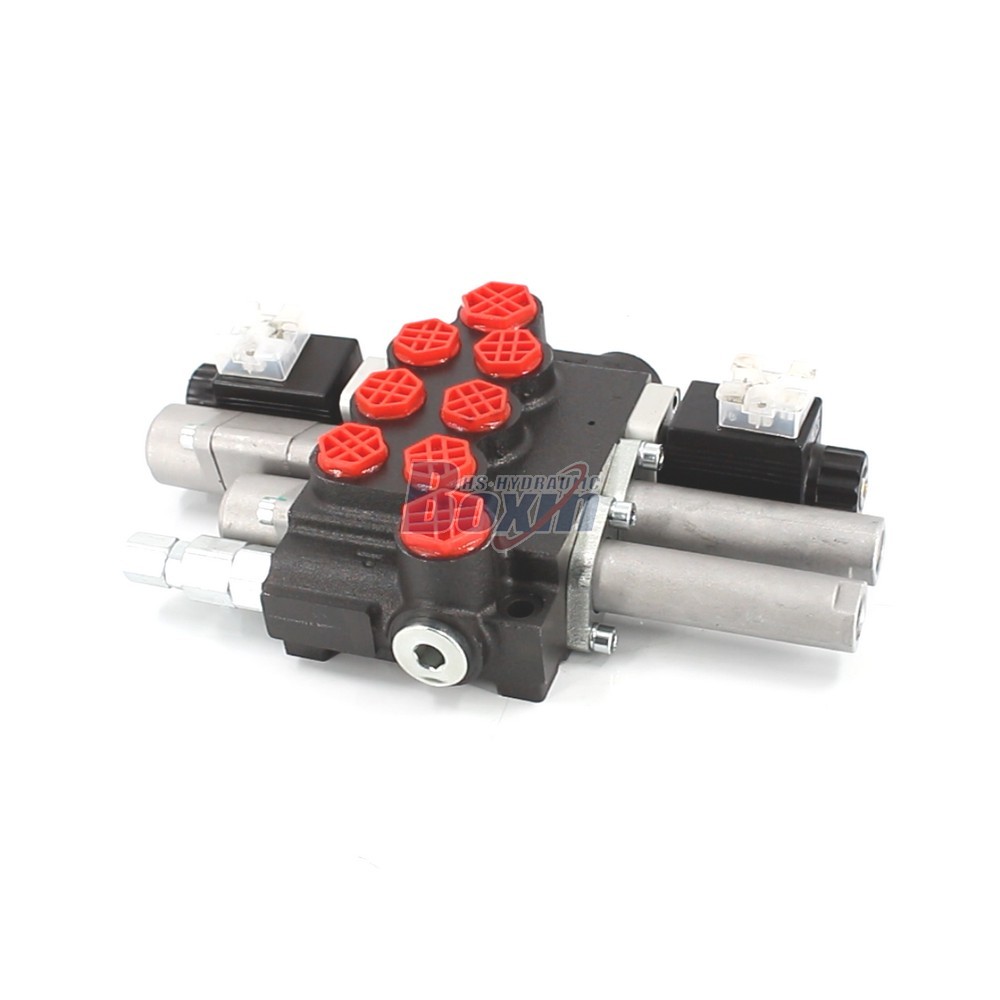

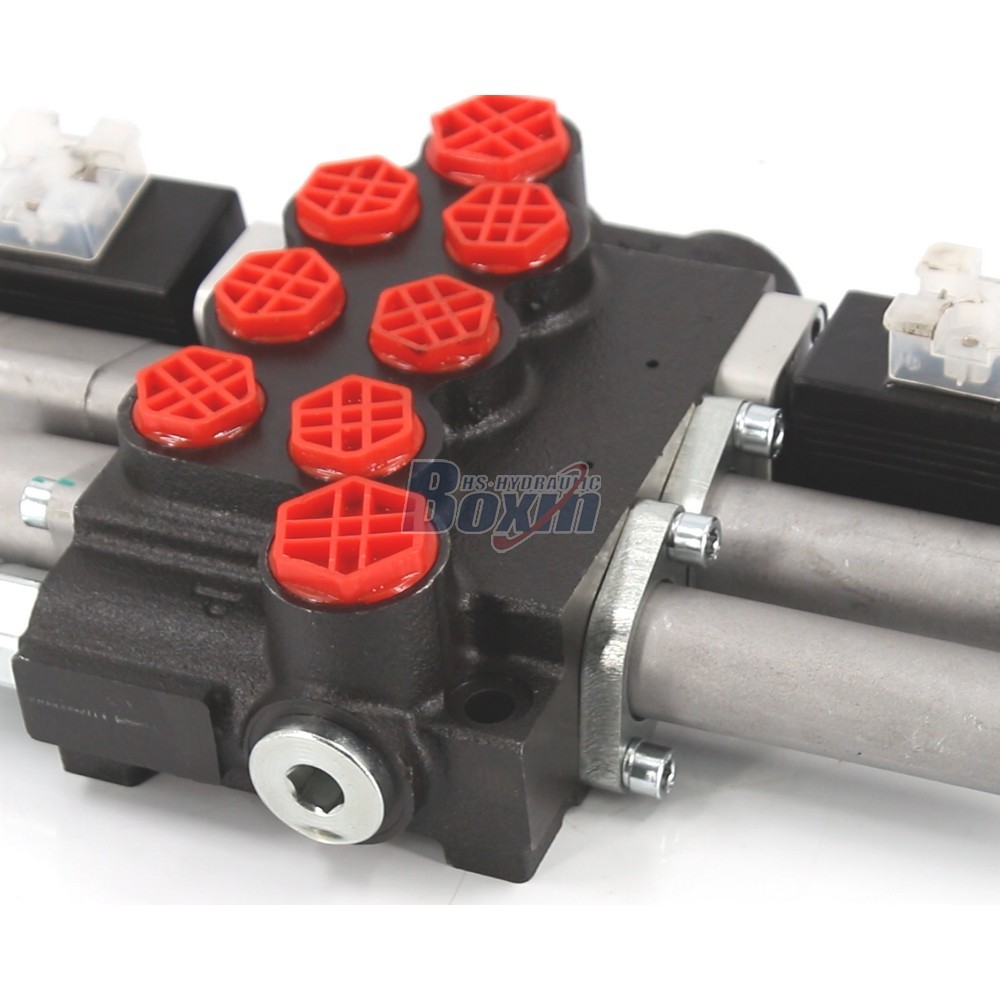

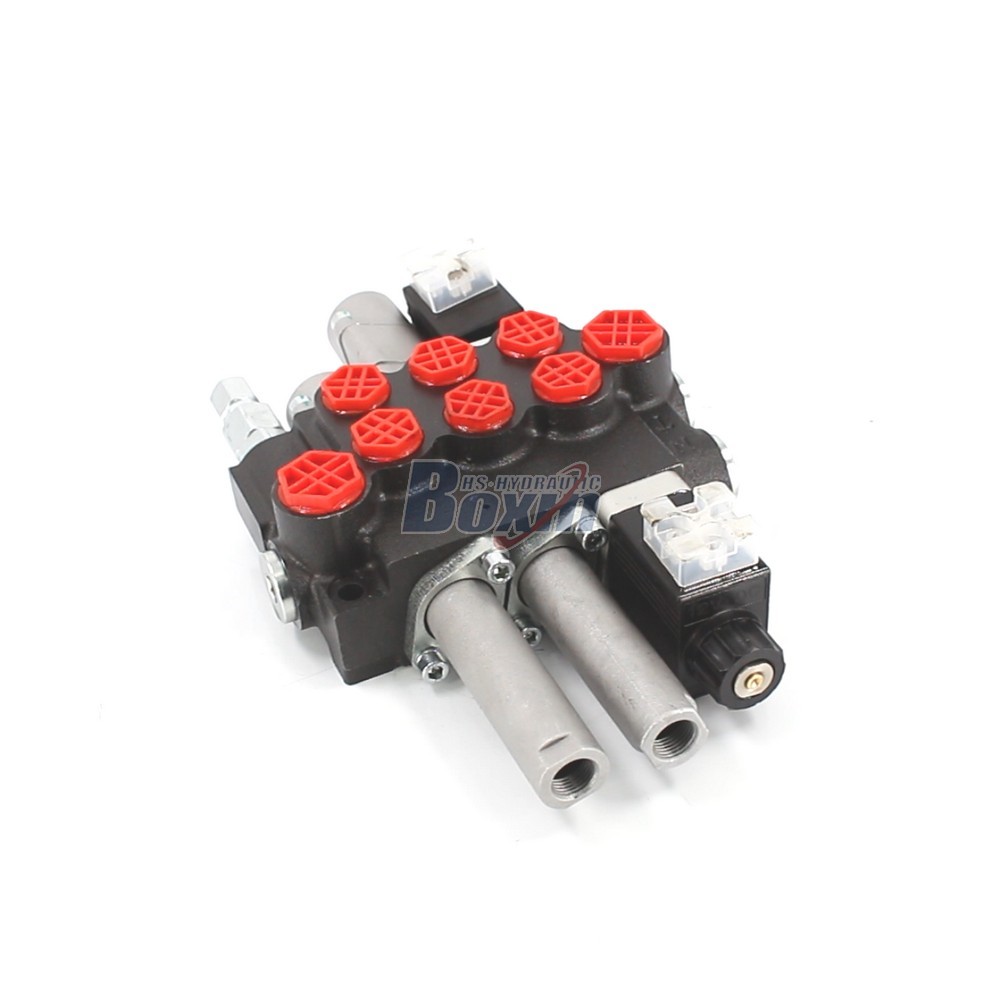

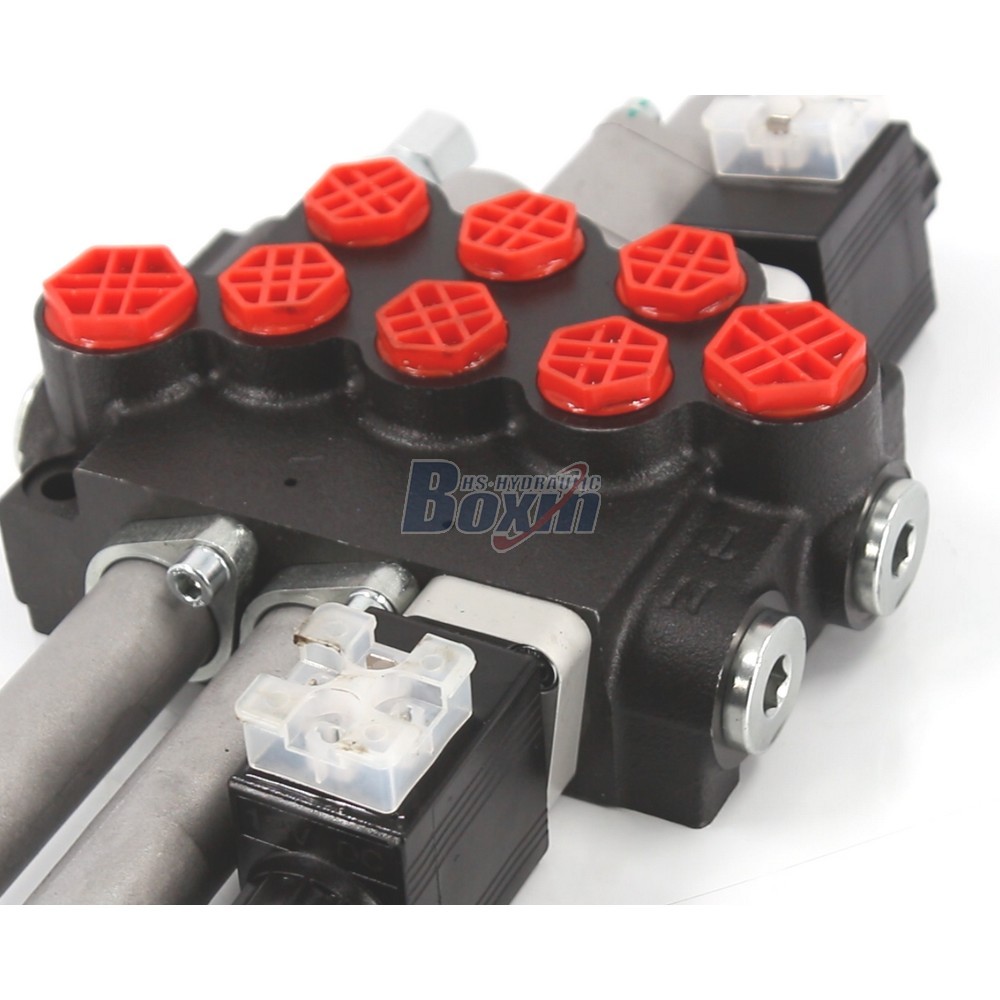

Wholesale P40 Series Solenoid and Cable Monoblock Directional Valve

Metoda sterowania:Elektromagnetyczne i kablowe

Szpula:3-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:30.5*22*11

Waga brutto:8.50 kg

Dostępność: W magazynie

47 Osoby oglądają ten produkt

Wholesale P40 Series Solenoid and Cable Monoblock Directional Valve

Wholesale P40 Series Solenoid and Cable Monoblock Directional Valve

Wholesale P40 Series Solenoid and Cable Monoblock Directional Valve drawing image

The P40 Series 3 Spool Monoblock Directional Valve features dual control via solenoid and cable, providing reliable 40 L/min flow and 250 bar pressure for diverse mobile and industrial hydraulic applications.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

As a leading hydraulic product manufacturer, we offer the P40 Series 3 Spool Solenoid and Cable Monoblock Directional Valve for global markets. This versatile valve supports a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar, making it ideal for forklifts, skid steer loaders, and agricultural machinery. We specialize in factory wholesale, OEM, and ODM services, providing professional private labeling and custom manufacturing solutions tailored to your technical specifications. Our facility ensures consistent supply and competitive factory pricing for bulk orders. We are actively seeking long-term cooperation with global distributors, wholesalers, agents, and trading companies. Whether you need reliable components for construction equipment, material handling, or forestry machinery like wood splitters, our factory-direct supply provides the quality and support required for your business growth.
