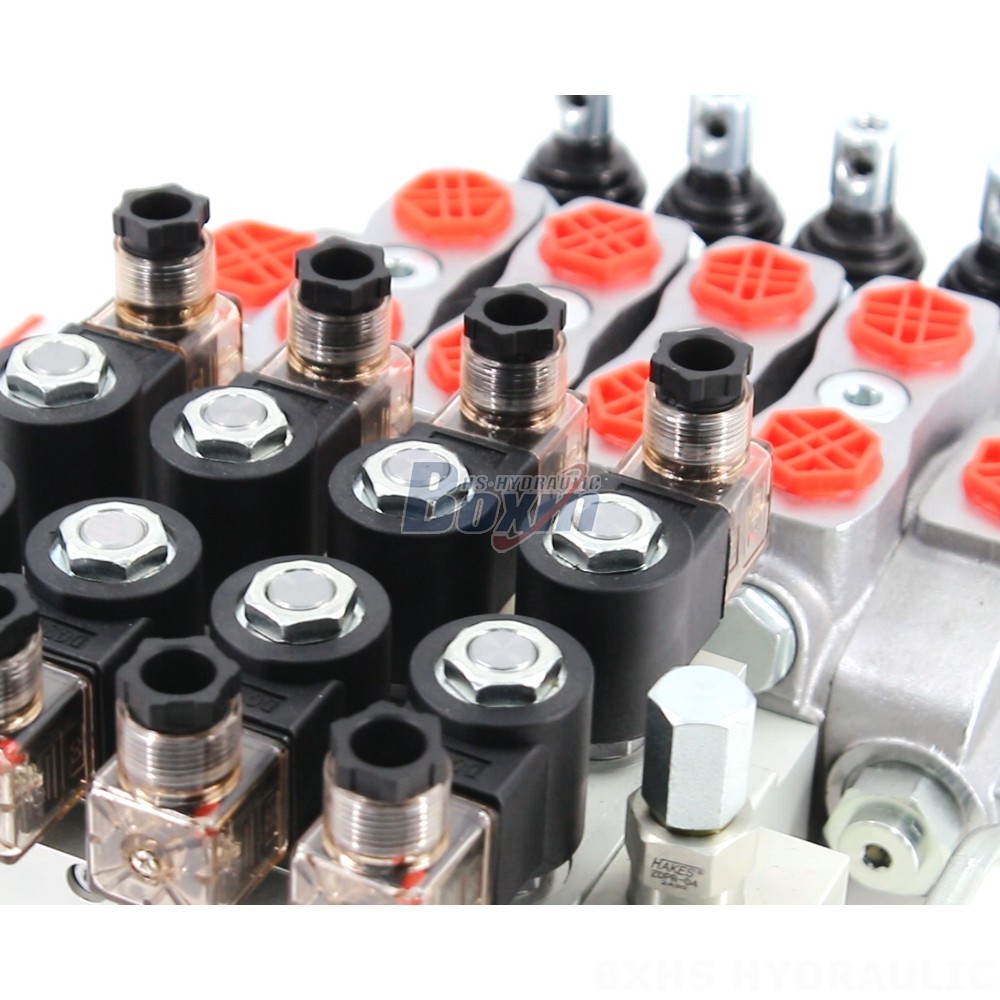

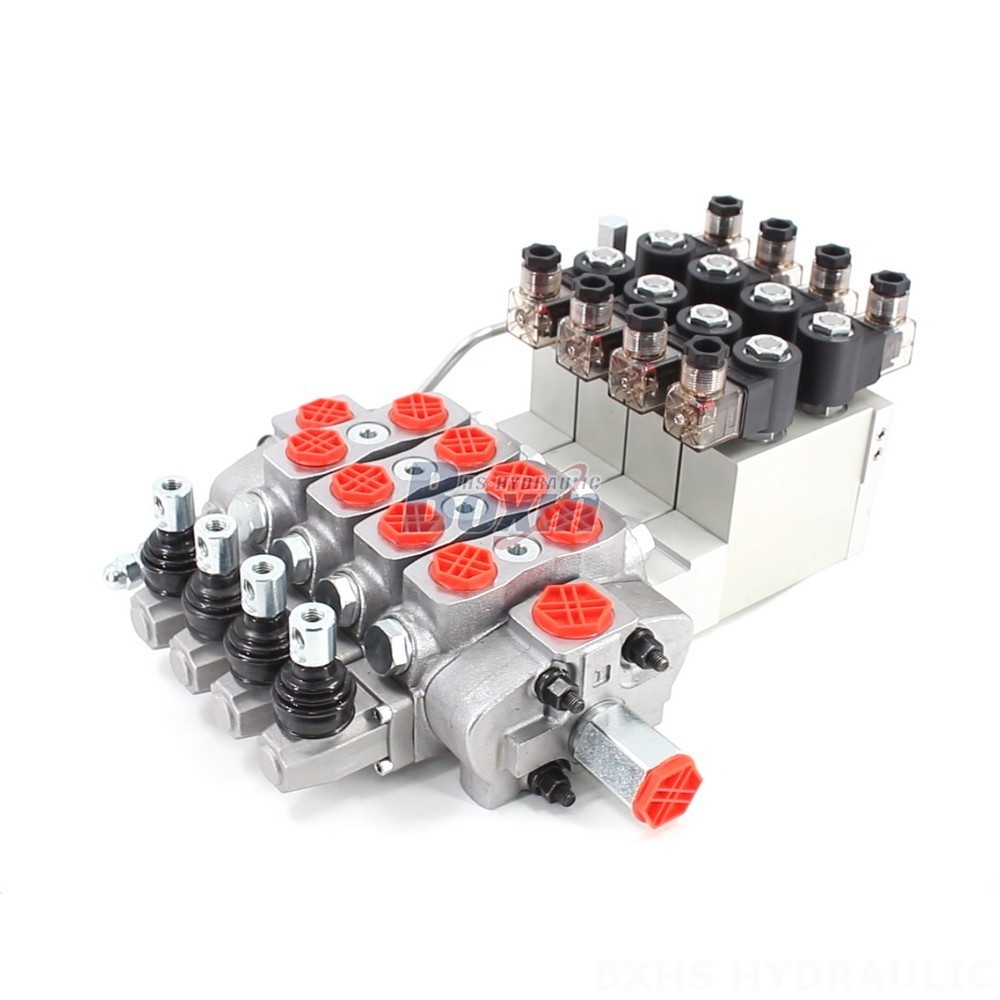

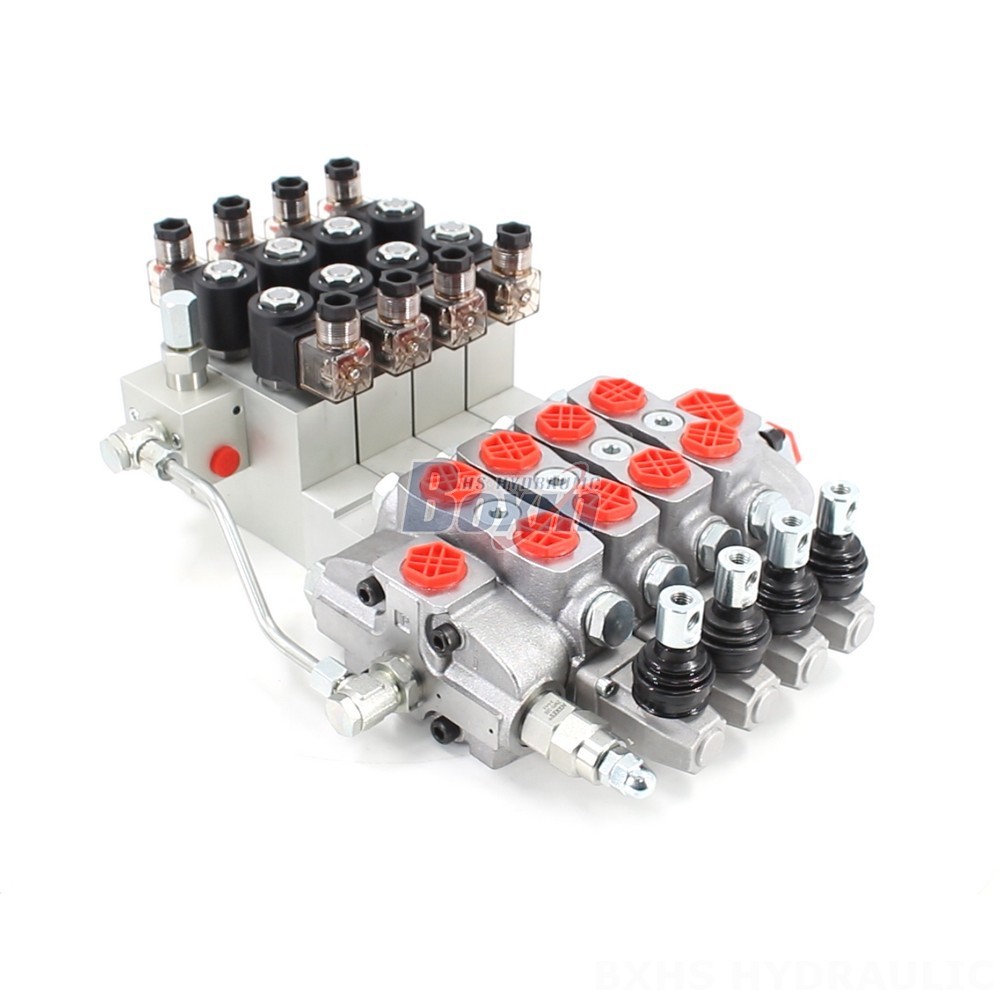

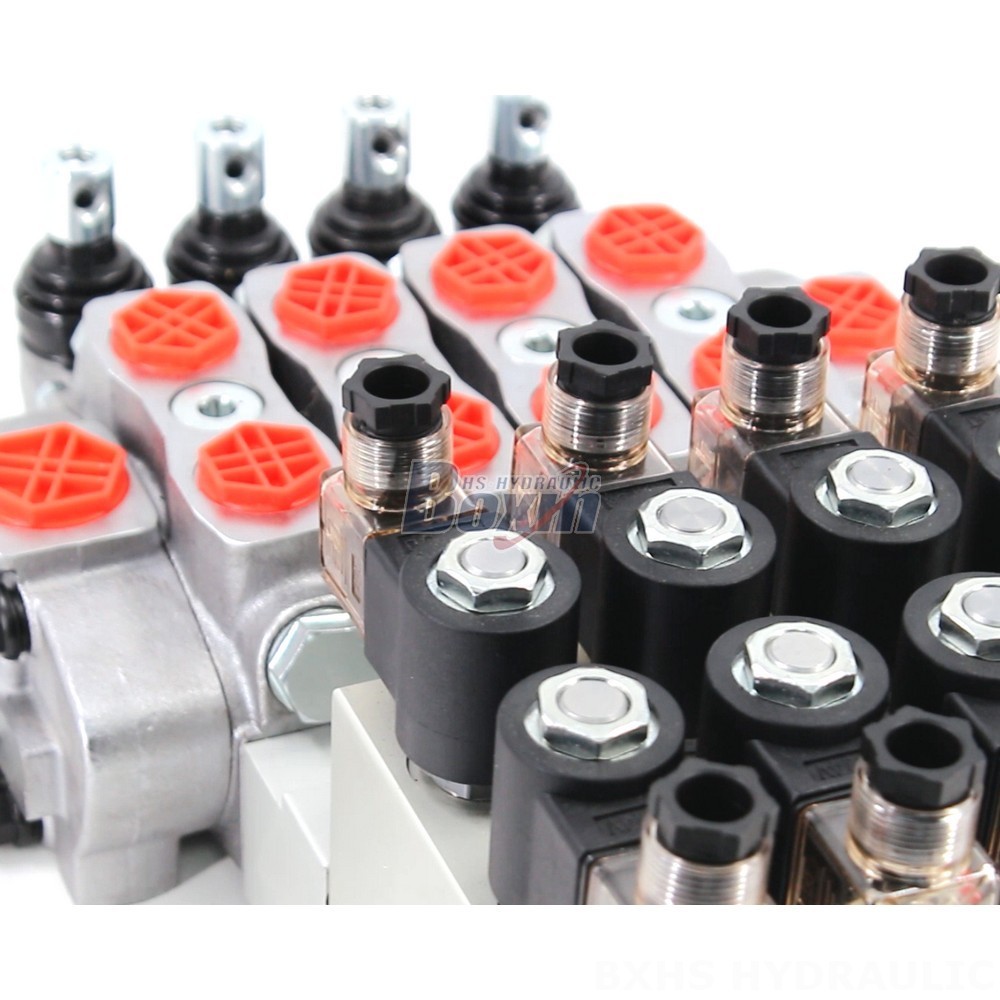

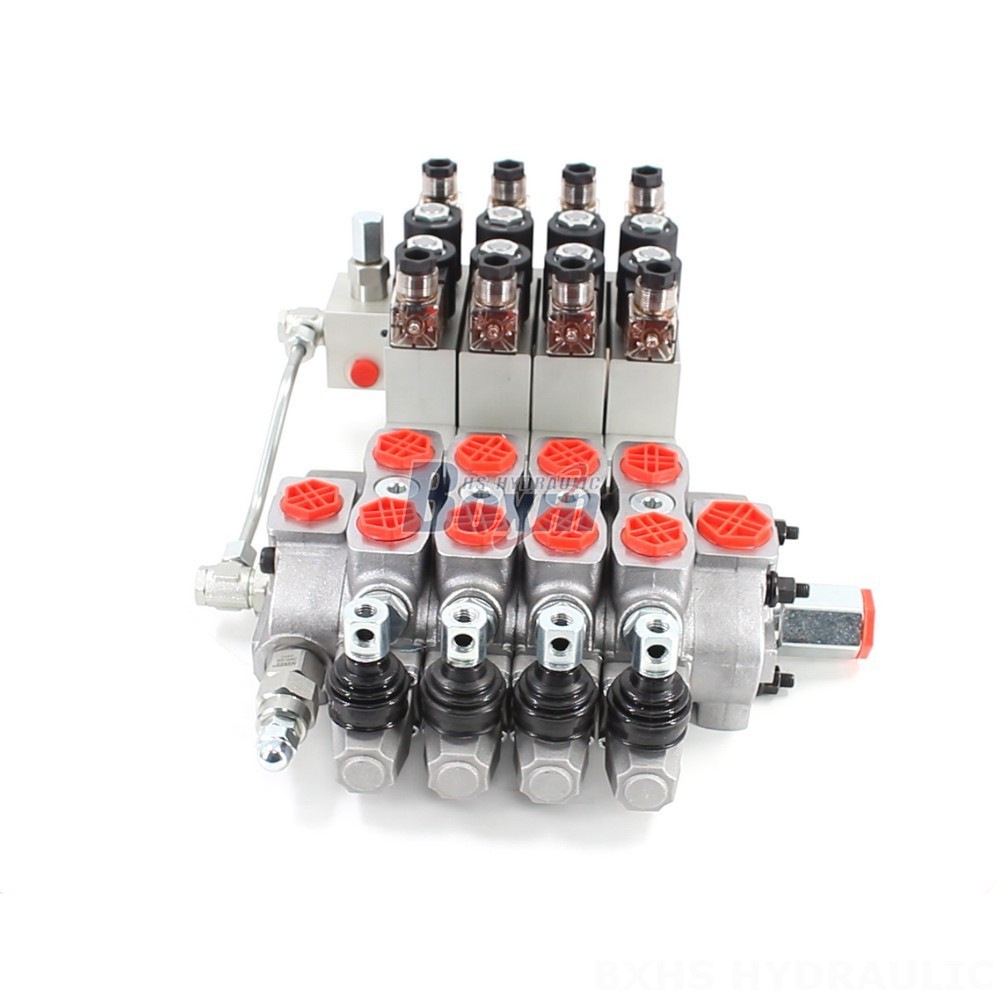

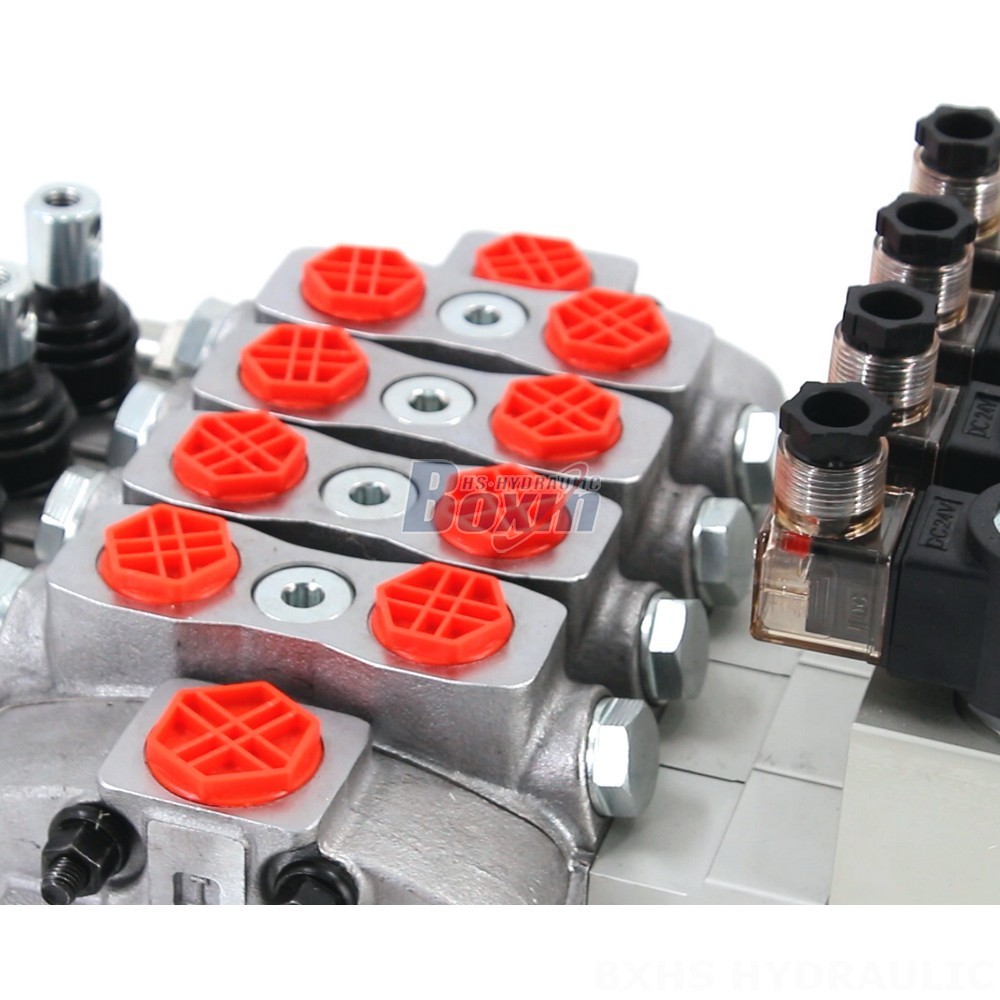

Wanted: Distributors for SD8-PG2 Electro-Hydraulic 4 Spool Directional Valves

Metoda sterowania:Elektrohydrauliczna

Szpula:4-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Rozmiar opakowania:40*35*20

Waga brutto:28.00 kg

Dostępność: W magazynie

505 Osoby oglądają ten produkt

Wanted: Distributors for SD8-PG2 Electro-Hydraulic 4 Spool Directional Valves

Wanted: Distributors for SD8-PG2 Electro-Hydraulic 4 Spool Directional Valves

Wanted: Distributors for SD8-PG2 Electro-Hydraulic 4 Spool Directional Valves drawing image

High-performance SD8-PG2 electro-hydraulic 4-spool directional valves, offering 90 L/min flow rate and up to 350 bar pressure, ideal for material handling, construction, and agricultural machinery. Available for OEM, private labeling, and wholesale.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Silnik elektryczny
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 90 l/min (23,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M22×1.5, SAE 10
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
Rozmiar portu G1/2, M22×1.5, SAE 10

We are a leading manufacturer of hydraulic products, supplying globally. Our SD8-PG2 electro-hydraulic 4-spool directional valves are engineered for demanding applications in material handling, construction and earth moving, industrial vehicles, and agriculture. Key features include a 90 L/min rated flow, maximum pressure of 350 bar (5100 psi) or 250 bar (3600 psi), and a wide operating temperature range (-40°C to +80°C). This robust sectional valve is perfect for forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors, backhoe loaders, mini/midi excavators, harvesters, and balers.

We offer complete manufacturing, OEM, private labeling, customization, and wholesale options. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us and expand our global reach. As a factory-direct supplier, we guarantee high quality, competitive pricing, and reliable delivery. Contact us today to explore mutually beneficial collaboration opportunities and discuss your specific needs. We offer flexible solutions tailored to your requirements, whether you need bulk orders for wholesale, or customized solutions for your unique applications. Let's collaborate to bring our high-quality hydraulic valves to market! Contact us now to learn more about our OEM, private label, and wholesale programs.
