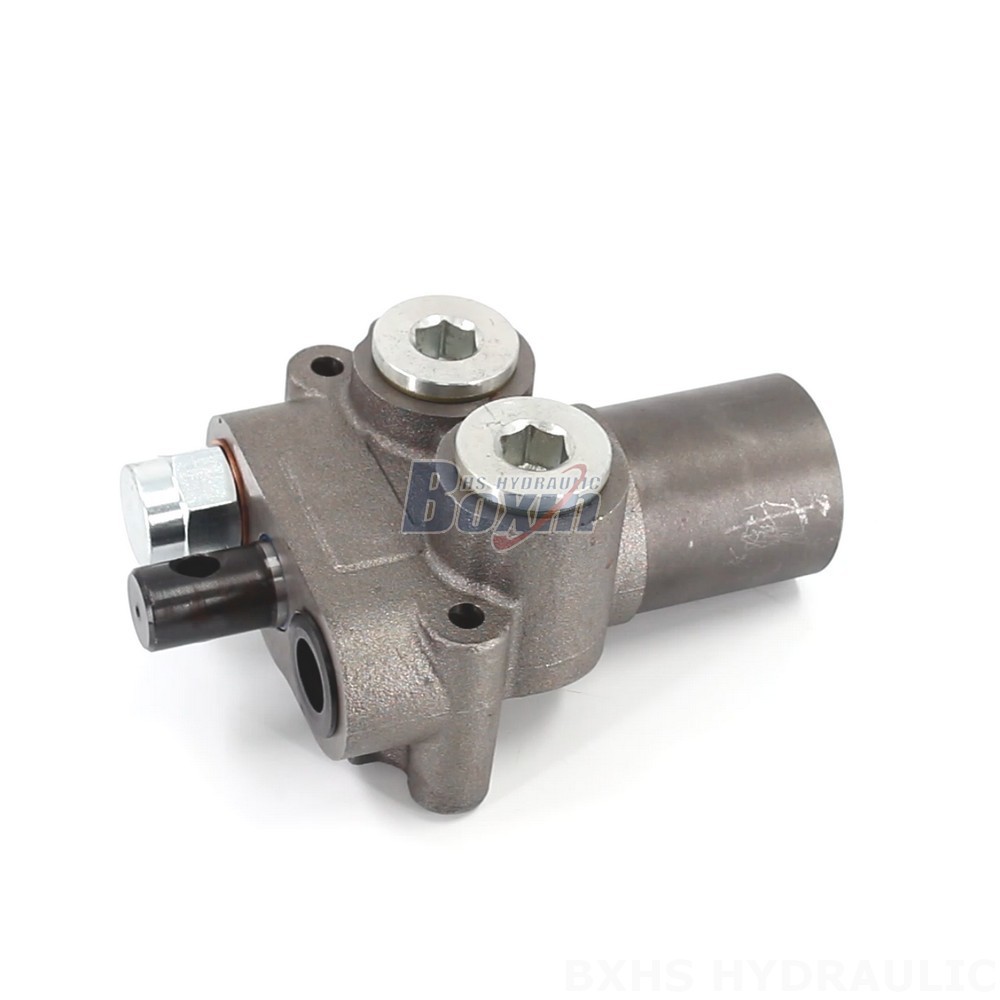

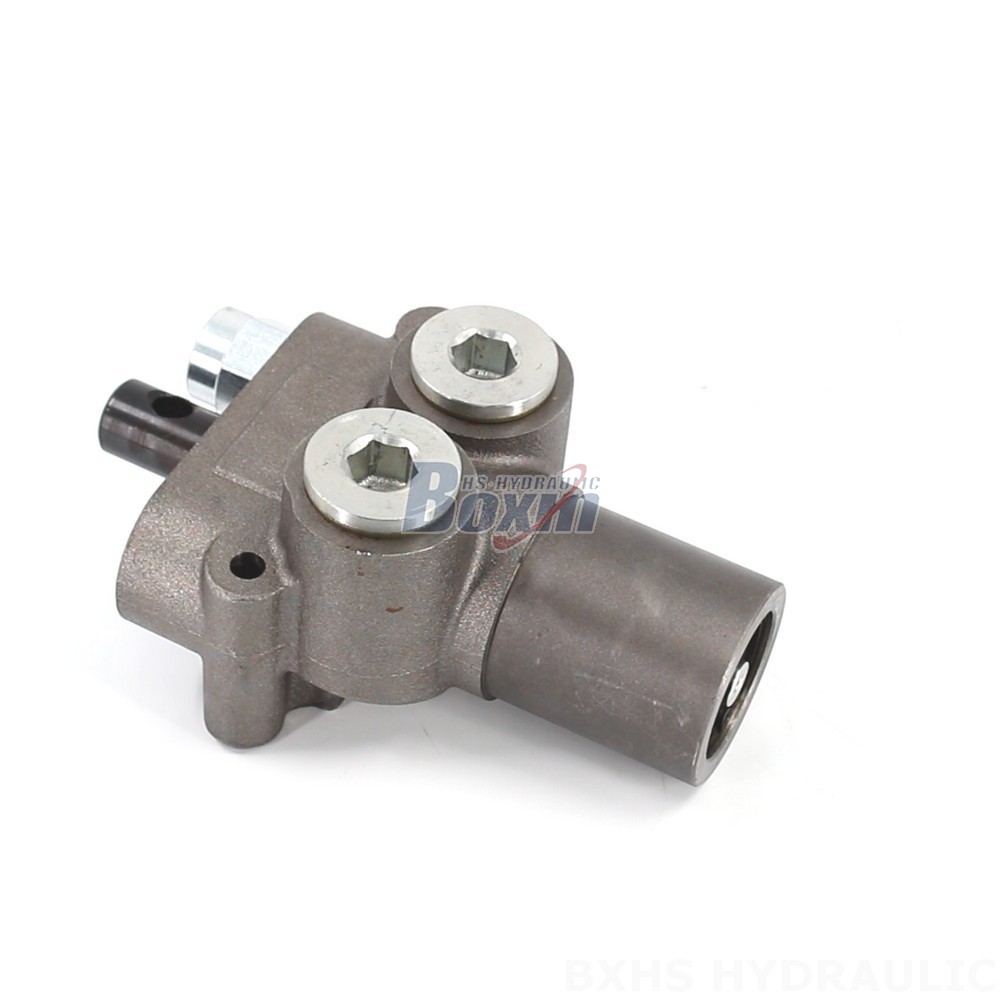

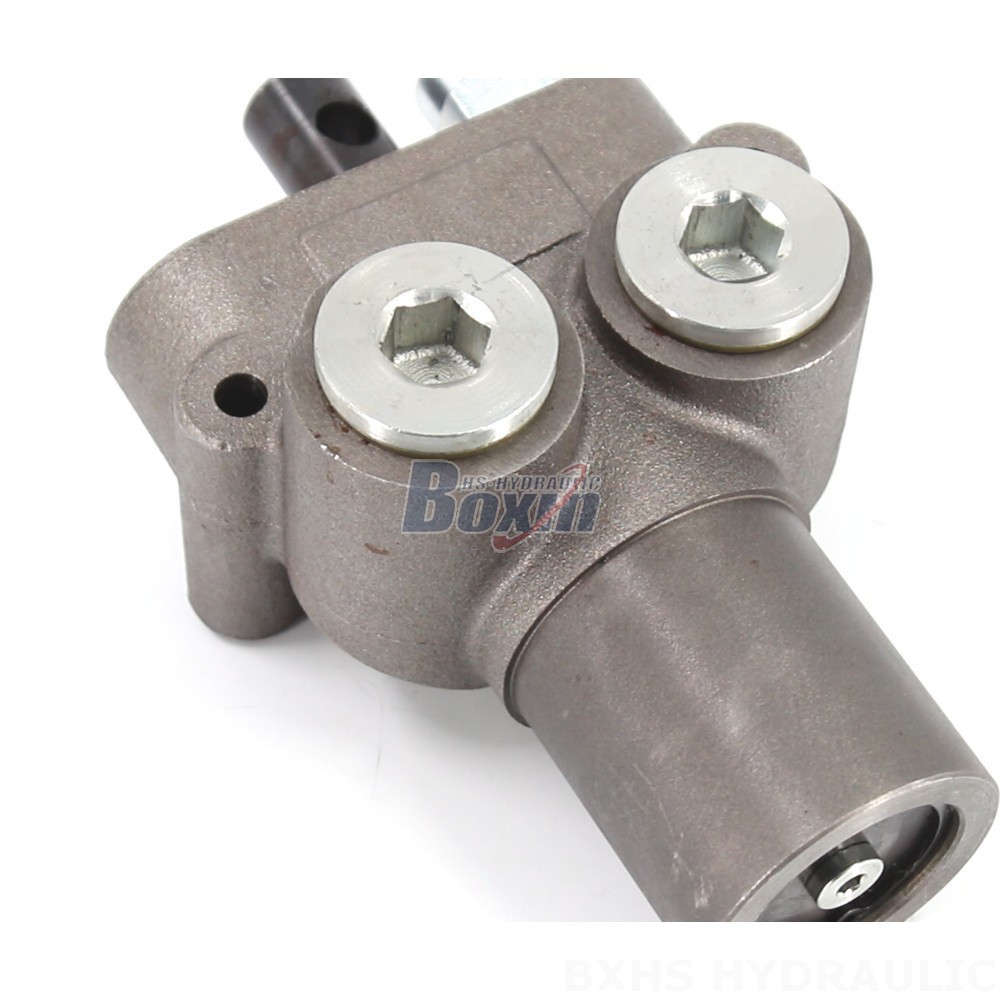

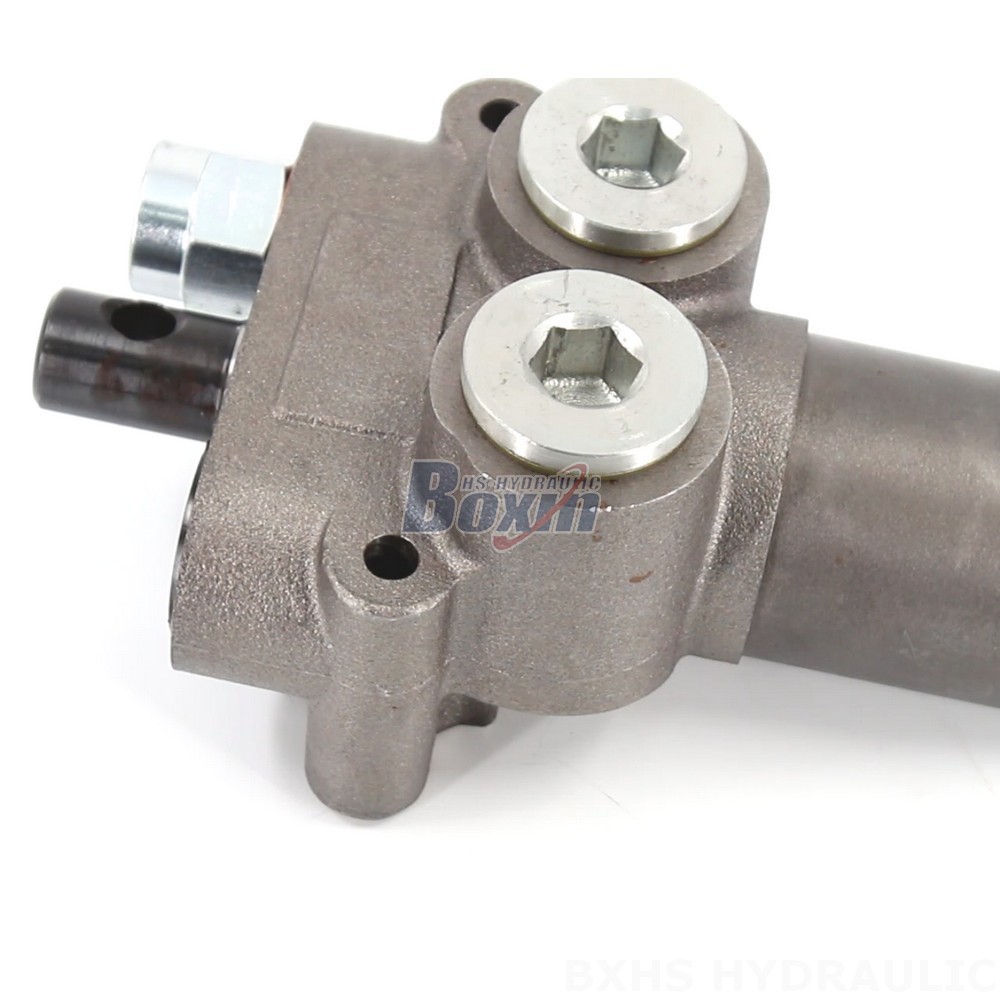

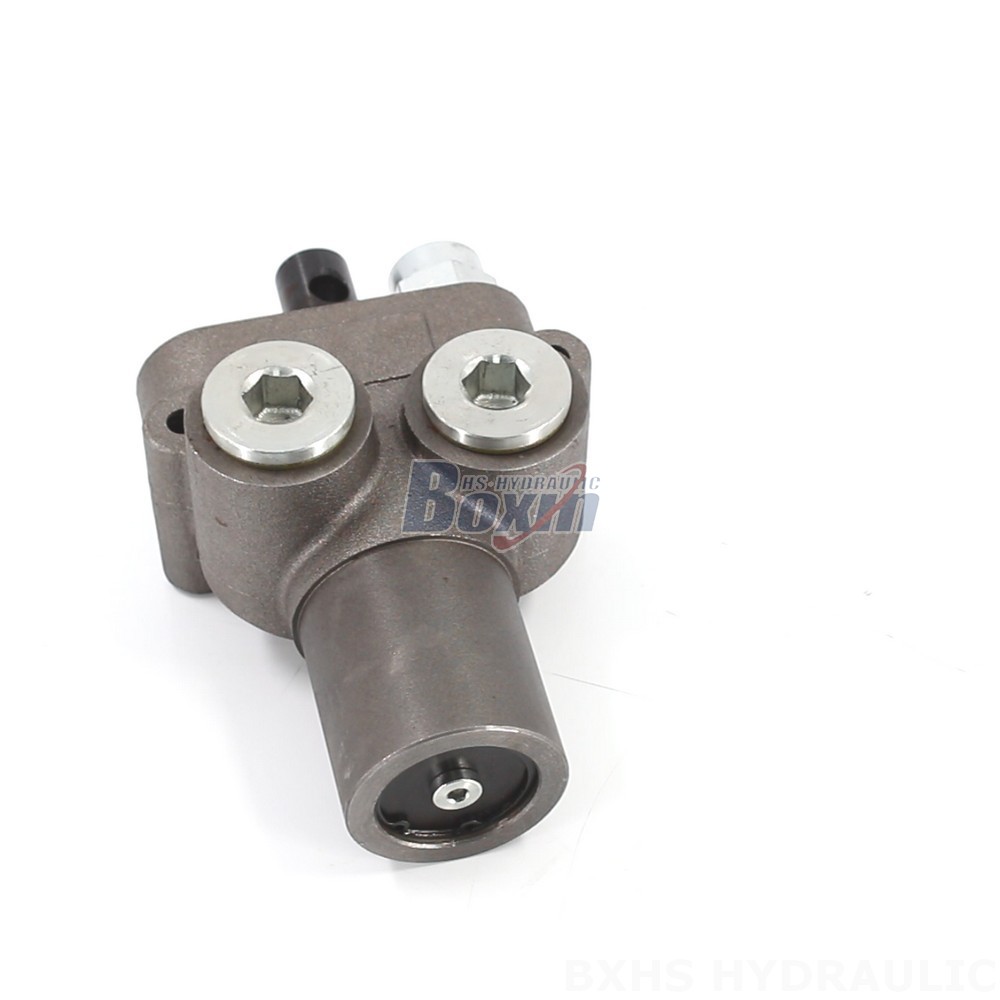

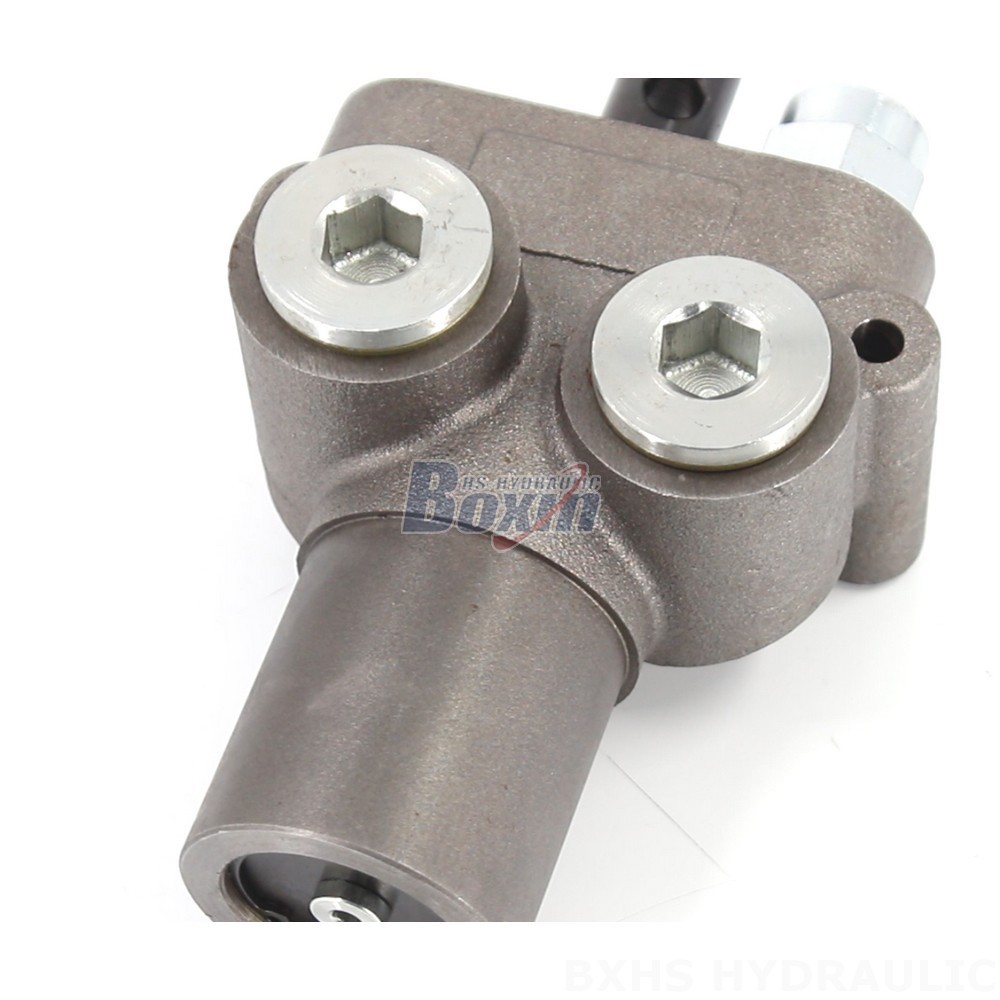

VMS140 Pneumatic 1 Spool Monoblock Directional Control Valve

Metoda sterowania:Pneumatyczna

Szpula:1-sekcyjny

Przepływ znamionowy:Przepływ 150 L/min

Maksymalne ciśnienie:230 bar (3300 psi)

Port wlotowy:G1

Port wylotowy:G3/4

Rozmiar portu:G1

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria VMS Zawór sterujący jednoczęściowy

Rozmiar opakowania:25*17*17

Waga brutto:6.00 kg

Dostępność: W magazynie

358 Osoby oglądają ten produkt

VMS140 Pneumatic 1 Spool Monoblock Directional Control Valve

VMS140 Pneumatic 1 Spool Monoblock Directional Control Valve

VMS140 Pneumatic 1 Spool Monoblock Directional Control Valve drawing image

The VMS140 is a robust pneumatic 1-spool monoblock directional control valve, engineered for a wide range of mobile and industrial hydraulic applications. Offering a rated flow of 150 L/min and maximum pressure of 230 bar, this valve provides reliable performance for various machinery. As a dedicated manufacturer, we supply this high-quality valve globally, offering manufacturing, OEM, ODM, custom, and wholesale services, while actively seeking new distribution partners.

Seria VMS Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna
Szpula 1-sekcyjny
Zakres temperatury otoczenia -20°C do +80°C (-4°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy Przepływ 150 L/min
Maksymalne ciśnienie 230 bar (3300 psi)
Port wlotowy G1, SAE 12
Port wylotowy G3/4
Rozmiar portu G1

We are a reputable **manufacturer** specializing in hydraulic products for the global market, proudly presenting the VMS140 Pneumatic 1 Spool Monoblock Directional Control Valve. This advanced **monoblock hydraulic valve** is designed for precision and durability in demanding environments.

Key features of the VMS140 **pneumatic directional control valve** include its efficient 1-spool configuration, a generous rated flow of 150 L/min (39.6 US gpm), and a maximum operating pressure of 230 bar (3300 psi). It maintains optimal performance across an operating viscosity range of 15-75 mm²/s and ambient temperatures from -20°C to +80°C. Connectivity is made easy with an SAE 12 inlet port and a G3/4 outlet port, making it a versatile **hydraulic flow control valve**.

Our VMS140 **hydraulic system valve** is ideally suited for diverse application areas such as MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES. It delivers dependable control for equipment including TELEHANDLERs, FORKLIFTs, MIDI-EXCAVATORs, MINI-EXCAVATORs, SKID STEER LOADERs, COMPACT WHEEL LOADERs, WHEEL LOADERs, BACKHOE LOADERs, TRACTOR AND FRONT-END LOADERs, and HARVESTERs. This makes it a crucial component for **mobile machinery valve** applications.

As a leading **hydraulic valve manufacturer**, we offer comprehensive solutions. We provide **OEM valve supplier** services, **ODM**, **custom hydraulic valve** design, and **factory wholesale** options for the VMS140 and our extensive range of hydraulic products. Our commitment to quality ensures reliable **factory direct valve** supply.

We are actively expanding our global reach and invite **distributors**, **wholesalers**, **agents**, and **traders** to partner with us. Leverage our **factory supply** capabilities and competitive **wholesale hydraulic valve** pricing to meet your market demands. Join us in delivering high-performance hydraulic solutions worldwide.
