TR55 Joystick-Operated Valve | Factory Direct & Customizable

Metoda sterowania:Ręczna i joystick

Szpula:6-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:SAE 8

Port wylotowy:SAE 8

Rozmiar portu:SAE 8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria TR55 Zawór sterujący jednoczęściowy

Rozmiar opakowania:33*35*16

Waga brutto:17.00 kg

Dostępność: W magazynie

1064 Osoby oglądają ten produkt

TR55 Joystick-Operated Valve | Factory Direct & Customizable

TR55 Joystick-Operated Valve | Factory Direct & Customizable

TR55 Joystick-Operated Valve | Factory Direct & Customizable drawing image

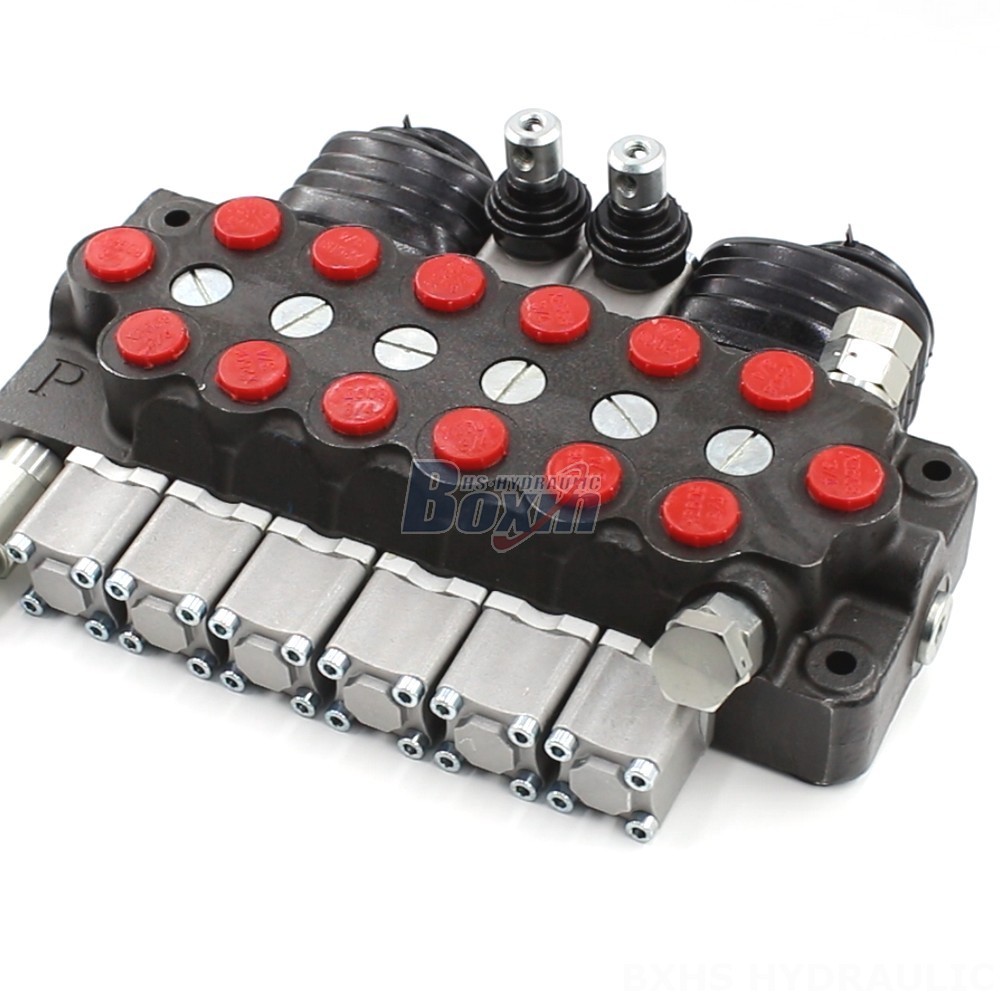

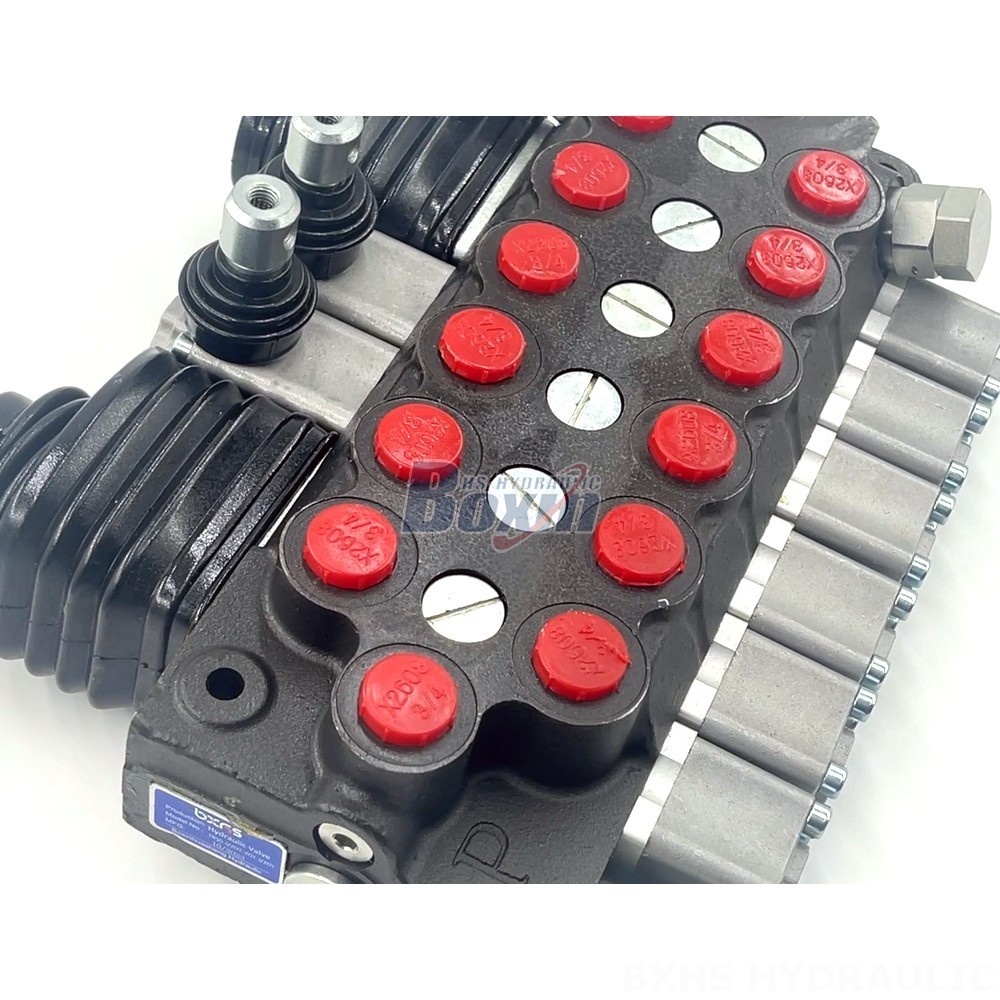

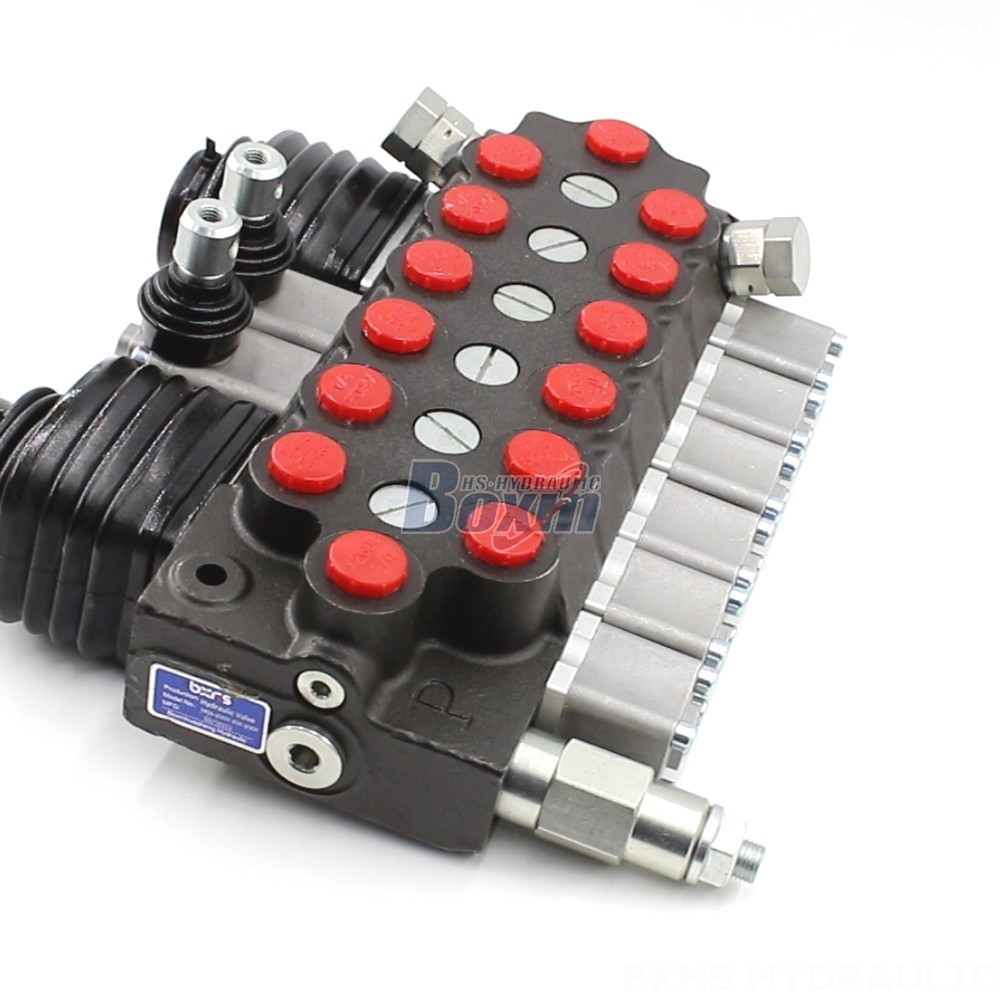

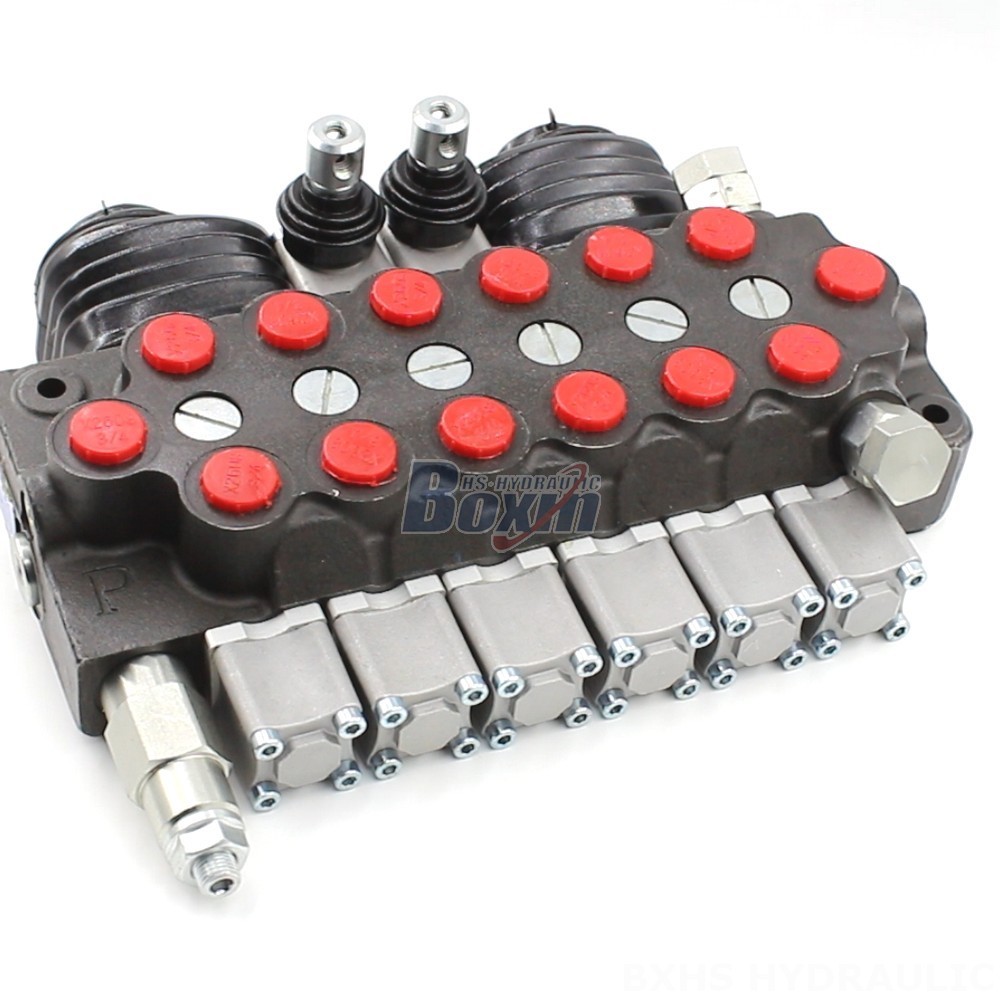

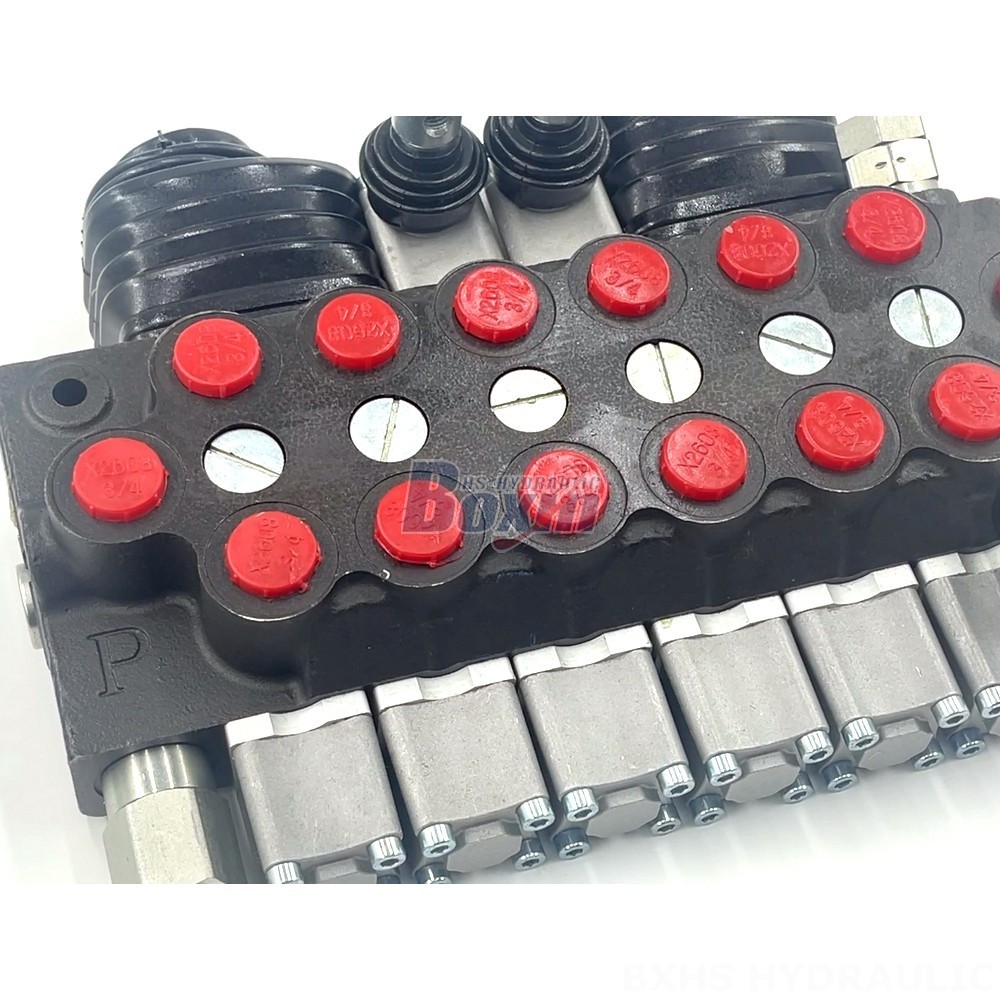

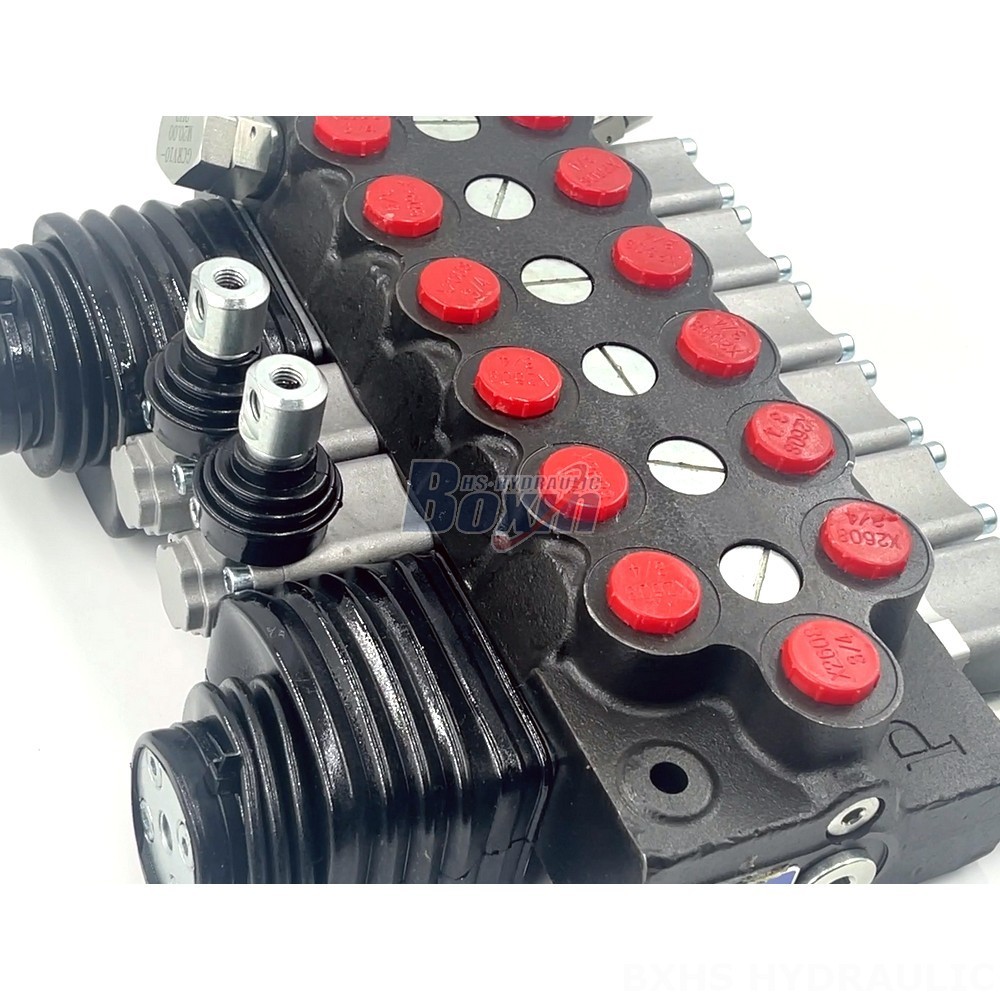

The TR55 Series Hydraulic Pressure Reduction Valve is a robust and reliable valve designed for various applications in construction, material handling, agriculture, and industrial vehicles. It features manual and joystick control, a 6-section monoblock design, and a maximum pressure rating of 315 bar (4600 psi).

Seria TR55 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G3/8, G1/2
Port wylotowy G3/8, G1/2
Rozmiar portu G3/8, G1/2
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Typ konstrukcji Zawór blokowy
Zakres temperatury otoczenia -40°C do +60°C (-40°F do +140°F), -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)

The TR55 Series Hydraulic Pressure Reduction Valve is a high-performance valve suitable for demanding applications in construction, material handling, agriculture, and industrial vehicles. This 6-section monoblock valve offers both manual and joystick control options, enabling precise and efficient operation. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 315 bar (4600 psi), this valve provides exceptional performance for various equipment types, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The TR55 Series is designed for reliable operation in a wide range of ambient temperatures, from -40°C to +60°C (-40°F to +140°F) for standard versions and from -40°C to +80°C (-40°F to +176°F) for high-temperature versions. The valve's robust construction and high-quality materials ensure long-lasting performance and reliability. This valve is available for direct purchase, OEM, private label, customization, and wholesale distribution.
