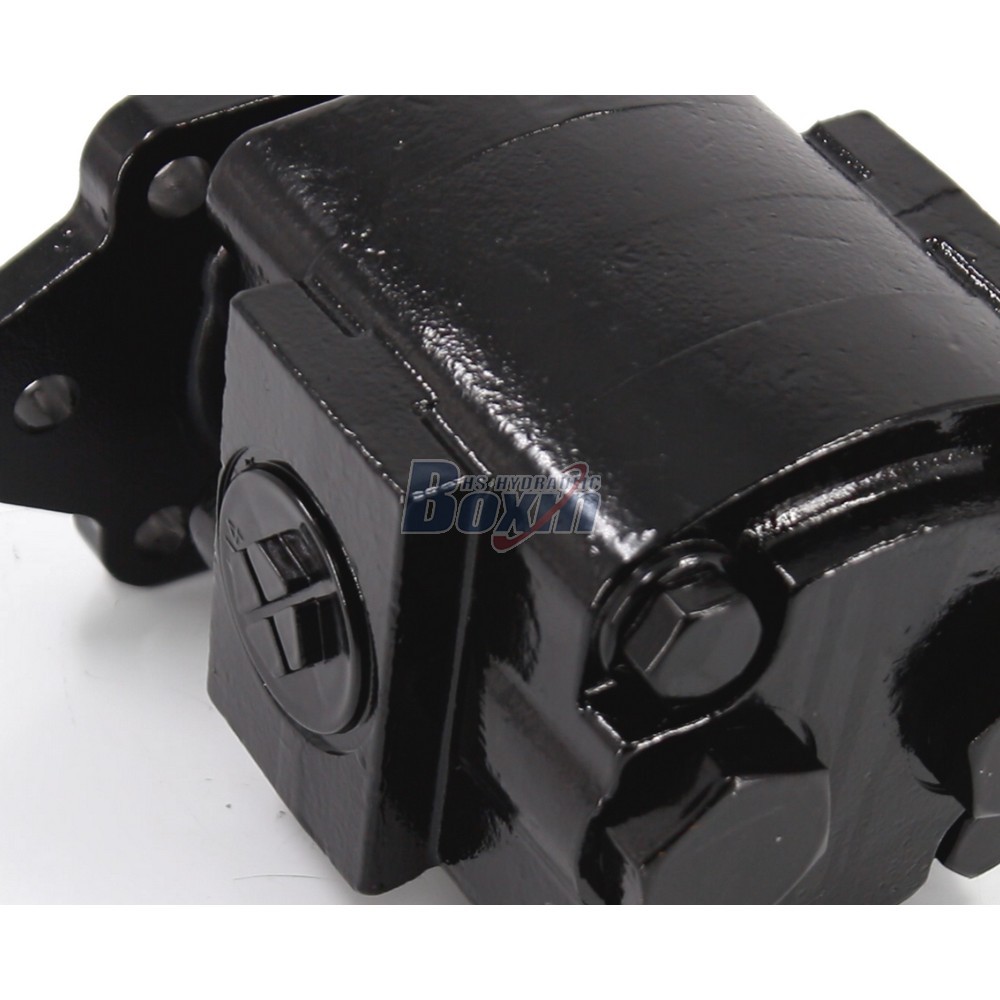

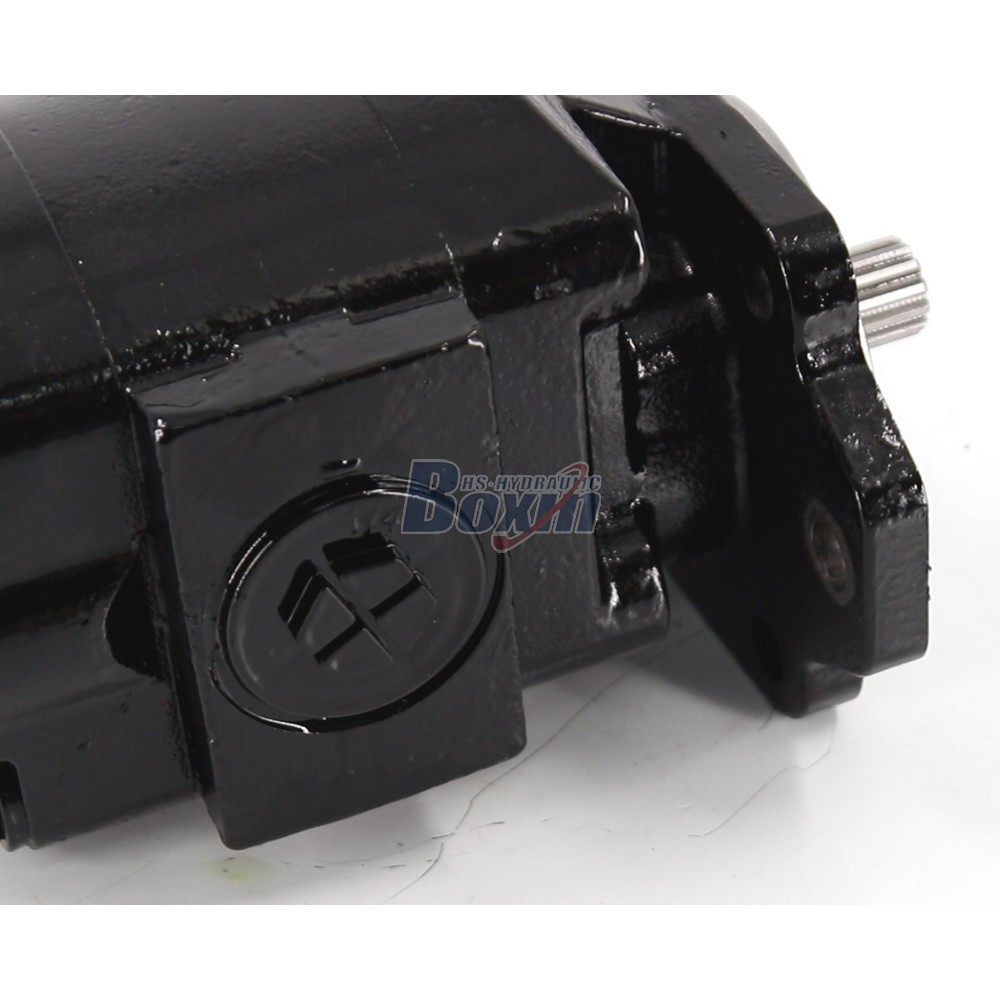

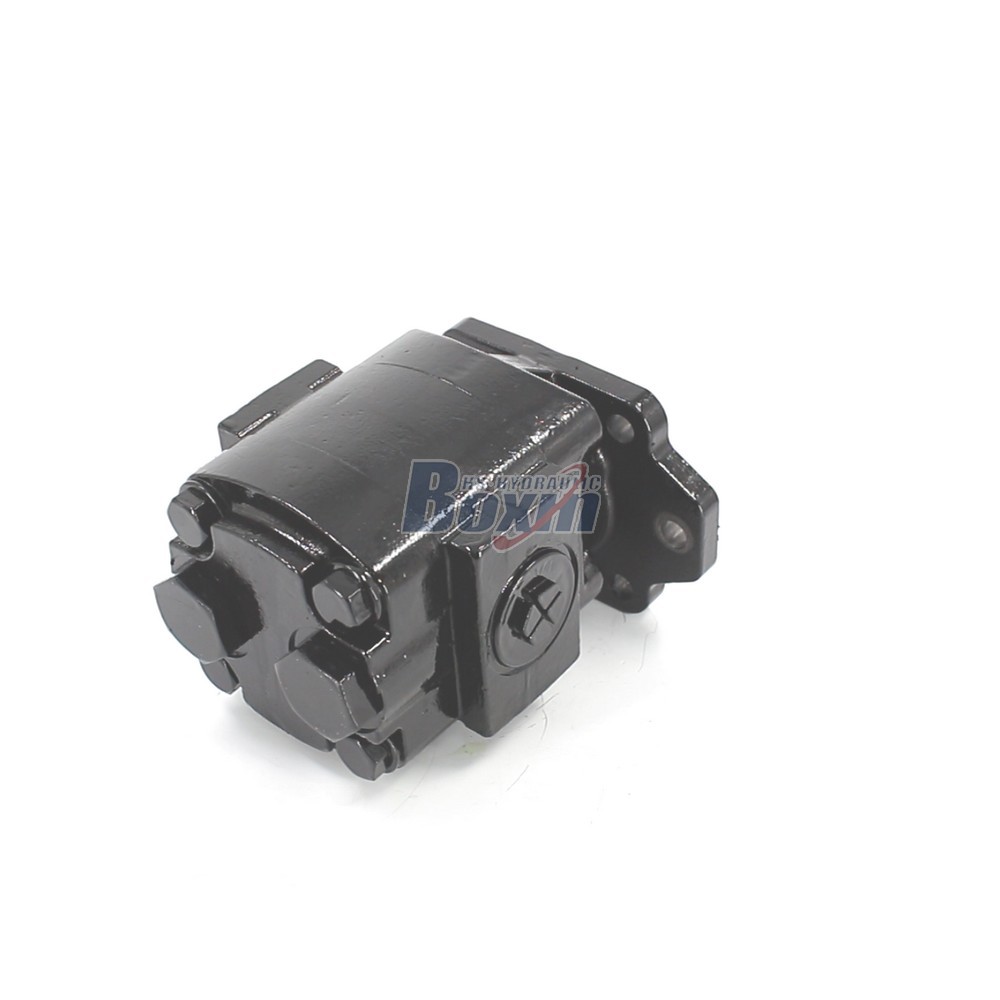

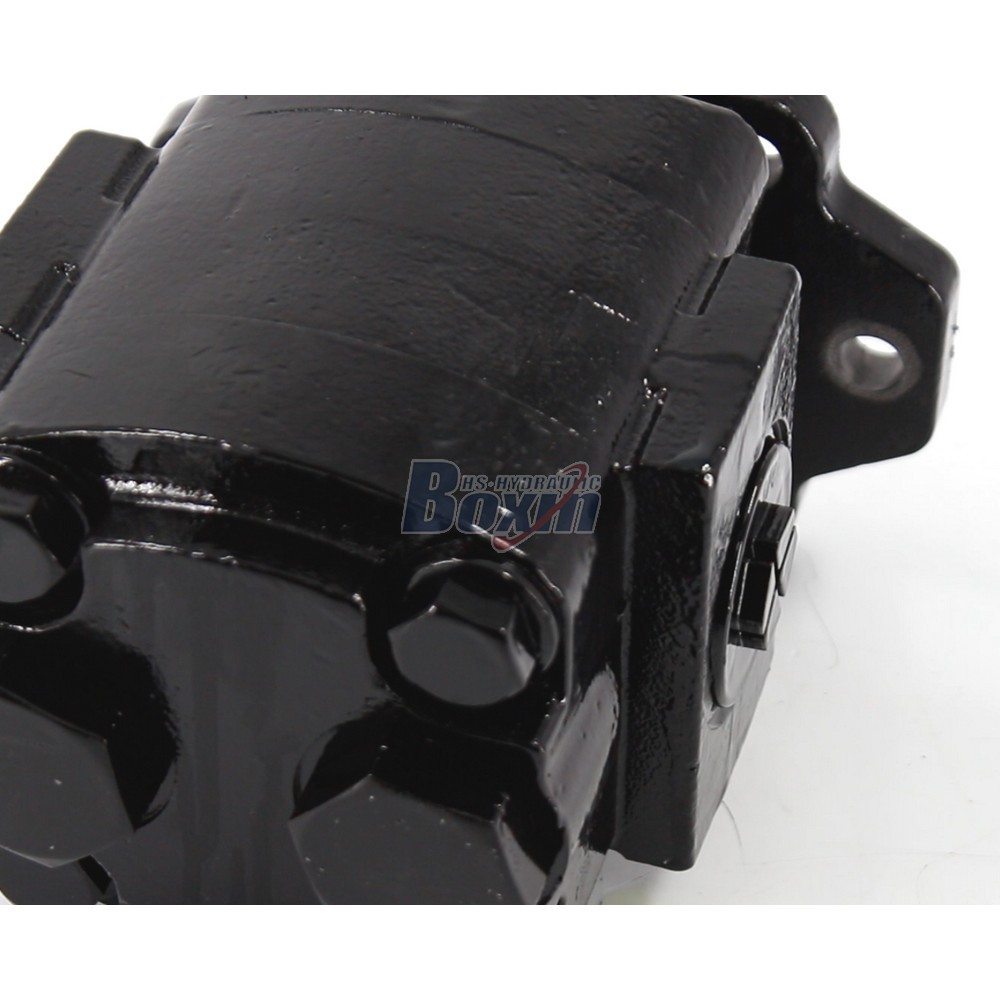

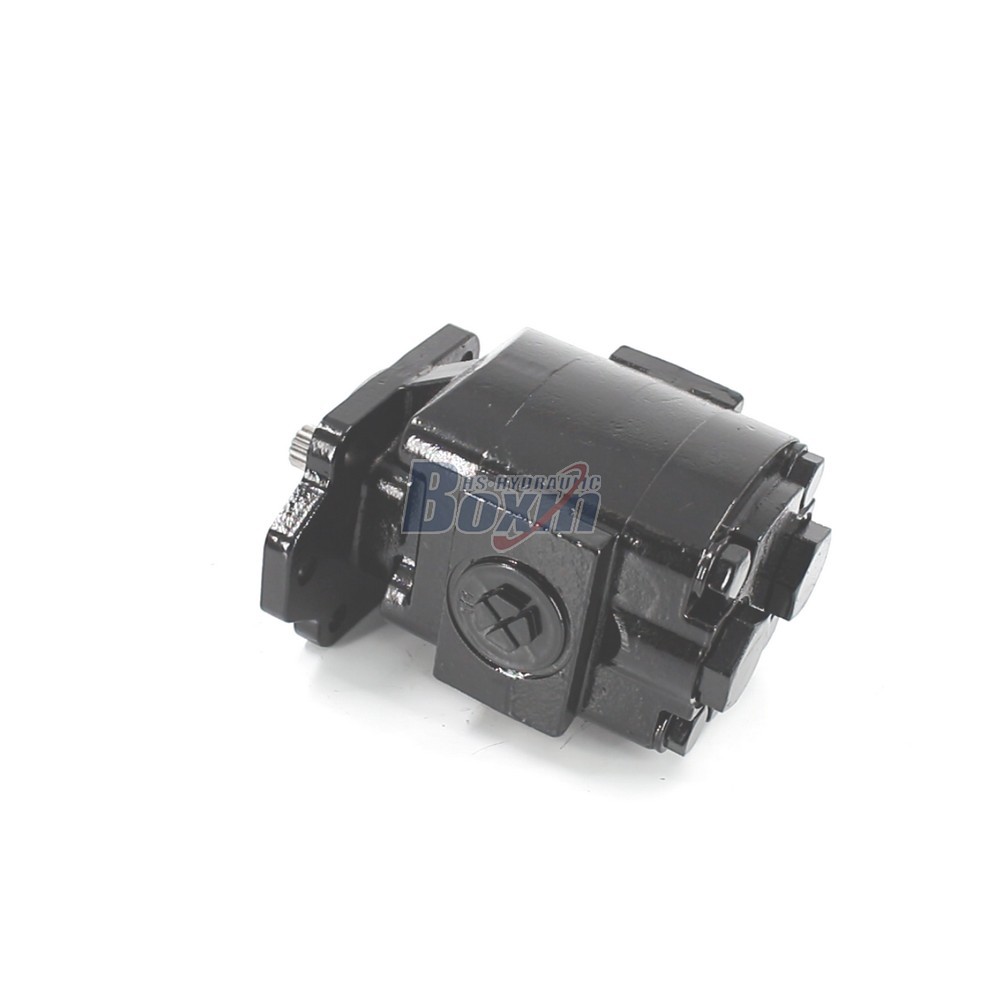

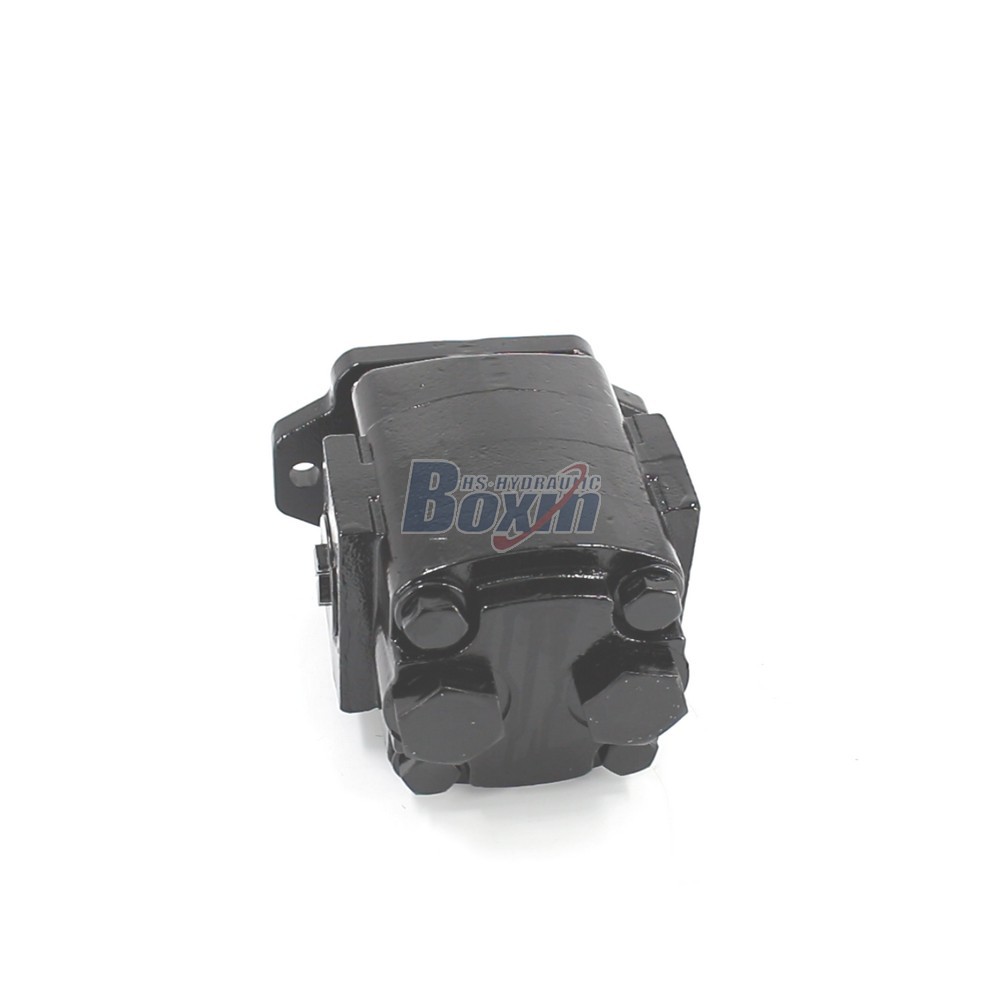

Standard P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump with Quality Assurance

Pojemność skokowa:64,6 cm³/obr.

Ciśnienie znamionowe:16 MPa (2320 psi)

Maksymalne ciśnienie:17 MPa (2465 psi)

Maksymalna prędkość:2400 obr./min

Kierunek obrotu:Dwukierunkowy

Marka:BXHS

Typ produktu:Pompa hydrauliczna zębata

Seria produktów:Seria P21 Pompa hydrauliczna zębata

Rozmiar opakowania:45*25*18

Waga brutto:16.00 kg

Dostępność: W magazynie

168 Osoby oglądają ten produkt

Standard P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump with Quality Assurance

Standard P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump with Quality Assurance

Standard P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump with Quality Assurance drawing image

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement, rated pressure of 16 MPa (2320 psi), and bidirectional rotation up to 2400 r/min. Manufactured by a Professional Manufacturer with 25+ years of experience, it is ideal for wheel loaders, excavators, and agricultural vehicles, offering reliable OEM/ODM solutions.

Seria P21 Pompa hydrauliczna zębata Parametry
Pojemność skokowa 64,6 cm³/obr.
Ciśnienie znamionowe 16 MPa (2320 psi)
Maksymalne ciśnienie 17 MPa (2465 psi)
Prędkość znamionowa 600 obr./min
Maksymalna prędkość 2400 obr./min
Kierunek obrotu Dwukierunkowy
Materiał Żeliwo
Struktura Zewnętrzna pompa zębata
Wersja kołnierza Flange owalny A, Flange kwadratowy B, Otwory montażowe ISO-4, Otwory montażowe UNI-3, Kołnierz SAE
Typ wału Nacięcie ewolwentowe X

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise flow with 64.6 cc/rev displacement, operating at a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa (2465 psi).
- Supports bidirectional rotation with a max speed of 2400 r/min, ensuring versatile integration into complex hydraulic systems for construction and industrial vehicles.

**2. Reliable P21 Series Gear Pump for Heavy Duty**
- Engineered for demanding applications including wheel loaders, backhoe loaders, and skid steers, providing stable performance under high-load conditions.
- Compatible with major international brands, this unit serves as a direct replacement part, minimizing downtime for maintenance and repair operations in earthmoving sectors.

**3. Certified Quality from China Wholesale Source**
- Produced in our 68,000 sqm facility with IATF 16949 and CE certifications, ensuring every 64.6cc Hydraulic Pump meets strict global safety and quality standards.
- Undergoes 100% bench testing for pressure, flow, and sealing integrity, backed by SGS inspection and 25+ autonomous patents for superior durability.

**4. Custom OEM/ODM Solutions by Professional Manufacturer**
- Leverage our team of 35+ senior engineers for tailored modifications, including custom casting, logo laser marking, and private label packaging for distributors.
- As a Factory Direct Sales partner, we support low MOQs for prototyping and scale up to our annual capacity of 1,500,000 units for large wholesale orders.

**5. Secure Logistics for Construction Machinery Pump**
- Each unit receives anti-rust treatment and is packed in heavy-duty wooden crates or pallets to prevent damage during long-distance international shipping.
- Enjoy Exported Worldwide reliability with fast lead times, making us the preferred Wholesale China Factory for traders seeking consistent supply chain stability.
