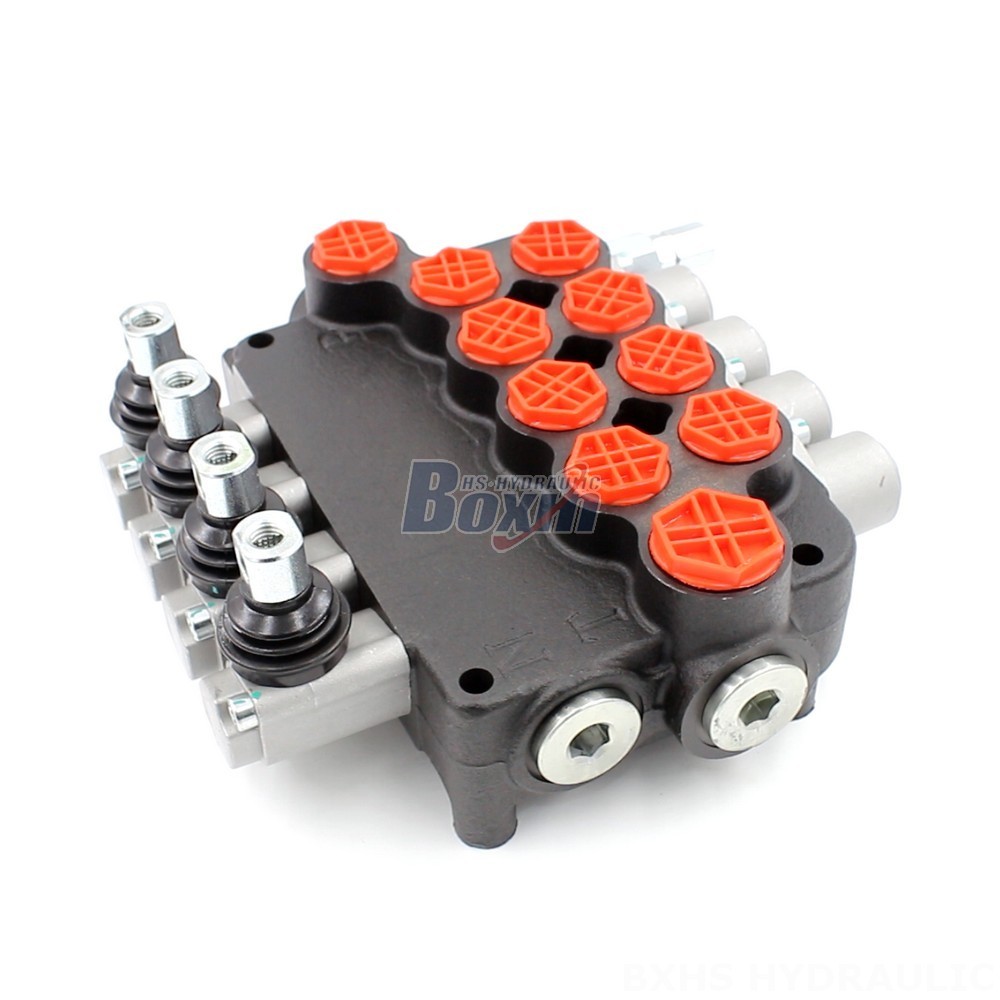

Spool Type Valve | G34 Series | 4 Spools

Metoda sterowania:Ręczna

Szpula:4-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*27*11

Waga brutto:13.40 kg

Dostępność: W magazynie

1227 Osoby oglądają ten produkt

Spool Type Valve | G34 Series | 4 Spools

Spool Type Valve | G34 Series | 4 Spools

Spool Type Valve | G34 Series | 4 Spools drawing image

The G34 Series 4-Spool Hydraulic Sectional Directional Control Valve is a robust and reliable solution for various applications in construction, material handling, agriculture, and industrial vehicles. It features a monoblock valve design, manual control, and a rated flow of 80 L/min, making it suitable for demanding tasks.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This G34 Series 4-Spool Hydraulic Sectional Directional Control Valve is a high-performance valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It boasts a robust monoblock valve structure with 4 spools, offering precise and efficient control of hydraulic systems. The valve is manually controlled and has a rated flow of 80 L/min, making it ideal for handling various tasks. It operates at a maximum pressure of 250 bar and is compatible with a wide viscosity range (15 - 75 mm²/s). Designed for durability and reliability, this valve can withstand ambient temperatures ranging from -40°C to +80°C. Its versatile design makes it suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
