Source Directly & Save: SD5 Solenoid Valves from the Manufacturer

Metoda sterowania:Elektromagnes

Szpula:2-sekcyjny

Przepływ znamionowy:45 l/min (11,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G3/8

Port wylotowy:G3/8

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria SD5 Zawór sterujący jednoczęściowy

Rozmiar opakowania:30*18*15

Waga brutto:7.00 kg

Dostępność: W magazynie

1302 Osoby oglądają ten produkt

Source Directly & Save: SD5 Solenoid Valves from the Manufacturer

Source Directly & Save: SD5 Solenoid Valves from the Manufacturer

Source Directly & Save: SD5 Solenoid Valves from the Manufacturer drawing image

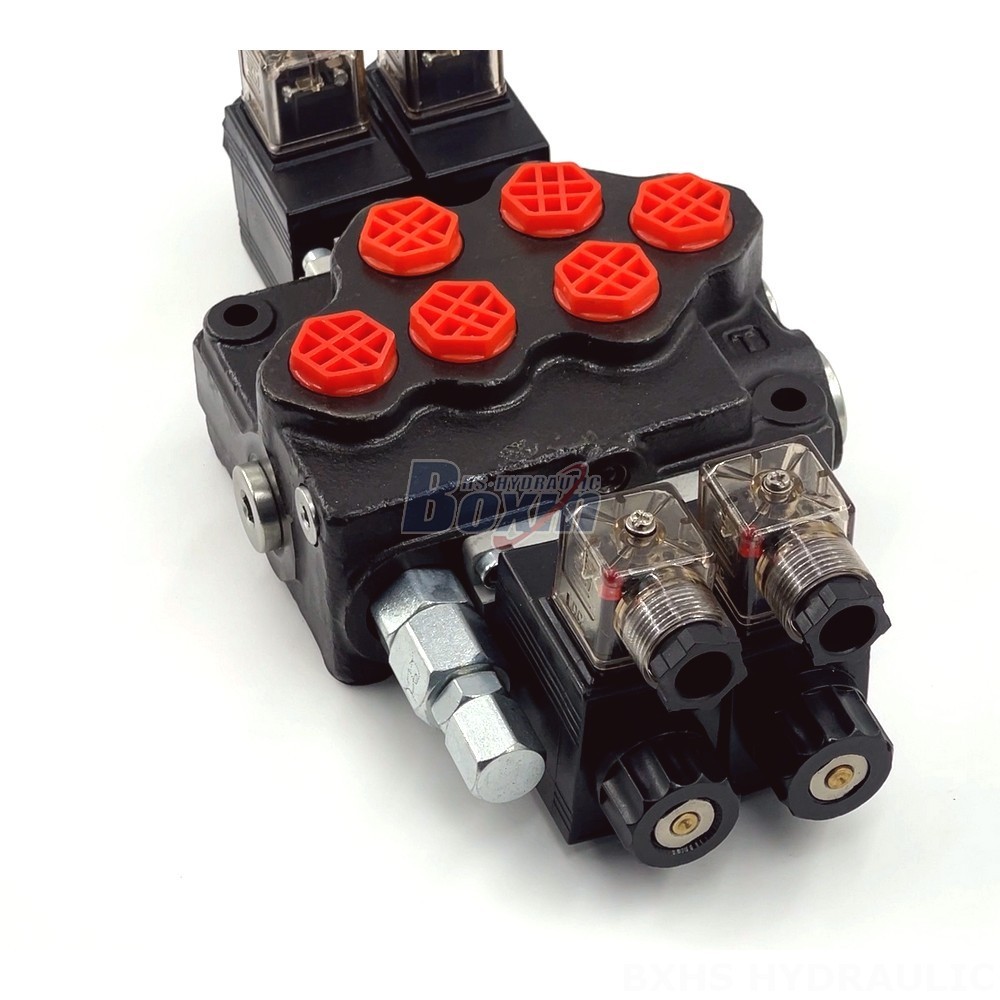

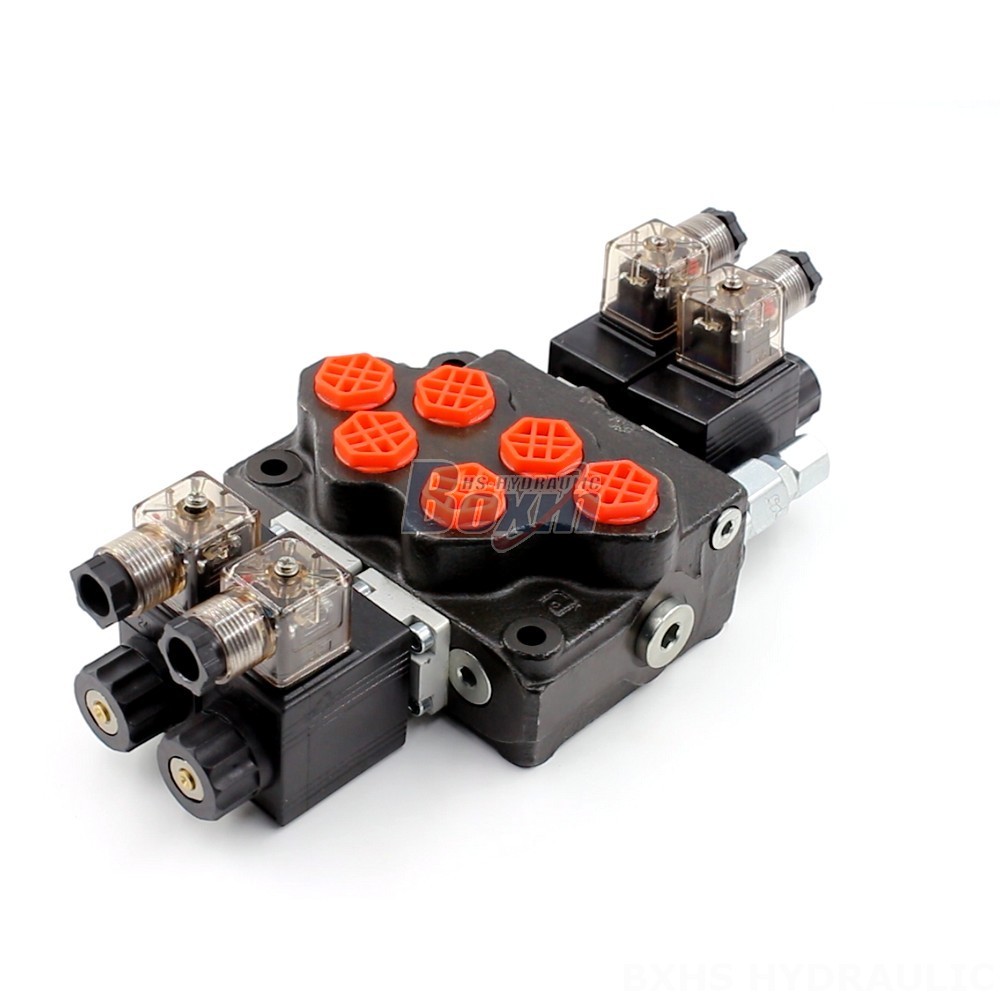

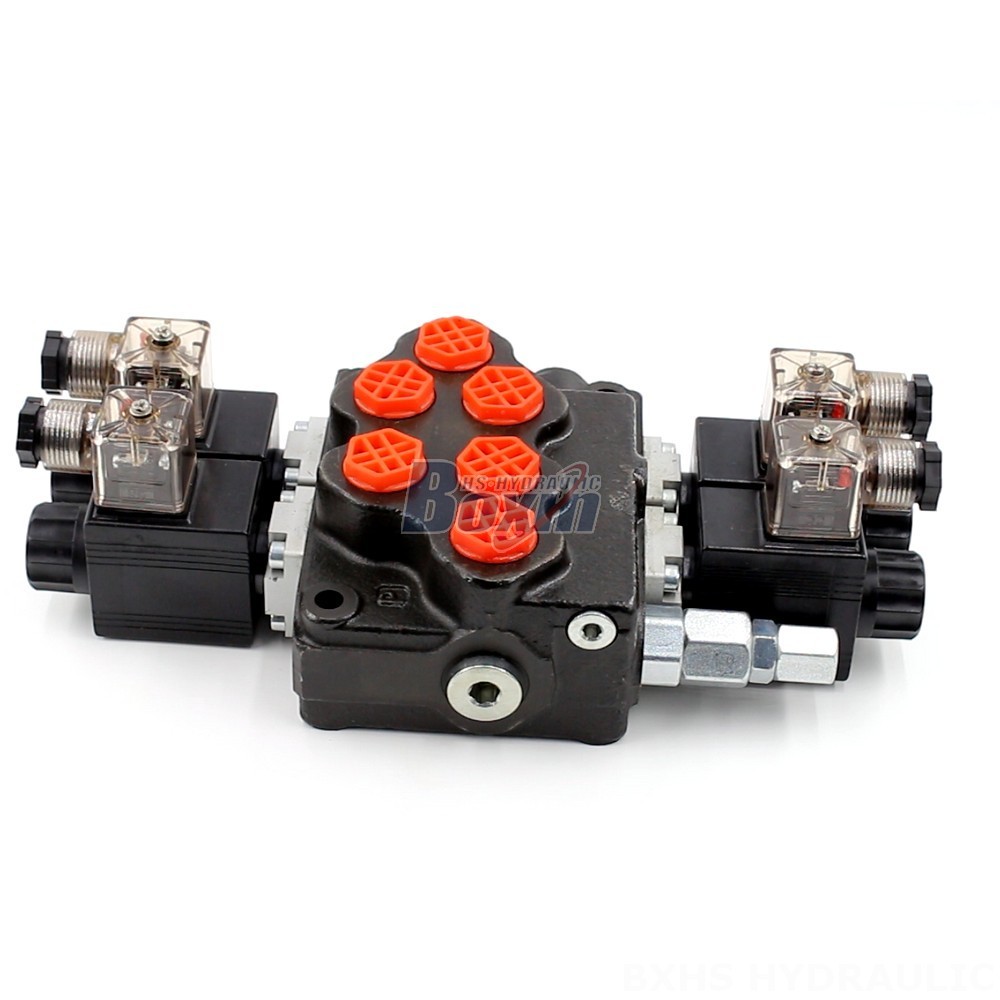

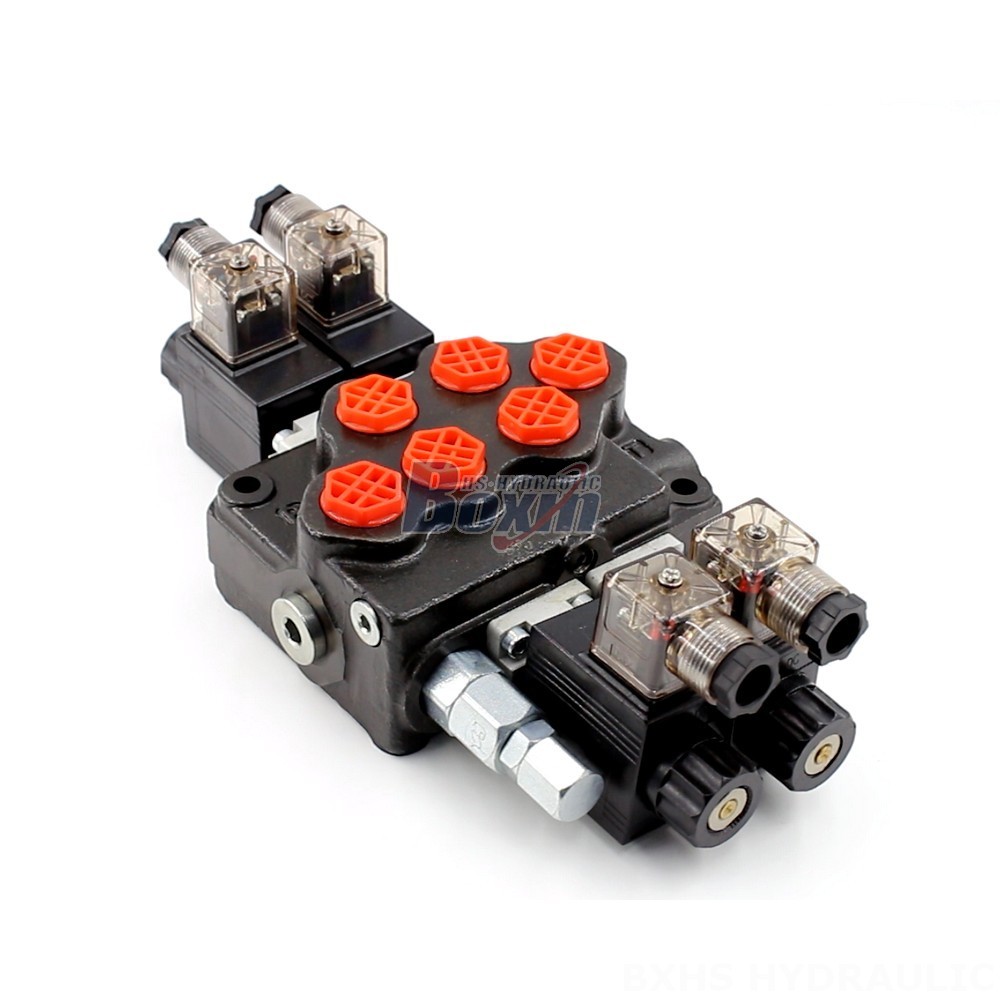

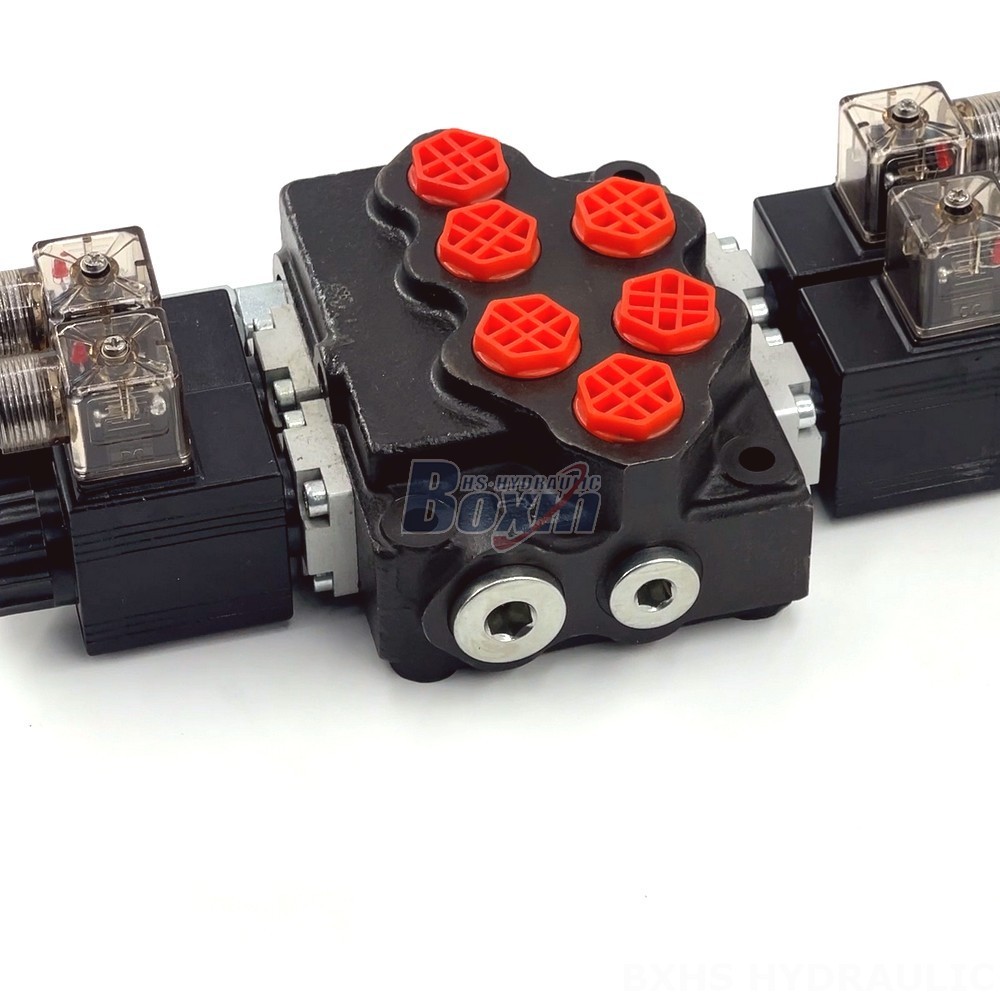

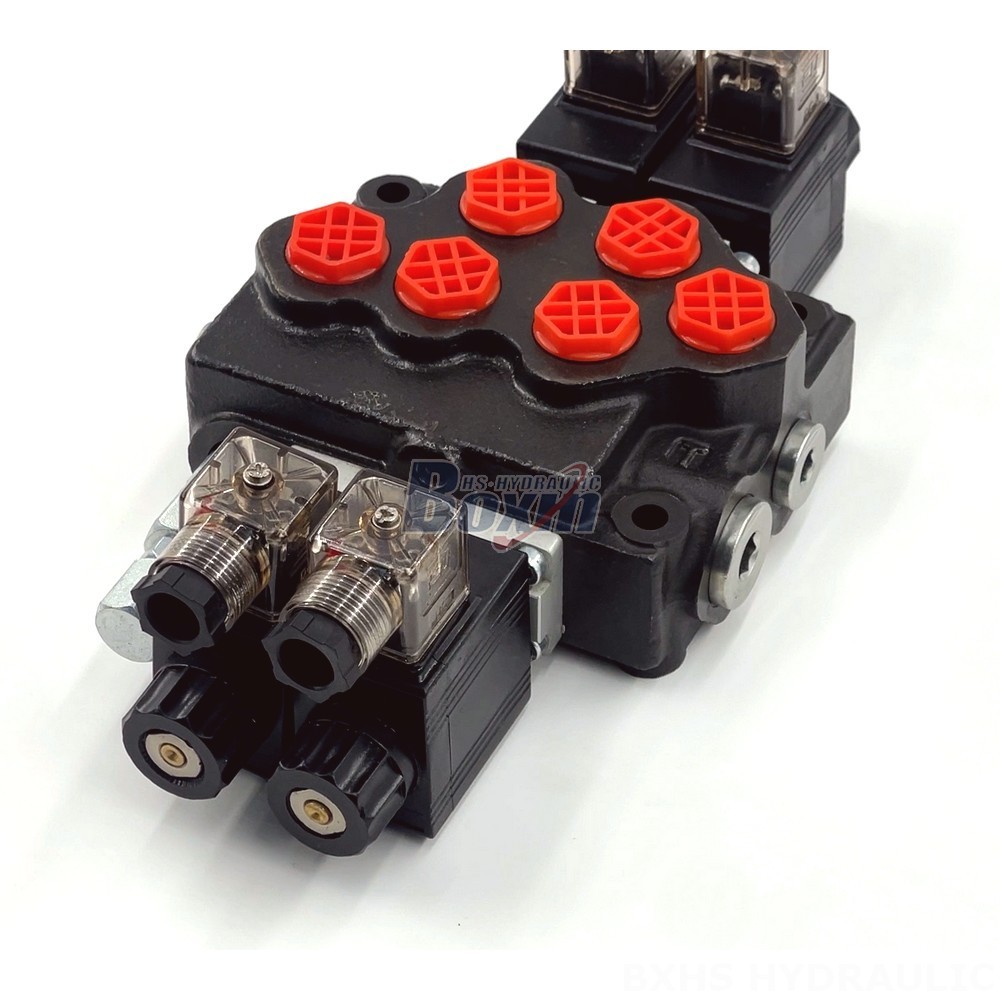

The SD5 Solenoid Valve is a high-quality hydraulic spool valve designed for tractors and other heavy-duty equipment. It offers a reliable and efficient way to control hydraulic flow, providing smooth operation and long service life. This valve is available in a variety of configurations to meet your specific application requirements.

Seria SD5 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +60°C (-40°F do +140°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 305 bar (4400 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Port wylotowy G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Rozmiar portu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5 Series Solenoid Valve is a high-performance hydraulic valve manufactured for tractors and other heavy-duty machinery. This 2-section monoblock valve is built to withstand demanding conditions with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve features a solenoid control method, offering precise and responsive operation. It is suitable for a wide range of applications, including material handling, construction and earthmoving, agriculture, and industrial vehicles. We are a manufacturer, offering factory supply, factory wholesale, and customized options to meet your specific needs. Our commitment to quality and customer satisfaction ensures that you receive a reliable and durable product that exceeds your expectations.
