Source Directly & Save: SD25 Valves from the Factory Producer

Metoda sterowania:Ręczna

Szpula:1-sekcyjny

Przepływ znamionowy:240 l/min (63,4 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1

Port wylotowy:G1-1/4

Rozmiar portu:G1

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD25 Zawór kierunkowy sekcyjny

Rozmiar opakowania:30*45*20

Waga brutto:28.50 kg

Dostępność: W magazynie

1161 Osoby oglądają ten produkt

Source Directly & Save: SD25 Valves from the Factory Producer

Source Directly & Save: SD25 Valves from the Factory Producer

Source Directly & Save: SD25 Valves from the Factory Producer drawing image

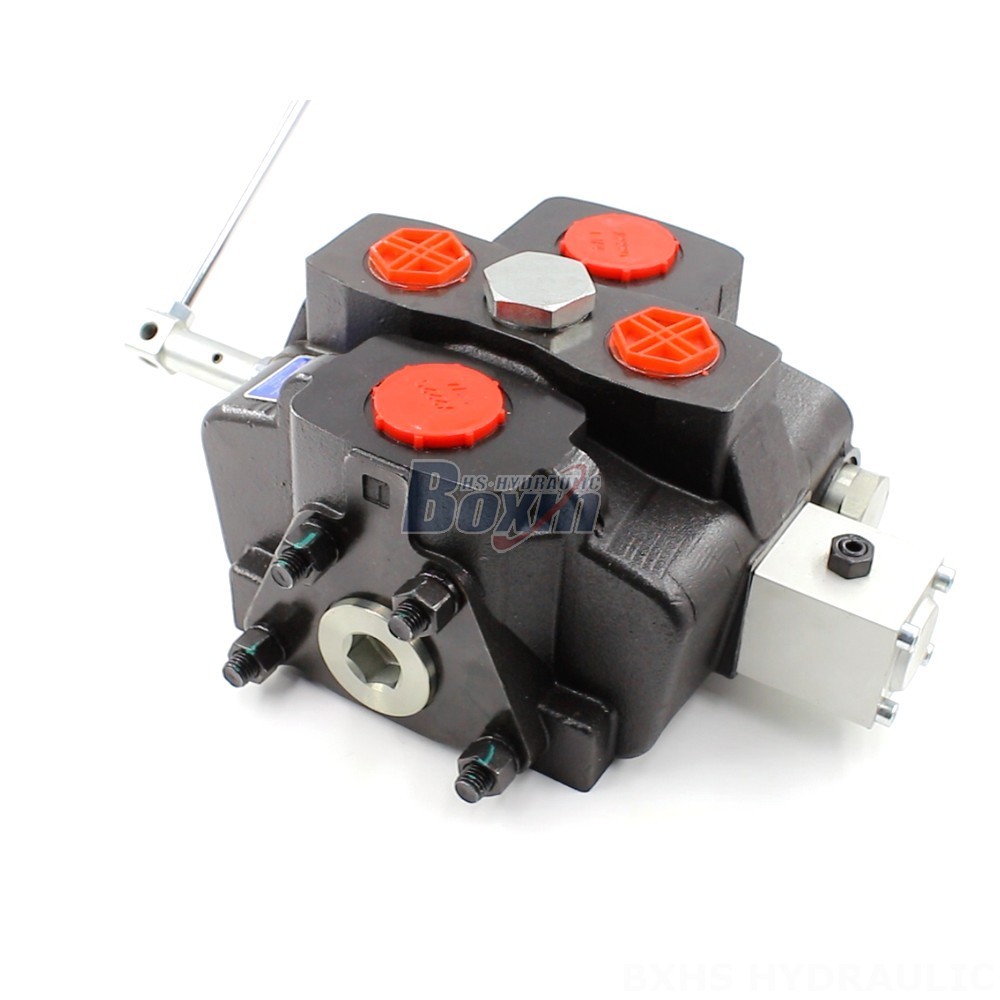

Our SD25 series two spool hydraulic control valve is a high-performance, reliable option for various applications, including construction equipment, material handling, agriculture, and industrial vehicles. This manual control valve offers a rated flow of 240 L/min (63.4 US gpm) and a max pressure of 315 bar (4600 psi). Designed for durability and efficiency, it is suitable for demanding environments.

Seria SD25 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Elektrohydrauliczna, Hydrauliczna
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 240 l/min (63,4 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1, SAE 16
Port wylotowy G1-1/4, SAE 16
Rozmiar portu G1, G1-1/4, SAE 12

The SD25 series two spool hydraulic control valve is a reliable and efficient solution for various applications. Manufactured directly from our factory, we offer wholesale pricing and direct supply, ensuring competitive pricing and high-quality products. This monoblock valve features manual control, a rated flow of 240 L/min (63.4 US gpm), and a maximum pressure of 315 bar (4600 psi). It operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) and is suitable for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). Designed for various applications in material handling, construction and earth moving, agriculture, and industrial vehicles, this valve is perfect for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Choose our SD25 series two spool hydraulic control valve for reliable performance and cost-effectiveness, directly from the factory.
