Solenoid Operated 5 Spool Sectional Directional Control Valve

Metoda sterowania:Elektromagnetyczne i ręczne

Szpula:5-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria DCV58 Zawór kierunkowy sekcyjny

Rozmiar opakowania:35*28*11

Waga brutto:21.00 kg

Dostępność: W magazynie

75 Osoby oglądają ten produkt

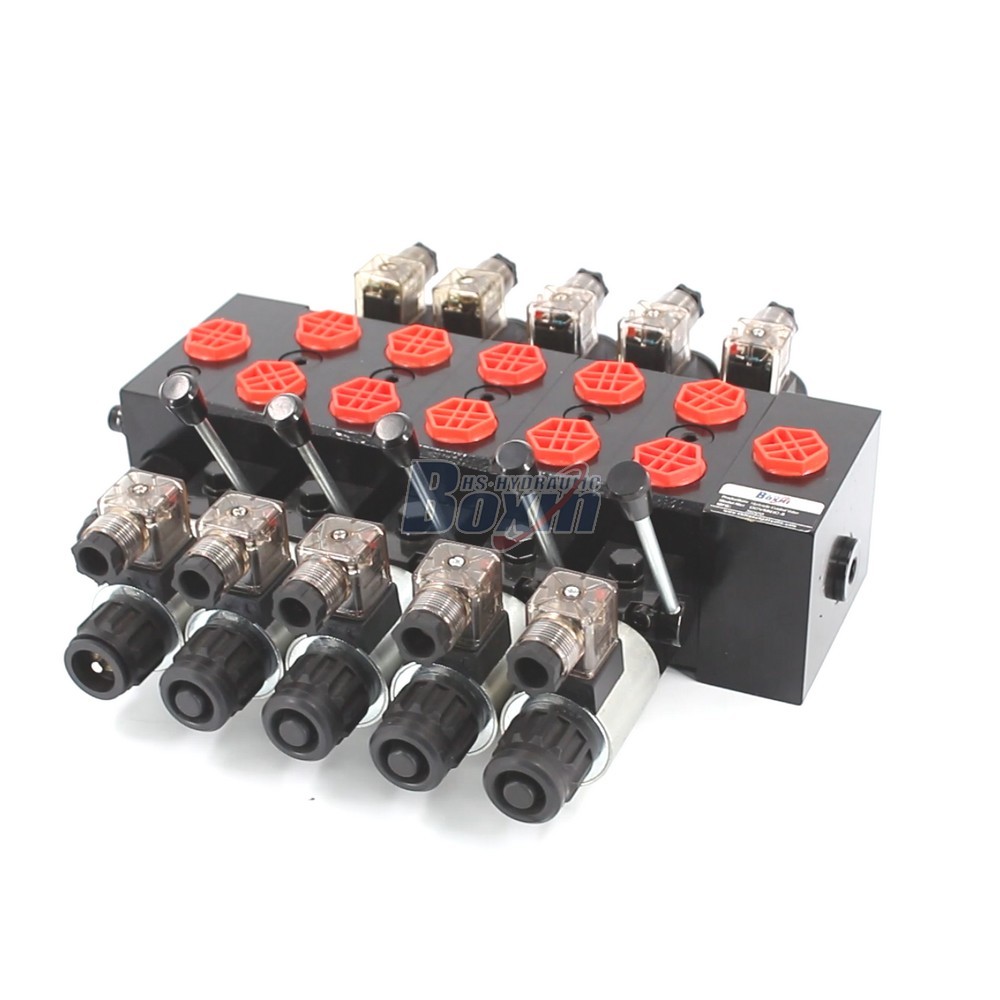

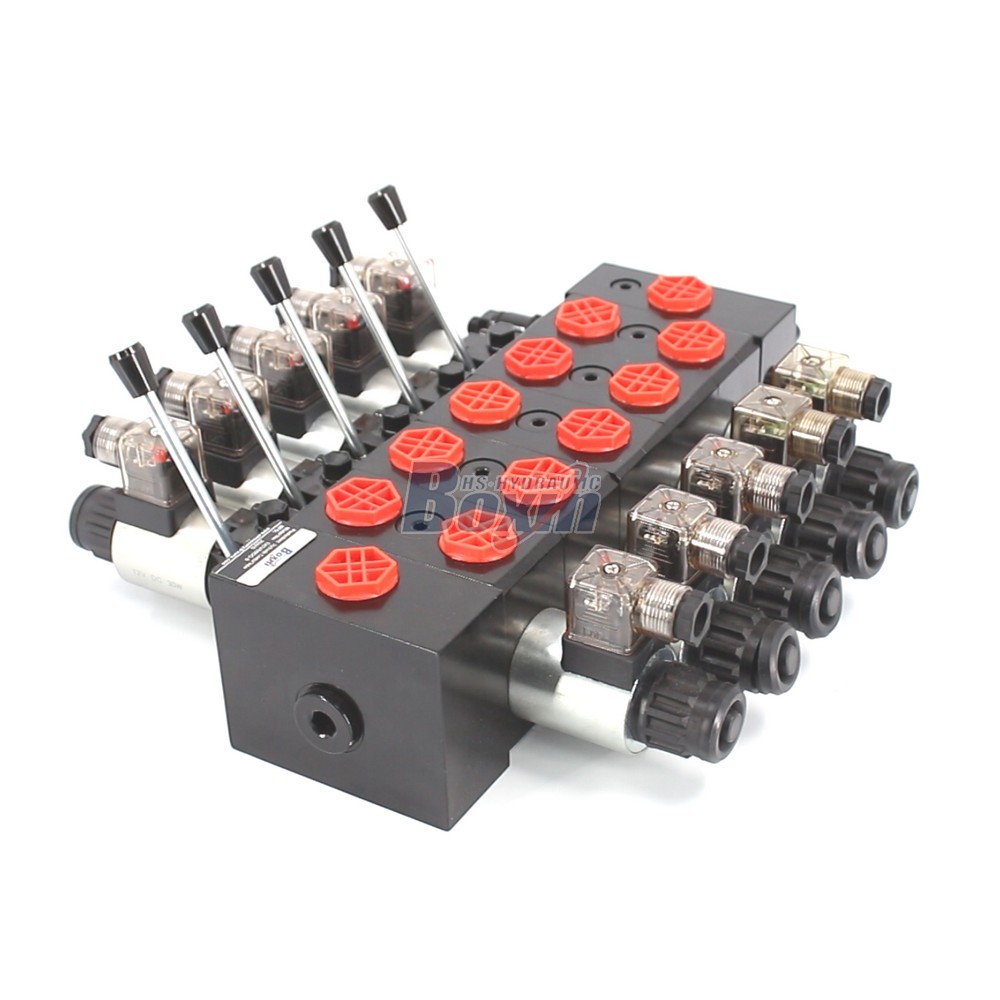

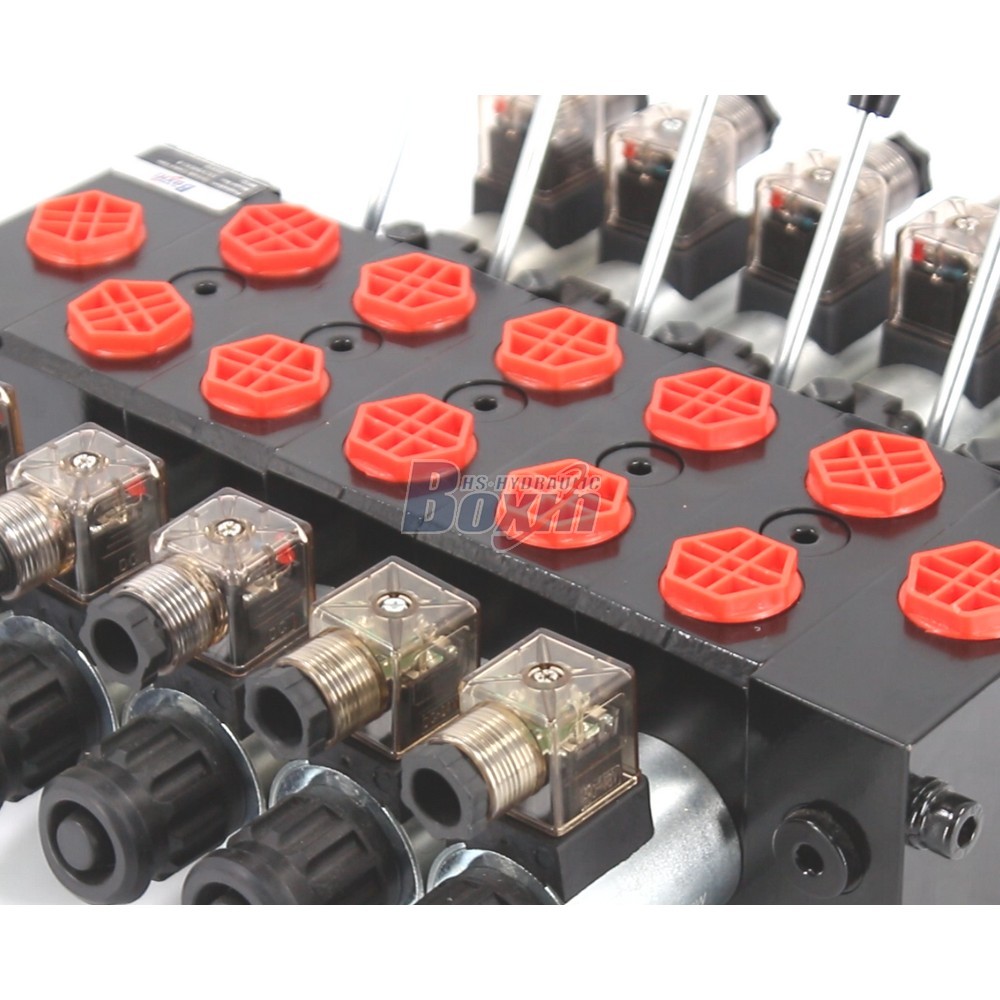

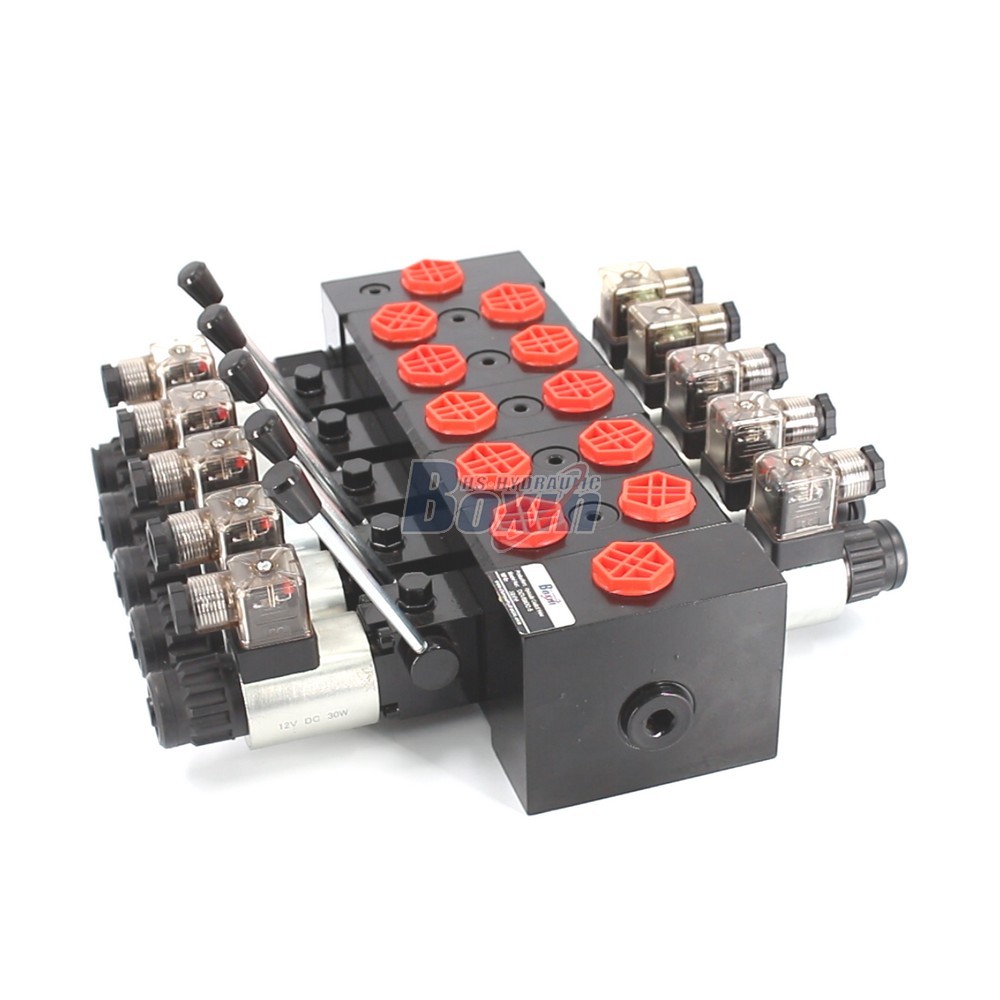

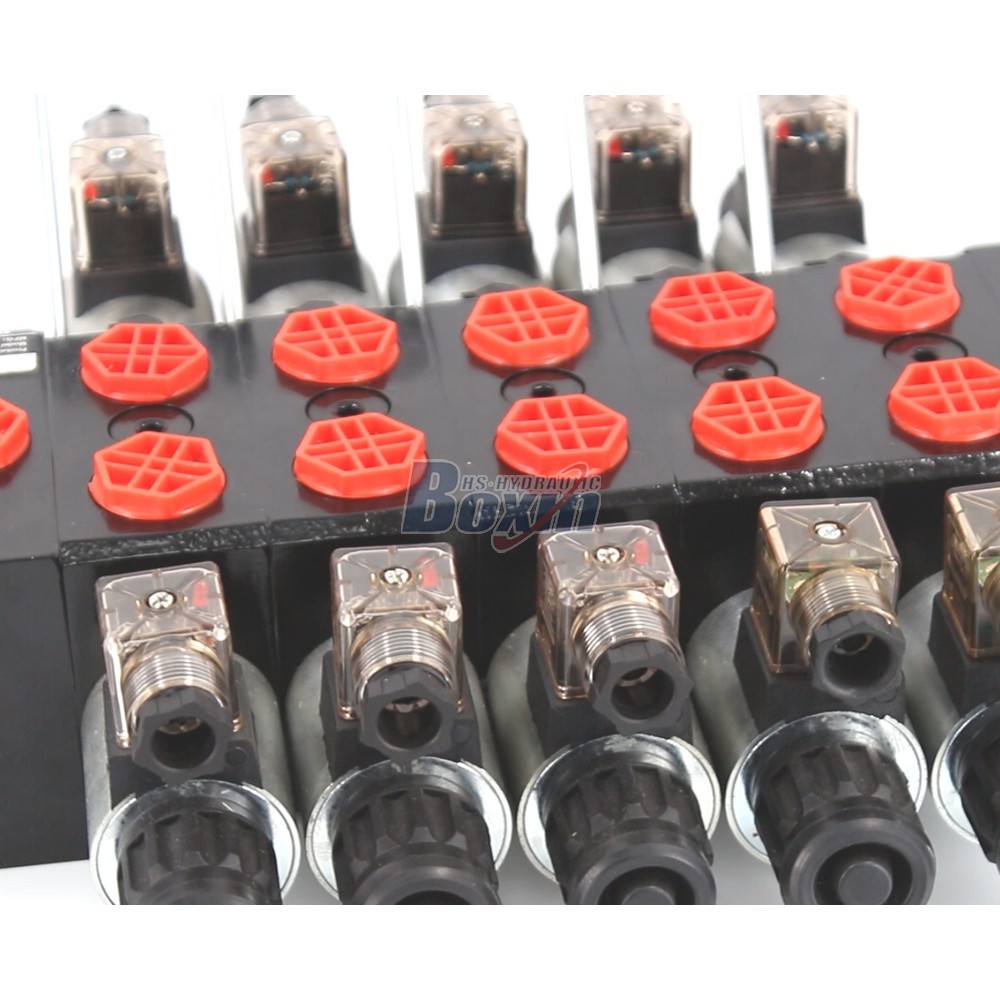

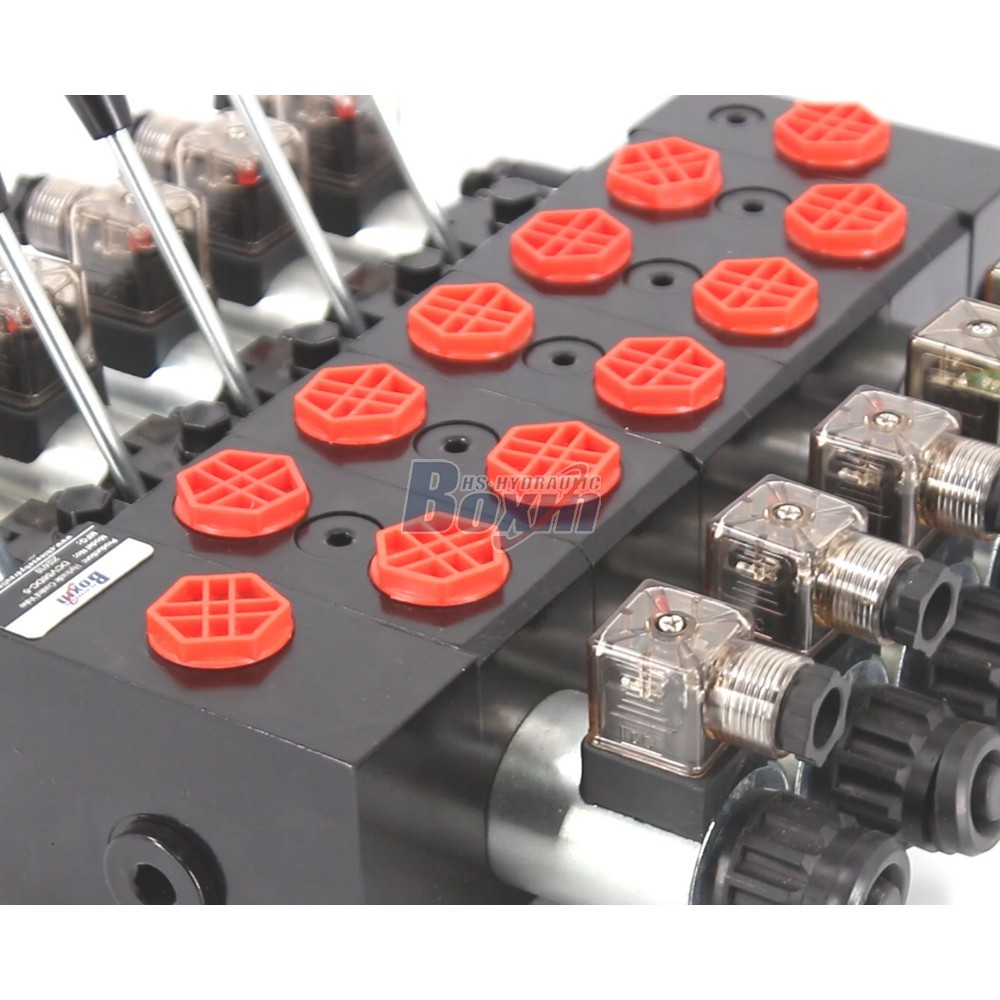

Solenoid Operated 5 Spool Sectional Directional Control Valve

Solenoid Operated 5 Spool Sectional Directional Control Valve

Solenoid Operated 5 Spool Sectional Directional Control Valve drawing image

The DCV58 series is a robust 5-spool sectional directional control valve designed for precise flow management. Featuring both solenoid and manual operation, it supports a maximum pressure of 350 bar and a flow rate of 40 L/min, making it an ideal solution for versatile mobile and industrial hydraulic applications.

Seria DCV58 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Elektromagnes, Elektromagnetyczne i ręczne
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny, 11-sekcyjny, 12-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji, 11 Sekcji, 12 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 350 bar (5100 psi)
Port wlotowy G1/2, M22×1.5, SAE 10, 1/2 NPT
Port wylotowy G1/2, M22×1.5, SAE 10, 1/2 NPT
Rozmiar portu G1/2, M22×1.5, SAE 10, 1/2 NPT

As a professional hydraulic manufacturer, we provide high-performance DCV58 series 5-spool sectional directional control valves tailored to demanding mobile applications like mini-excavators, skid steers, and tractors. Our products feature a maximum pressure rating of 350 bar and a flow capacity of 40 L/min, ensuring reliable performance in construction, agriculture, and material handling sectors. We specialize in comprehensive manufacturing services, including OEM, ODM, and customized engineering solutions to meet specific technical requirements. We invite global distributors, wholesalers, trade partners, and original equipment manufacturers to collaborate with our factory. Benefit from our direct factory supply, competitive wholesale pricing, and consistent production quality. Whether you require private labeling, bulk volume orders, or specialized configurations, our experienced team provides professional technical support and efficient logistics to help your business grow. Contact us today to explore partnership opportunities and enhance your supply chain with our high-quality hydraulic products.
