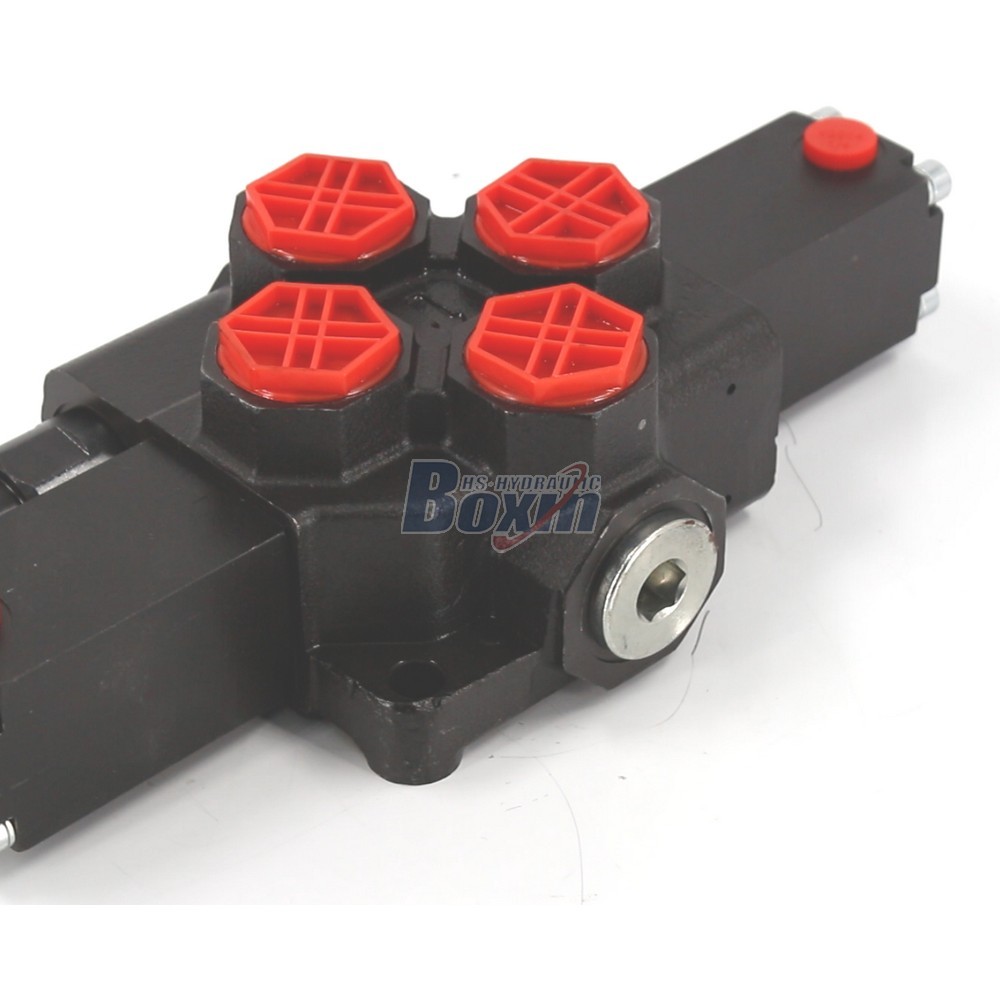

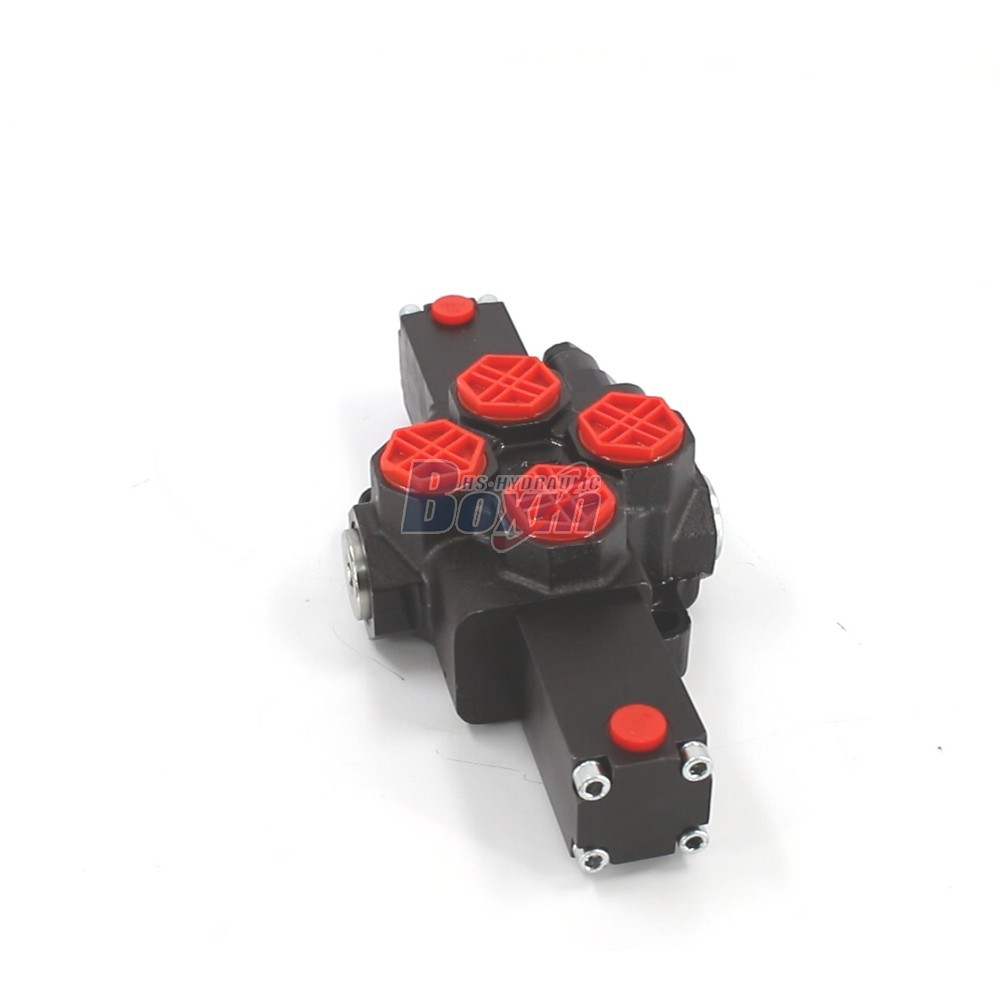

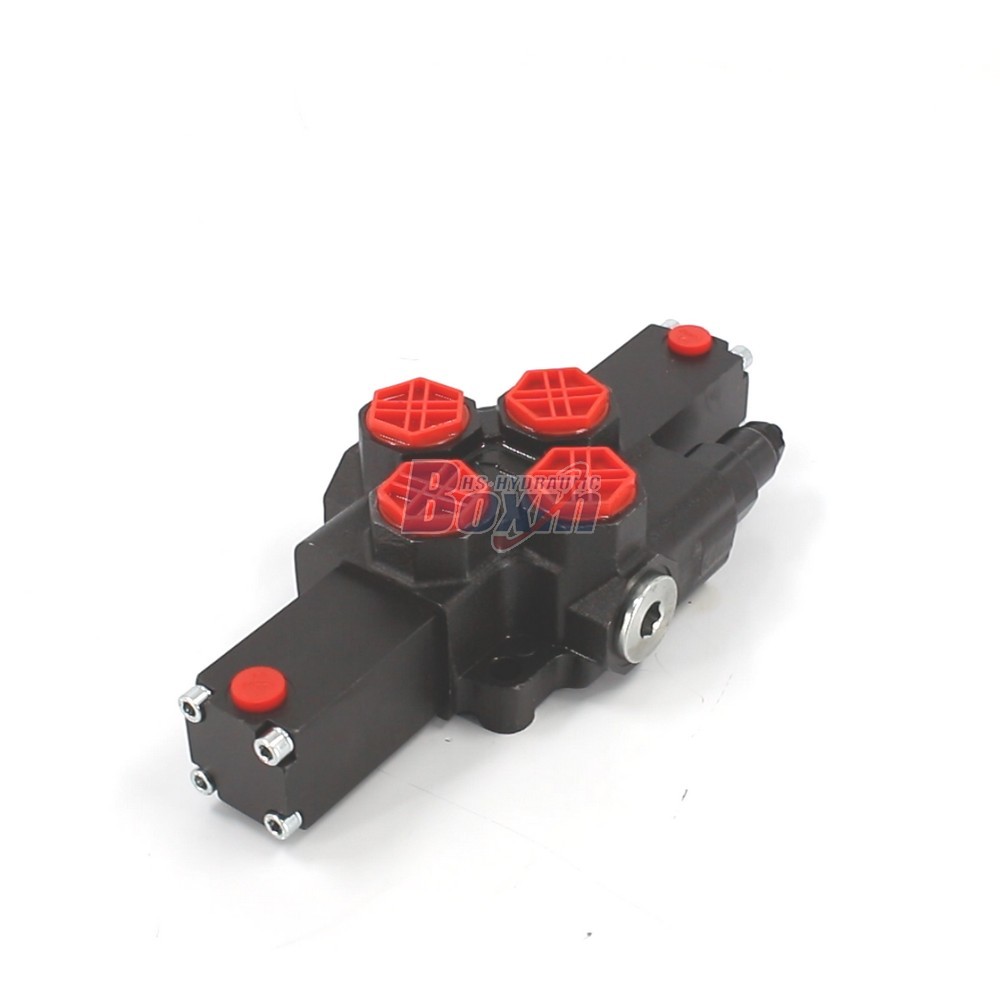

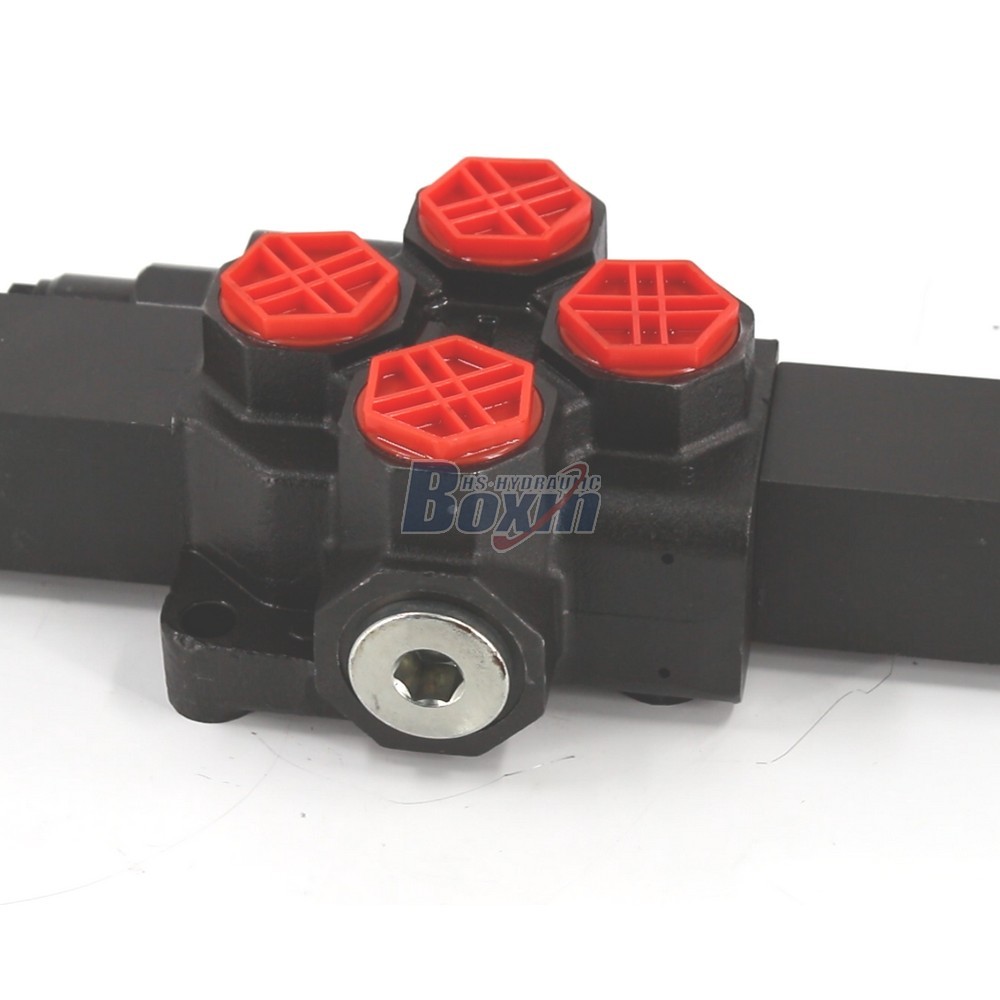

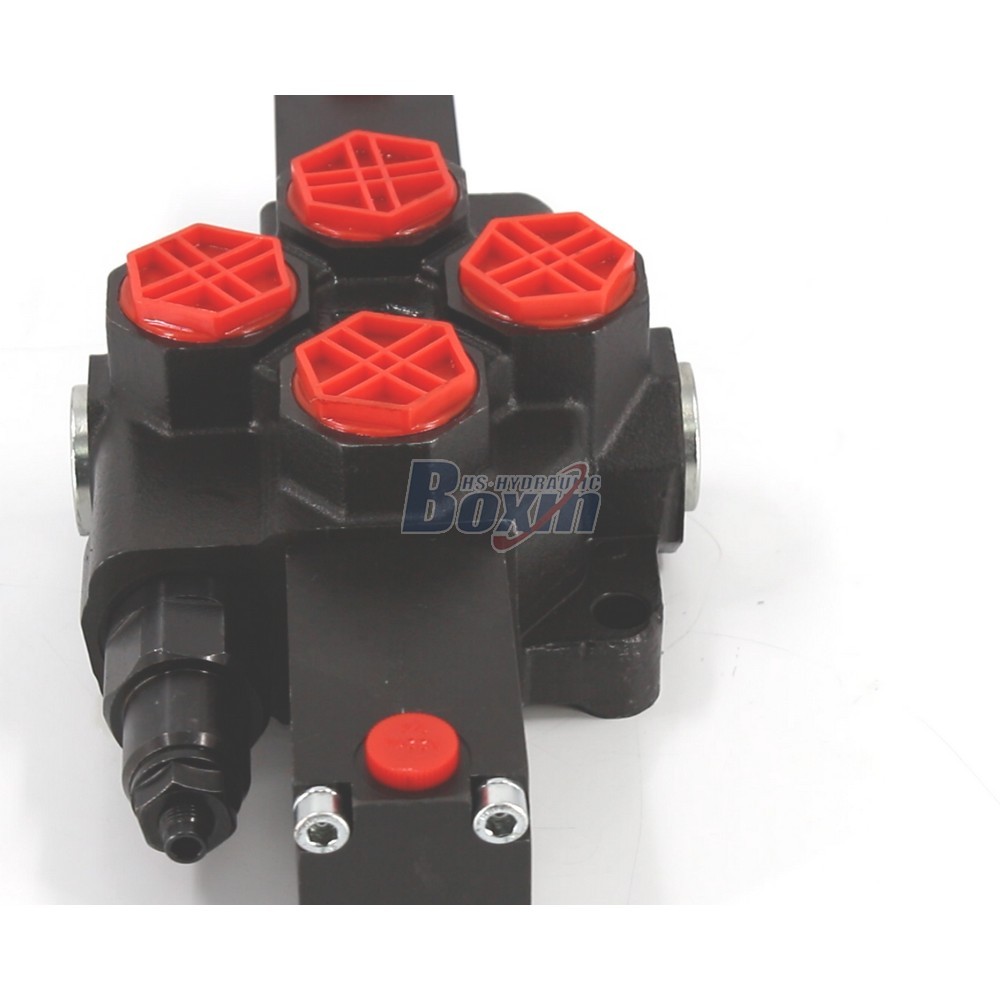

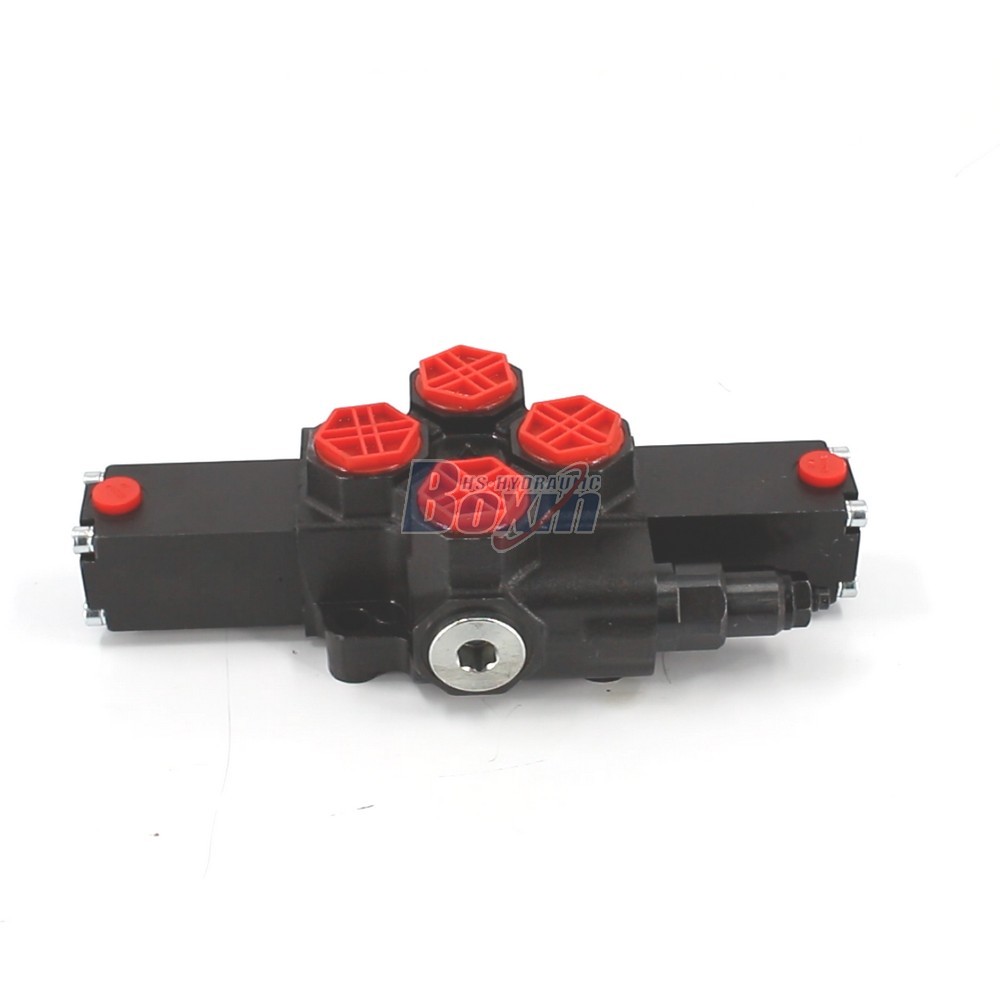

The SD14Y-OT is a high-performance single spool hydraulic monoblock control valve designed for heavy-duty applications. Featuring a hydraulic control method and a rated flow of 120 L/min at 315 bar, it provides precise fluid management for construction, agricultural, and industrial machinery.
| Seria SD14 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Hydrauliczna |
| Szpula | 1-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +60°C (-40°F do +140°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 120 l/min (31.7 US gpm) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G3/4 |
| Port wylotowy | G3/4 |
| Rozmiar portu | G3/4 |
Our factory is a leading manufacturer of hydraulic components, offering the SD14Y-OT Single Spool Hydraulic Monoblock Control Valve for the global market. Engineered for reliability, this SD14 series valve supports a high flow rate of 120 L/min (31.7 US gpm) and pressures up to 315 bar (4600 psi) with G3/4 porting. It is extensively used in wheel loaders, backhoe loaders, tractors, and forklifts. We provide comprehensive manufacturing services including OEM, ODM, private labeling, and custom engineering to meet specific technical requirements. As a direct factory supplier, we offer competitive wholesale pricing and are actively seeking global partners, including distributors, wholesalers, agents, and traders. Our large-scale production capacity ensures stable supply for industrial vehicle manufacturers and material handling equipment providers worldwide.
