Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

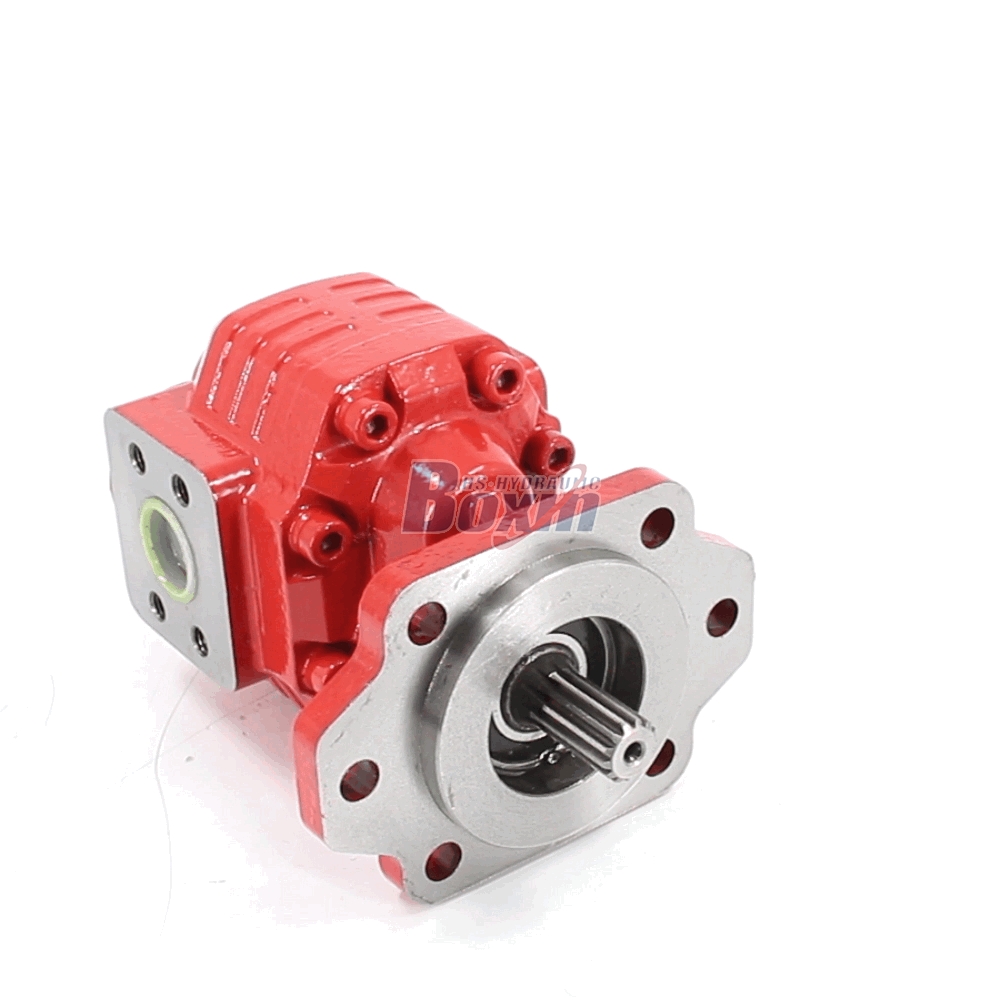

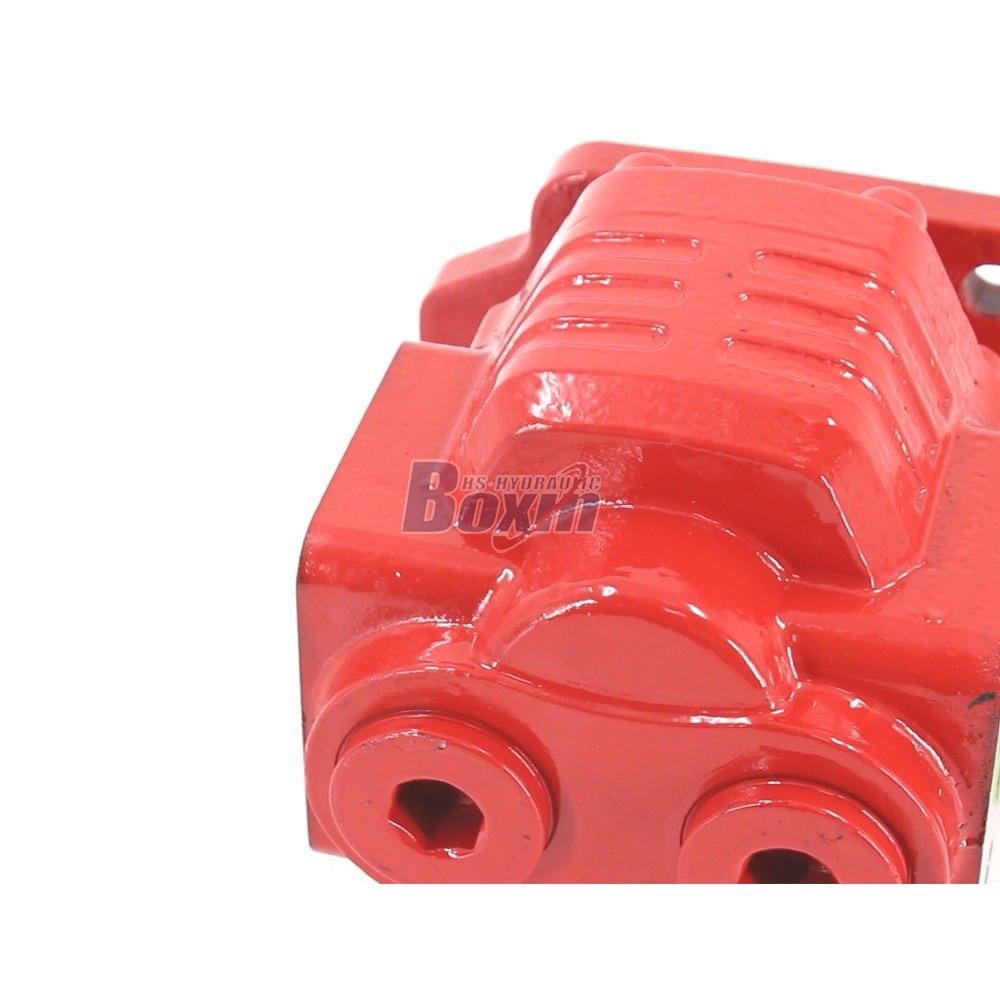

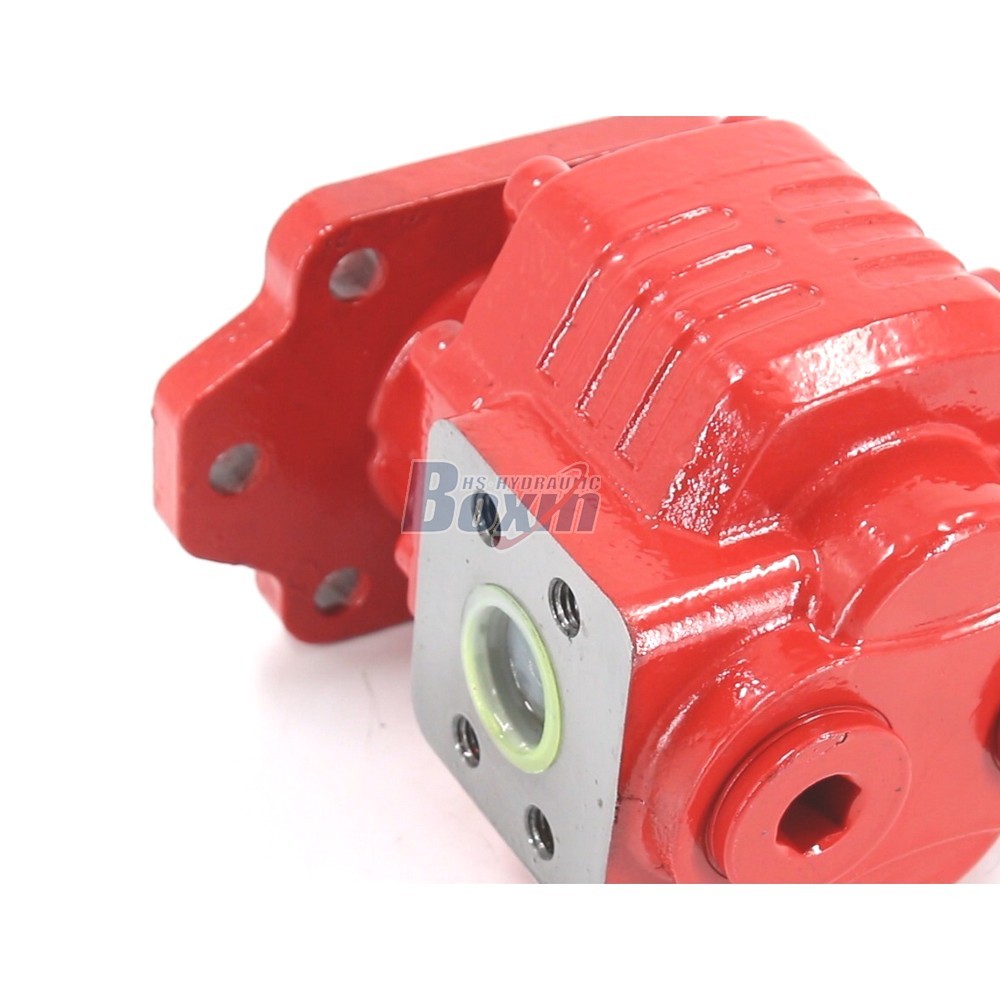

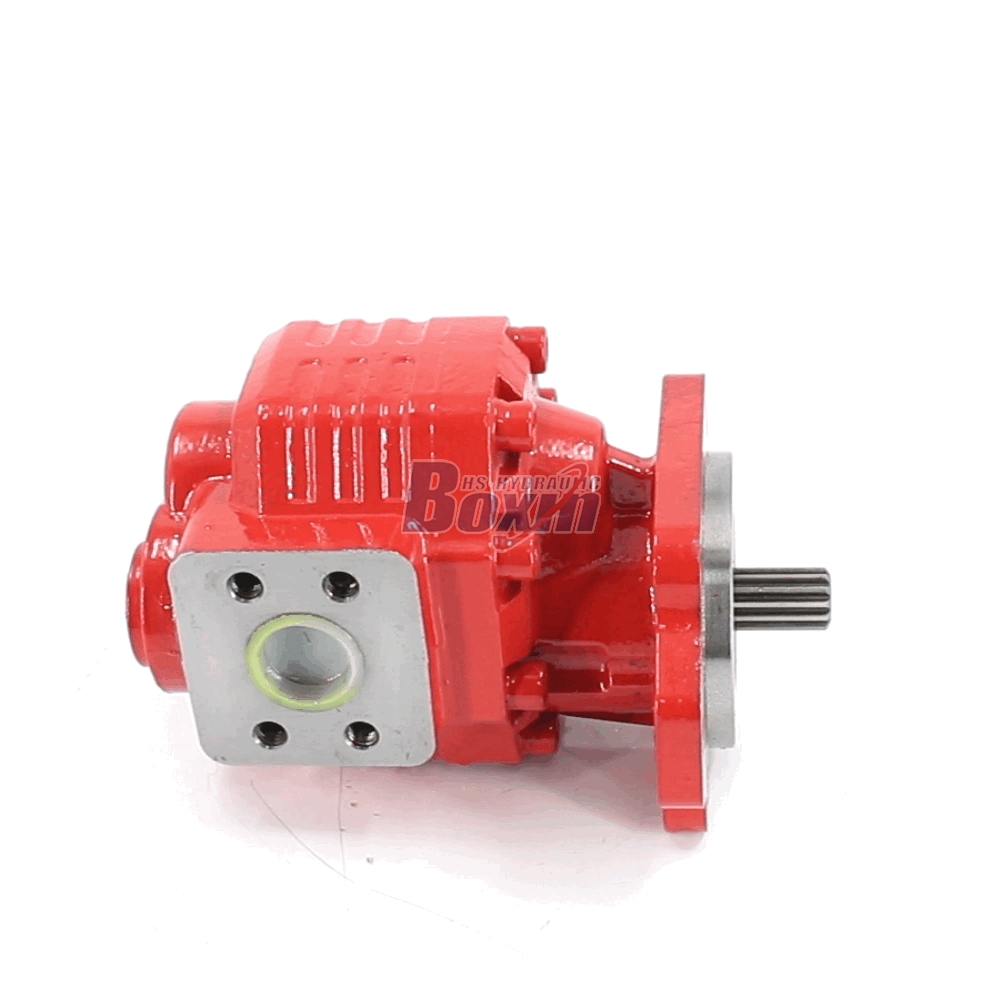

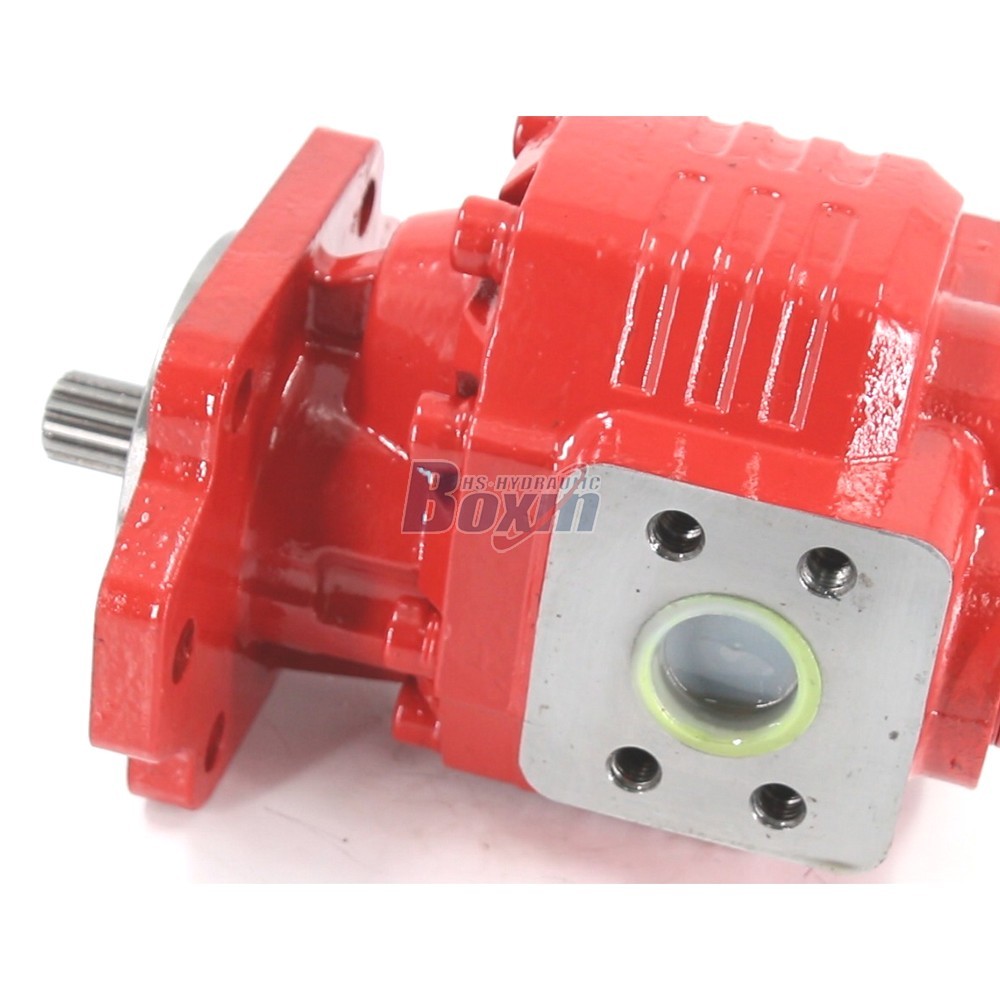

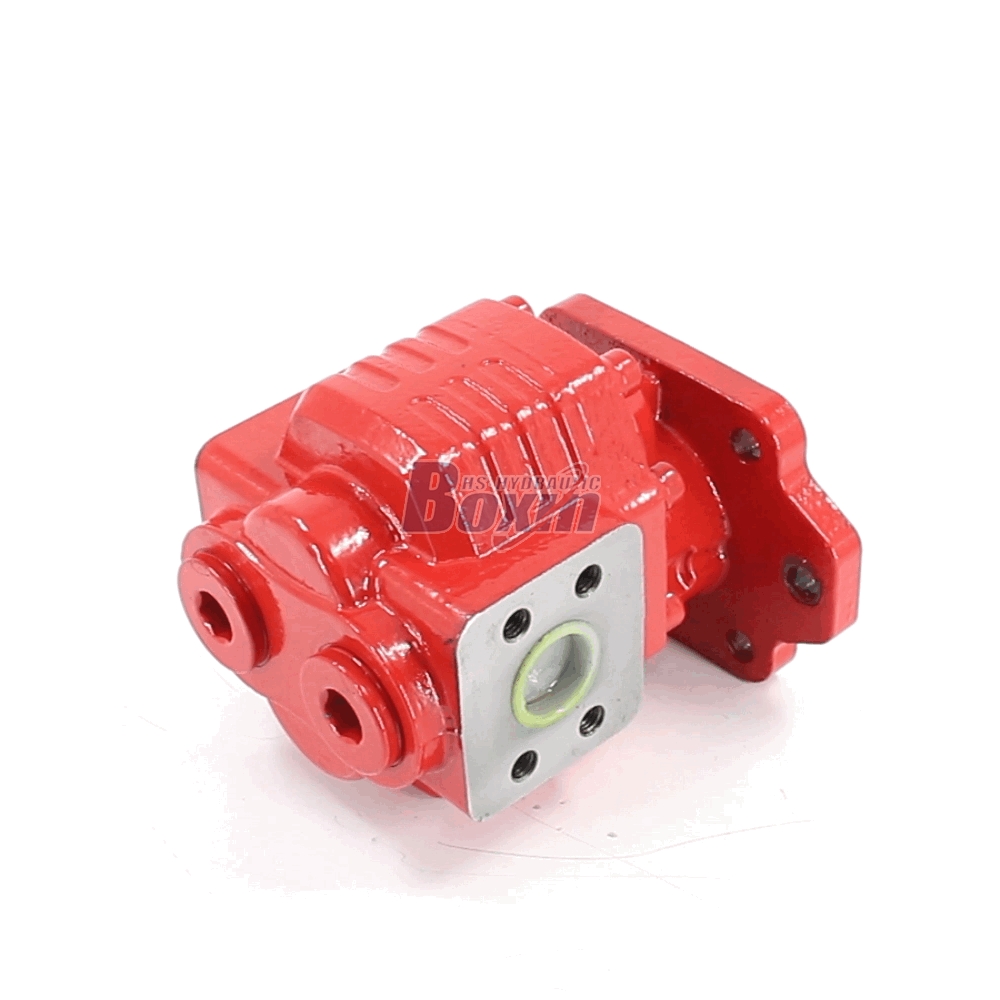

CBHC-2063 63 cc/rev hydraulic gear pump delivers 20 MPa rated pressure (25 MPa max) at 2200 r/min, featuring bidirectional rotation for versatile material handling and construction machinery. Backed by a 25-year IATF 16949 certified manufacturer with 1.5M annual capacity, this unit ensures reliable performance for forklifts, loaders, and excavators through 100% factory testing.
| Seria CBHC Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 32 cm³/obr, 40 cm³/obr, 50 cm³/obr, 63 cm³/obr, 80 cm³/obr, 100 cm³/obr, 25 cm³/obr, 110 cm³/obr |
| Ciśnienie znamionowe | 20 MPa (2900 psi), 22 MPa (3190 psi) |
| Maksymalne ciśnienie | 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Prędkość znamionowa | 2200 obr./min |
| Maksymalna prędkość | 2500 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara), Dwukierunkowy |
| Materiał | Żeliwo |
| Struktura | Zewnętrzna pompa zębata |
| Wersja kołnierza | Kołnierz SAE |
| Typ wału | Nacięcie prostokątne H |
**1. Reliable Hydraulic Gear Pump Specifications**
- Delivers consistent flow with 63 cc/rev displacement, operating at rated pressure of 20 MPa (2900 psi) and max pressure of 25 MPa (3625 psi).
- Supports bidirectional rotation with rated speed of 2200 r/min and max speed of 2500 r/min, ensuring adaptability for diverse hydraulic circuits.
**2. Versatile CBHC Series Gear Pump Applications**
- Engineered for heavy-duty use in material handling, agriculture, and earthmoving sectors, perfectly fitting forklifts, telehandlers, and skid steer loaders.
- Compatible with compact wheel loaders, backhoe loaders, mini-excavators, and tractors, serving as a direct replacement for international mainstream brands.
**3. Professional Manufacturer Quality Assurance**
- Produced in one of 4 modern factories (68,000 sqm) with 25+ years of expertise, holding IATF 16949 certification and 25+ patents.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, verified by SGS and CE compliance to guarantee zero-defect delivery.
**4. OEM/ODM Available Customization Services**
- Supported by 35+ senior engineers with 10+ years of experience, offering tailored solutions for appearance, casting modifications, and laser logo marking.
- Provides one-stop OEM/ODM private label services, allowing distributors to build their own brand identity with flexible customization options.
**5. Factory Direct Sales & Global Logistics**
- Leverages wholesale China factory advantages with an annual output of 1,500,000 pieces, ensuring stable supply for large-volume orders.
- Features anti-rust treatment and heavy-duty wooden crate packaging for safe worldwide export, minimizing transit damage and maintenance costs.
