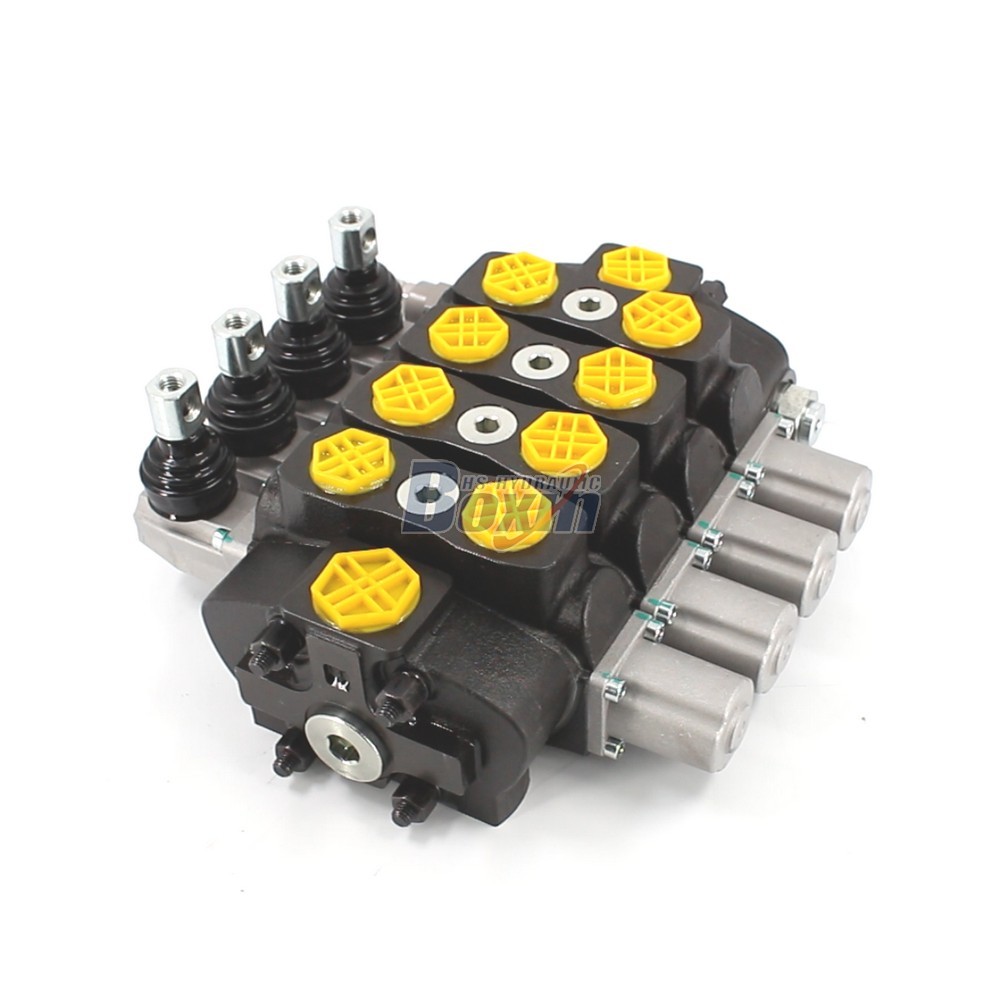

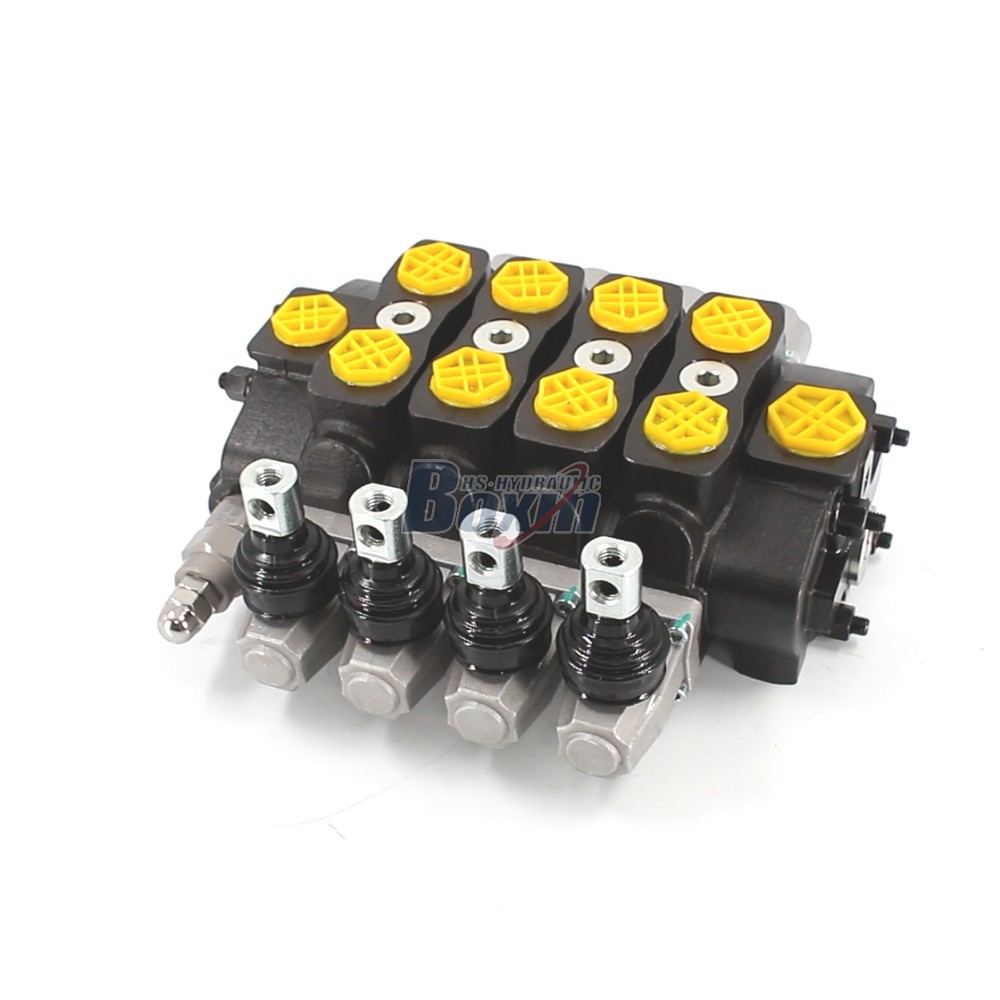

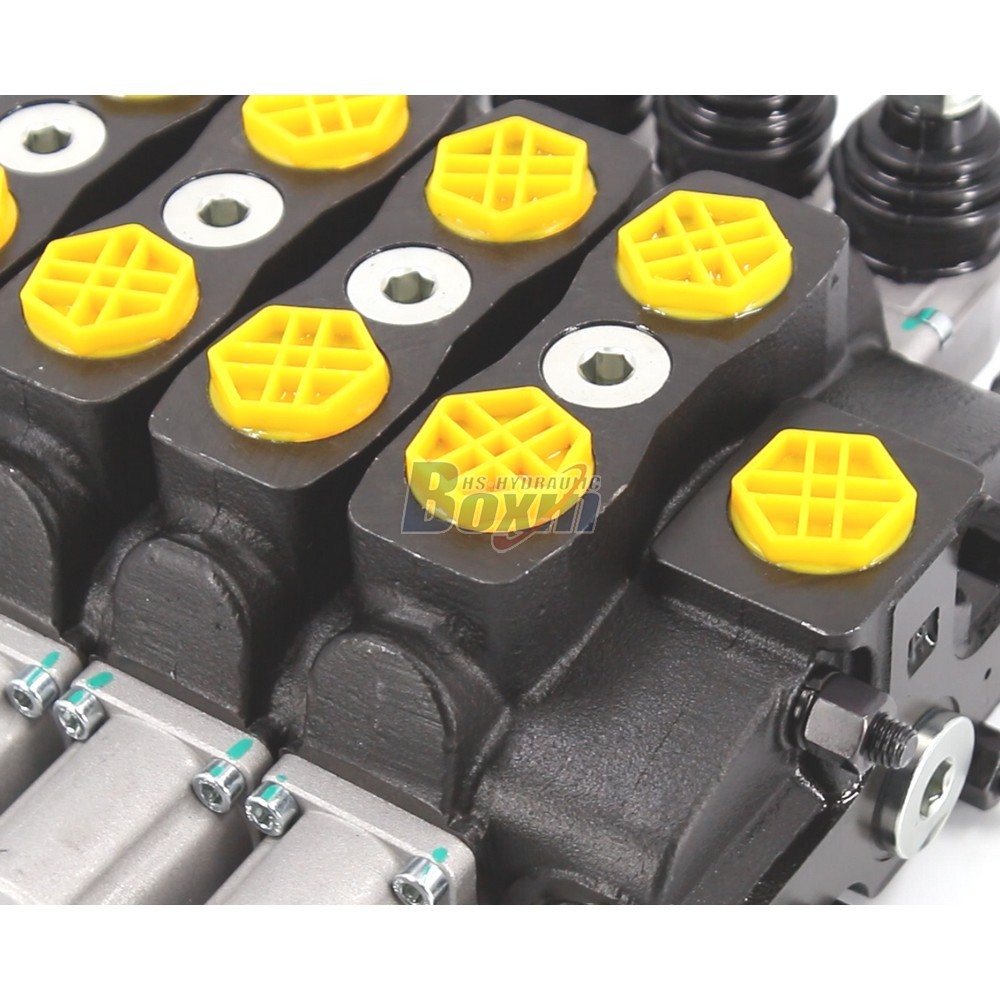

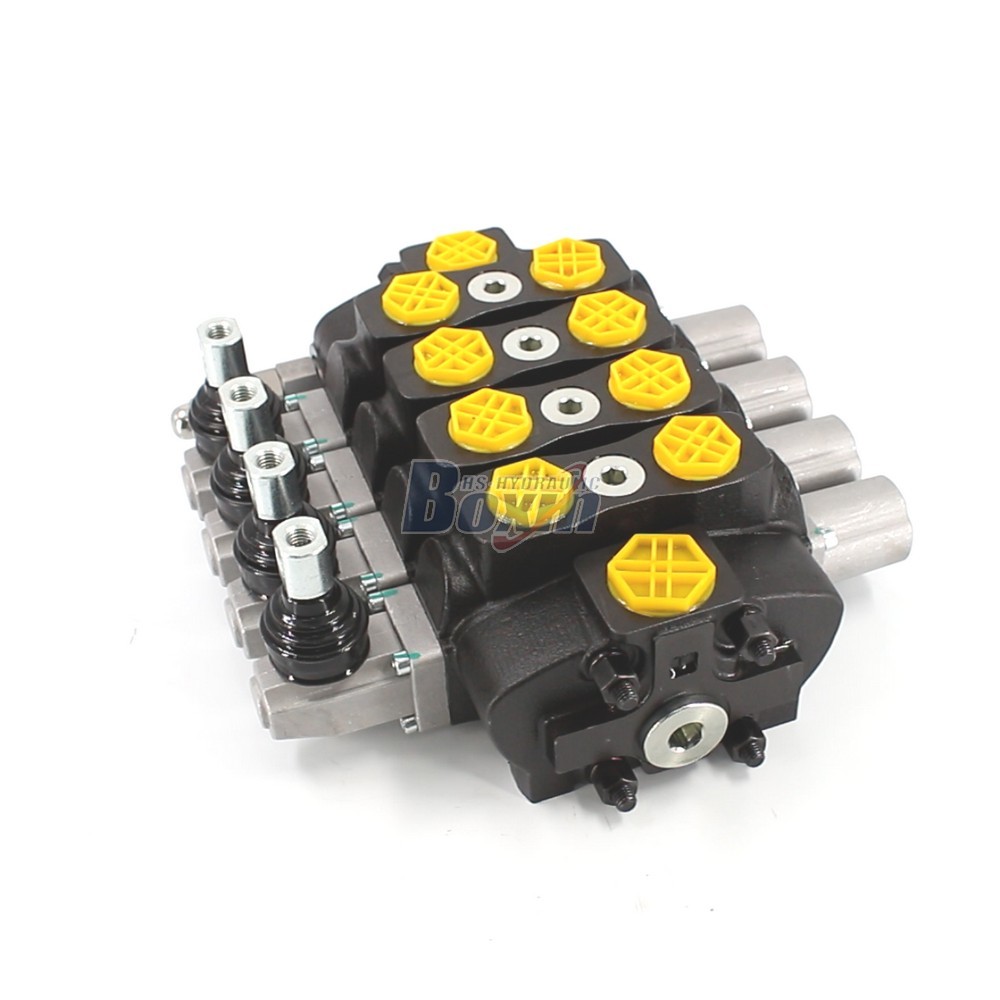

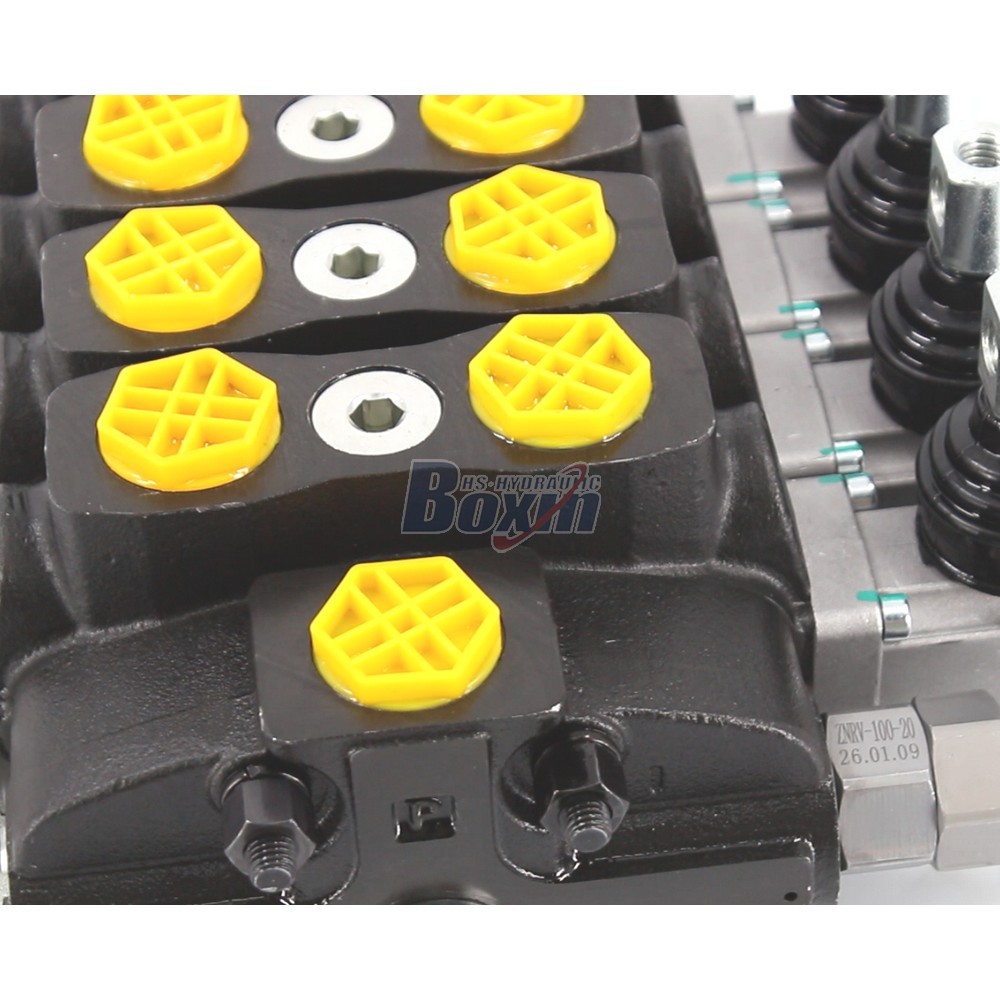

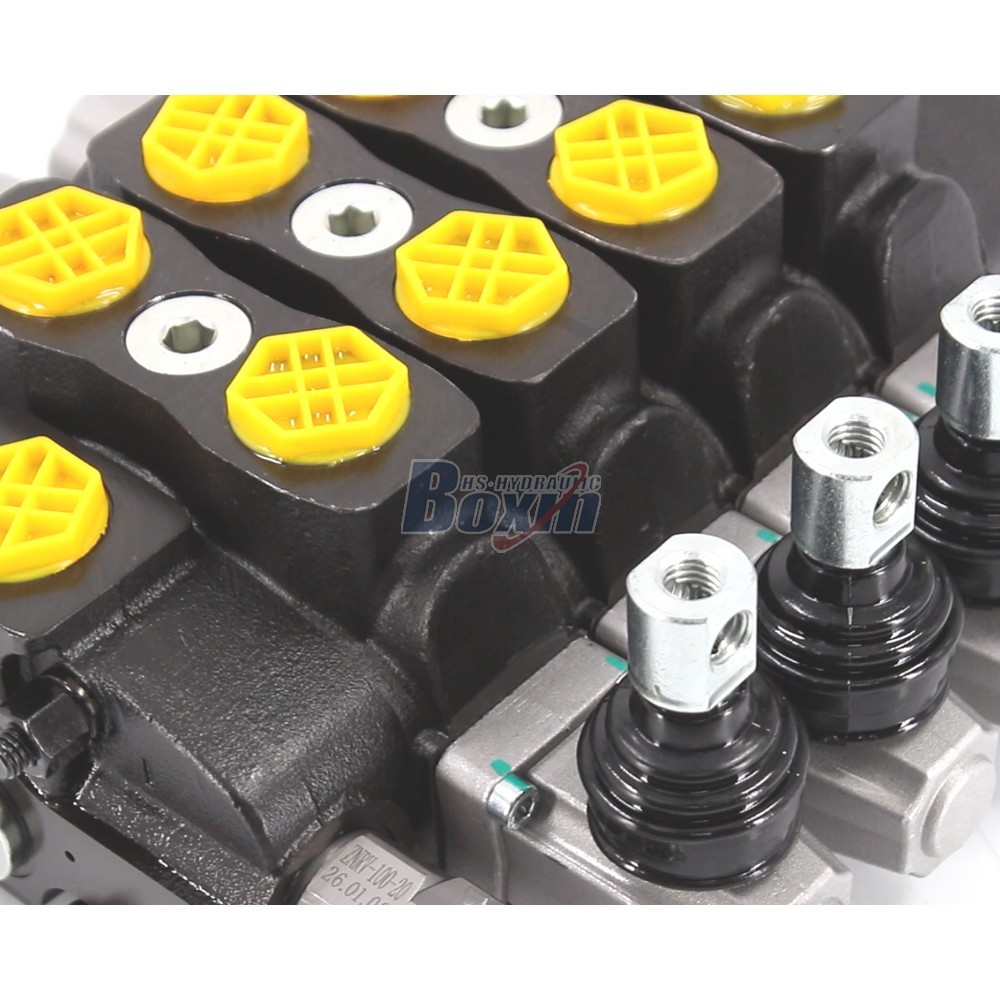

Seeking Global Distributors and Wholesalers for SD8 Manual 4 Spool Sectional Valve

Metoda sterowania:Ręczna

Szpula:4-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Rozmiar opakowania:32*36*16

Waga brutto:18.00 kg

Dostępność: W magazynie

101 Osoby oglądają ten produkt

Seeking Global Distributors and Wholesalers for SD8 Manual 4 Spool Sectional Valve

Seeking Global Distributors and Wholesalers for SD8 Manual 4 Spool Sectional Valve

Seeking Global Distributors and Wholesalers for SD8 Manual 4 Spool Sectional Valve drawing image

High-performance SD8 series manual 4 spool sectional valve designed for precise fluid control in heavy-duty machinery. Featuring an 80 L/min flow rate and 315 bar max pressure, it is ideal for construction, agriculture, and material handling applications.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 90 l/min (23,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, SAE 10
Port wylotowy G1/2, G3/4, SAE 10, 3/4 NPT
Rozmiar portu G1/2, SAE 10

As a leading hydraulic products manufacturer, we offer the SD8 series manual 4 spool sectional valve engineered for versatility and durability. This valve supports a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 315 bar (4600 psi), making it suitable for forklifts, mini-excavators, and wood splitters. Our factory provides comprehensive OEM and ODM services, including private labeling and custom design to meet specific technical requirements. We specialize in factory wholesale and are actively seeking global distributors, wholesalers, and trade partners. Whether you need reliable components for skid steer loaders or agricultural harvesters, our factory supply ensures consistent quality and competitive pricing for bulk orders. Partner with us for professional hydraulic solutions and expand your market reach with our globally recognized SD8 series valves.
