Seeking Distributors & Wholesale Partners for Pneumatic 1 Spool Hydraulic Control Valves

Metoda sterowania:Pneumatyczna

Szpula:1-sekcyjny

Przepływ znamionowy:Przepływ 150 L/min

Maksymalne ciśnienie:230 bar (3300 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G1/4

Marka:BXHS

Typ produktu:Zawór wywrotu

Seria produktów:Seria QFCK-F20L Zawór wywrotu

Rozmiar opakowania:25*20*14

Waga brutto:6.50 kg

Dostępność: W magazynie

874 Osoby oglądają ten produkt

Seeking Distributors & Wholesale Partners for Pneumatic 1 Spool Hydraulic Control Valves

Seeking Distributors & Wholesale Partners for Pneumatic 1 Spool Hydraulic Control Valves

Seeking Distributors & Wholesale Partners for Pneumatic 1 Spool Hydraulic Control Valves drawing image

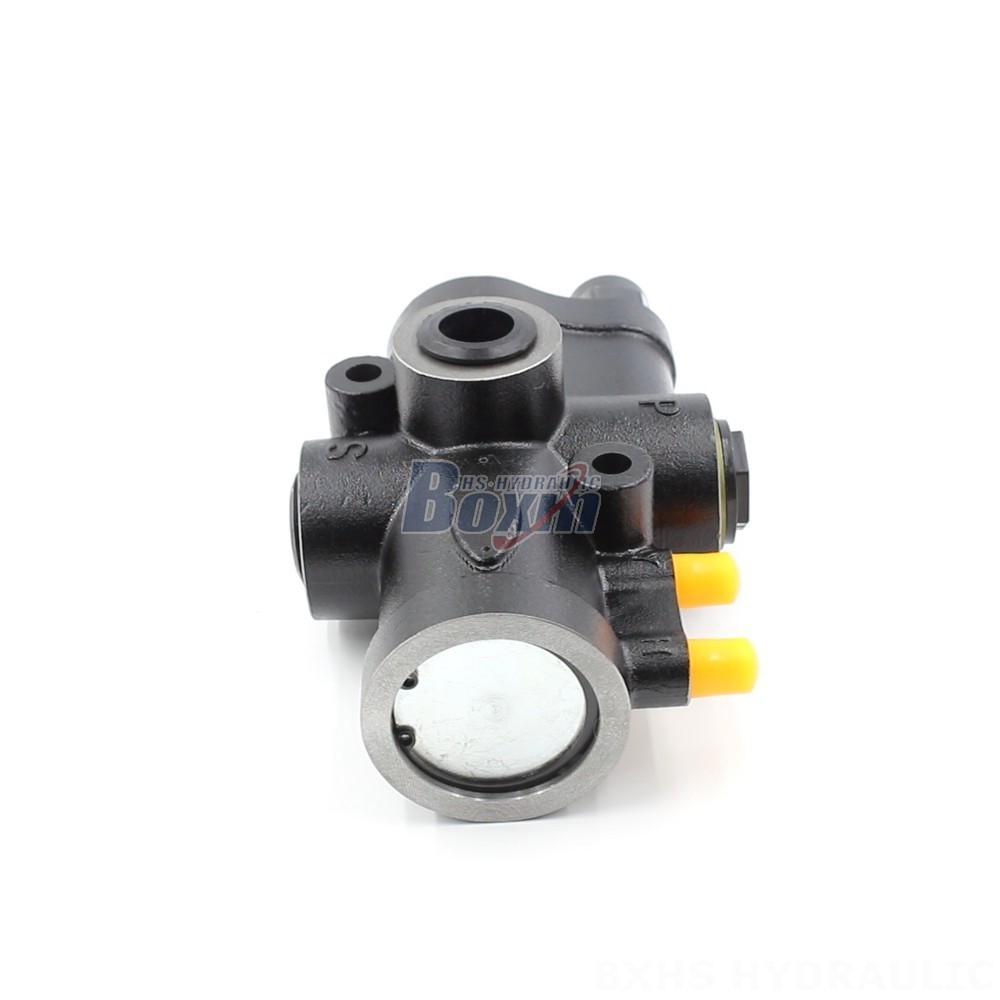

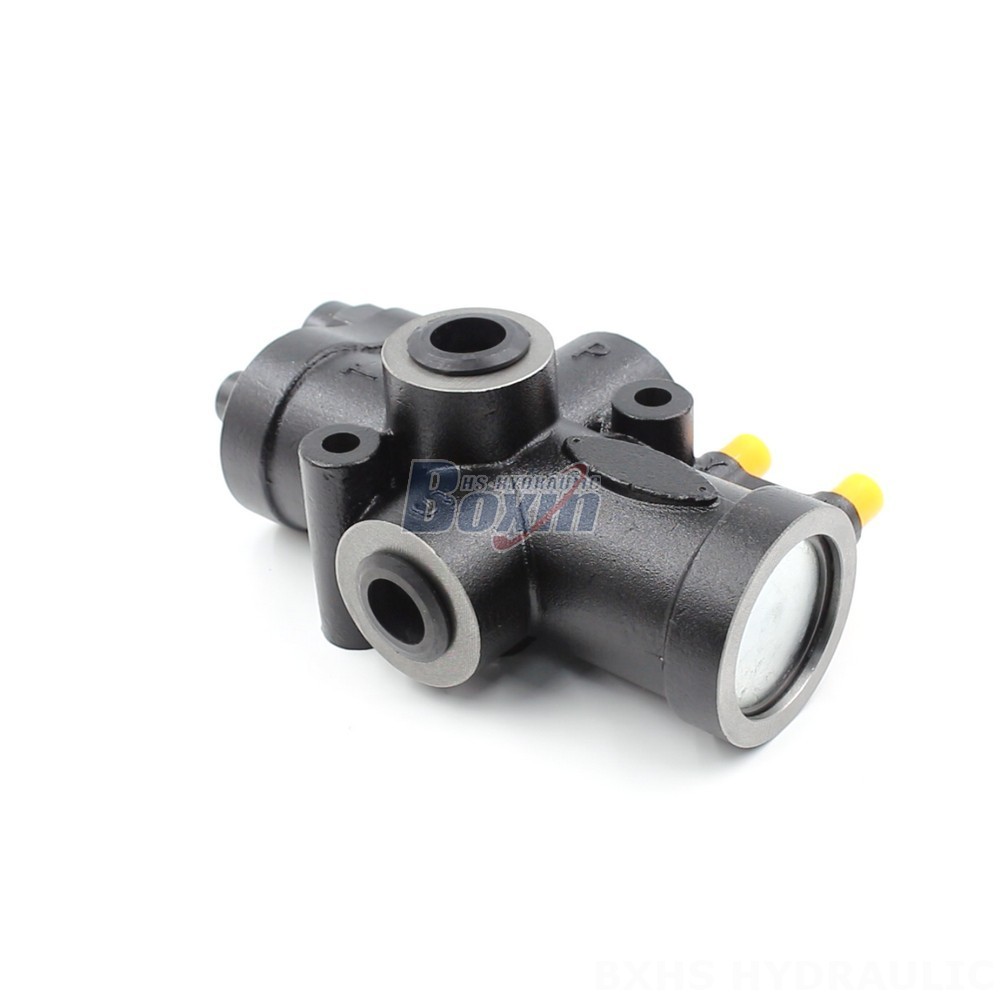

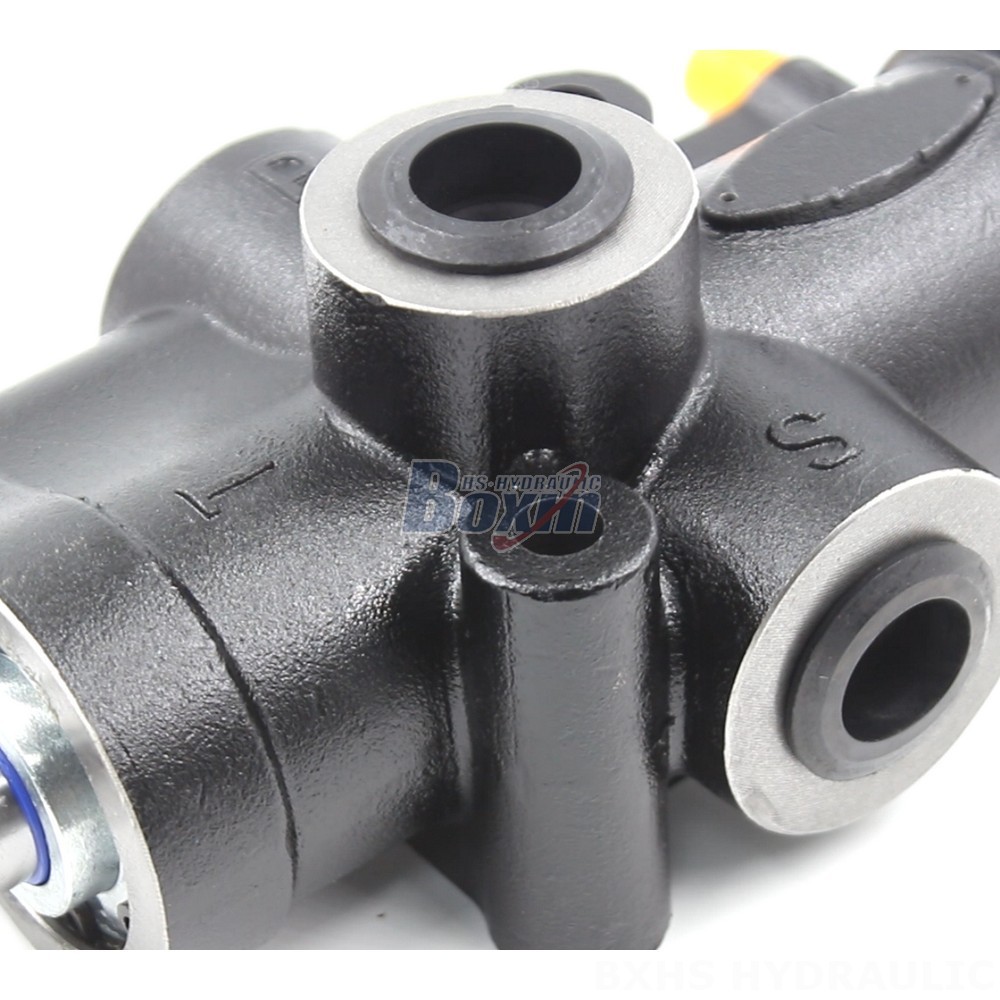

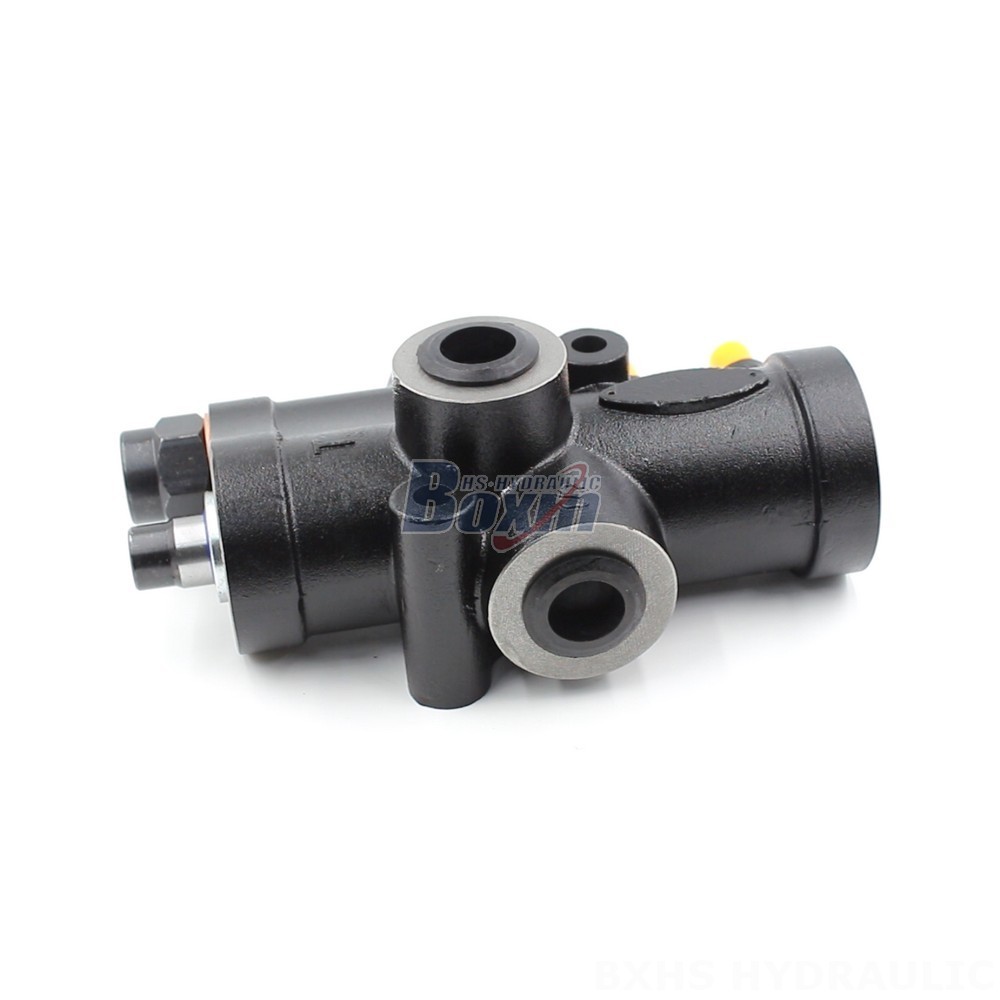

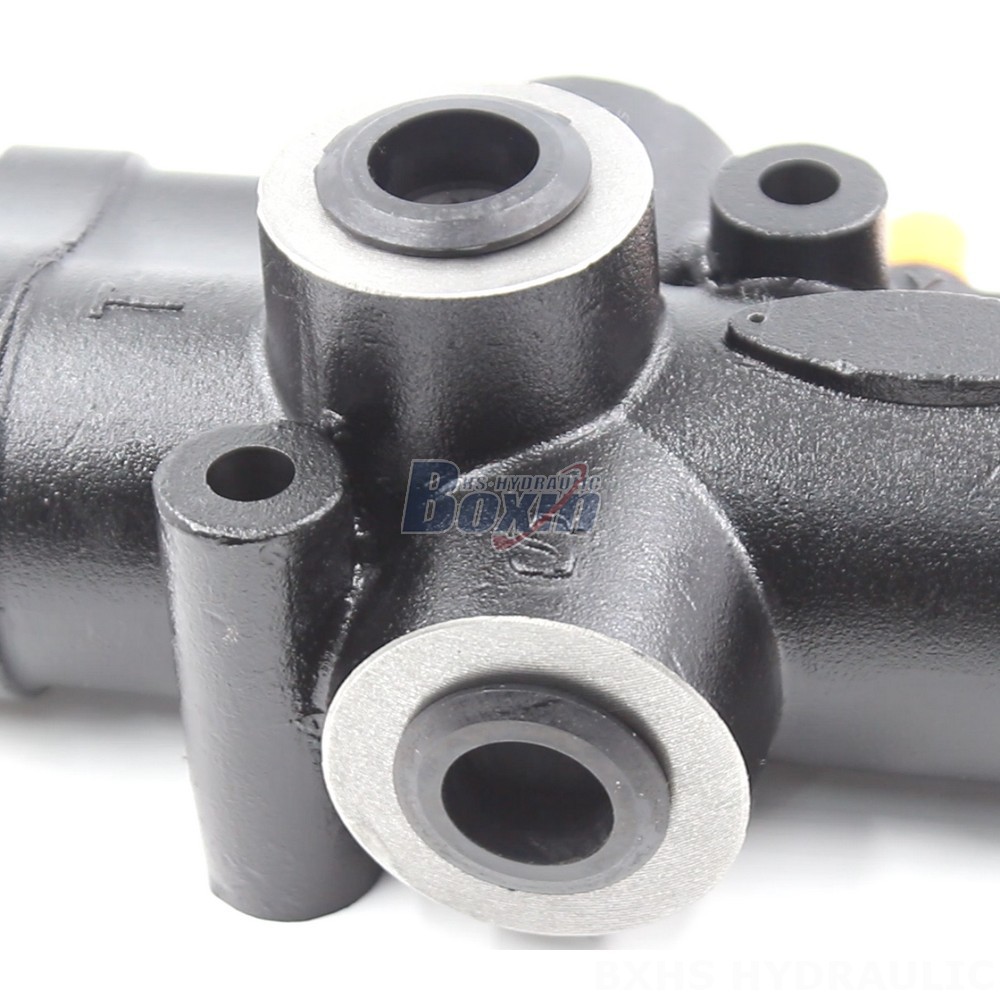

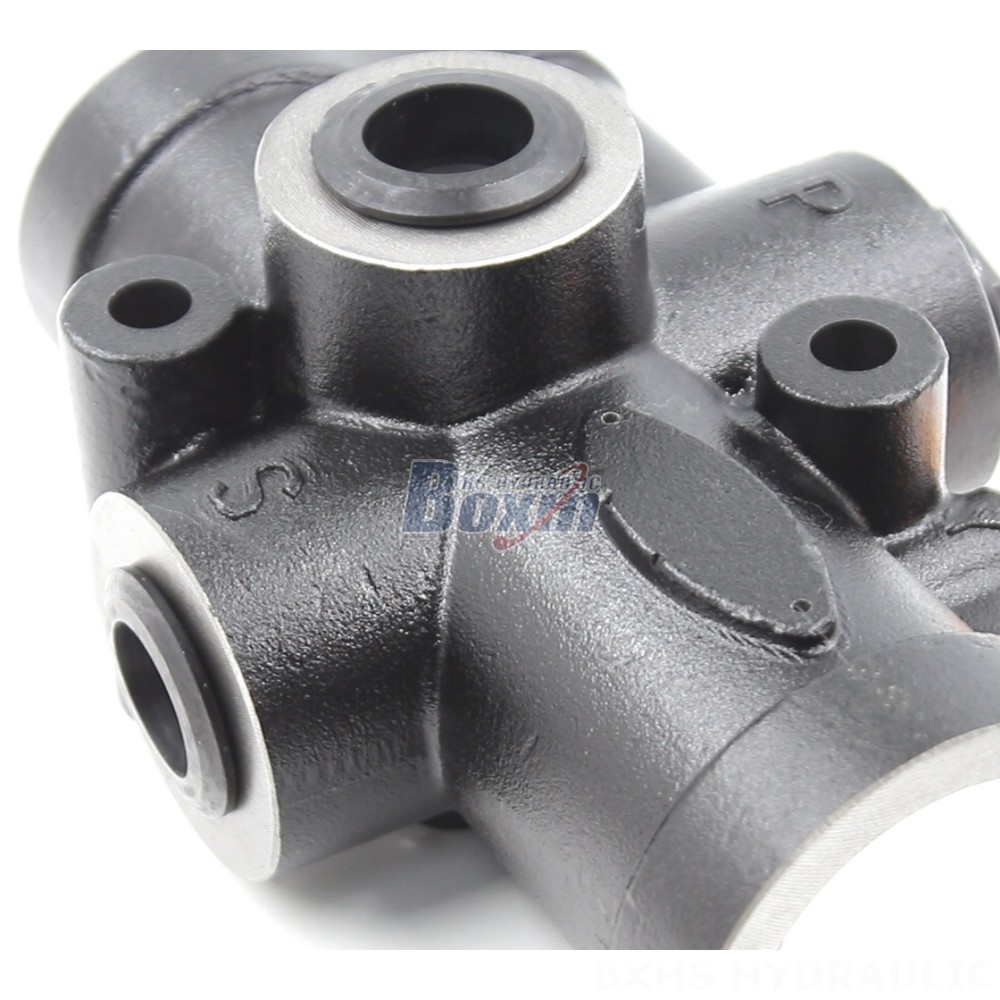

This high-performance, 1-spool, pneumatic hydraulic control valve is designed for heavy-duty applications in construction, agriculture, industrial vehicles, and material handling. It features a monoblock structure for maximum reliability and durability, and a high flow rate of 140 L/min (37 US gpm) to ensure efficient operation.

Seria QFCK-F20L Zawór wywrotu Parametry
Metoda sterowania Pneumatyczna
Szpula 1-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy Przepływ 150 L/min
Maksymalne ciśnienie 210 bar (3045 psi)
Port wlotowy G3/4
Port wylotowy G1
Rozmiar portu G3/4, G1, G1/4

This QFCK-F20L series pneumatic hydraulic control valve is a high-quality, heavy-duty component ideal for various applications. With a rated flow of 140 L/min (37 US gpm) and a maximum pressure of 210 bar (3045 psi), it's designed to handle demanding tasks. The valve's monoblock structure ensures exceptional reliability and durability, while the operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows for optimal performance in diverse conditions. This valve is suitable for use in telehandlers, forklifts, mini-excavators, midi-excavators, skid steer loaders, wheel loaders, backhoe loaders, dumpers, tractors, front-end loaders, and harvesters. We are actively seeking distributors, wholesalers, and trade partners to expand our global reach. If you are interested in partnering with us to bring this high-quality product to the market, please contact us to discuss further.
