SD8 Solenoid 4 Spool Sectional Directional Valve - Factory Direct

Metoda sterowania:Elektromagnes

Szpula:4-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Packagingsize:36*30*16

Grossweight:23.00 kg

Dostępność: W magazynie

460 Osoby oglądają ten produkt

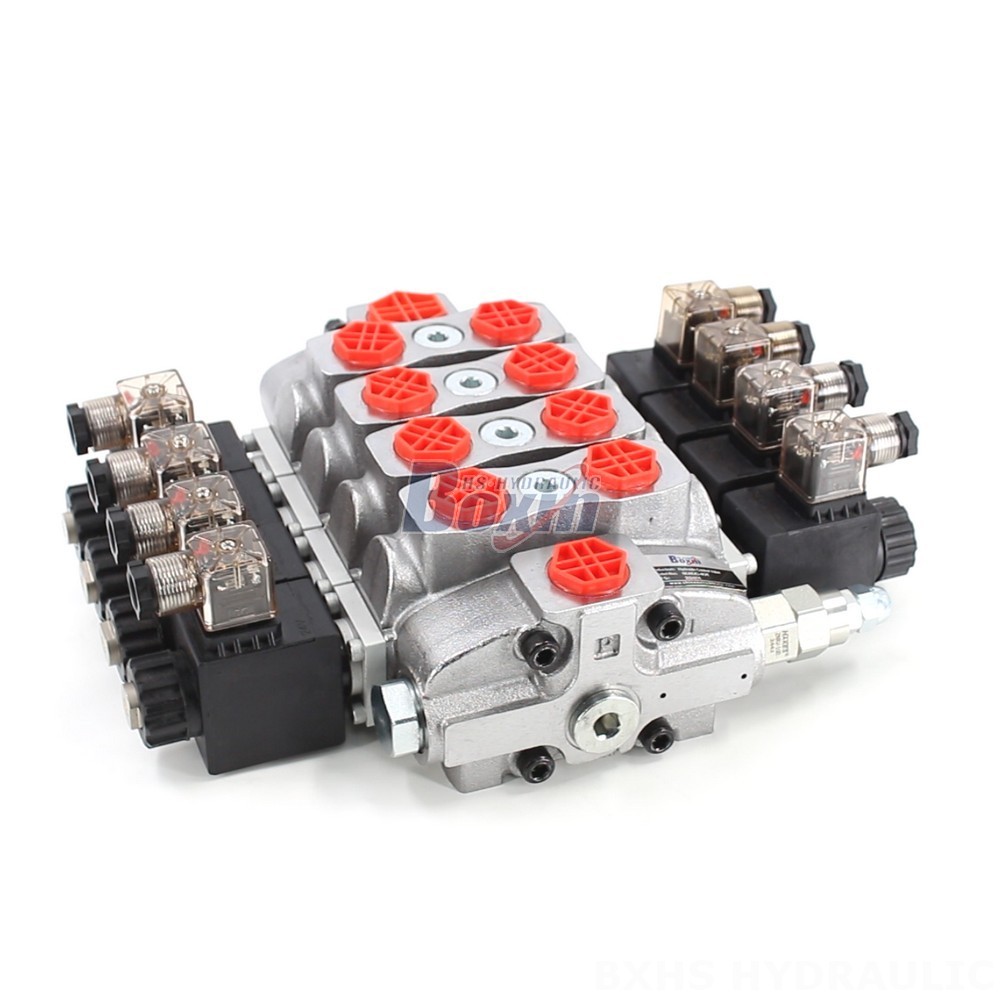

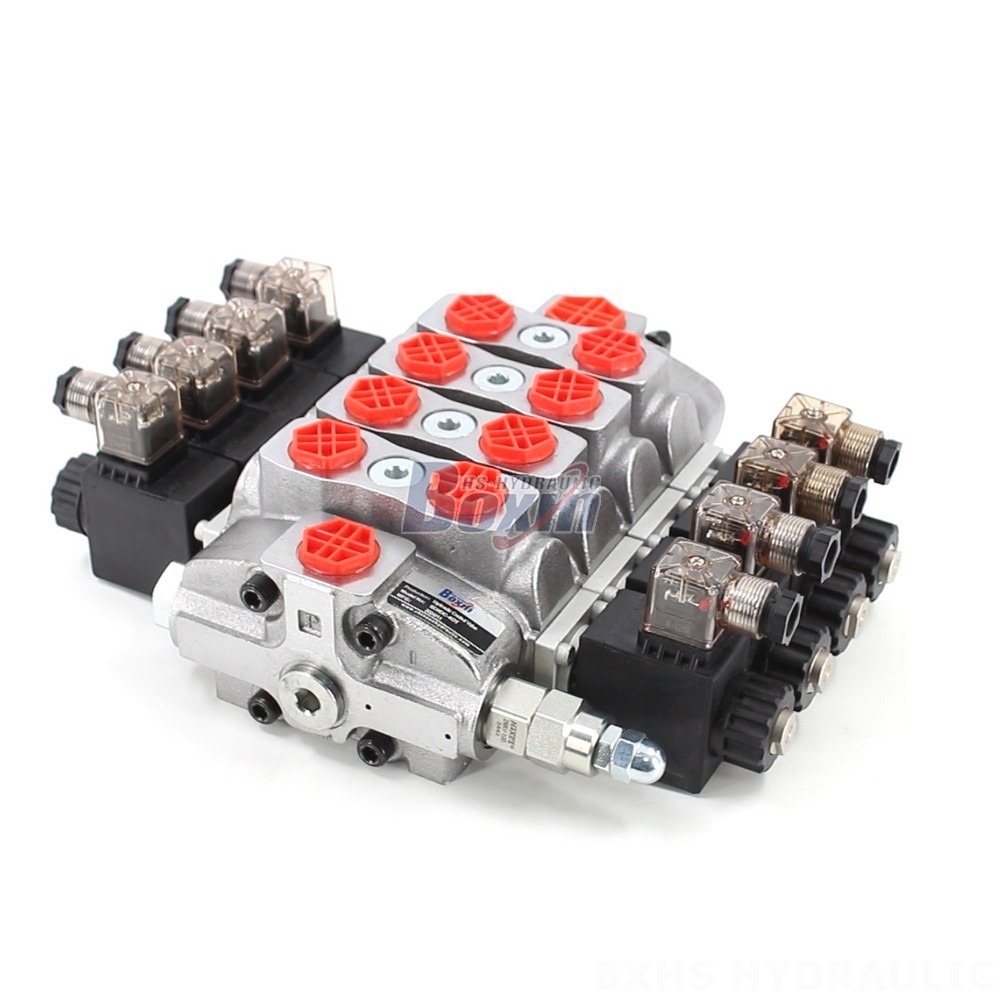

SD8 Solenoid 4 Spool Sectional Directional Valve - Factory Direct

SD8 Solenoid 4 Spool Sectional Directional Valve - Factory Direct

SD8 Solenoid 4 Spool Sectional Directional Valve - Factory Direct drawing image

SD8 Series 4-spool sectional directional solenoid valves offer high performance (90 L/min, 350 bar) for various applications, including material handling, construction, and agriculture. Factory direct pricing, OEM services (private label, custom design), and wholesale options are available. We are actively seeking distributors, wholesalers, and trading partners globally.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 90 l/min (23,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, SAE 10
Port wylotowy G1/2, G3/4, SAE 10, 3/4 NPT
Rozmiar portu G1/2, SAE 10

The SD8 Solenoid 4 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, and agriculture. This factory-direct offering boasts a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi). Its robust design features a 4-spool configuration and a sectional valve structure, ensuring reliable operation in diverse environments. The valve is suitable for a wide range of equipment, including forklifts, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, and balers.

**Key Features:**
* **High Flow Rate:** 90 L/min (23.8 US gpm)
* **High Pressure:** 350 bar (5100 psi), 250 bar (3600 psi)
* **Solenoid Control:** Precise and reliable operation
* **4-Spool Design:** Versatile control capabilities
* **Sectional Valve Structure:** Durable and efficient
* **Wide Operating Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Factory Direct Pricing:** Significant cost savings

**Business Opportunities:**
We are a leading manufacturer of hydraulic products offering a comprehensive range of services, including manufacturing, OEM (Original Equipment Manufacturing), private labeling, customization, and wholesale distribution. We are actively seeking strategic partnerships with distributors, wholesalers, agents, and trading companies worldwide. Benefit from our factory-direct pricing, superior product quality, and responsive customer service. Contact us today to explore lucrative collaboration opportunities. We offer flexible solutions for your specific needs, including private labeling, custom designs, and bulk purchasing options.

**Contact us now to discuss your needs and explore potential partnerships! Factory direct, wholesale pricing available. We are a leading manufacturer and supplier of high-quality hydraulic valves.**
