Produkcja i dostawa
Czas realizacji produkcji 15-30 dni



High-quality SD8-PG2 electro-hydraulic 4-spool sectional directional valve, offering 90 L/min flow rate and 350 bar max pressure. Ideal for material handling, construction, and agricultural applications. Factory direct pricing and OEM/private label options available.
| Seria SD8 Zawór kierunkowy sekcyjny Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Silnik elektryczny |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór sekcyjny |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji |
| Zakres lepkości roboczej | 12 - 400 mm²/s (12 cSt do 400 cSt) |
| Przepływ znamionowy | 90 l/min (23,8 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2, G3/4, M22×1.5, SAE 10 |
| Port wylotowy | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Rozmiar portu | G1/2, M22×1.5, SAE 10 |

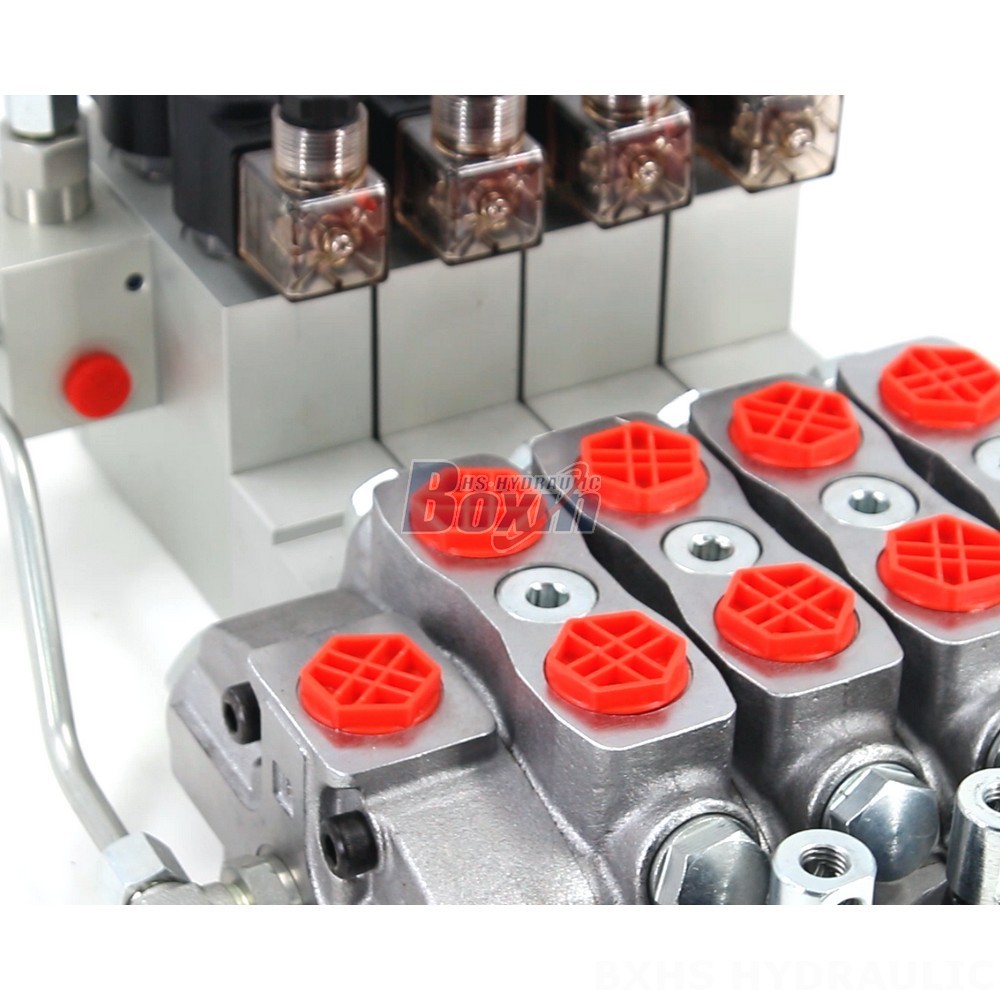

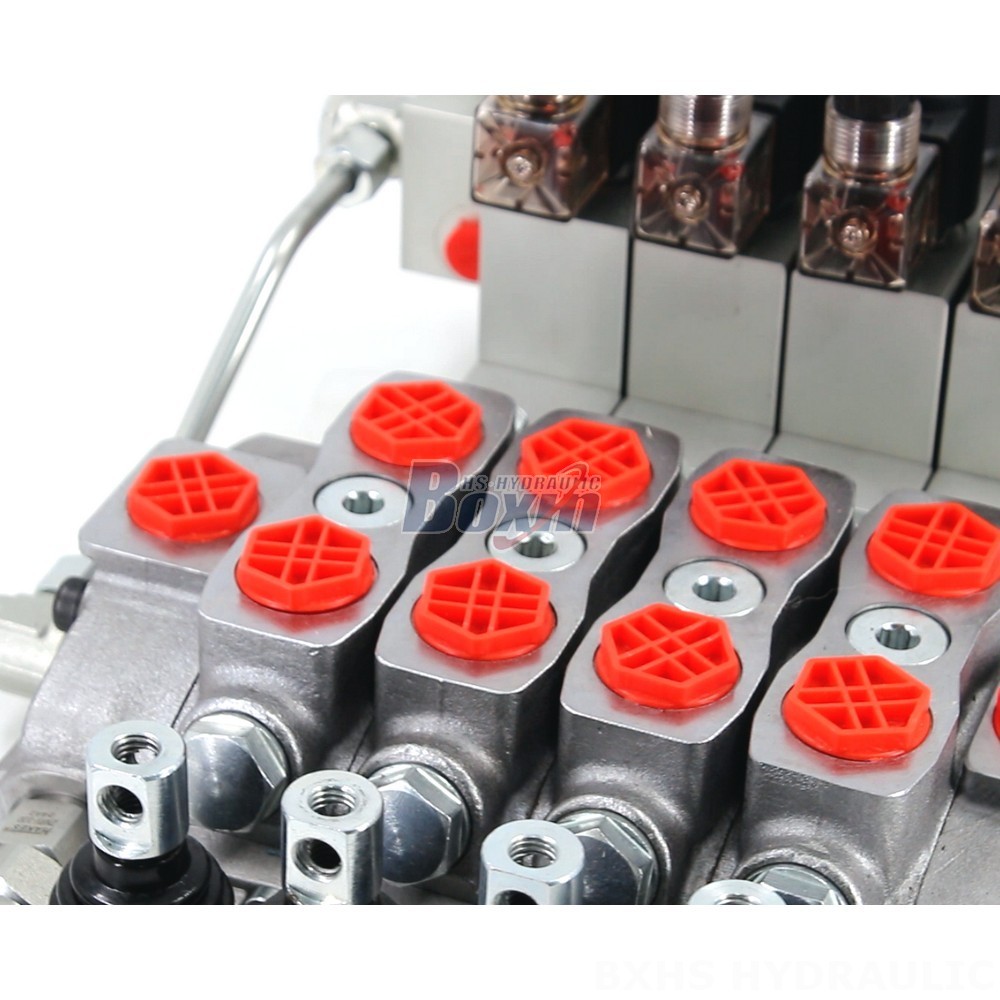

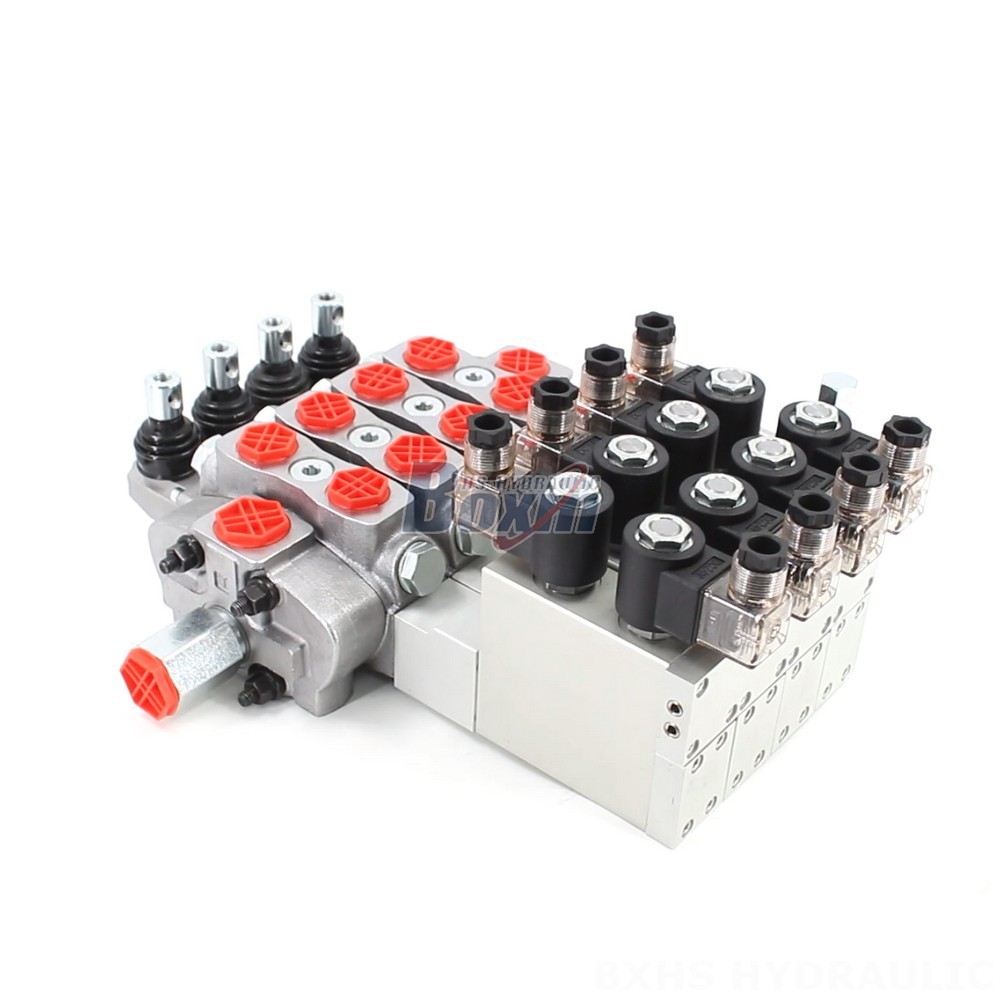

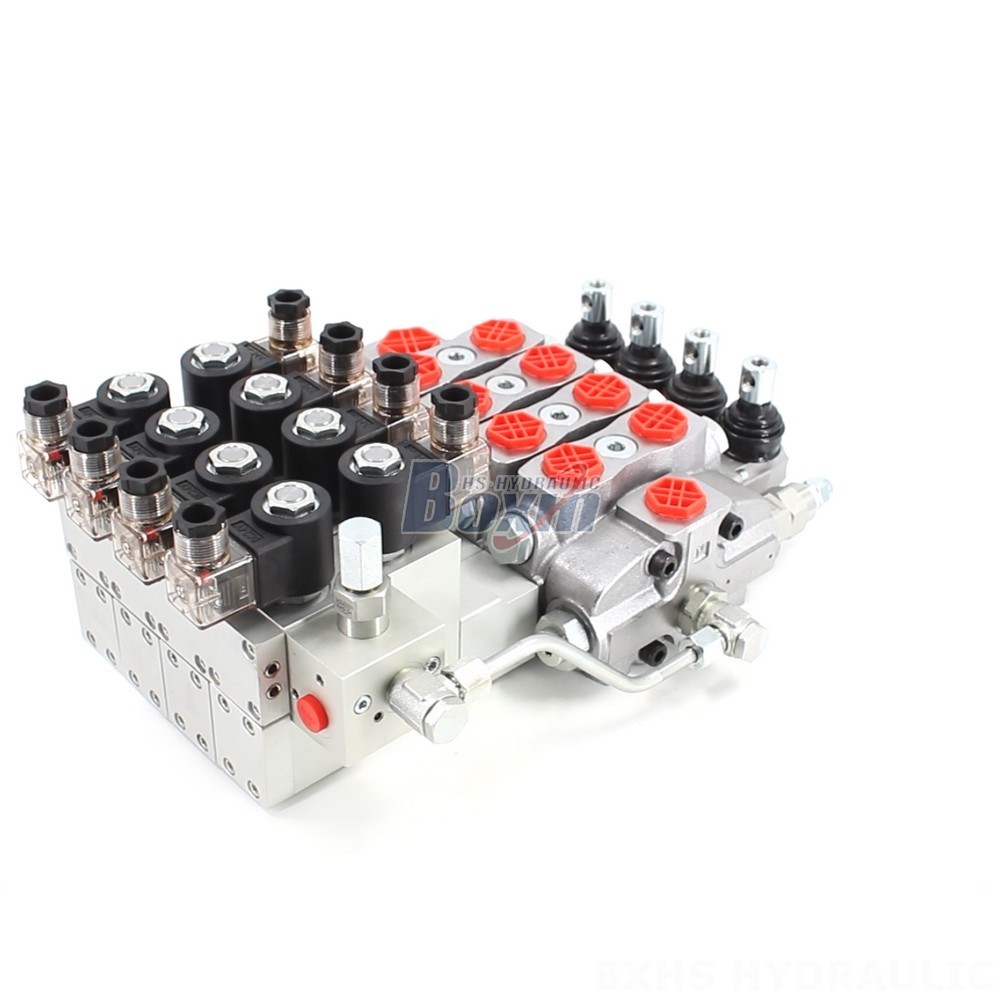

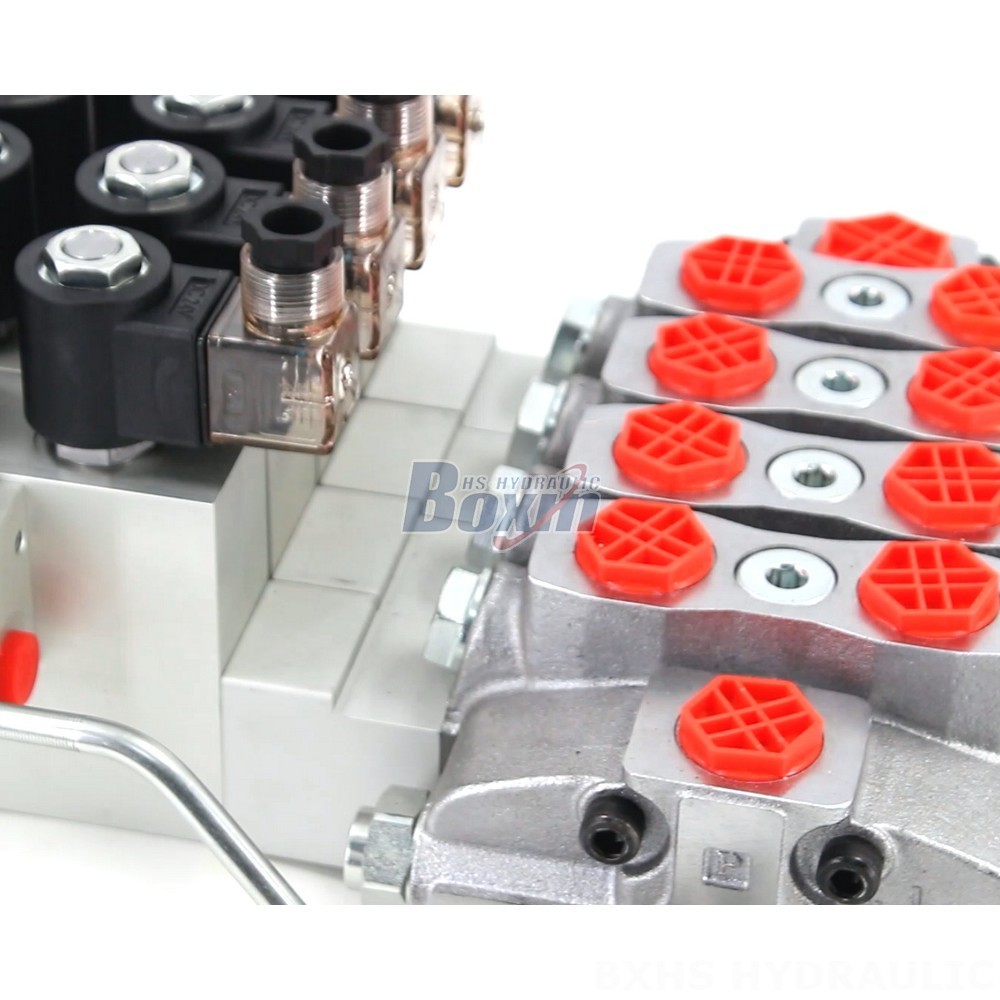

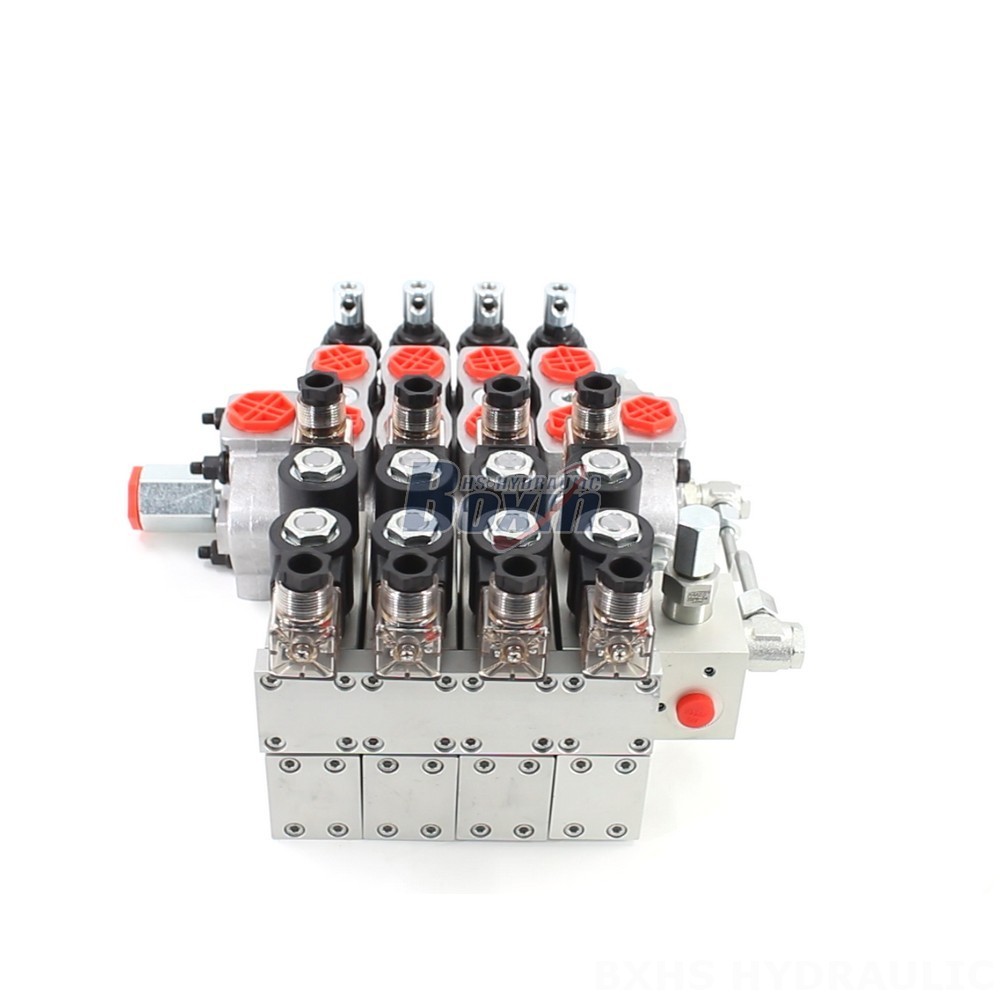

The SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve is a high-performance hydraulic component manufactured by our factory. We offer factory direct pricing, ensuring competitive advantage for our customers. This robust valve boasts a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi) or 250 bar (3600 psi), making it suitable for a wide range of applications, including material handling, construction and earth moving, industrial vehicles, and agriculture. Specific applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors, backhoe loaders, mini-excavators, midi-excavators, harvesters, and balers. This 4-section, electro-hydraulic sectional valve operates reliably within a temperature range of -40°C to +80°C (-40°F to +176°F) and a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt).
**We are a leading hydraulic product manufacturer offering:**
* **Manufacturing:** High-quality production of the SD8-PG2 and other hydraulic valves.
* **OEM (Original Equipment Manufacturing):** We provide custom designs and manufacturing to meet your specific requirements. Partner with us to integrate our valves seamlessly into your equipment.
* **Private Labeling:** Brand your own hydraulic valves with your company logo and specifications.
* **Customization:** Tailor the valve's specifications to match your unique application needs.
* **Wholesale:** Bulk orders available at competitive factory-direct prices.
**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies
Partner with us to access high-quality, reliable hydraulic valves at competitive prices. Contact us today to discuss your needs and explore potential collaborations. We are a factory direct supplier offering competitive pricing, high-quality products, and flexible OEM and private labeling options. Choose a reliable and experienced hydraulic valve manufacturer – choose us.
