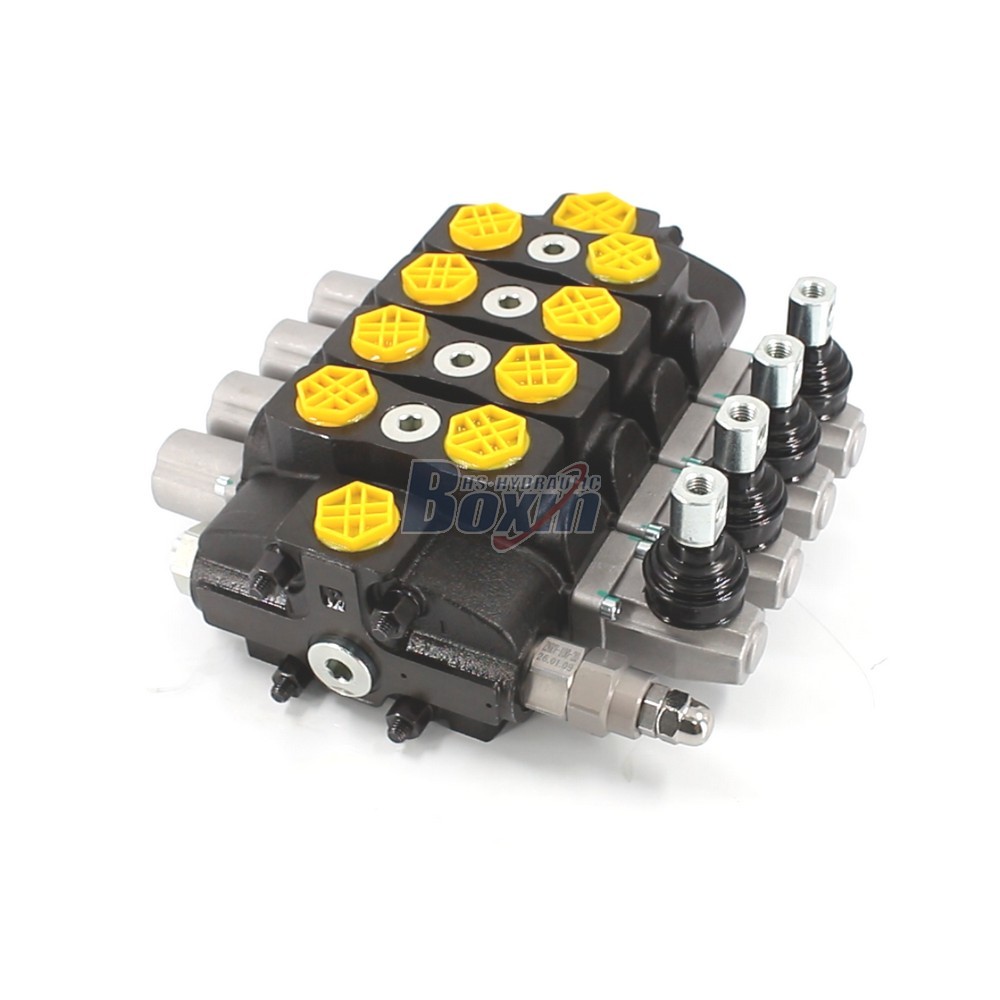

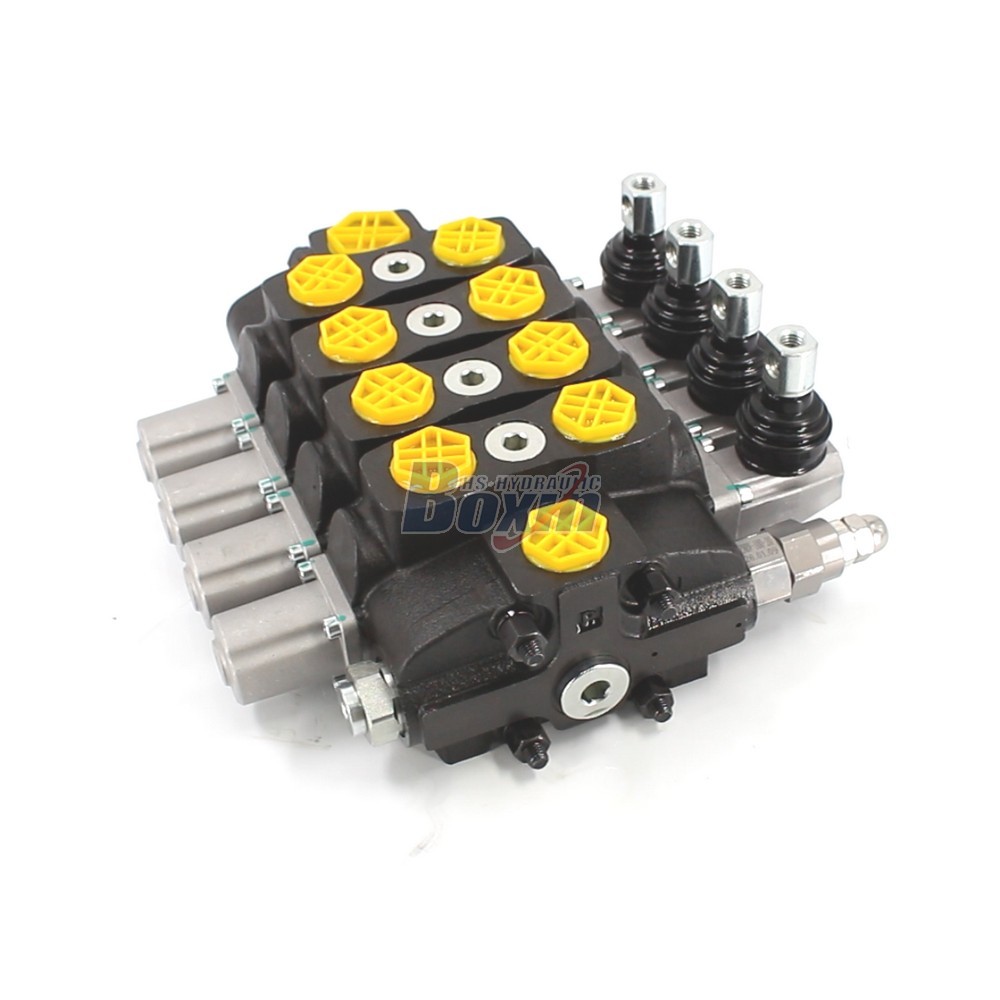

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

Metoda sterowania:Ręczna

Szpula:4-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Rozmiar opakowania:32*36*16

Waga brutto:18.00 kg

Dostępność: W magazynie

101 Osoby oglądają ten produkt

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

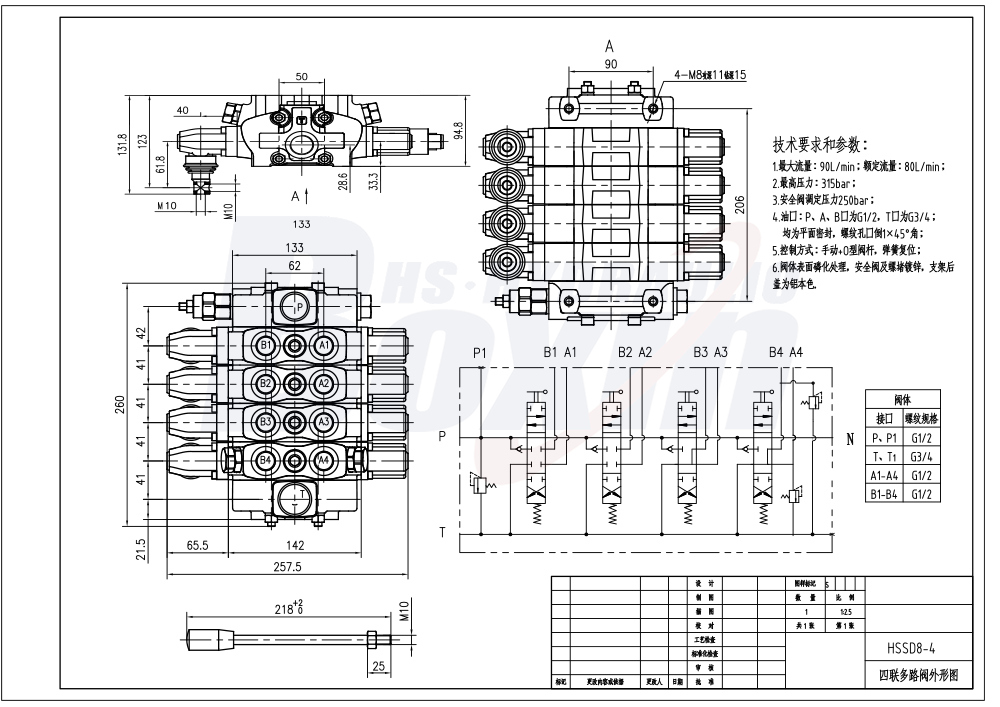

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems drawing image

The SD8 Series 4 Spool Manual Sectional Directional Valve is a high-performance hydraulic control solution designed for flow rates up to 80 L/min and pressures up to 315 bar. Ideal for material handling, agriculture, and construction machinery, it offers precise manual control for versatile industrial applications.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 90 l/min (23,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, SAE 10
Port wylotowy G1/2, G3/4, SAE 10, 3/4 NPT
Rozmiar portu G1/2, SAE 10

As a leading manufacturer of hydraulic components, we specialize in offering the SD8 Series 4 Spool Sectional Directional Valve to the global market. This robust manual valve is engineered for demanding environments, featuring a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capability of 315 bar (4600 psi). It is widely applicable for forklifts, mini-excavators, tractors, skid steer loaders, and wood splitters. We provide comprehensive manufacturing services including OEM, private labeling (ODM), and custom configurations to meet specific technical requirements. Our factory ensures stable supply and competitive wholesale pricing for large-scale orders. We are actively seeking long-term cooperation with international distributors, wholesalers, agents, and professional traders. By partnering with us, you gain access to factory-direct supply, reliable technical support, and high-quality hydraulic solutions tailored for construction, agricultural, and industrial vehicle sectors.
