Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

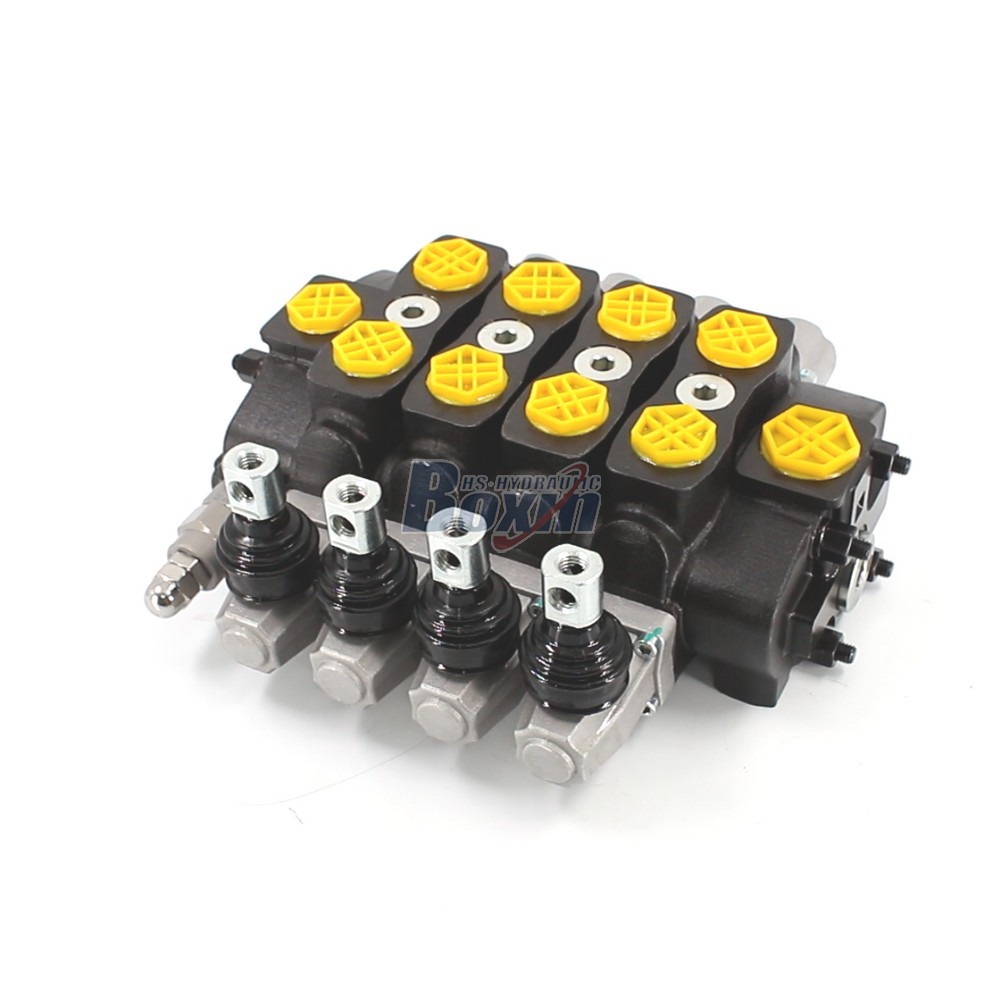

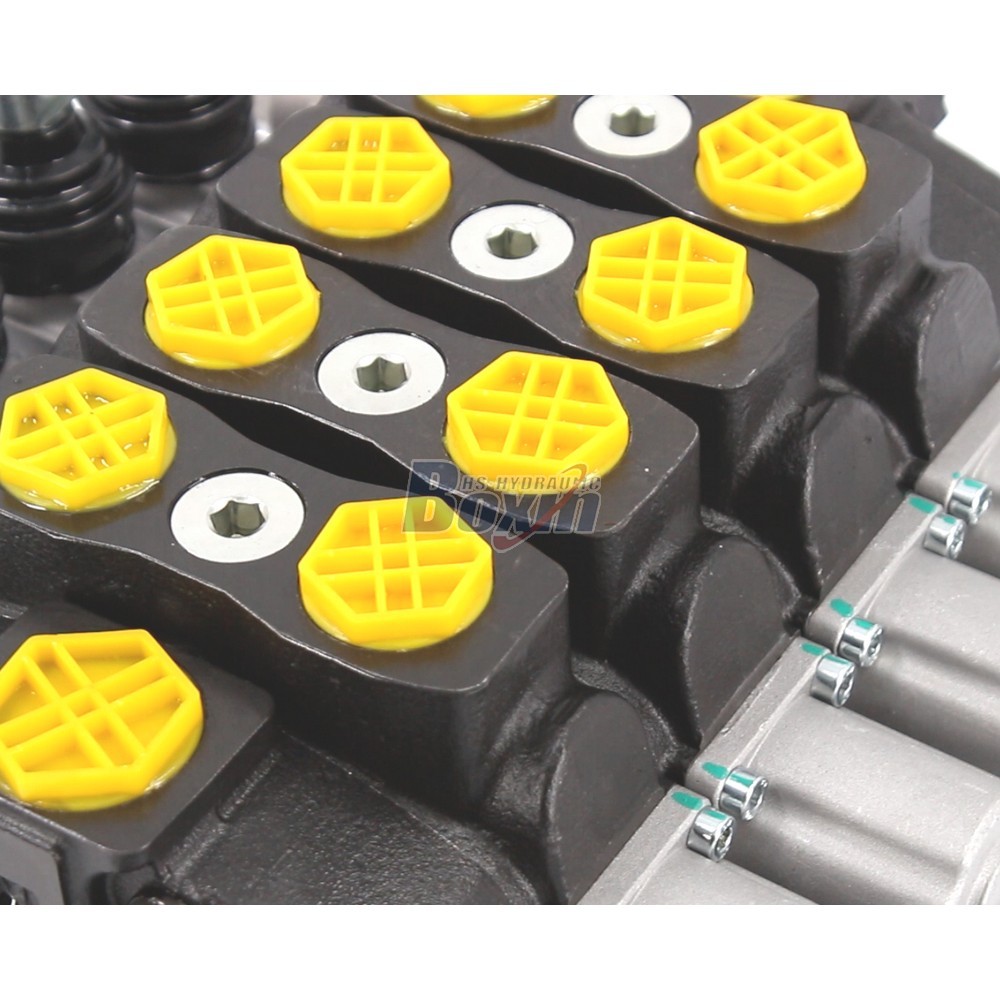

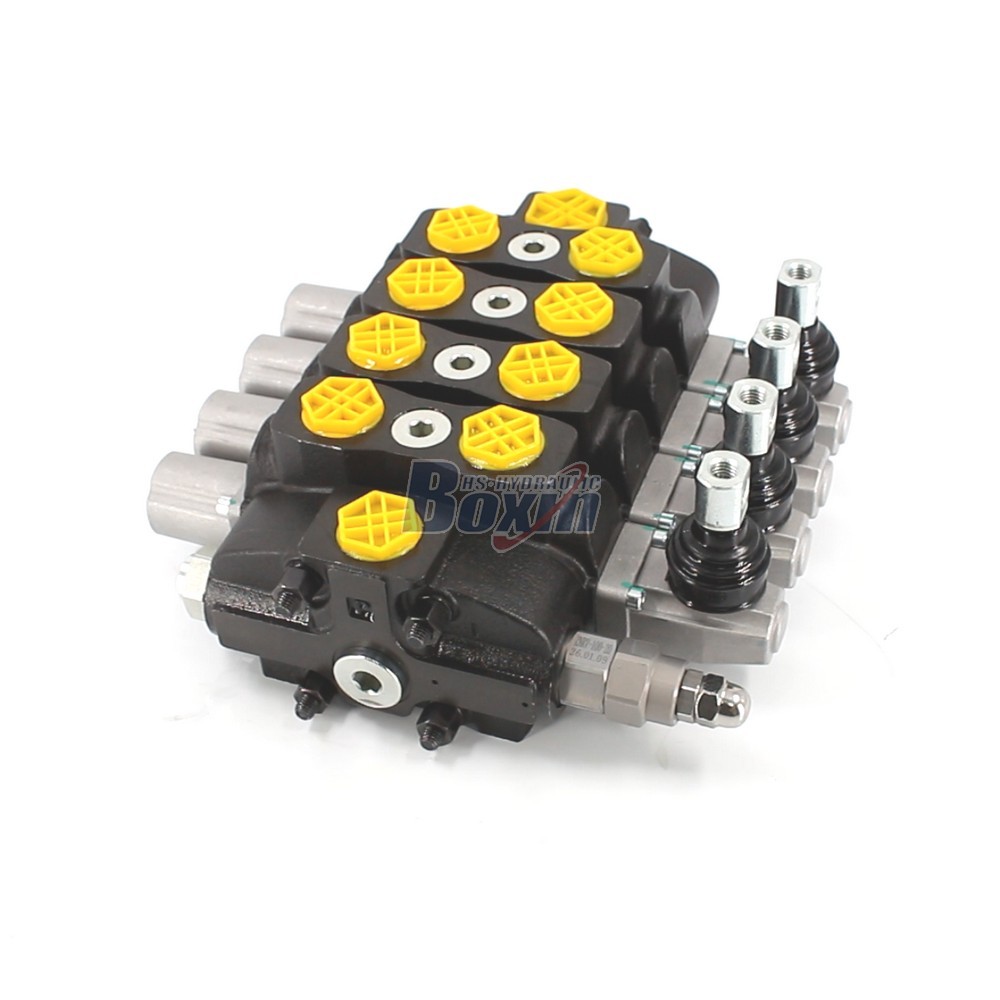

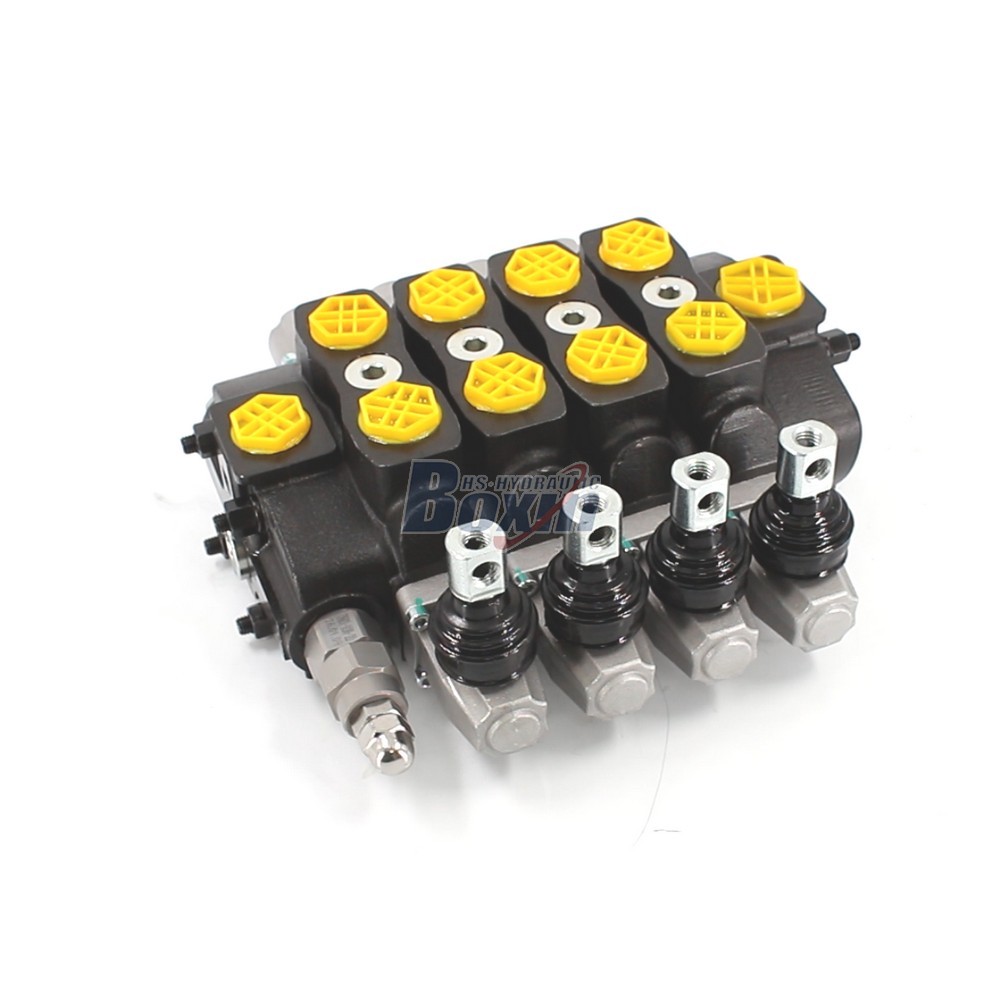

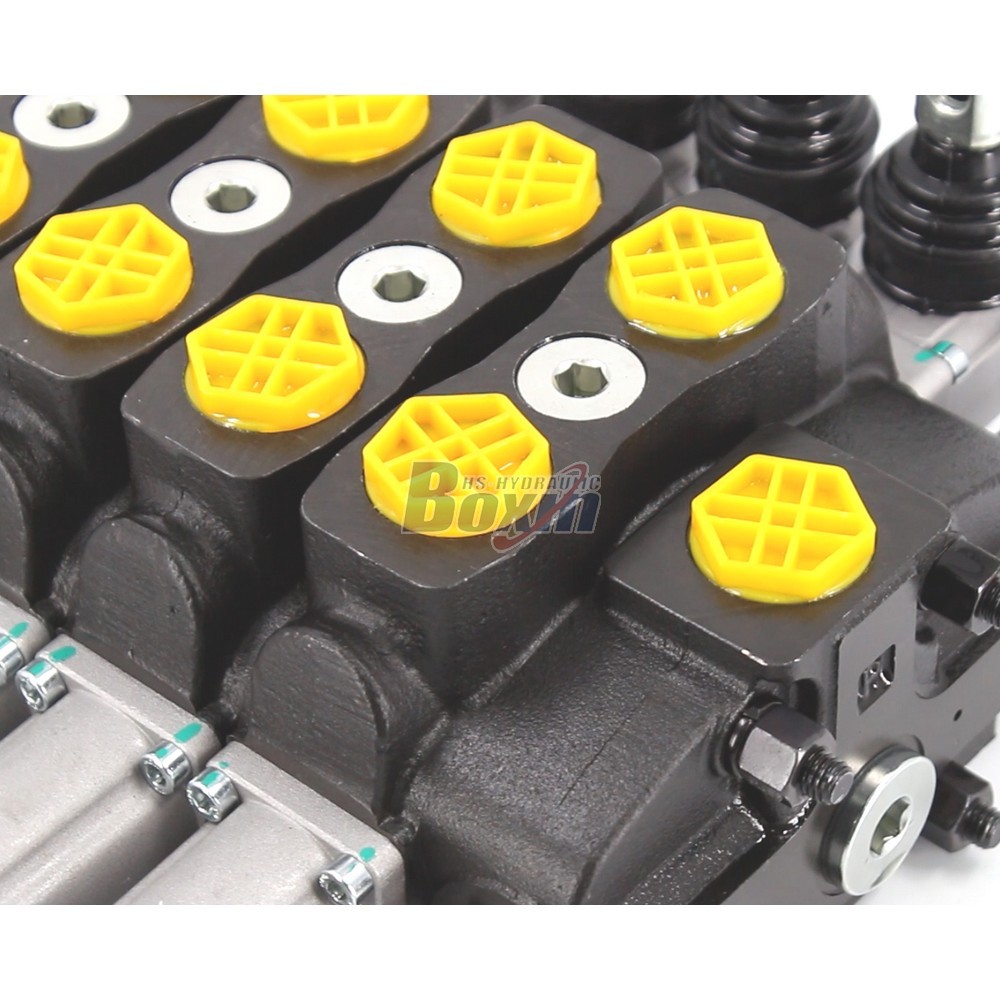

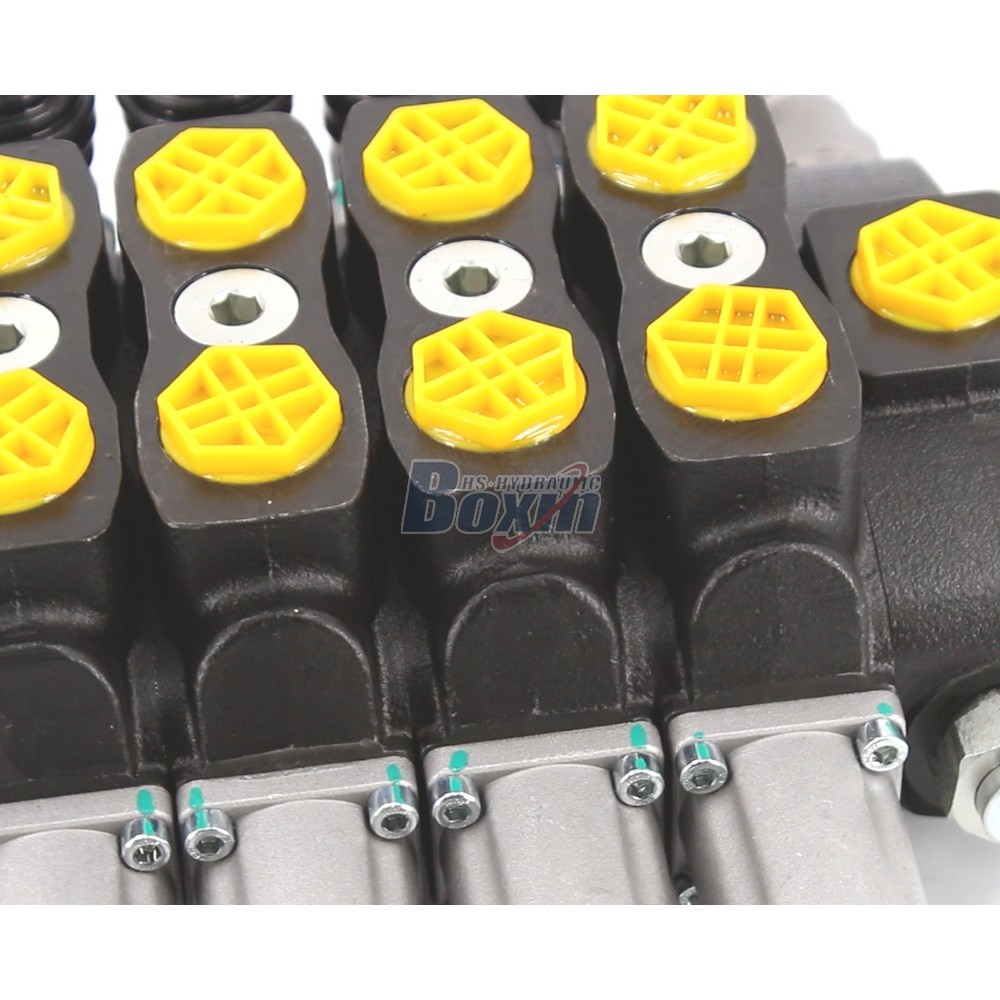

High-performance SD8 series manual 4-spool sectional directional control valve, featuring a rated flow of 80 L/min and maximum pressure of 315 bar, designed for versatile material handling and agricultural machinery applications.
| Seria SD8 Zawór kierunkowy sekcyjny Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór sekcyjny |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji |
| Zakres lepkości roboczej | 12 - 400 mm²/s (12 cSt do 400 cSt) |
| Przepływ znamionowy | 90 l/min (23,8 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2, G3/4, SAE 10 |
| Port wylotowy | G1/2, G3/4, SAE 10, 3/4 NPT |
| Rozmiar portu | G1/2, SAE 10 |
As a leading hydraulic product manufacturer, we offer the SD8 Series Manual 4 Spool Sectional Directional Valve directly from our factory. This robust valve is engineered for demanding environments, providing a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capacity of 315 bar (4600 psi). It is an ideal solution for material handling, construction, and agricultural equipment, including forklifts, skid steer loaders, mini-excavators, and tractors.
We provide comprehensive manufacturing services including OEM, private labeling (ODM), and custom design to meet specific technical requirements. Our factory supply model ensures competitive wholesale pricing for bulk orders. We are actively seeking long-term partnerships and are looking for global distributors, wholesalers, agents, and traders to expand our international market presence. By choosing our factory-direct supply, you benefit from reliable quality control, professional technical support, and scalable production capabilities tailored for industrial vehicles and mobile machinery.
