SD8 Manual 3 Spool Sectional Directional Valve for Hydraulic Systems

Metoda sterowania:Ręczna

Szpula:3-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Rozmiar opakowania:26*36*16

Waga brutto:14.50 kg

Dostępność: W magazynie

71 Osoby oglądają ten produkt

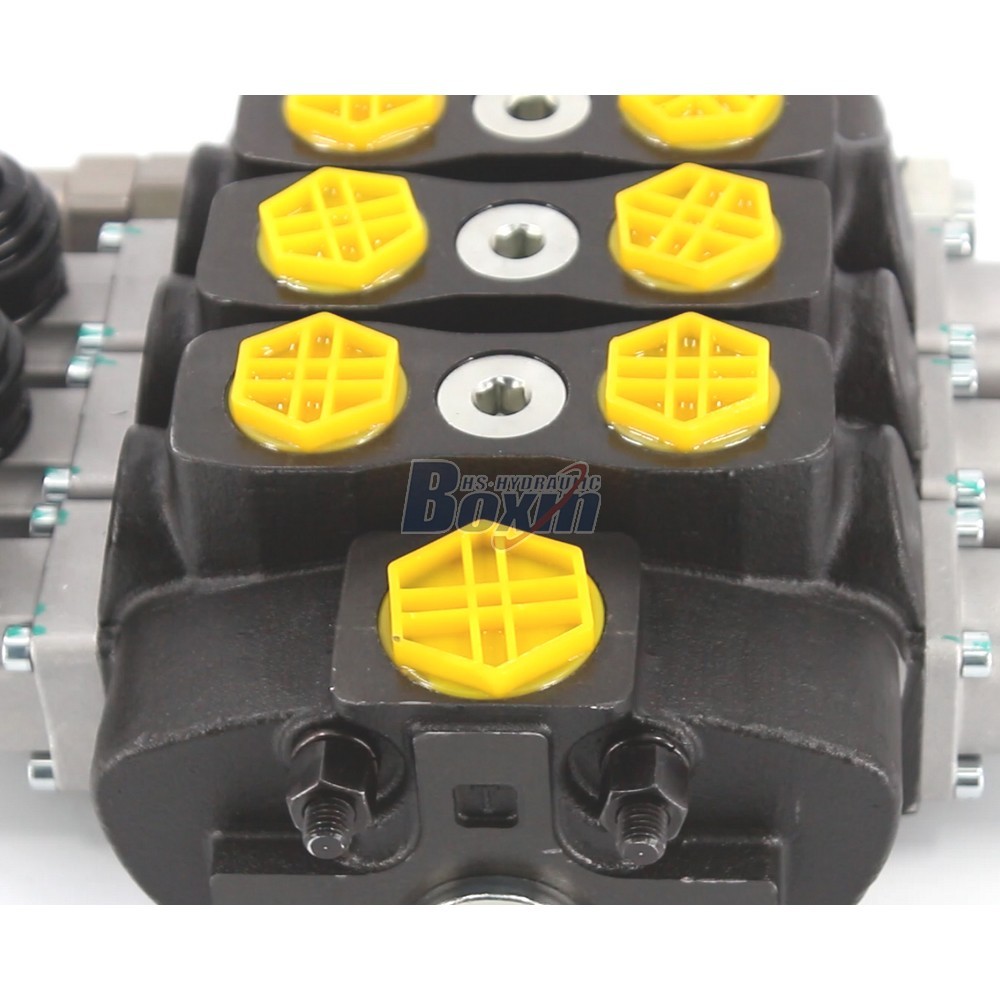

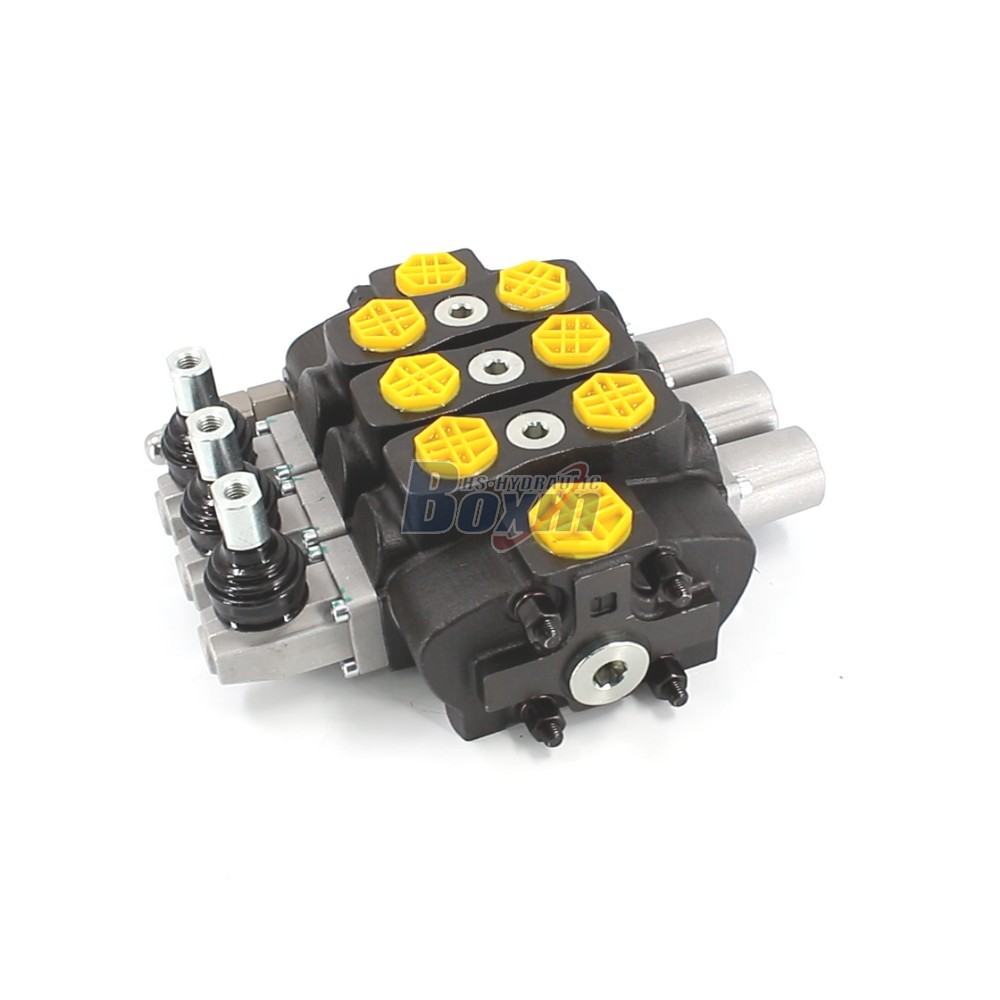

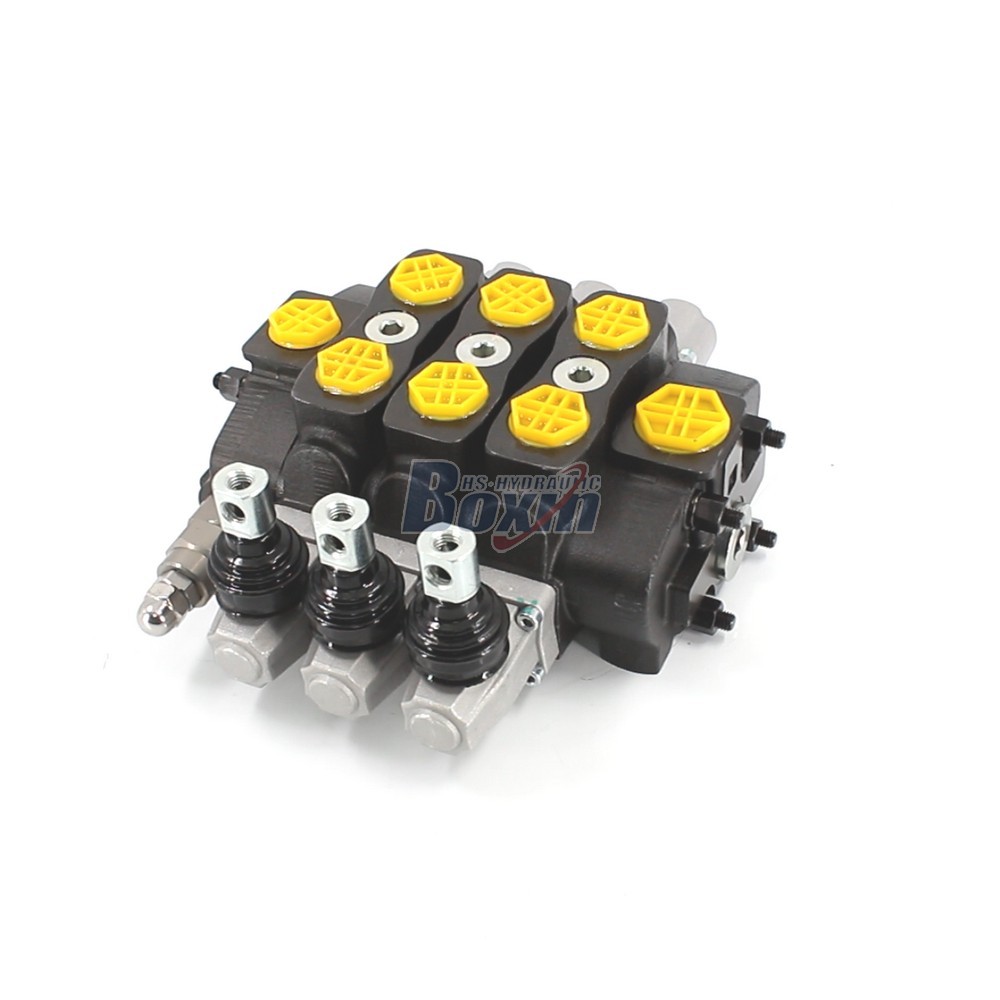

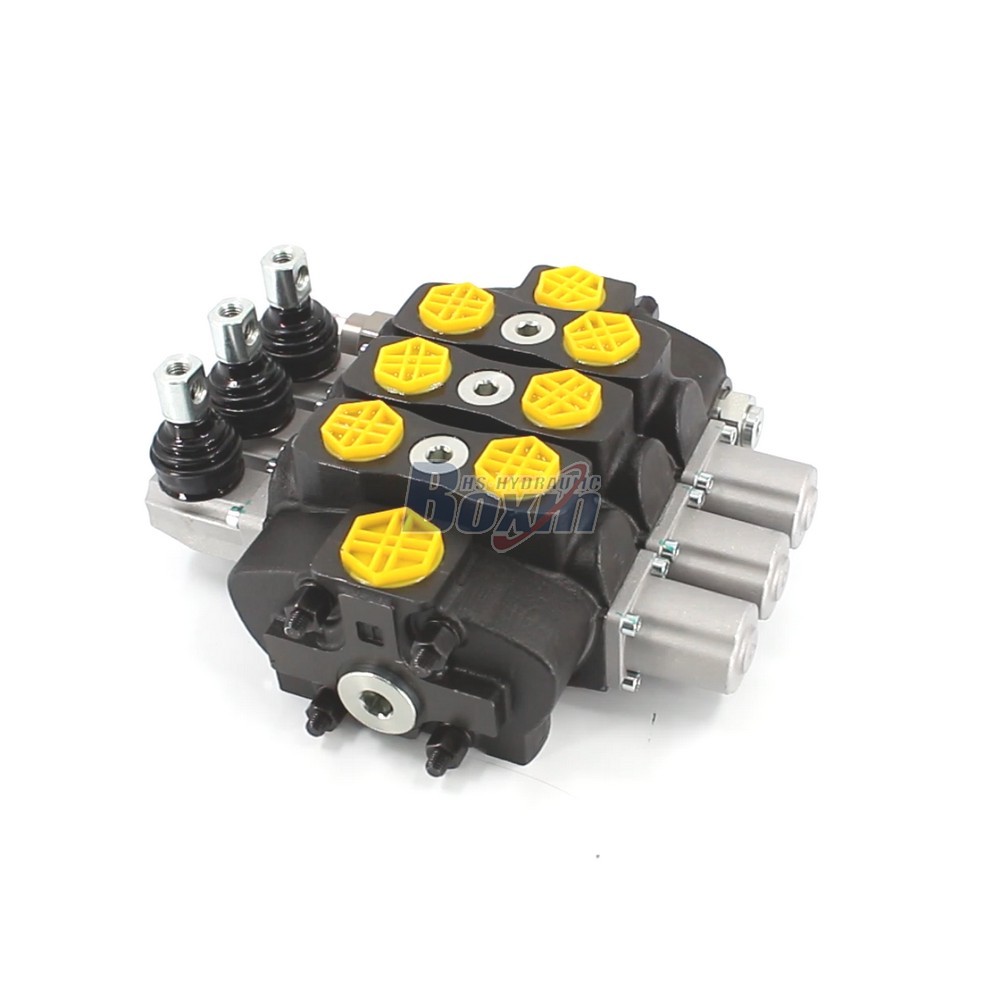

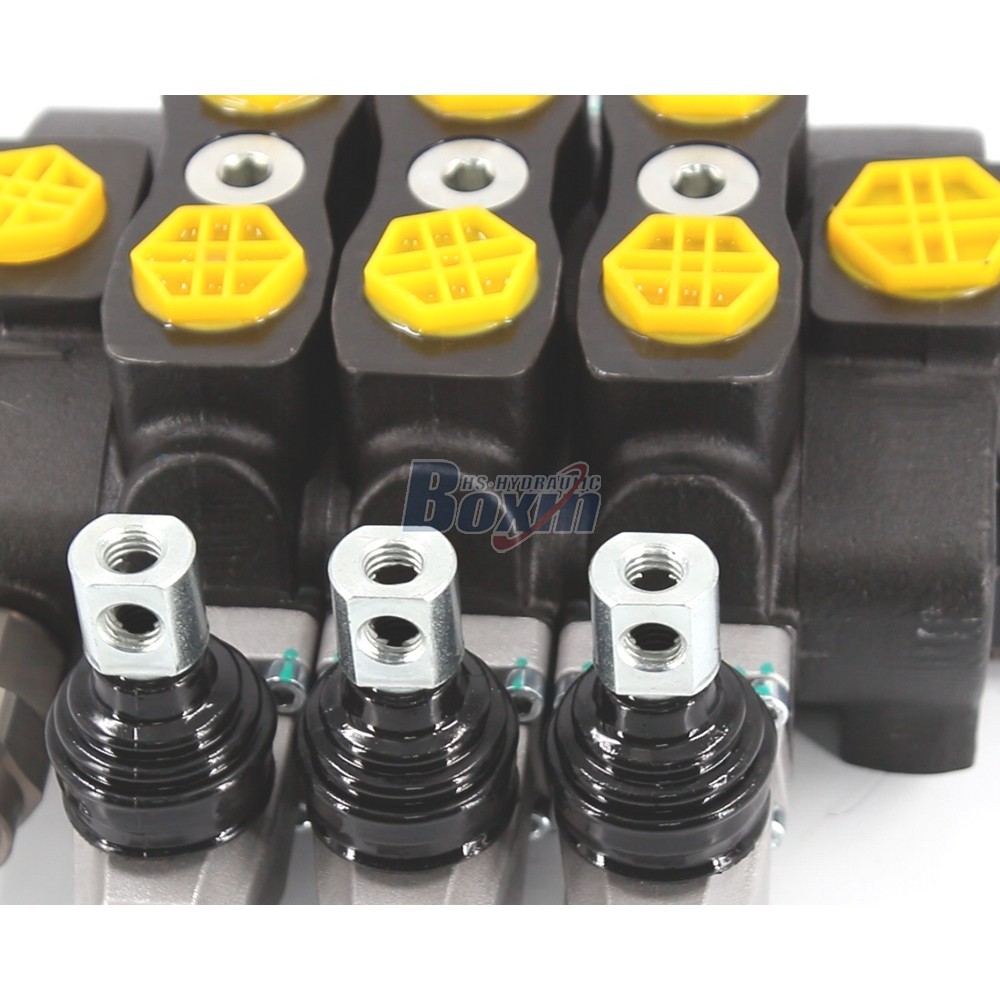

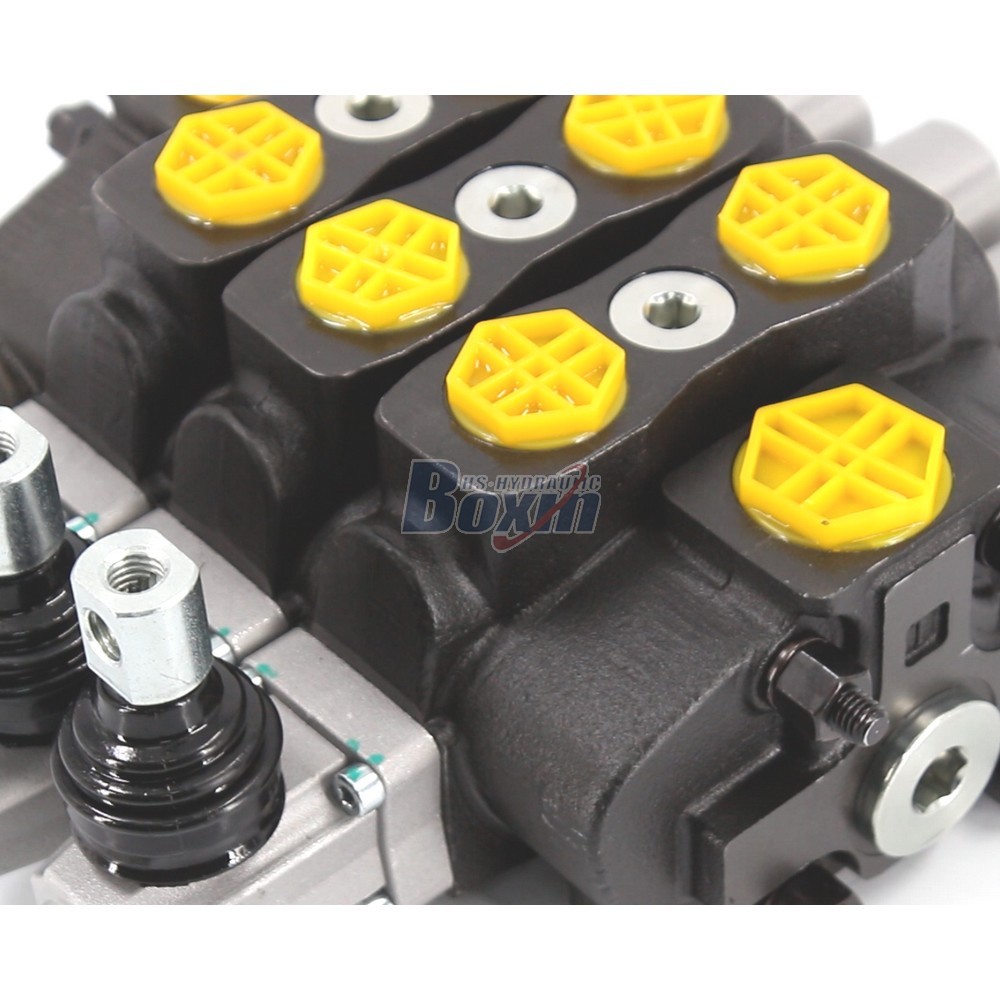

SD8 Manual 3 Spool Sectional Directional Valve for Hydraulic Systems

SD8 Manual 3 Spool Sectional Directional Valve for Hydraulic Systems

SD8 Manual 3 Spool Sectional Directional Valve for Hydraulic Systems drawing image

The SD8 Series 3-spool manual sectional directional valve is designed for high-performance hydraulic systems, offering a rated flow of 80 L/min and operating pressure up to 250 bar. This versatile component is engineered for precise fluid control in demanding material handling, agricultural, and construction machinery.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 90 l/min (23,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, SAE 10
Port wylotowy G1/2, G3/4, SAE 10, 3/4 NPT
Rozmiar portu G1/2, SAE 10

As a leading manufacturer of hydraulic solutions, we present the SD8 Series Manual 3 Spool Sectional Directional Valve. Built for durability and precision, this valve features a robust sectional design and G1/2 | G3/4 porting, making it compatible with a wide range of equipment including mini-excavators, forklifts, wood splitters, and tractors. Our factory specializes in large-scale production, offering professional OEM, ODM, and customized manufacturing services to meet specific technical requirements. We provide flexible wholesale options and factory-direct supply to ensure competitive pricing and consistent quality for global markets. We are actively seeking long-term partnerships with professional distributors, wholesalers, regional agents, and international traders. Whether you need reliable private labeling (white label) services or bulk inventory for industrial applications, our factory is equipped to support your business growth with high-quality hydraulic components and dependable technical support.
