Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

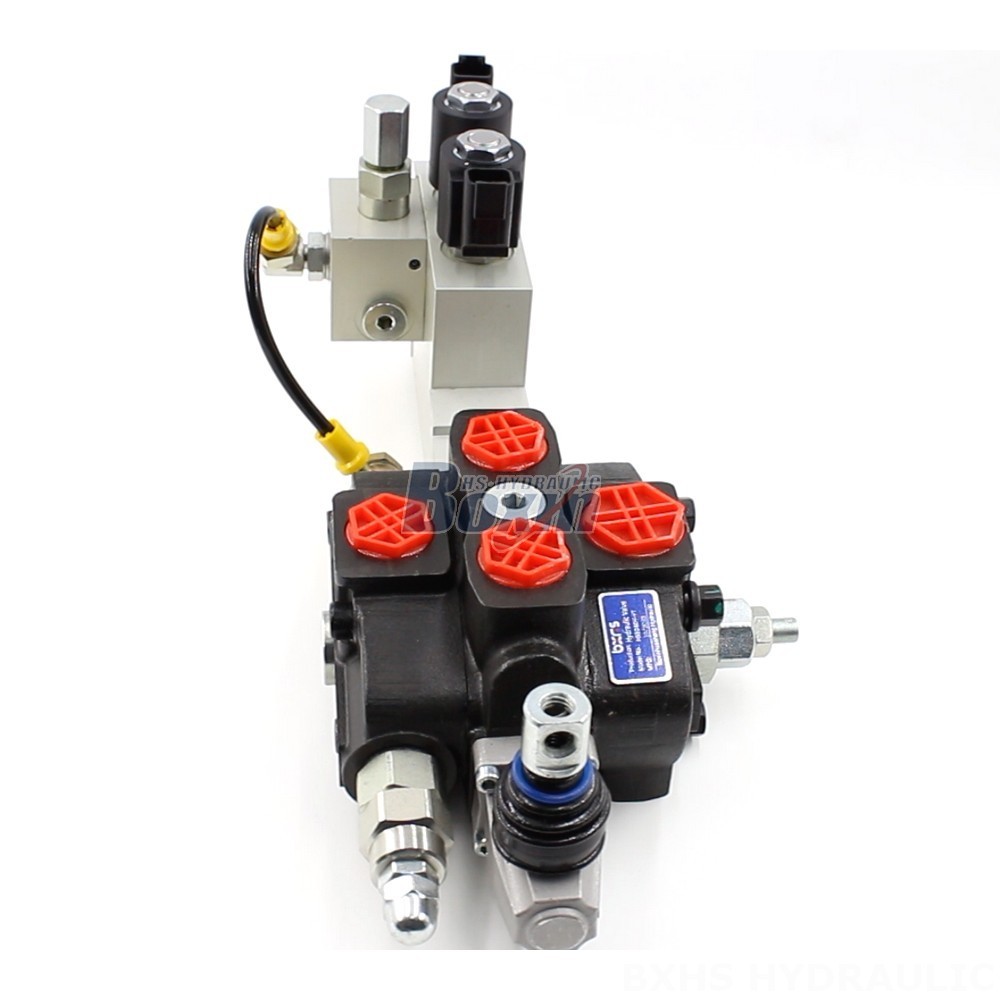

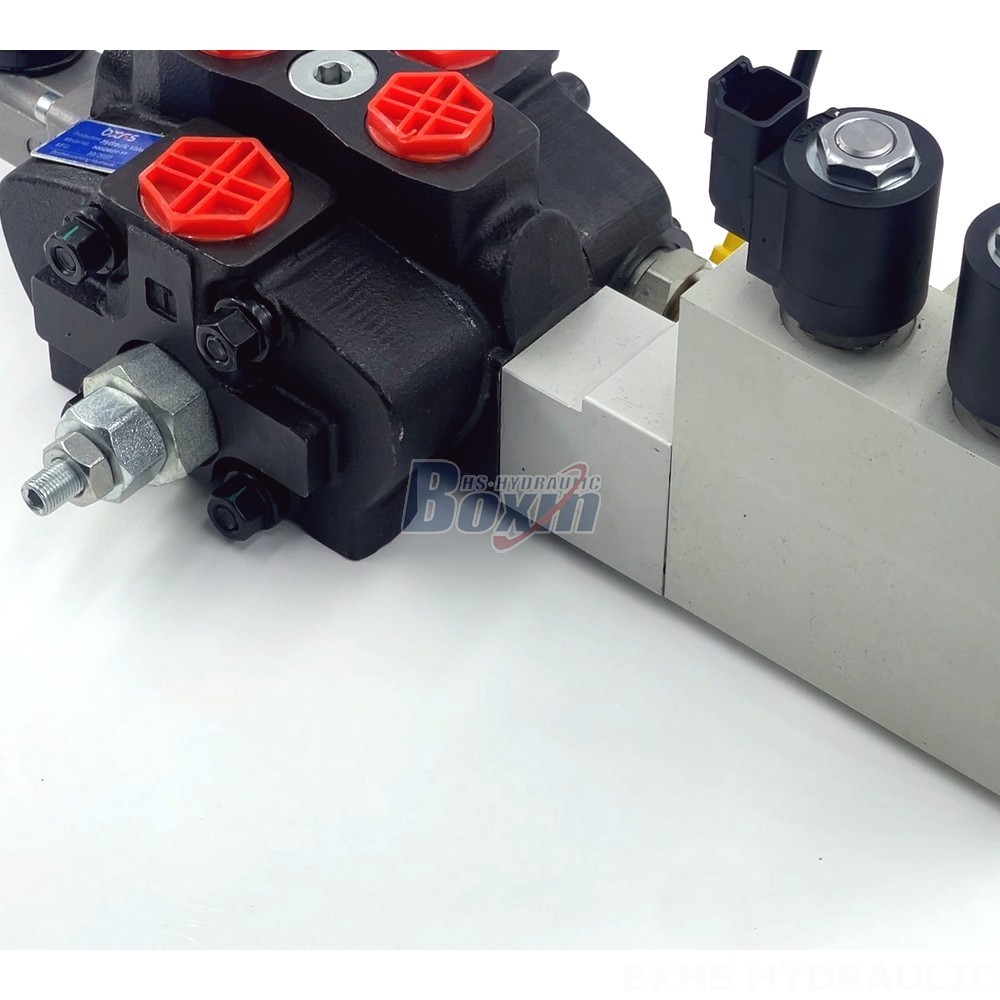

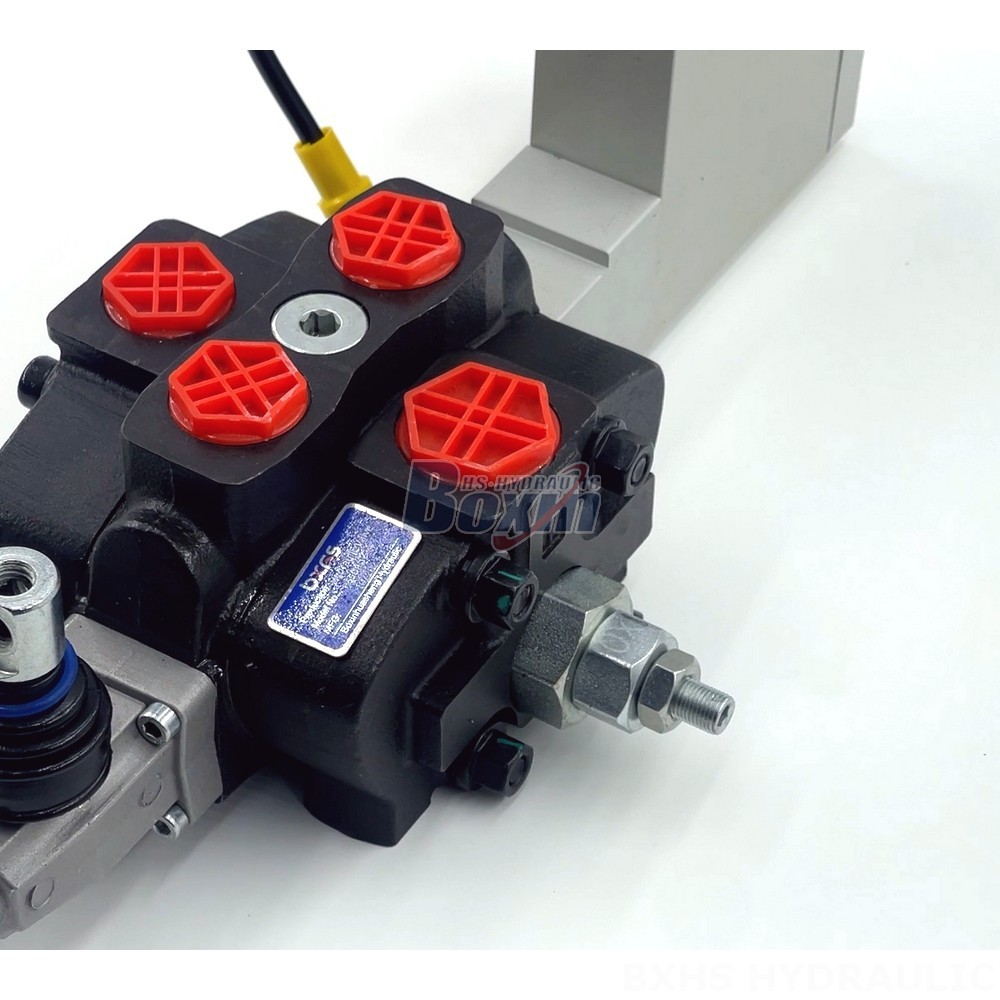

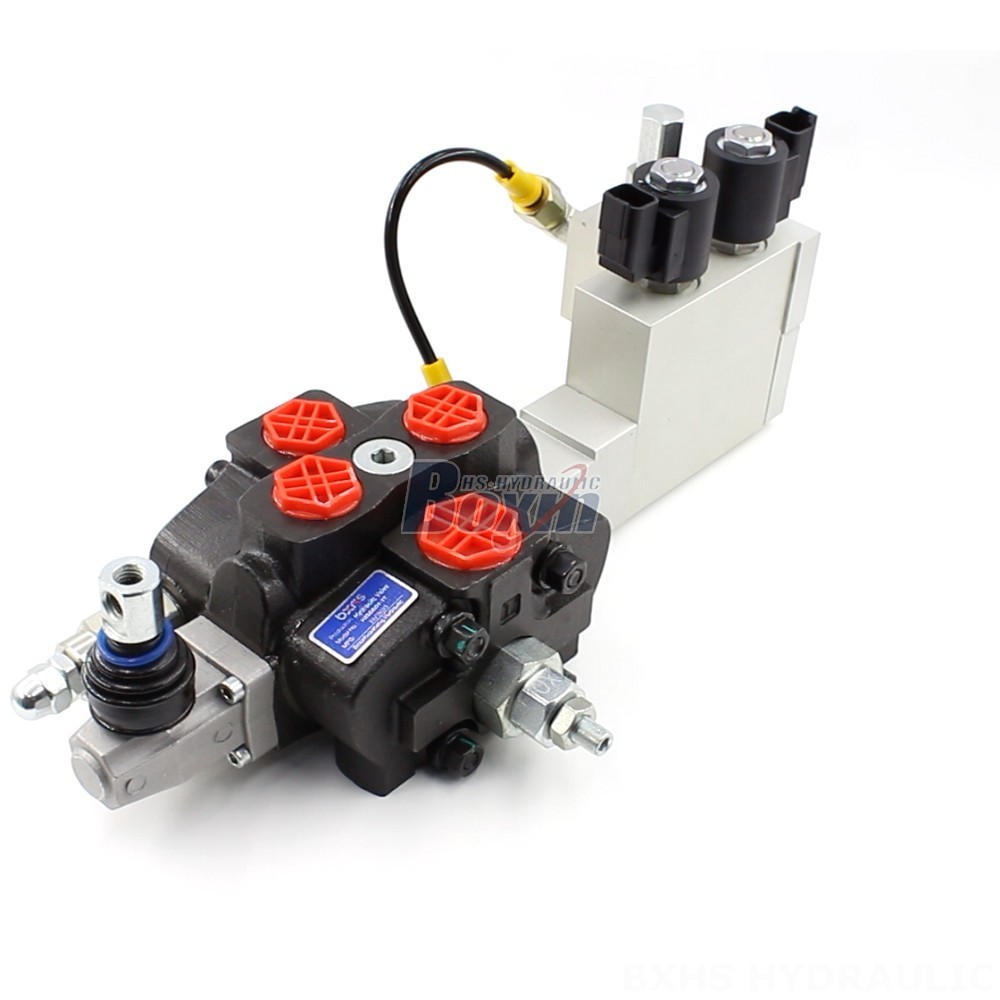

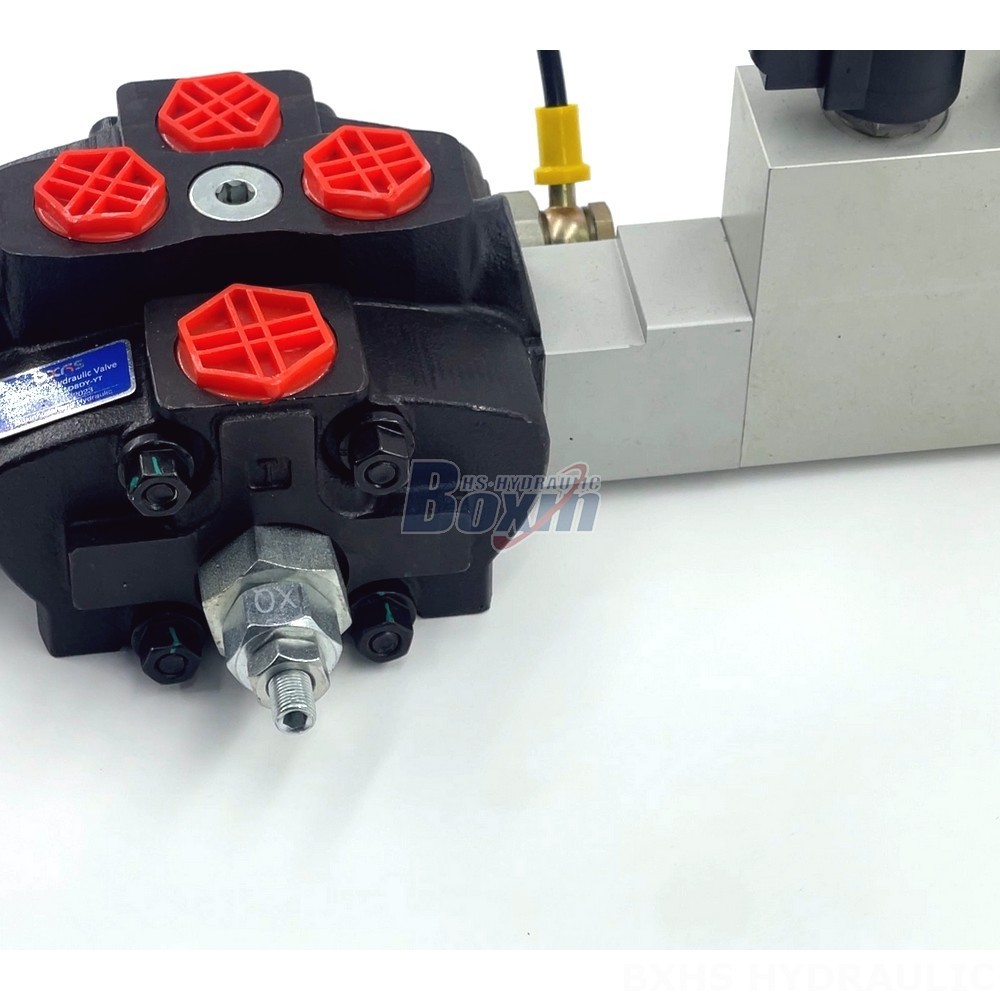

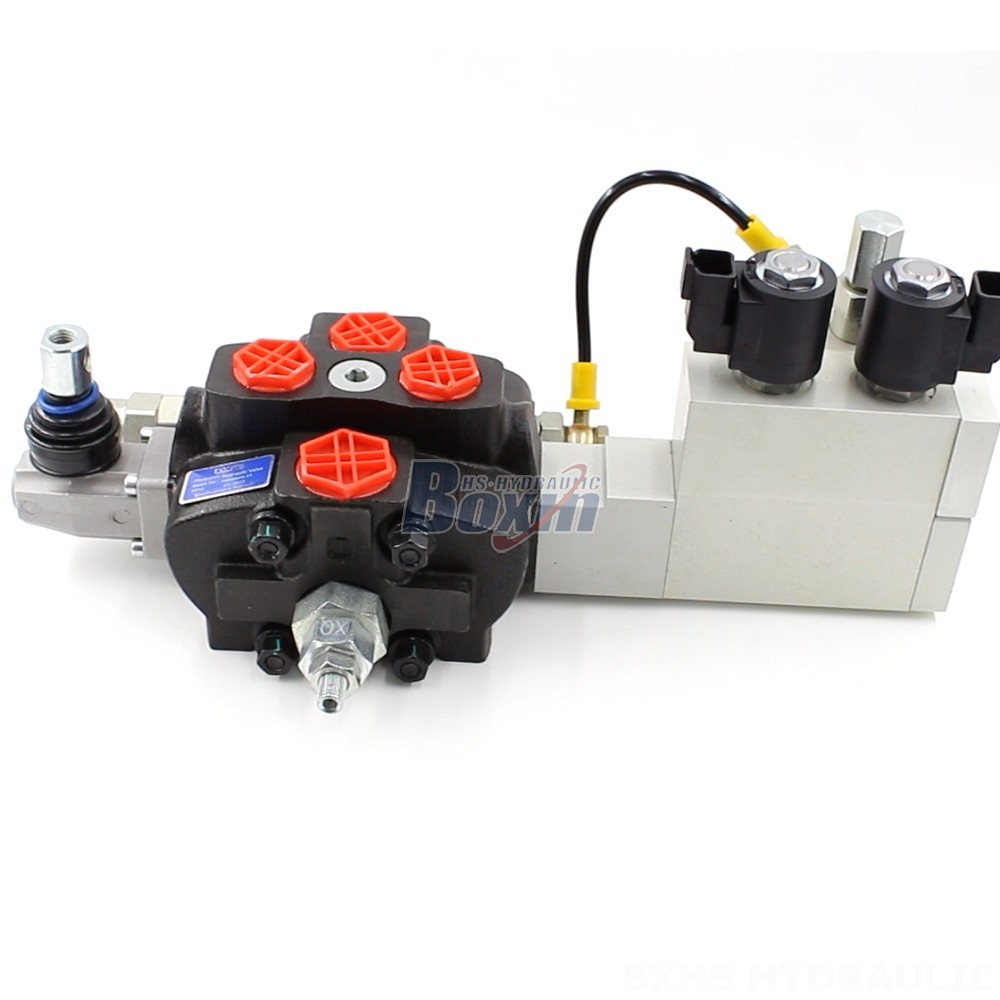

The SD8 Electro-hydraulic Sectional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This versatile valve features a 1-section design, a rated flow of 90 L/min, and a maximum pressure of 350 bar. Available for direct factory supply and global distribution.
| Seria SD8 Zawór kierunkowy sekcyjny Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór sekcyjny |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji |
| Zakres lepkości roboczej | 12 - 400 mm²/s (12 cSt do 400 cSt) |
| Przepływ znamionowy | 90 l/min (23,8 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2, G3/4, SAE 10 |
| Port wylotowy | G1/2, G3/4, SAE 10, 3/4 NPT |
| Rozmiar portu | G1/2, SAE 10 |
The SD8 Electro-hydraulic Sectional Valve is a robust and reliable hydraulic valve manufactured to the highest standards. It offers a 1-section design, a rated flow of 90 L/min, and a maximum pressure of 350 bar. The valve is suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer direct factory supply and global distribution, enabling us to meet the needs of customers worldwide. As a manufacturer, we also provide OEM, ODM, and customized solutions to meet specific requirements. Contact us today to discuss your hydraulic valve needs and explore our comprehensive product offerings.
