SD5 Manual Directional Valve: Manufacturer, Supplier, and Wholesaler

Metoda sterowania:Ręczna

Szpula:7-sekcyjny

Przepływ znamionowy:45 l/min (11,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G3/8

Port wylotowy:G3/8

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria SD5 Zawór sterujący jednoczęściowy

Rozmiar opakowania:23*36*13

Waga brutto:15.30 kg

Dostępność: W magazynie

1024 Osoby oglądają ten produkt

SD5 Manual Directional Valve: Manufacturer, Supplier, and Wholesaler

SD5 Manual Directional Valve: Manufacturer, Supplier, and Wholesaler

SD5 Manual Directional Valve: Manufacturer, Supplier, and Wholesaler drawing image

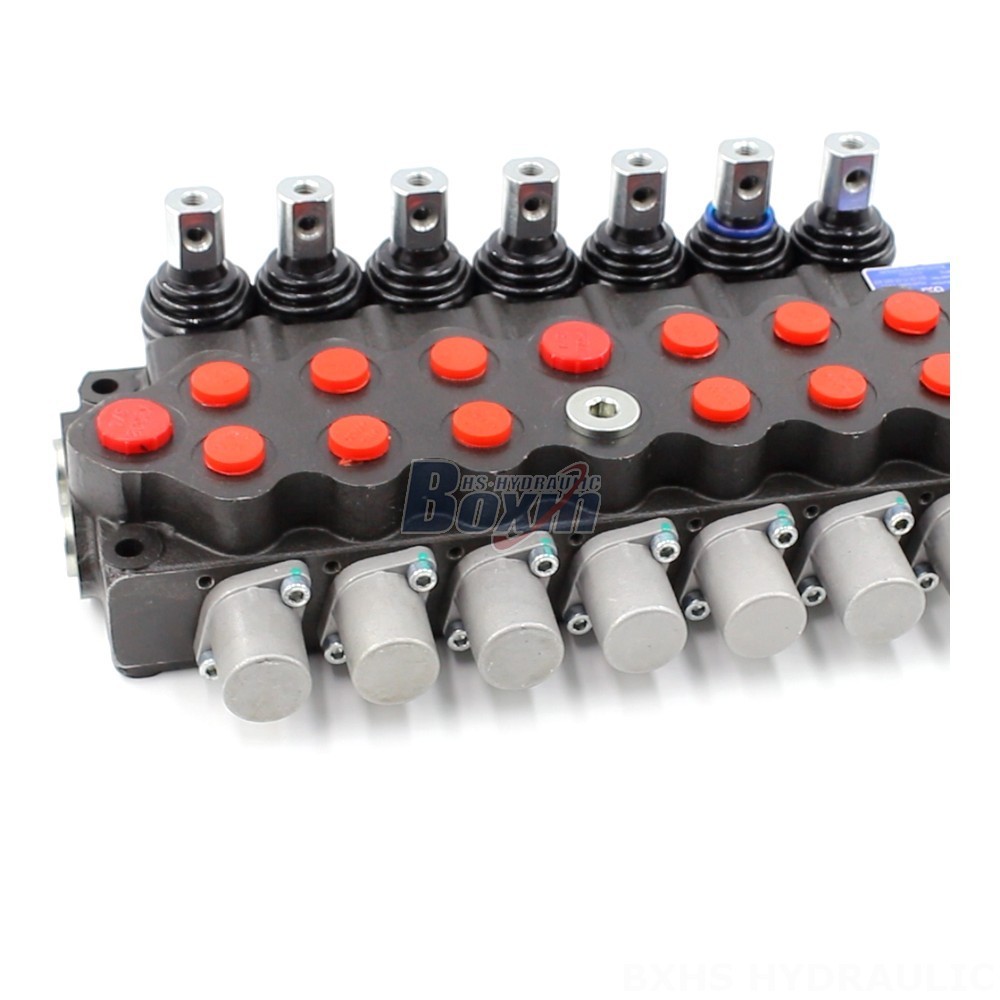

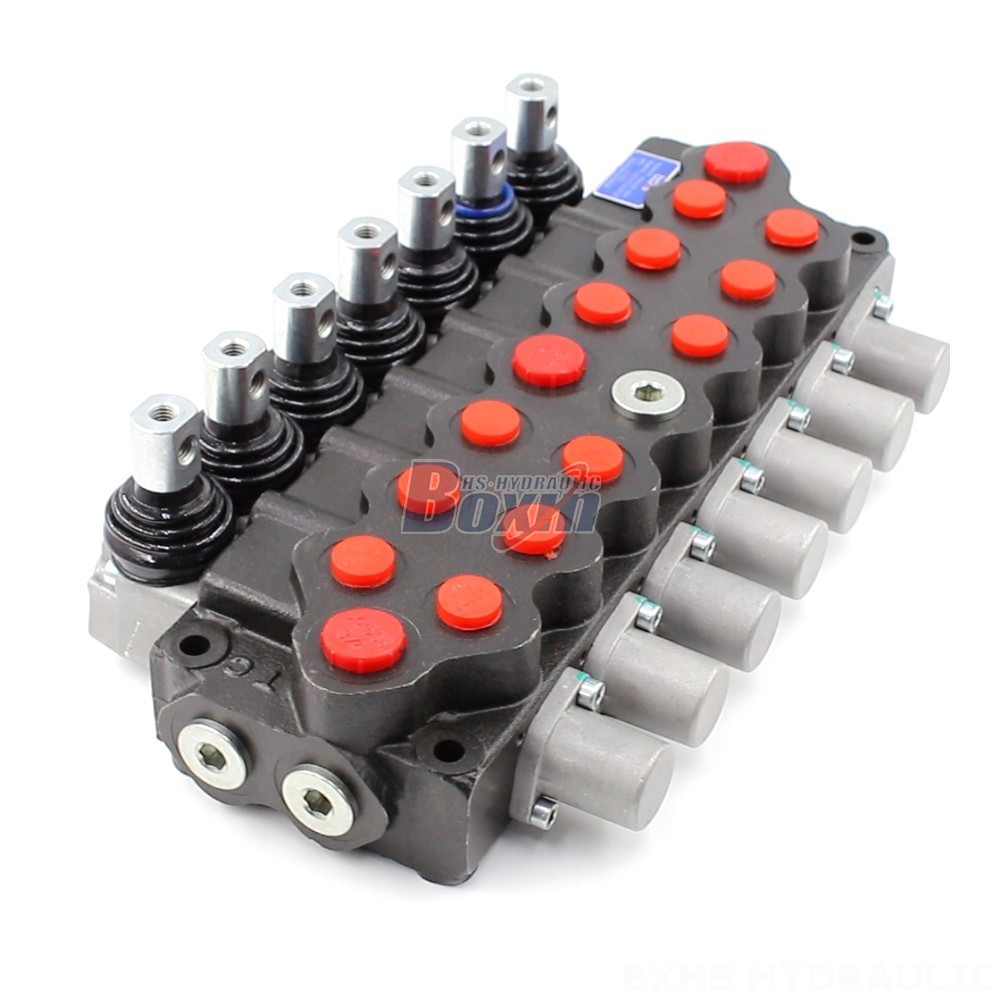

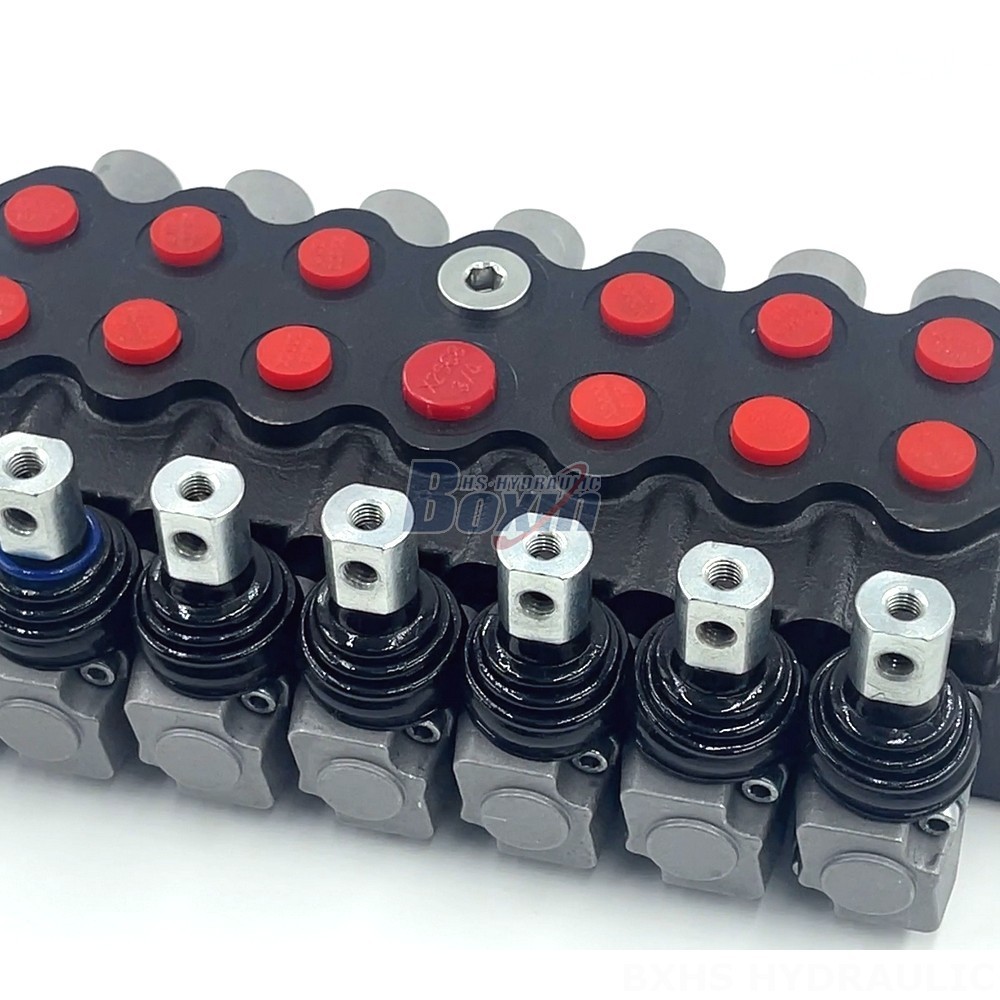

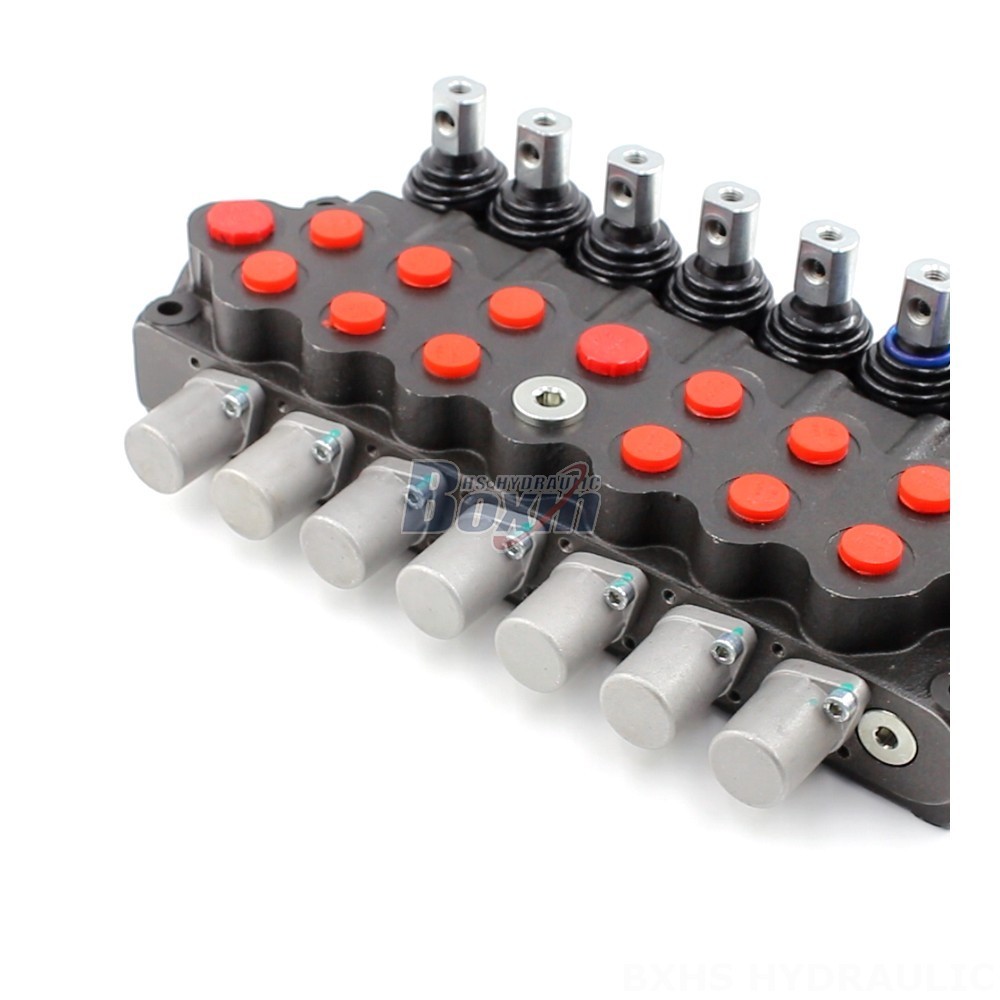

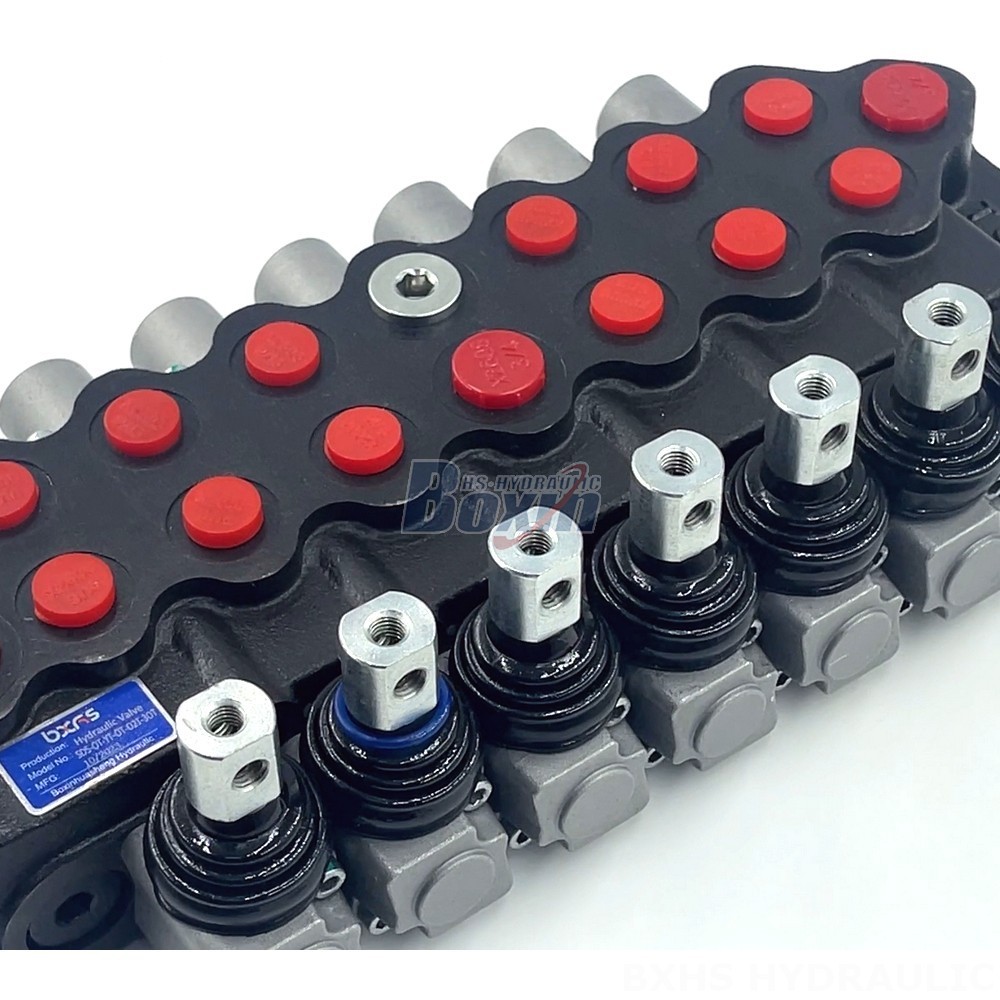

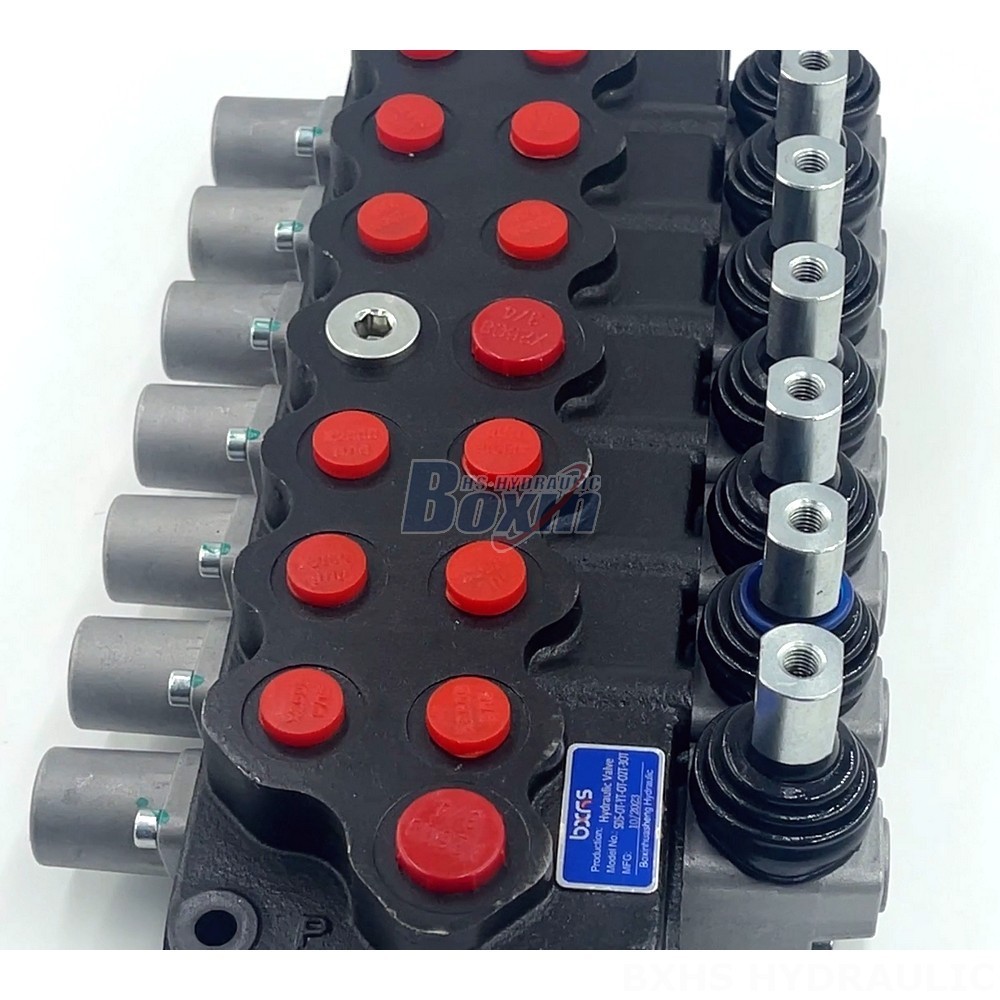

The SD5 Series Hydraulic Valve is a 7-section manual directional valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. This robust monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for a wide range of equipment.

Seria SD5 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +60°C (-40°F do +140°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 305 bar (4400 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Port wylotowy G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Rozmiar portu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The Hig Tech SD5 Manual Directional Valve is a high-performance hydraulic valve engineered for demanding applications. Its 7-section design provides precise control over hydraulic circuits, while the monoblock structure ensures durability and reliability. With a rated flow of 40 L/min and a maximum pressure of 305 bar, this valve is ideal for powering telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. The valve operates smoothly across a wide viscosity range and can withstand temperatures from -40°C to +60°C. Its manual control system offers easy and intuitive operation, making it a versatile choice for a variety of hydraulic applications.
