The SD4 Manual 1 Spool Monoblock Directional Valve is a high-performance valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 230 bar, it offers reliable and efficient flow control.
| Seria SD4 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna |
| Szpula | 1-sekcyjny |
| Przepływ znamionowy | 40 l/min (10,5 USGPM) |
| Maksymalne ciśnienie | 250 bar (3600 psi), 305 bar (4400 psi) |
| Port wlotowy | G3/8, SAE 6 |
| Port wylotowy | G3/8, SAE 6 |
| Rozmiar portu | G3/8, SAE 6 |
| Sekcja | 1 Sekcja |
| Typ konstrukcji | Zawór blokowy |
| Zakres temperatury otoczenia | -40°C do +60°C (-40°F do +140°F) |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |

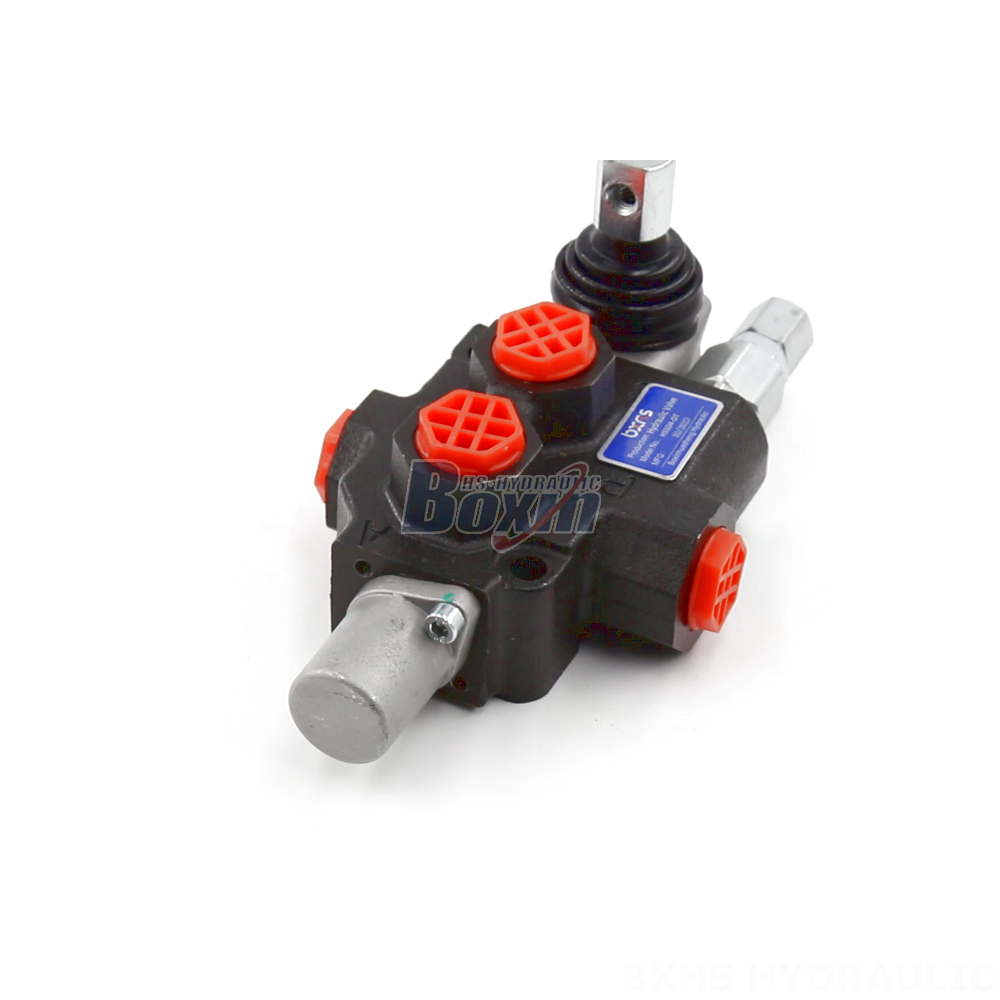

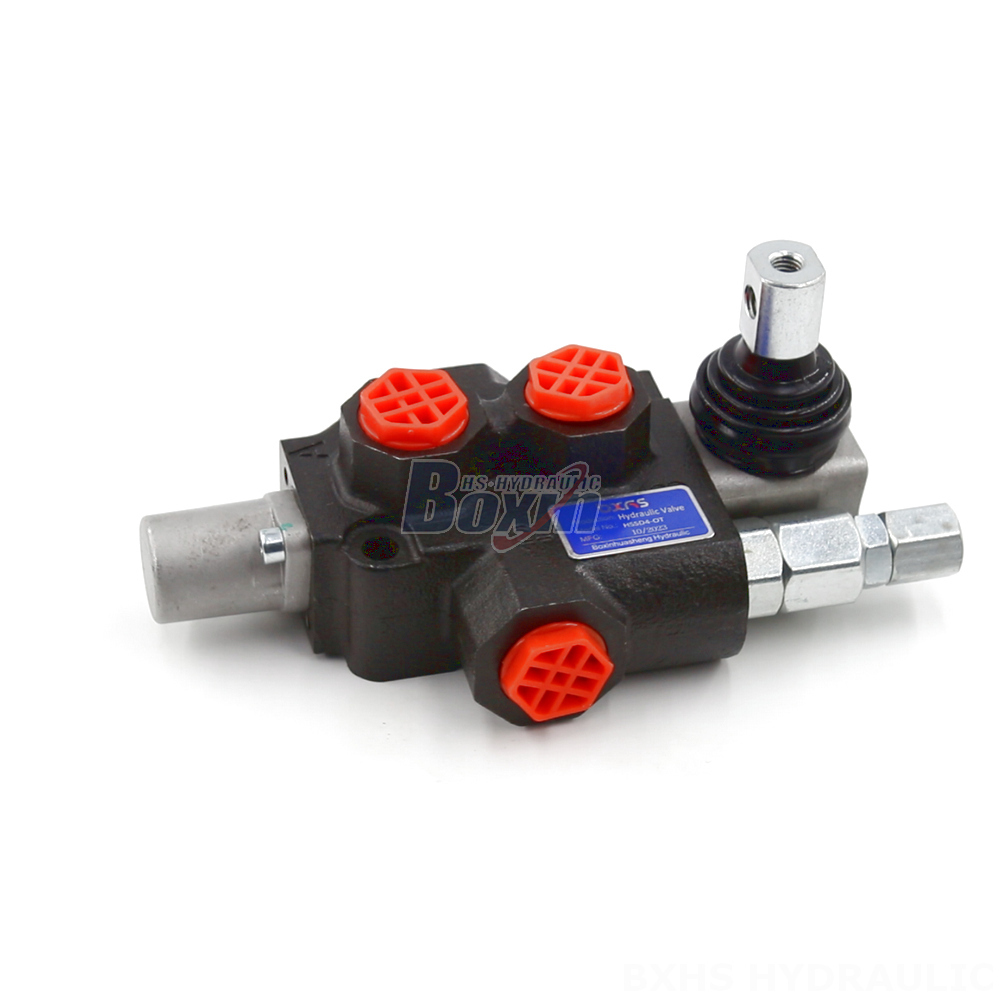

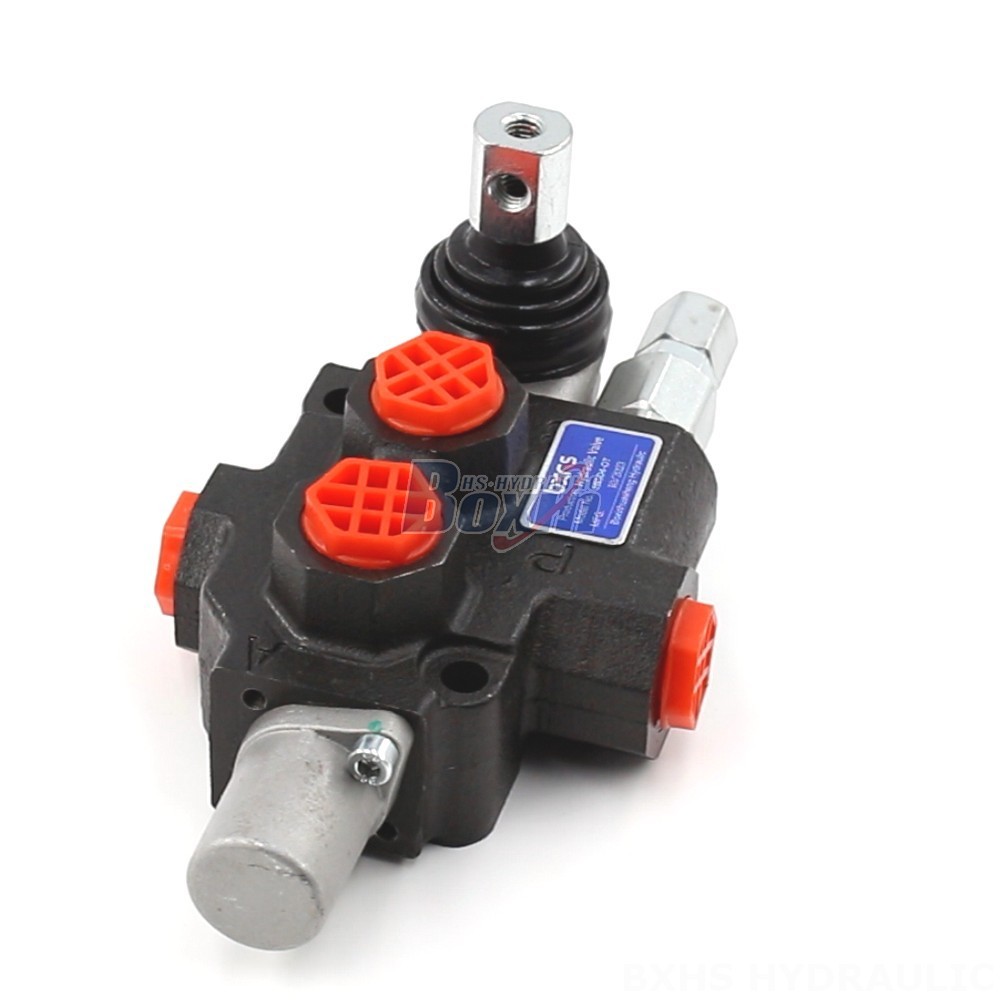

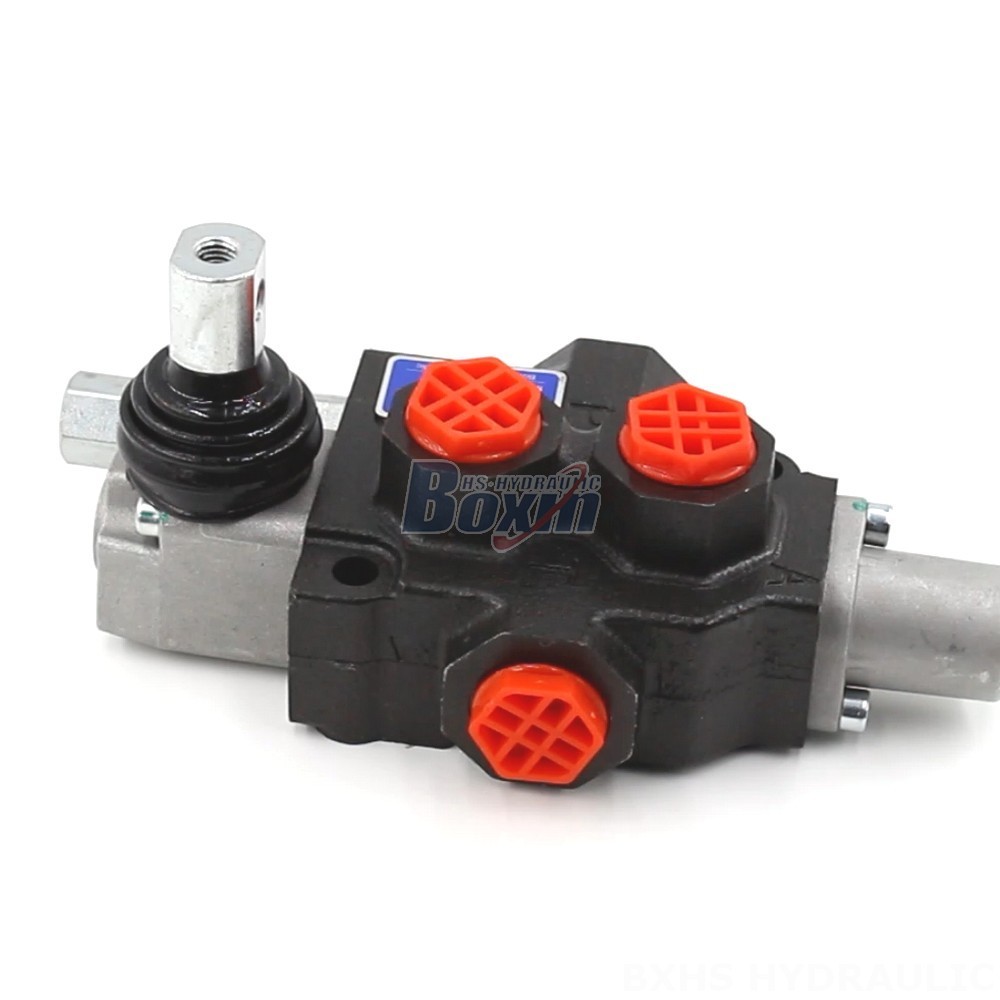

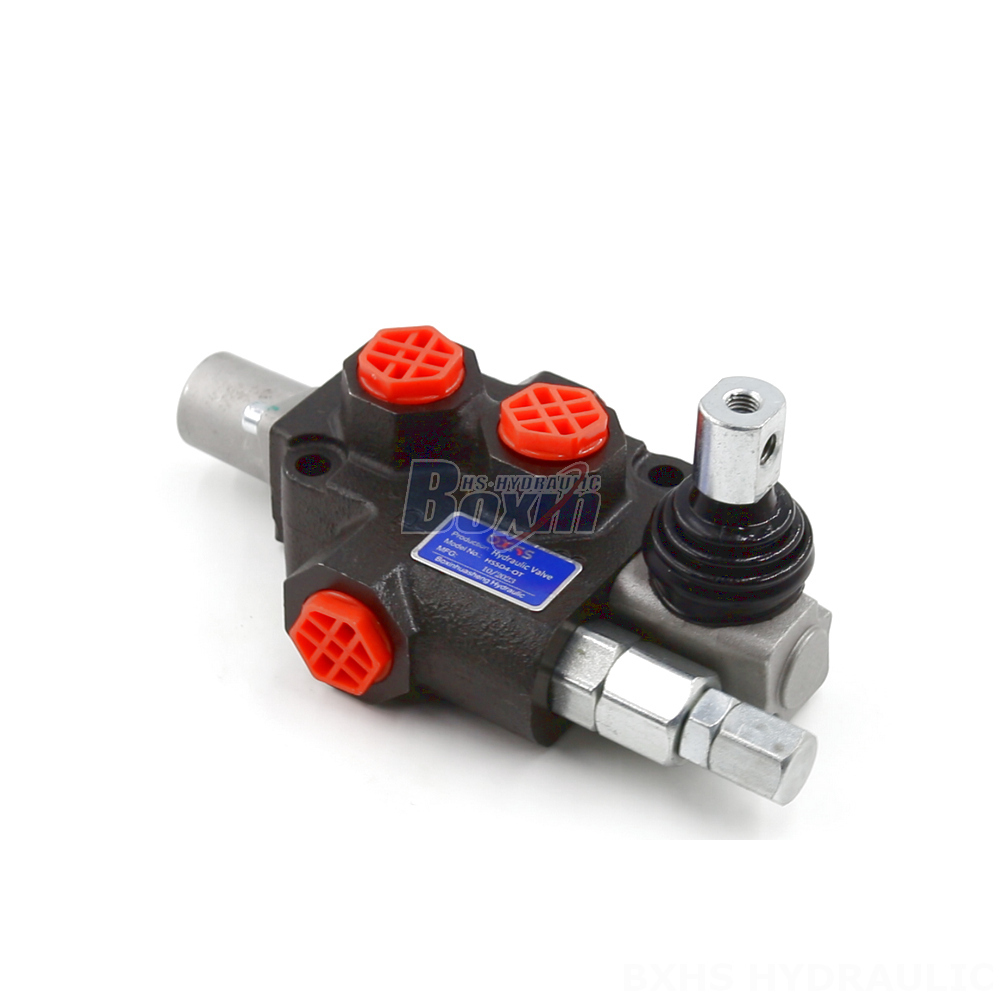

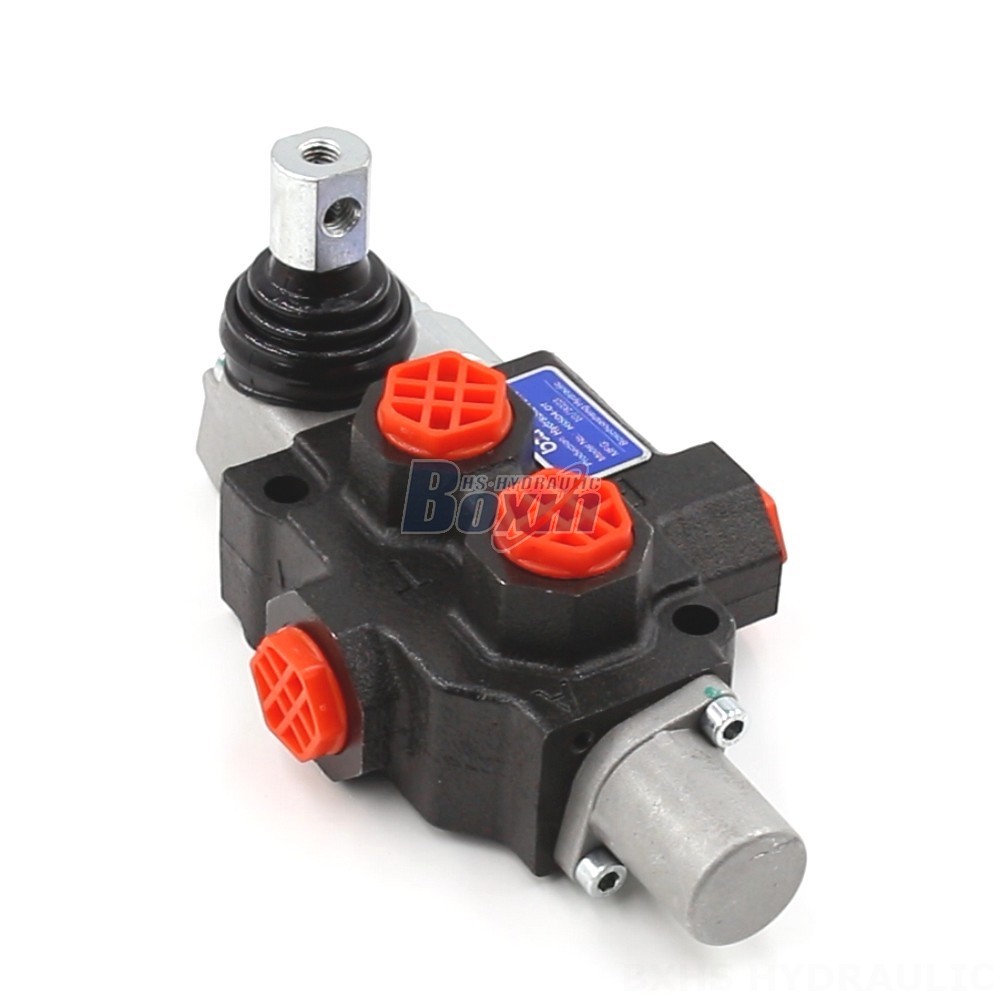

**SD4 Manual 1 Spool Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 230 bar (3300 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F), -40°C to +80°C (-40°F to +176°F), -20°C to +80°C (-4°F to +176°F)
**Spool:** 1 Spool
**Series:** SD4 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, TELEHANDLER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, WHEEL LOADER
The SD4 valve is constructed as a monoblock unit, providing a compact and durable design. Its manual control allows for precise and responsive operation, making it suitable for applications requiring accurate flow control. The valve's wide operating temperature range (-40°C to +80°C) ensures reliable performance in diverse environmental conditions.
With its versatility and high performance, the SD4 Manual 1 Spool Monoblock Directional Valve is an excellent choice for various hydraulic systems in material handling, construction, agriculture, and industrial vehicles.
