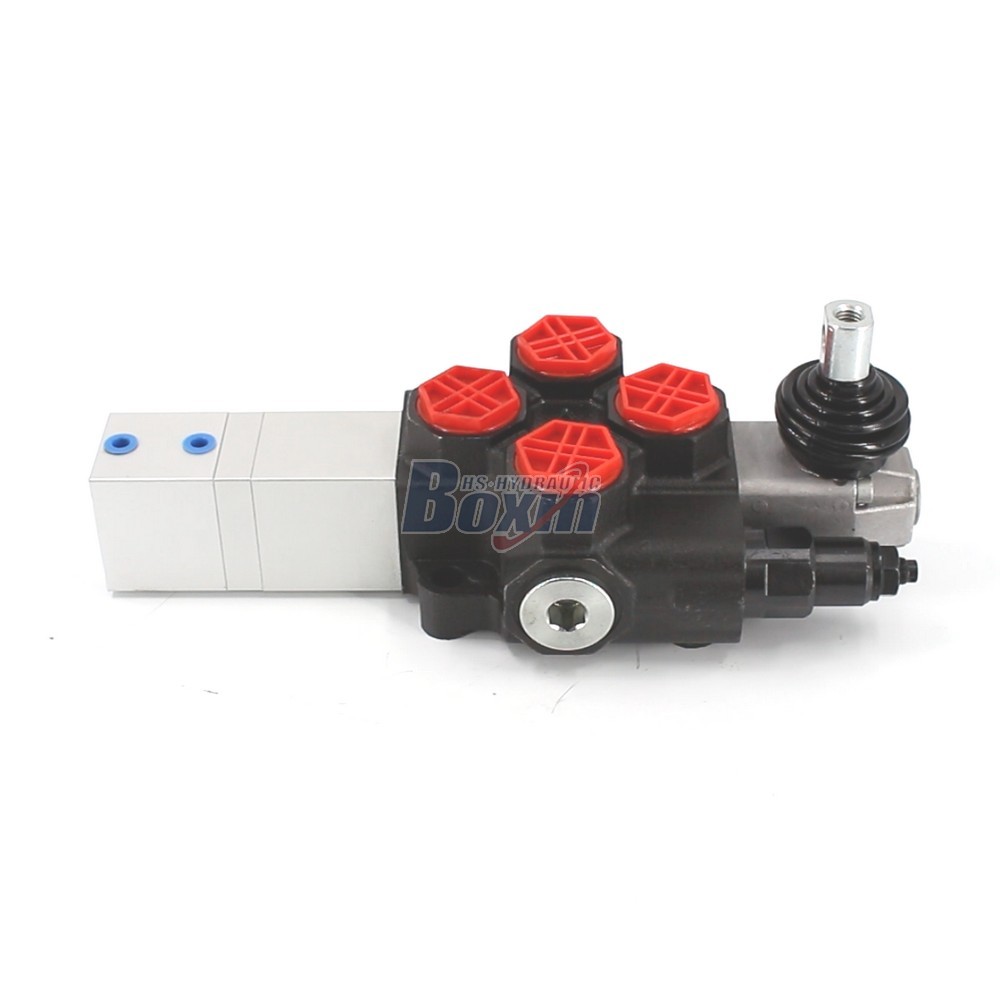

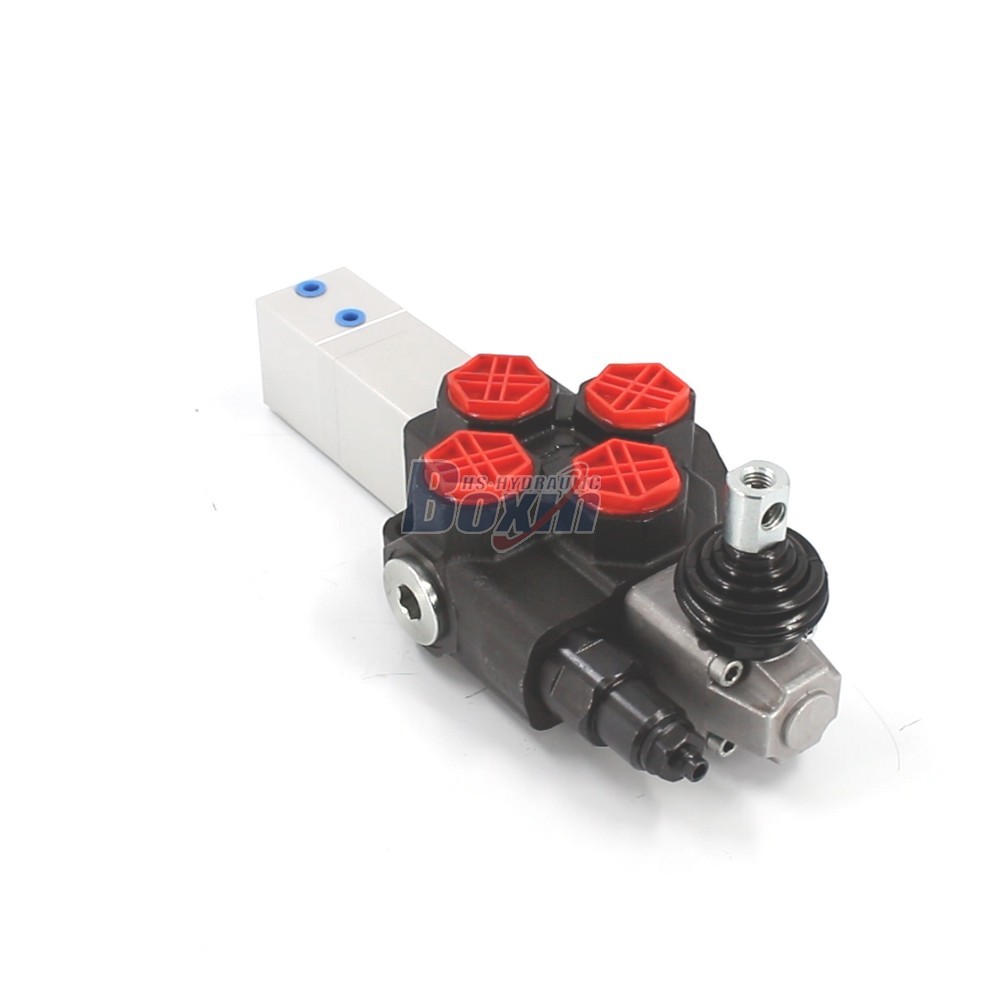

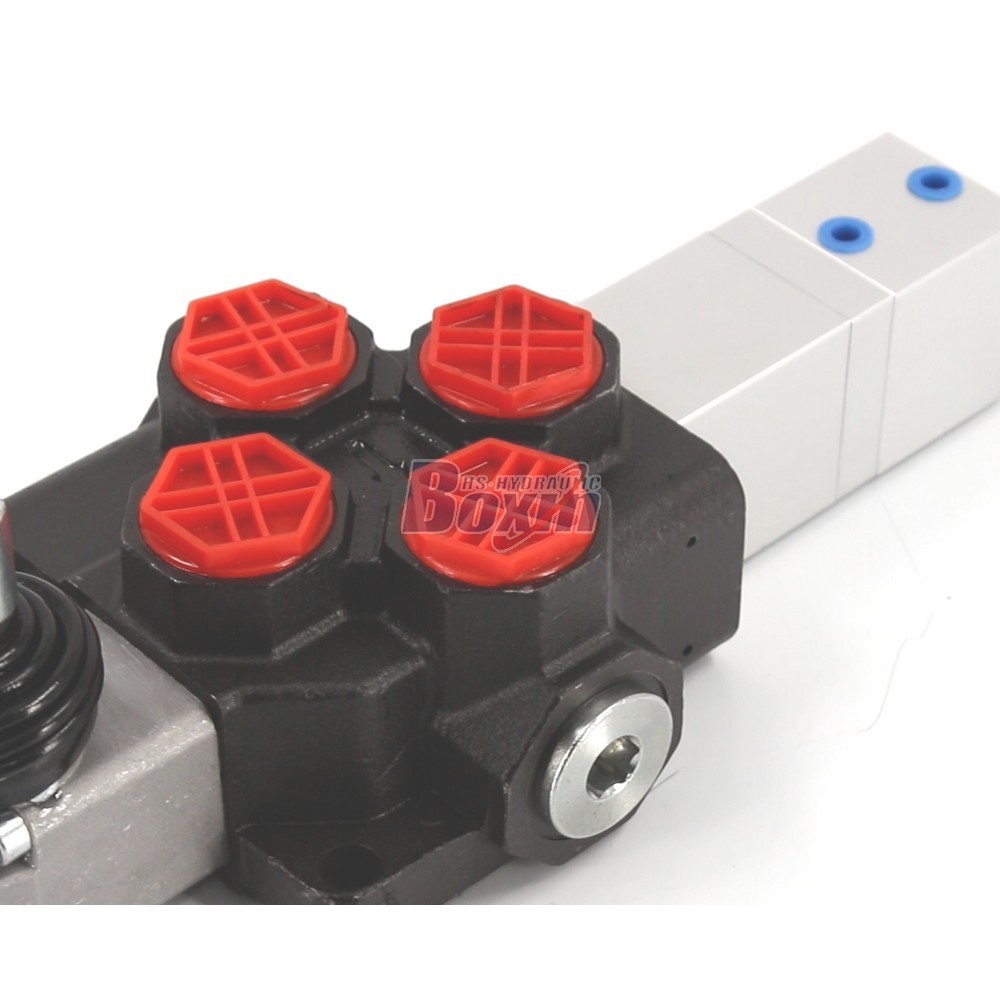

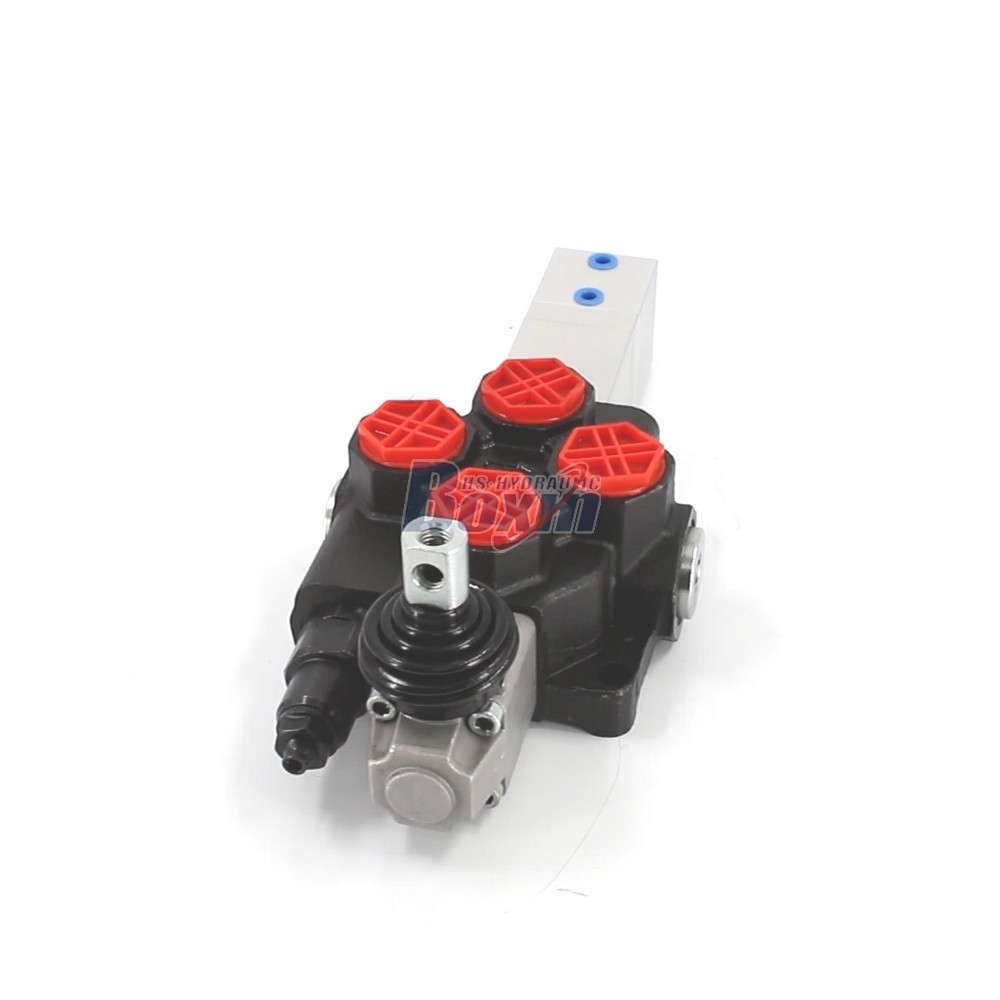

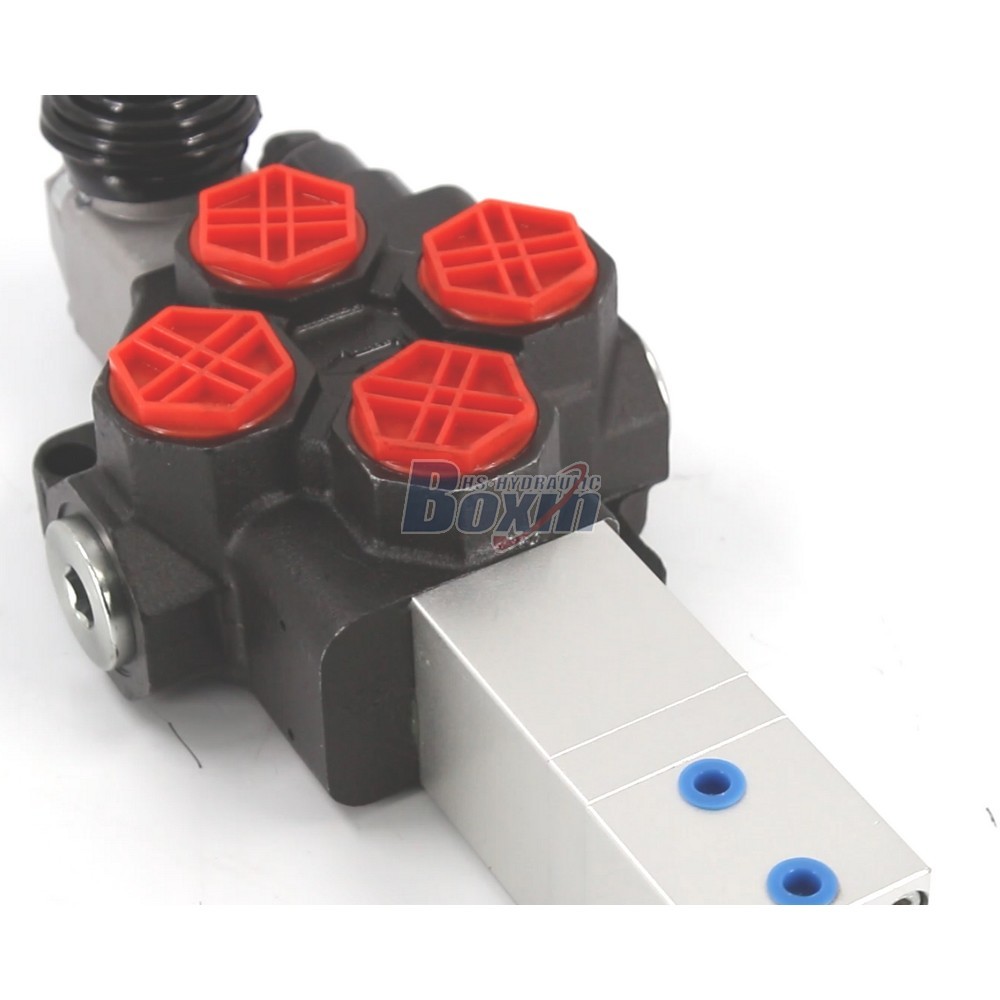

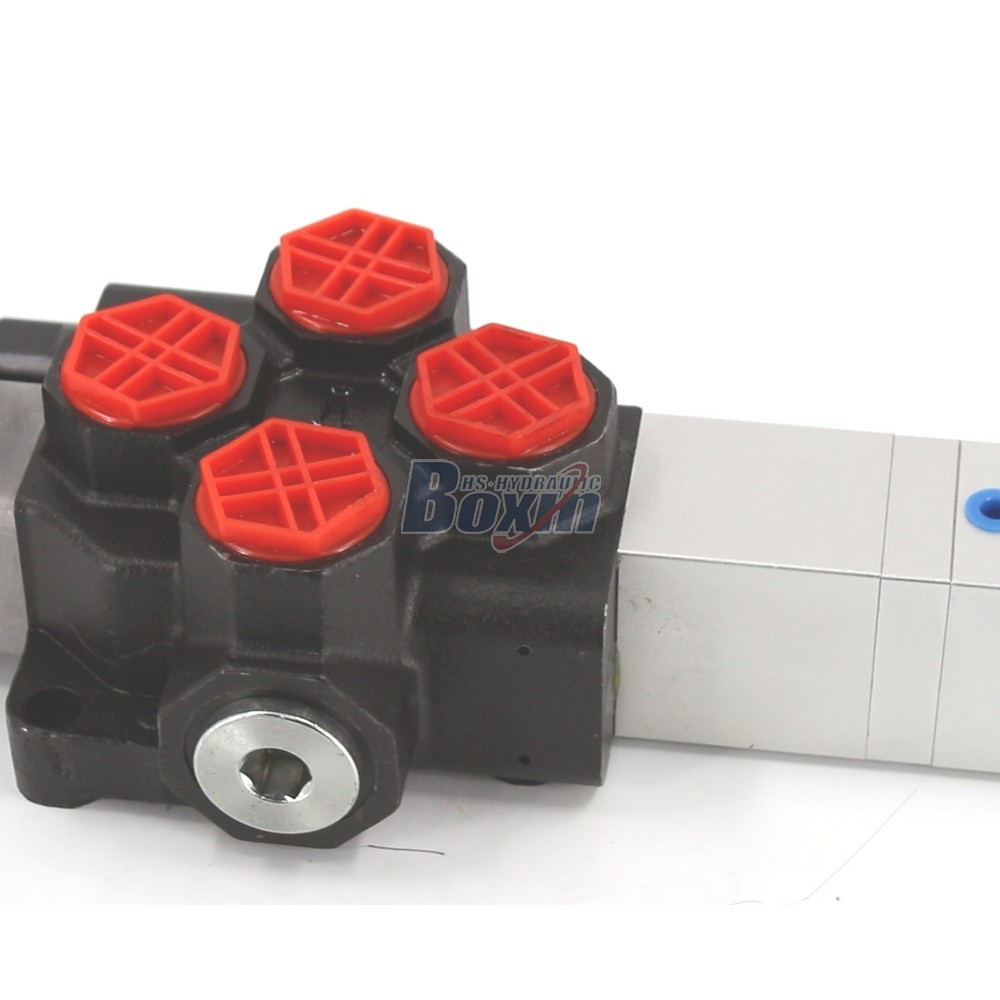

SD14Q-OT Pneumatic 1 Spool Monoblock Directional Valve for Hydraulic Systems

Metoda sterowania:Pneumatyczna

Szpula:1-sekcyjny

Przepływ znamionowy:120 l/min (31.7 US gpm)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria SD14 Zawór sterujący jednoczęściowy

Rozmiar opakowania:13.5*31.5*8.1

Waga brutto:5.60 kg

Dostępność: W magazynie

104 Osoby oglądają ten produkt

SD14Q-OT Pneumatic 1 Spool Monoblock Directional Valve for Hydraulic Systems

SD14Q-OT Pneumatic 1 Spool Monoblock Directional Valve for Hydraulic Systems

SD14Q-OT Pneumatic 1 Spool Monoblock Directional Valve for Hydraulic Systems drawing image

The SD14Q-OT is a high-performance 1-spool pneumatic monoblock directional control valve designed for demanding hydraulic systems. Featuring a rated flow of 120 L/min and capable of handling pressures up to 315 bar, this SD14 series valve is ideal for heavy-duty machinery in construction, agriculture, and material handling sectors.

Seria SD14 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Hydrauliczna
Szpula 1-sekcyjny
Zakres temperatury otoczenia -40°C do +60°C (-40°F do +140°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 120 l/min (31.7 US gpm)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G3/4
Port wylotowy G3/4
Rozmiar portu G3/4

As a leading large-scale manufacturer of hydraulic solutions, we offer the SD14Q-OT Pneumatic 1 Spool Monoblock Directional Valve, engineered for precision and durability. This valve supports a robust flow rate of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), making it a reliable choice for tractors, wheel loaders, excavators, and wood splitters. We specialize in global supply, providing comprehensive services including OEM, ODM, private labeling, and custom manufacturing to meet specific technical requirements. Our factory-direct wholesale model ensures competitive pricing for bulk orders. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and international traders. Whether you need reliable factory supply for industrial vehicles or specialized components for agricultural machinery, our SD14 series provides versatile performance with G3/4 porting. Partner with a professional manufacturer to enhance your inventory with high-quality pneumatic hydraulic control valves.
