Produkcja i dostawa
Czas realizacji produkcji 15-30 dni
Innowacja napędza rozwój. Technologia tworzy przyszłość.
278 Osoby oglądają ten produkt

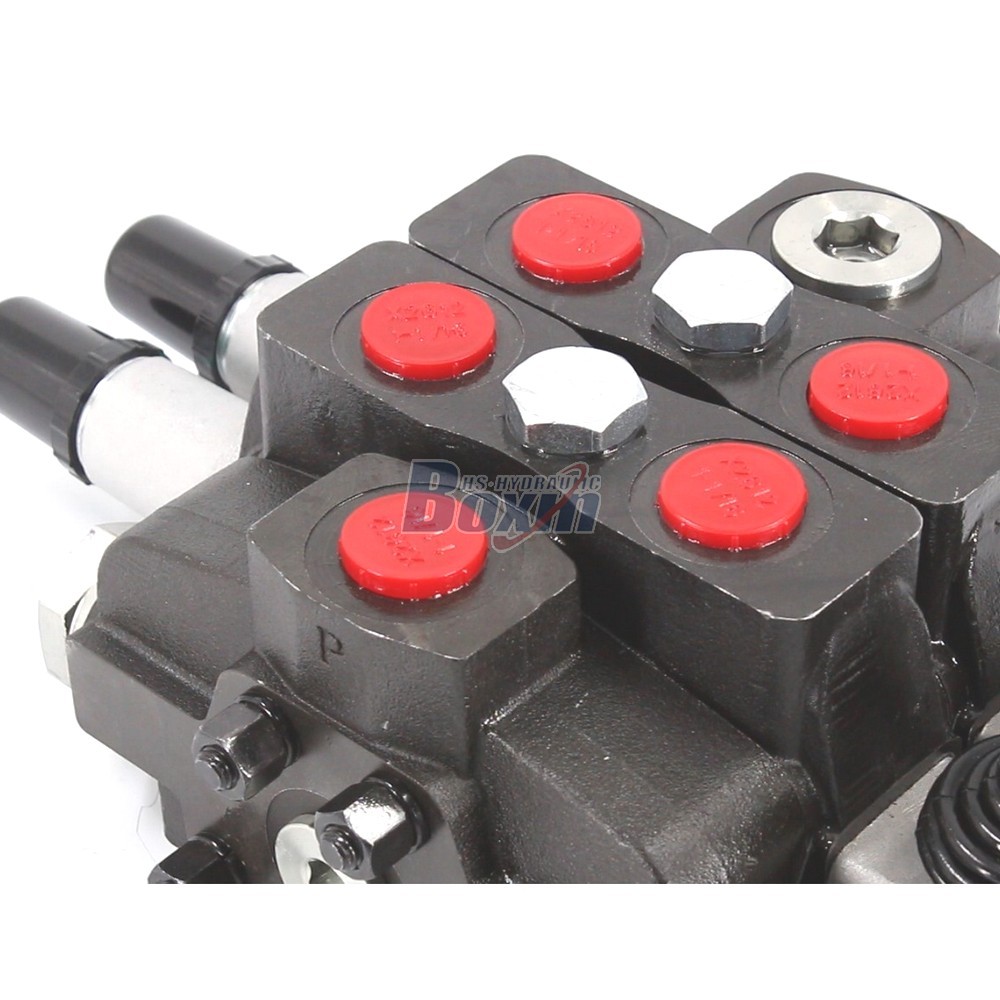

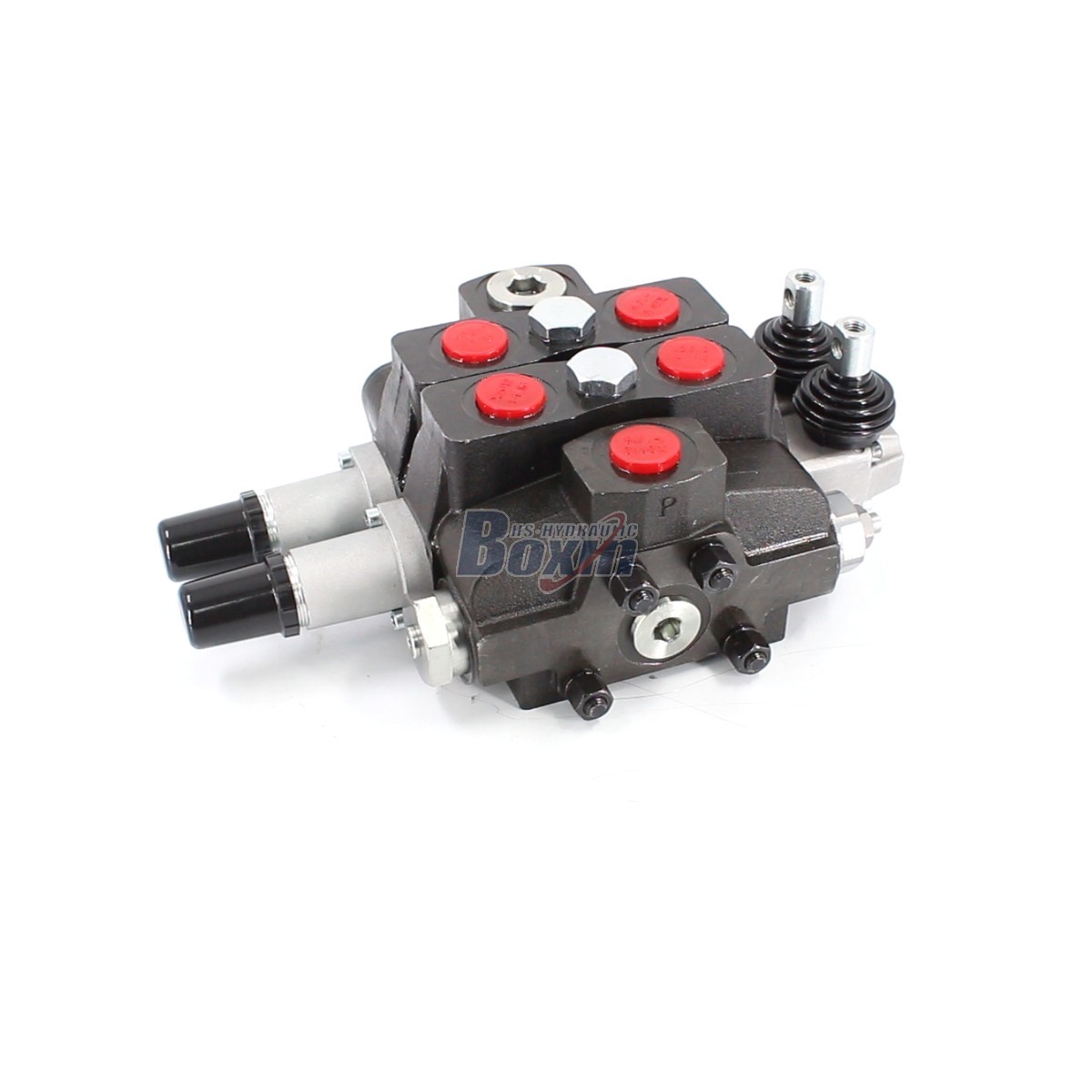

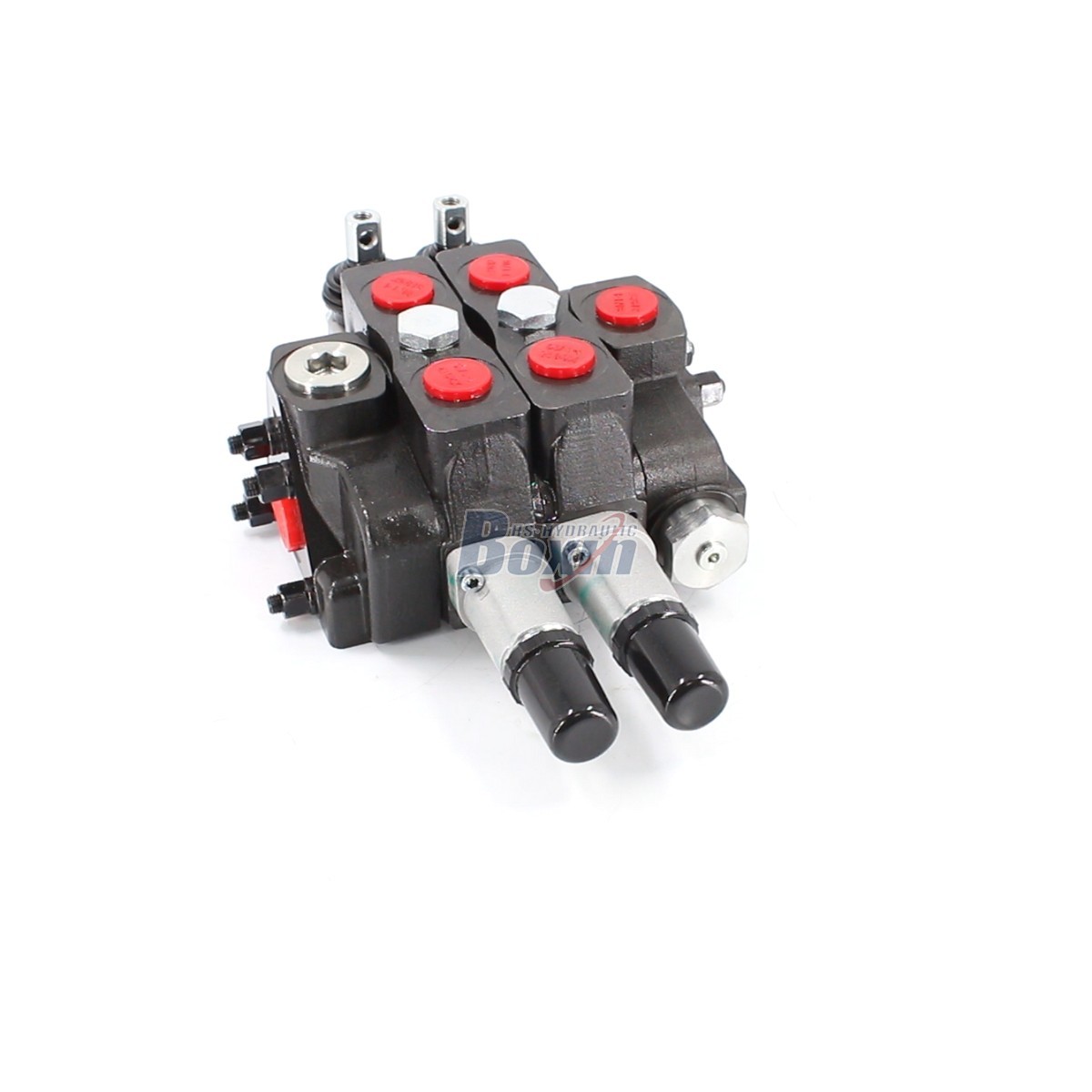

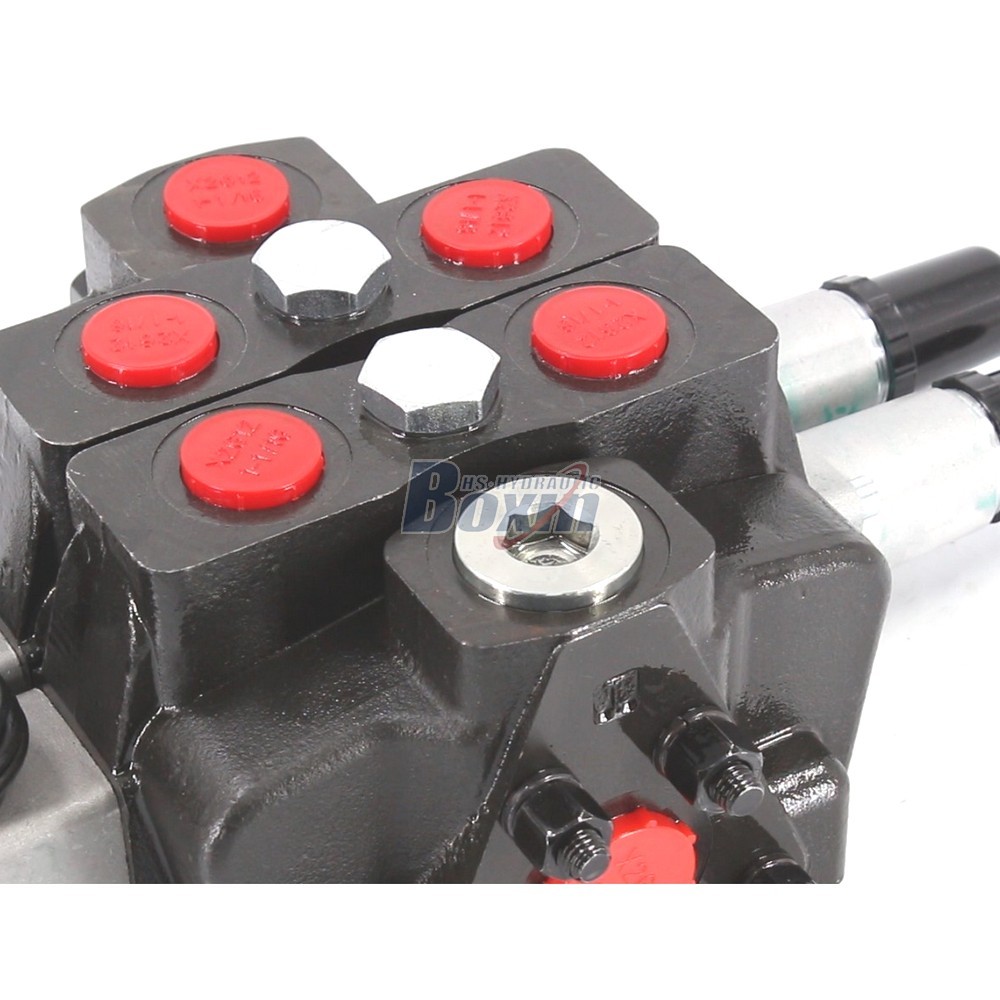

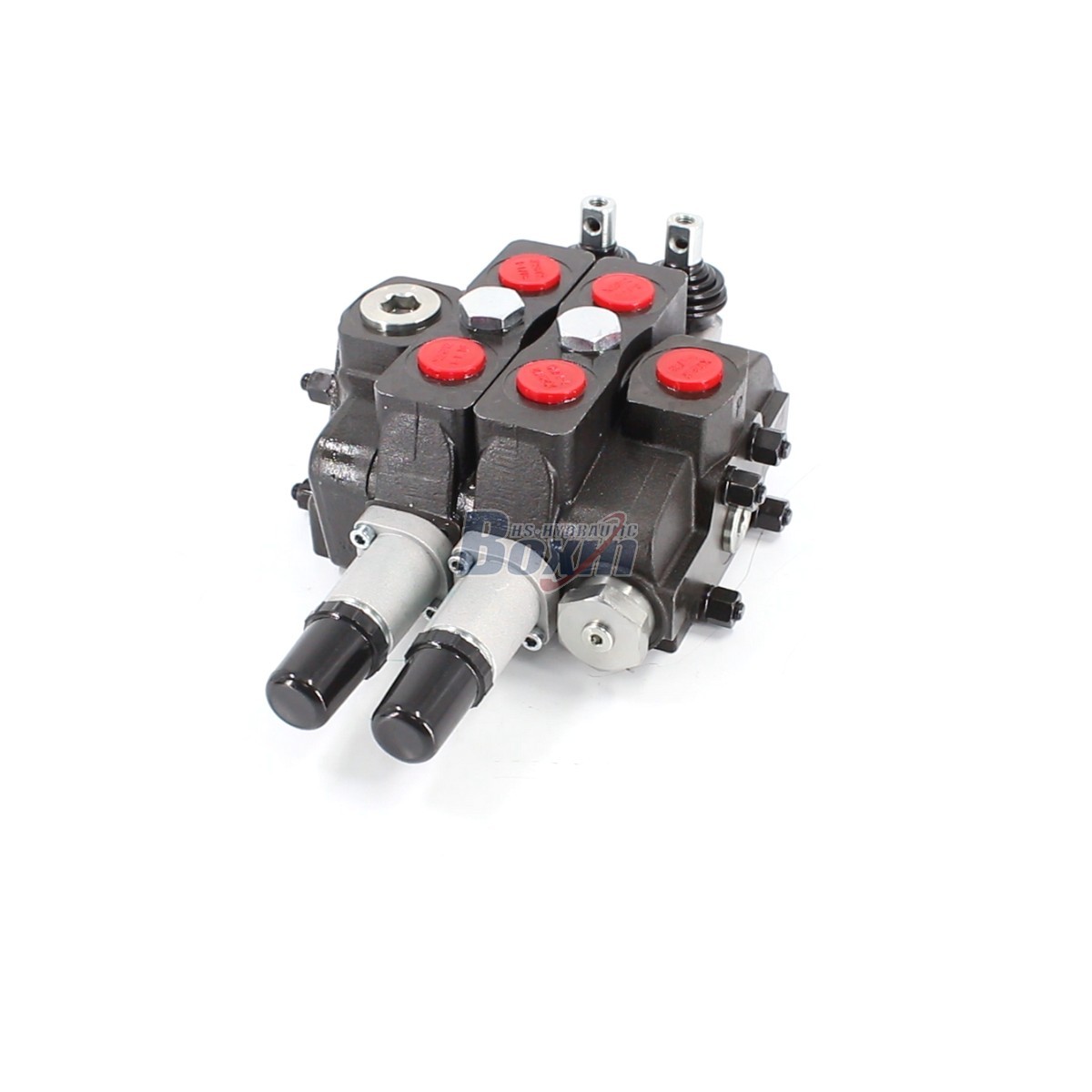

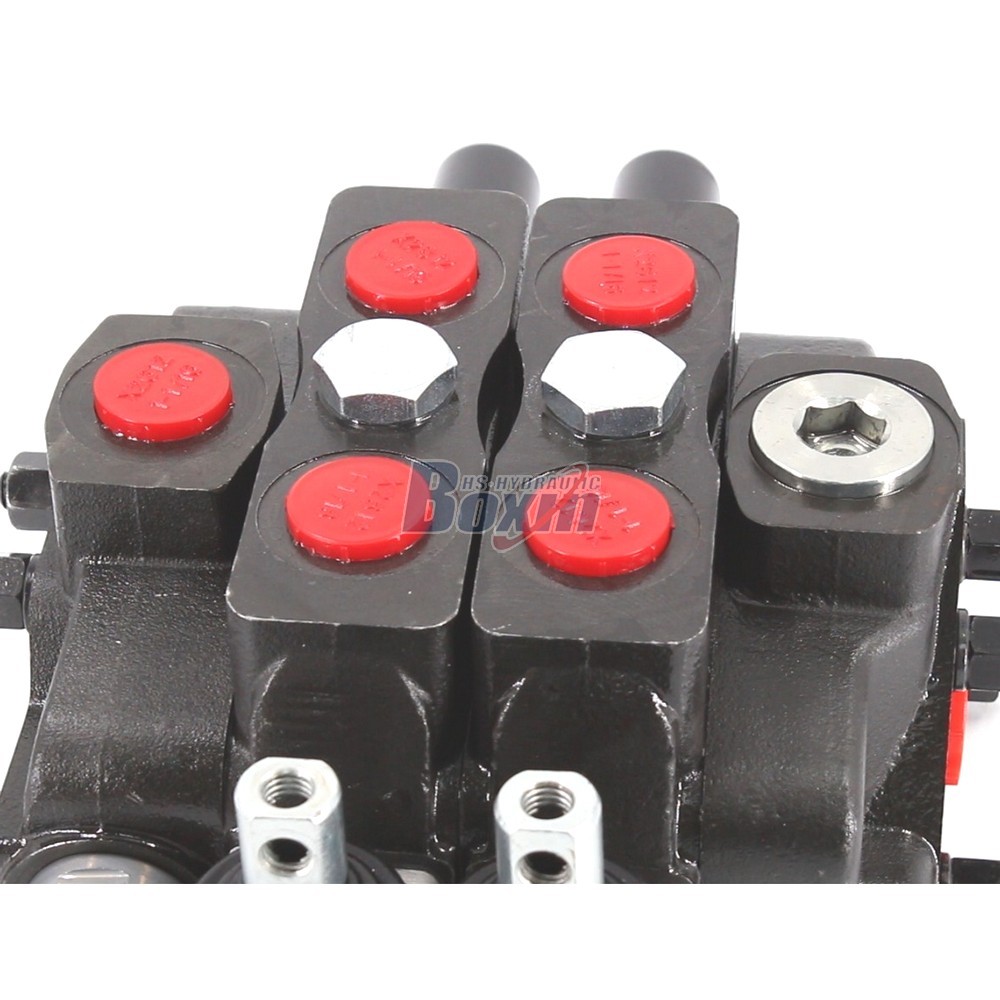

This SDS180T-2CB-OT Manual Sectional Directional Valve features a 2-spool design with a rated flow of 160 L/min and max pressure of 315 bar. Manufactured by a 25-year IATF 16949 certified factory, it is ideal for mini-excavators and skid steer loaders, offering reliable hydraulic control and OEM customization.
| Seria SDS180 Zawór kierunkowy sekcyjny Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Hydrauliczna, Pneumatyczne i ręczne |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór sekcyjny |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji |
| Zakres lepkości roboczej | 12 - 400 mm²/s (12 cSt do 400 cSt) |
| Przepływ znamionowy | 160 l/min (42,2 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port wlotowy | G3/4, G1, SAE 12 |
| Port wylotowy | G1, SAE 16 |
| Rozmiar portu | G3/4, G1, SAE 12 |
**1. High-Flow Sectional Directional Valve for Heavy Duty Use**
- Engineered with a 2-spool configuration, this valve handles a rated flow of 160 L/min (42.2 US gpm) and withstands max pressure up to 315 bar (4600 psi), ensuring stable operation in demanding construction environments.
- Features G3/4 inlet and G1 outlet ports, providing seamless integration for high-power hydraulic systems in material handling and earthmoving machinery.
**2. Precision-Manufactured Hydraulic Control Valve**
- Produced in our 68,000 sqm facility equipped with 260+ vertical machining centers, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity before shipment.
- Certified under IATF 16949 and CE standards, with SGS verification and 25+ patents, guaranteeing consistent quality and durability comparable to international mainstream brands.
**3. Versatile Manual Directional Valve for Mobile Equipment**
- Specifically designed for compatibility with mini-excavators, skid steer loaders, compact wheel loaders, and telehandlers, offering precise manual control for complex hydraulic circuits.
- The SDS180 series structure allows for easy maintenance and modular expansion, making it a preferred choice for agricultural tractors and aerial platforms requiring reliable fluid direction.
**4. Customizable 2 Spool Hydraulic Valve Solutions**
- Backed by 35+ senior engineers with over 10 years of experience, we offer full OEM/ODM services including custom casting, appearance design, and laser logo marking for private label branding.
- Whether you need specific spool functions or unique port configurations, our team ensures tailored solutions that meet your exact technical specifications and market requirements.
**5. Reliable Supply from Professional Manufacturer**
- As a Factory Direct Sales partner with 25 years of export experience, we provide competitive wholesale pricing and secure packaging with rust prevention and heavy-duty wooden crates.
- With an annual capacity of 1,500,000 units across 4 modern factories, we guarantee timely delivery and consistent stock availability for distributors and bulk buyers worldwide.
