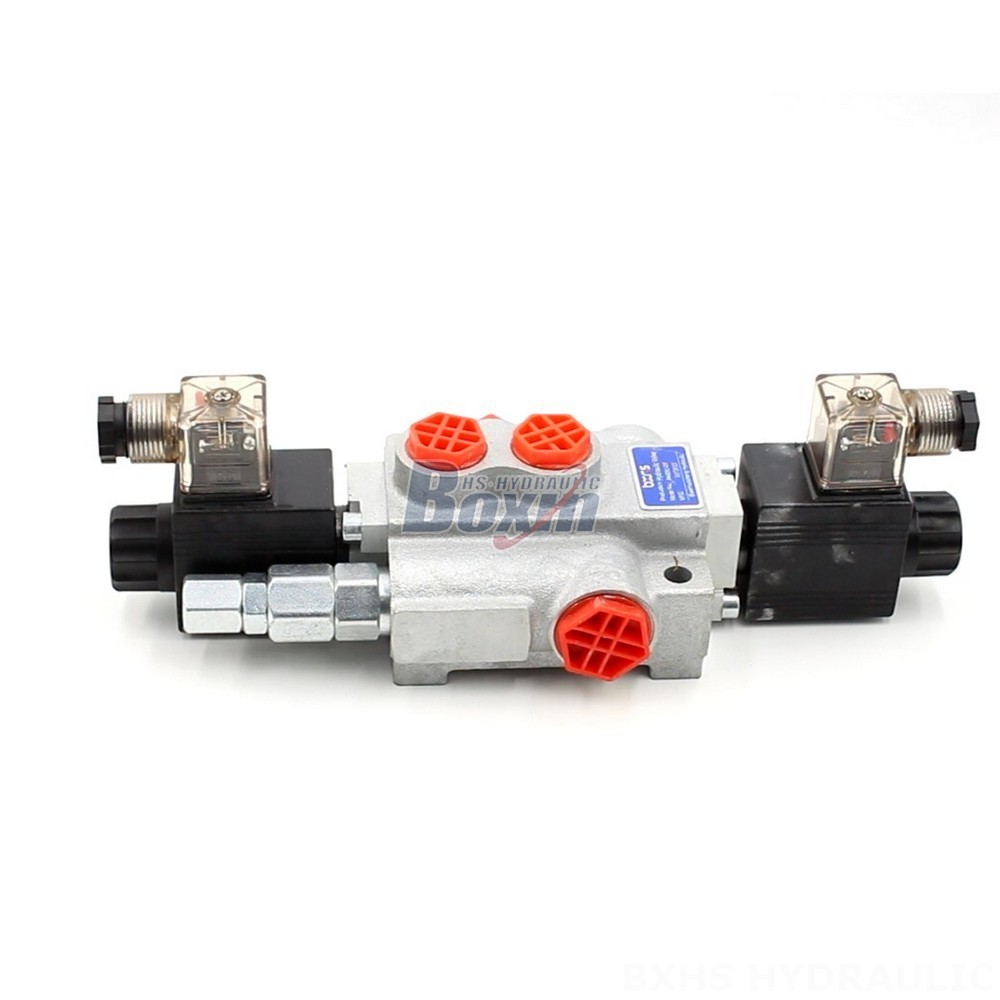

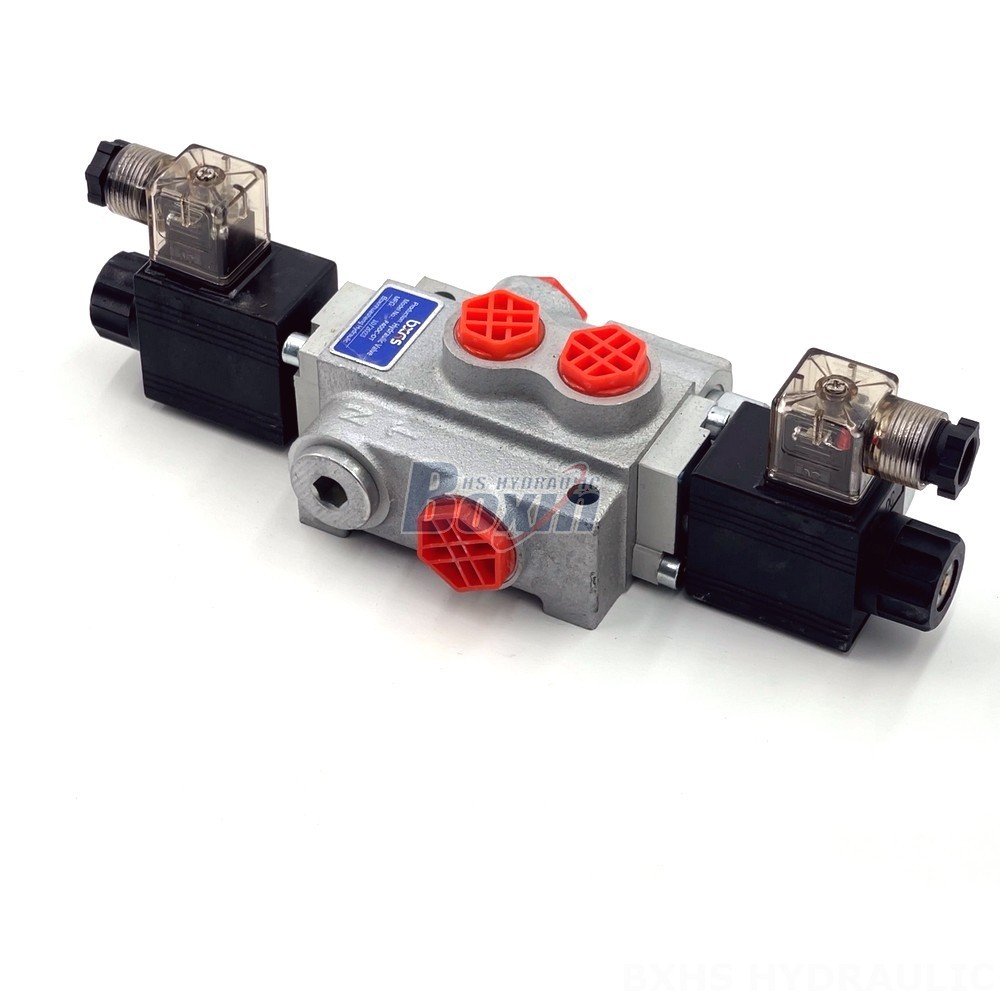

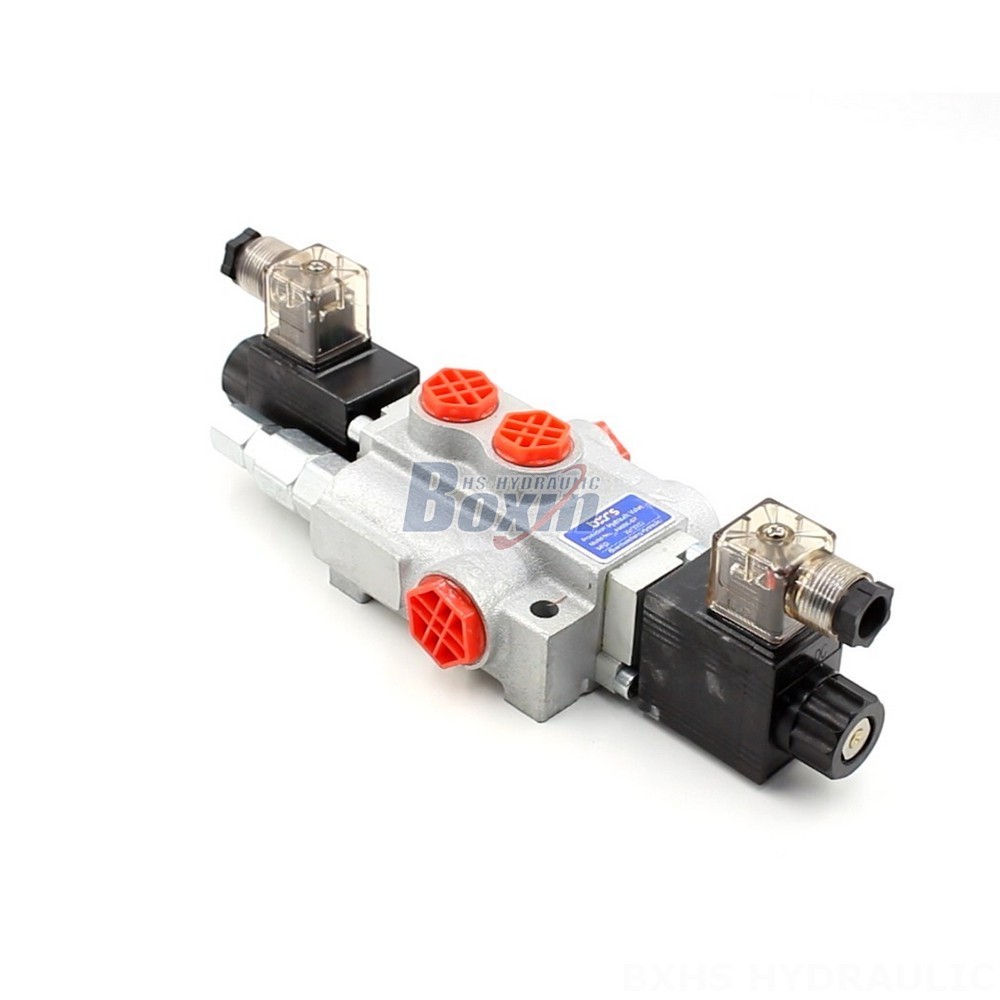

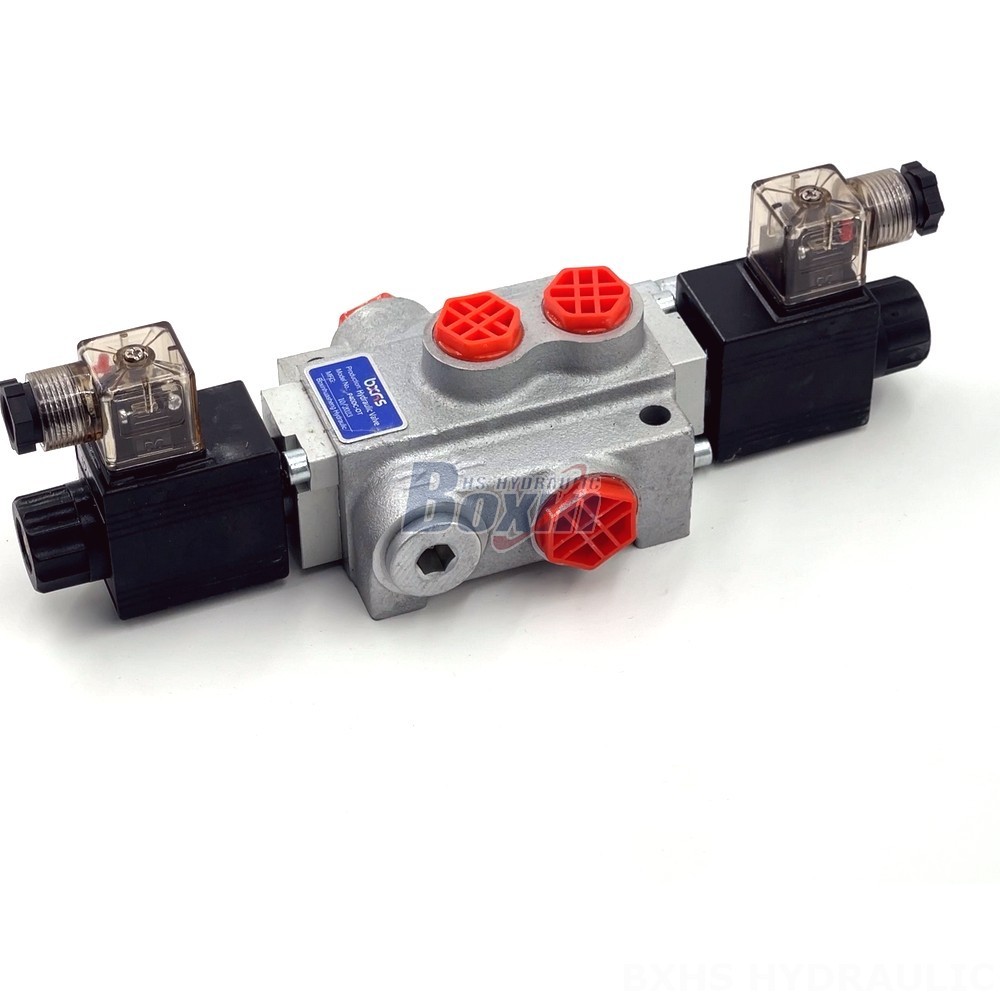

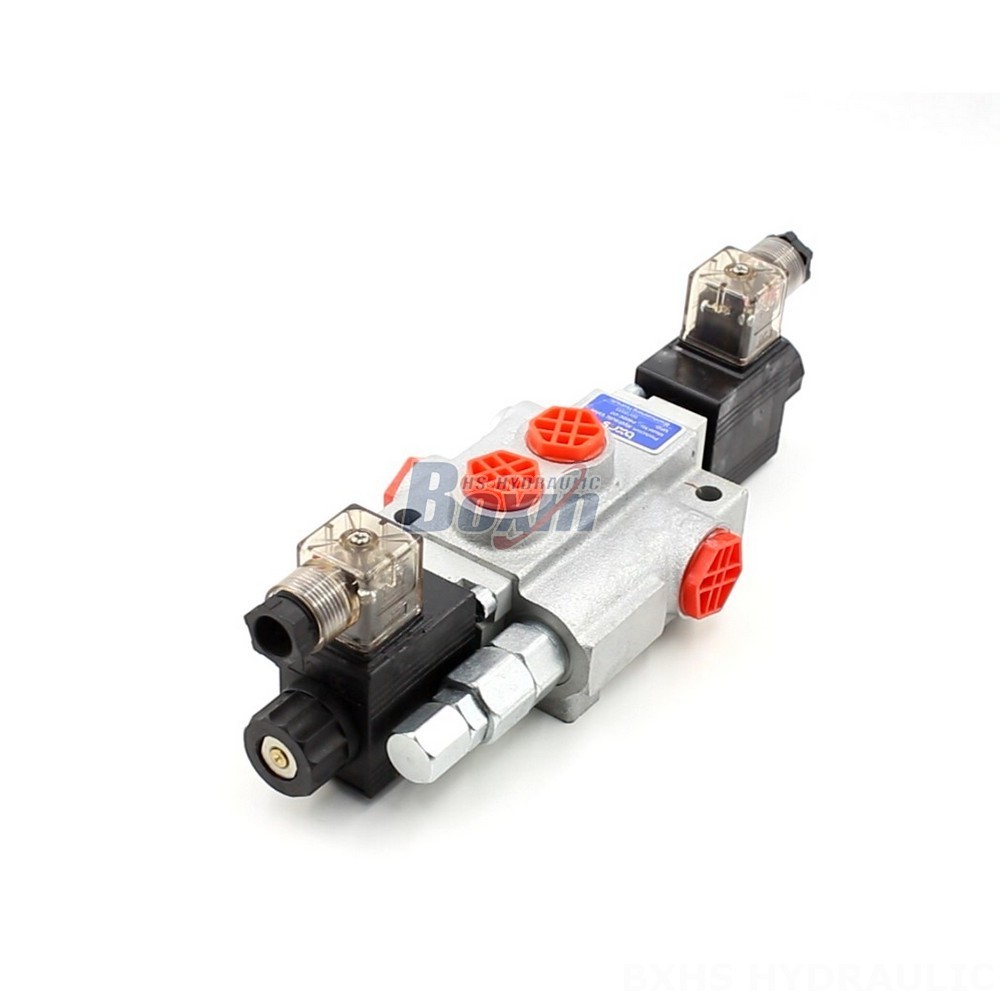

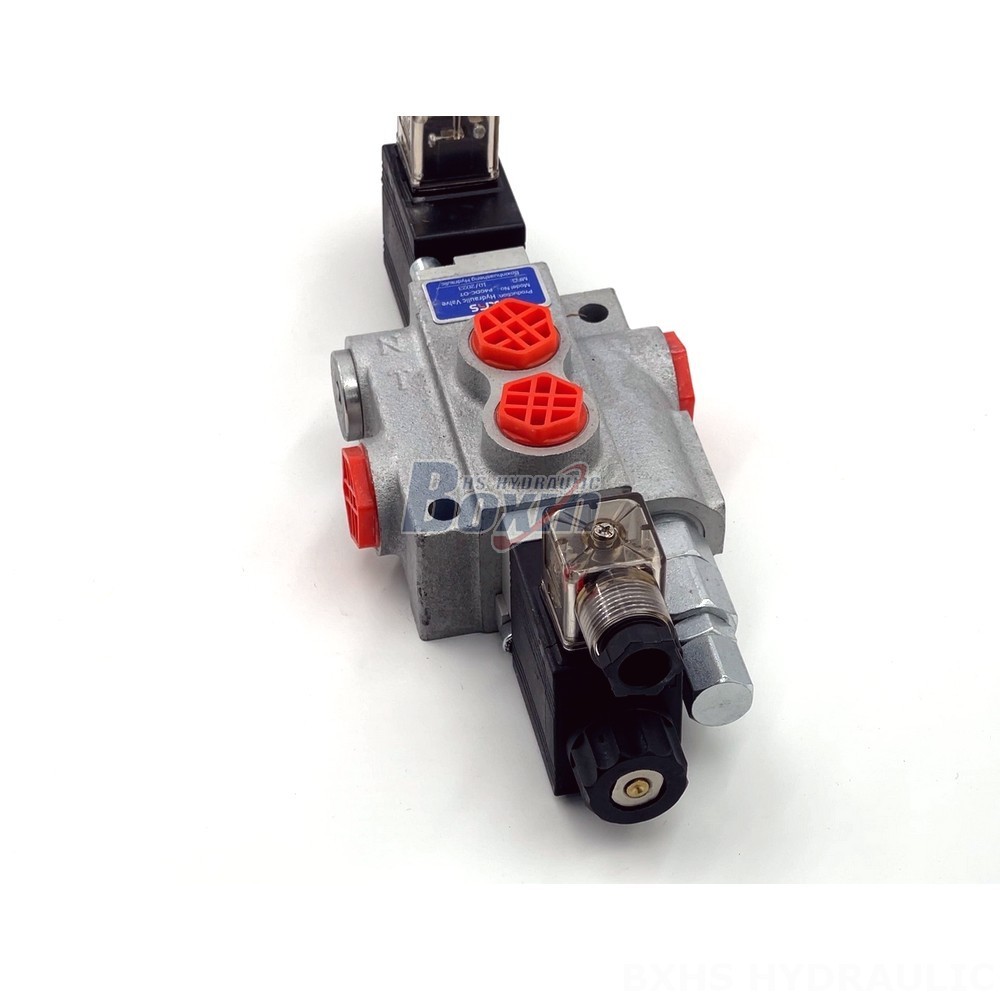

Quality Assured: Certified Production of P40-DKL Directional Valves

Metoda sterowania:Elektromagnes

Szpula:1-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40-DKL Zawór sterujący jednoczęściowy

Rozmiar opakowania:31*16*17

Waga brutto:5.30 kg

Dostępność: W magazynie

1193 Osoby oglądają ten produkt

Quality Assured: Certified Production of P40-DKL Directional Valves

Quality Assured: Certified Production of P40-DKL Directional Valves

Quality Assured: Certified Production of P40-DKL Directional Valves drawing image

The Hydraulic Distributor R 80 is a high-quality, certified directional valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a monoblock design with solenoid control and a rated flow of 40 L/min.

Seria P40-DKL Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Typ konstrukcji Zawór blokowy
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)

The Hydraulic Distributor R 80 is a P40-DKL series monoblock valve with solenoid control. This high-quality directional valve is certified for its reliable performance and durability. It features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve is designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Specifically, it is suitable for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. The valve's compact design and robust construction make it ideal for demanding environments. Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The Hydraulic Distributor R 80 is a high-performance, reliable, and durable solution for your hydraulic system needs.
