QSF32 Load Sensitive Proportional 2 Spool Sweeper Truck Valve

Metoda sterowania:Proporcjonalny z czujnikiem obciążenia

Szpula:2-sekcyjny

Przepływ znamionowy:250 l/min (66 USGPM)

Maksymalne ciśnienie:230 bar (3300 psi)

Port wlotowy:M36×2

Port wylotowy:M36×2

Rozmiar portu:M18×1.5

Marka:BXHS

Typ produktu:Zawór do zamiatarki drogowej

Seria produktów:Seria QSF32 Zawór do zamiatarki drogowej

Packagingsize:27*27*20

Grossweight:35.00 kg

Dostępność: W magazynie

129 Osoby oglądają ten produkt

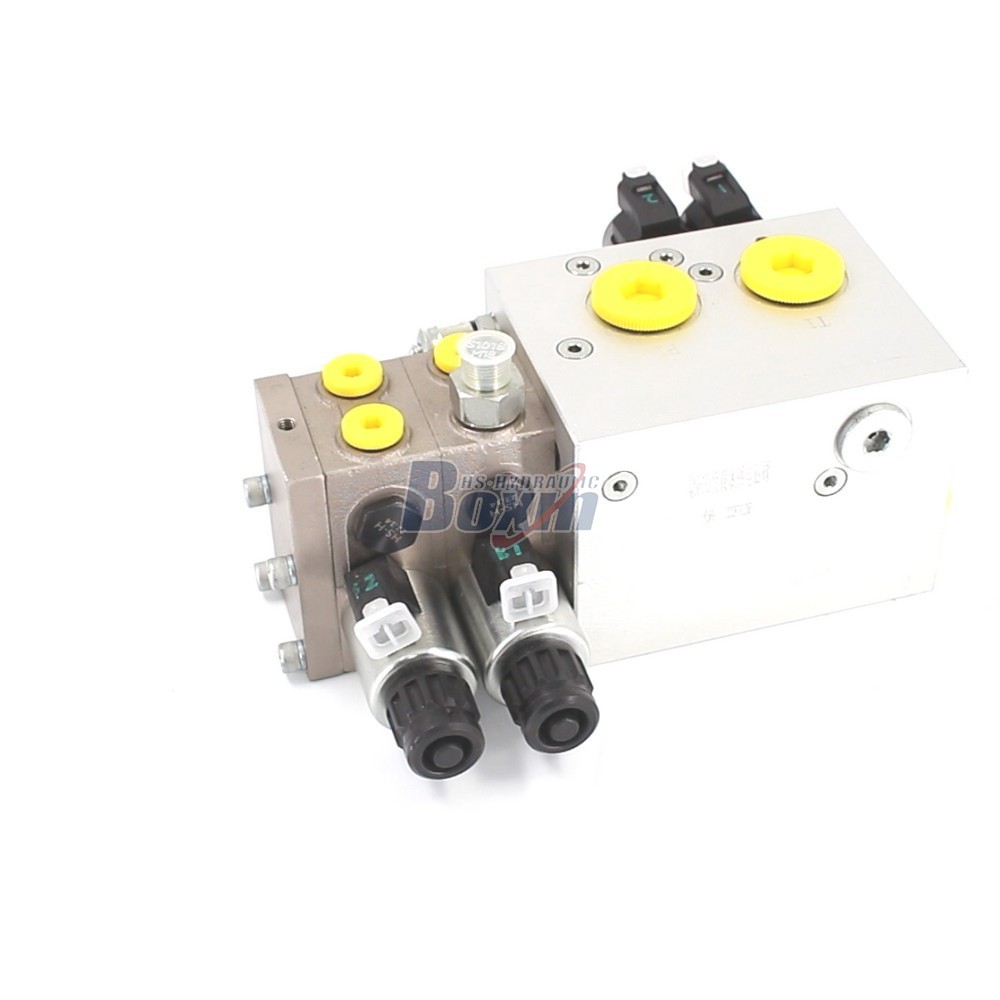

QSF32 Load Sensitive Proportional 2 Spool Sweeper Truck Valve

QSF32 Load Sensitive Proportional 2 Spool Sweeper Truck Valve

QSF32 Load Sensitive Proportional 2 Spool Sweeper Truck Valve drawing image

The QSF32 series is a high-performance 2-spool load-sensitive proportional valve designed for demanding mobile hydraulic applications, offering precise control with a 250 L/min flow rate and 230 bar pressure capacity for various construction and agricultural equipment.

Seria QSF32 Zawór do zamiatarki drogowej Parametry
Metoda sterowania Elektromagnes, Proporcjonalny z czujnikiem obciążenia
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 250 l/min (66 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G1, SAE 16, 1 NPT, M36×2
Port wylotowy G1, SAE 16, 1 NPT, M36×2
Rozmiar portu G1, SAE 16, 1 NPT, M36×2

As a large-scale manufacturer, we specialize in the production of high-quality hydraulic components including the QSF32 Load Sensitive Proportional Valve. Designed for heavy-duty applications such as wheel loaders, motor graders, and sweeper trucks, this valve provides reliable flow control and system integration efficiency. We provide comprehensive manufacturing services including OEM, private labeling, and custom engineering solutions to meet specific technical requirements. Our factory direct supply model ensures competitive wholesale pricing for global distributors, wholesalers, and international trading partners. We are actively seeking long-term cooperation with agents and professional distributors to expand our global market presence. Every unit is manufactured to rigorous industrial standards, ensuring performance in construction, earth-moving, and material handling sectors. Partner with us for reliable factory-direct hydraulic solutions, flexible customization, and scalable production capacity to support your supply chain needs.
