Q75 Series 2 Spool Monoblock Control Valve with Manual Operation

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:75 l/min (19,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria Q75 Zawór sterujący jednoczęściowy

Rozmiar opakowania:22*26*11

Waga brutto:7.00 kg

Dostępność: W magazynie

114 Osoby oglądają ten produkt

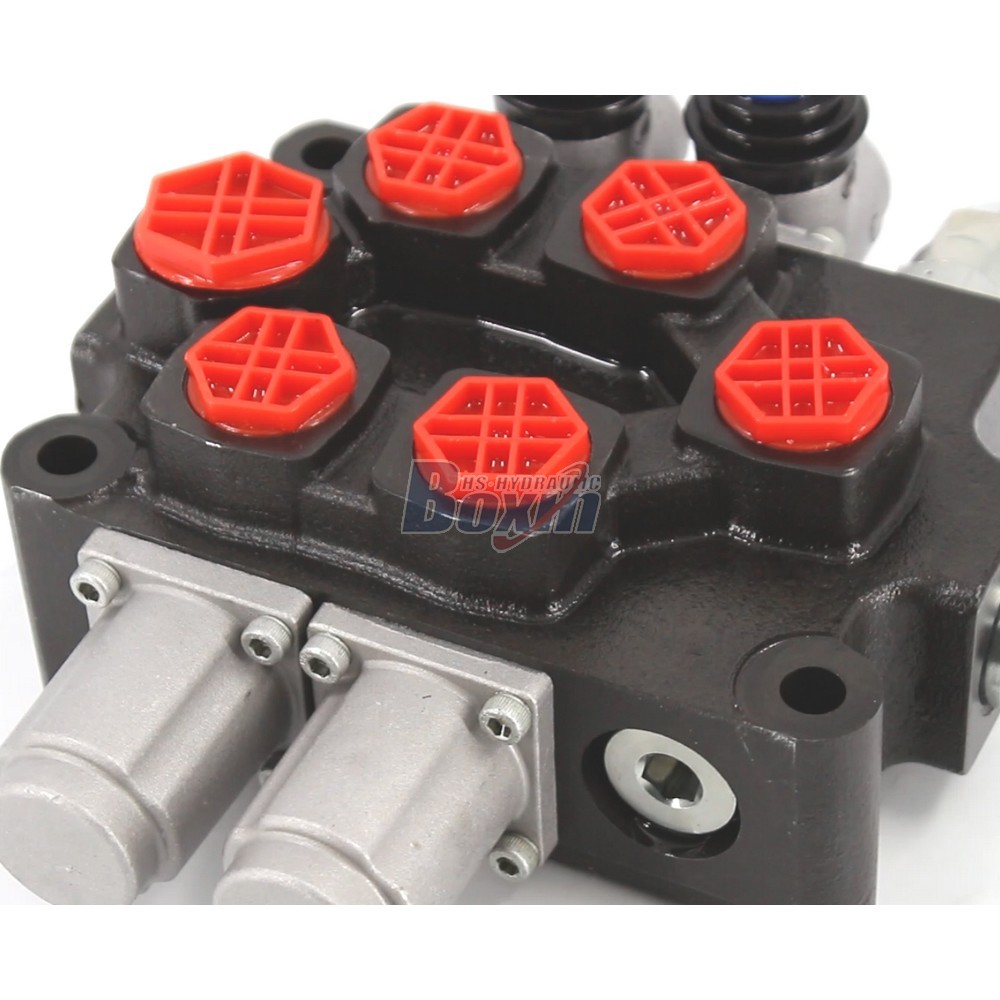

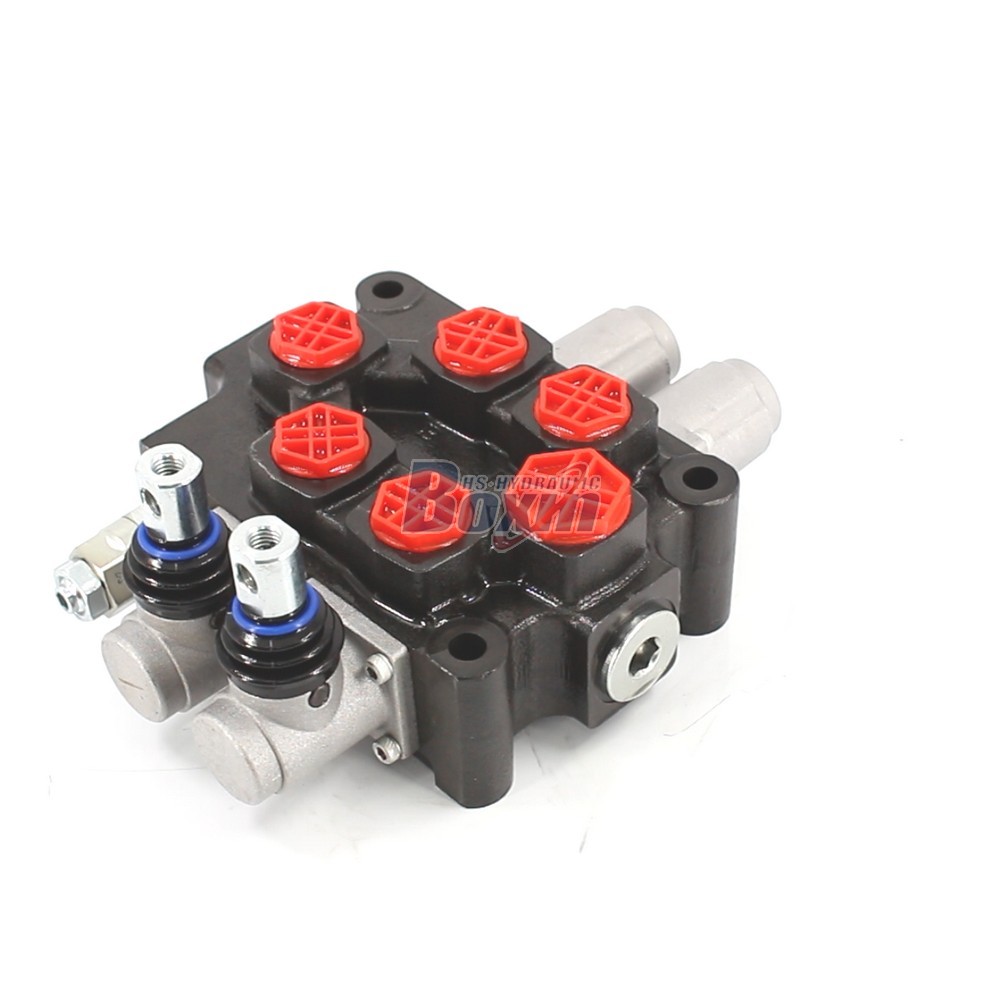

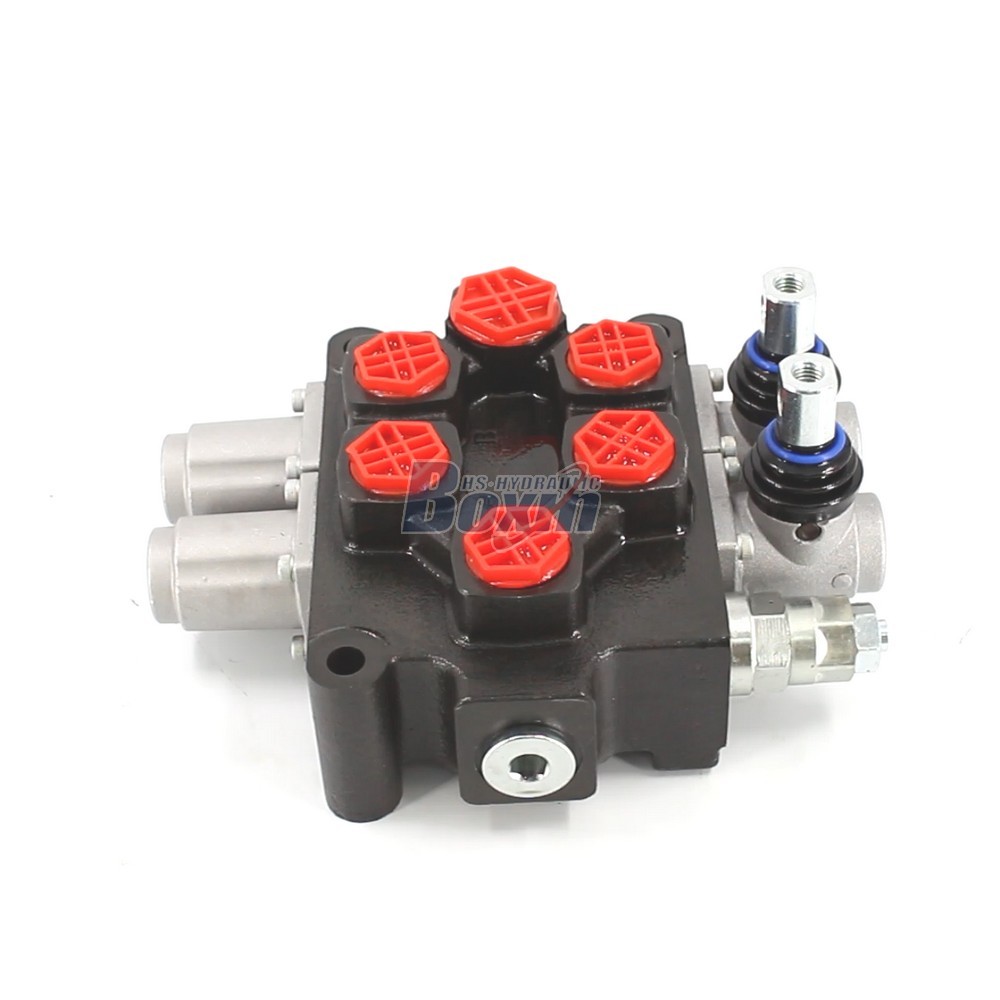

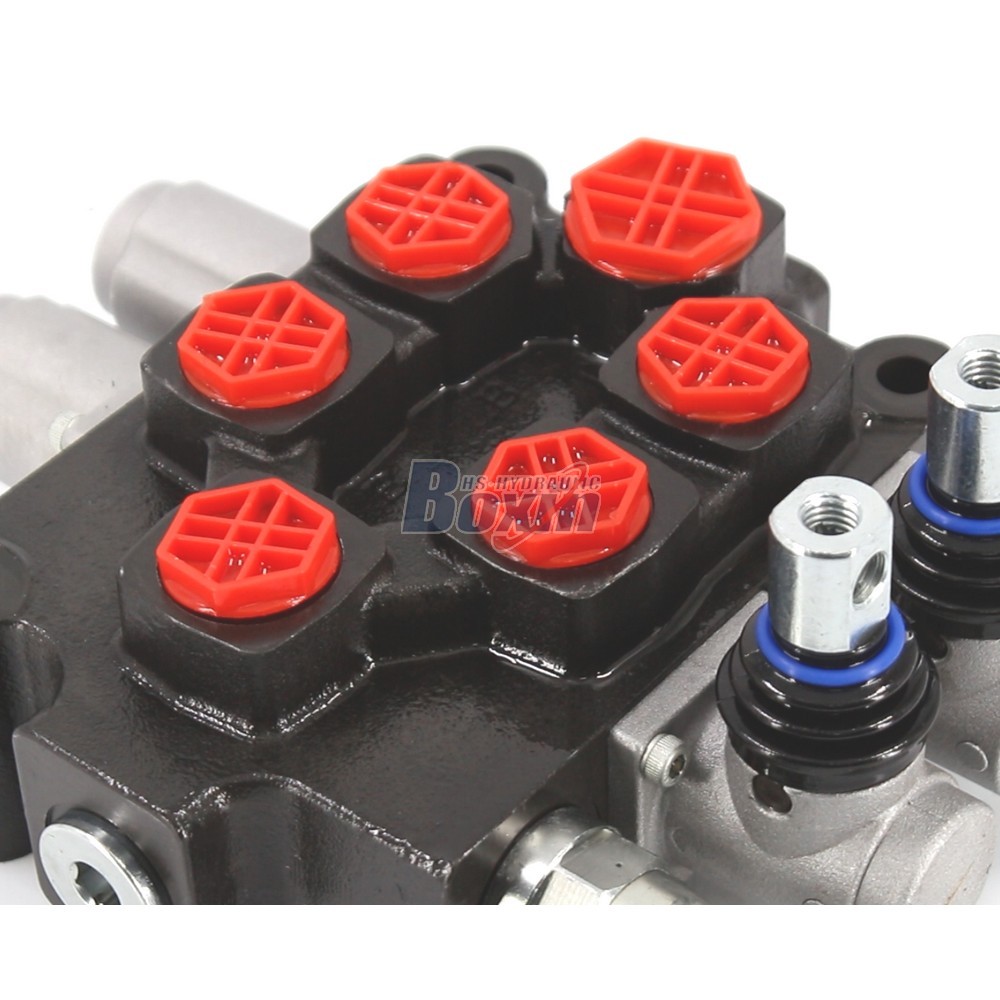

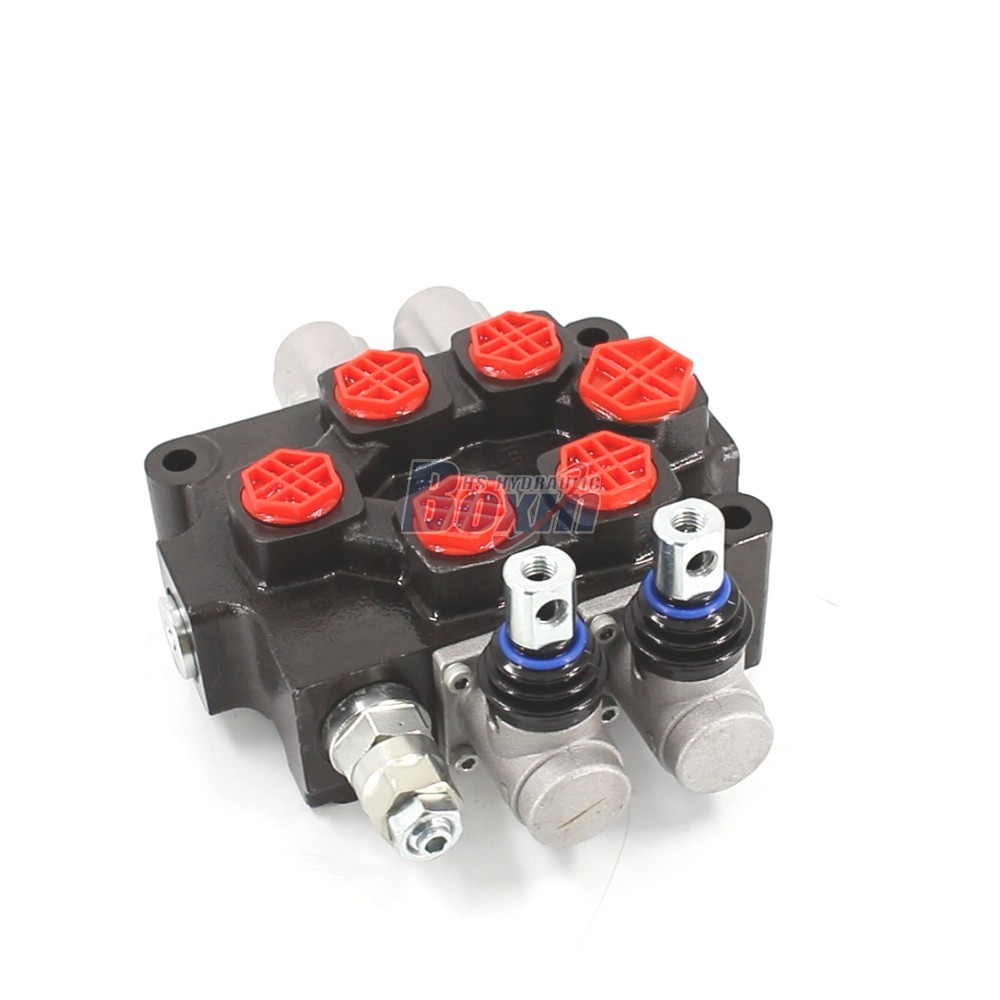

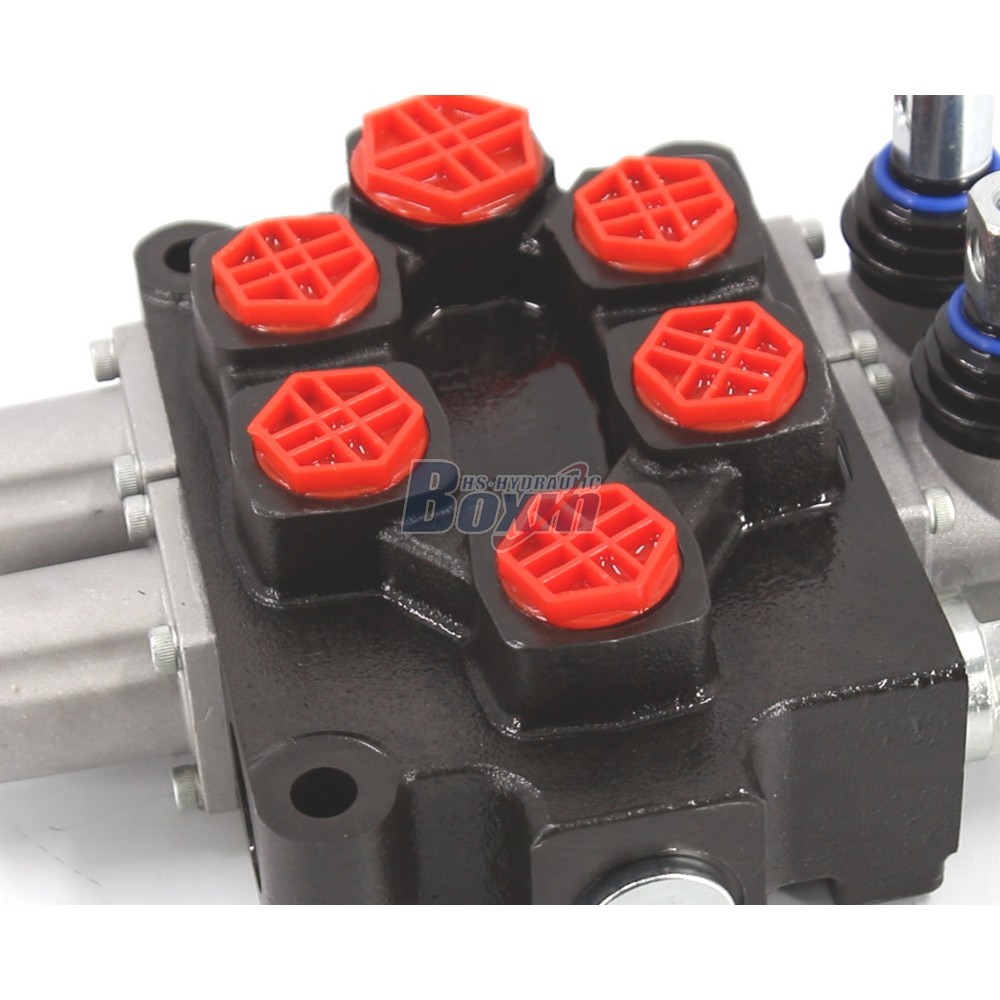

Q75 Series 2 Spool Monoblock Control Valve with Manual Operation

Q75 Series 2 Spool Monoblock Control Valve with Manual Operation

Q75 Series 2 Spool Monoblock Control Valve with Manual Operation drawing image

The Q75 Series 2 Spool Monoblock Control Valve is a manual-operated hydraulic solution designed for high-performance flow control up to 75 L/min at 315 bar. Engineered for versatility, it is ideal for material handling, agricultural machinery, and construction equipment.

Seria Q75 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Dźwignia sterownicza
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Przepływ znamionowy 75 l/min (19,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G3/4
Port wylotowy G3/4
Rozmiar portu G1/2
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Typ konstrukcji Zawór blokowy
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)

As a leading manufacturer of hydraulic products, we provide the Q75 Series 2 Spool Monoblock Control Valve worldwide. This valve features a rated flow of 75 L/min (19.8 US gpm) and a maximum pressure rating of 315 bar (4600 psi), ensuring reliable performance in demanding applications such as tractors, forklifts, and excavators. Our factory offers comprehensive manufacturing services including OEM, private labeling, and custom design to meet specific technical requirements. We specialize in factory wholesale and are actively seeking global partners, including distributors, wholesalers, agents, and traders to expand our international presence. Whether you need a standard 2 spool configuration or a customized hydraulic solution for industrial vehicles or wood splitters, our factory supply ensures competitive pricing and consistent quality. Contact us for bulk orders and exclusive partnership opportunities in your region.
