Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

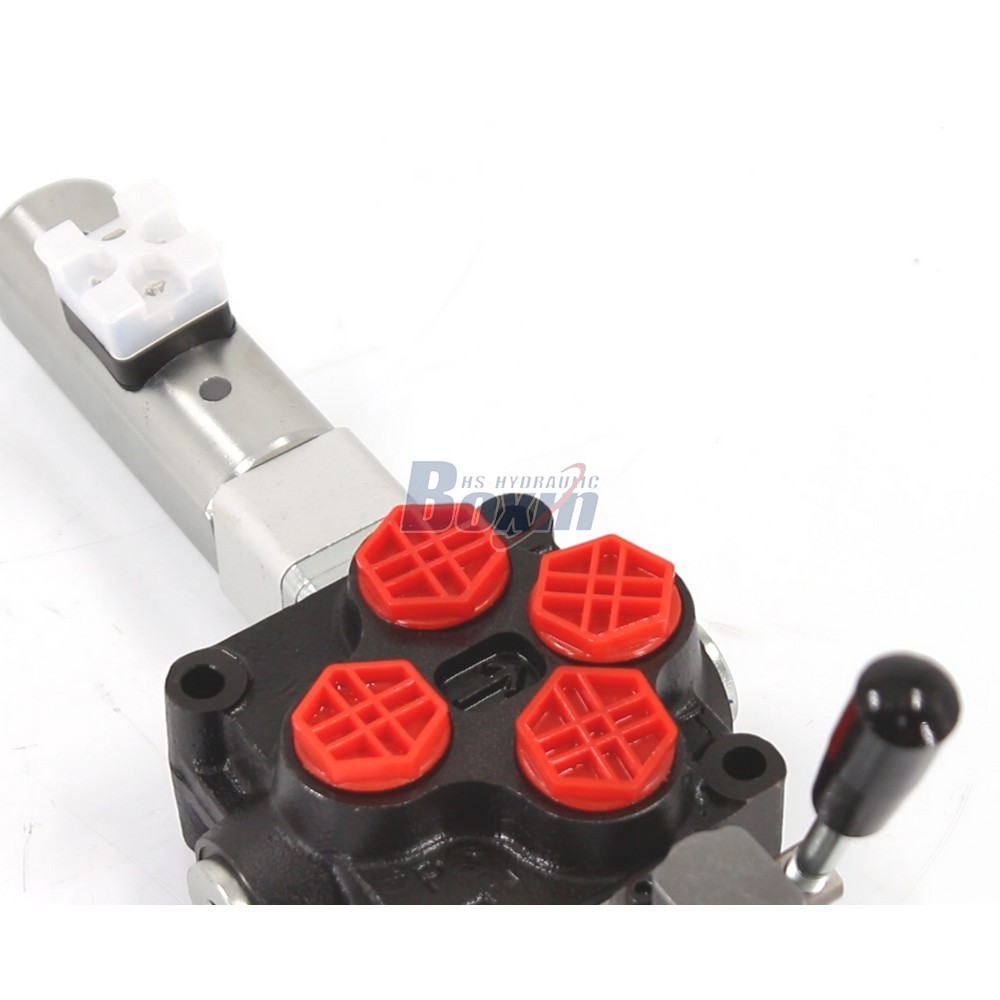

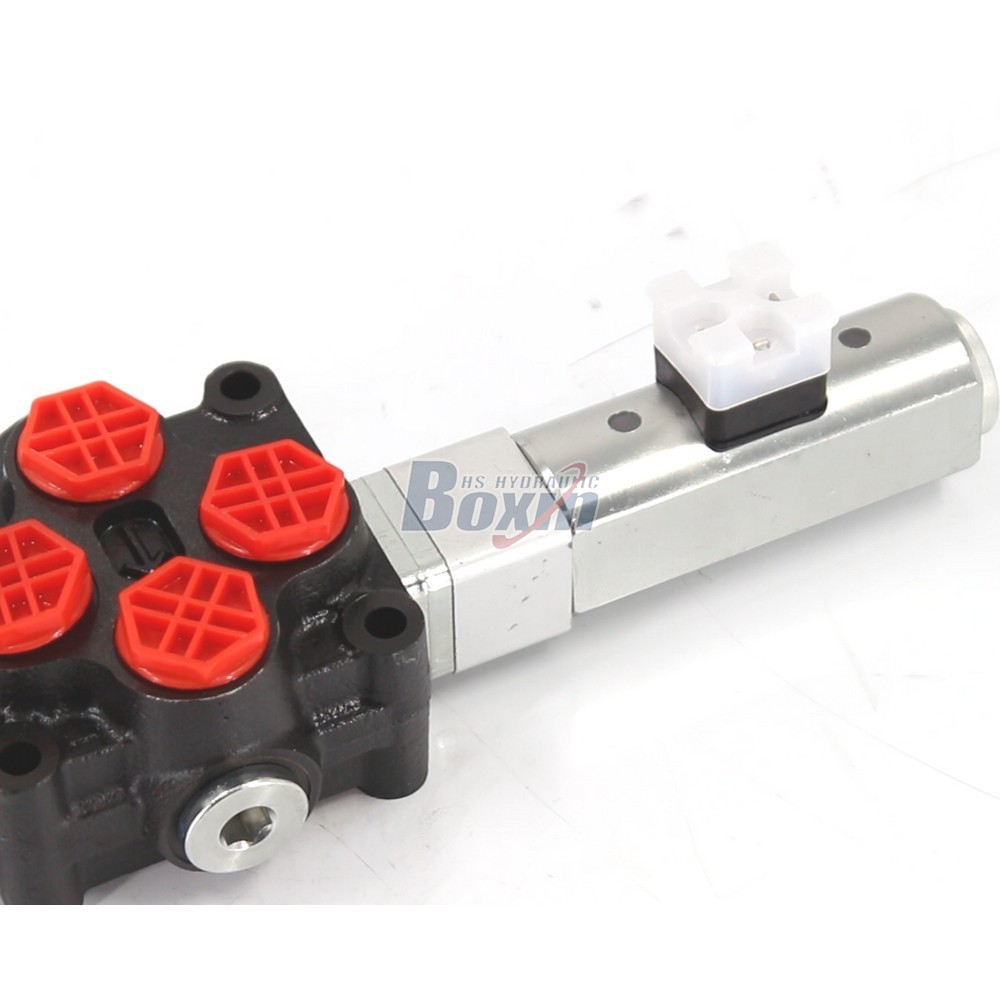

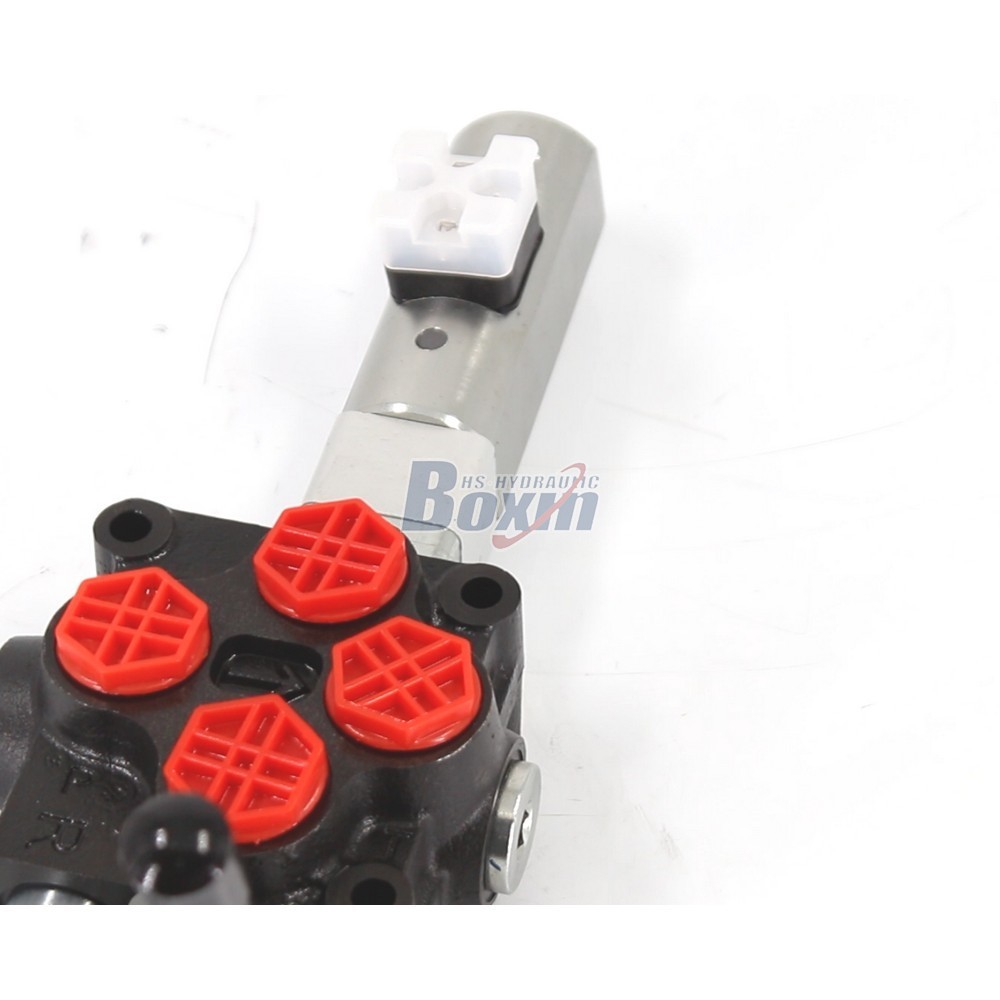

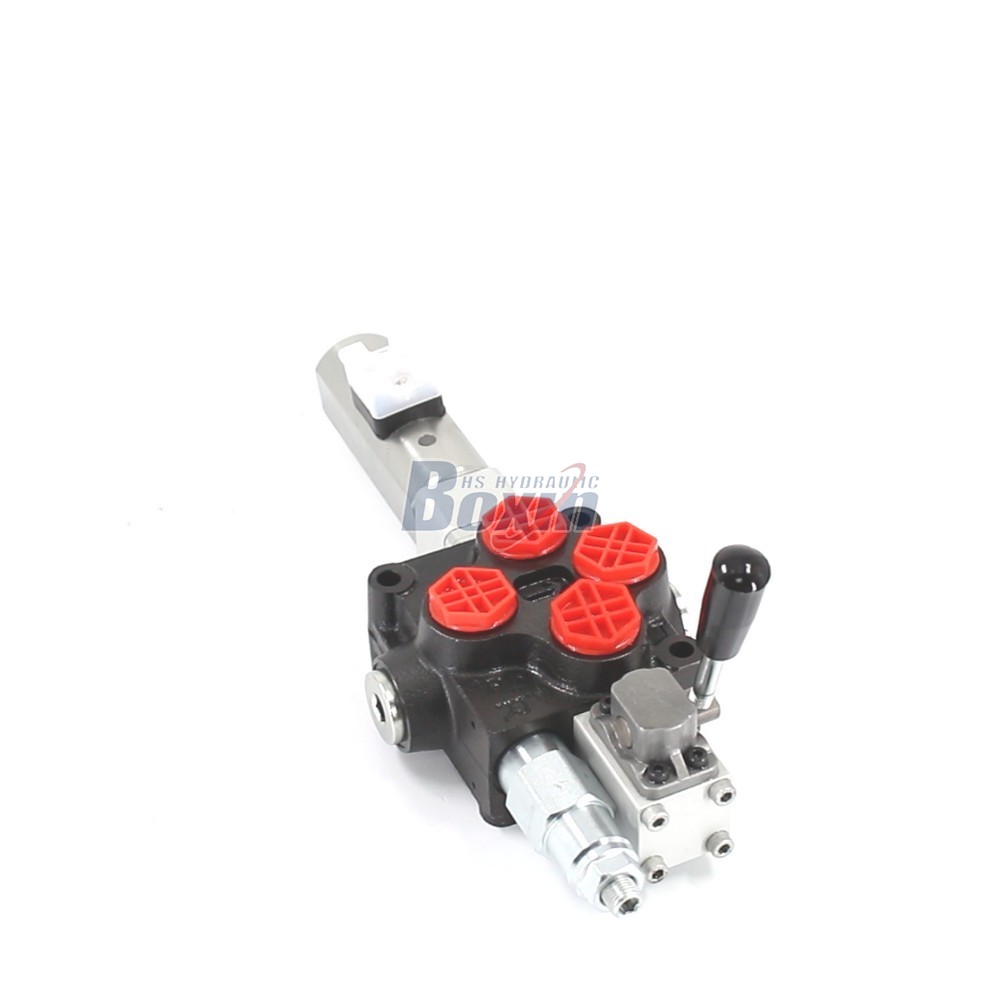

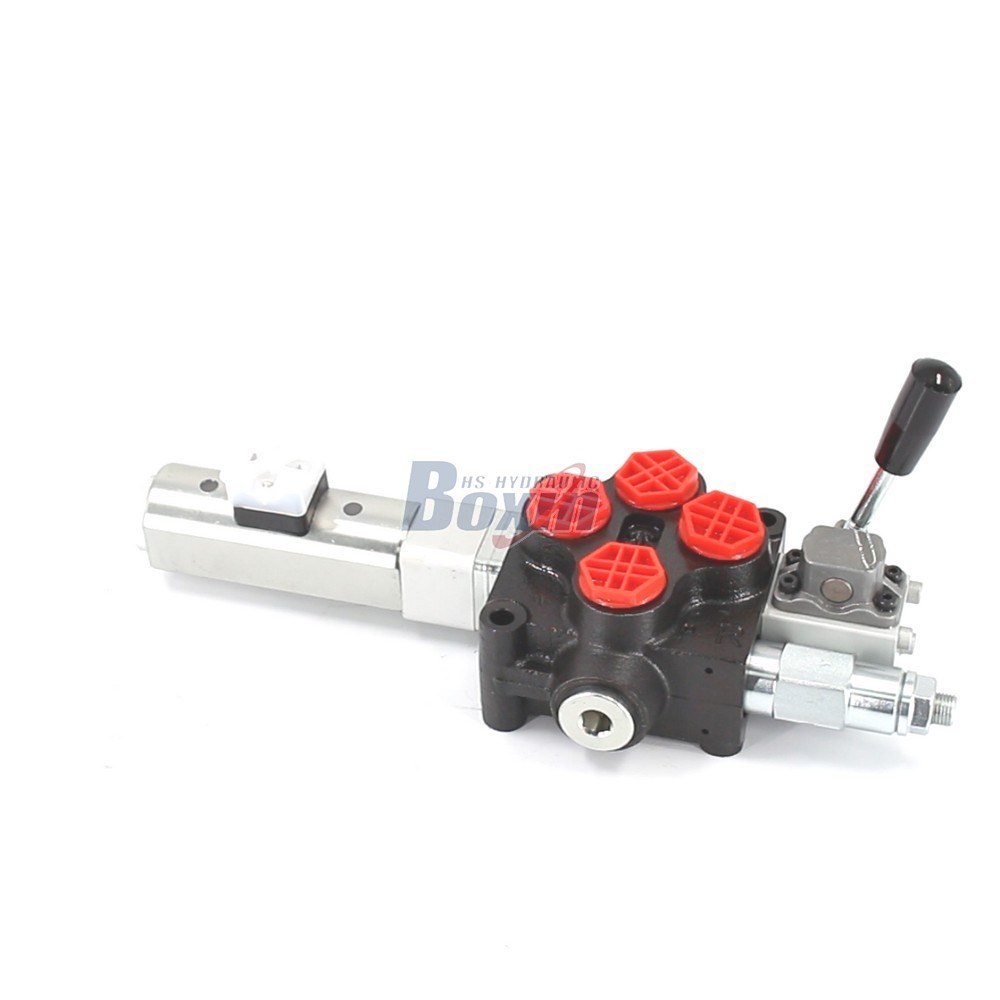

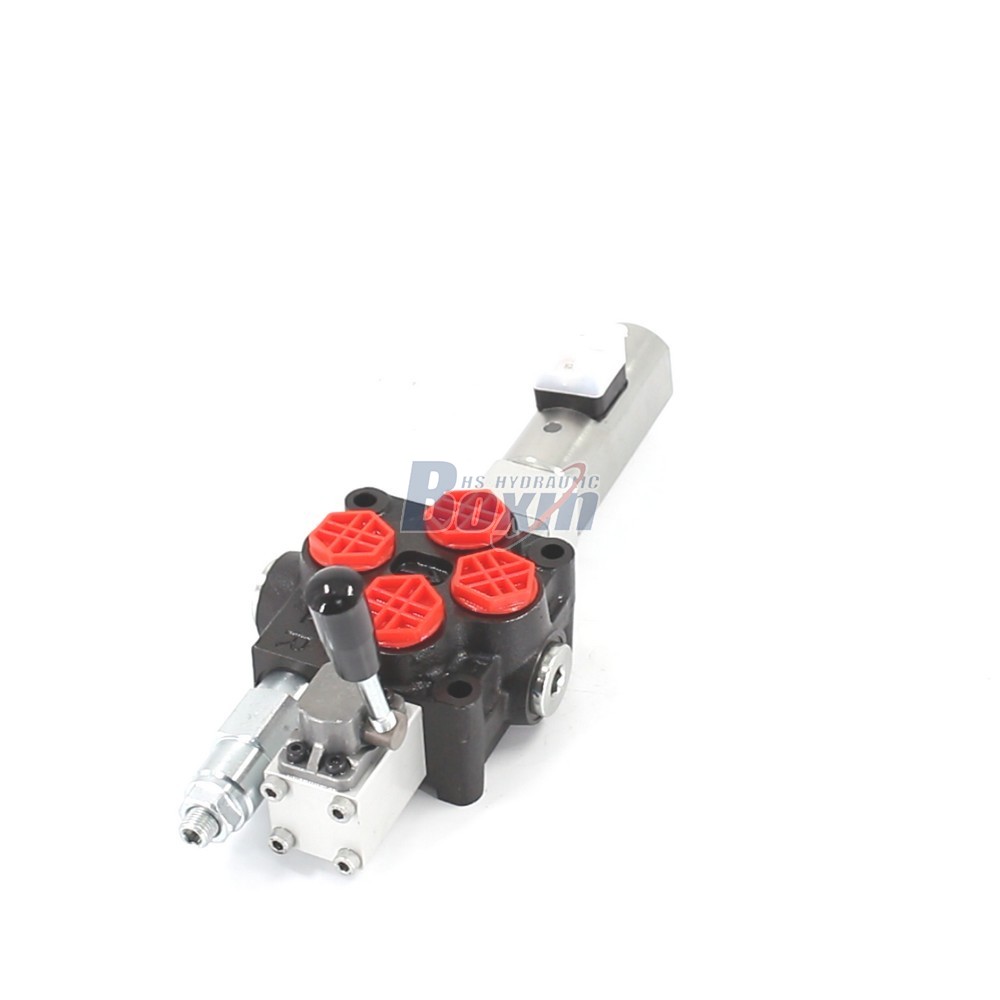

The Q45 series 1-spool monoblock directional valve offers versatile solenoid and manual control, delivering a rated flow of 45 L/min at pressures up to 315 bar. Engineered for heavy-duty material handling and agricultural machinery, this compact valve ensures precise hydraulic power management.
| Seria Q45 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Dźwignia sterownicza, Elektromagnetyczne i ręczne, Ręczny i elektromagnes dwukierunkowy (push-pull), Elektromagnes dwukierunkowy (push-pull) |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Zakres temperatury otoczenia | -20°C do +80°C (-4°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 45 l/min (11,8 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2 |
| Port wylotowy | G1/2 |
| Rozmiar portu | G1/2 |
As a leading manufacturer of high-performance hydraulic solutions, we present the Q45 Series 1 Spool Solenoid Operated Monoblock Directional Valve. This robust unit features dual control methods—solenoid and manual—allowing for flexible integration into various hydraulic systems. With a rated flow of 45 L/min (11.8 US gpm) and a maximum pressure capability of 315 bar (4600 psi), it is perfectly suited for demanding applications such as forklifts, tractors, mini-excavators, and wood splitters. Our factory provides comprehensive OEM and ODM services, including custom spool configurations, private labeling, and specialized porting to meet your exact technical specifications. We are actively seeking global partners, including distributors, wholesalers, and trade agents, to expand our market reach. Whether you require bulk wholesale purchasing or tailored manufacturing, our facility ensures consistent quality and reliable supply. Partner with a professional manufacturer for high-quality hydraulic valves designed for construction equipment, harvesters, and industrial vehicles.
