Private Label P40 Solenoid 2 Spool Monoblock Directional Valves

Metoda sterowania:Elektromagnes

Szpula:2-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:30*18*12

Waga brutto:6.50 kg

Dostępność: W magazynie

1084 Osoby oglądają ten produkt

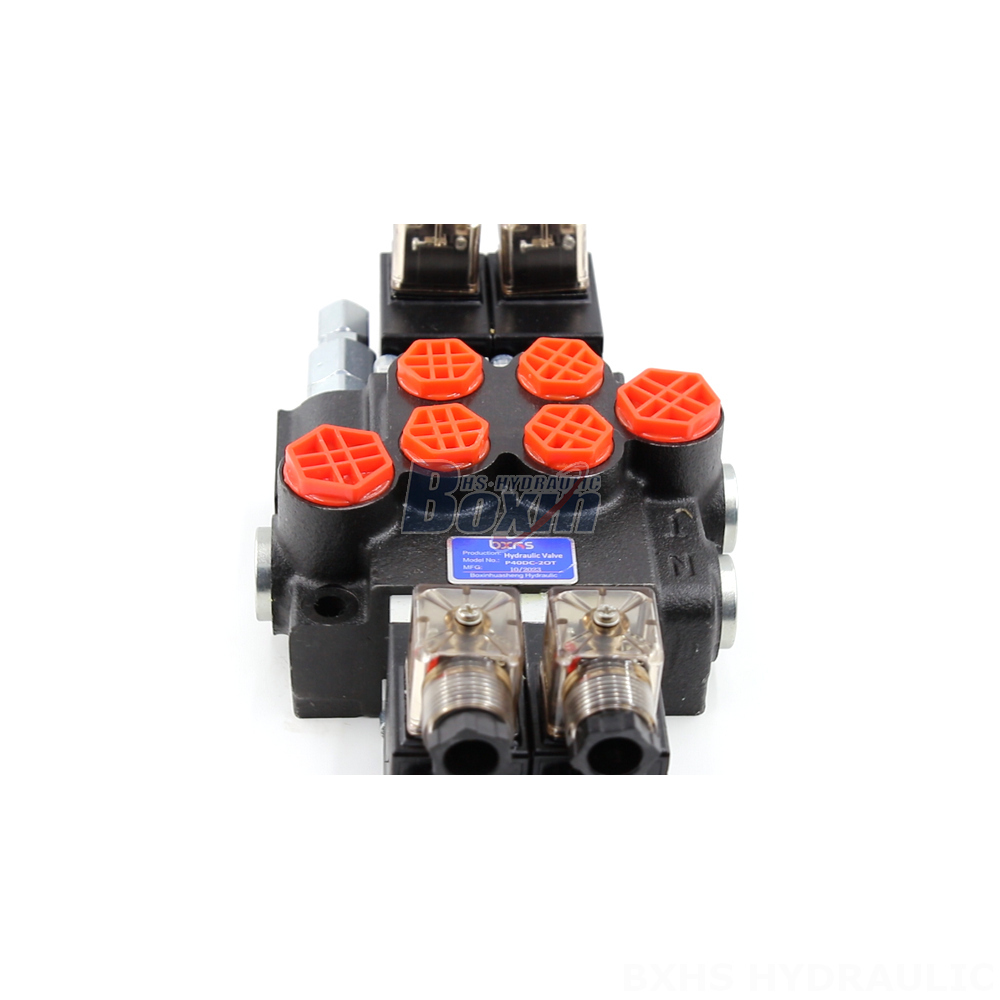

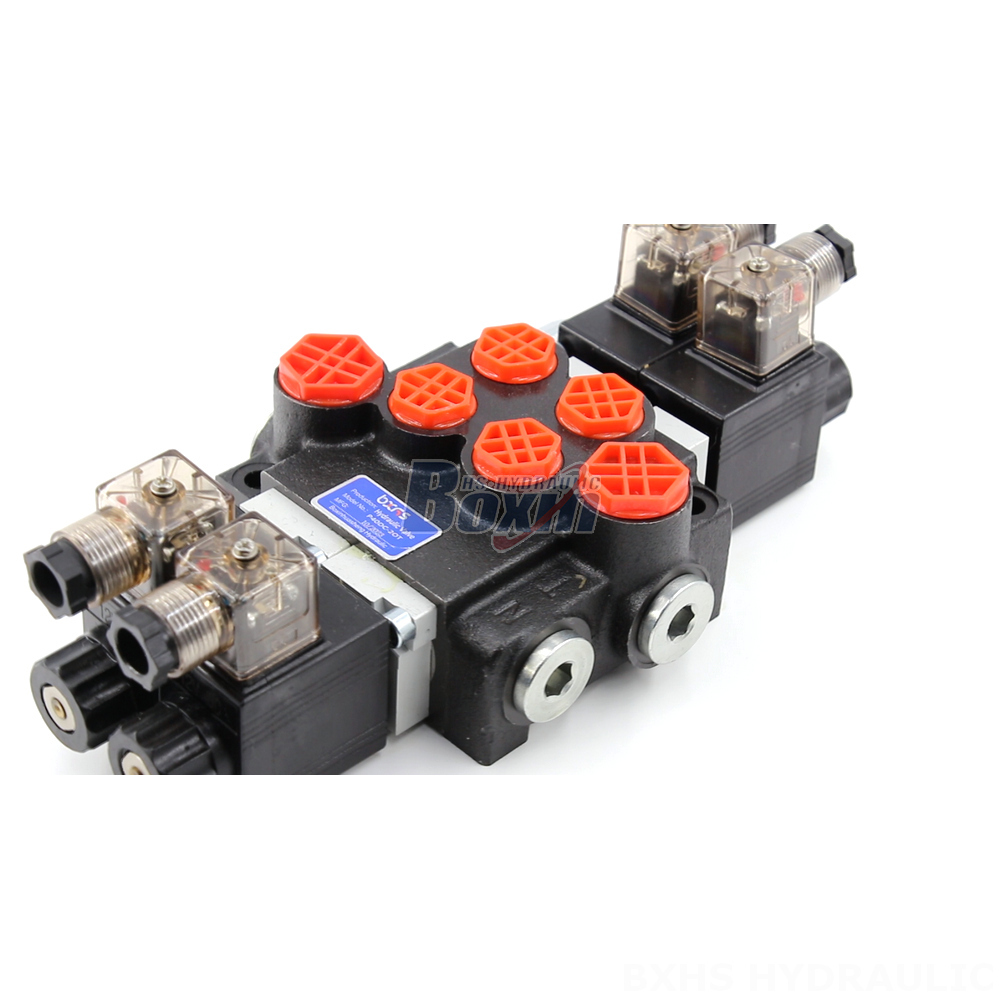

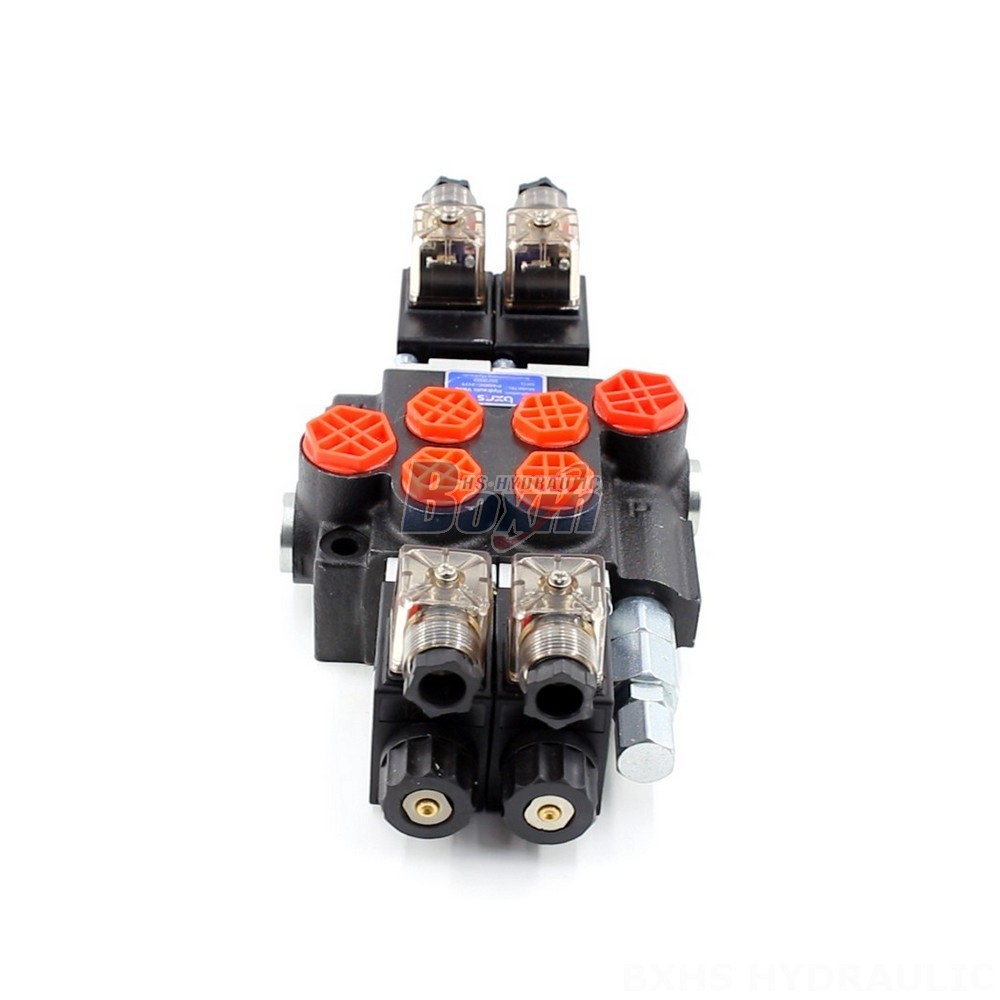

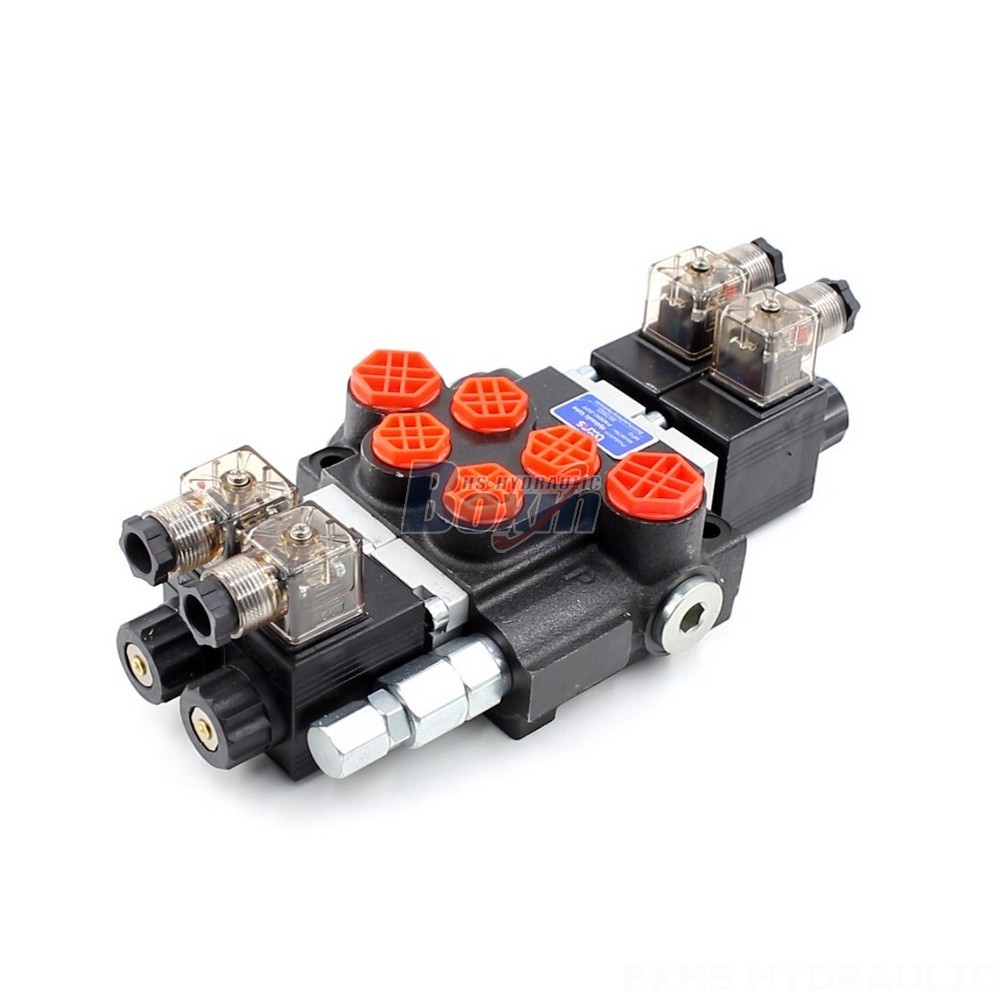

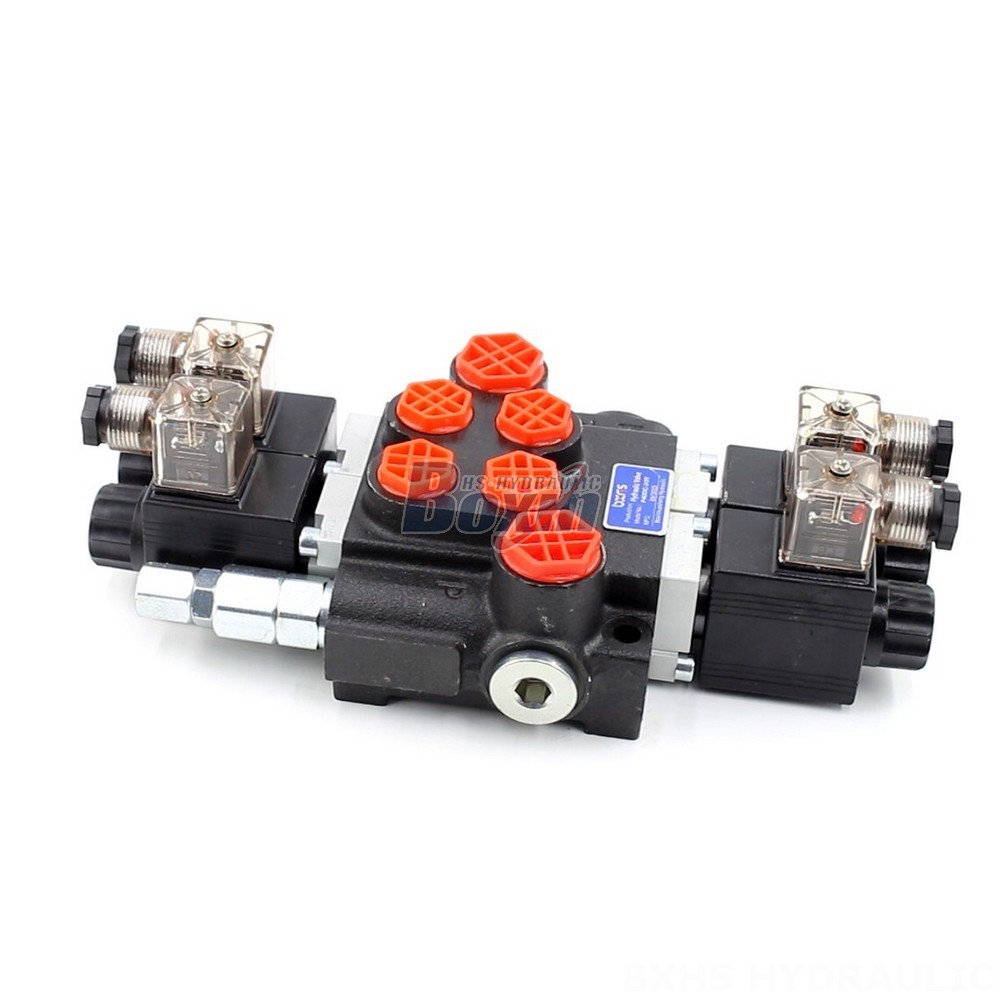

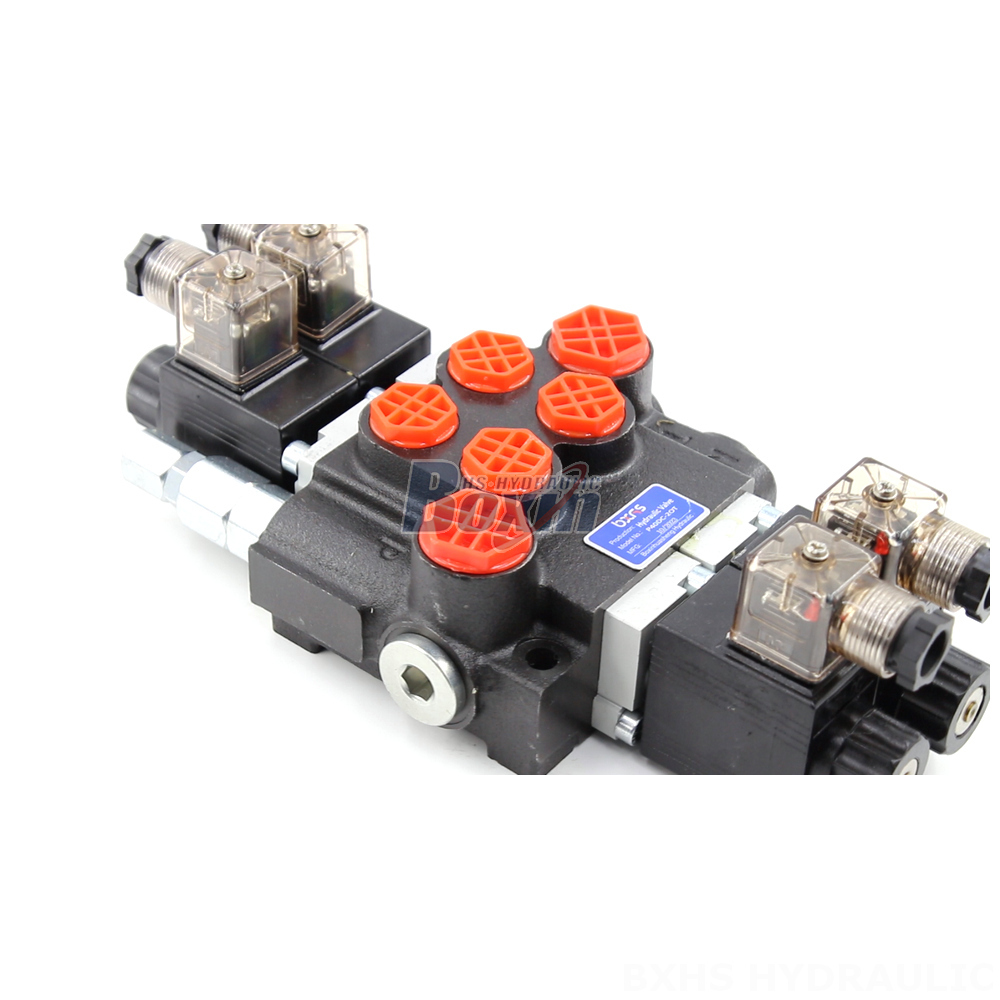

Private Label P40 Solenoid 2 Spool Monoblock Directional Valves

Private Label P40 Solenoid 2 Spool Monoblock Directional Valves

Private Label P40 Solenoid 2 Spool Monoblock Directional Valves drawing image

The P40 Series Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a compact design, robust construction, and reliable operation with a flow rate of 40 L/min and a maximum pressure rating of 250 bar.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series Solenoid 2 Spool Monoblock Directional Valve is a powerful hydraulic valve that offers precise control and efficient operation. With its compact monoblock structure, it's designed for easy installation and integration into various hydraulic systems. The valve features a 2 spool design with a rated flow of 40 L/min and a maximum pressure rating of 250 bar, making it suitable for demanding applications in material handling, construction, agriculture, and industrial vehicles. The valve's solenoid control provides reliable and responsive operation. It is also designed for a wide operating viscosity range and ambient temperature range, ensuring performance in various environments. This versatile valve is compatible with a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, wheel loaders, backhoe loaders, and dumpers. We offer this valve for manufacturing, OEM, ODM, private label, and wholesale. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
