Private Label Hydraulic Valves: Partner with Us to Build Your Brand

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:23*18*13

Waga brutto:6.00 kg

Dostępność: W magazynie

1501 Osoby oglądają ten produkt

Private Label Hydraulic Valves: Partner with Us to Build Your Brand

Private Label Hydraulic Valves: Partner with Us to Build Your Brand

Private Label Hydraulic Valves: Partner with Us to Build Your Brand drawing image

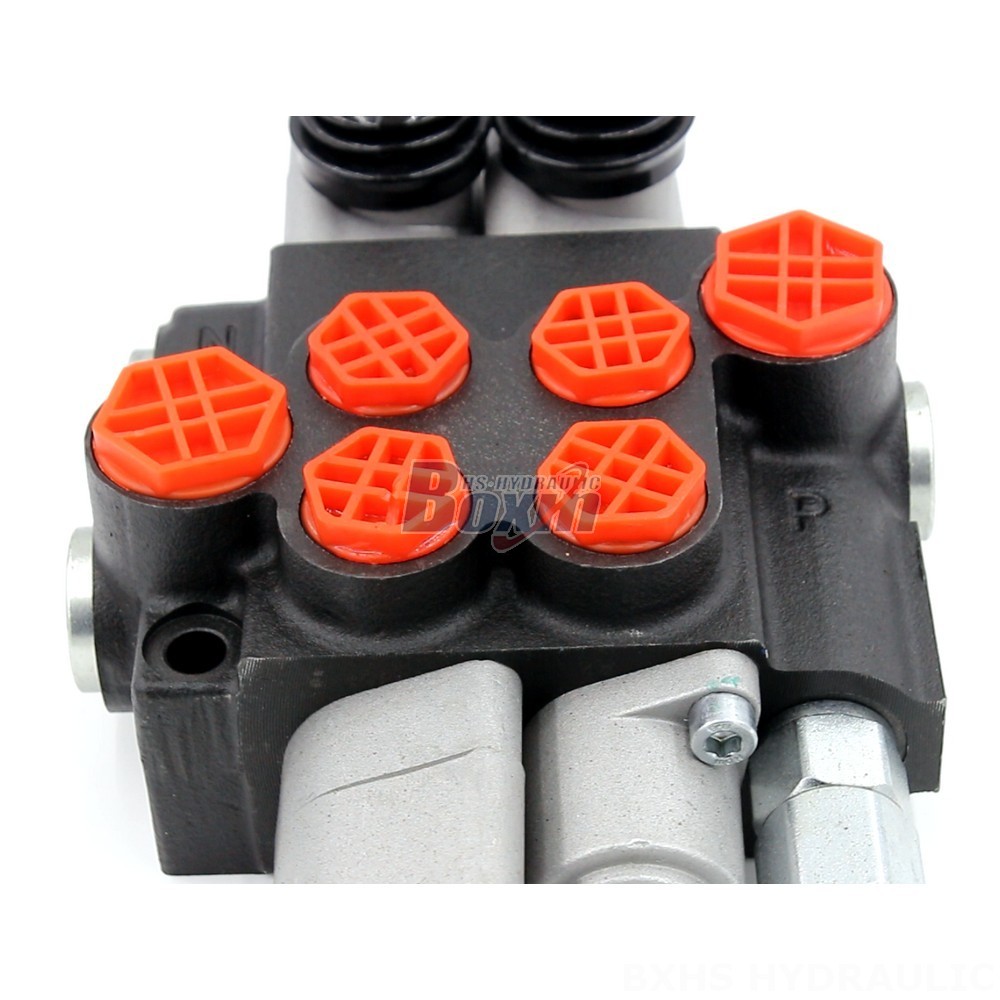

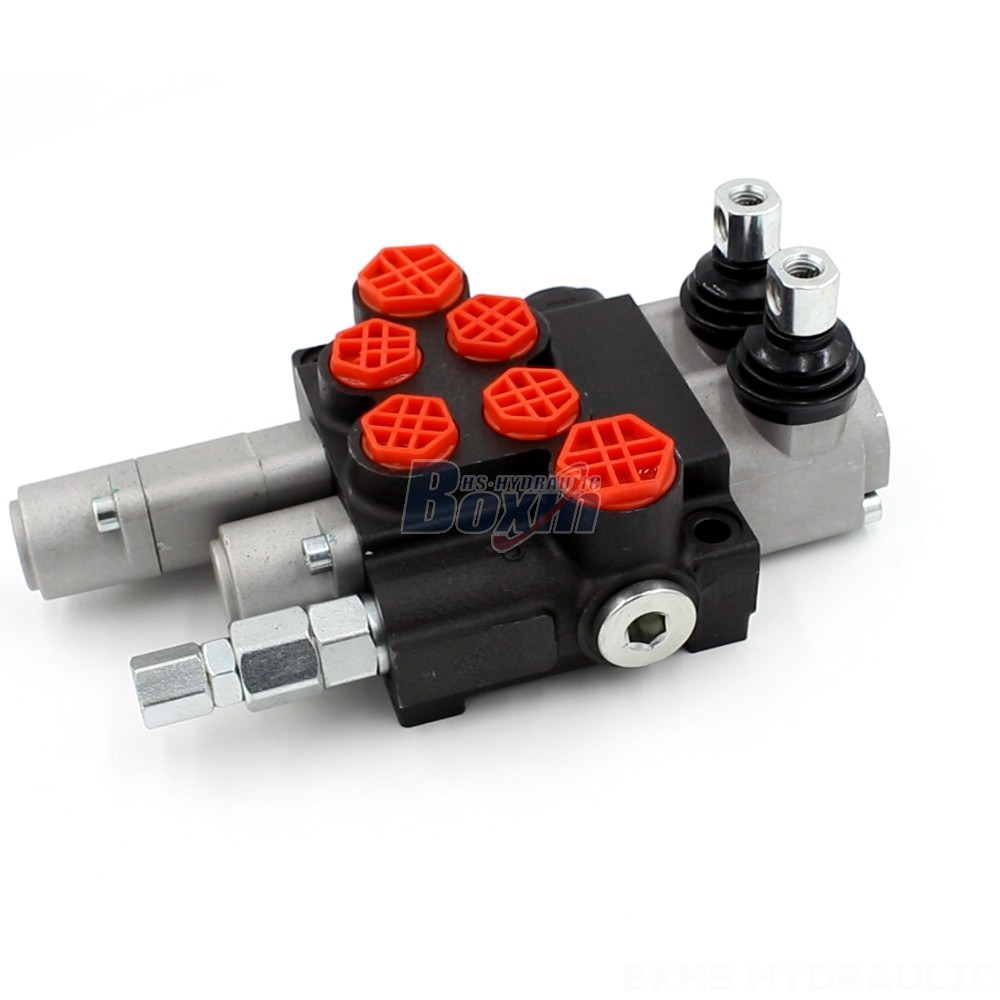

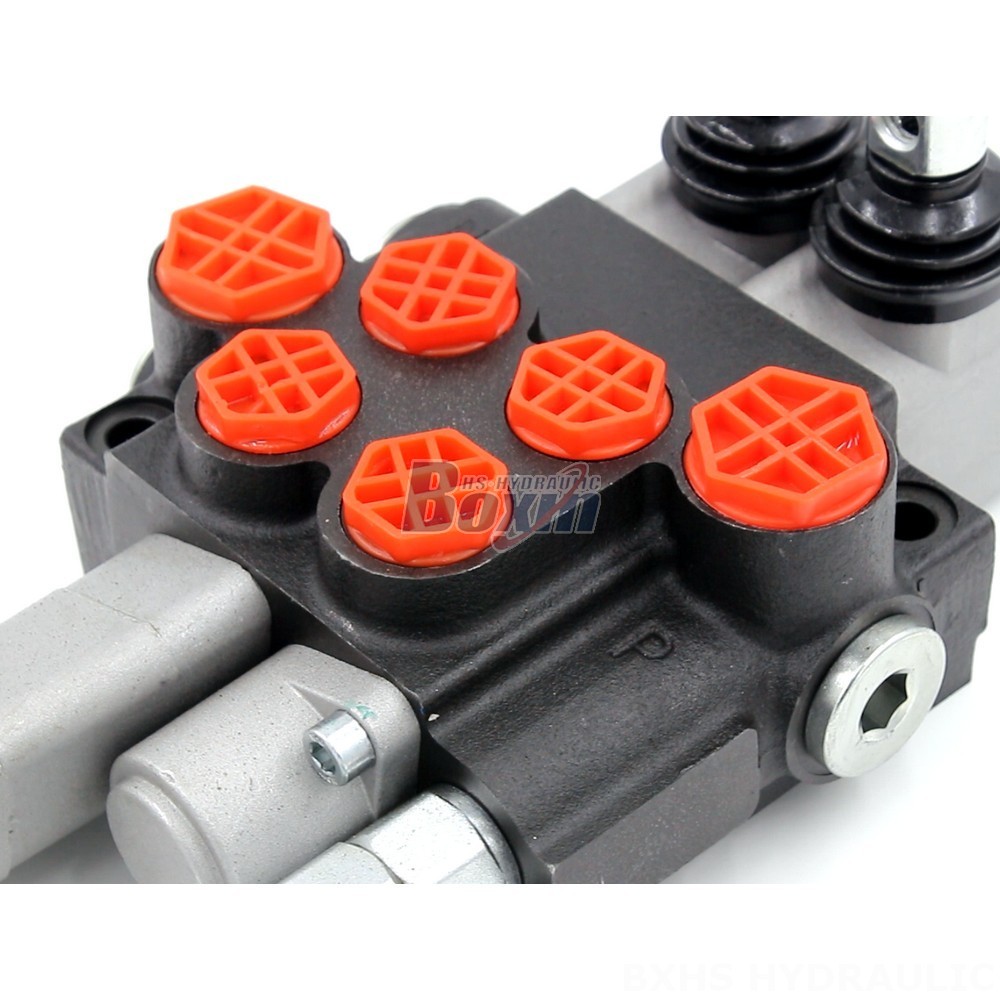

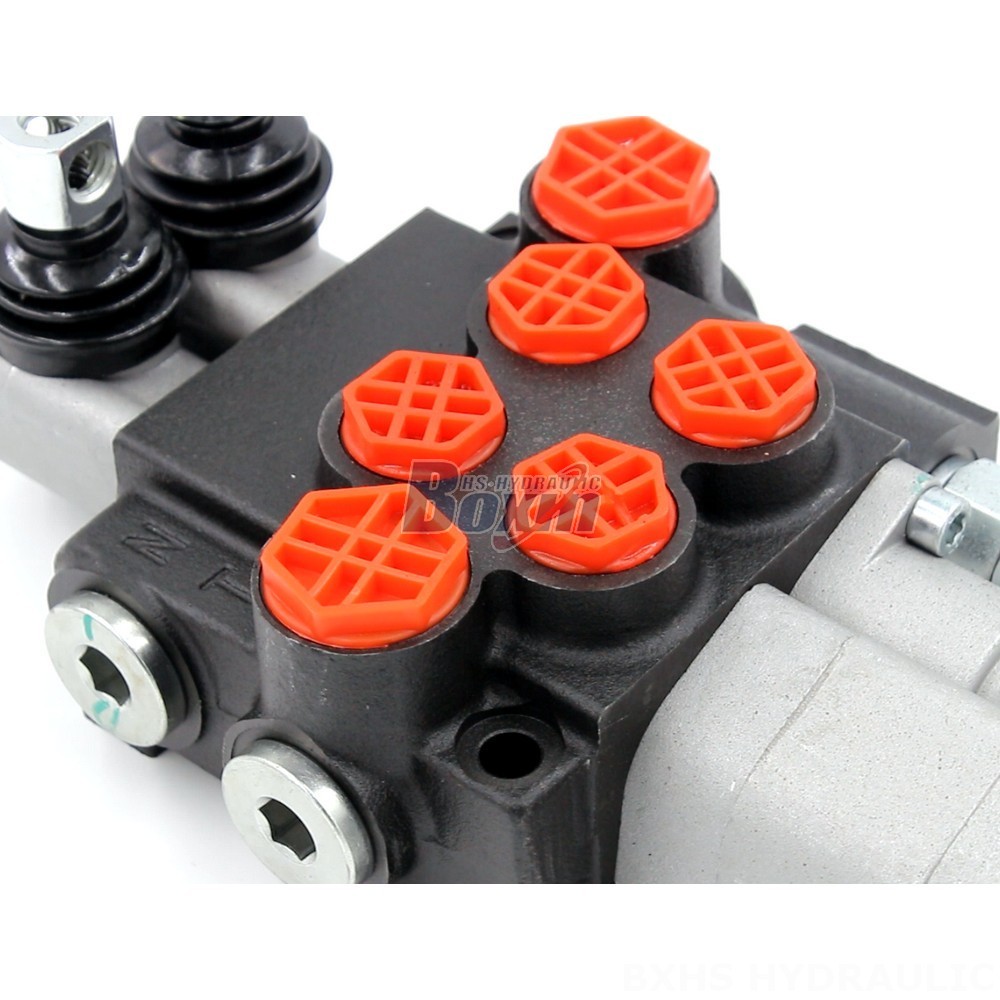

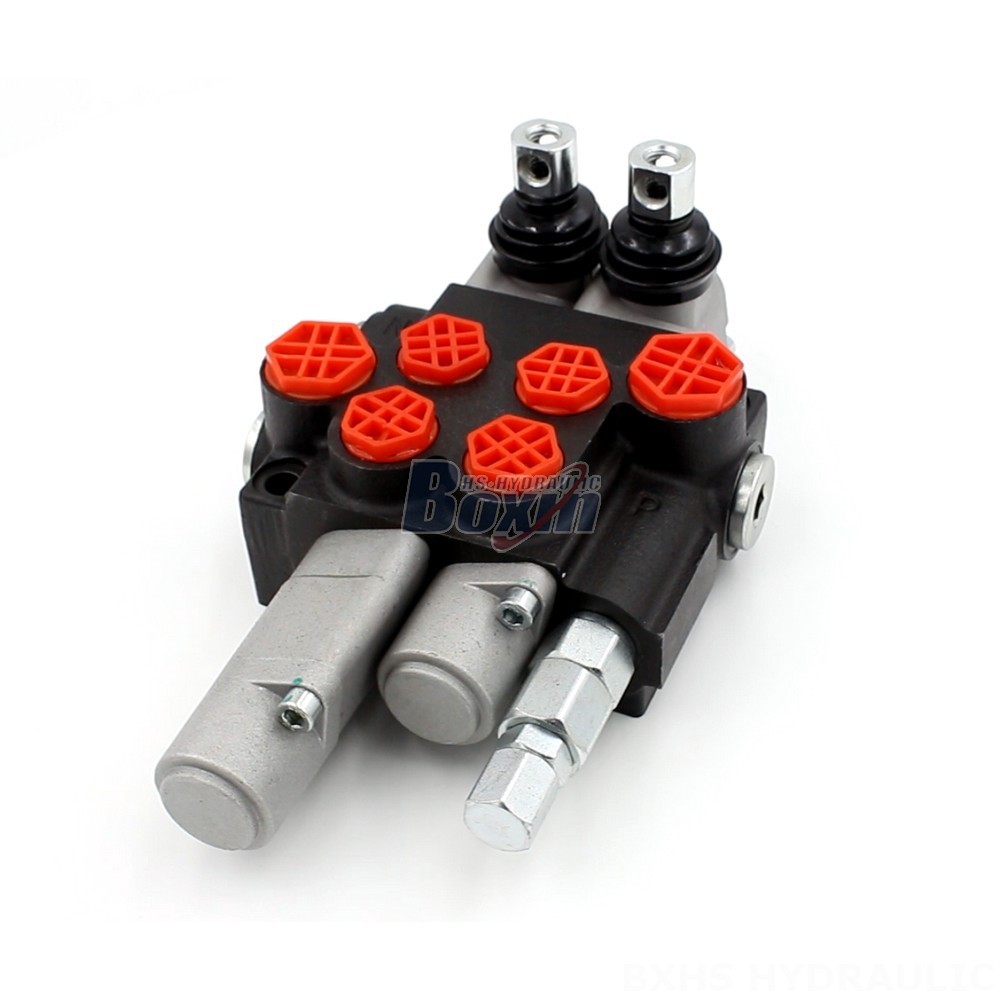

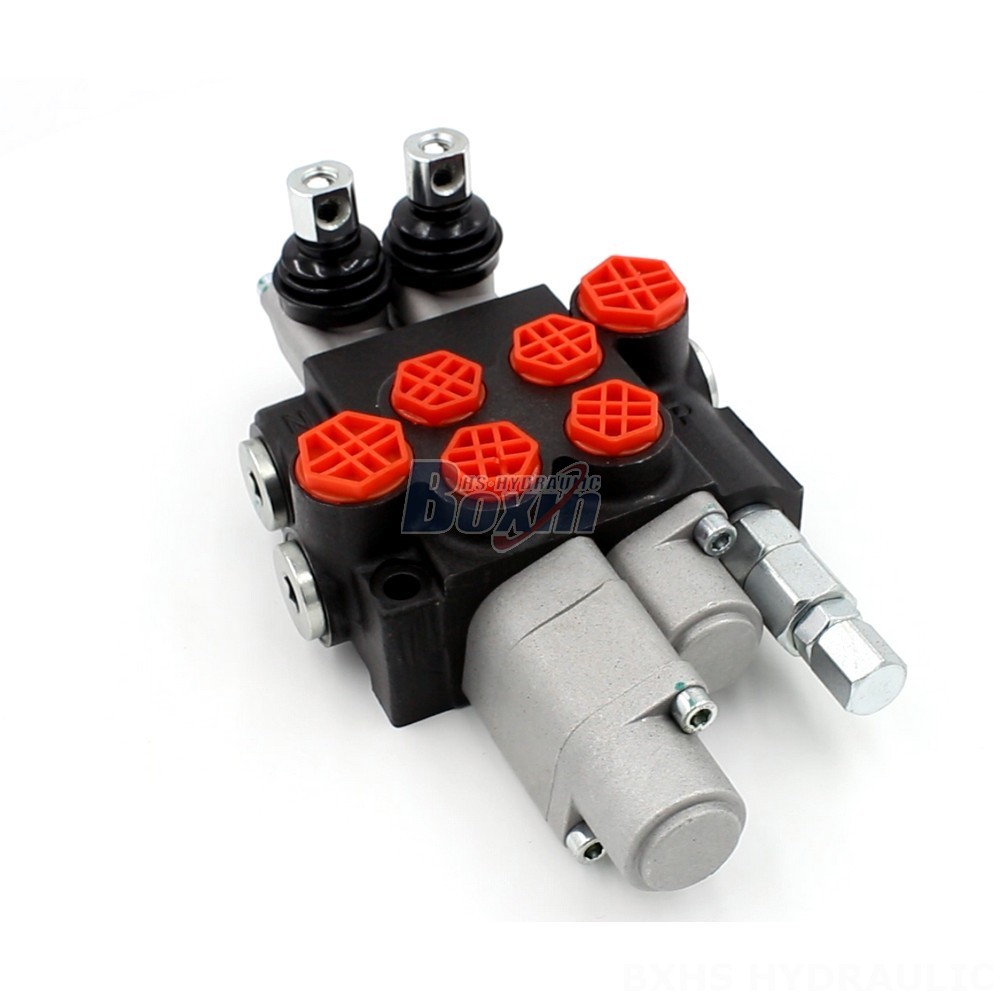

This 12V Hydraulic Spool Valve offers reliable control for various applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 2 sections, and a monoblock design. With a flow rate of 40 L/min and a maximum pressure of 250 bar, it provides robust performance. We offer OEM, private label, and customized solutions to meet your specific needs.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This 12V Hydraulic Spool Valve is a high-performance, reliable control solution for a wide range of applications in industries such as material handling, construction, agriculture, and industrial vehicles. Featuring manual control, 2 sections, and a monoblock design, this valve provides precise and efficient operation. It boasts a flow rate of 40 L/min and a maximum pressure of 250 bar, ensuring robust performance in demanding environments. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, this valve is designed for diverse conditions. Our expertise in manufacturing, OEM, private label, and custom solutions allows us to tailor this product to your specific requirements. We are committed to delivering high-quality hydraulic valves that meet your exact specifications and contribute to your brand's success.
