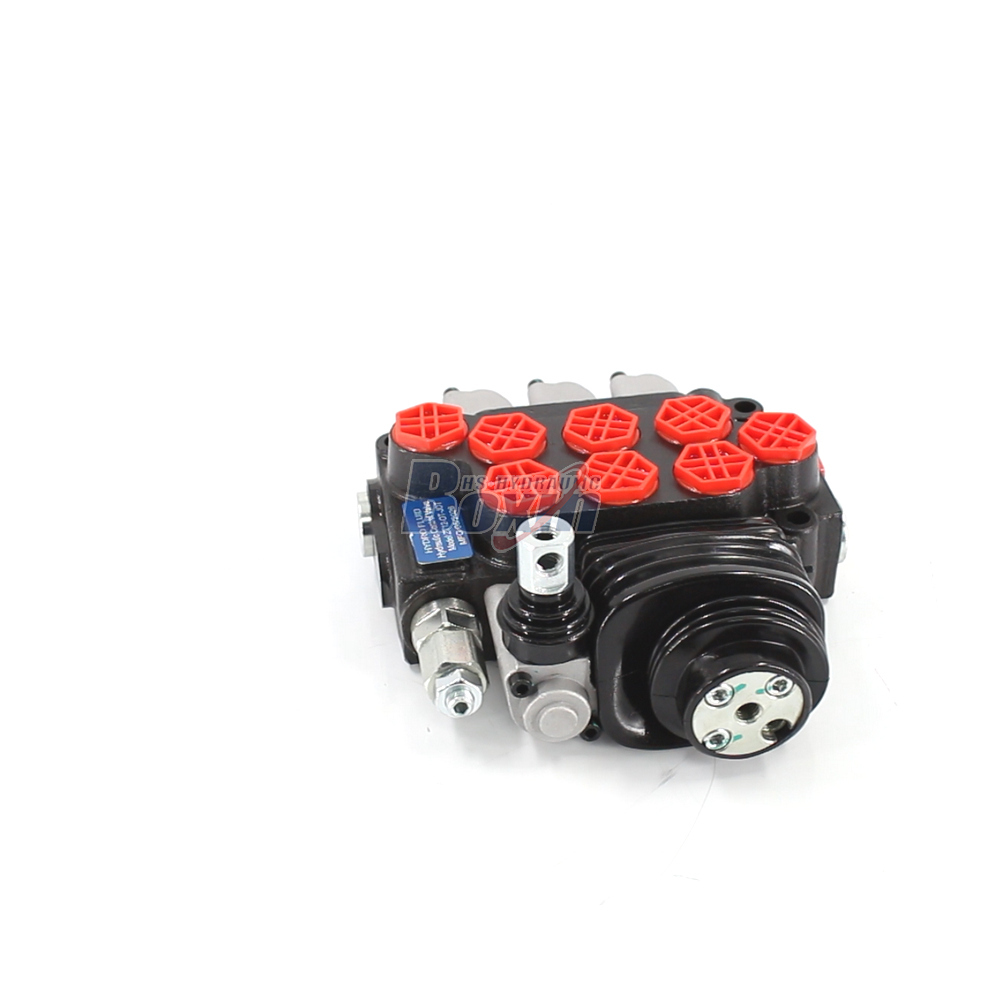

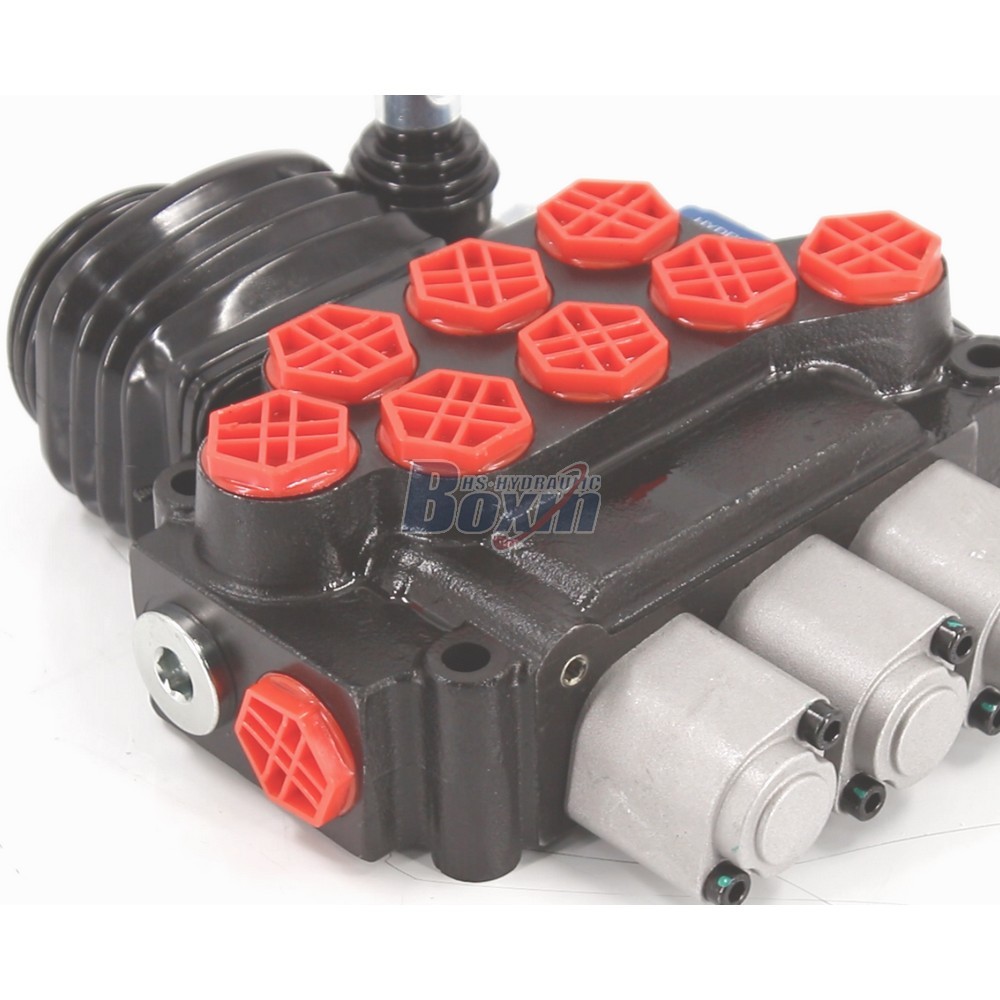

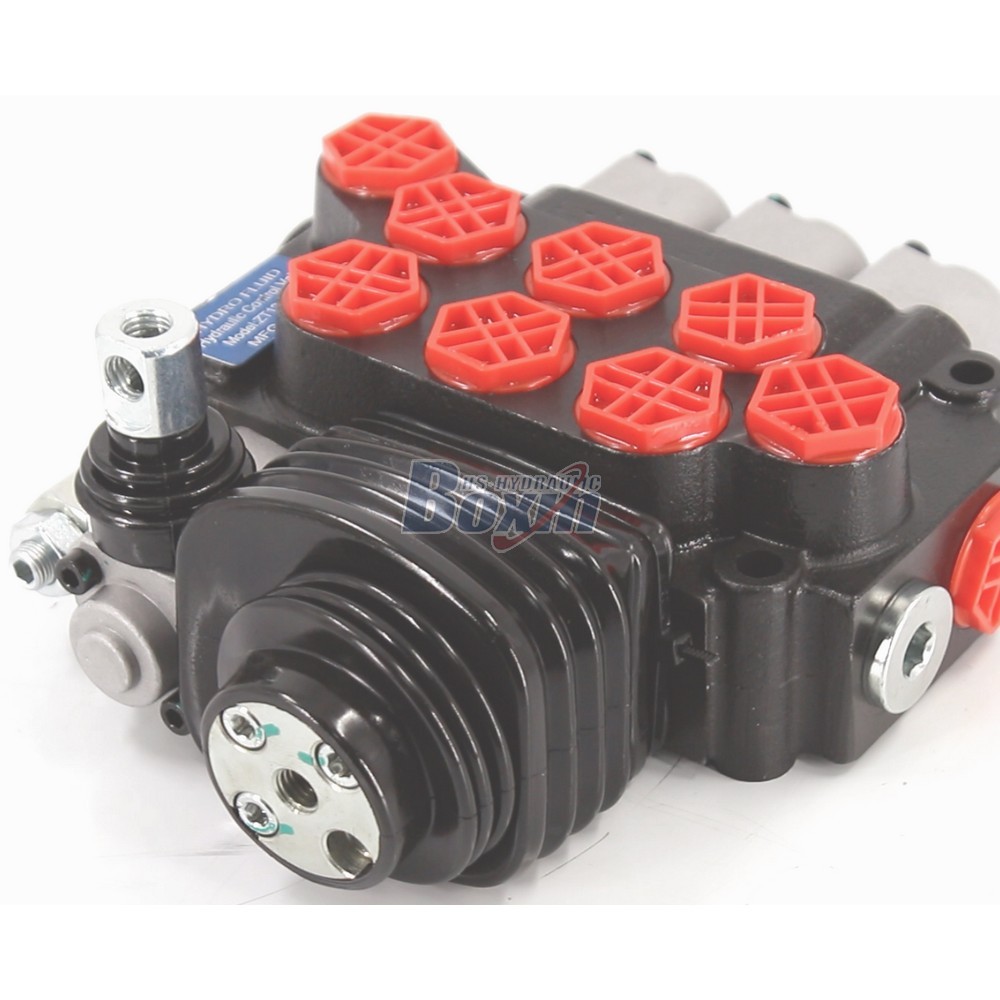

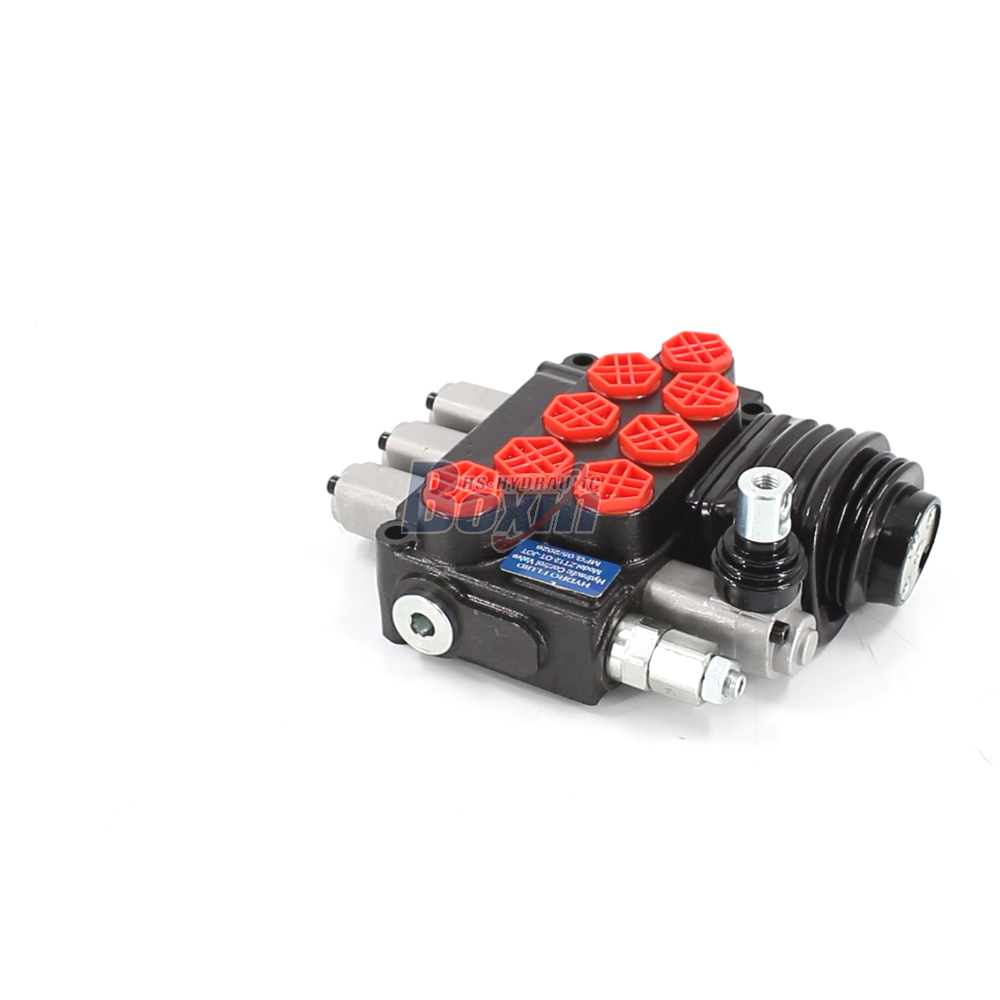

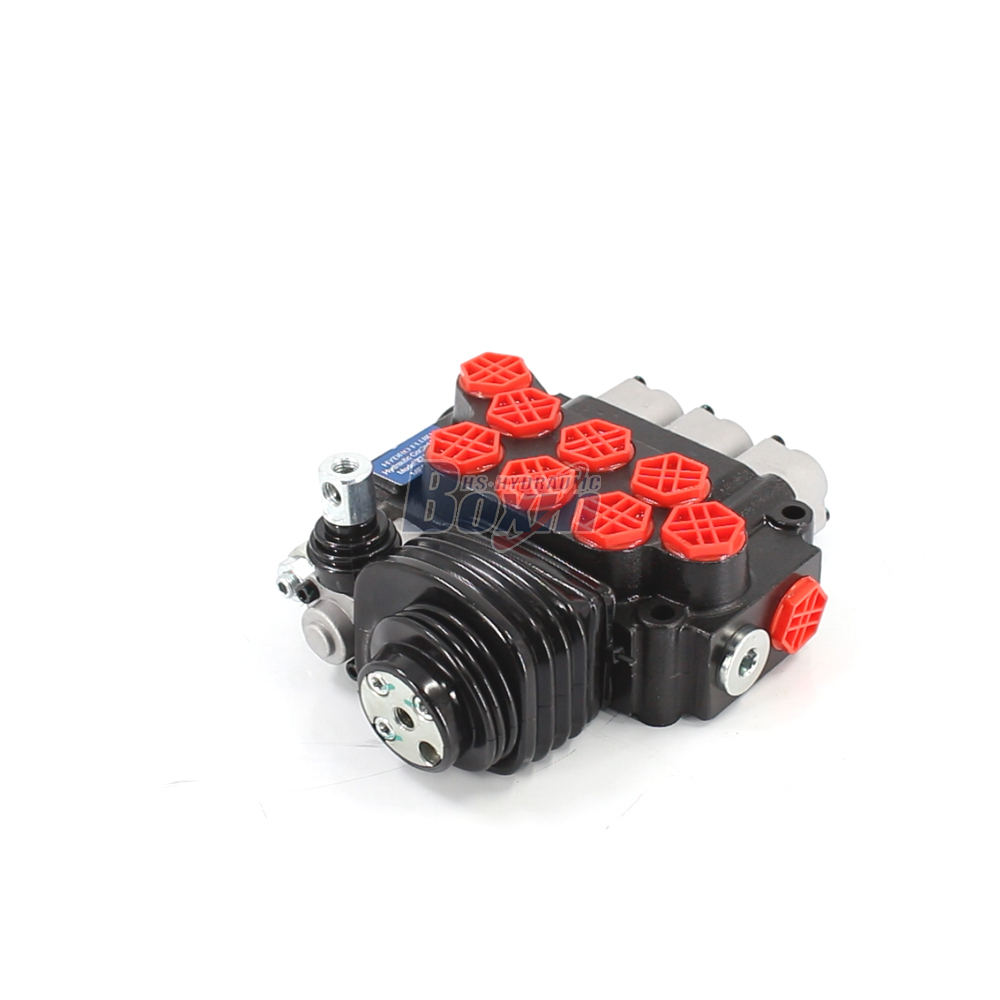

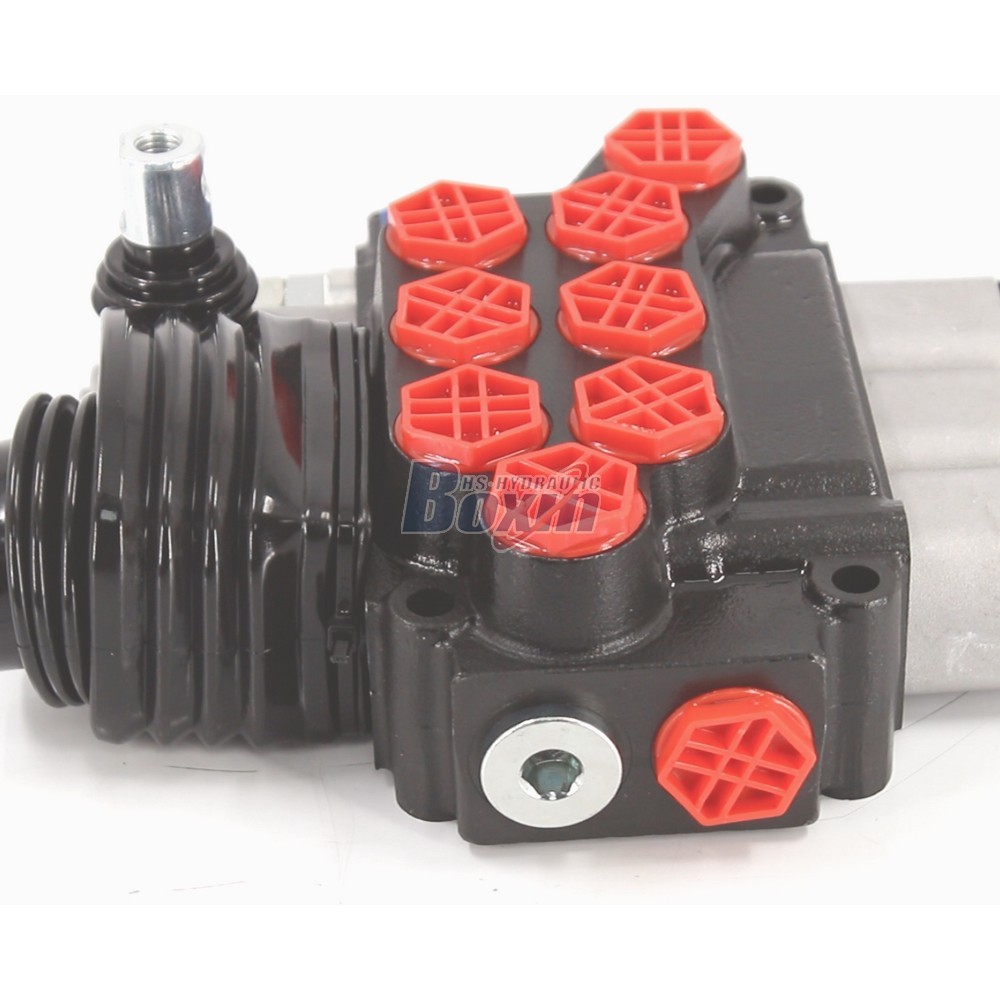

Engineered for mini excavators and skid steers, this ZT12-OT Joystick Operated 3 Spool Hydraulic Directional Valve handles 50 L/min at 250 bar. Backed by a 25-year Professional Manufacturer with IATF 16949 certification, it ensures reliable performance for material handling and agricultural machinery.
| Seria ZT12 Hydraulic Control Valve Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Kabel, Dźwignia sterownicza, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny |
| Przepływ znamionowy | 50 l/min (13,2 USGPM) |
| Maksymalne ciśnienie | 250 bar (3600 psi) |
| Port wlotowy | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port wylotowy | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Rozmiar portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji |
| Typ konstrukcji | Zawór blokowy |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
**1. Precise Joystick Hydraulic Control Valve Operation**
- Features an ergonomic joystick control method for intuitive, proportional flow management, ensuring smooth operation in tight spaces.
- Designed with G1/2 inlet/outlet and G3/8 work ports, offering seamless integration into existing hydraulic circuits for compact wheel loaders and telehandlers.
**2. Reliable 3 Spool Directional Control Valve Design**
- The 3-spool monoblock configuration supports simultaneous operations with a rated flow of 50 L/min (13.2 US gpm) and max pressure of 250 bar (3600 psi).
- Ideal for complex tasks in backhoe loaders and front-end loaders, providing stable directional control under heavy-duty working conditions.
**3. Durable ZT12 Series Monoblock Valve Construction**
- Built on the proven ZT12 series platform, this unit undergoes 100% bench testing for pressure, flow, and sealing to guarantee zero-leak performance.
- Manufactured in our 68,000 sqm facility using 260+ vertical machining centers, ensuring high dimensional accuracy and consistent quality batch after batch.
**4. Versatile Mini Excavator Hydraulic Valve Application**
- Specifically calibrated for mini excavators, skid steer loaders, and wood splitters, delivering optimal response times for precision earthmoving.
- Compatible with major international brands, serving as a cost-effective Factory Direct Sales replacement without compromising on system efficiency or safety.
**5. Custom OEM/ODM Available Manufacturing Strength**
- Leverage our 25+ years of expertise and 35+ senior engineers for tailored solutions, including custom logos, casting modifications, and private labeling.
- As a China Wholesale hub with 1.5 million annual capacity, we offer rapid lead times, CE/SGS certified quality, and secure anti-rust packaging for global export.
