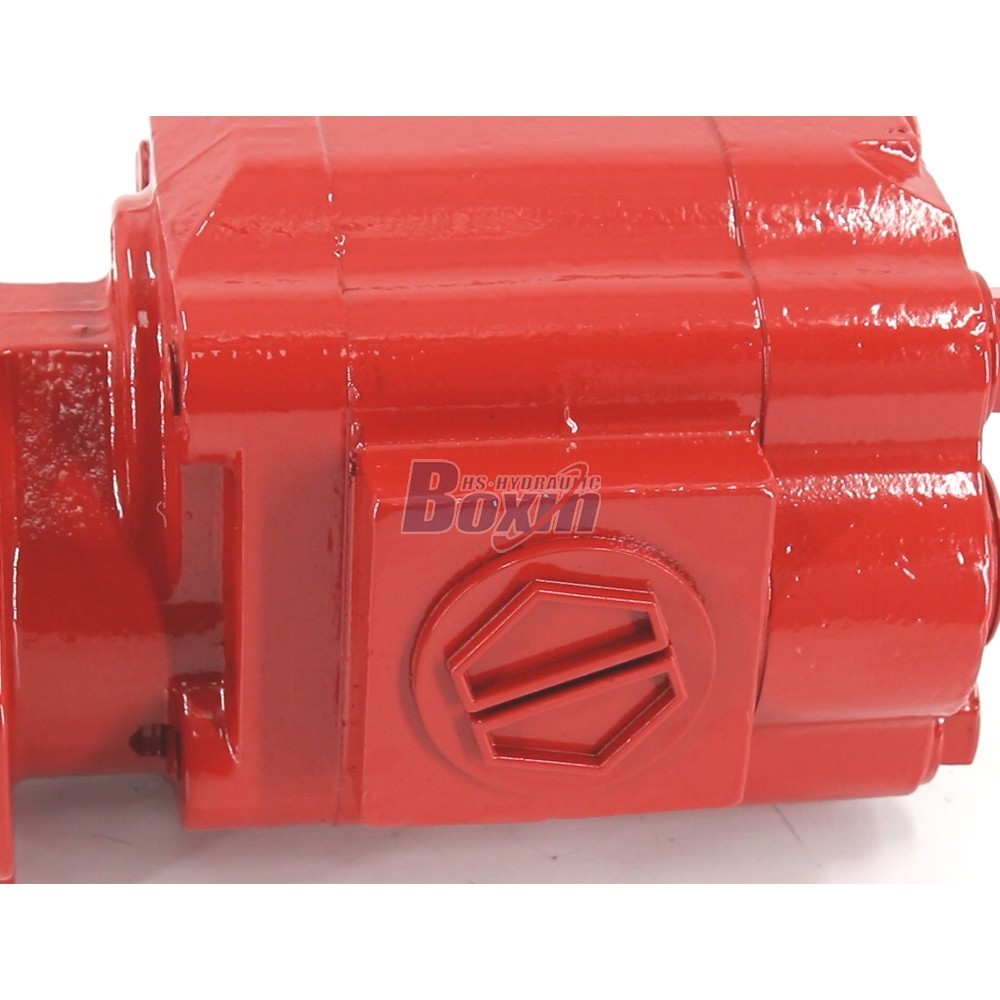

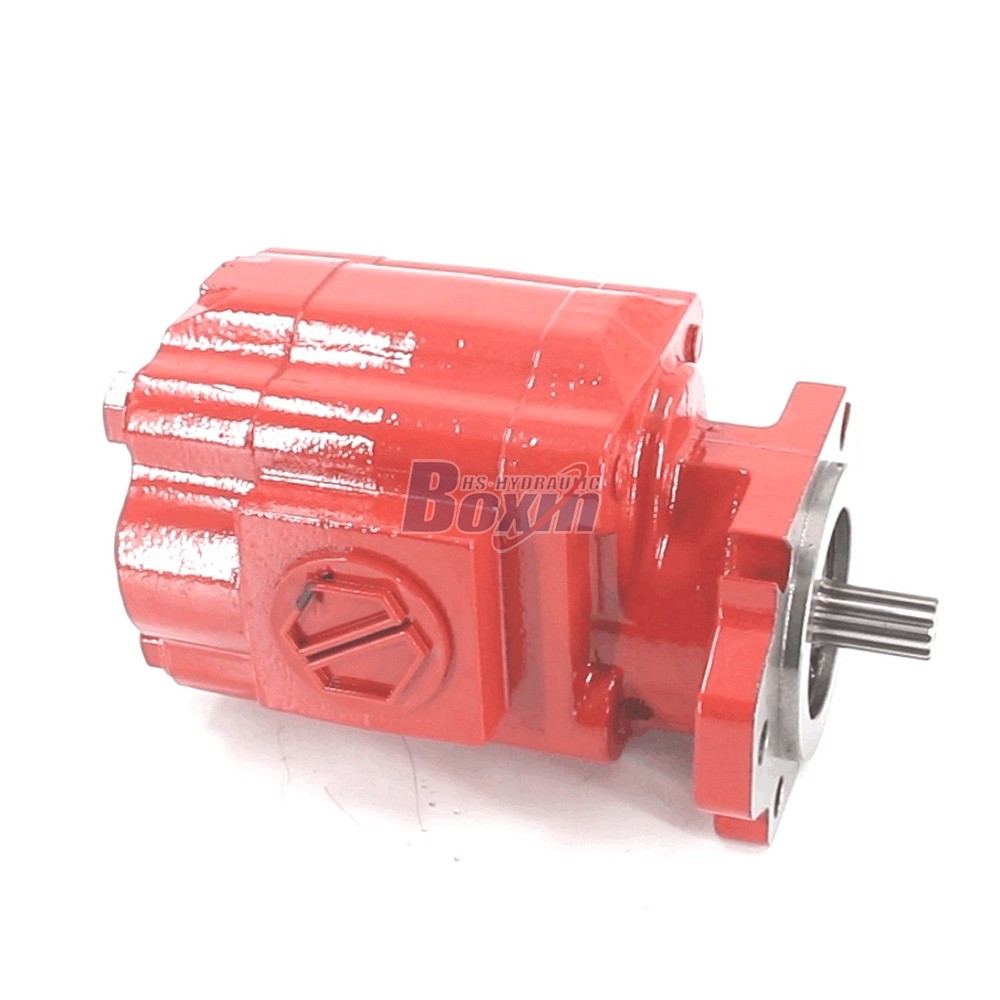

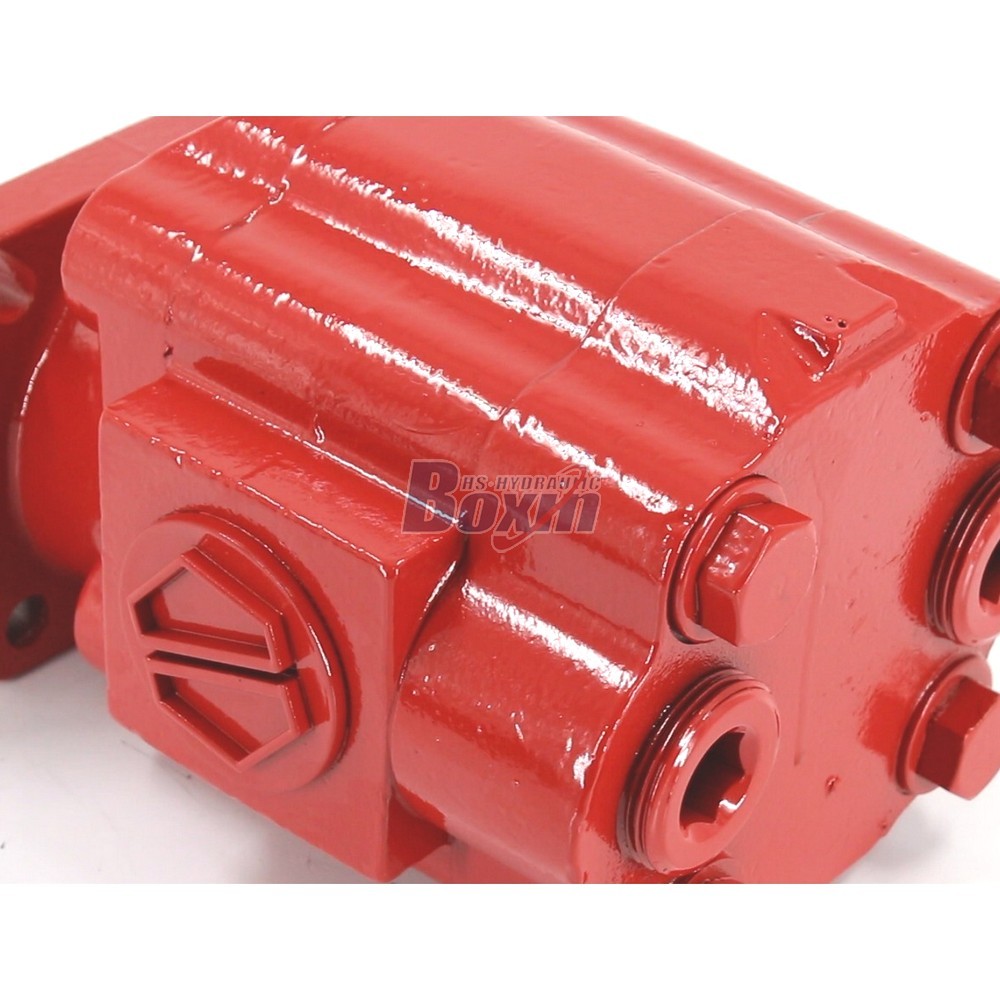

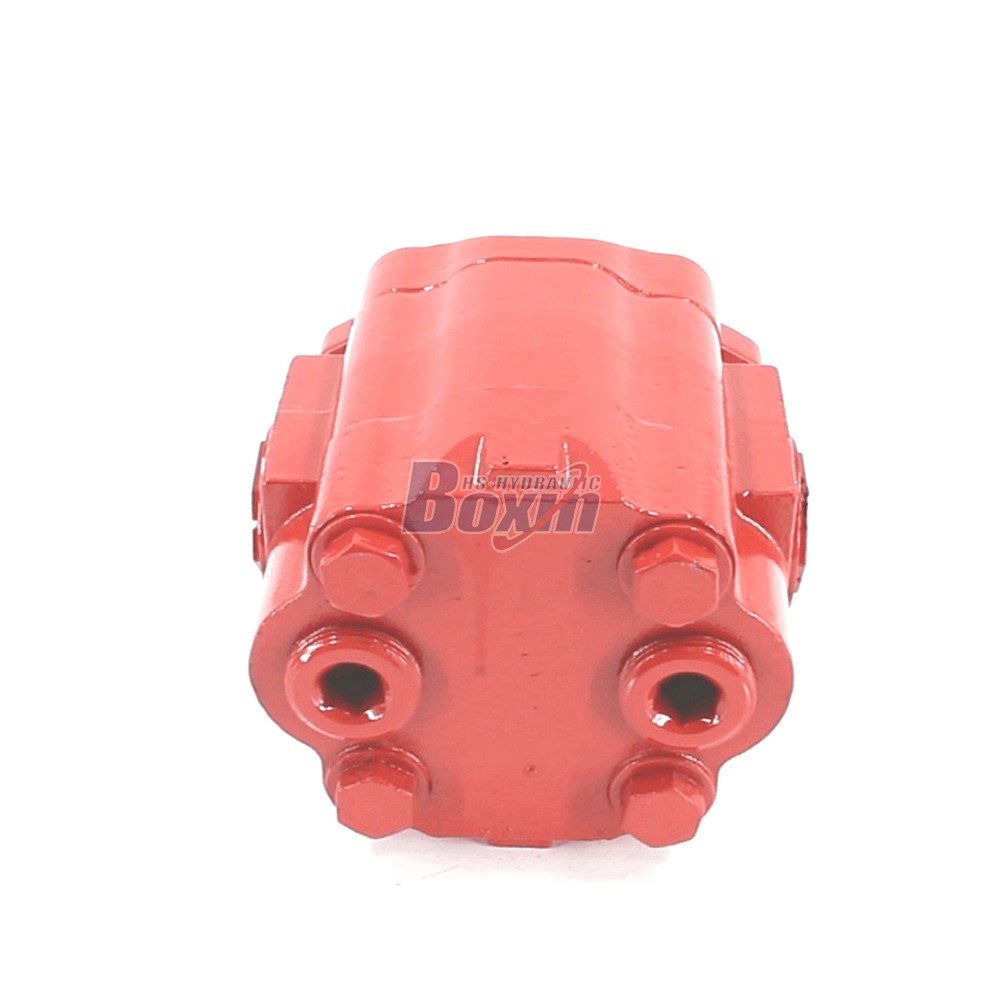

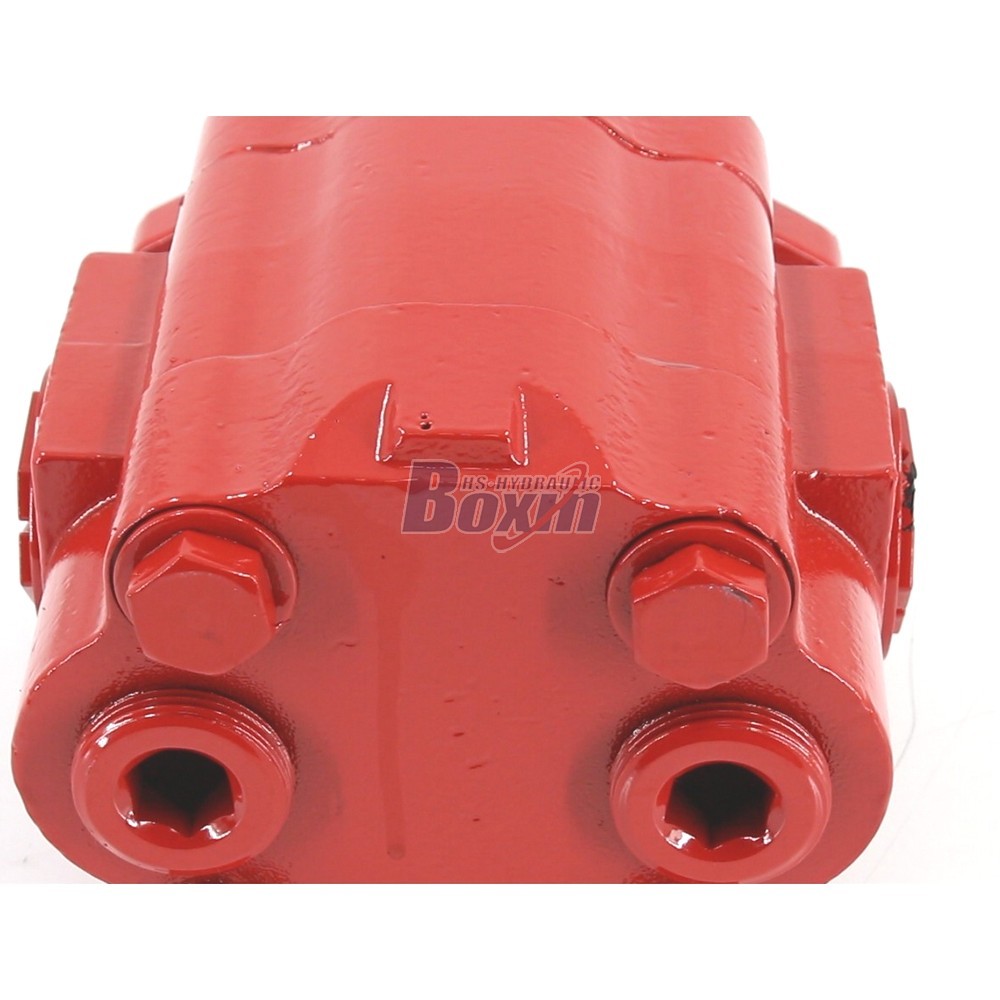

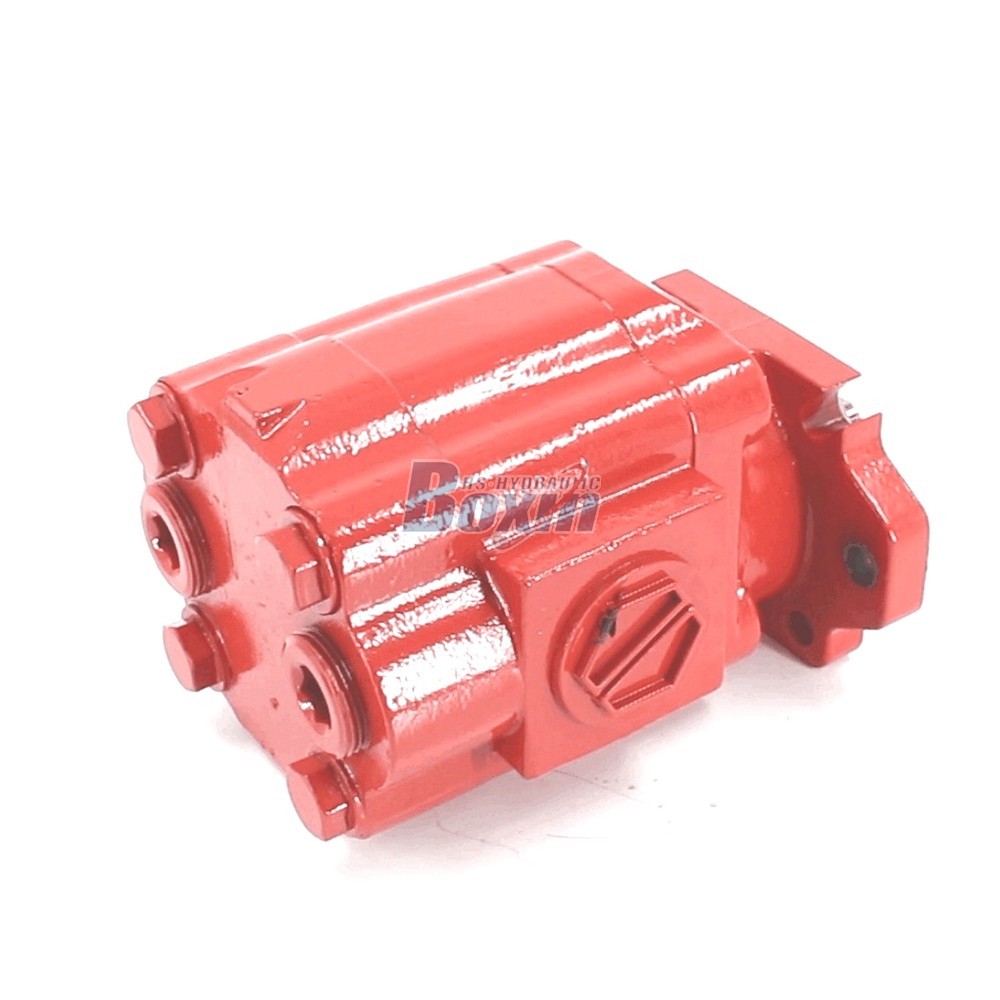

Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump

Pojemność skokowa:104,5 cm³/obr.

Ciśnienie znamionowe:16 MPa (2320 psi)

Maksymalne ciśnienie:17 MPa (2465 psi)

Maksymalna prędkość:2400 obr./min

Kierunek obrotu:Dwukierunkowy

Marka:BXHS

Typ produktu:Pompa hydrauliczna zębata

Seria produktów:Seria P51 Pompa hydrauliczna zębata

Rozmiar opakowania:45*25*18

Waga brutto:18.00 kg

Dostępność: W magazynie

164 Osoby oglądają ten produkt

Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump

Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump

Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump drawing image

This P51 Series Hydraulic Gear Pump features a 104.5 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for telehandlers and loaders. Manufactured by a 25-year IATF 16949 certified factory with 1.5M annual capacity, it ensures reliable performance for construction and agricultural machinery.

Seria P51 Pompa hydrauliczna zębata Parametry
Pojemność skokowa 104,5 cm³/obr., 21 cm³/obr., 41,8 cm³/obr., 52,3 cm³/obr., 62,7 cm³/obr., 64,6 cm³/obr.
Ciśnienie znamionowe 16 MPa (2320 psi)
Maksymalne ciśnienie 17 MPa (2465 psi)
Prędkość znamionowa 2200 obr./min
Maksymalna prędkość 2400 obr./min
Kierunek obrotu Dwukierunkowy
Materiał Żeliwo
Struktura Zewnętrzna pompa zębata
Wersja kołnierza Flange owalny A, Otwory montażowe ISO-4, Kołnierz SAE
Typ wału Nacięcie ewolwentowe X

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise 104.5 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa, ensuring stable power output.
- Operates efficiently at a rated speed of 2200 r/min (max 2400 r/min) with bidirectional rotation, providing versatile installation options for complex hydraulic systems.

**2. Versatile 104.5 cc/rev Gear Pump Applications**
- Engineered specifically for heavy-duty equipment including telehandlers, forklifts, wheel loaders, skid steer loaders, and backhoe loaders.
- Widely used in material handling, construction, earthmoving, and agriculture sectors, offering seamless compatibility with midi-excavators, tractors, harvesters, and sweepers.

**3. Reliable P51 Series Hydraulic Pump Quality**
- Produced in our 68,000 sqm facility with 260+ vertical machining centers, adhering to strict IATF 16949 standards and CE compliance.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing integrity, supported by SGS detection and 25+ autonomous patents for guaranteed durability.

**4. Durable Bidirectional Gear Pump Construction**
- Features advanced anti-rust treatment and heavy-duty wooden crate packaging to ensure safe global delivery and long-term storage stability.
- Designed as a direct replacement for international mainstream brands, offering cost-effective solutions without compromising on structural integrity or operational lifespan.

**5. Factory Direct Sales & OEM Customization**
- Leverage our 25 years of manufacturing expertise and 1.5 million annual production capacity for wholesale direct sales and bulk orders.
- Supported by 35+ senior engineers, we offer comprehensive OEM/ODM services including custom logos, casting modifications, and private label solutions for distributors.
