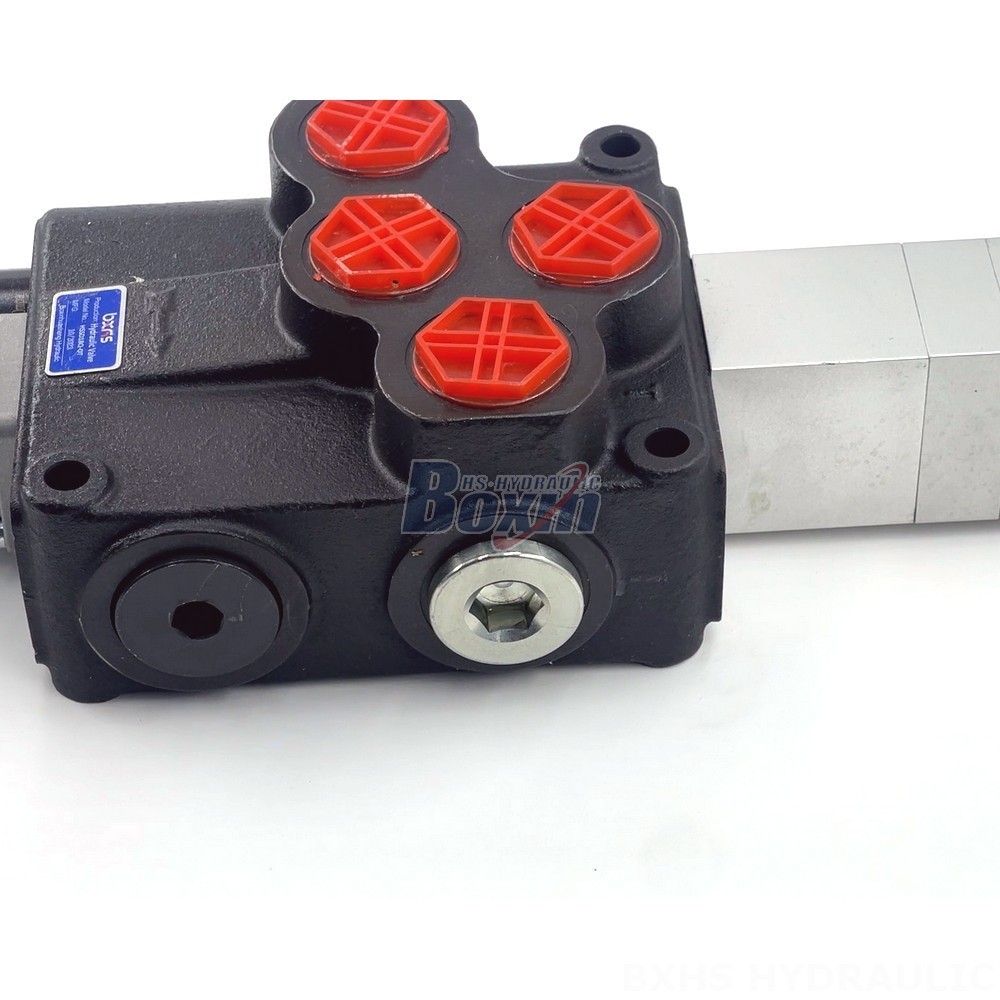

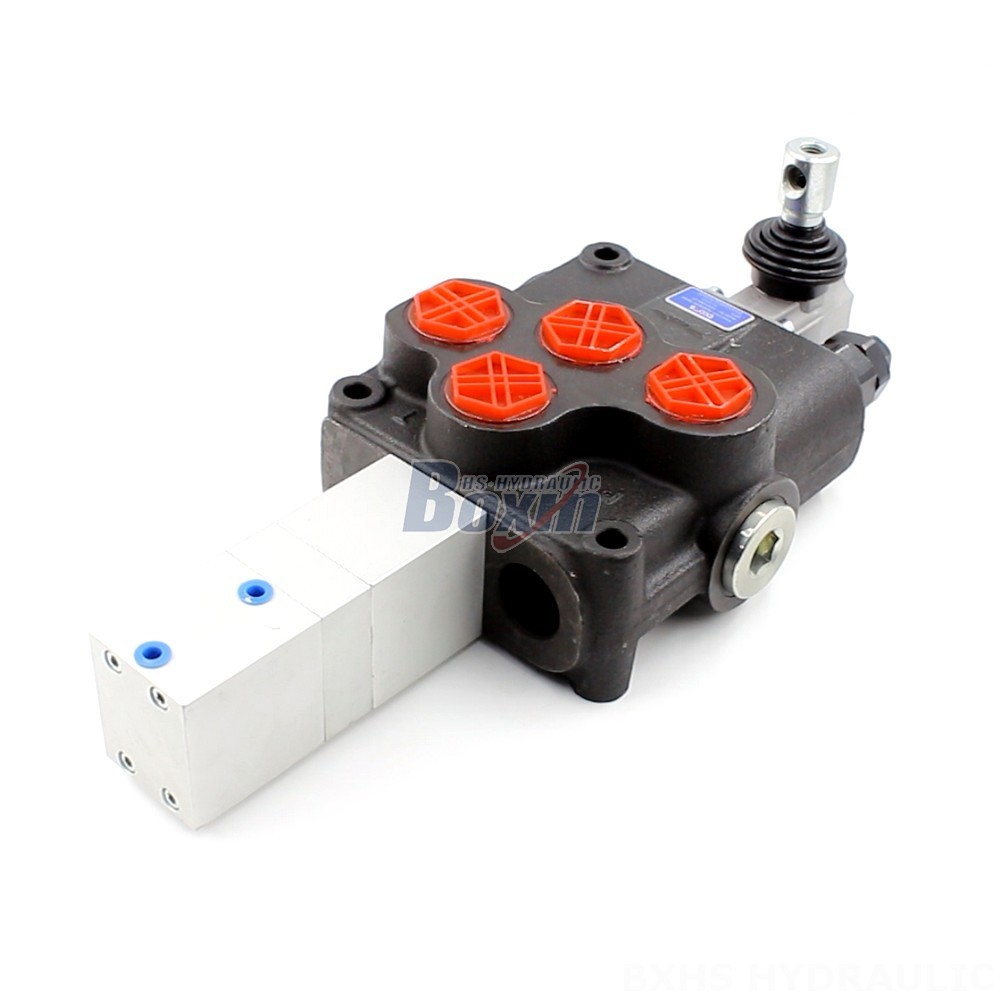

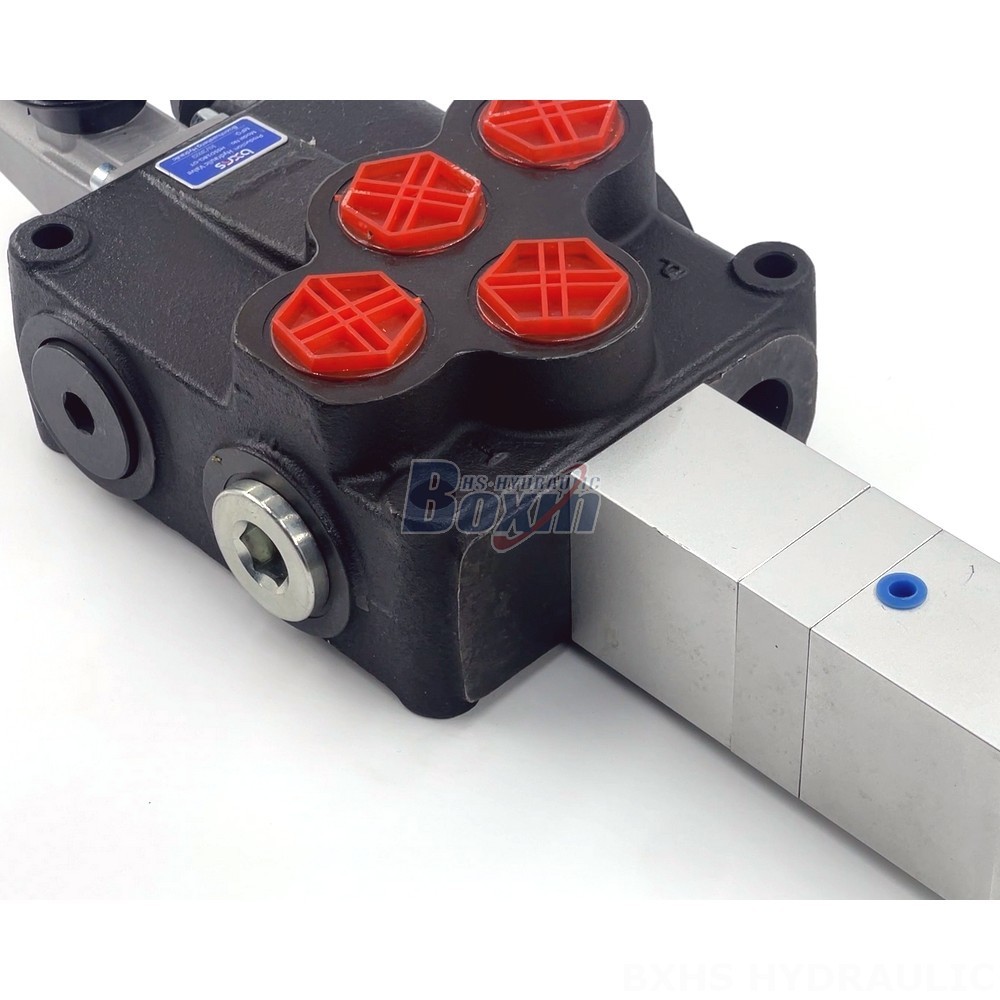

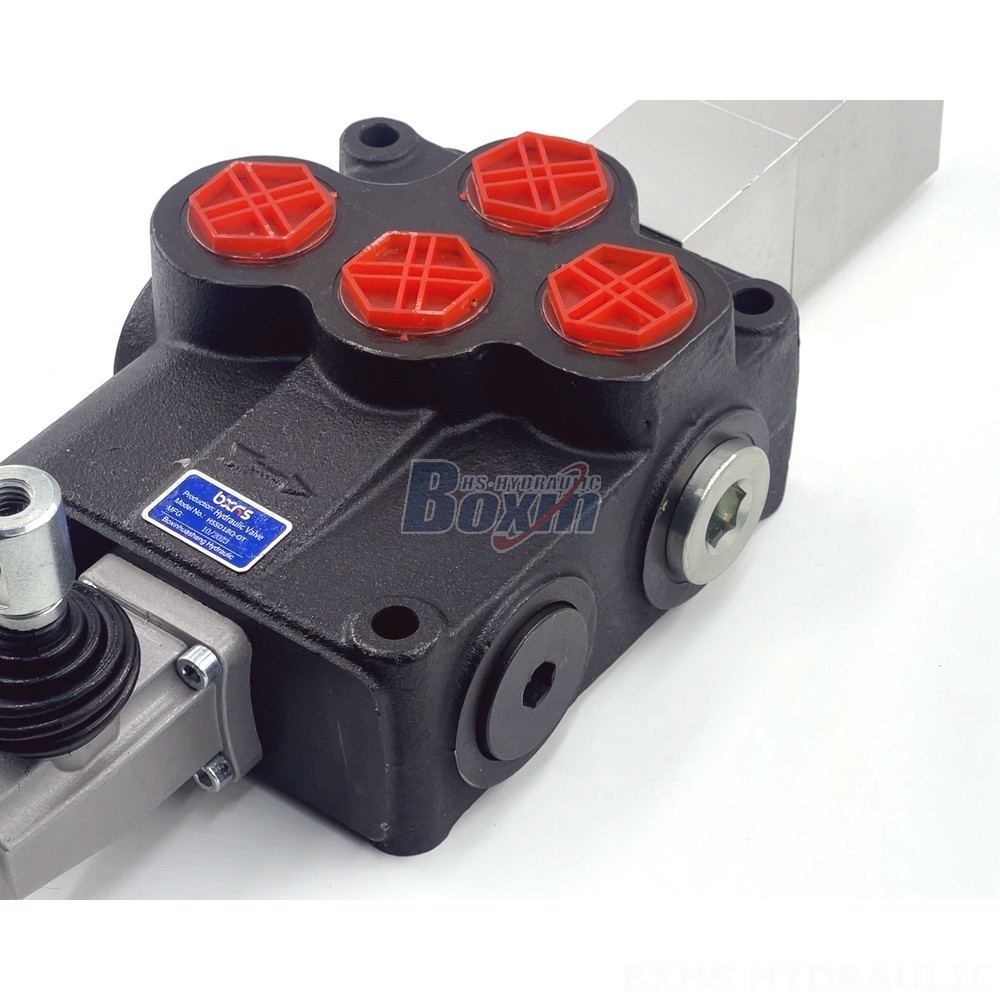

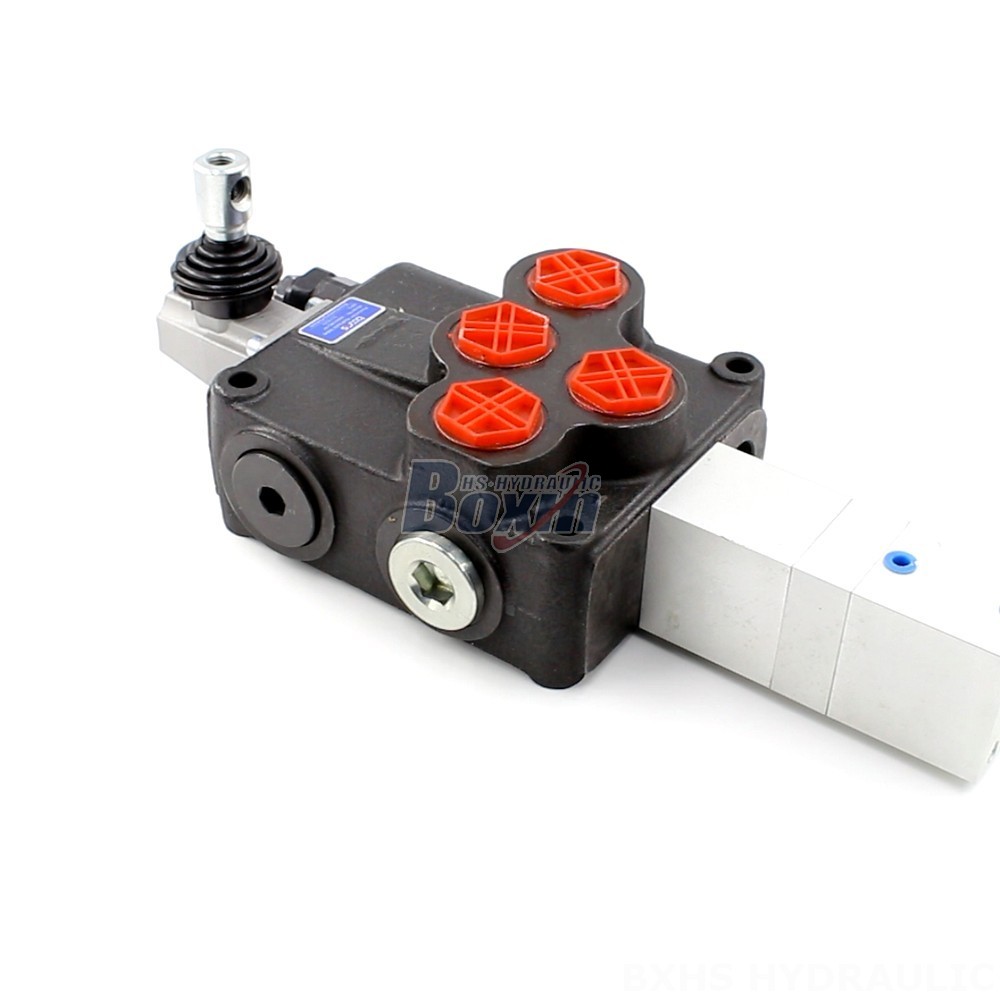

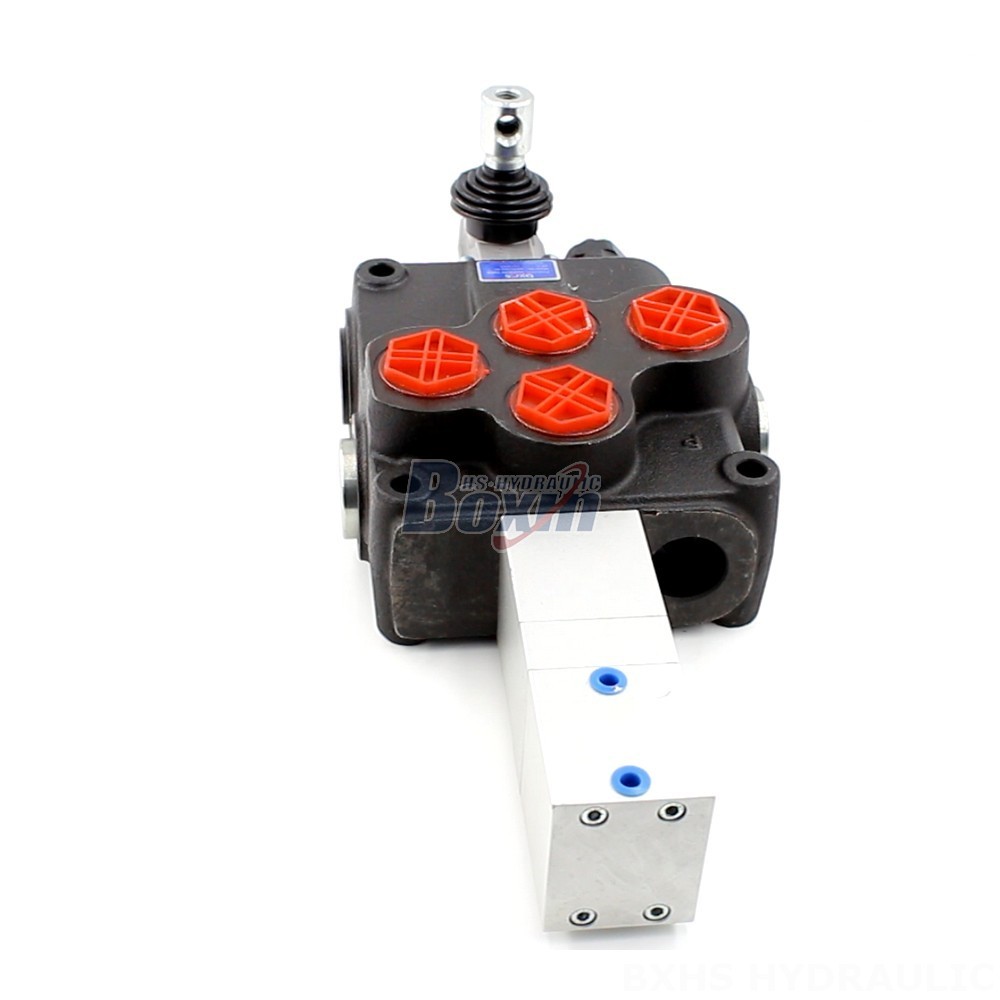

Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Metoda sterowania:Pneumatyczna

Szpula:1-sekcyjny

Przepływ znamionowy:160 l/min (42,2 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1

Port wylotowy:G1

Rozmiar portu:G1

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria SD18 Zawór sterujący jednoczęściowy

Rozmiar opakowania:27*44*16

Waga brutto:16.00 kg

Dostępność: W magazynie

980 Osoby oglądają ten produkt

Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Pneumatic Valve | SD18 Model | Factory Direct & Customizable drawing image

The SD18 Series Hydraulic Direction Control Valve is a pneumatic, monoblock valve designed for a variety of applications including material handling, construction, agriculture, and industrial vehicles. This high-performance valve offers a rated flow of 120 L/min and a maximum pressure of 315 bar.

Seria SD18 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny
Przepływ znamionowy 160 l/min (42,2 USGPM)
Maksymalne ciśnienie 305 bar (4400 psi)
Port wlotowy G1/2, G1, SAE 16
Port wylotowy G1, SAE 16
Rozmiar portu G1, SAE 16
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje
Typ konstrukcji Zawór blokowy
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)

This SD18 Series Hydraulic Direction Control Valve is a robust and reliable solution for controlling hydraulic systems. Its pneumatic control method provides precise and responsive operation. The monoblock valve construction ensures durability and minimizes leakage. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this valve is suitable for various applications in material handling, construction, agriculture, and industrial vehicles. It is compatible with a range of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve features a wide operating viscosity range and can withstand a wide range of ambient temperatures.
