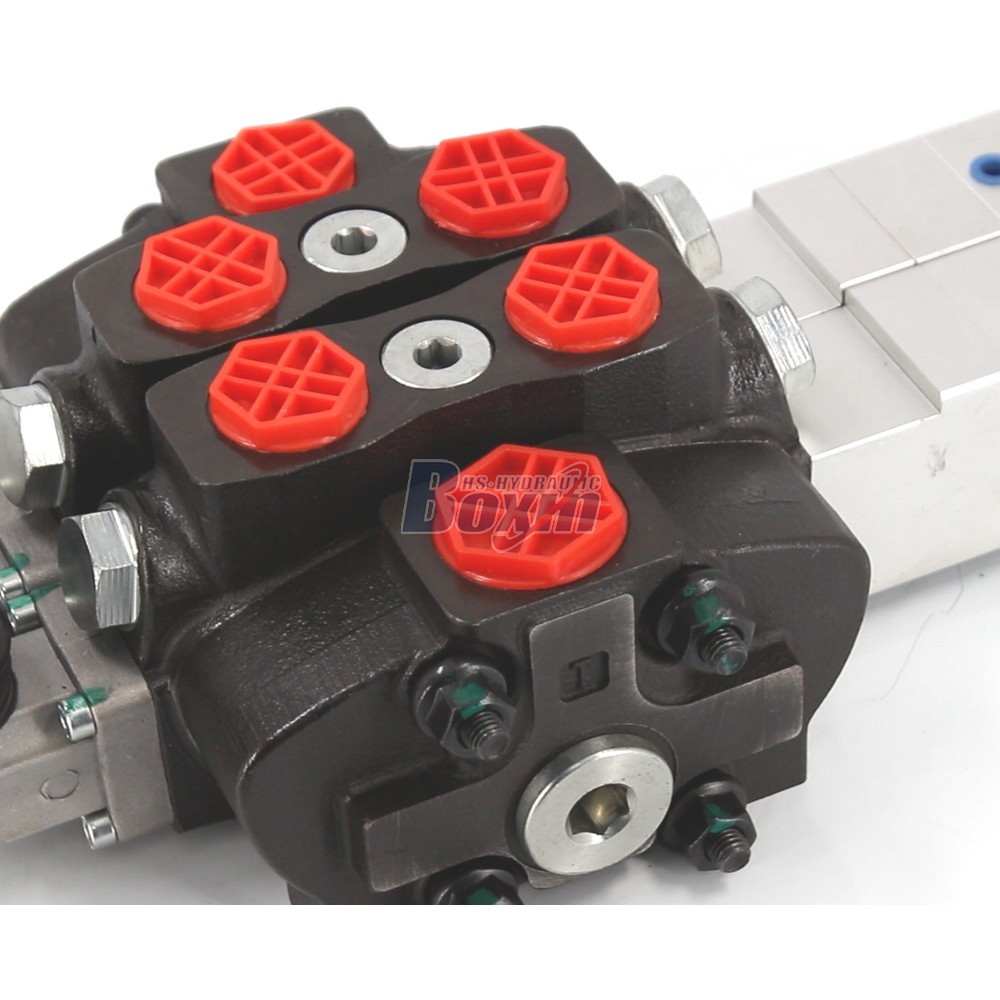

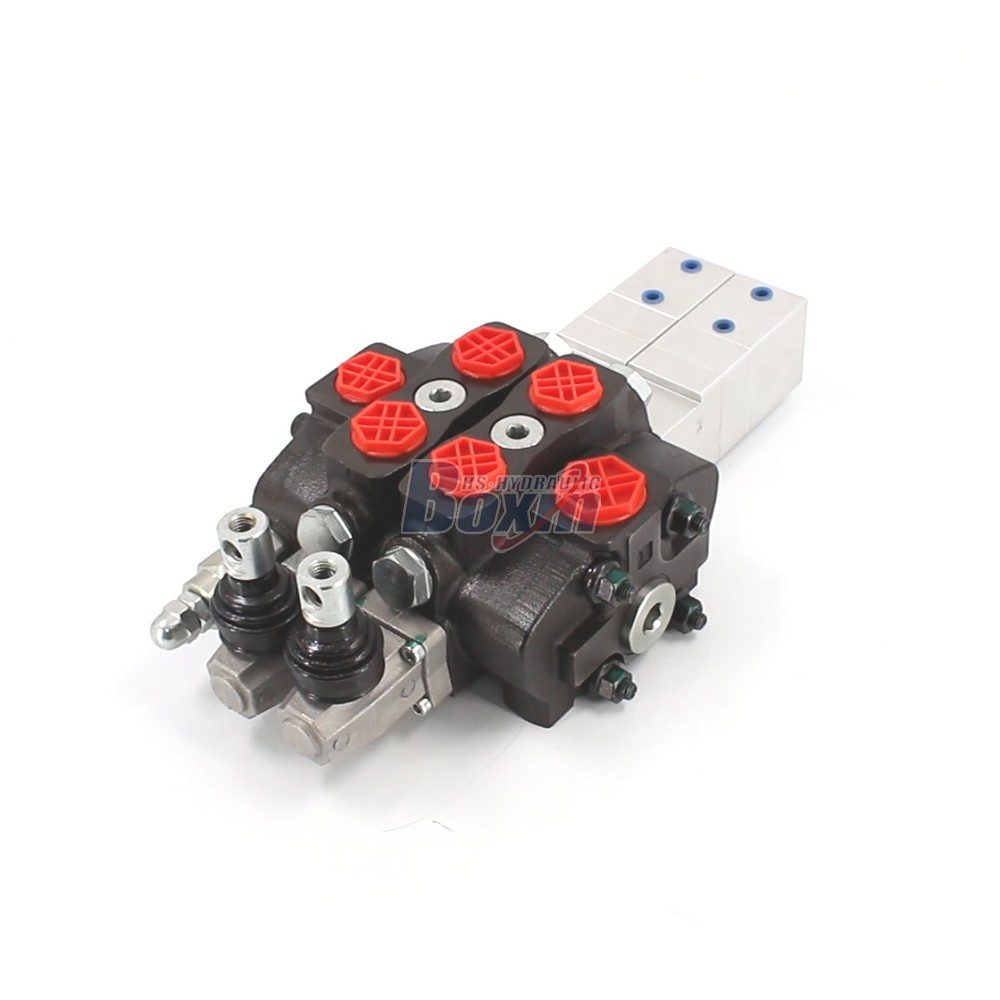

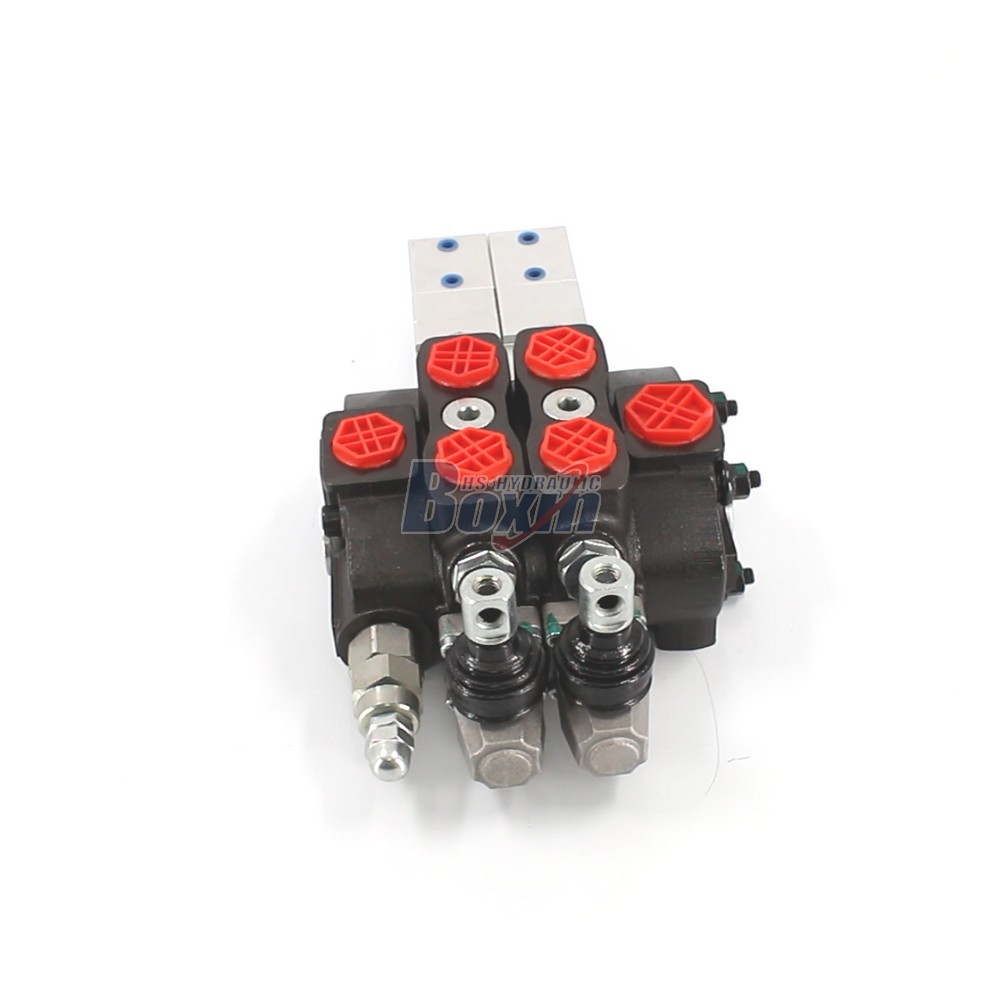

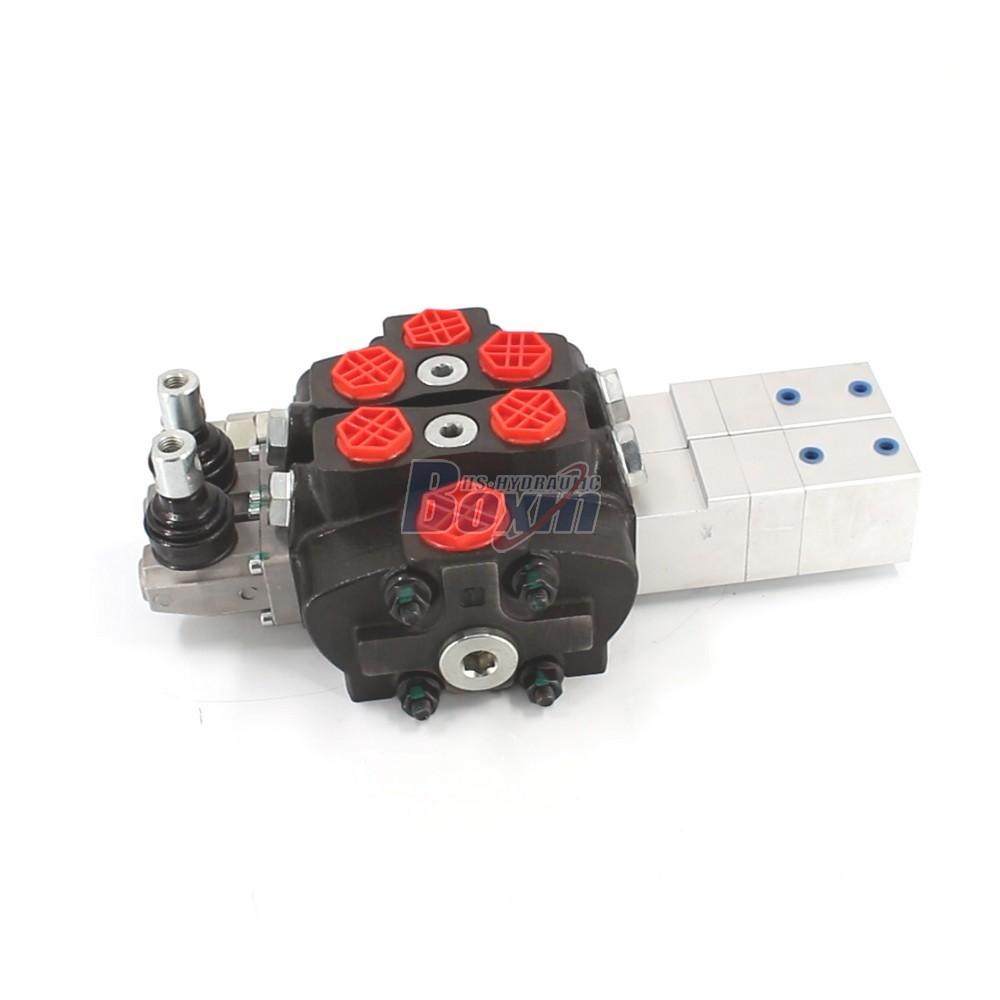

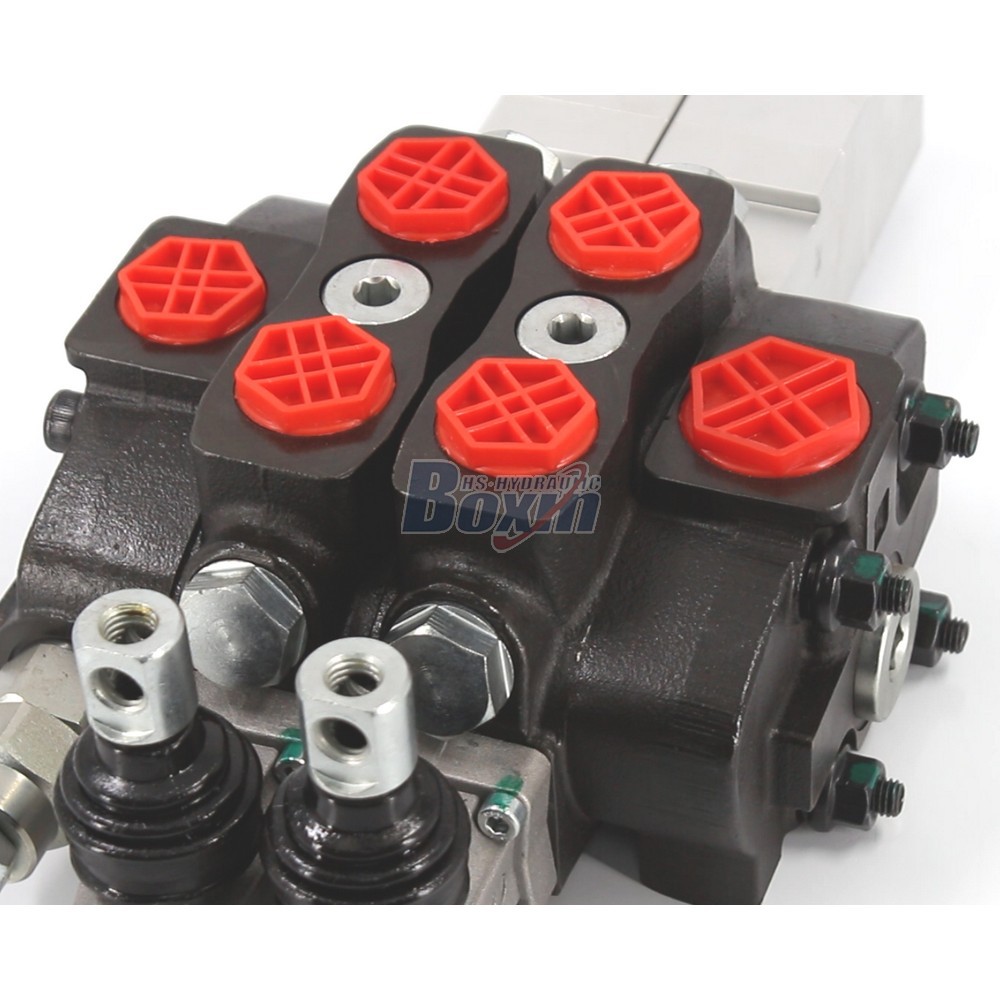

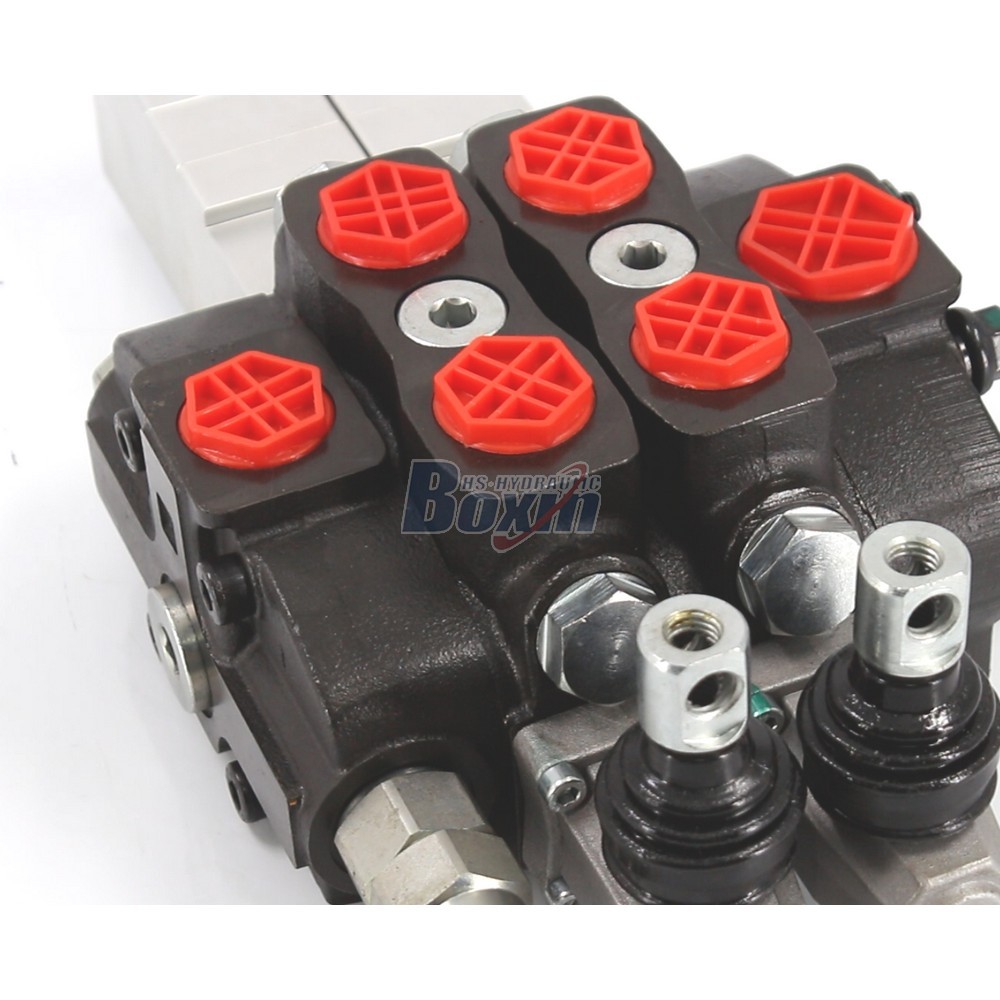

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Metoda sterowania:Pneumatyczna

Szpula:2-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:SAE 10

Port wylotowy:SAE 10

Rozmiar portu:SAE 10

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Rozmiar opakowania:34*24*15.5

Waga brutto:12.50 kg

Dostępność: W magazynie

90 Osoby oglądają ten produkt

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Pneumatic Sectional Directional Valve SD8 2 Spool Design drawing image

As a leading hydraulic manufacturer, we offer the SD8 Series Pneumatic Sectional Directional Valve featuring a 2-spool design. Engineered for high-precision control in mobile and industrial machinery, this valve handles a rated flow of 80 L/min and operating pressures up to 350 bar. It is ideal for material handling, agriculture, and construction equipment.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 90 l/min (23,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, SAE 10
Port wylotowy G1/2, G3/4, SAE 10, 3/4 NPT
Rozmiar portu G1/2, SAE 10

Our factory specializes in high-performance hydraulic solutions, presenting the SD8 Series 2 Spool Pneumatic Sectional Directional Valve. Built for versatility and durability, this valve supports a rated flow of 80 L/min (21.2 US gpm) and reaches a maximum pressure of 350 bar. It features G1/2 inlet and G3/4 outlet ports, making it suitable for a wide range of applications including forklifts, mini-excavators, tractors, and waste compactors. As a large-scale manufacturer, we provide comprehensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. We offer competitive wholesale pricing directly from our factory, ensuring cost-effective supply for large-scale projects. We are actively seeking global partners including distributors, wholesalers, agents, and traders to expand our international presence. Whether you need private labeling (white label) services or bulk wholesale supply, our facility is equipped to deliver reliable hydraulic components for construction, forestry, and agricultural machinery.
