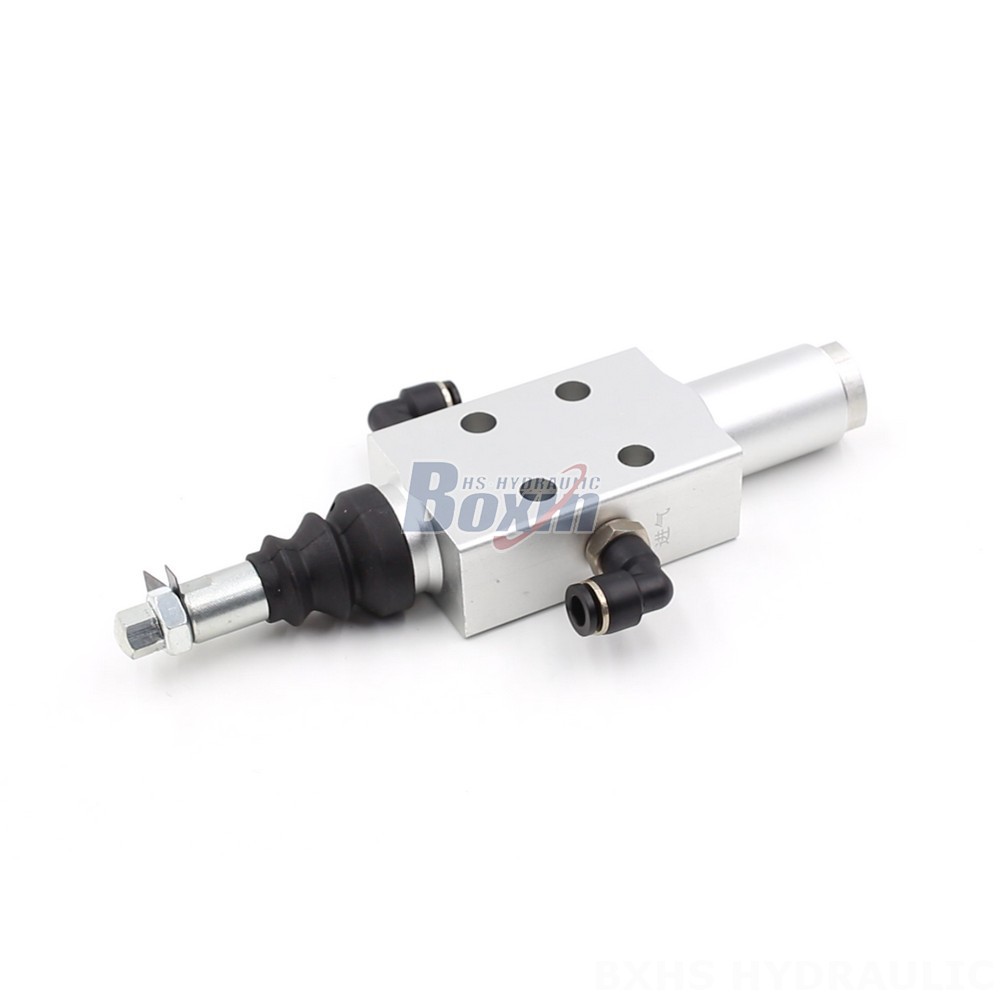

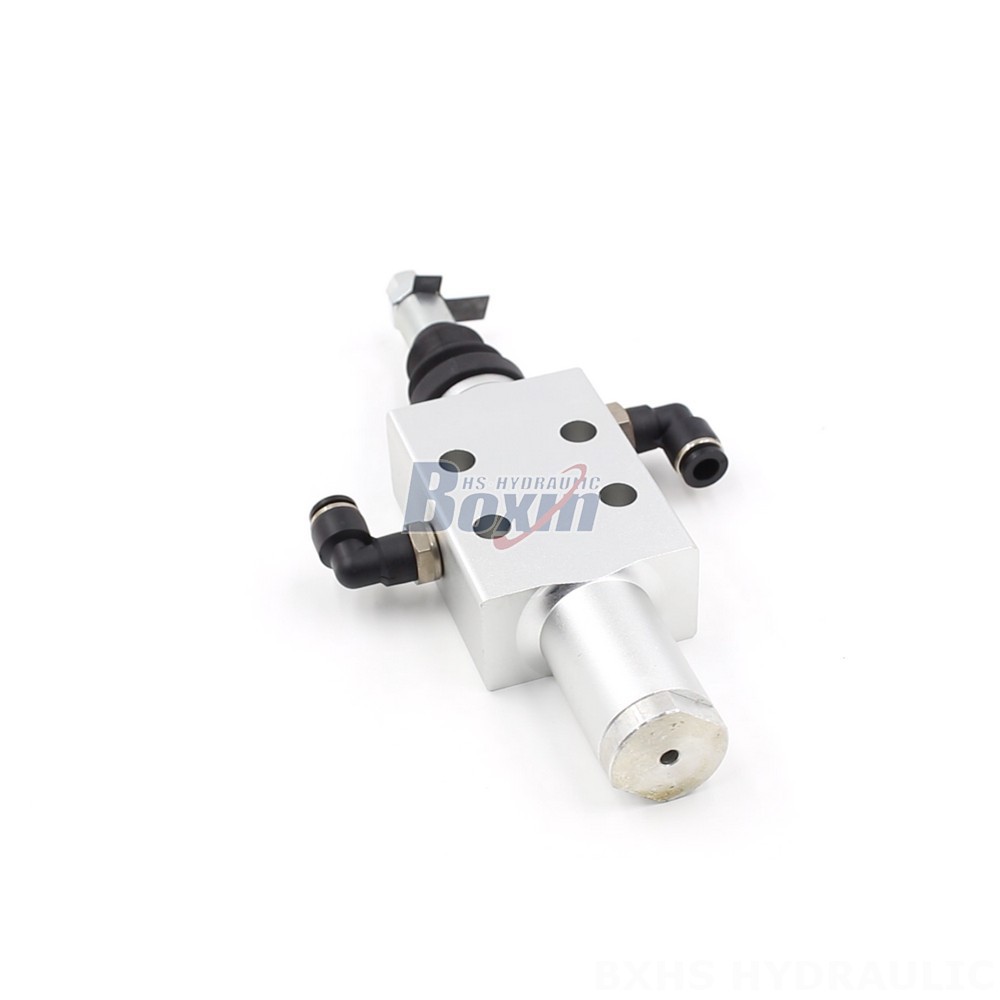

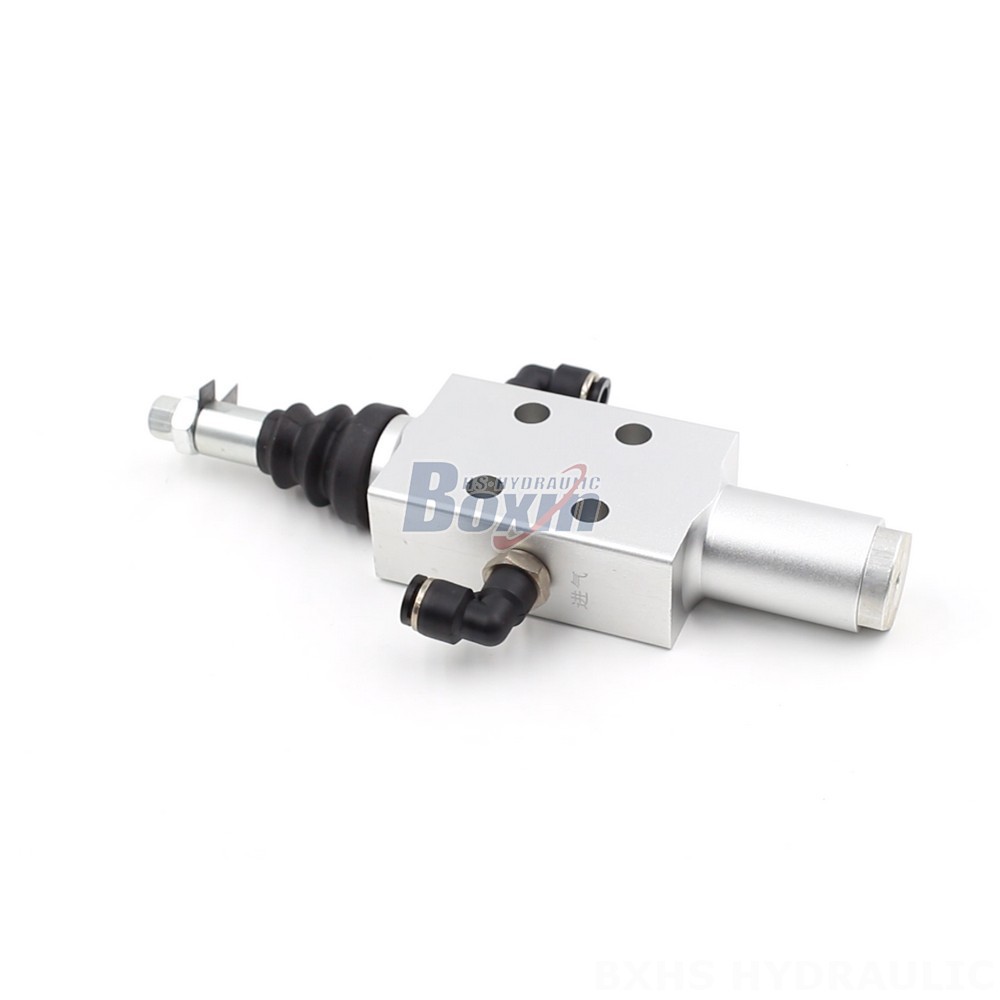

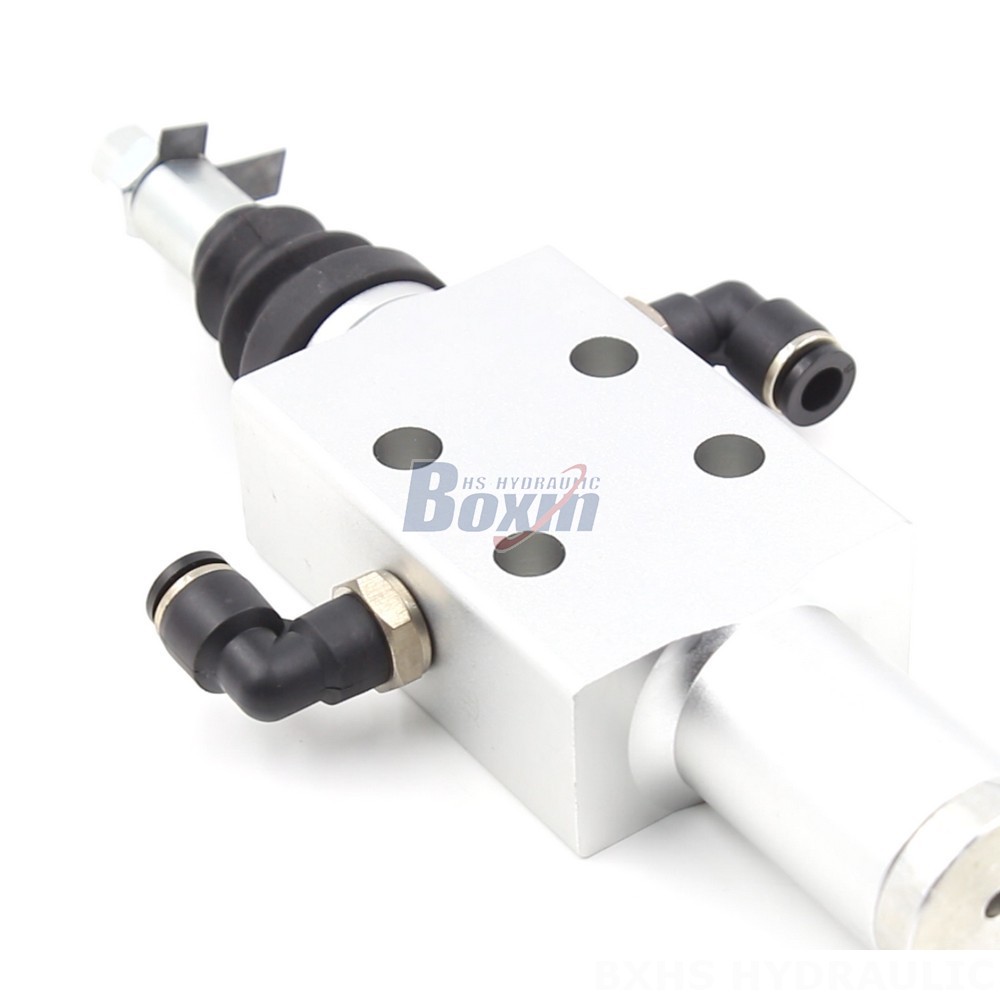

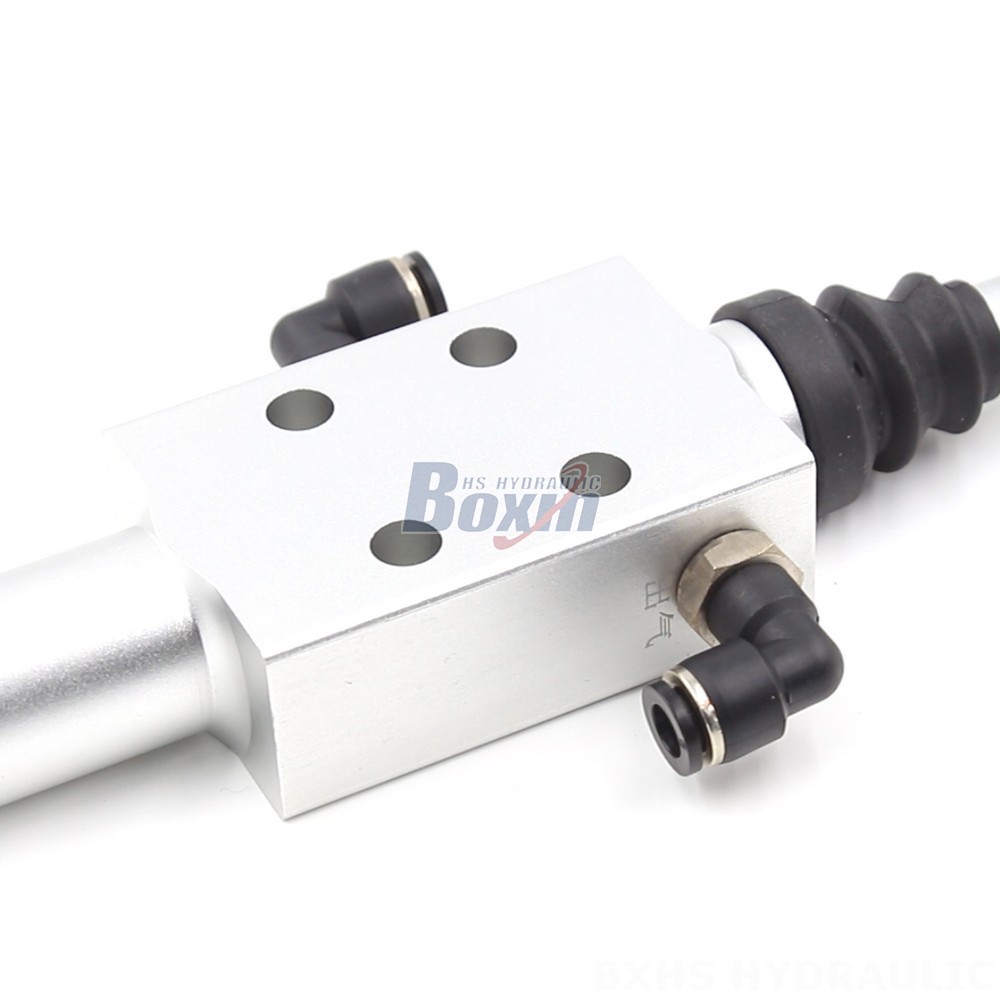

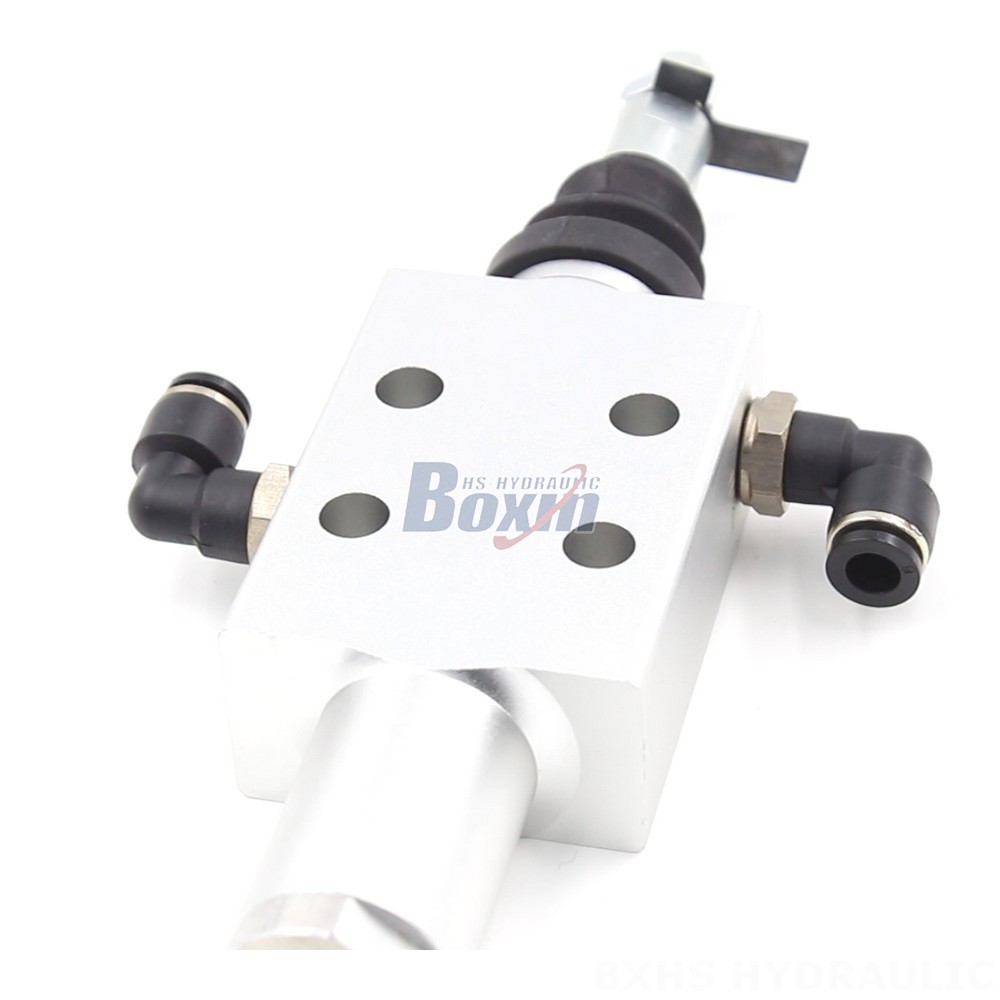

This XQF Series Pneumatic Directional Control Valve is a robust, high-performance, single-spool monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Its compact design and high pressure rating make it ideal for various machines like forklifts, telehandlers, skid steer loaders, and more.
| Seria XQF Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Pneumatyczna |
| Szpula | 1-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +60°C (-40°F do +140°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja |
| Zakres lepkości roboczej | 12 - 400 mm²/s (12 cSt do 400 cSt) |
| Przepływ znamionowy | 50 l/min (13,2 USGPM) |
| Maksymalne ciśnienie | 200 bar (2900 psi) |
| Port wlotowy | G1/4 |
| Port wylotowy | G1/4 |
| Rozmiar portu | G1/4 |
The XQF Series Pneumatic Directional Control Valve is a single-spool monoblock valve designed for reliable operation in demanding environments. Operating at a maximum pressure of 200 bar (2900 psi) and a viscosity range of 12-400 mm²/s (12-400 cSt), this valve is suitable for a wide range of applications across diverse industries. The valve's robust construction and high-quality materials ensure long service life even in harsh conditions. It is specifically designed for use in material handling, construction, agriculture, and industrial vehicles including forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers. This valve is available for global distribution, making it a reliable choice for manufacturers and users worldwide.
