Partnership Opportunities: SD8 Hydraulic 4 Spool Directional Valve Manufacturing & Distribution

Metoda sterowania:Hydrauliczna

Szpula:4-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Rozmiar opakowania:35*35*18

Waga brutto:35.00 kg

Dostępność: W magazynie

461 Osoby oglądają ten produkt

Partnership Opportunities: SD8 Hydraulic 4 Spool Directional Valve Manufacturing & Distribution

Partnership Opportunities: SD8 Hydraulic 4 Spool Directional Valve Manufacturing & Distribution

Partnership Opportunities: SD8 Hydraulic 4 Spool Directional Valve Manufacturing & Distribution drawing image

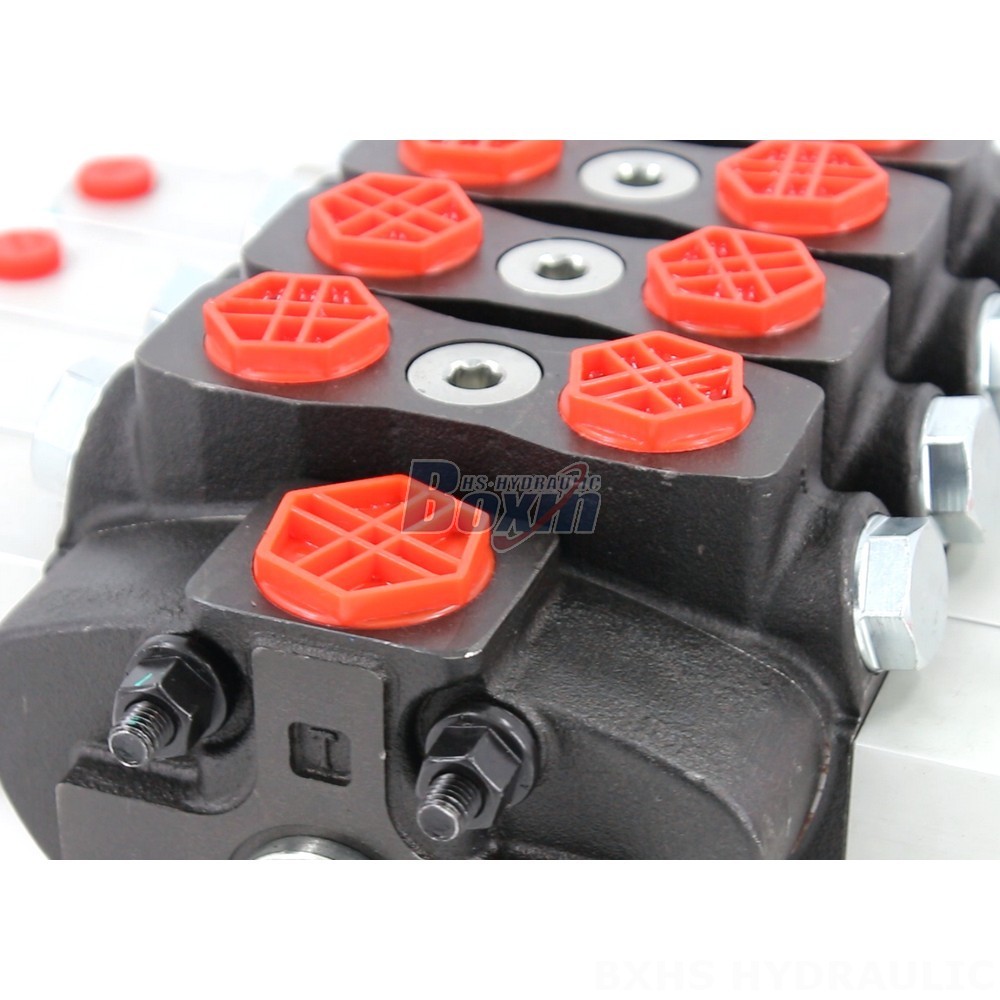

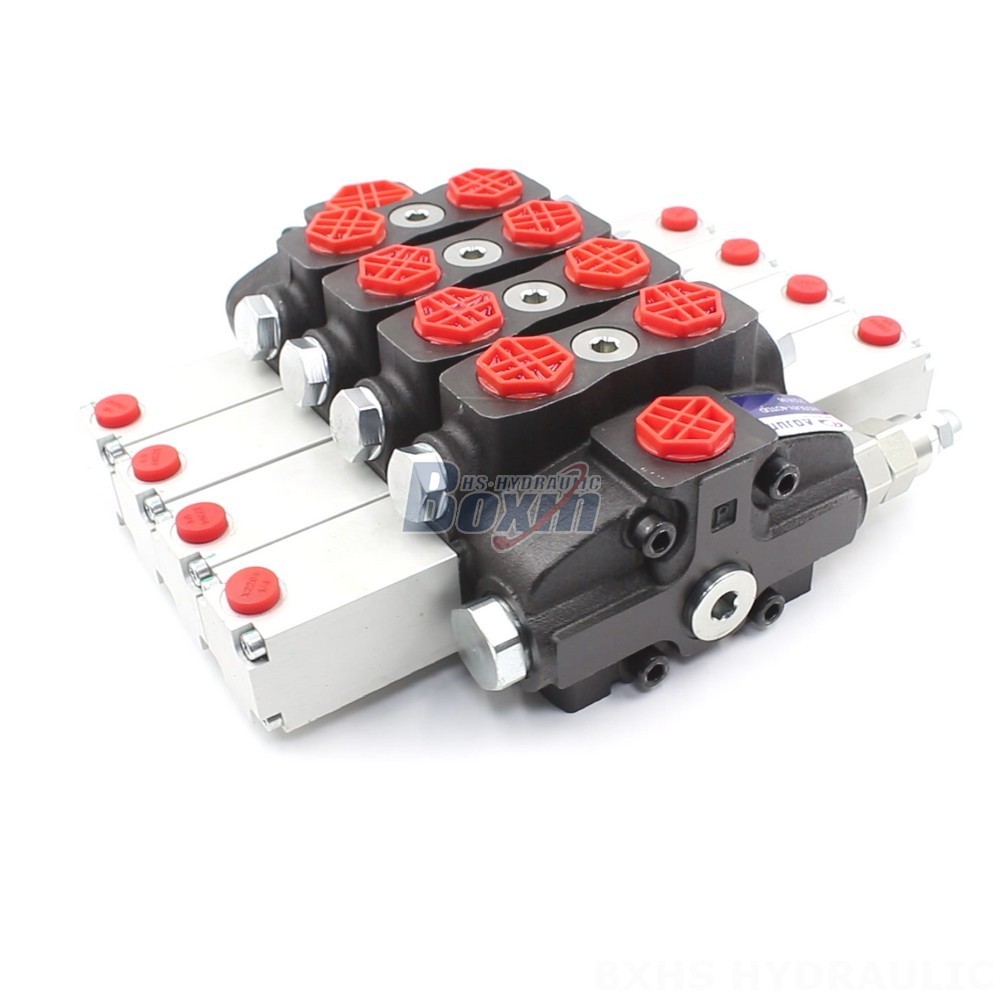

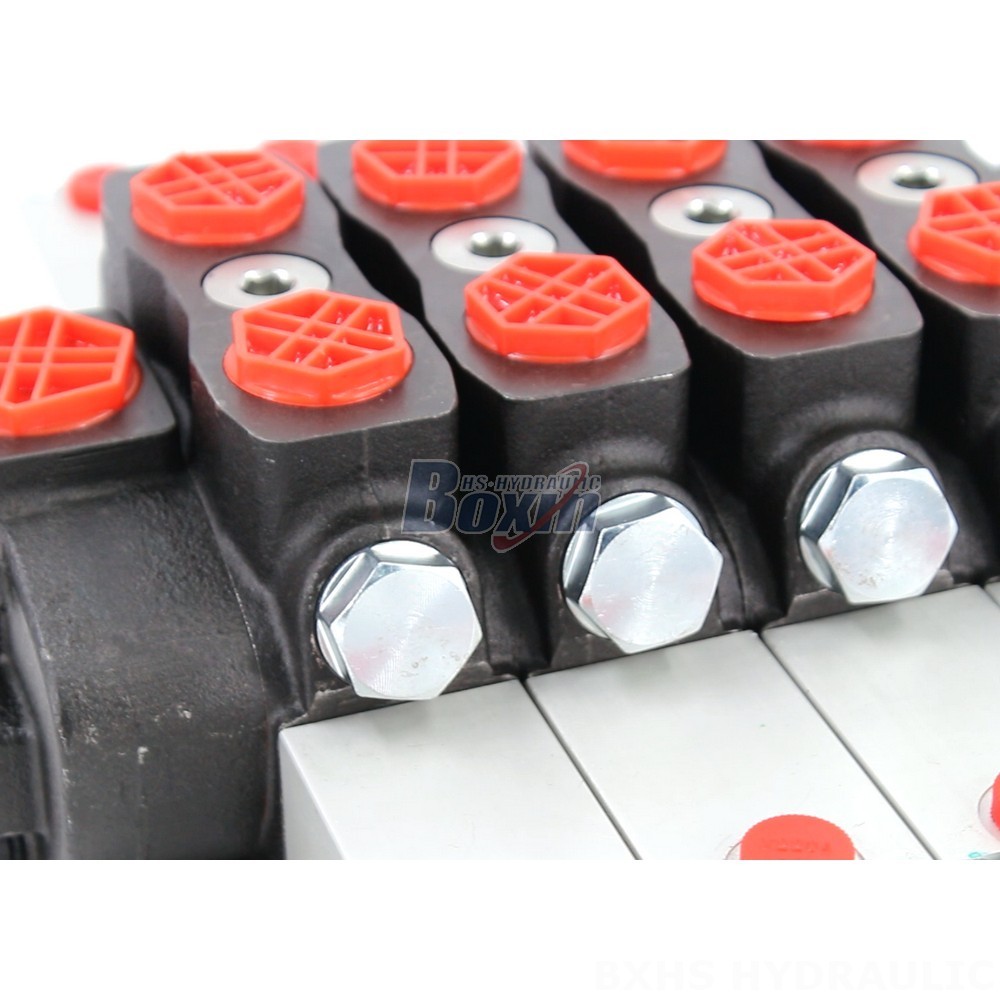

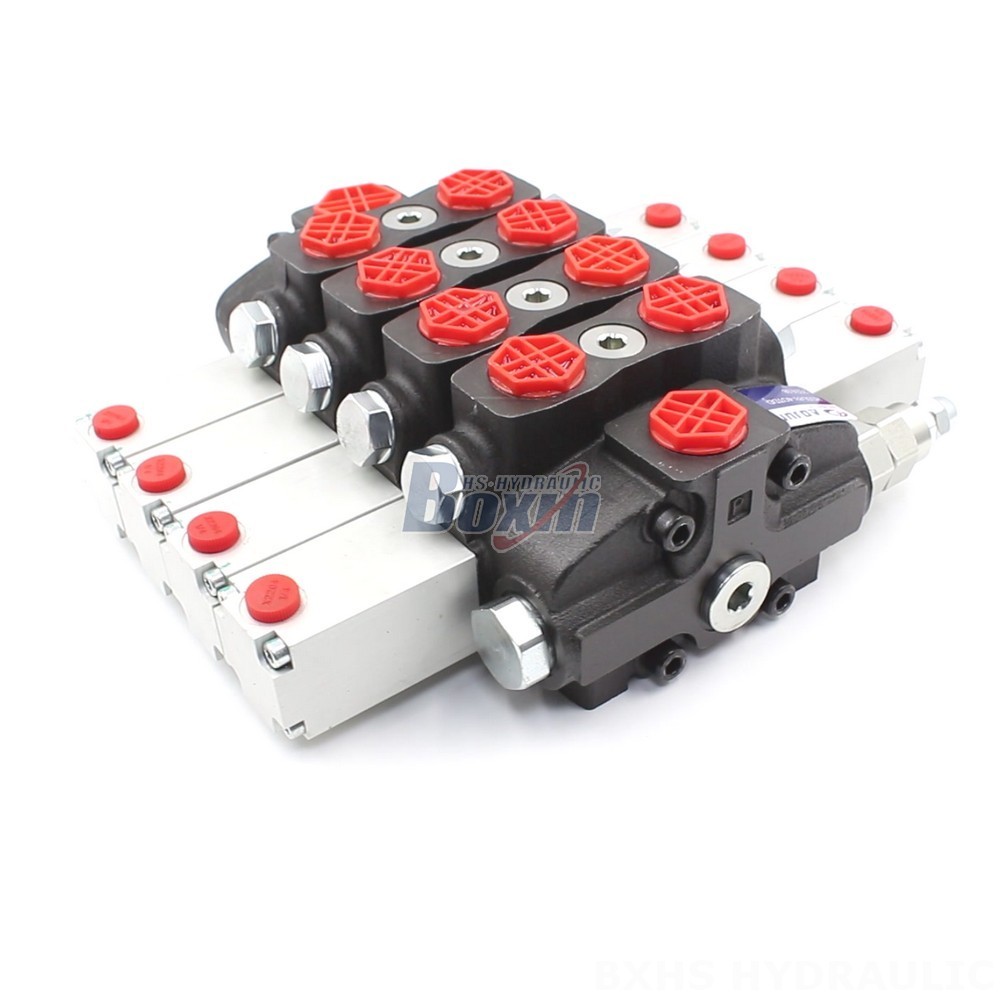

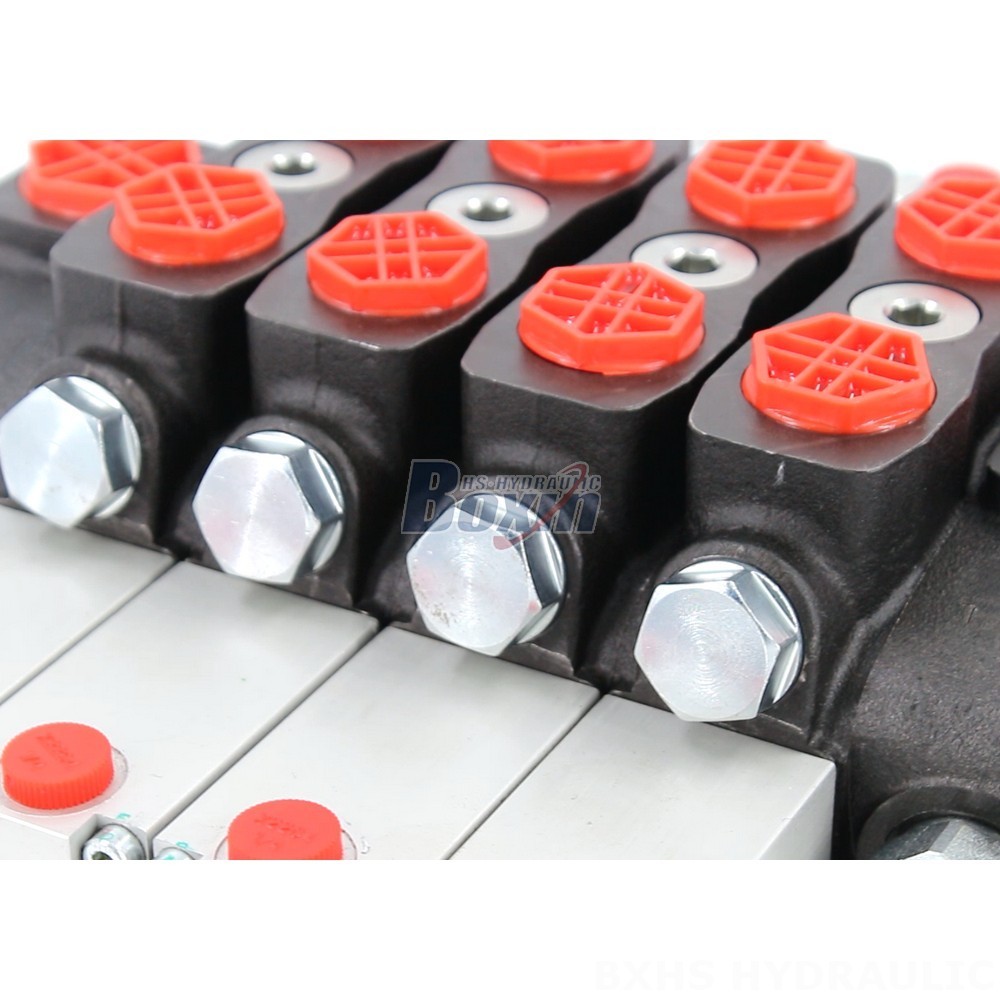

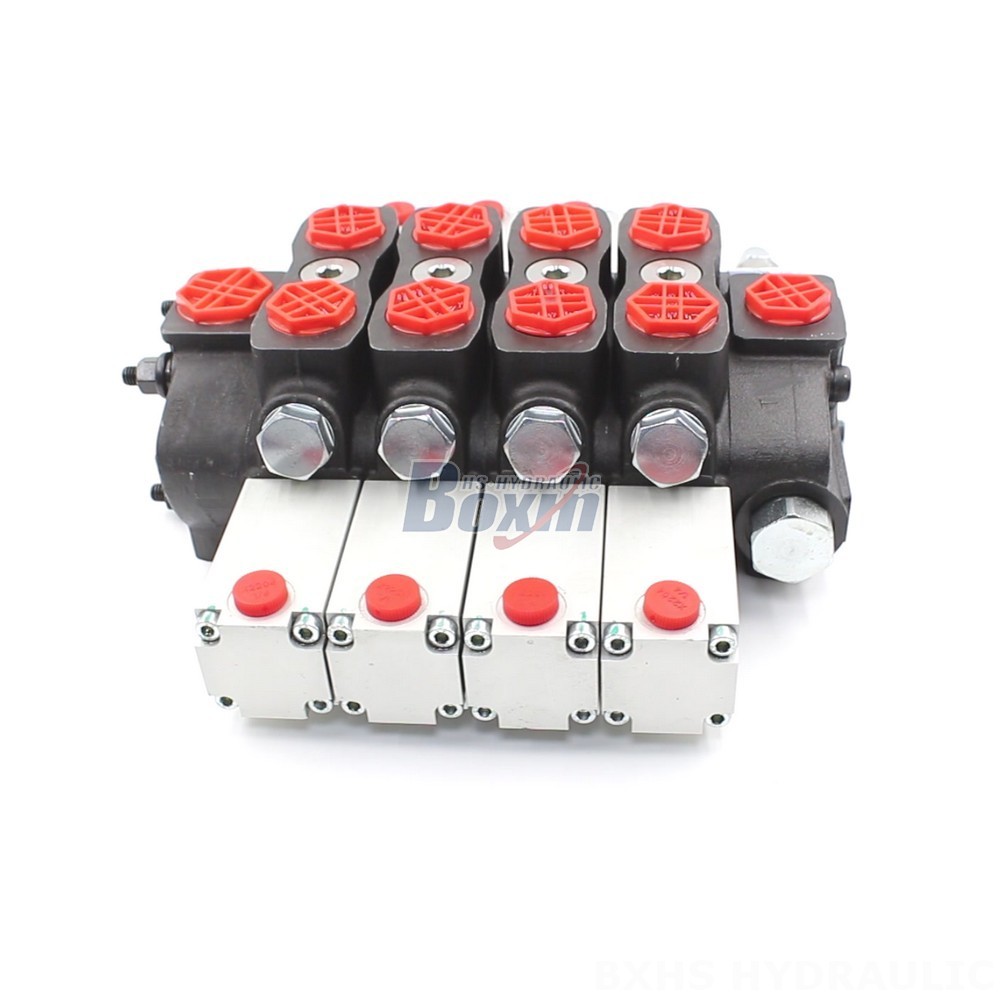

The SD8 Series 4-spool sectional hydraulic directional valve offers a rated flow of 90 L/min and a maximum pressure of 350 bar. Ideal for construction, agriculture, and material handling applications, this valve is available for OEM, private label, and custom orders. We are seeking distributors and wholesalers globally.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 90 l/min (23,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, SAE 10
Port wylotowy G1/2, G3/4, SAE 10, 3/4 NPT
Rozmiar portu G1/2, SAE 10

Partner with us for the manufacturing and distribution of our high-quality SD8 Series 4-spool sectional hydraulic directional valves. These robust valves boast a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi) / 250 bar (3600 psi), making them perfect for demanding applications in construction and earth moving, material handling, agriculture, and industrial vehicles. Specific applications include forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, telehandlers, backhoe loaders, harvesters, balers, and waste compactors.

**Key Features:**
* **High Performance:** Rated flow of 90 L/min, maximum pressure of 350 bar (5100 psi) / 250 bar (3600 psi).
* **Versatility:** Suitable for various applications across multiple industries.
* **Durability:** Operates reliably in temperatures ranging from -40°C to +80°C (-40°F to +176°F).
* **4-Spool Design:** Provides precise and efficient control.
* **Sectional Valve Structure:** Facilitates easy maintenance and repair.

**Partnership Opportunities:** As a leading hydraulic product manufacturer, we offer a range of partnership options, including:
* **OEM Manufacturing:** We can manufacture valves to your specifications.
* **Private Labeling:** Brand your own line of high-quality hydraulic valves.
* **Custom Design & Manufacturing:** We can create customized solutions to meet your unique needs.
* **Wholesale Distribution:** Benefit from our competitive pricing and reliable supply chain.

We are actively seeking distributors, wholesalers, agents, and trading partners worldwide to expand our global reach. Contact us today to learn more about our partnership opportunities and how we can help you grow your business. Factory direct supply and factory wholesale pricing are available. We are a reliable hydraulic valve manufacturer and factory supplier.
