P80A Hydraulic System Components | Factory Supply & Distribution

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80A Zawór sterujący jednoczęściowy

Rozmiar opakowania:28*30*13

Waga brutto:8.00 kg

Dostępność: W magazynie

1060 Osoby oglądają ten produkt

P80A Hydraulic System Components | Factory Supply & Distribution

P80A Hydraulic System Components | Factory Supply & Distribution

P80A Hydraulic System Components | Factory Supply & Distribution drawing image

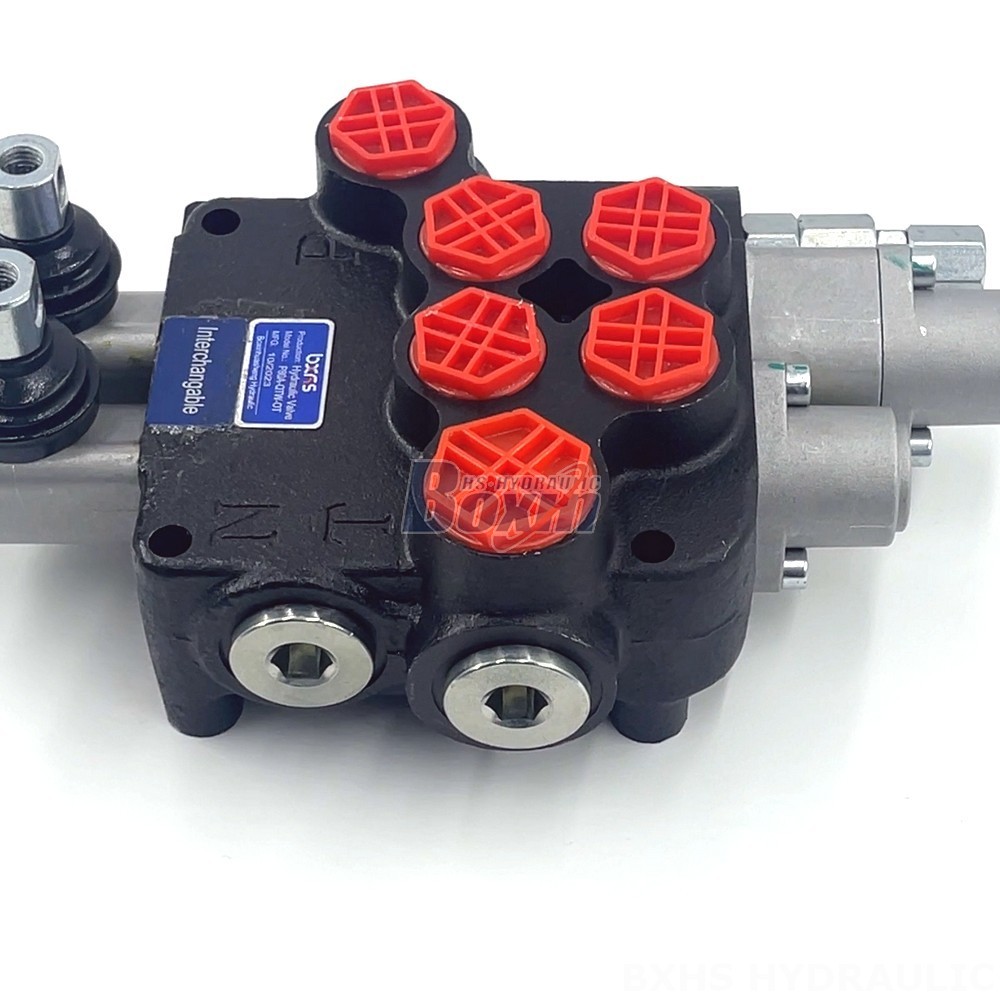

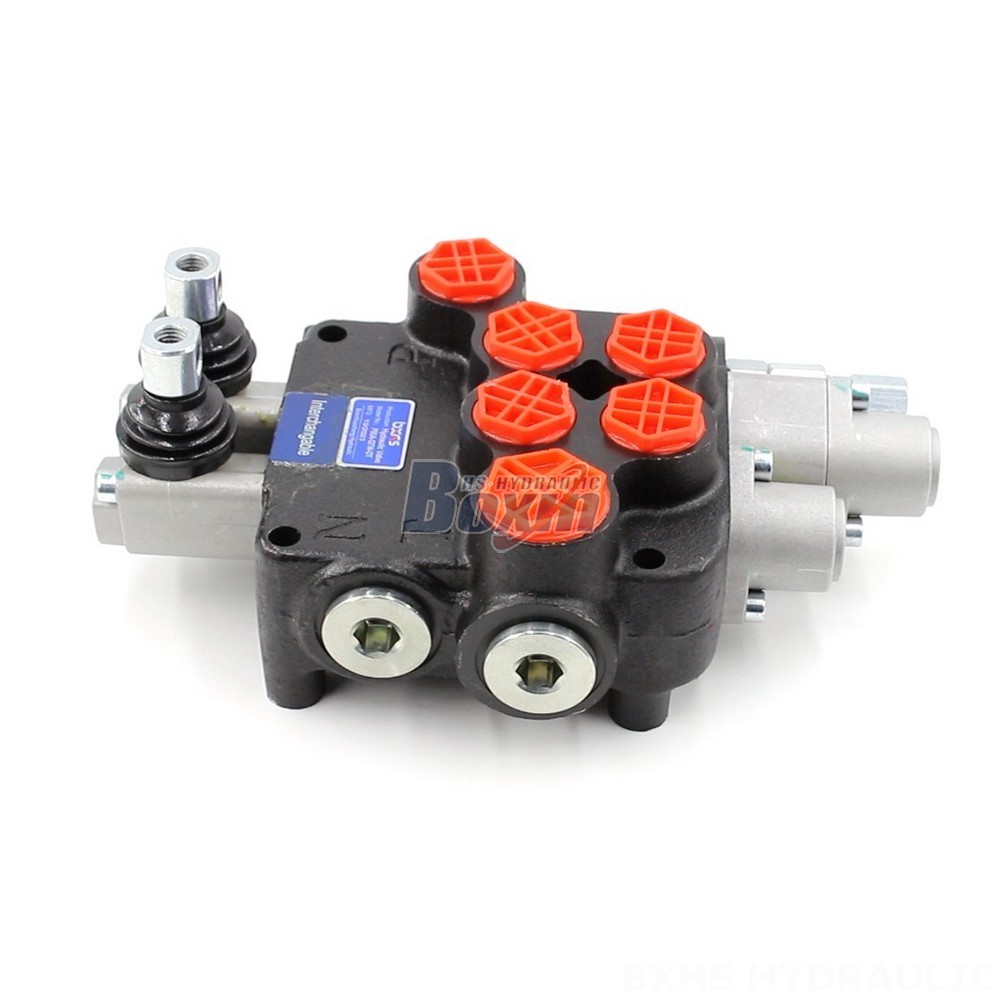

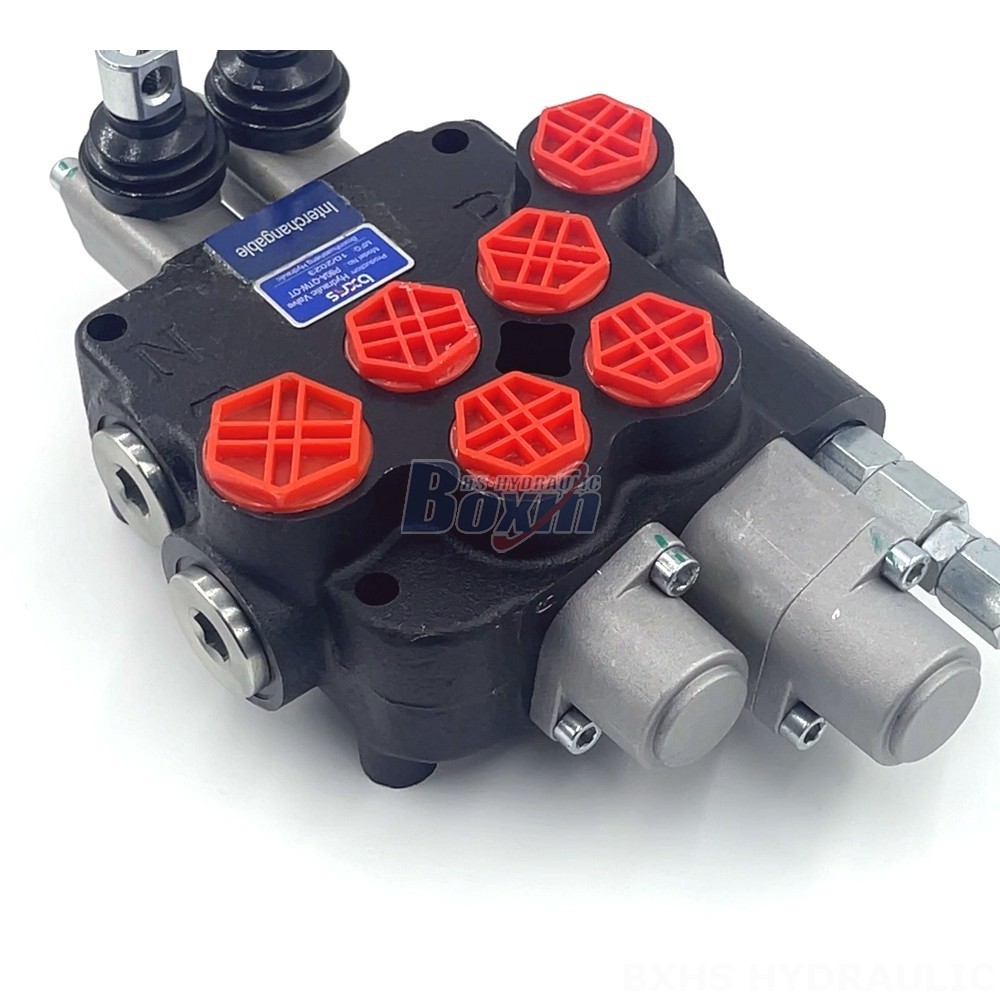

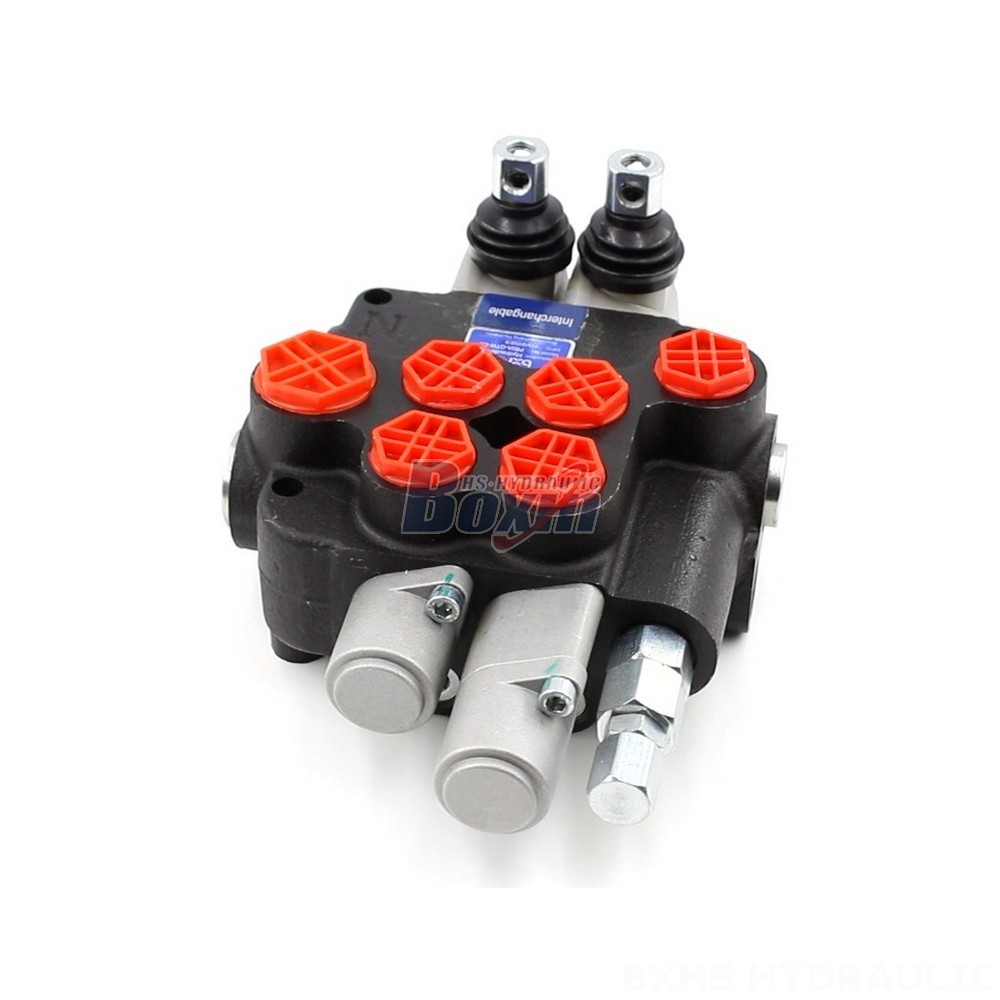

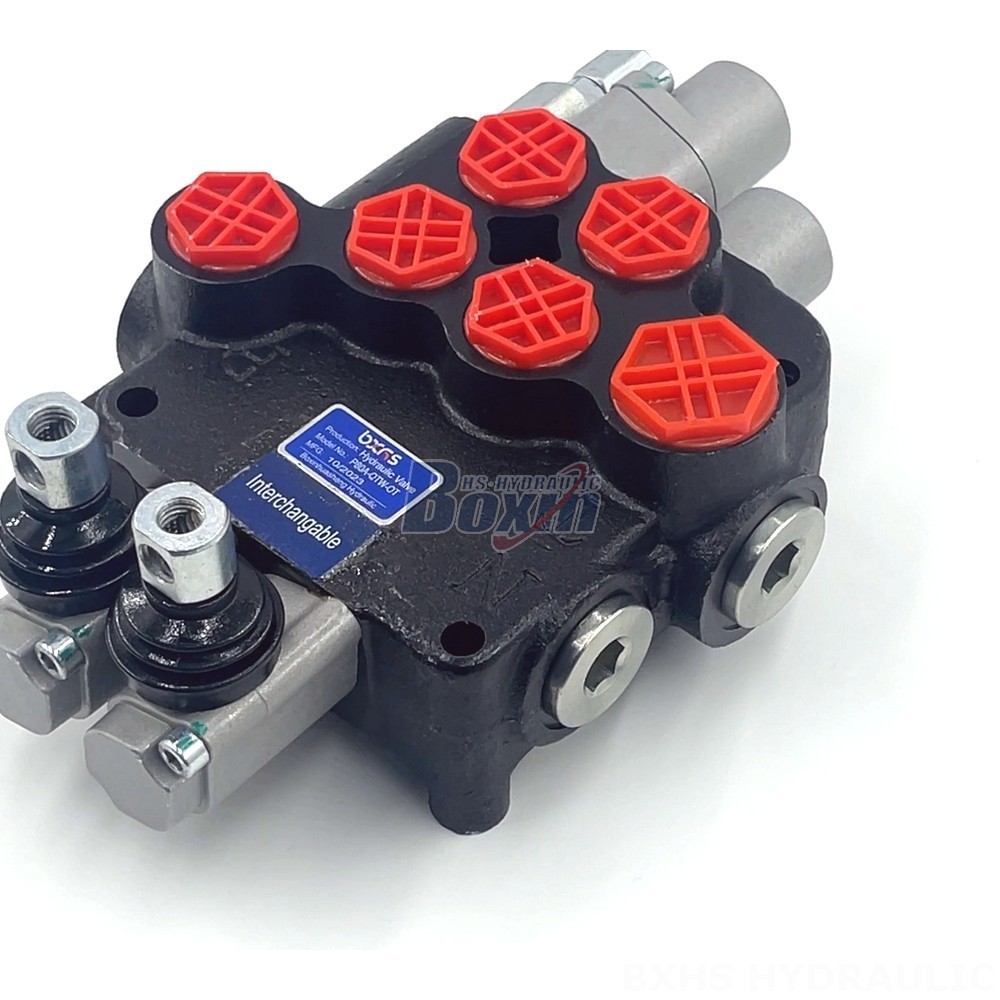

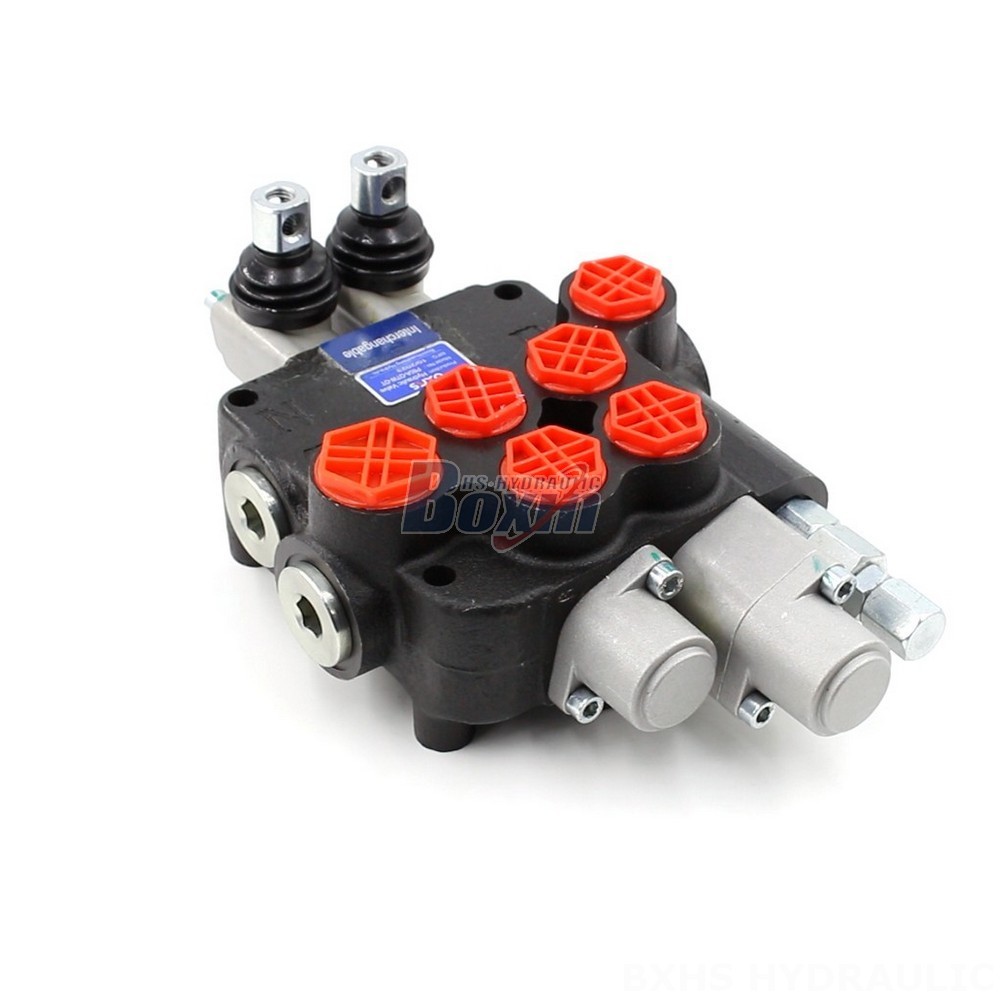

The P80A Series Hydraulic Control Valve is a high-performance, 2-section monoblock valve designed for manual control of hydraulic systems. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it's ideal for various applications in material handling, construction, and agriculture.

Seria P80A Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektryczna, Elektromagnetyczne i ręczne, Elektromagnes i joystick, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80A Series Hydraulic Control Valve is a reliable and durable solution for a wide range of hydraulic applications. It features a robust monoblock construction, a manual control method, and a 2-section design for versatile operation. The valve is rated for a flow of 80 L/min and can withstand a maximum pressure of 250 bar, making it suitable for heavy-duty applications. Its 2-spool configuration allows for precise control of hydraulic functions. The P80A Series is ideal for use in a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. We offer manufacturing, OEM, private label, and customization options to meet your specific requirements. We are also looking for distributors, wholesalers, agents, and traders worldwide to partner with us in bringing our high-quality hydraulic products to a wider audience.
