P80 Valve Distribution Opportunities: Profitable Partnerships Await

Metoda sterowania:Elektromagnes

Szpula:2-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:200 bar (2900 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:37*18*11

Waga brutto:9.50 kg

Dostępność: W magazynie

1584 Osoby oglądają ten produkt

P80 Valve Distribution Opportunities: Profitable Partnerships Await

P80 Valve Distribution Opportunities: Profitable Partnerships Await

P80 Valve Distribution Opportunities: Profitable Partnerships Await drawing image

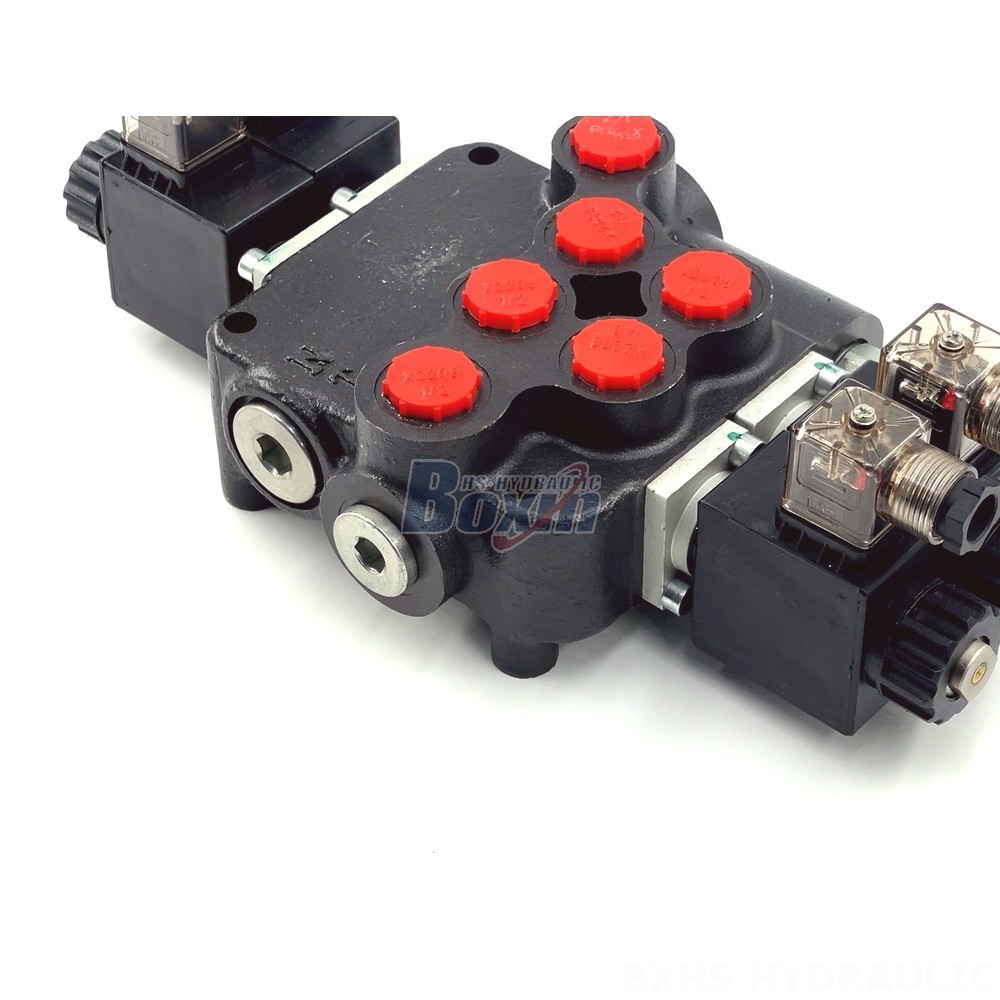

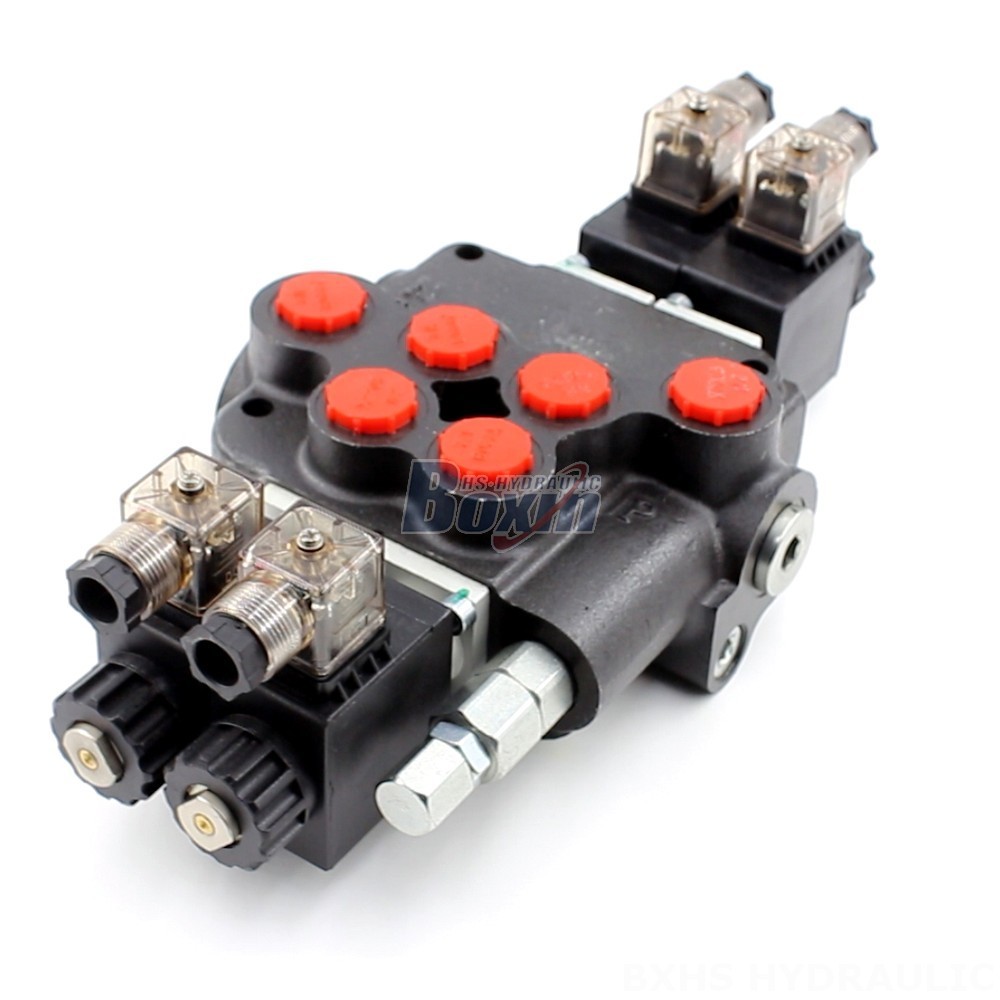

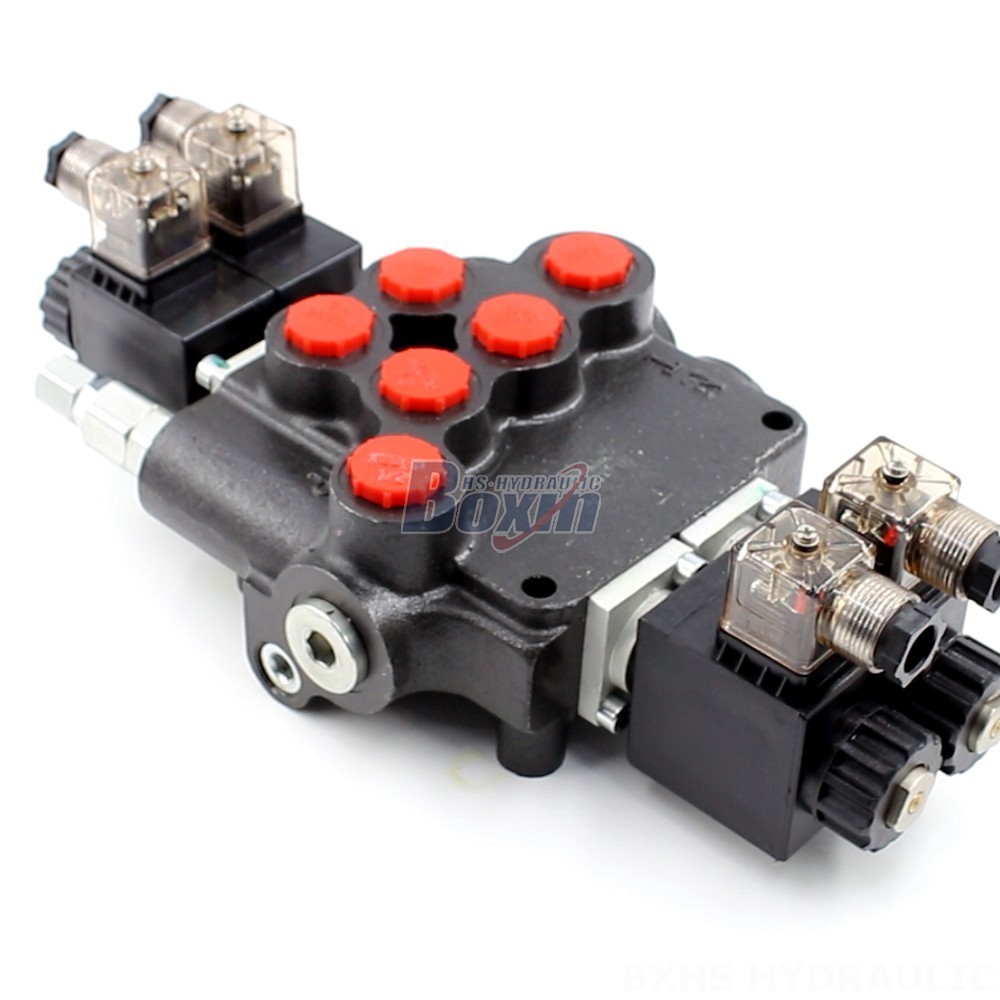

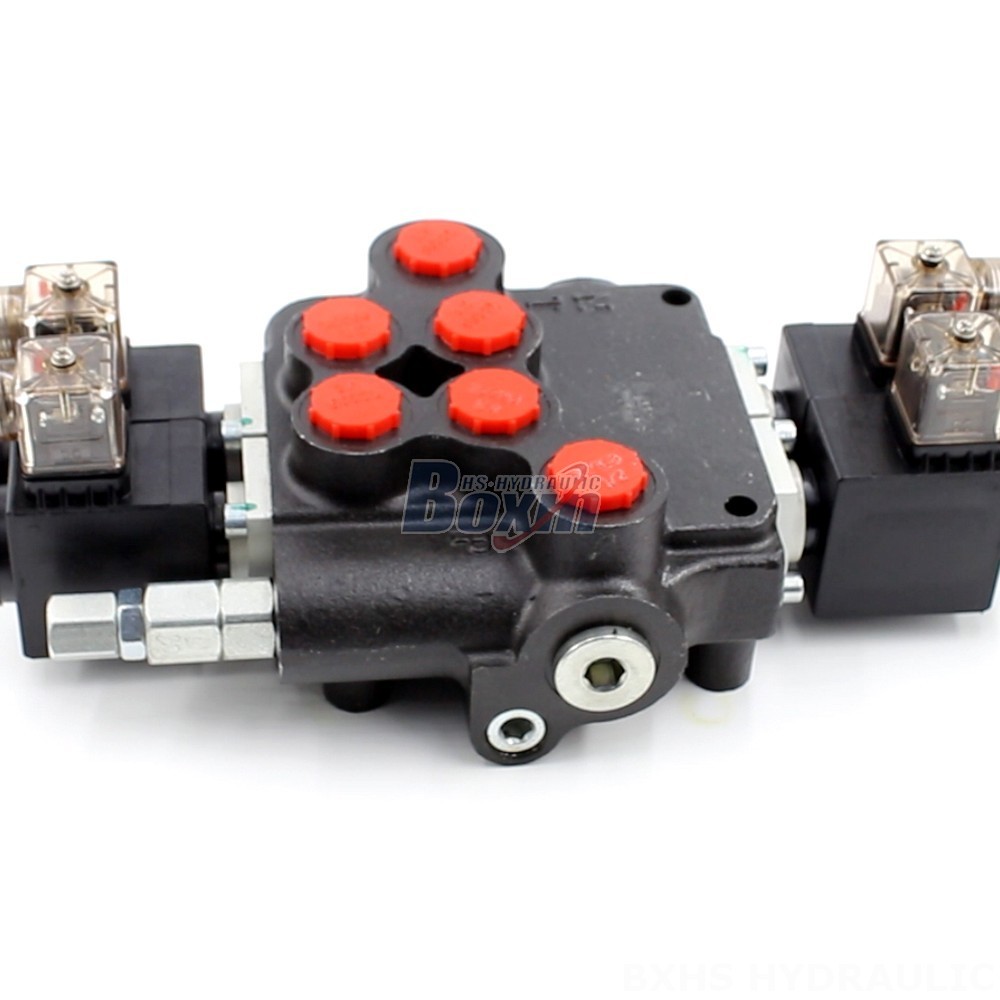

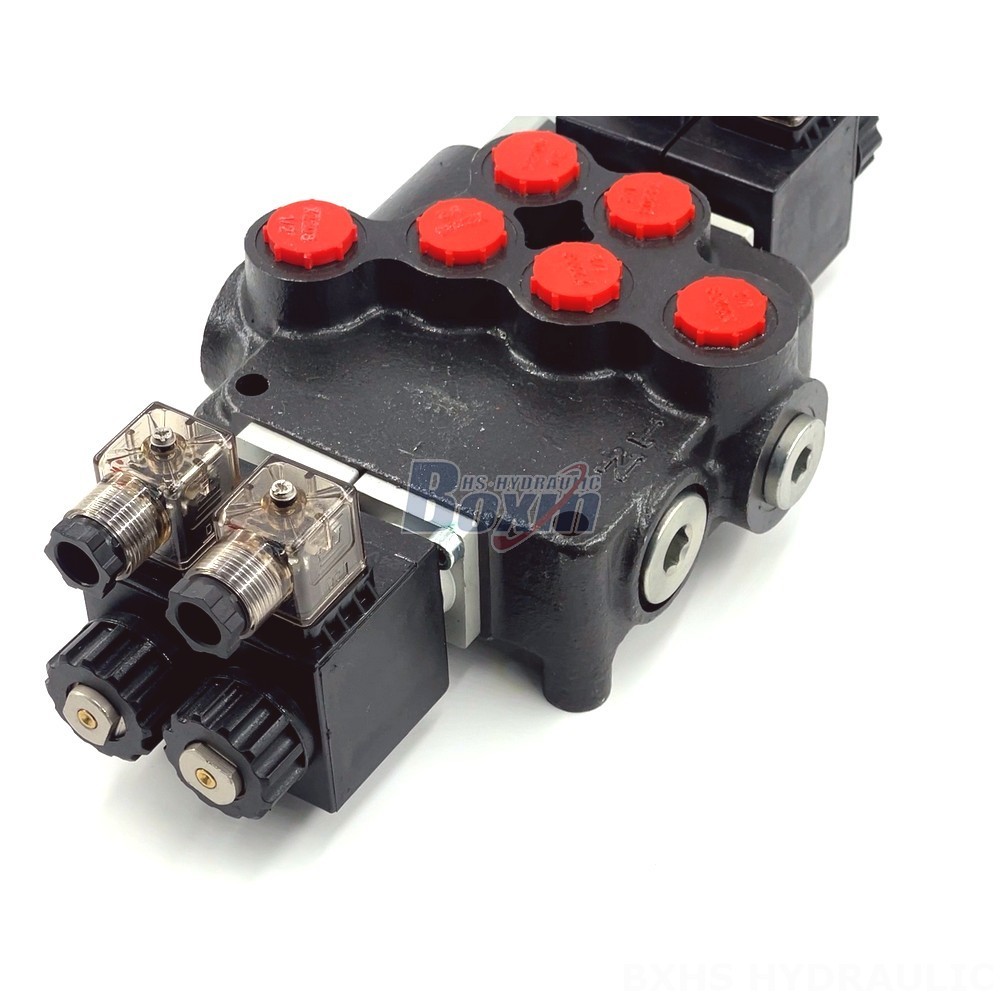

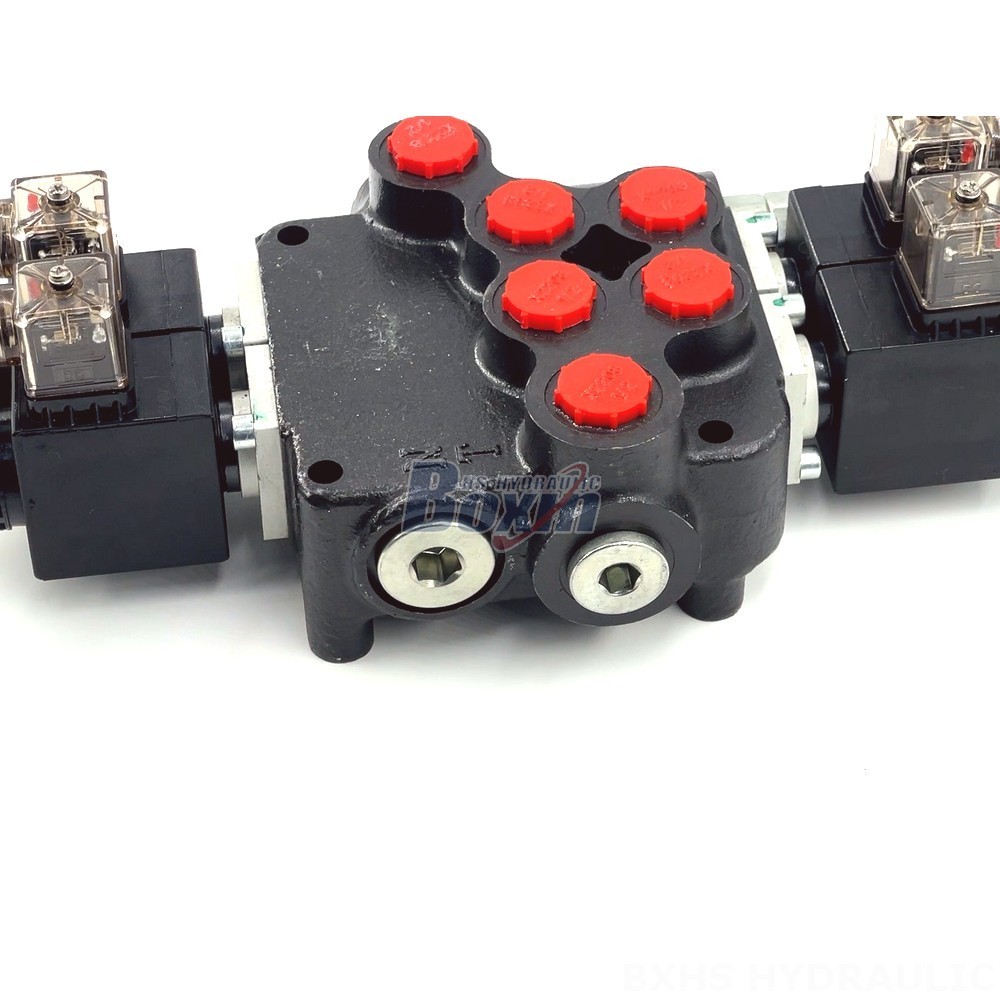

Our P80 Series Control Unit with Solenoids is a high-performance, reliable hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With its 2-section monoblock design, 80 L/min flow rate, and 250 bar pressure rating, this valve offers exceptional control and efficiency.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This Control Unit with Solenoids is part of our P80 Series and features a 2-section monoblock design. It boasts a flow rate of 80 L/min and a maximum pressure rating of 250 bar, making it suitable for various applications in material handling, construction, agriculture, and industrial vehicles. The valve operates with a solenoid control method and features a 2-spool design. It's designed to withstand demanding environments with its -40°C to +80°C operating temperature range and is compatible with a wide viscosity range of 15 - 75 mm²/s. We offer this valve as a manufactured product, OEM component, private label item, and custom solution. We're actively seeking distributors, wholesalers, dealers, and traders to expand our global reach and offer our high-quality products to a wider audience. Contact us today to explore profitable partnership opportunities.
