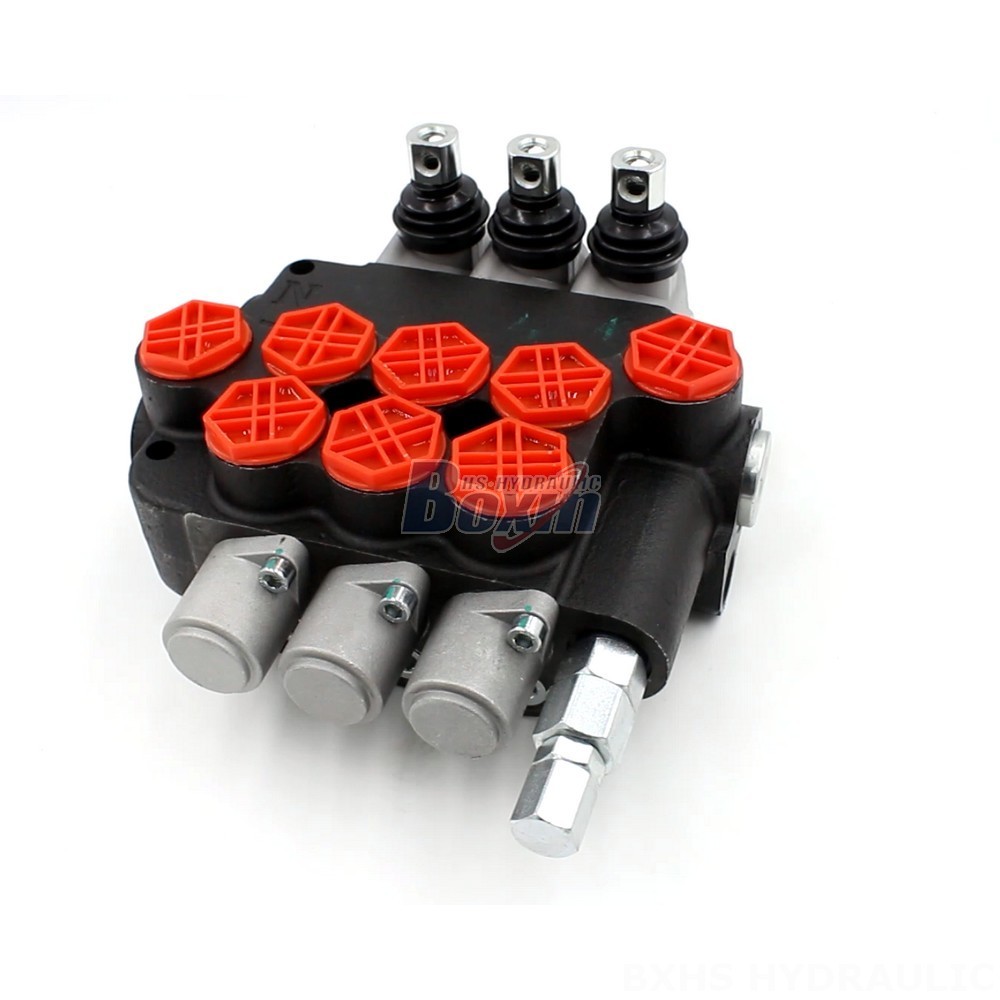

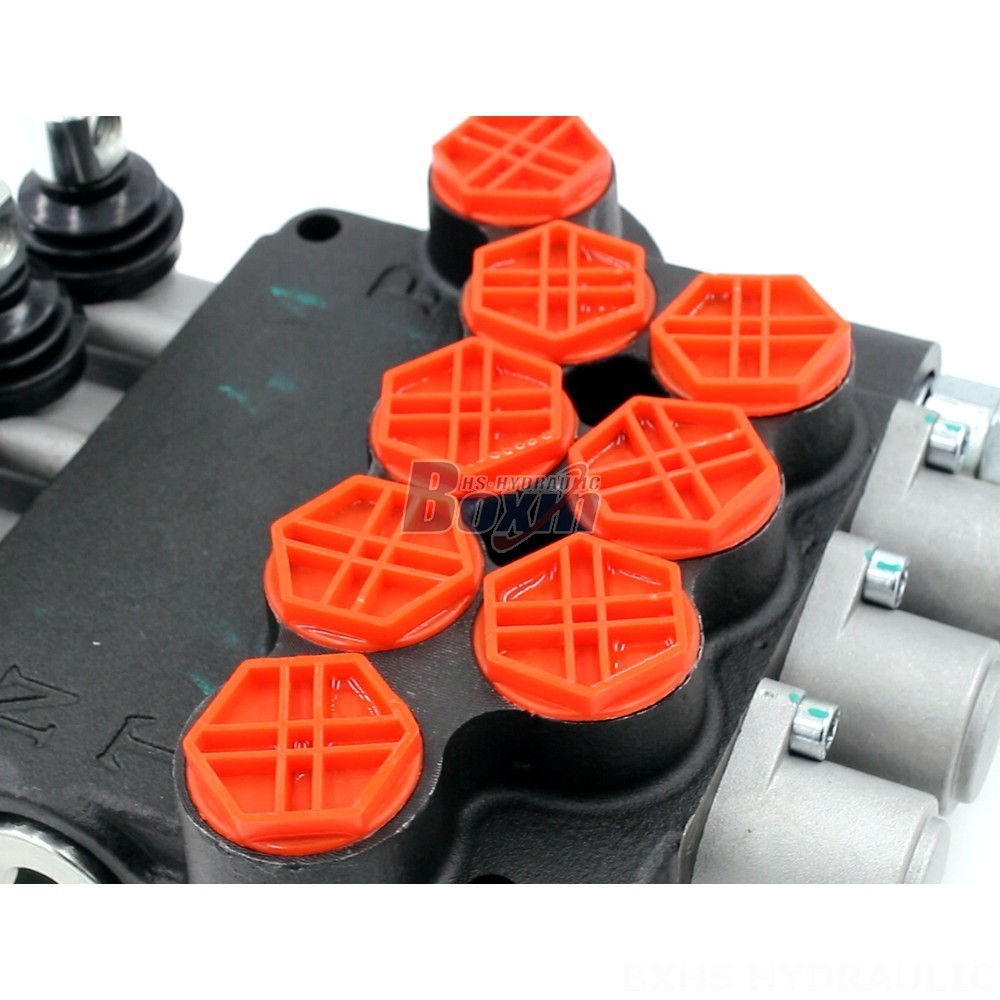

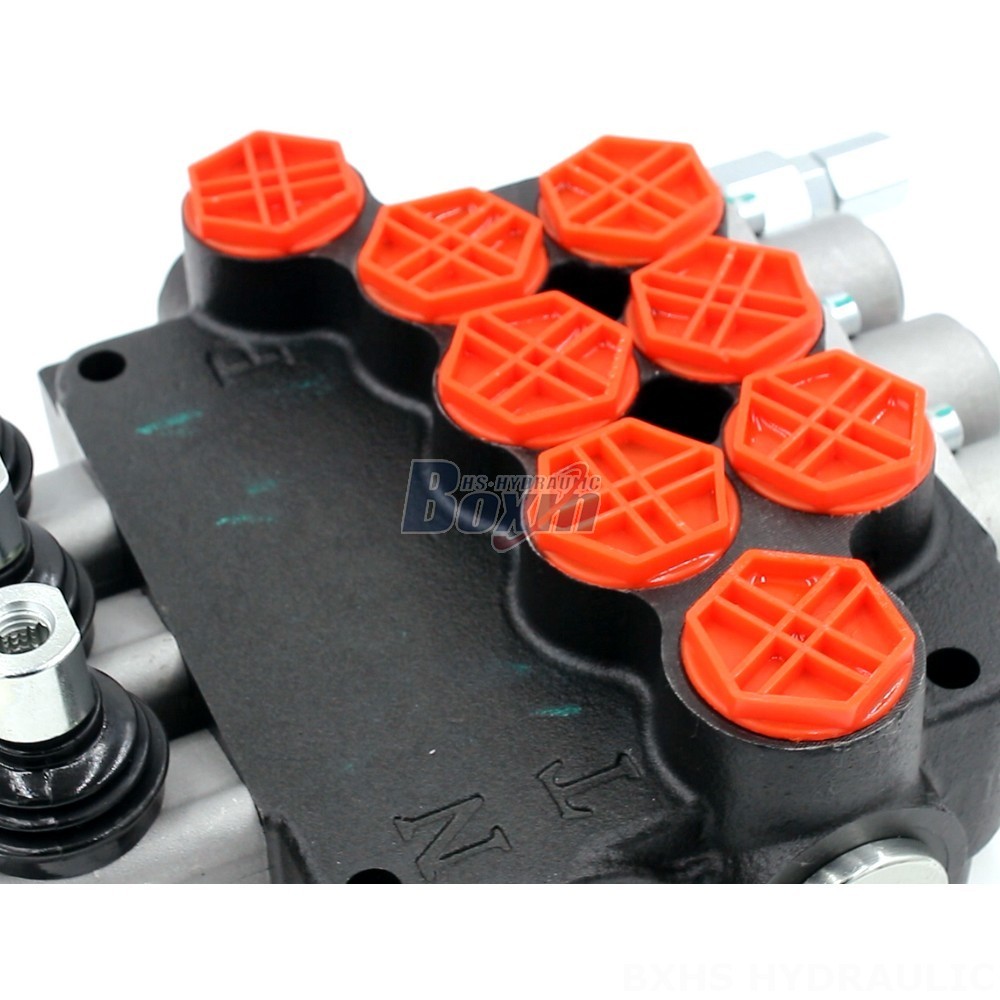

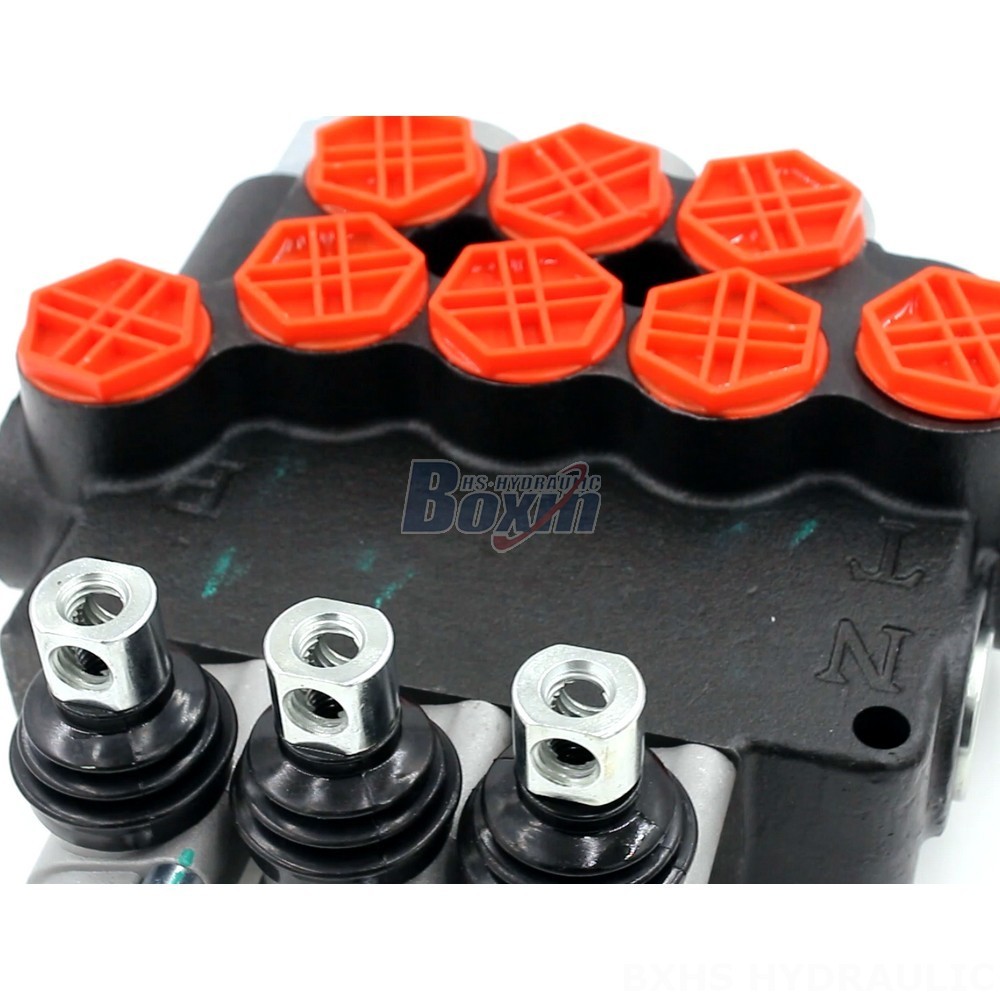

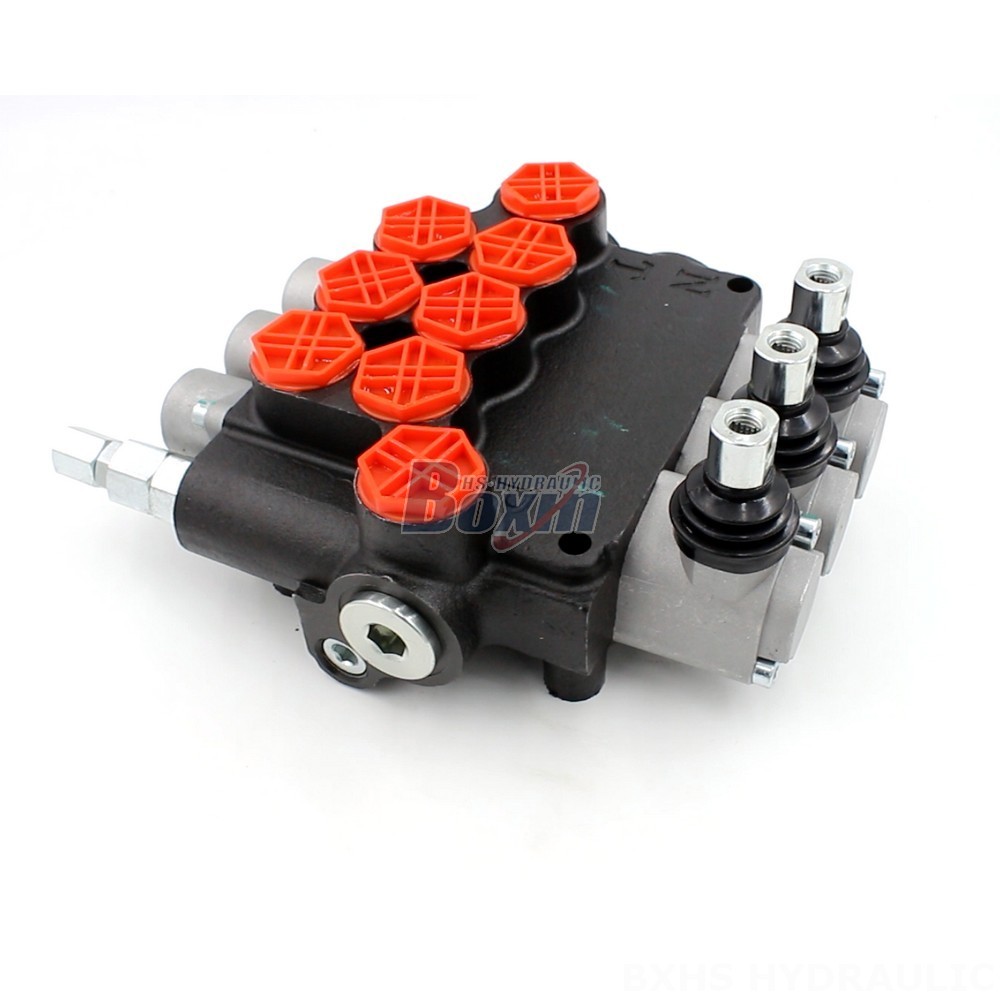

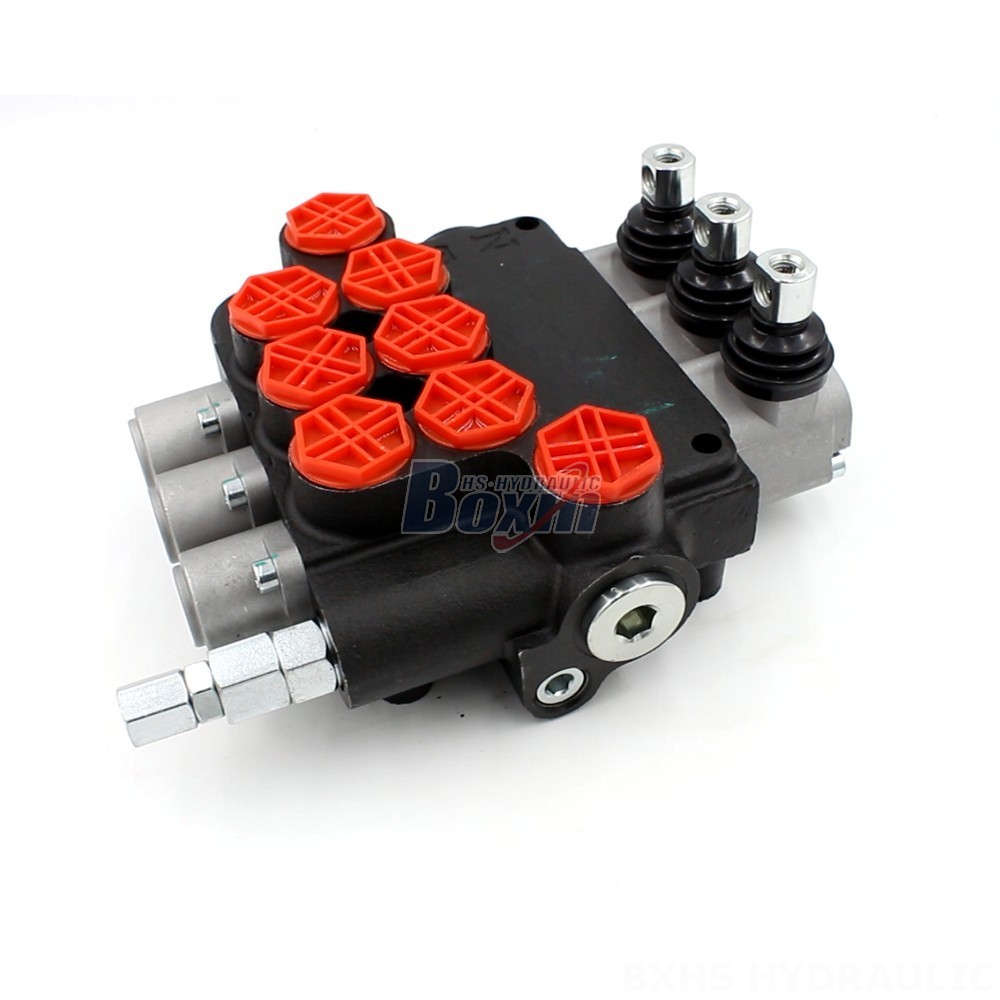

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

Metoda sterowania:Ręczna

Szpula:3-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*23*11

Waga brutto:10.70 kg

Dostępność: W magazynie

1212 Osoby oglądają ten produkt

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

P80-G34-OT Manual 3 Spool Monoblock Directional Valve drawing image

The Hydraulic Flow Control Valve with Relief P80-G34-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in construction, material handling, and industrial vehicles. This manual control, 3-section, monoblock valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi).

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 series hydraulic flow control valve is a 3-spool monoblock directional valve with manual control. It is designed to regulate the flow of hydraulic fluid in various applications such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers. This valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This reliable and durable hydraulic valve is ideal for demanding applications in construction, material handling, and industrial settings.
