Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

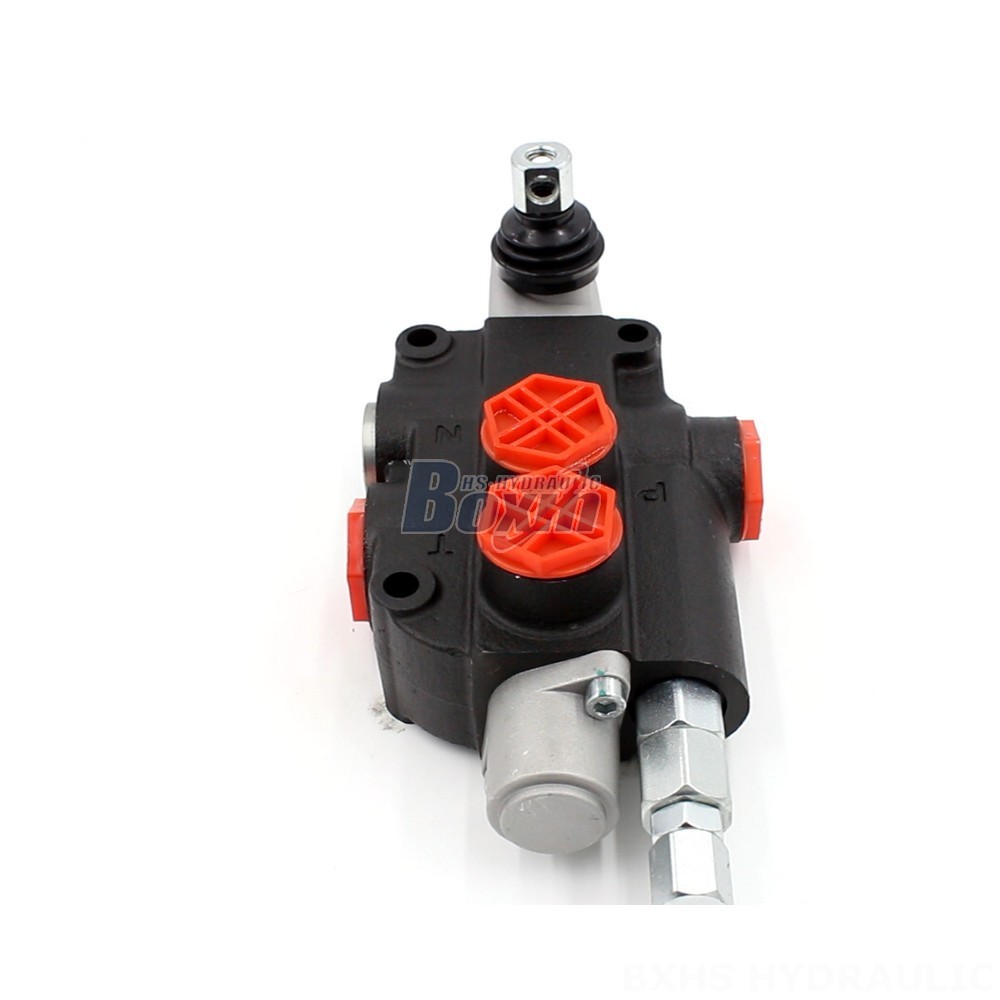

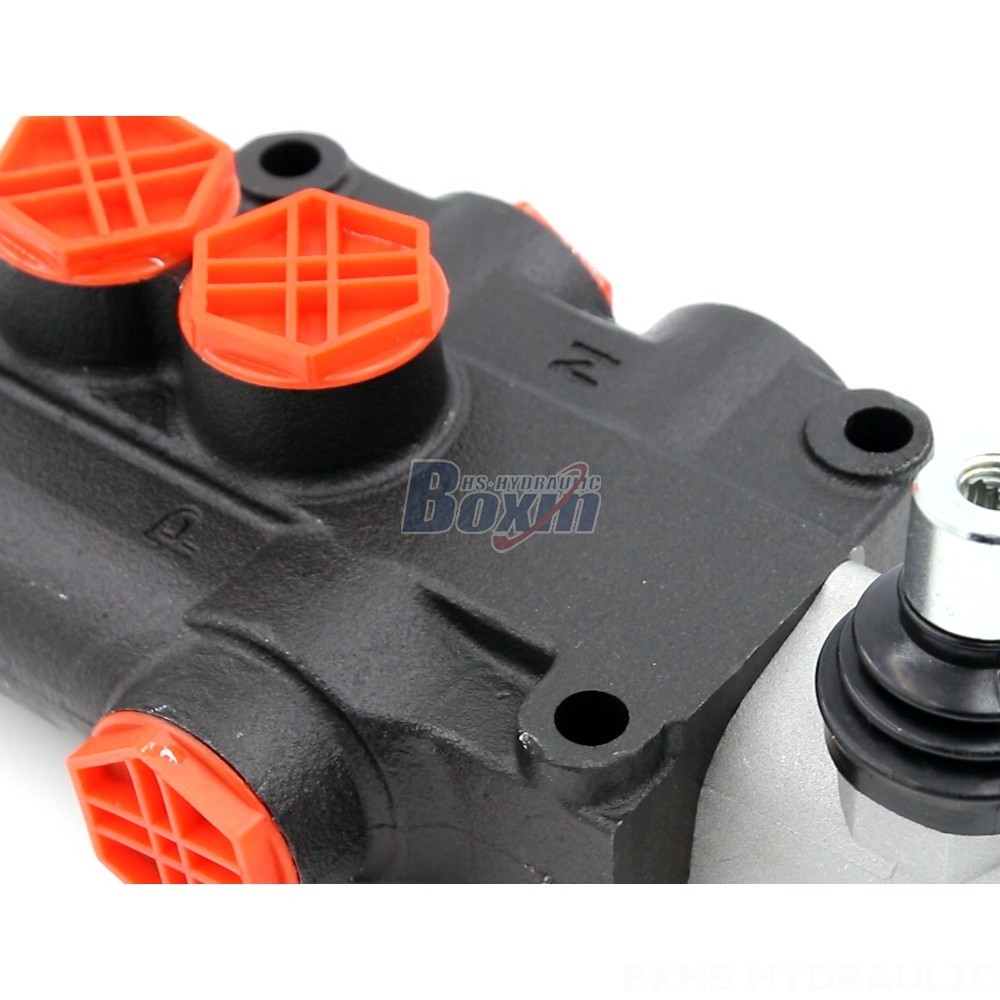

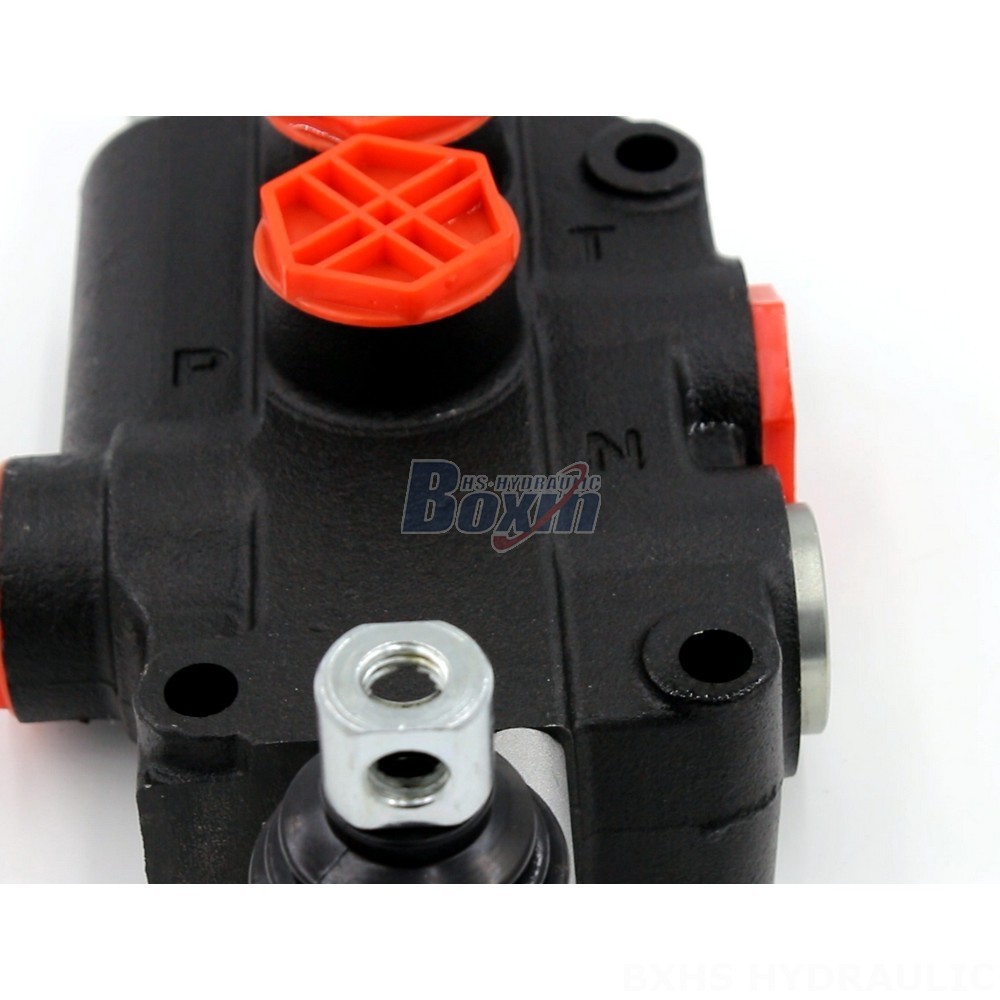

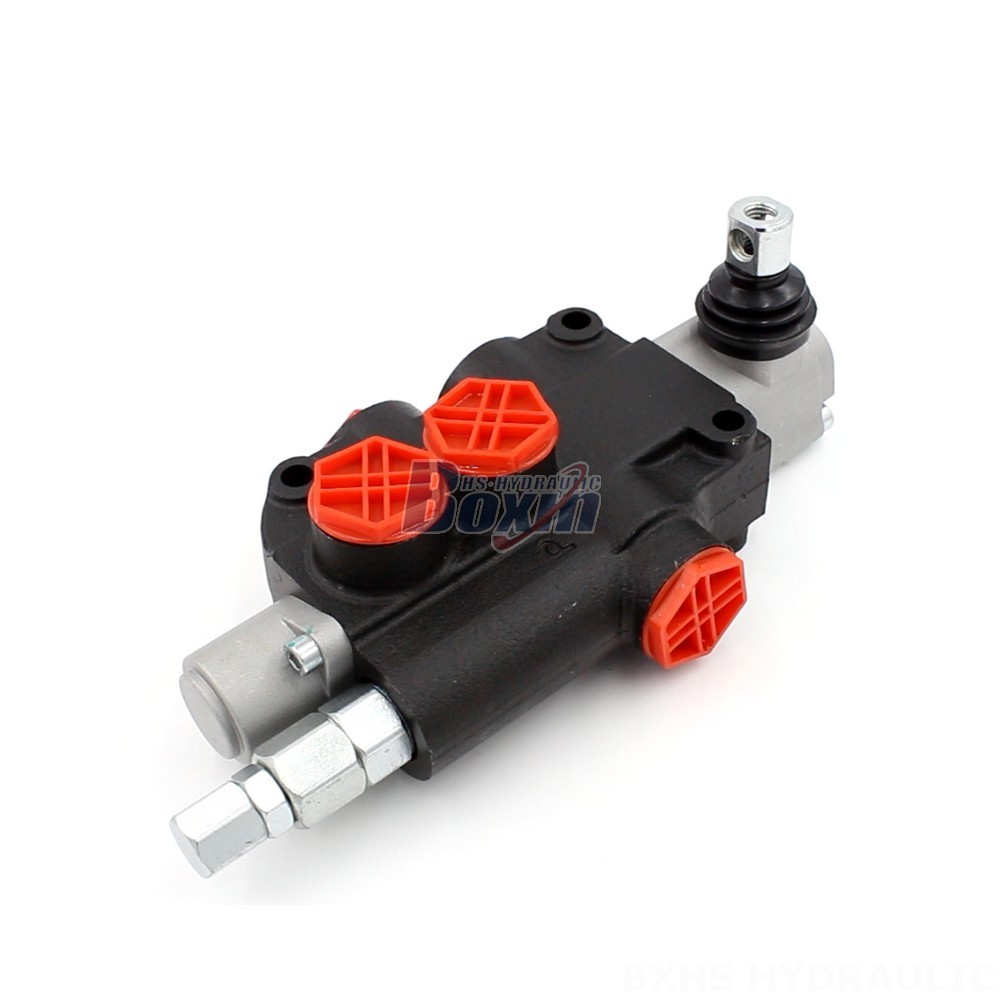

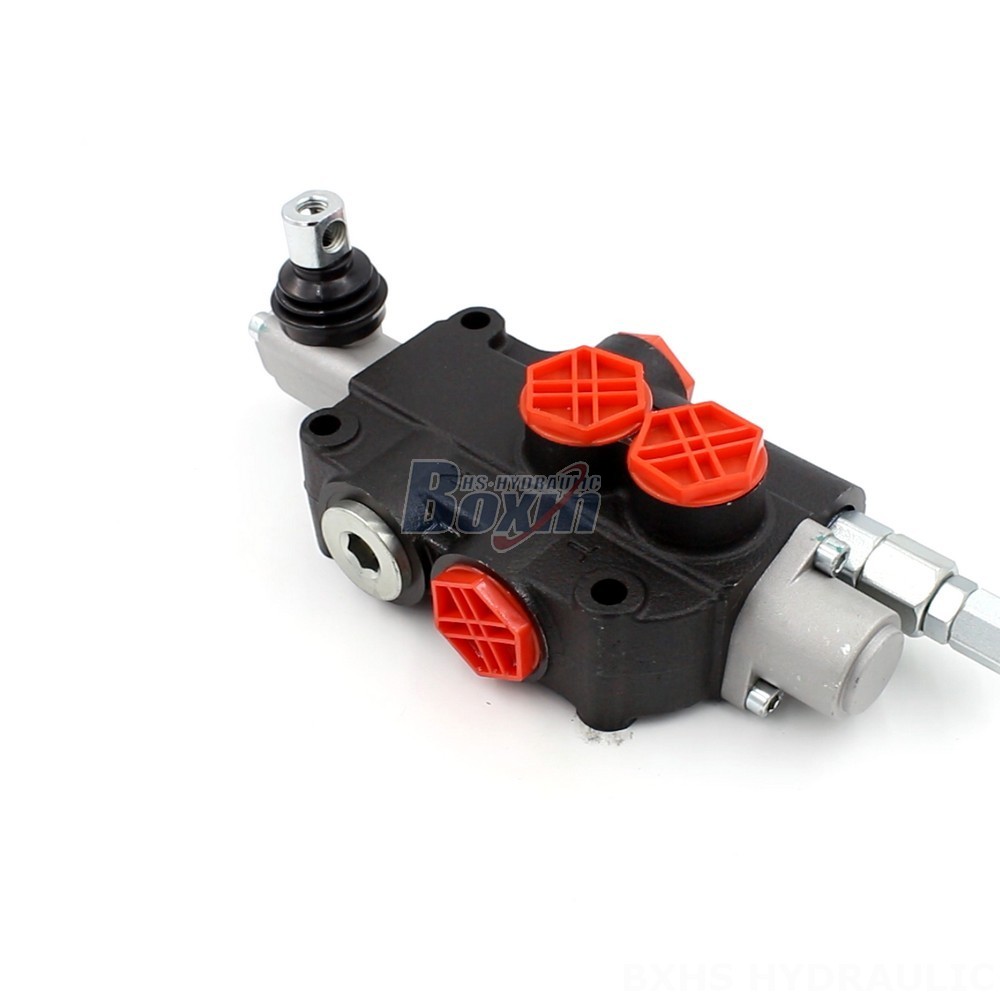

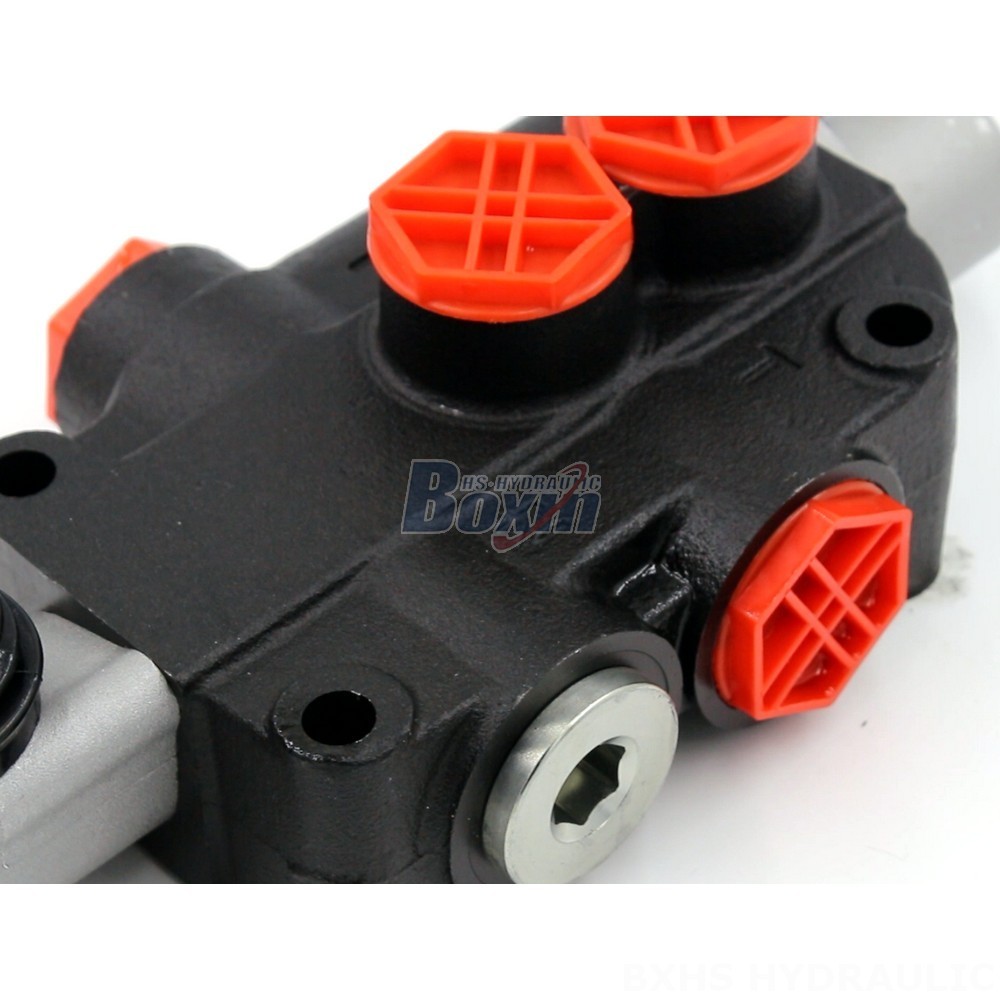

The P80-G34-OT Directional Valve is a high-quality, reliable hydraulic solution for a wide range of applications, including industrial vehicles, material handling, construction, and agriculture. This manual, monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for demanding operations.
| Seria P80 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 80 l/min (21,2 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port wylotowy | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Rozmiar portu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 Series Directional Valve is a manual, monoblock valve designed for reliable operation in various industries. It offers a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The P80-G34-OT is specifically designed for applications in industrial vehicles, material handling, construction, and agriculture. Its robust construction and high performance make it an ideal choice for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, front-end loaders, harvesters, bale wrappers, backhoes, seeding machines, balers, wood splitters, skip loaders, and hook-loaders.
