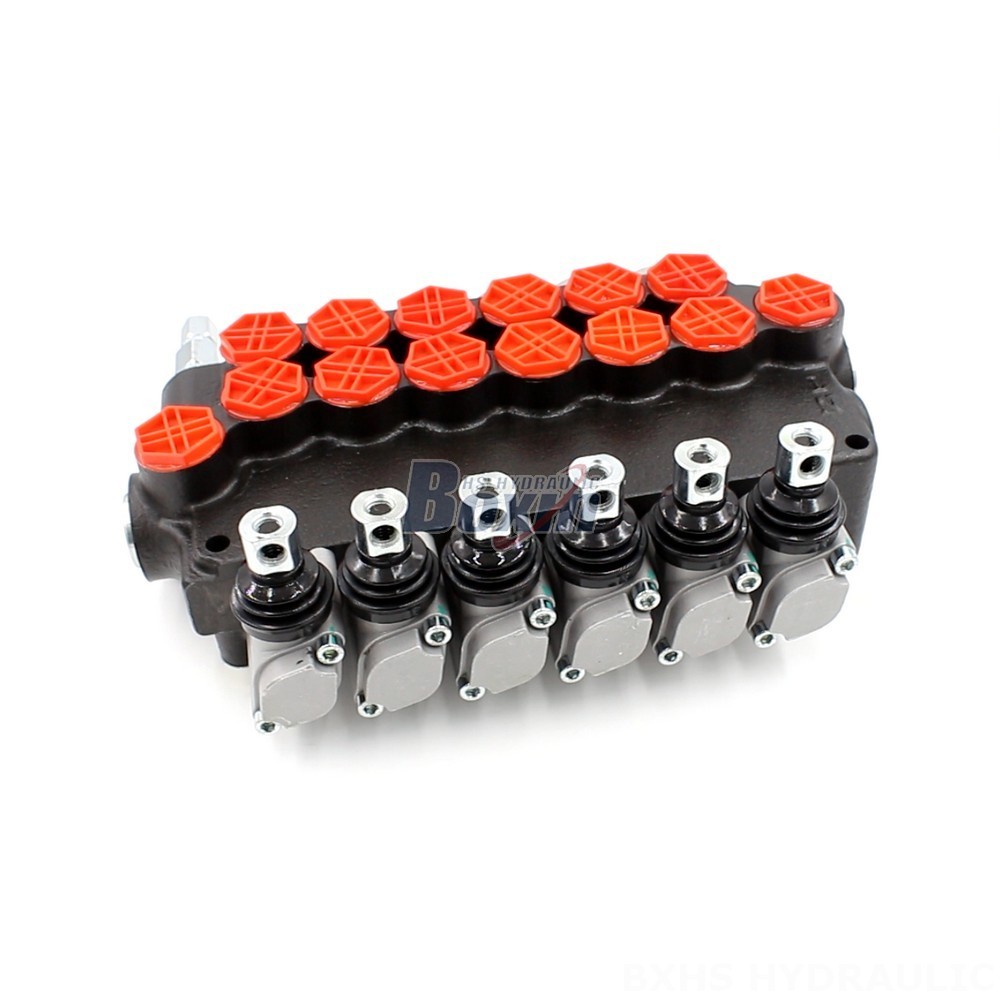

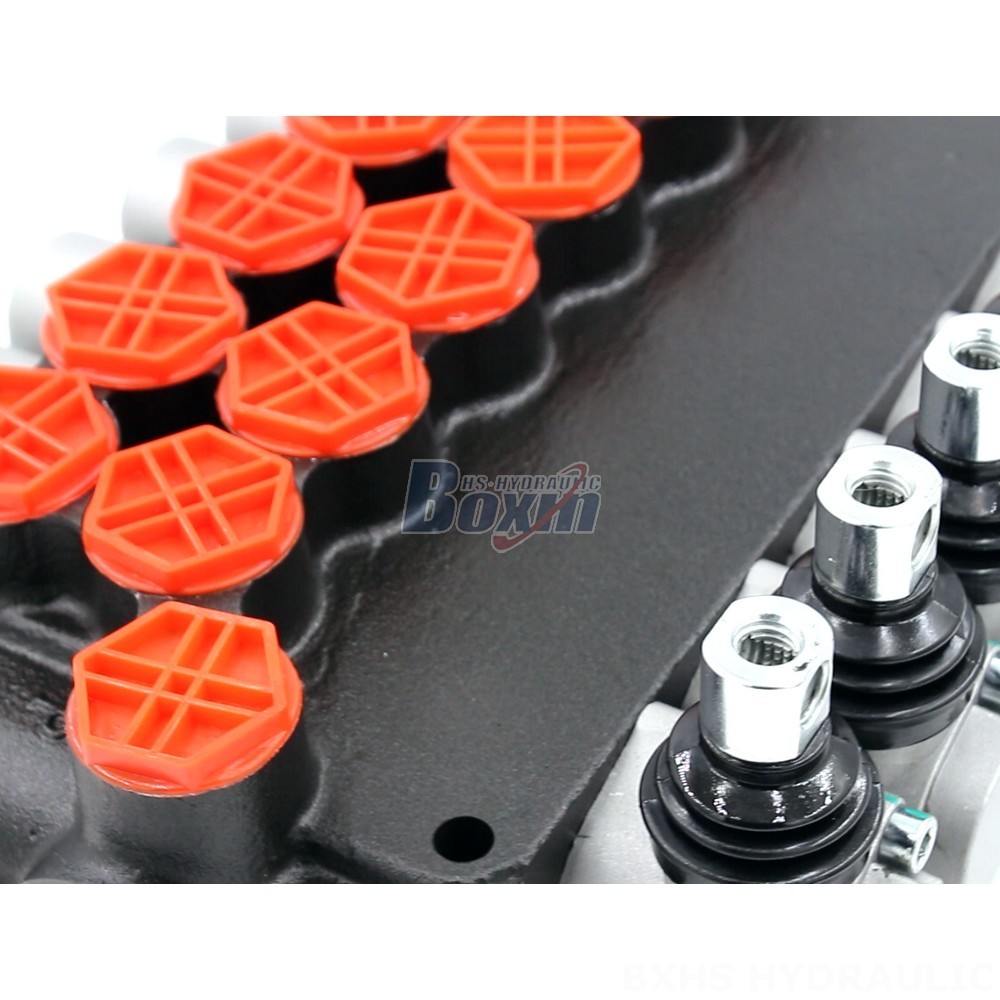

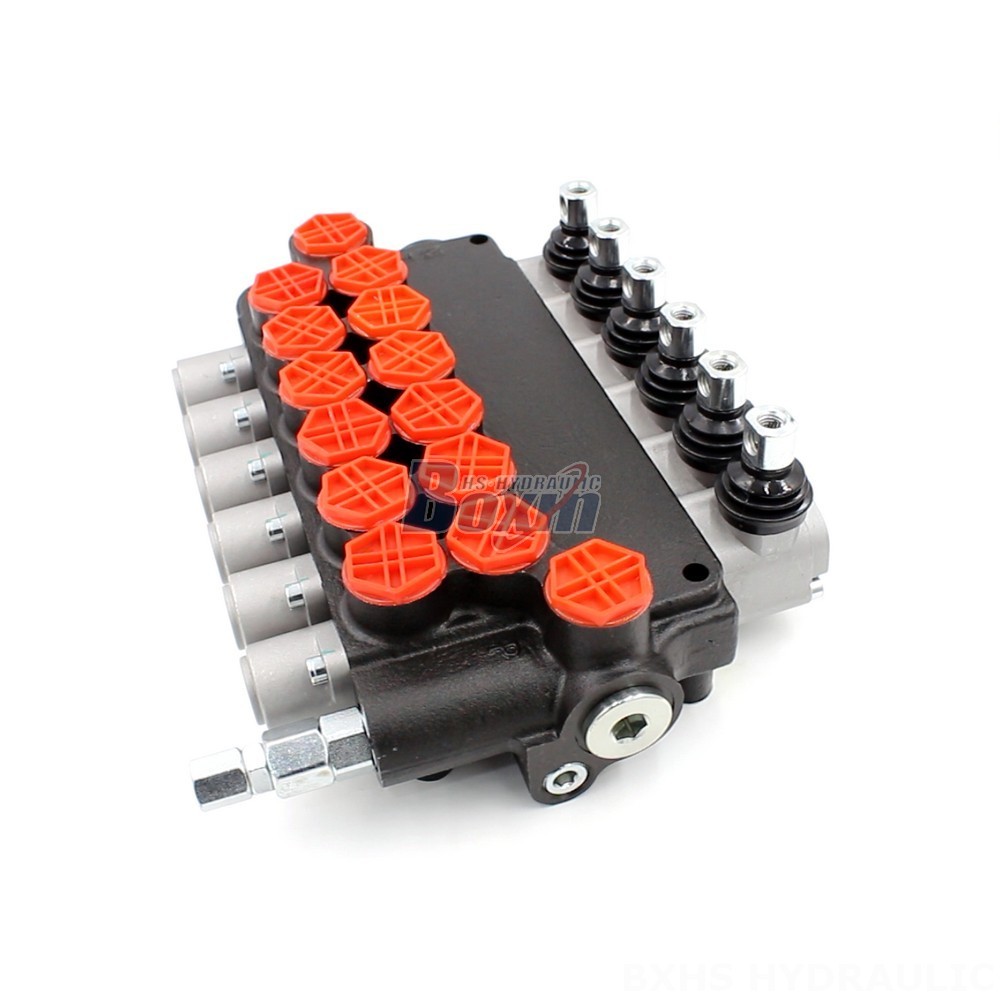

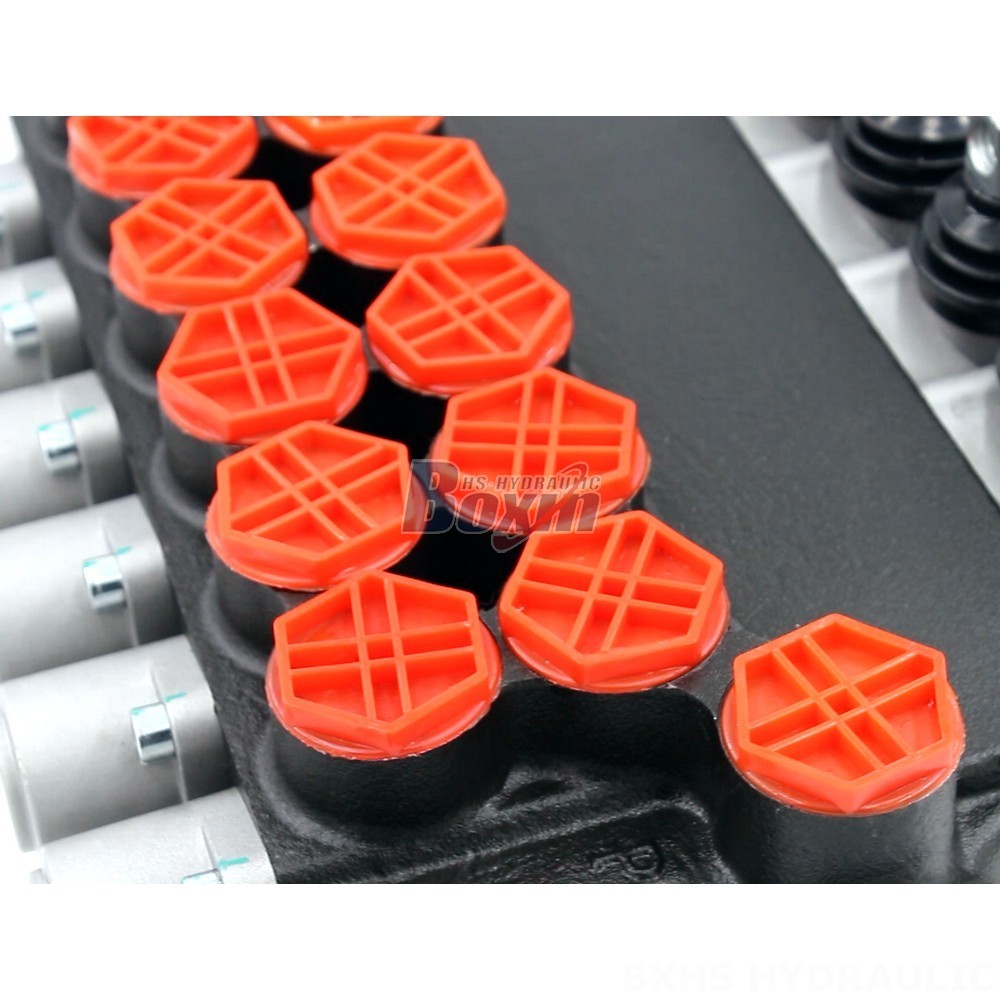

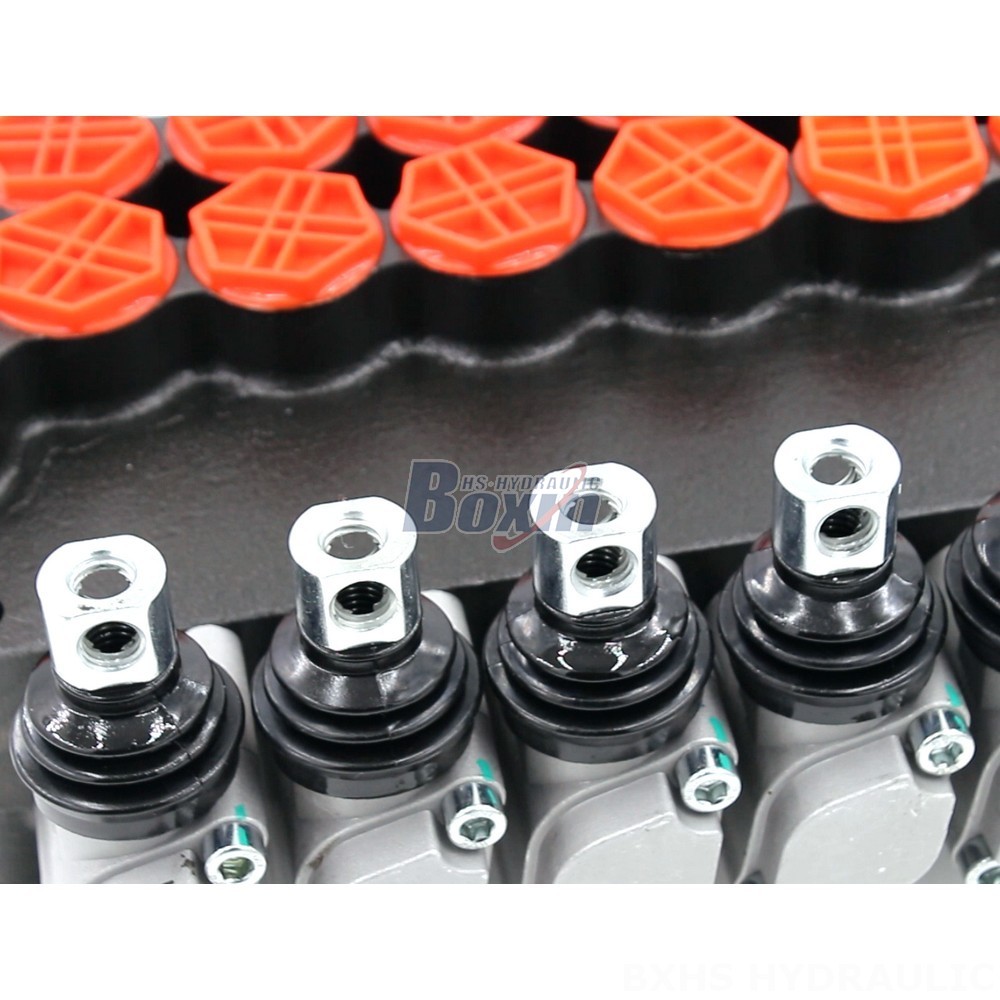

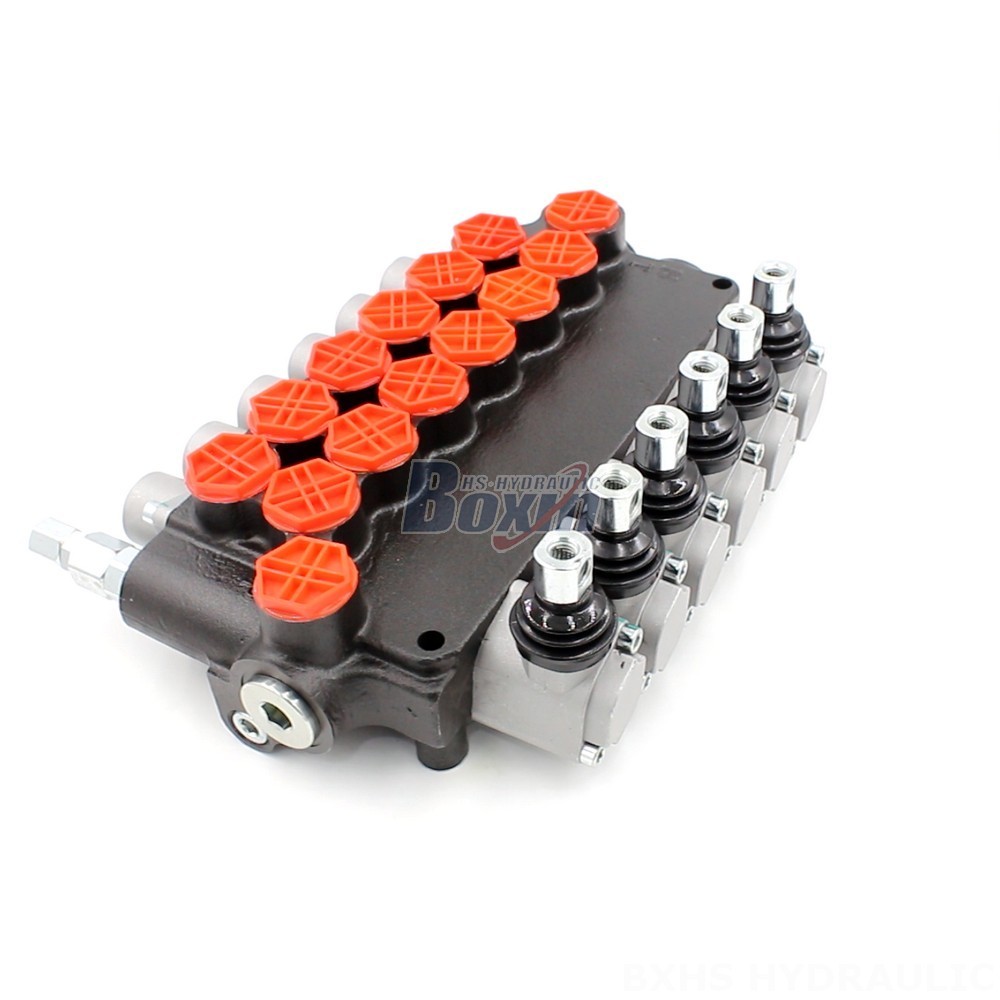

P80-G34 Hydraulic Directional Valve: Factory Direct Supply & Global Distribution

Metoda sterowania:Ręczna

Szpula:6-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*36*11

Waga brutto:18.60 kg

Dostępność: W magazynie

835 Osoby oglądają ten produkt

P80-G34 Hydraulic Directional Valve: Factory Direct Supply & Global Distribution

P80-G34 Hydraulic Directional Valve: Factory Direct Supply & Global Distribution

P80-G34 Hydraulic Directional Valve: Factory Direct Supply & Global Distribution drawing image

Our P80-G34 Hydraulic Directional Valve is a high-performance valve designed for a wide range of applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for demanding applications in various industries. The valve features a robust construction and reliable performance, ensuring long-lasting operation. As a leading manufacturer, we offer factory-direct supply and global distribution to meet your needs.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-G34 Hydraulic Directional Valve is a 6-section, monoblock valve with manual control. It has a wide operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valve is suitable for use in various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. Some common applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. As the manufacturer, we offer factory-direct supply and wholesale pricing, ensuring competitive pricing and timely delivery. Our commitment to quality and customer satisfaction makes us the preferred choice for hydraulic component needs.
