Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

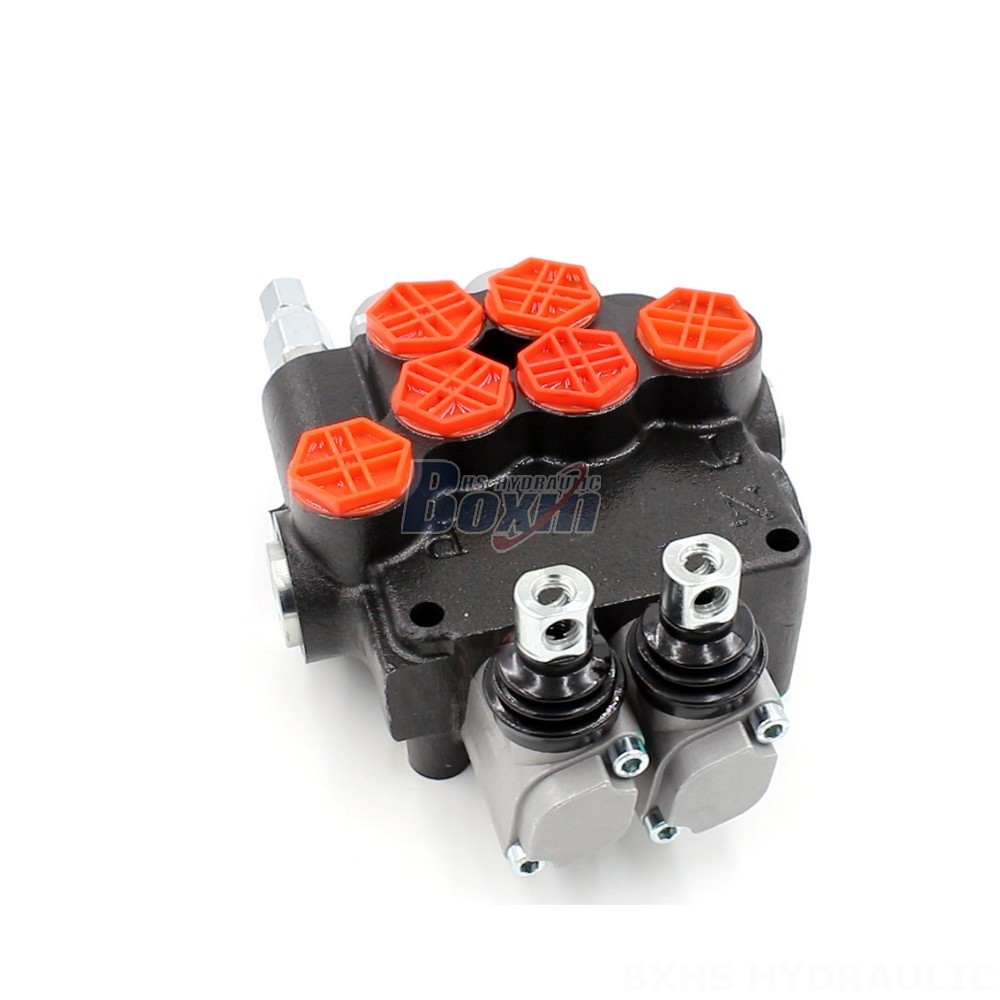

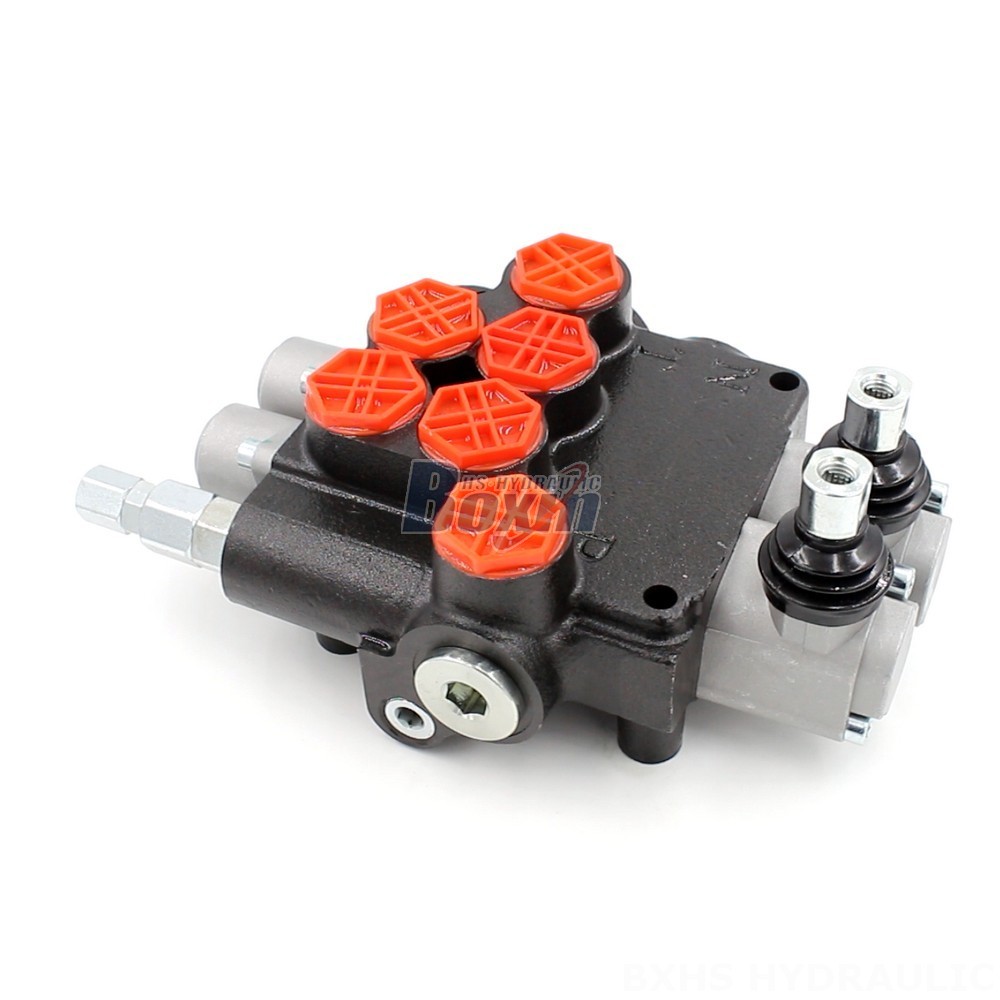

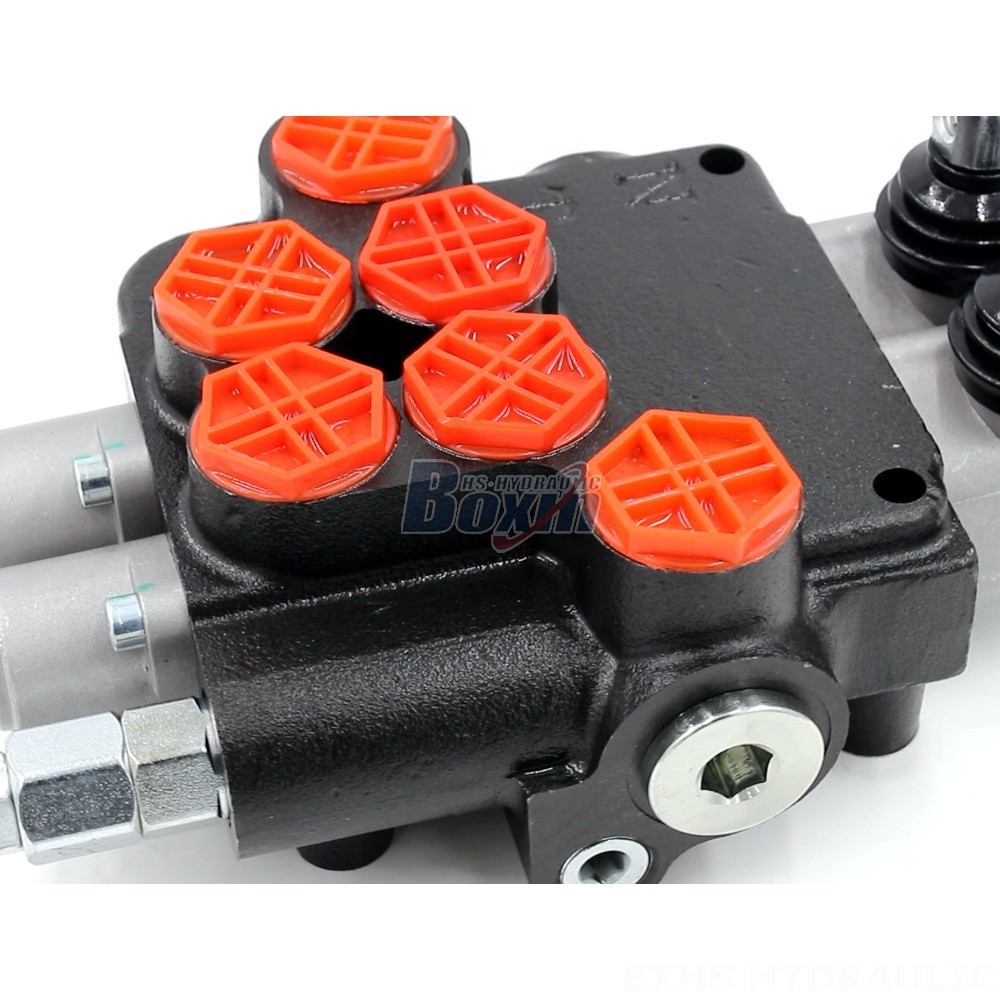

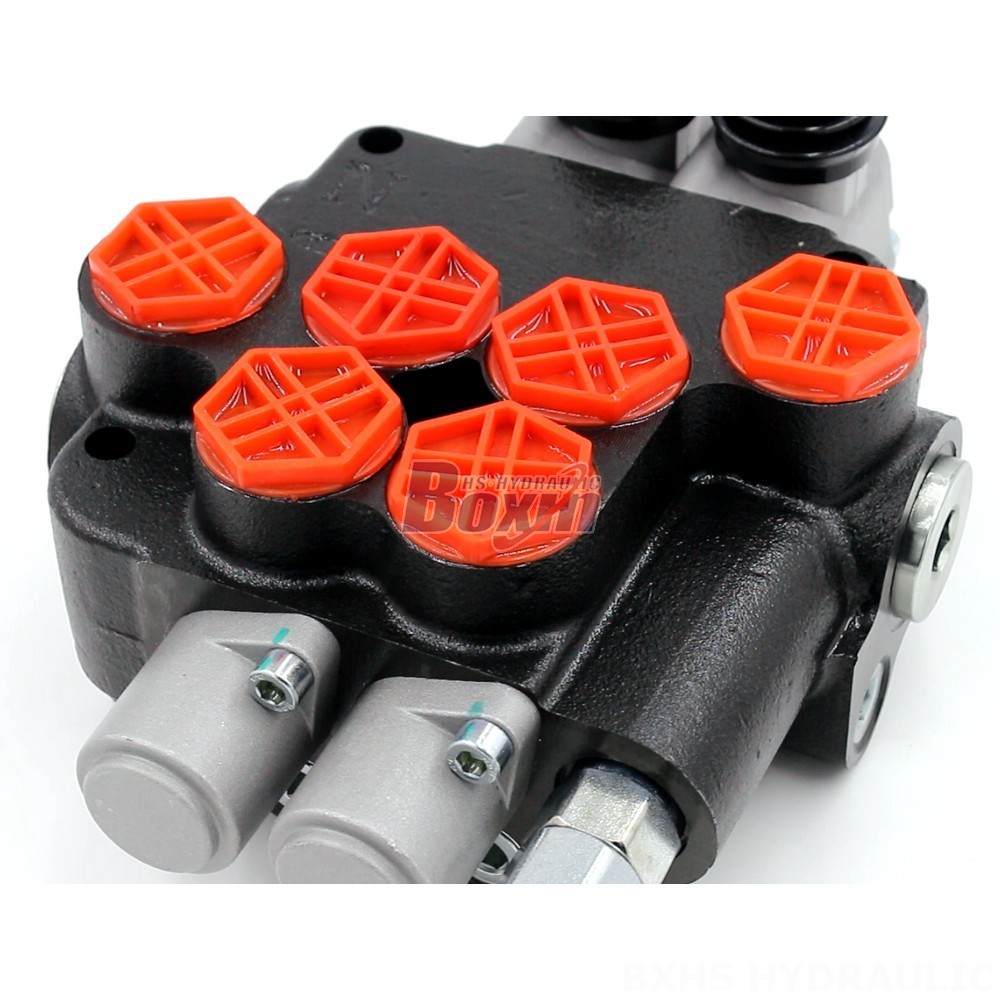

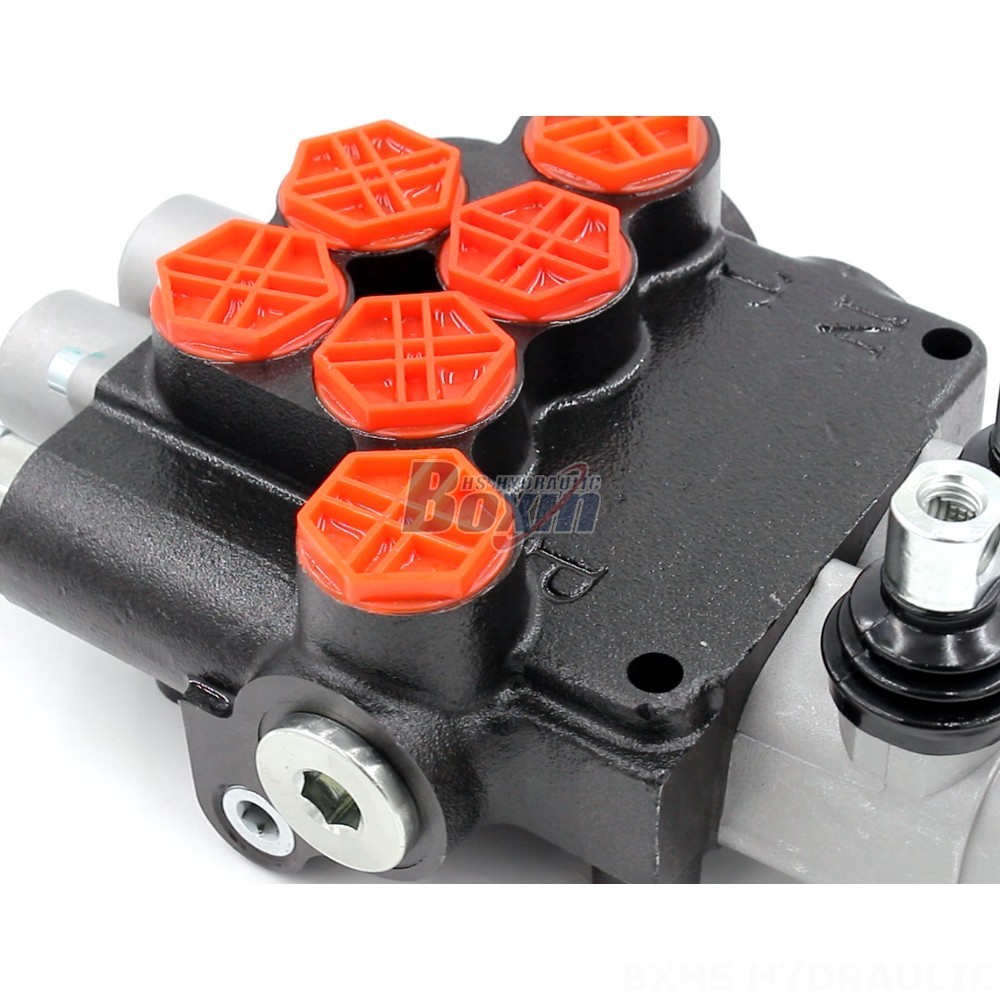

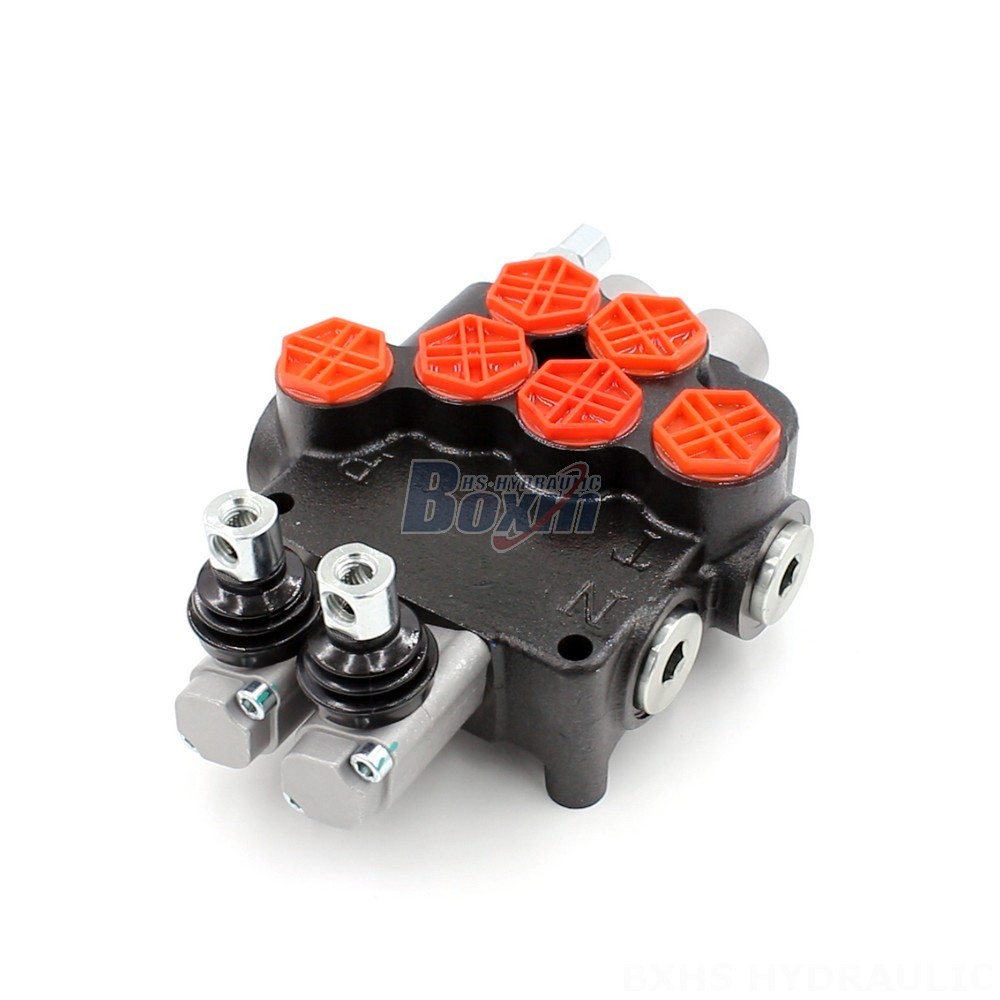

The P80-G34-2OT 2 Spool Directional Valve is a wireless remote control hydraulic valve designed for material handling, construction, agriculture, and industrial vehicles. It offers a robust construction with a high flow rate and pressure rating, making it suitable for various applications.
| Seria P80 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 80 l/min (21,2 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port wylotowy | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Rozmiar portu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G34-2OT 2 Spool Directional Valve is a high-performance hydraulic valve featuring a wireless remote control system. This valve is specifically designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. It boasts a 2-section monoblock construction with a 2-spool design, offering precise control and reliable operation. With a maximum flow rate of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), this valve can handle demanding tasks. Its operating viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) ensures optimal performance across various temperature conditions. This valve is suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. It offers a reliable and efficient solution for controlling hydraulic systems in various industrial applications.
